Heretic Studio LED Series 6 Light Bars, Mini Size – Bottom Mount

Turn Night Into Day with These Heretic Compact Light Bars, 6-WATT CREE LED’s Across Entire Bar, CNC of Solid 6061 Billet Aluminum, Made In America Brightness

All our Light Bars and Light Pods are 6-WATT CREE Equipped.


Made from 6061 billet aluminum.

LED Bar Body Color comes in Black

LED Light Bezel Options Anodized Black, Raw Aluminum (Choose if you would like to powder/paint it yourself)


All Light Bars Carry a 30-Day Satisfaction Guarantee and a Lifetime Warranty

Sold Individually, Increase Quantity To Order Multiple Bars.

Ordering Options:

  1. Bar Length – Choose Size of Bar
  2. Bezel Anodizing – Black or Raw Billet Aluminum
  3. Light Beam Pattern – (See below for Descriptions)
  4. Add On Amber Lens – Comes with Clear Lens, Add On Amber (See below for Descriptions)
  5. Add Wire Harness – Option For Direct Plug and Play install.

LED Sizes and Specs

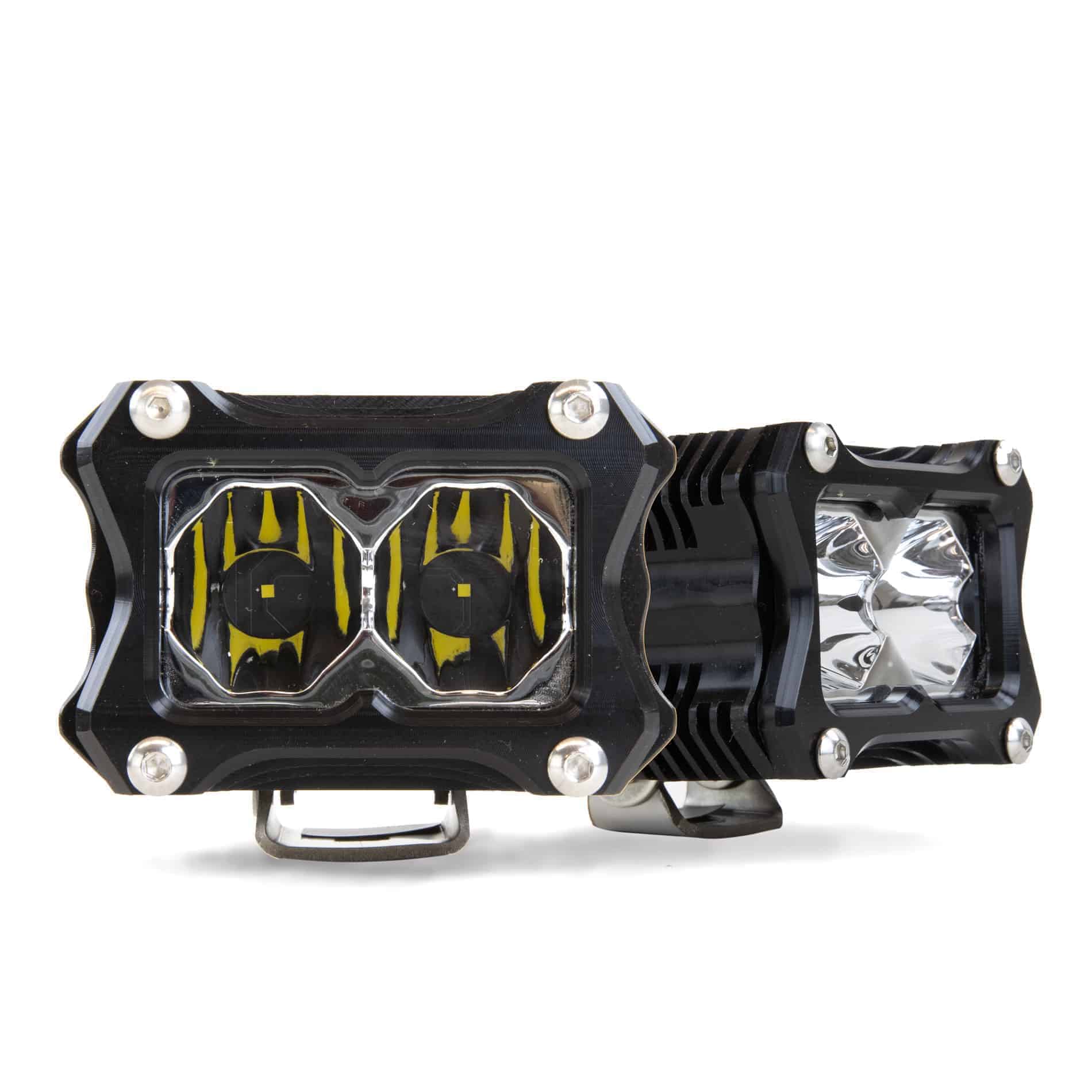

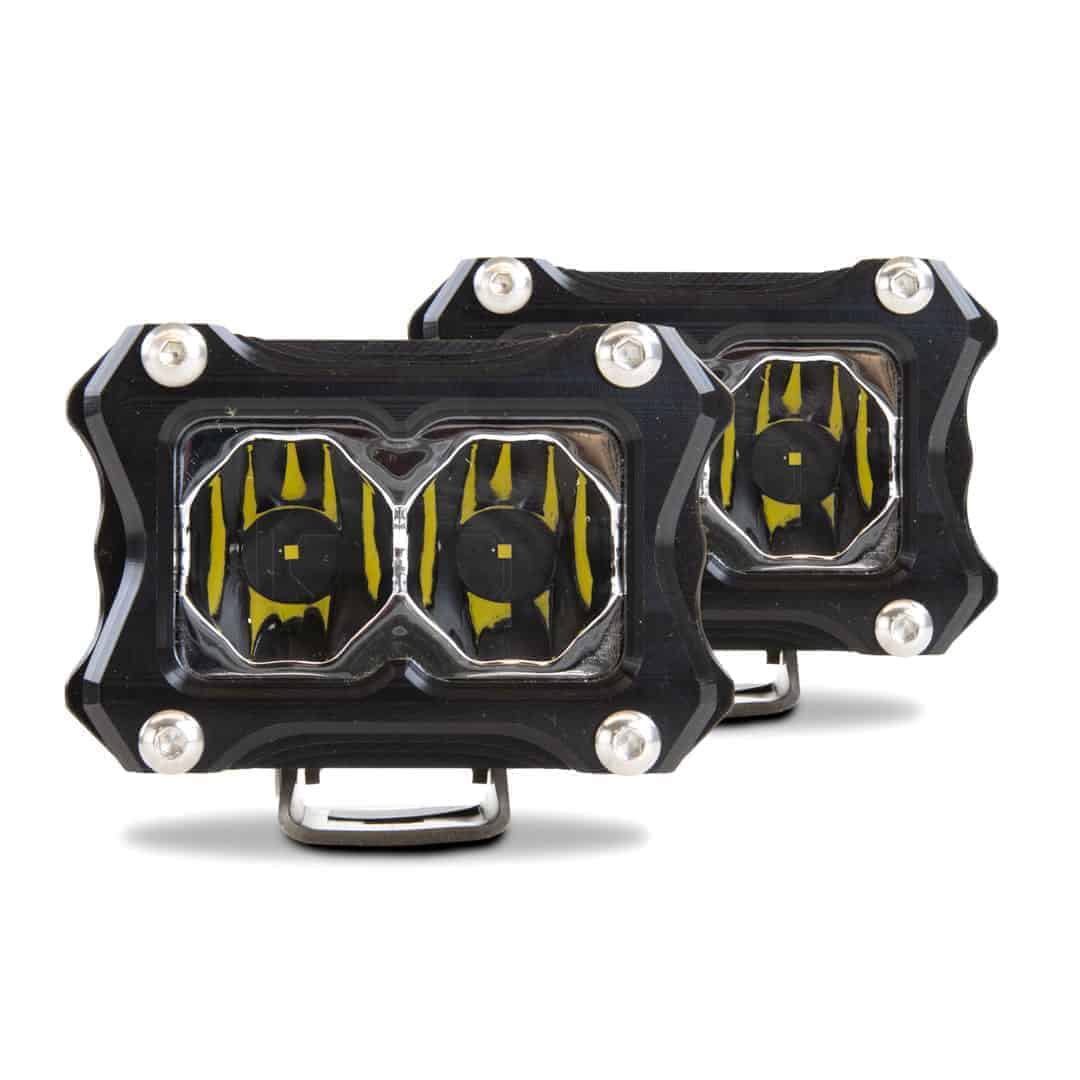

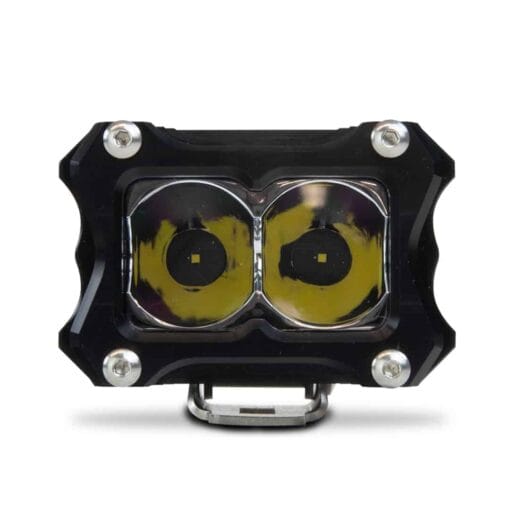

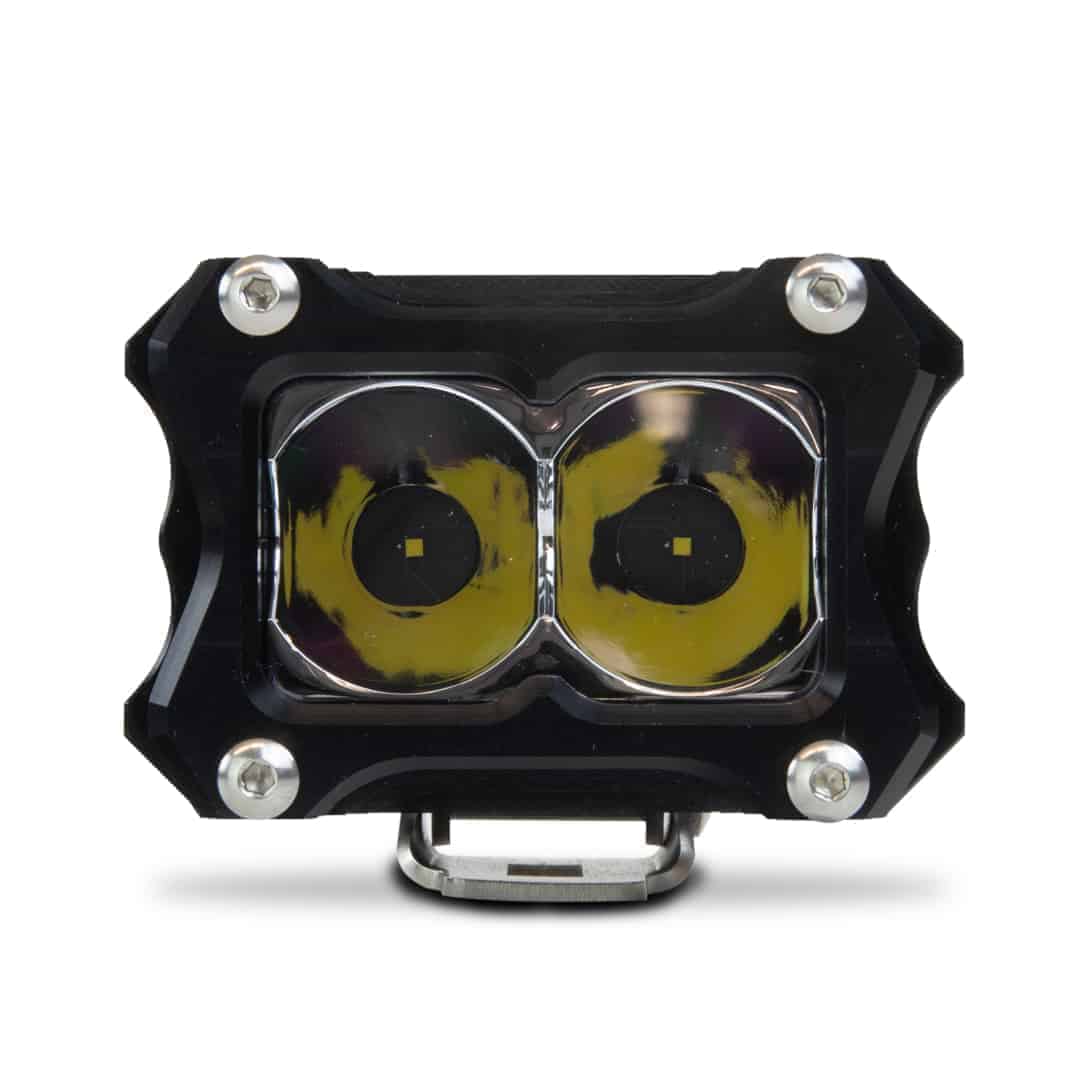

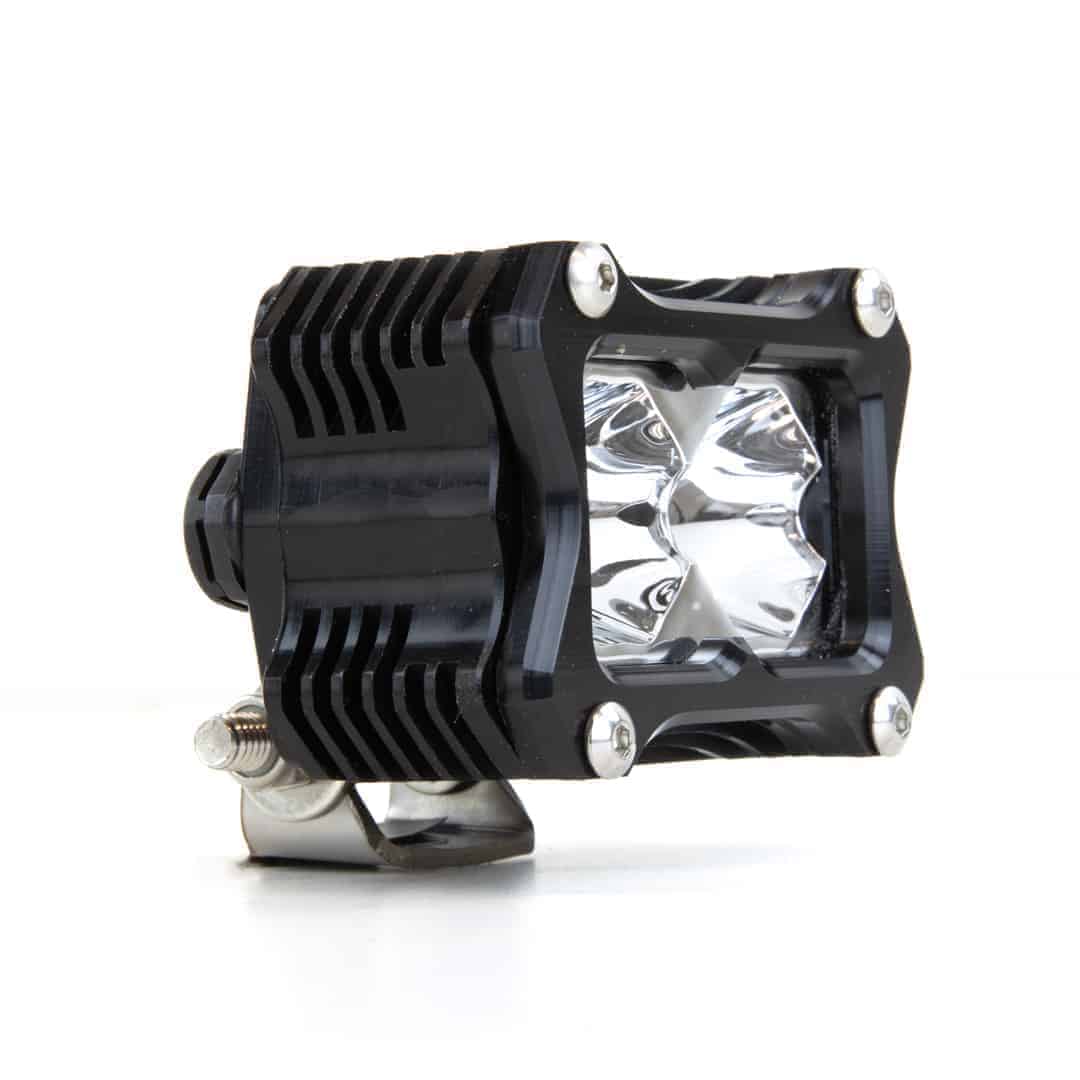

2″ Heretic Series 6 Version

  • (2) 6-Watt CREE LED
  • Full 12 Watts, Driven at 100%
  • Lumens: 1452
  • 6061 Billet Aluminum Housing
  • Actual Size: 3″ x 2.1″ x 2.4″
  • IP68 Rated

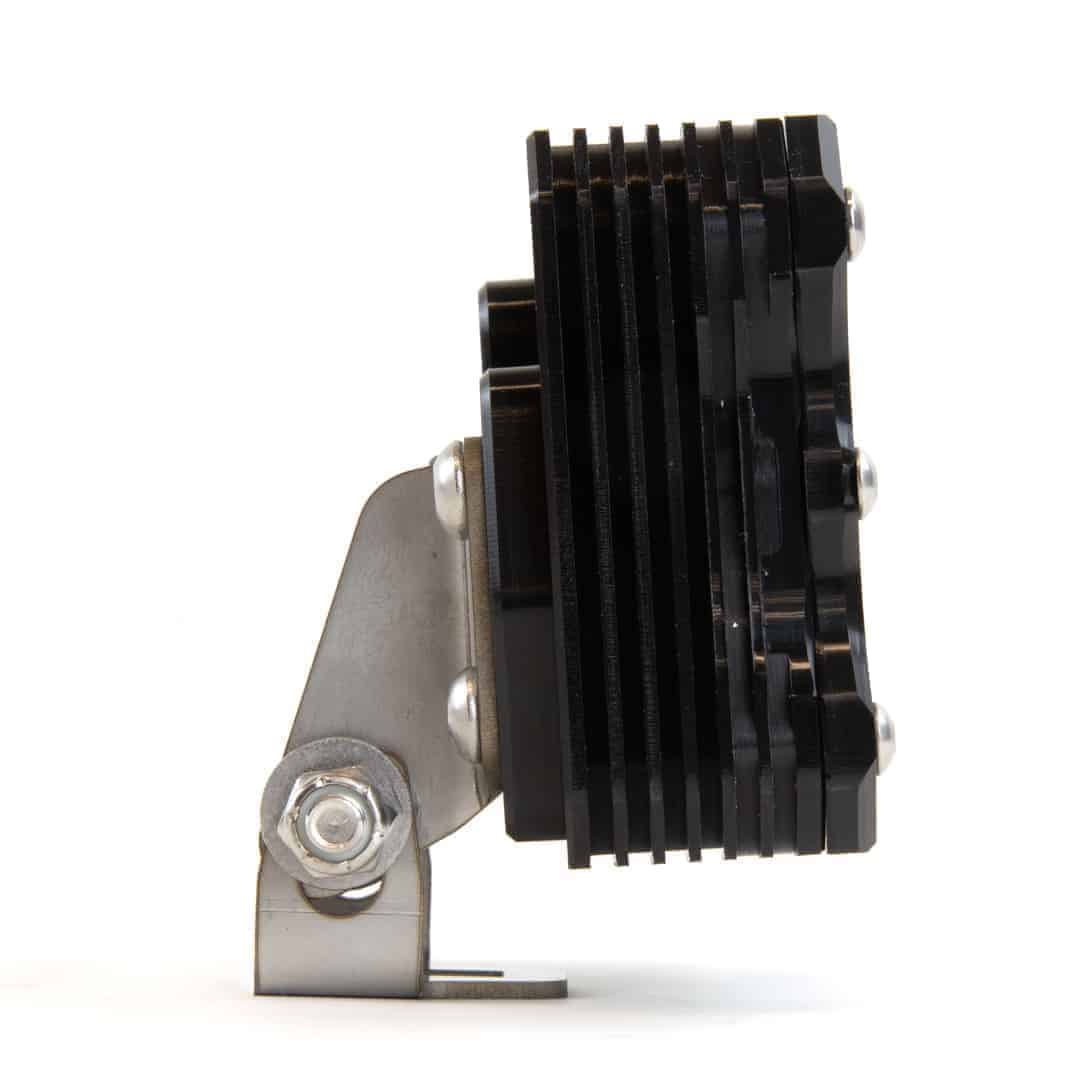

  • Stainless Steel Mounts
  • Optional Amber Lens Available
  • Weight 4.75 lbs.
  • Peak Amps: 0.8 at 13.8V

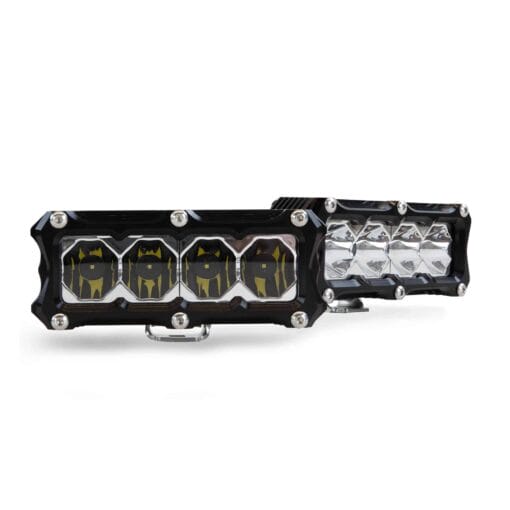

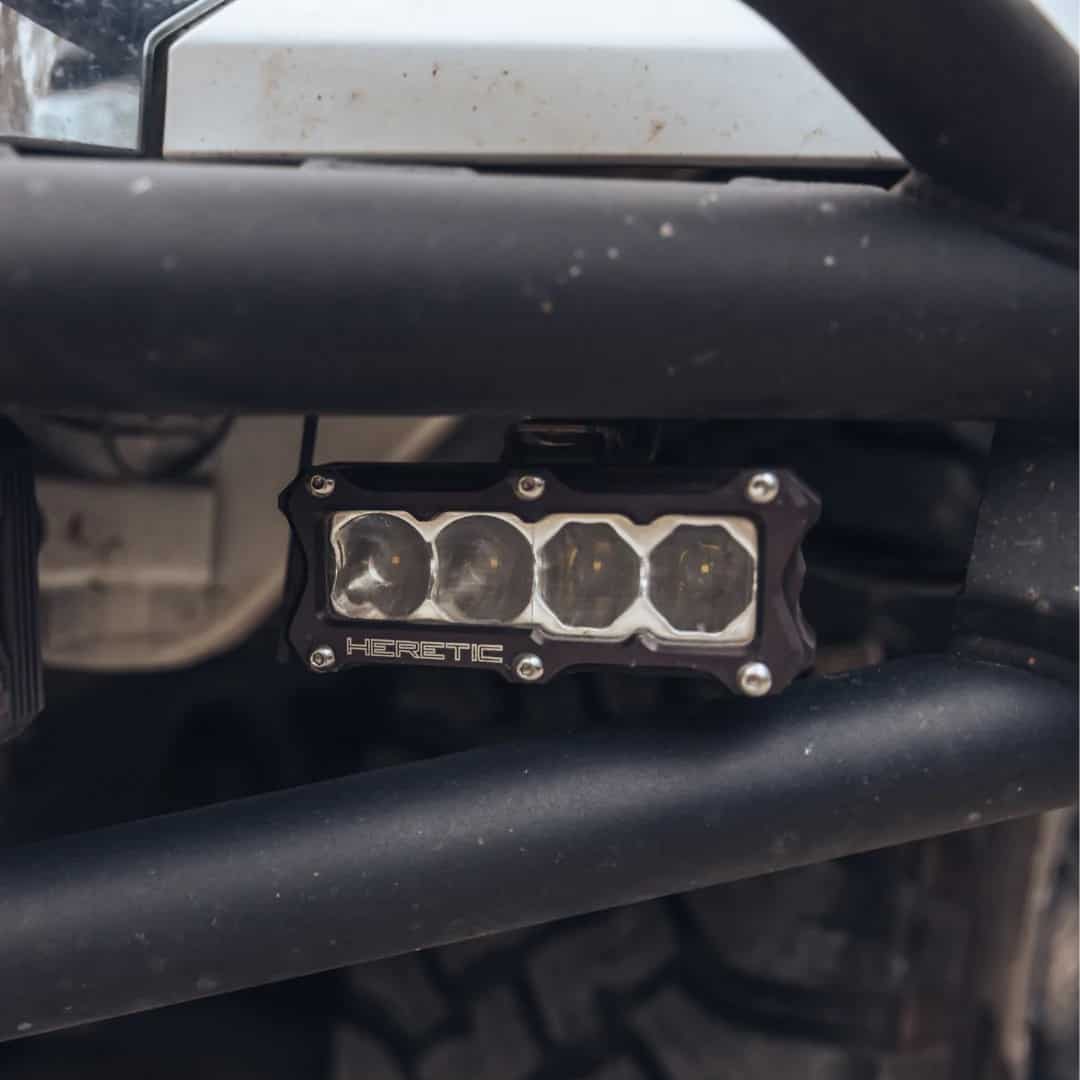

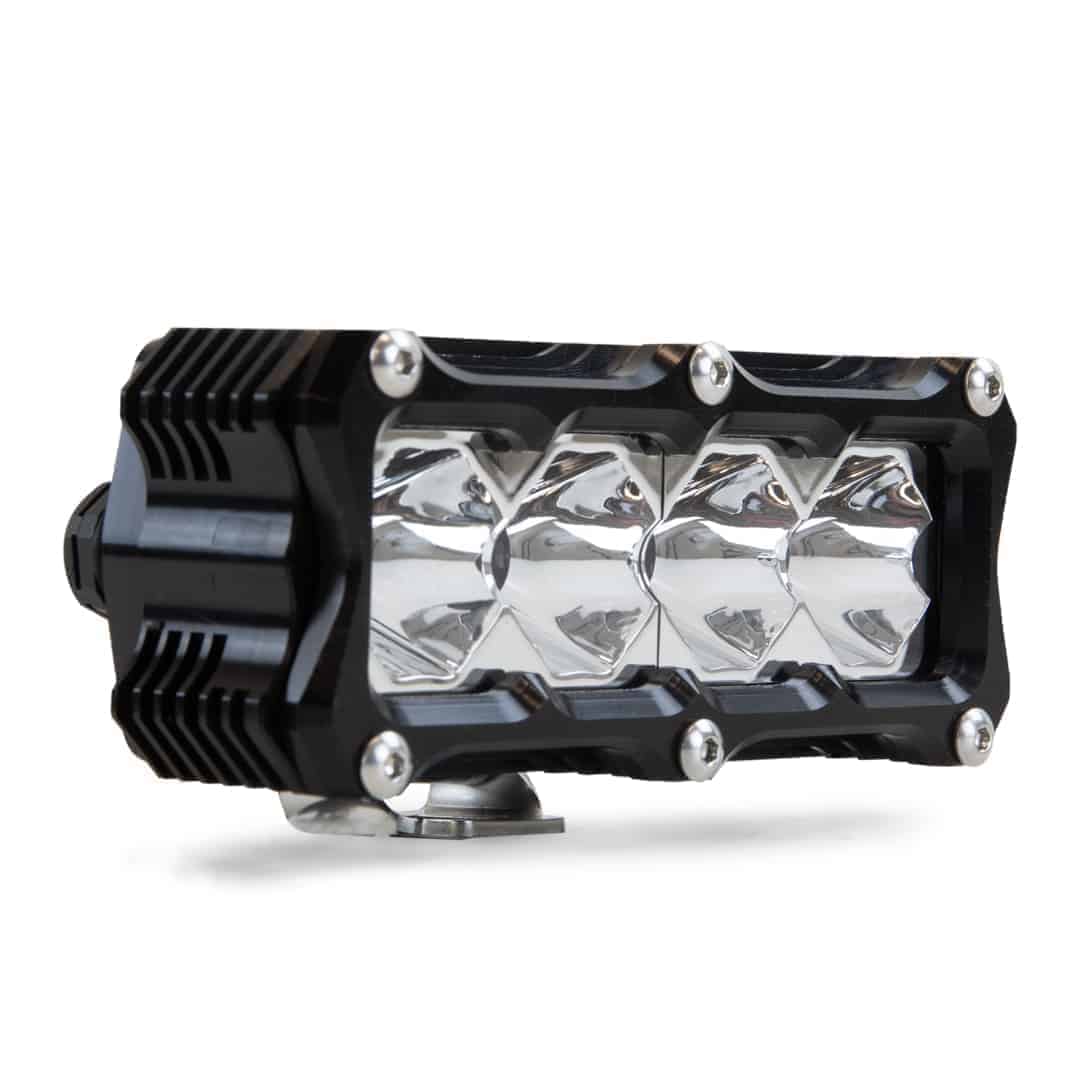

4″ Heretic Series 6 Version

  • (4) 6-Watt CREE LED
  • Full 24 Watts, Driven at 100%
  • Lumens: 2904
  • 6061 Billet Aluminum Housing
  • Actual Size: 5″ x 2.1″ x 2.4″
  • IP68 Rated
  • Stainless Steel Mounts
  • Optional Amber Lens Available
  • Weight 1.75 lbs.

LED Patterns

E Flood Pattern


  • The difference between the two beam patterns comes down to a question of depth versus width.
  • Spotlight beams are much more focused and narrow, producing a light beam that illuminates objects that are longer distances away but not providing as much in the way of side to side illumination.
  • Generally, spotlight beam patterns are preferred for on-road driving.


  • Opposite to spotlights beams, floodlight beams have a much wider angle of illumination, but lack the ability to light up far away objects. Floodlights are usually the better choice for lighting up a worksite or for off-roading where brightly illuminating hazards on the side of the road is crucial.

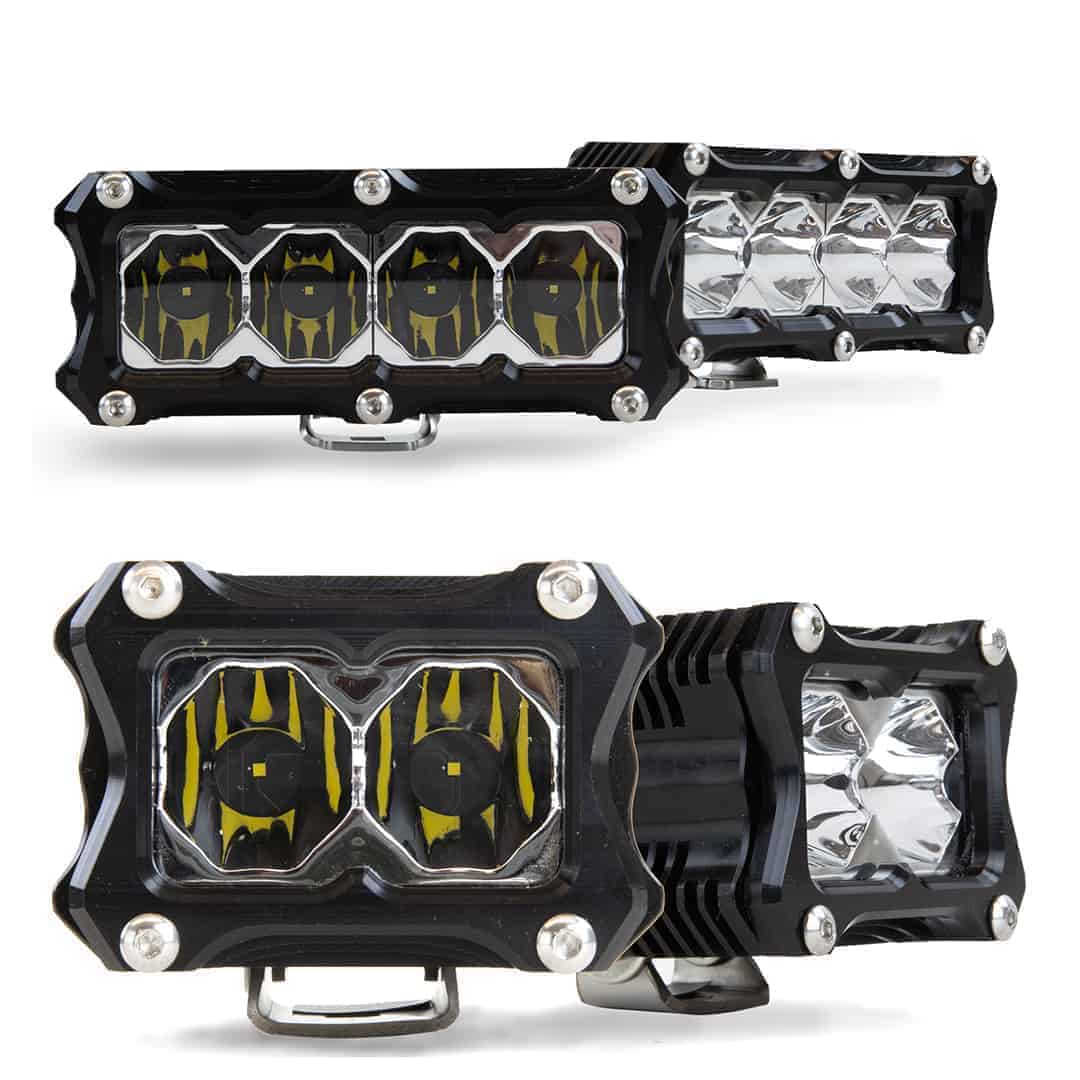

  • If you aren’t sure which beam pattern is the best for you, or if you are going to be in situations where both are preferred, then perhaps you should consider an LED light bar that is made up of a combination of both bulbs.
  • Having both spot and flood beams gives you full illumination of far away objects and objects that are off to your side, making combination light bars a highly popular choice.

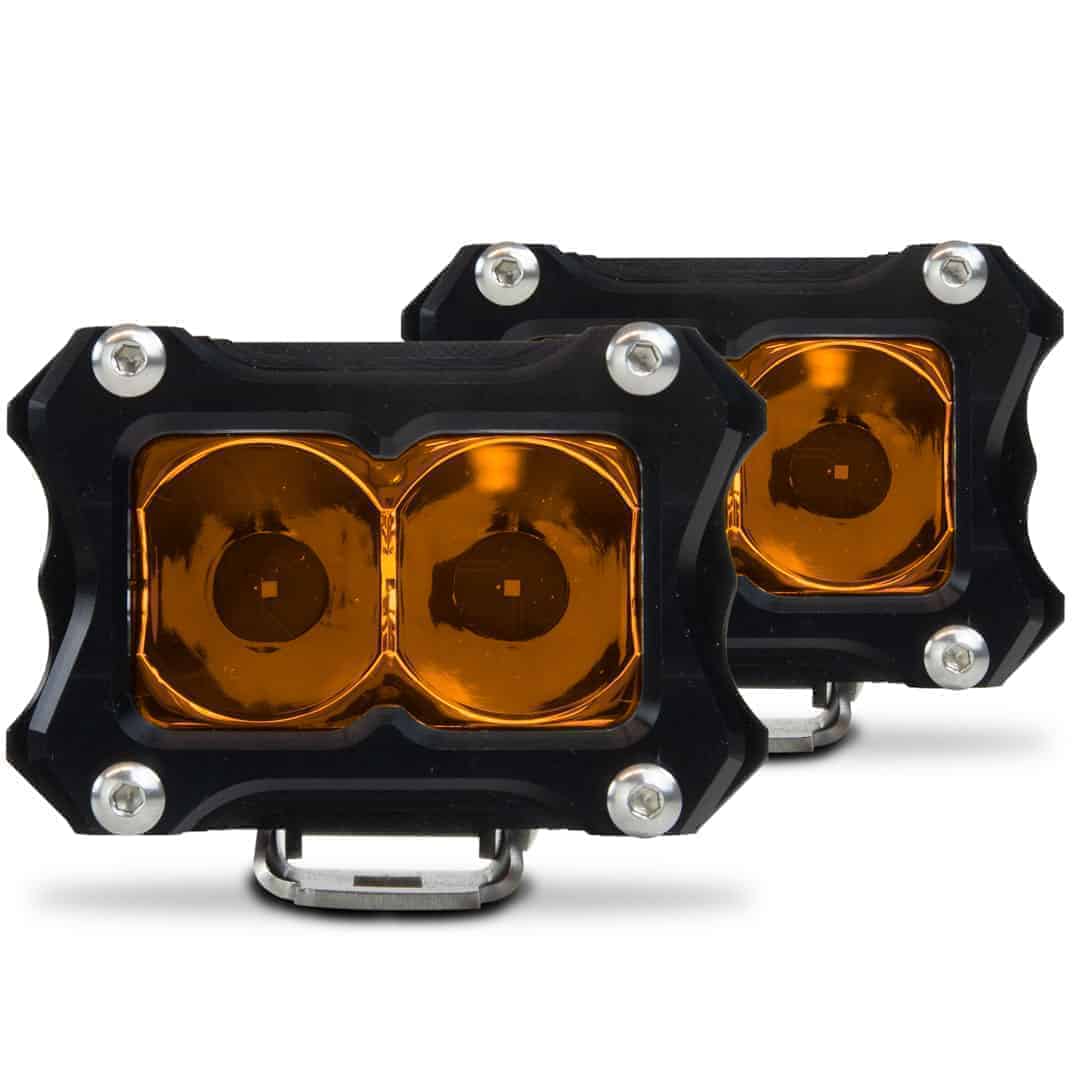

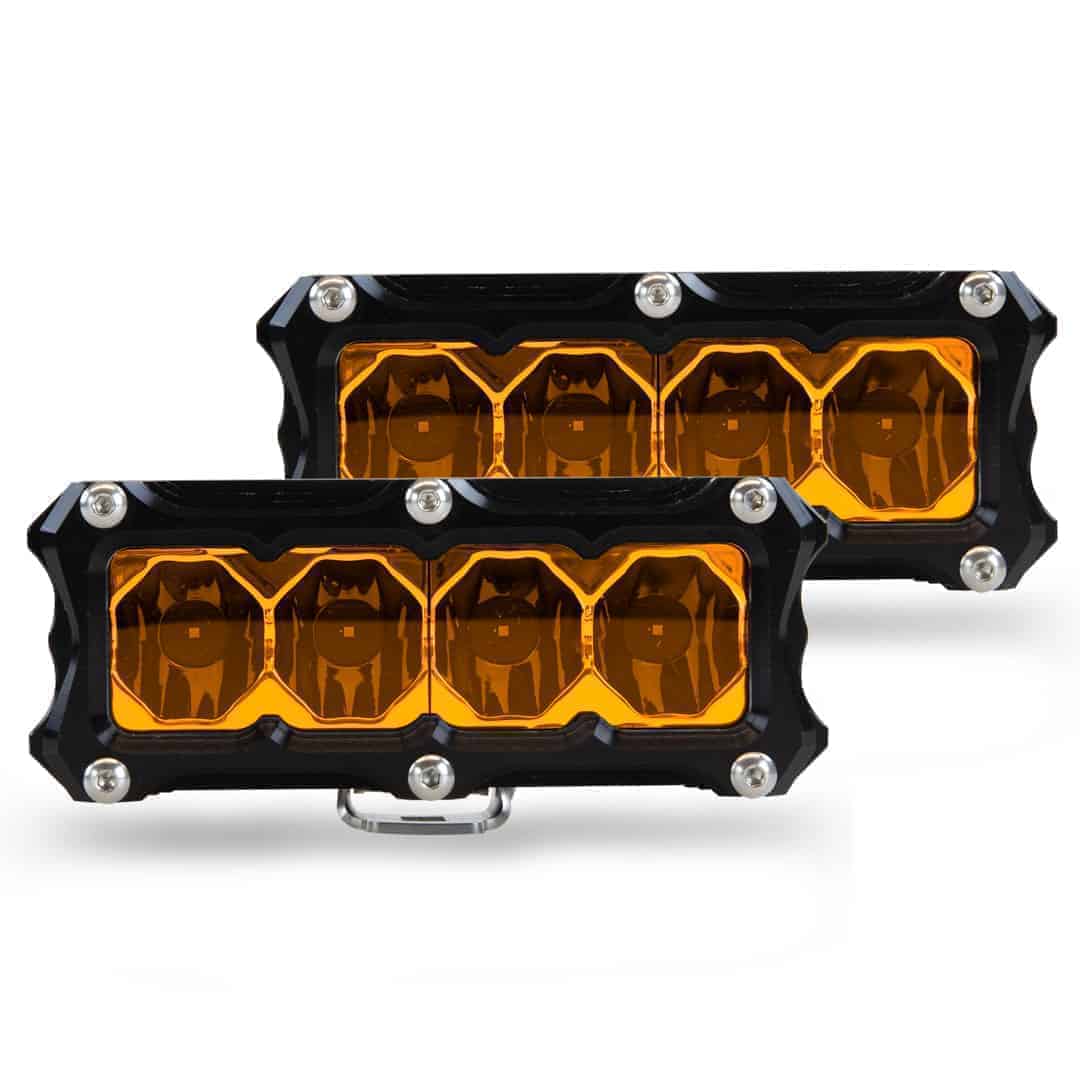

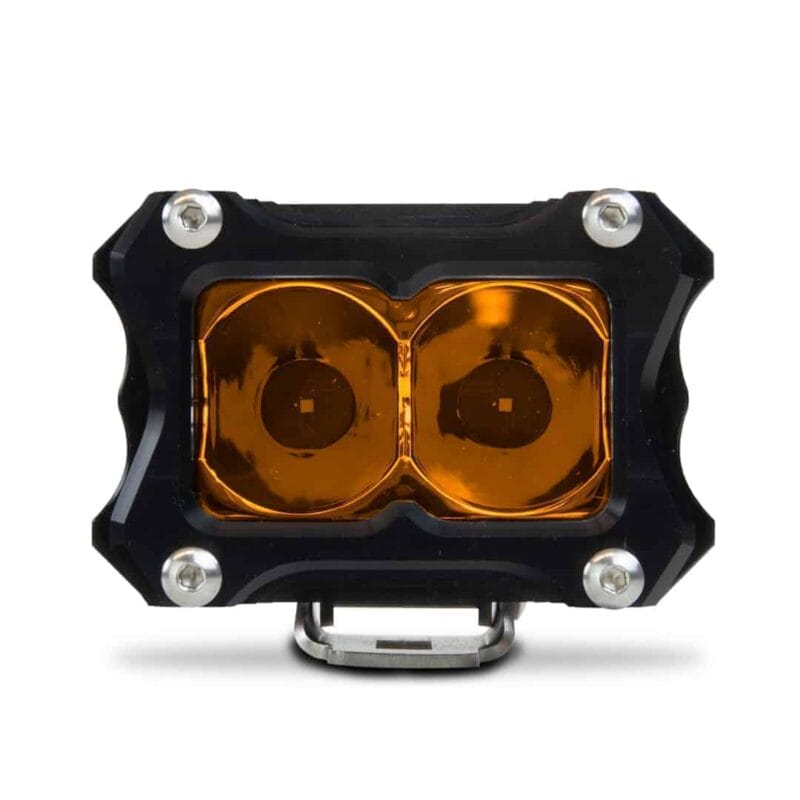

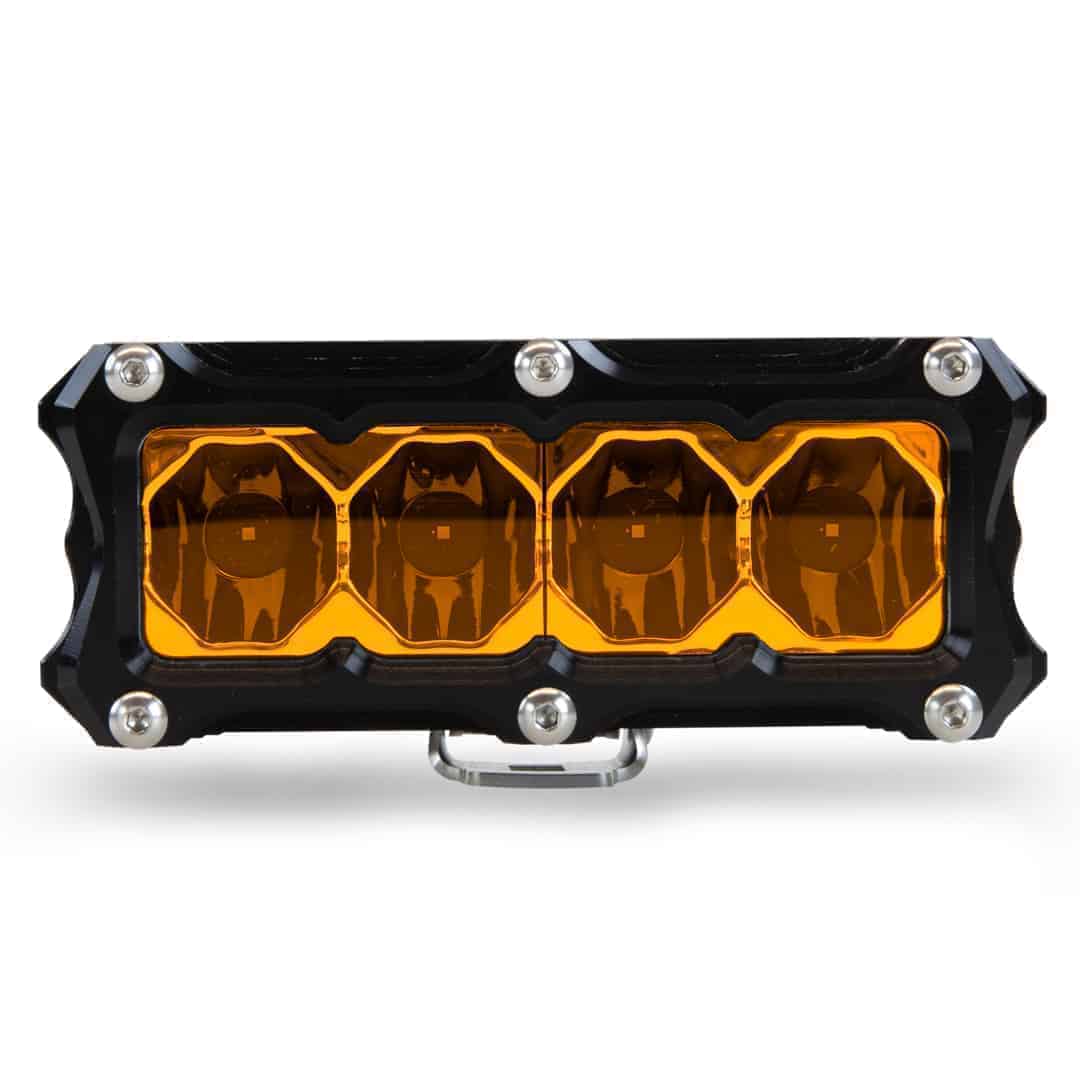

Amber Lens

C Dd Lb S A

When people refer to an amber LED light bar, they are referring to the unique color of light that these light bars produce.

As it turns out, this particular LED color is especially advantageous in certain driving situations. Due to the nature of the light, amber light is great for penetrating through vision-obstructing driving conditions such as rain, snow, fog, and heavy dust.

If you are going to be primarily using your LED light bar in off-road driving situations that are going to throwing up a lot of dust, an amber LED light bar for trucks is a great option to consider.

For clear conditions, an amber LED light bar is not as penetrating as a traditional white LED light bar, but if you find yourself often driving in hazardous conditions that limit visibility, then an amber light bar may be your best bet for ensuring you can see potential dangers on the road before it is too late.

All Heretic Studio Products include a Lifetime Manufacturer Warranty.

Warranty is limited to product failure under normal operating conditions. Warranty does not cover improper installation or damage caused by improper usage..

If product failure occurs within 30 days under normal operating conditions, the product can be sent in to be repaired or replaced.

If product is repaired or replaced, return shipping charges will be covered by Heretic Studio.

If product is returned after 30 days the customer can send in product for replacement or repair, but customer will incur shipping charges.

If you have a product in need of warranty please contact us at for assistance.


Heretic Studio offers a 30 day no hassle refund policy on all unopened items in original condition, subject to a 15% restocking fee.

If item has been installed it is not eligible for a refund. Item must be returned unused and in its original packaging.

Standard Size Light Bars, Cube Lights, and Mini Lights in Black Color are Traditionally In Stock.

IN STOCK PARTS – Any items in current inventory we ship within 24-36 hours after order.

We currently only ship Monday through Friday, if you place the order over the weekend we will process it on Monday.

UTV Headlights

Currently The UTV Headlights see about a 7-10 day shipping window since they are produced to order, along with custom powder coating.

Powder Coated / Custom Colors / Fabrication ORDER PROCESSING

Please allow adequate time for custom fabrication parts to be built, powder coated, and shipped.

Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.

Lead Times DO NOT include shipping transit times.

All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.

Current Lead Time is 5-10 Business Days
