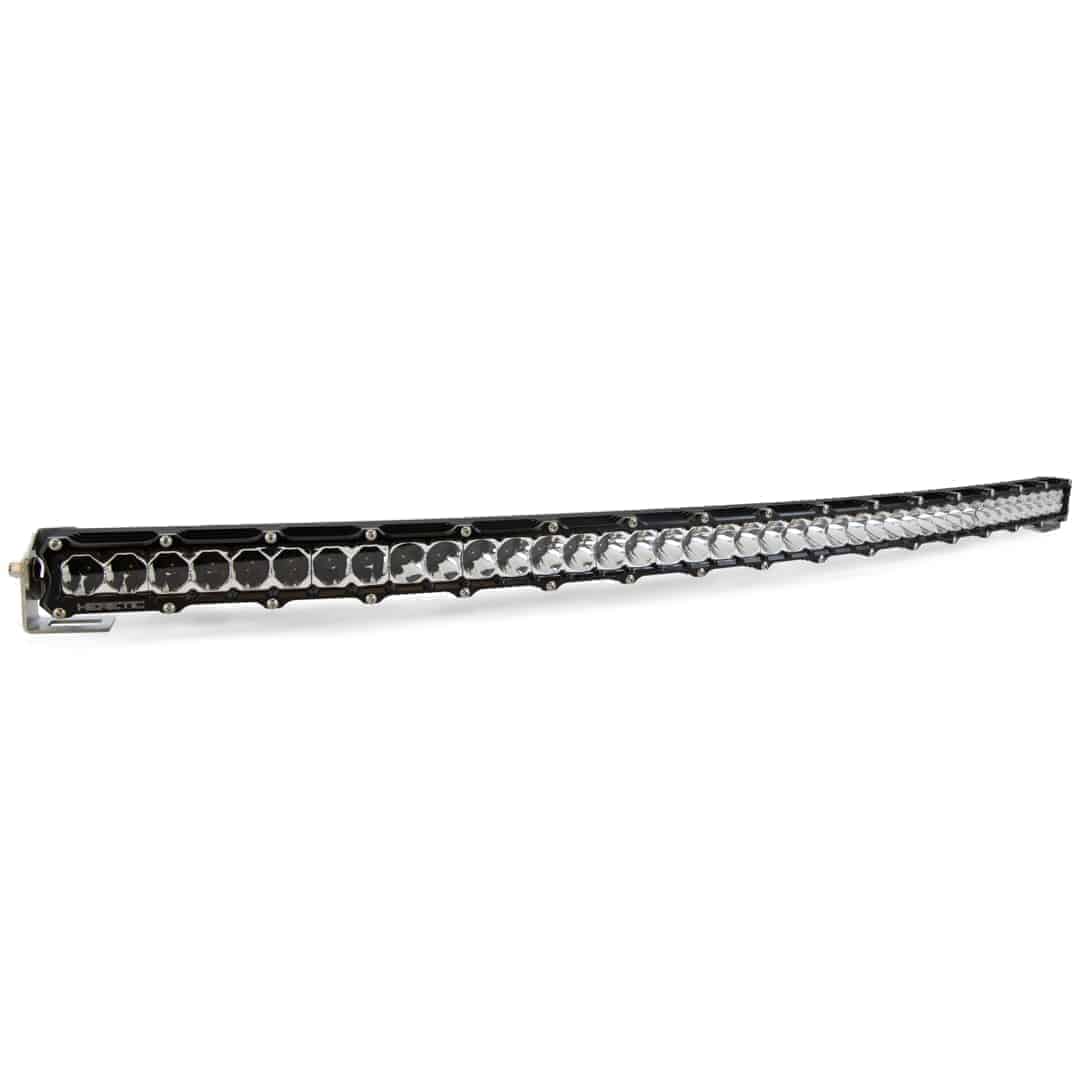

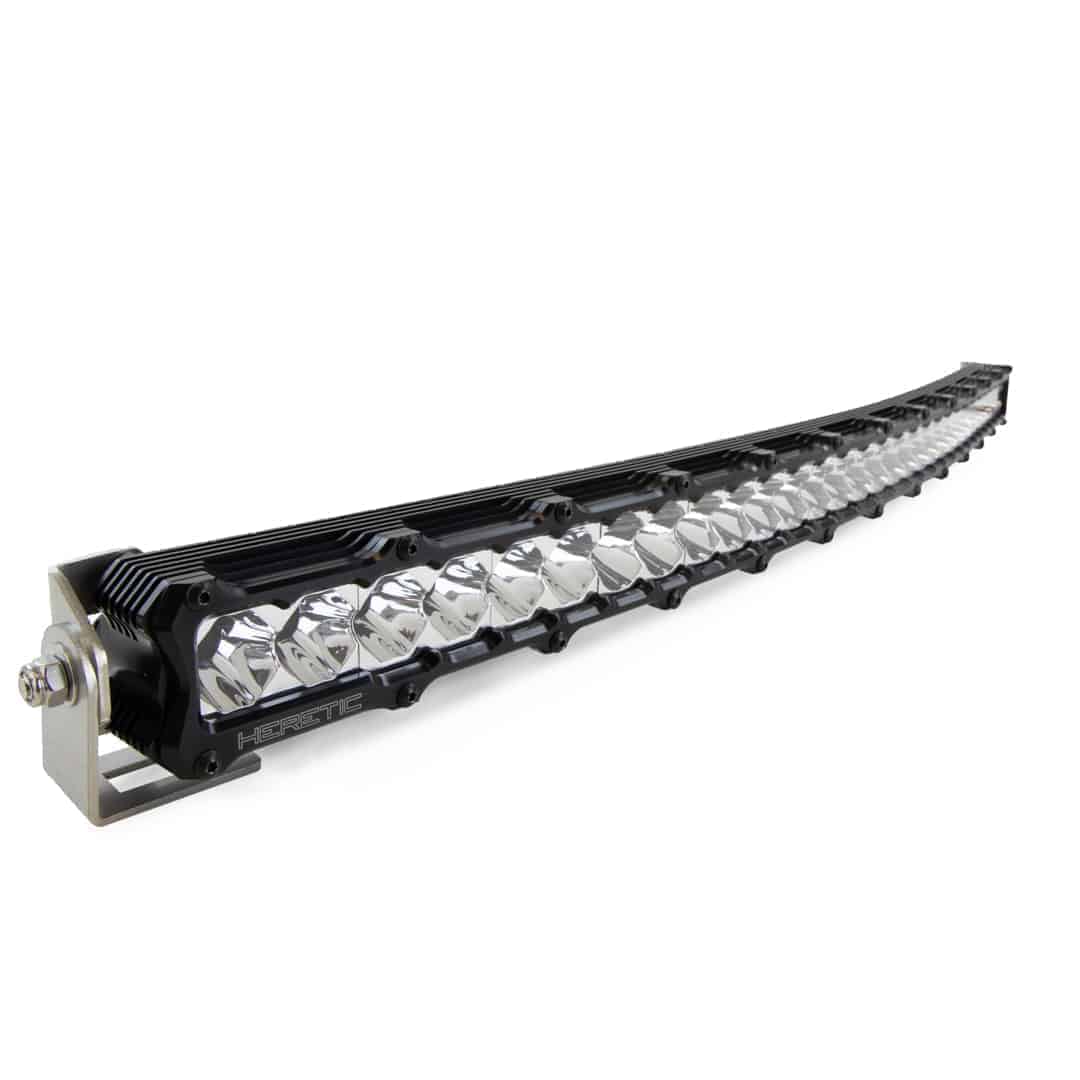

Heretic Studio Series 6 LED Curved Light Bars, Curved Body

Redefining Off-Road Light Bars, Turn Night Into Day with These Heretic Curved Light Bars, 6-WATT CREE LED’s Across Entire Bar, CNC, Solid 6061 Billet Aluminum

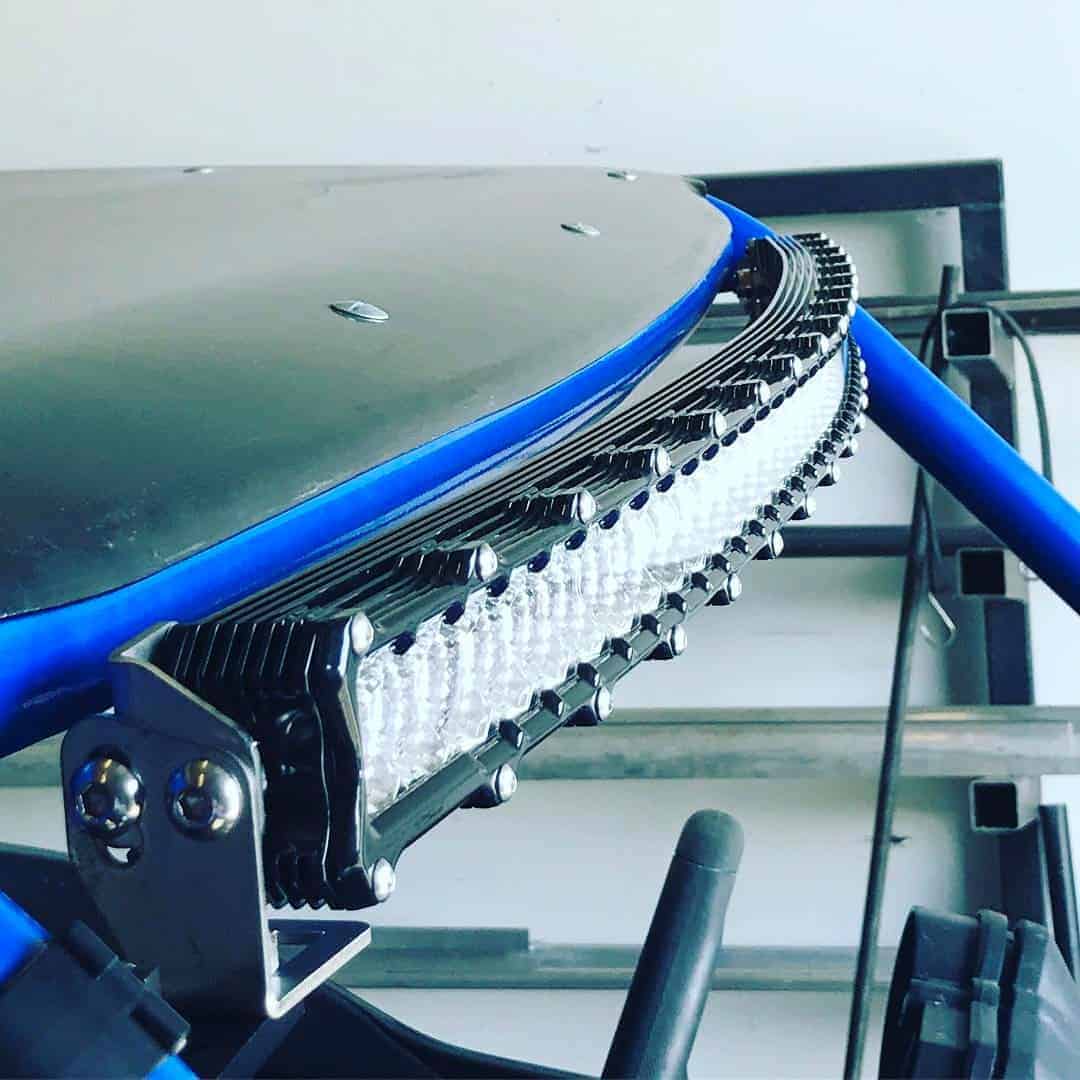

The 6 series curved light bars are the biggest bang for your buck when it comes to light bars. Because of its ideal size, it is typically used in forward-facing applications in aftermarket roof racks, UTV roll cages, and behind the grill of trucks and SUVs.

The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market.

We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible.

Make this light yours. Customize the reflector beam configuration to all spot, all flood, or combo. Chose between a clear lens or get an amber lens for dusty and foggy conditions.

Designed, manufactured, and assembled in the USA!

All Light Bars Carry a 30-Day Satisfaction Guarantee and a Lifetime Warranty

Black Is Standard Color – Raw Bezel Option Ships 5-10 Business Days After Order

Ordering Options:

  1. Bar Length – Choose Size of Bar
  2. Bezel Anodizing – Black or Raw Billet Aluminum
  3. Light Beam Pattern – (See below for Descriptions)
  4. Add On Amber Lens – Comes with Clear Lens, Add On Amber (See below for Descriptions)
  5. Add Wire Harness – Option For Direct Plug and Play install.

LED Sizes and Specs

In Lb Artboard X

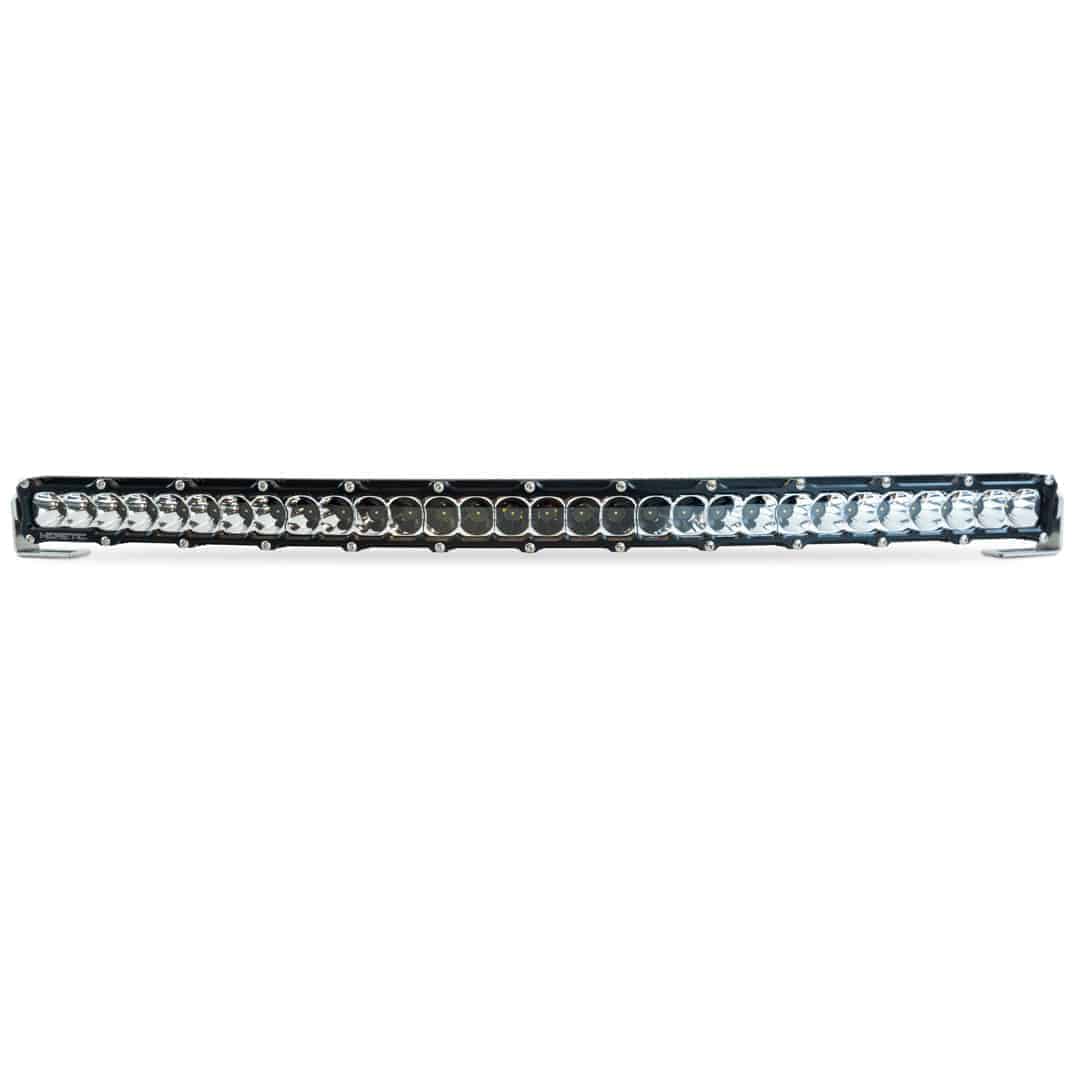

30″ Curved Light Bar

  • (30) 6-watt CREE LED
  • Full 180 watts of power, driven at 100%
  • 21780 lumen
  • 6061 billet housing
  • 31 5/8 x 2 x 1.5 (bracket to bracket)
  • IP68 rated Stainless steel mounts
  • Amp draw 17.9 Peak at 13.8V
  • Optional amber lens available
  • LUX: 6188
  • Candella: 618750
In Lb Artboard X

40″ Curved Light Bar

  • (40) 6-watt CREE LED
  • Full 240 watt
  • 29040 lumen
  • 6061 billet housing
  • 45 x 2 x 1.5
  • Amp draw 25.4 peak at 13.8V
  • IP68 rated Stainless steel mounts
  • LUX at 10m: 8250
  • Candela: 825000
In Curve Lb Artboard X

50″ Curved Light Bar

  • (50) 6-watt CREE LED
  • Full 300 watt
  • 36300 lumen
  • 6061 billet housing
  • 52 x 2 x 1.5
  • IP68 rated Stainless steel mounts
  • Optional amber lens available
  • Amp draw 36 peak amps at 13.8V
  • Weight 6.5lb
  • LUX at 10m: 10313
  • Candela: 1031250
Beb A Dc Bd

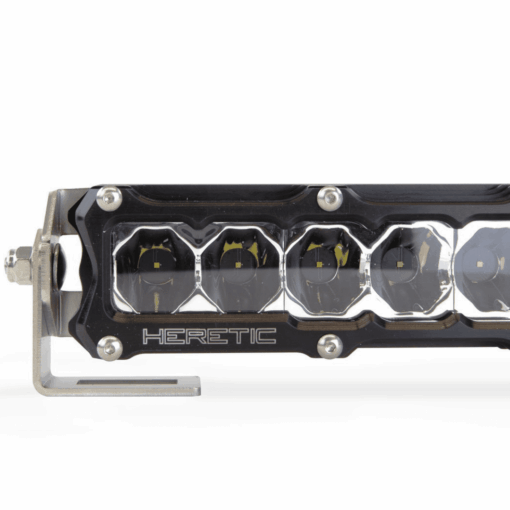

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

Unnamed File

Optimized Light Shape & Lumens

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Unnamed File

Made in the USA

All of our products are proudly designed and manufactured in the USA.

Unnamed File

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

Add A Heading Copy

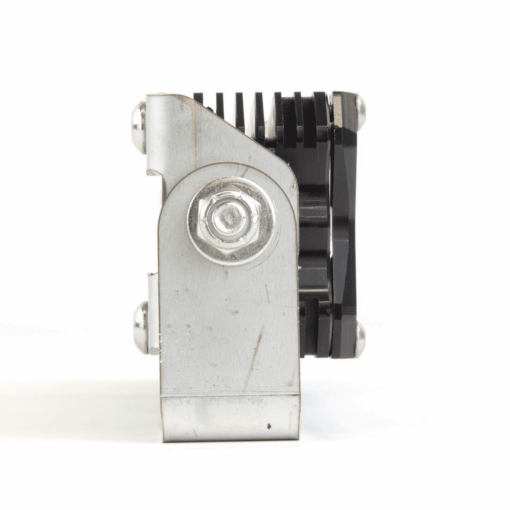

Versatile Mounting Options

Mounts to most aftermarket bumper, ditch, chase & roof racks.

LED Patterns

SPOT

  • The difference between the two beam patterns comes down to a question of depth versus width.
  • Spotlight beams are much more focused and narrow, producing a light beam that illuminates objects that are longer distances away but not providing as much in the way of side to side illumination.
  • Generally, spotlight beam patterns are preferred for on-road driving.

FLOOD

  • Opposite to spotlights beams, floodlight beams have a much wider angle of illumination, but lack the ability to light up far away objects. Floodlights are usually the better choice for lighting up a worksite or for off-roading where brightly illuminating hazards on the side of the road is crucial.

COMBINATION

  • If you aren’t sure which beam pattern is the best for you, or if you are going to be in situations where both are preferred, then perhaps you should consider an LED light bar that is made up of a combination of both bulbs.
  • Having both spot and flood beams gives you full illumination of far away objects and objects that are off to your side, making combination light bars a highly popular choice.
Pod Light Beam Pattern

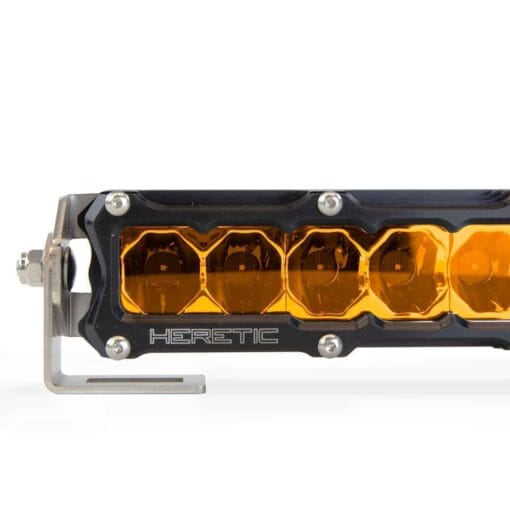

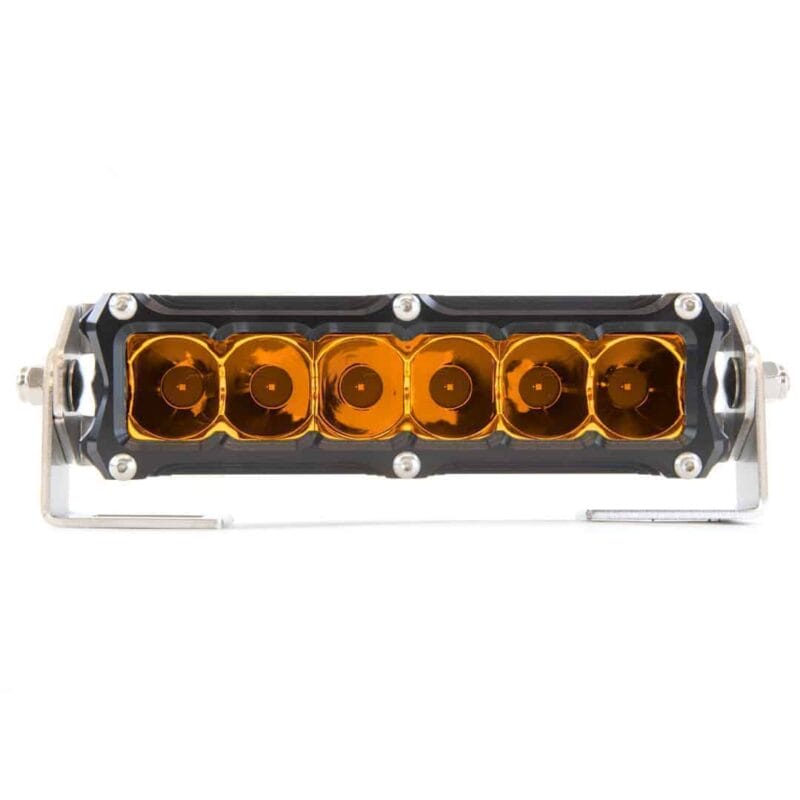

Amber Lens

Heretic 6 Series Led Light Bars, Straight

When people refer to an amber LED light bar, they are referring to the unique color of light that these light bars produce.

As it turns out, this particular LED color is especially advantageous in certain driving situations. Due to the nature of the light, amber light is great for penetrating through vision-obstructing driving conditions such as rain, snow, fog, and heavy dust.

If you are going to be primarily using your LED light bar in off-road driving situations that are going to throwing up a lot of dust, an amber LED light bar for trucks is a great option to consider.

For clear conditions, an amber LED light bar is not as penetrating as a traditional white LED light bar, but if you find yourself often driving in hazardous conditions that limit visibility, then an amber light bar may be your best bet for ensuring you can see potential dangers on the road before it is too late.
