Name: Heretic Studio Heretic 6 Series LED Light Bars, Straight
Brand: American Off-Roads
SKU: HS-STRLIGHBAR
Price: 219.99 USD
Availability: InStock
Rating: 5 (1 reviews)

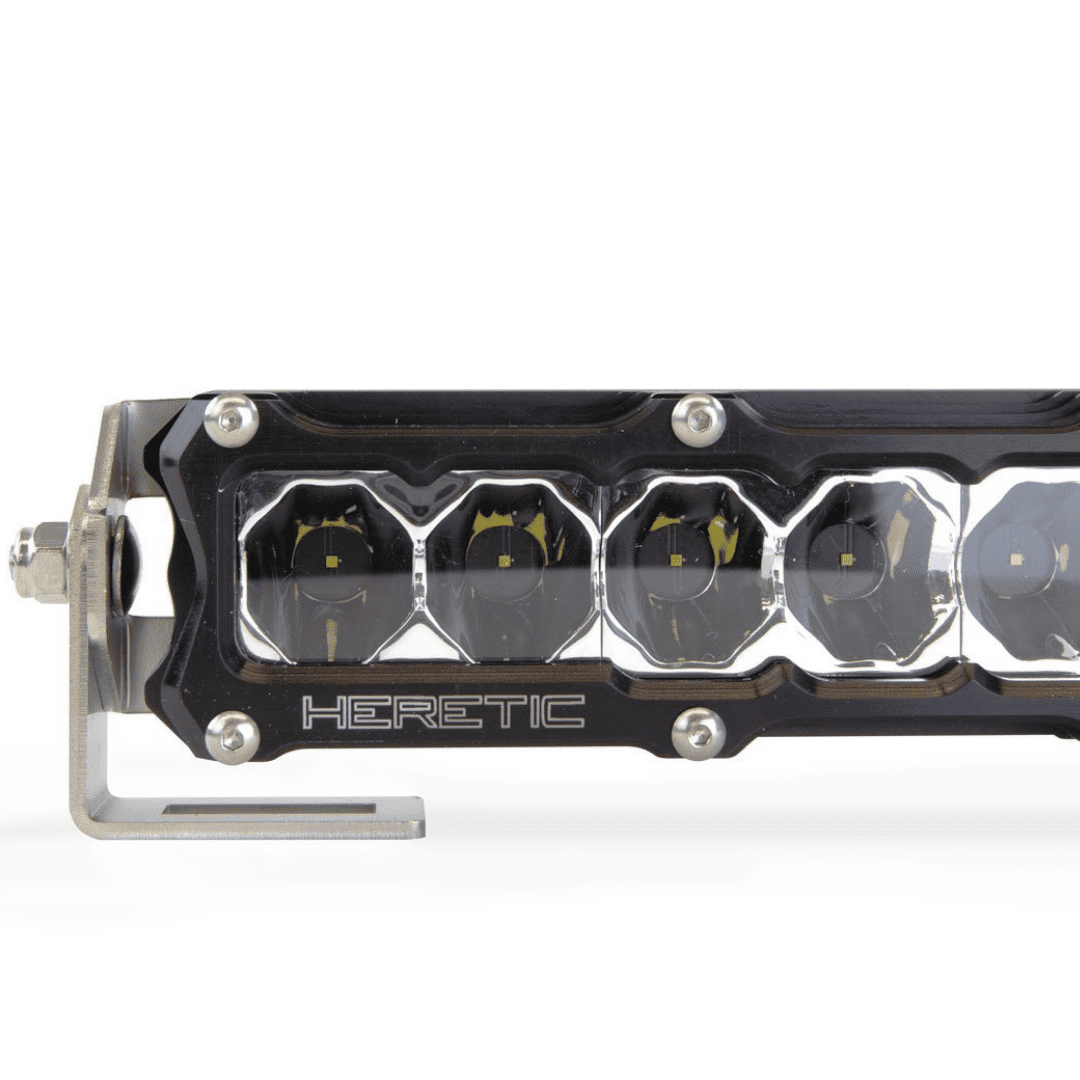

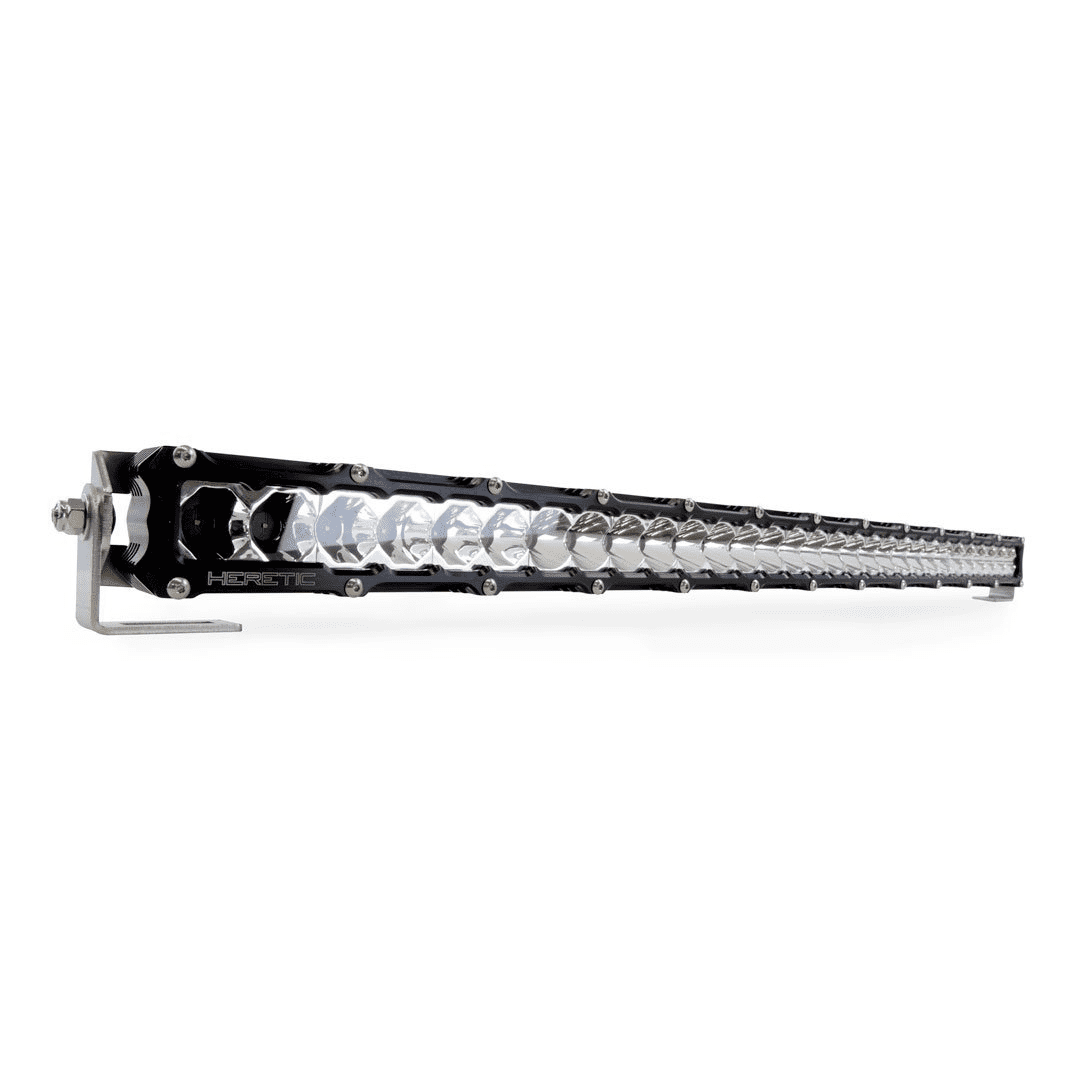

Heretic Studio Series 6 LED Straight Light Bars, Straight Body

Redefining Off-Road Industry Standards, Turn Night Into Day with These Heretic Light Bars, 6-WATT CREE LED’s Across Entire Bar, CNC, Solid 6061 Billet Aluminum

All our Light Bars and Light Pods are 6-WATT CREE Equipped.

THE LIGHTS CARRY AN IP68 RATING, A 30-DAY SATISFACTION GUARANTEE, AND A LIFETIME WARRANTY.

Made from 6061 billet aluminum.

LED Bar Body Color comes in Black

LED Light Bezel Options Anodized Black, Raw Aluminum (Choose if you would like to powder/paint it yourself)

ALL OF OUR PRODUCTS ARE MANUFACTURED AND ASSEMBLED IN UTAH The good old USA!

All Light Bars Carry a 30-Day Satisfaction Guarantee and a Lifetime Warranty

Black Is Standard Color, Raw Bezel Ships 5-10 Business Days After Order

Ordering Options:

Bar Length – Choose Size of Bar
Bezel Anodizing – Black or Raw Billet Aluminum
Light Beam Patterns – (See below for Descriptions)
Add On Amber Lens – Comes with Clear Lens, Add On Amber (See below for Descriptions)
Add Wire Harness – Option For Direct Plug and Play install.

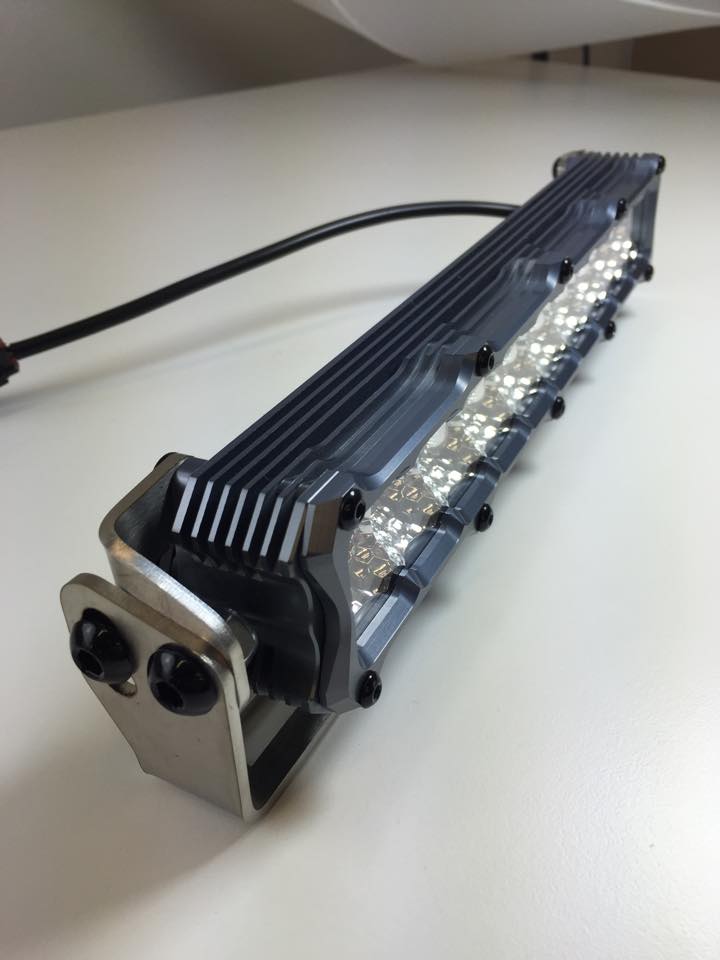

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

Optimized Light Shape & Lumens

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Made in the USA

All of our products are proudly designed and manufactured in the USA.

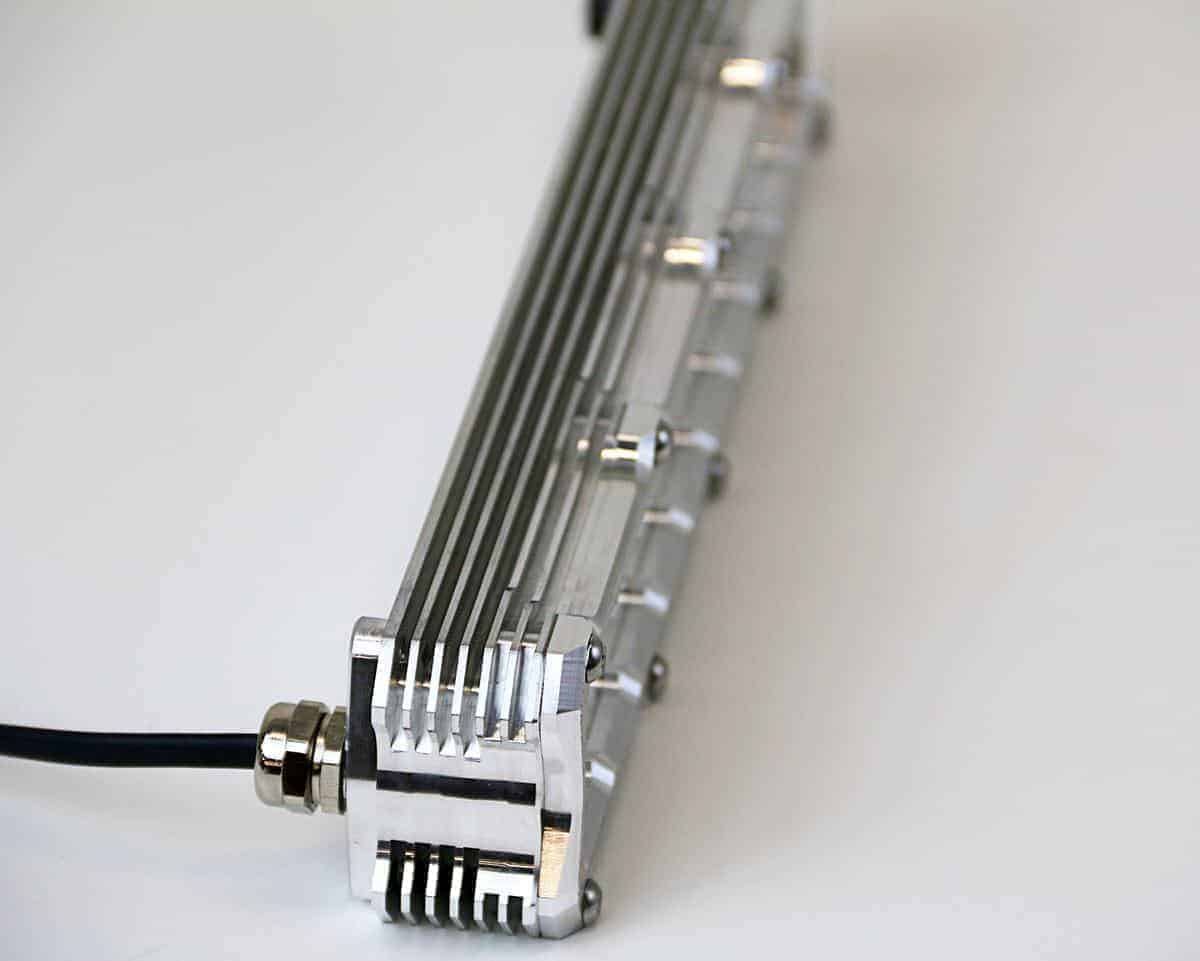

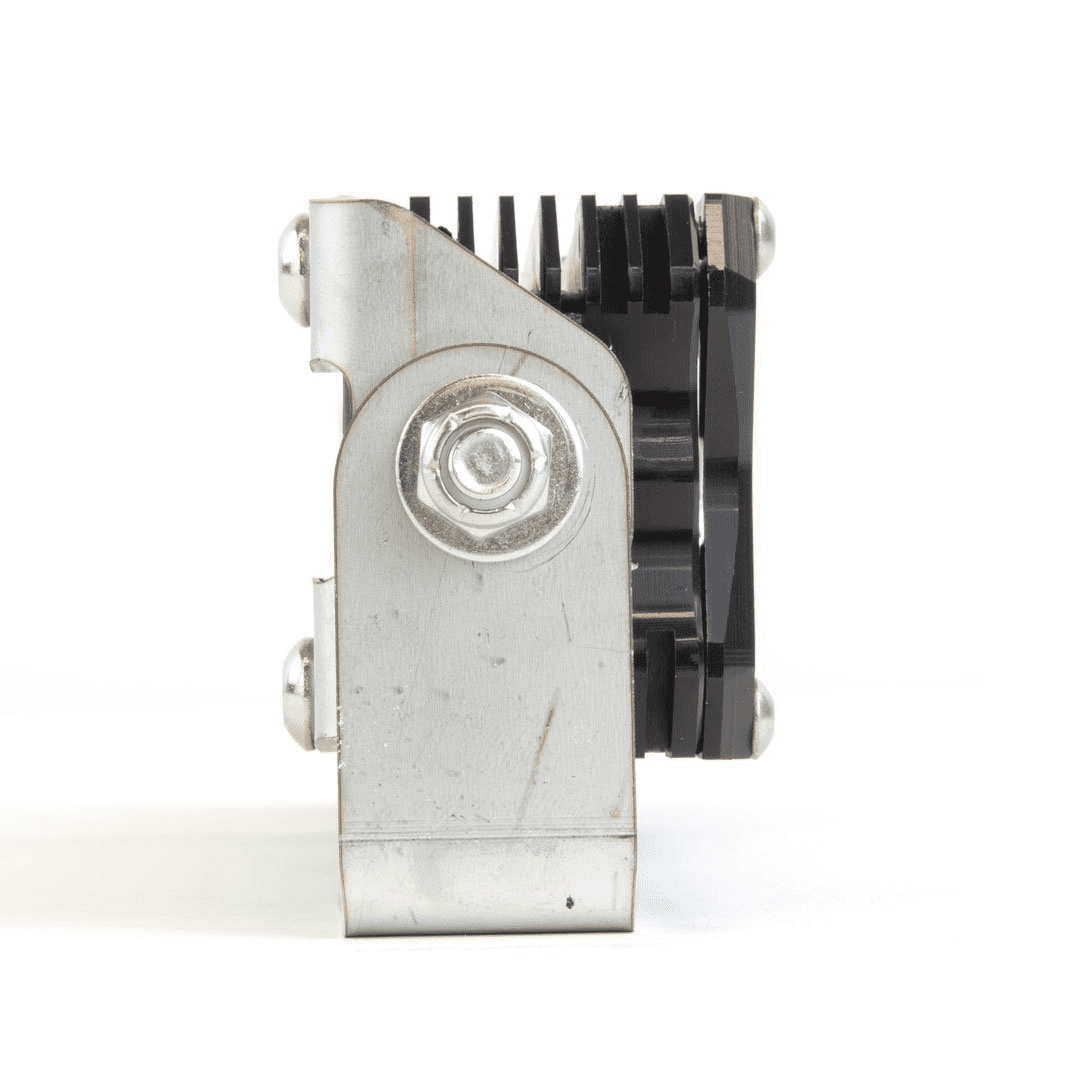

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

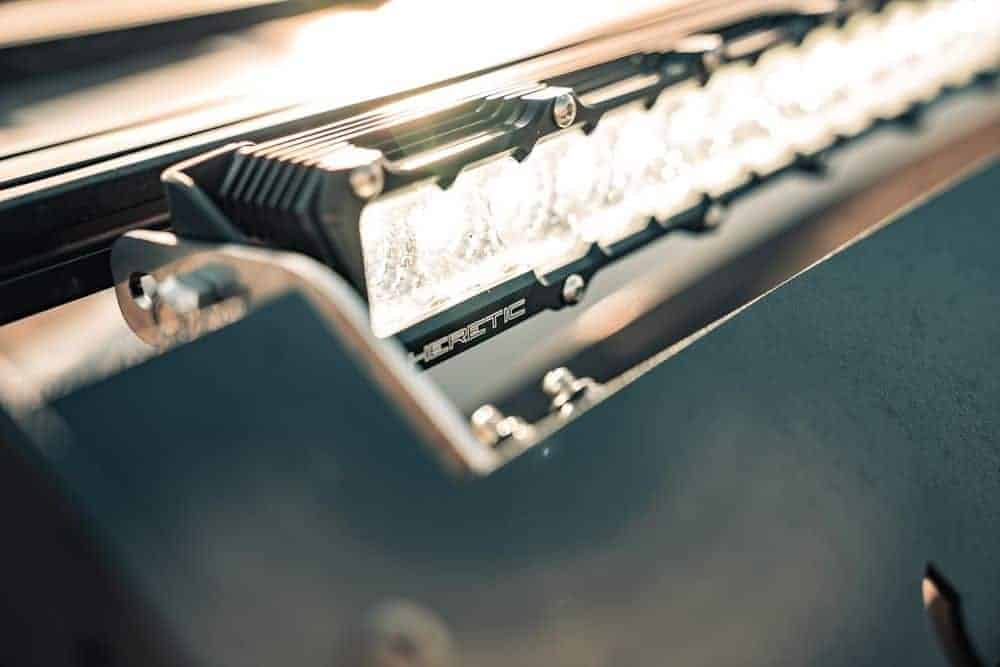

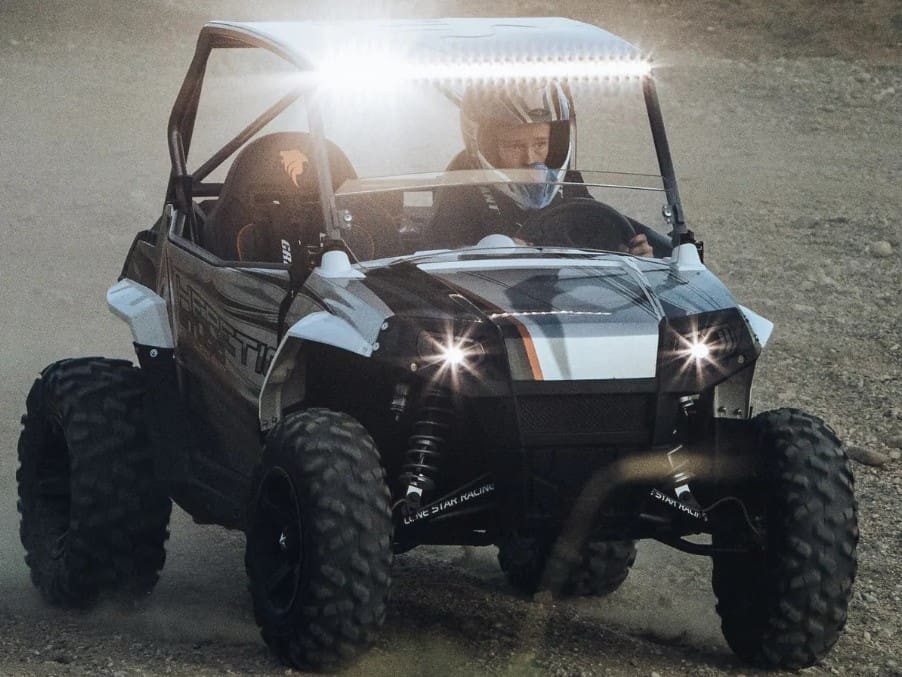

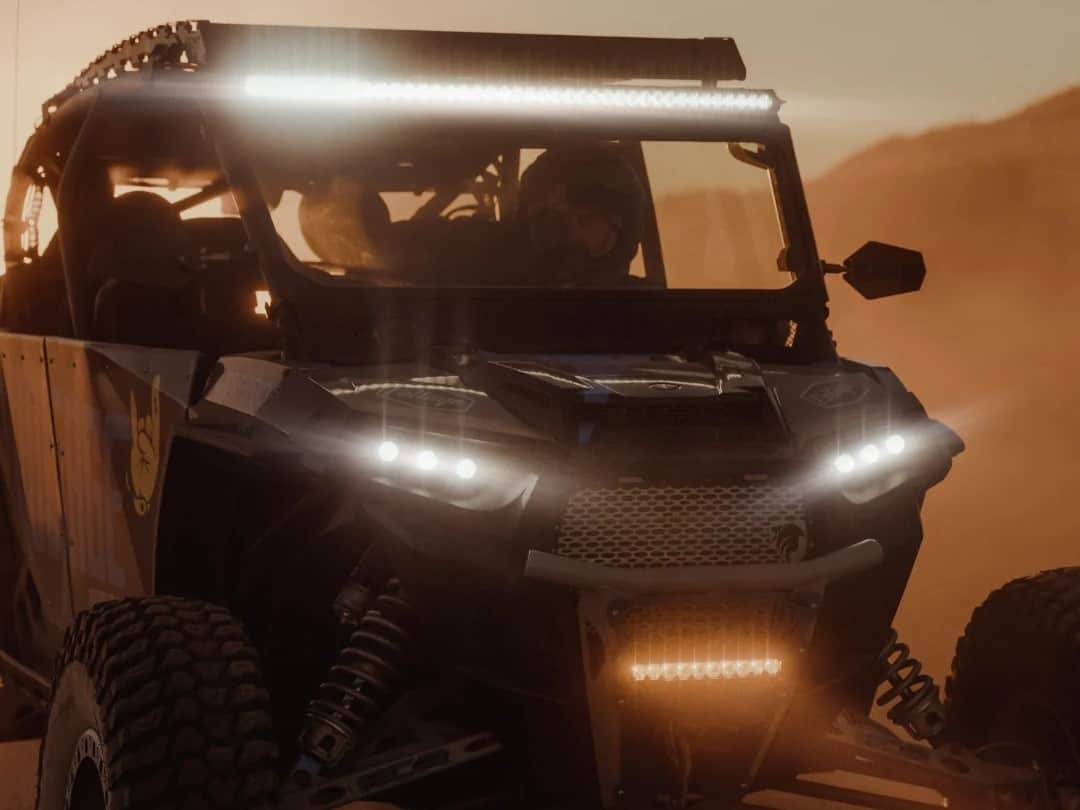

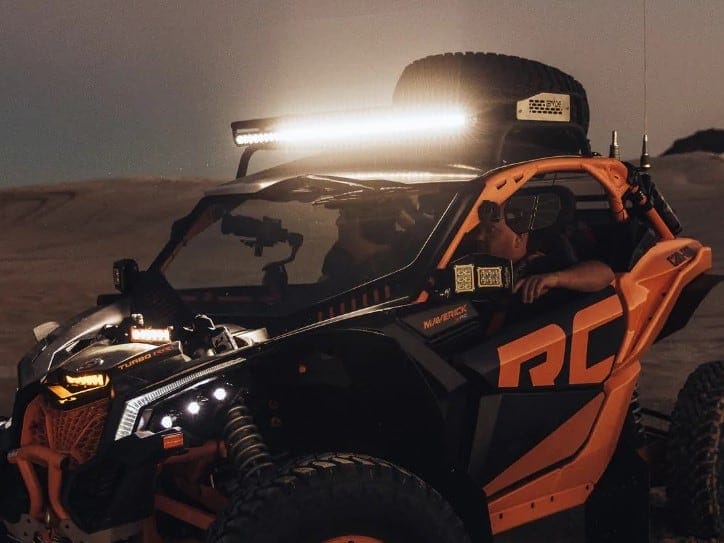

Versatile Mounting Options

Mounts to most aftermarket bumper, ditch, chase & roof racks.

LED Sizes and Specs

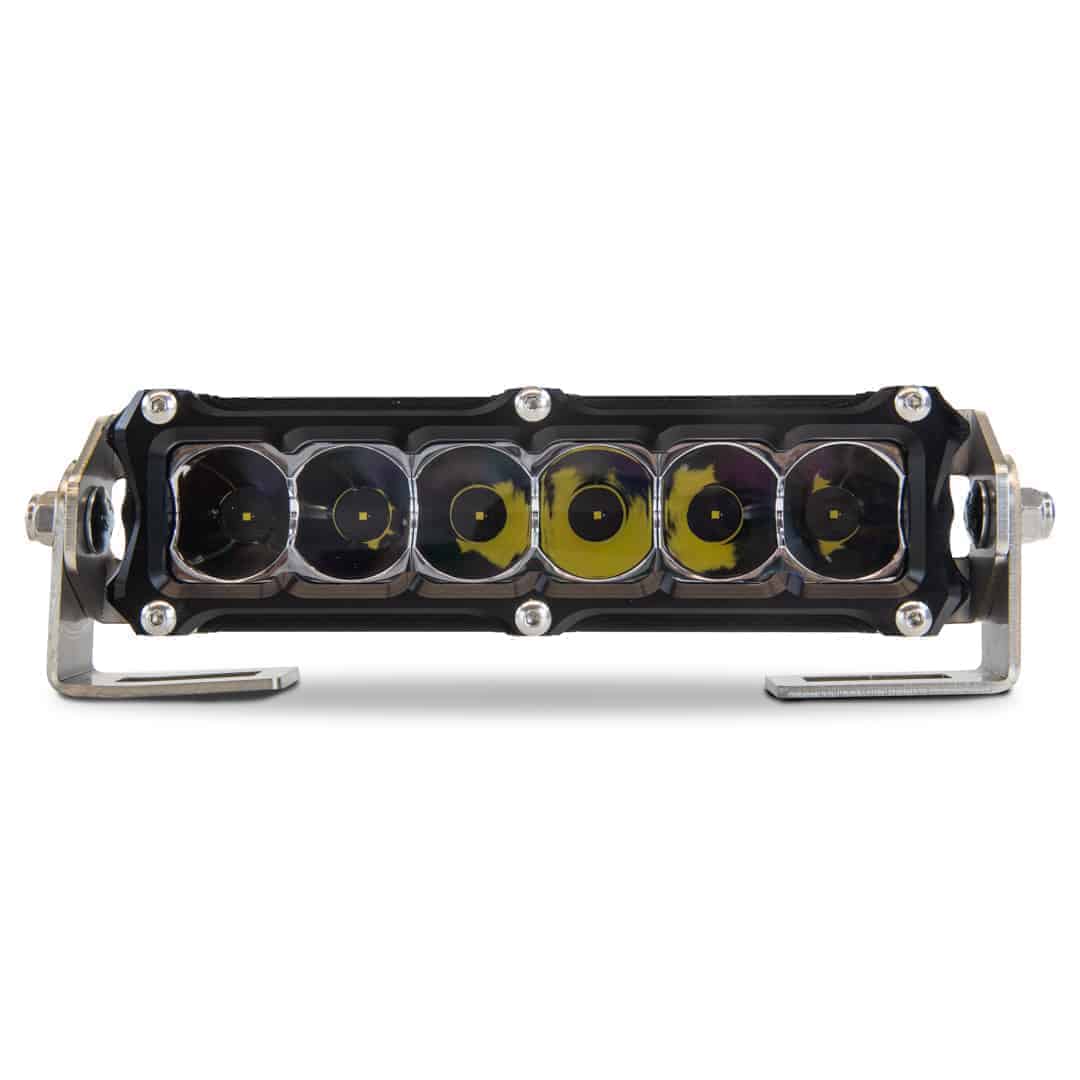

6″ Light Bar

(6) 6-Watt CREE LED
Full 30 Watts, Driven at 100%
Lumens: 4365
6061 Billet Aluminum Housing
Actual Size: 7″ x 2″ x 1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight 2.25 lbs.
Peak Amps: 3 at 13.8V

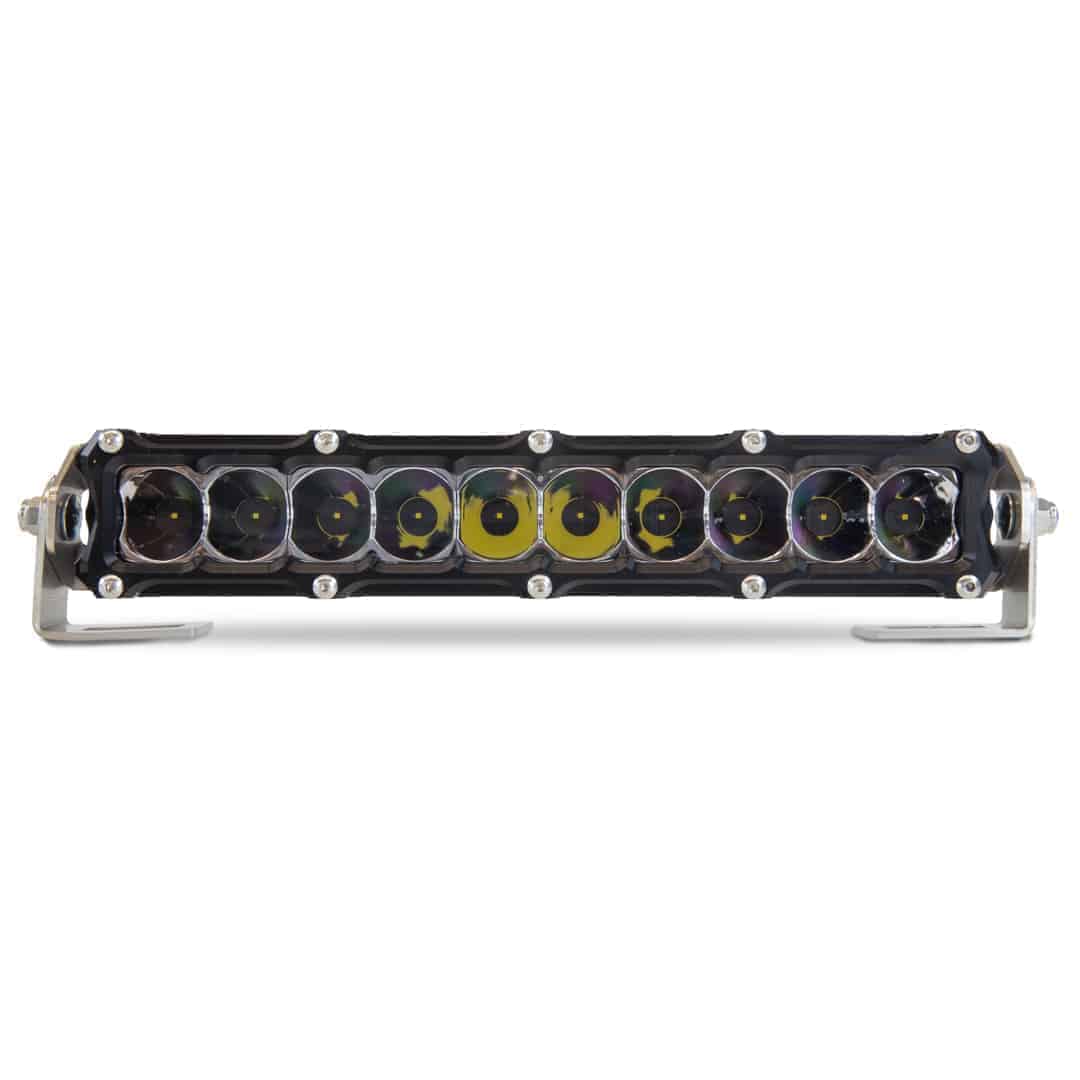

10″ Light Bar

(10) 6-watt CREE LEDs
Full 60 Watts, Driven at 100%
Lumens: 7260
6061 Billet Aluminum Housing
Actual Size: 12″ x 2″ x1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight: 1.5 lbs.
Peak Amps 53 at 13.8V
LUX at 10m: 4113
Candella: 141300

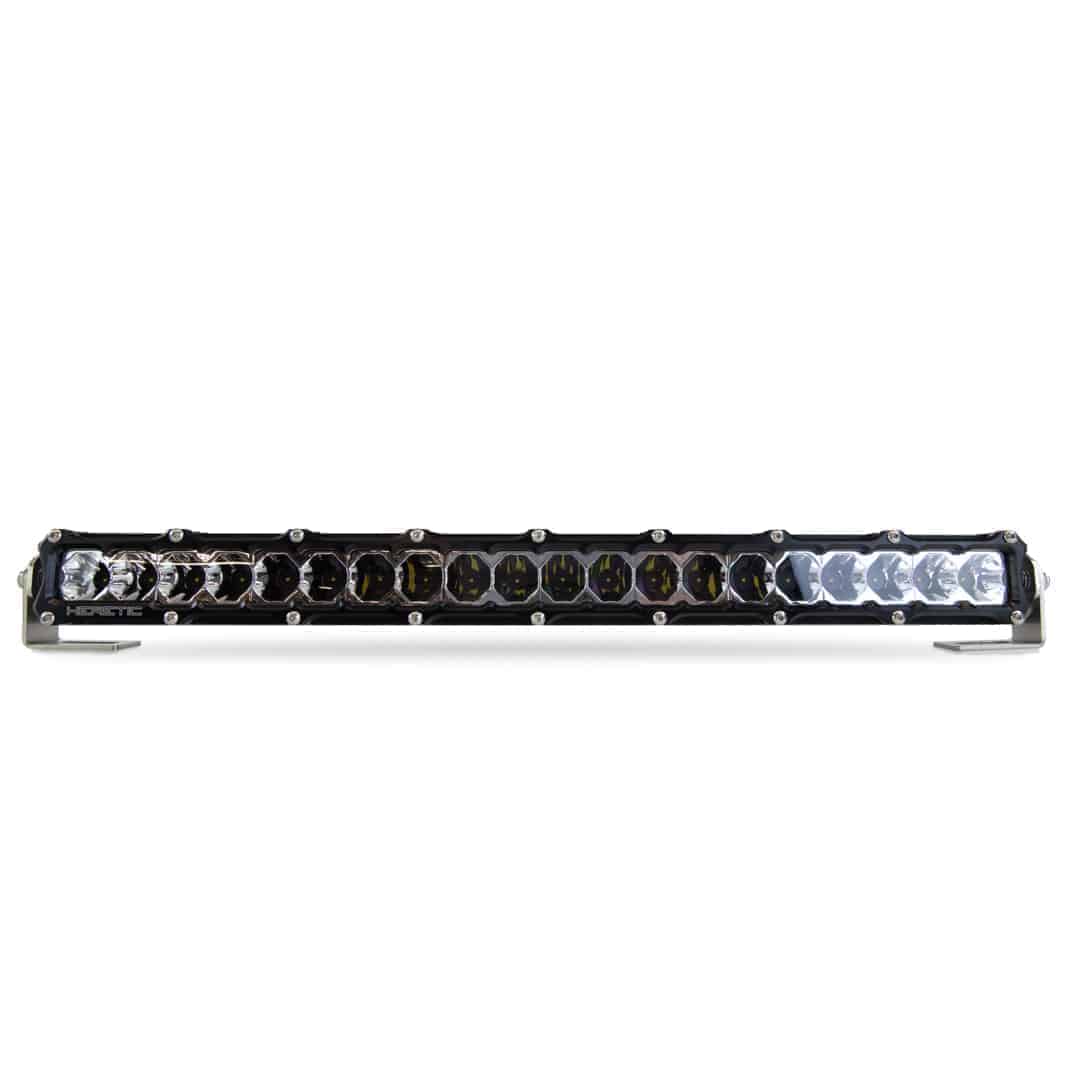

20″ Light Bar

(20) 6-Watt CREE LED
Full 120 Watts Driven at 100%
Lumens: 14520
6061 Billet Aluminum Housing
Actual Size: 22″ x 2″ x 1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight: 3 lbs.
Peak Amps: 11.3 at 13.8V
LUX at 10m: 4125
Candella: 412500

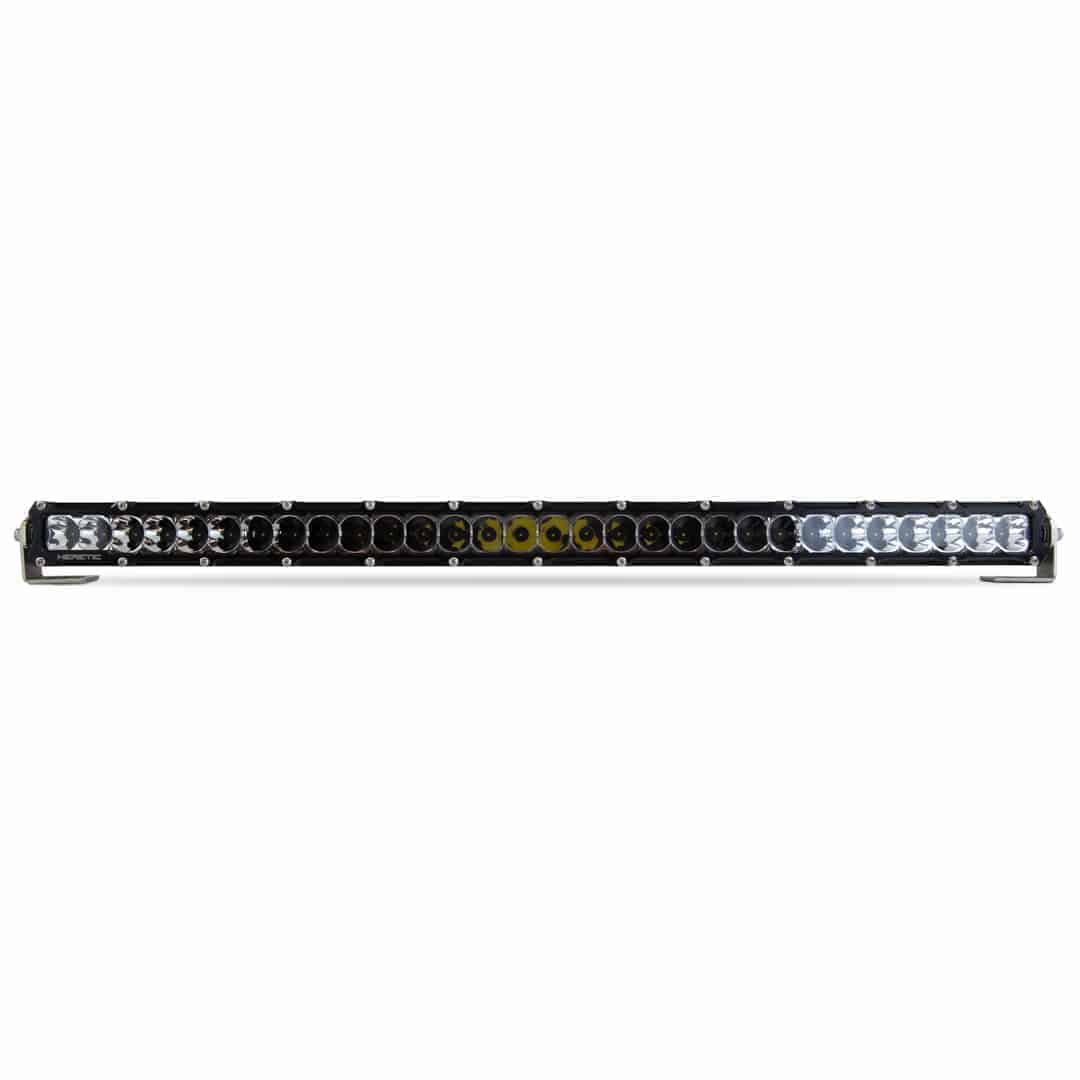

30″ Light Bar

(30) 6-Watt CREE LED
Full 180 Watts, Driven at 100%
Lumens: 21780
6061 Billet Aluminum Housing
Actual Size: 34″ x 2″ x 1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight 4.75 lbs.
Peak Amps: 17.9 at 13.8V
Lux at 10m: 6188
Candella: 618750

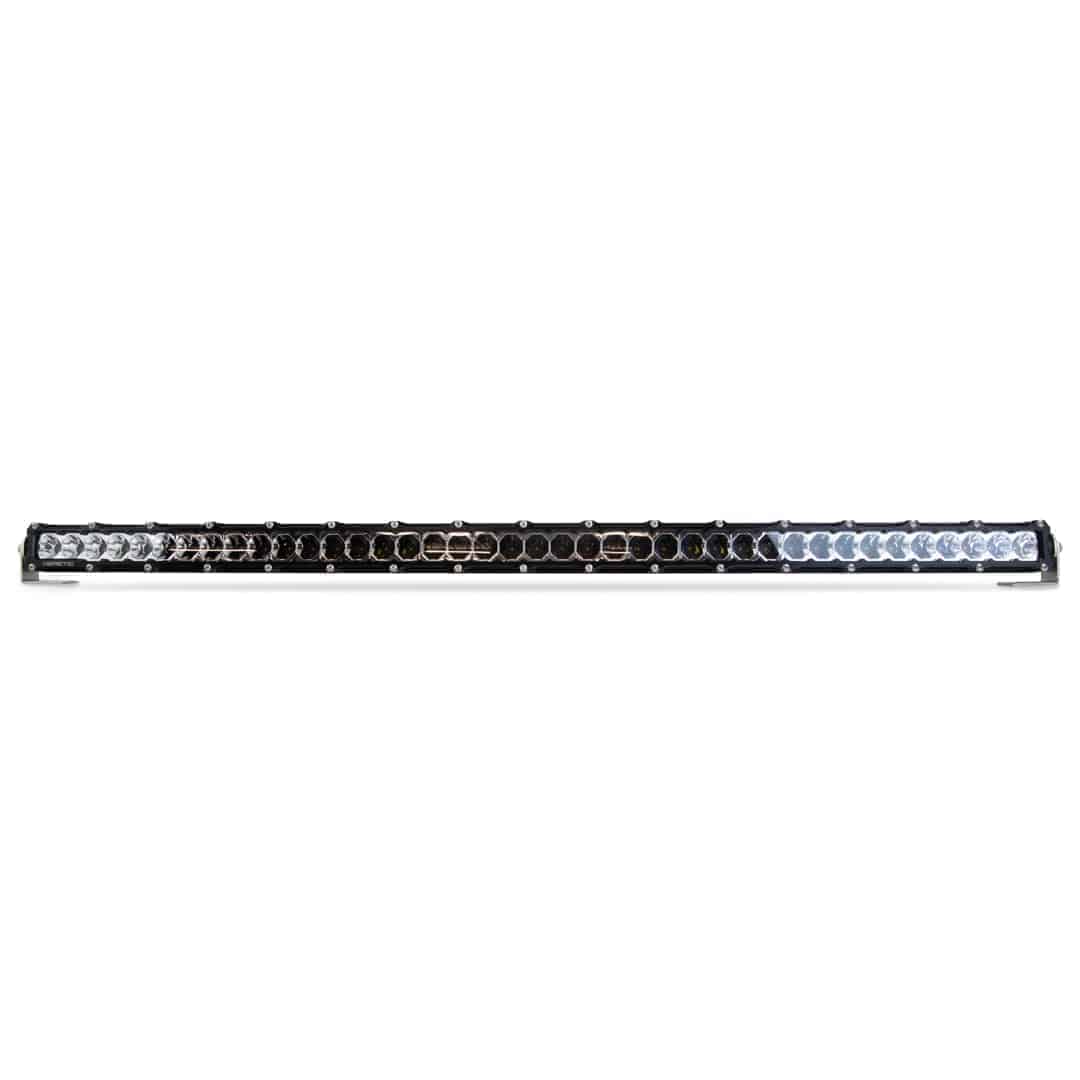

40″ Light Bar

(40) 6-watt CREE LEDs
Full 240 Watts, Driven at 100%
Lumens: 29040
6061 Billet Aluminum Housing
Actual Size: 42″ x 2″ x1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight: 5.75 lbs.
Peak Amps 25.4 at 13.8V
LUX at 10m: 8250
Candella: 825000

50″ Light Bar

(50) 6-Watt CREE LED
Full 300 Watts Driven at 100%
Lumens: 36300
6061 Billet Aluminum Housing
Actual Size: 52″ x 2″ x 1.5″
IP68 Rated
Stainless Steel Mounts
Optional Amber Lens Available
Weight: 6.5 lbs
Peak Amps: 35.5 at 13.8V
LUX at 10m: 10313
Candella: 1031250

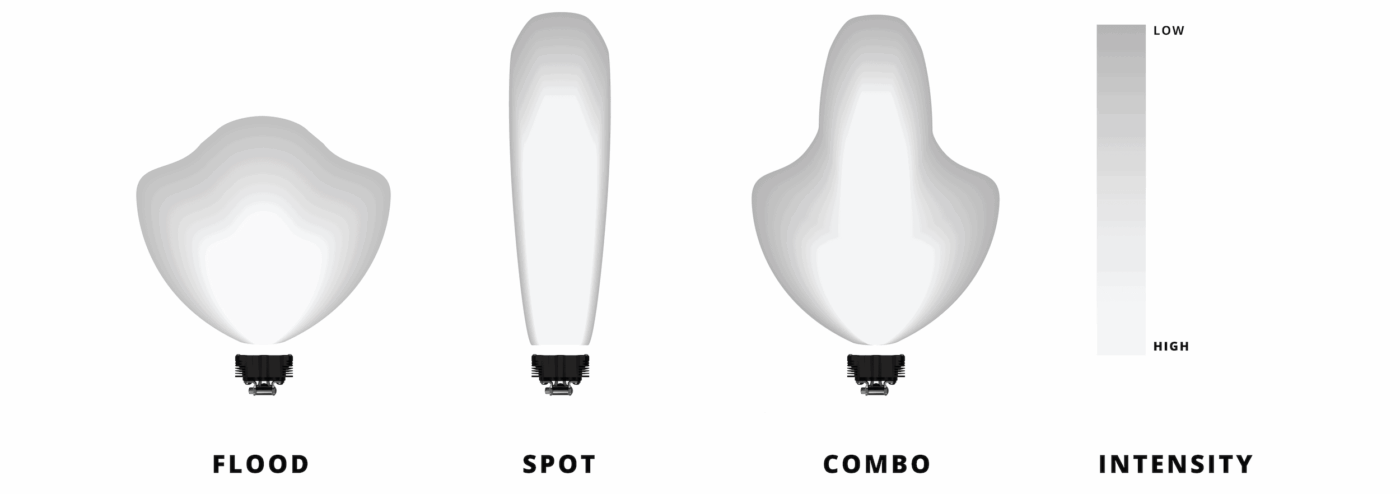

LED Patterns

SPOT

The difference between the two beam patterns comes down to a question of depth versus width.
Spotlight beams are much more focused and narrow, producing a light beam that illuminates objects that are longer distances away but not providing as much in the way of side to side illumination.
Generally, spotlight beam patterns are preferred for on-road driving.

FLOOD

Opposite to spotlights beams, floodlight beams have a much wider angle of illumination, but lack the ability to light up far away objects. Floodlights are usually the better choice for lighting up a worksite or for off-roading where brightly illuminating hazards on the side of the road is crucial.

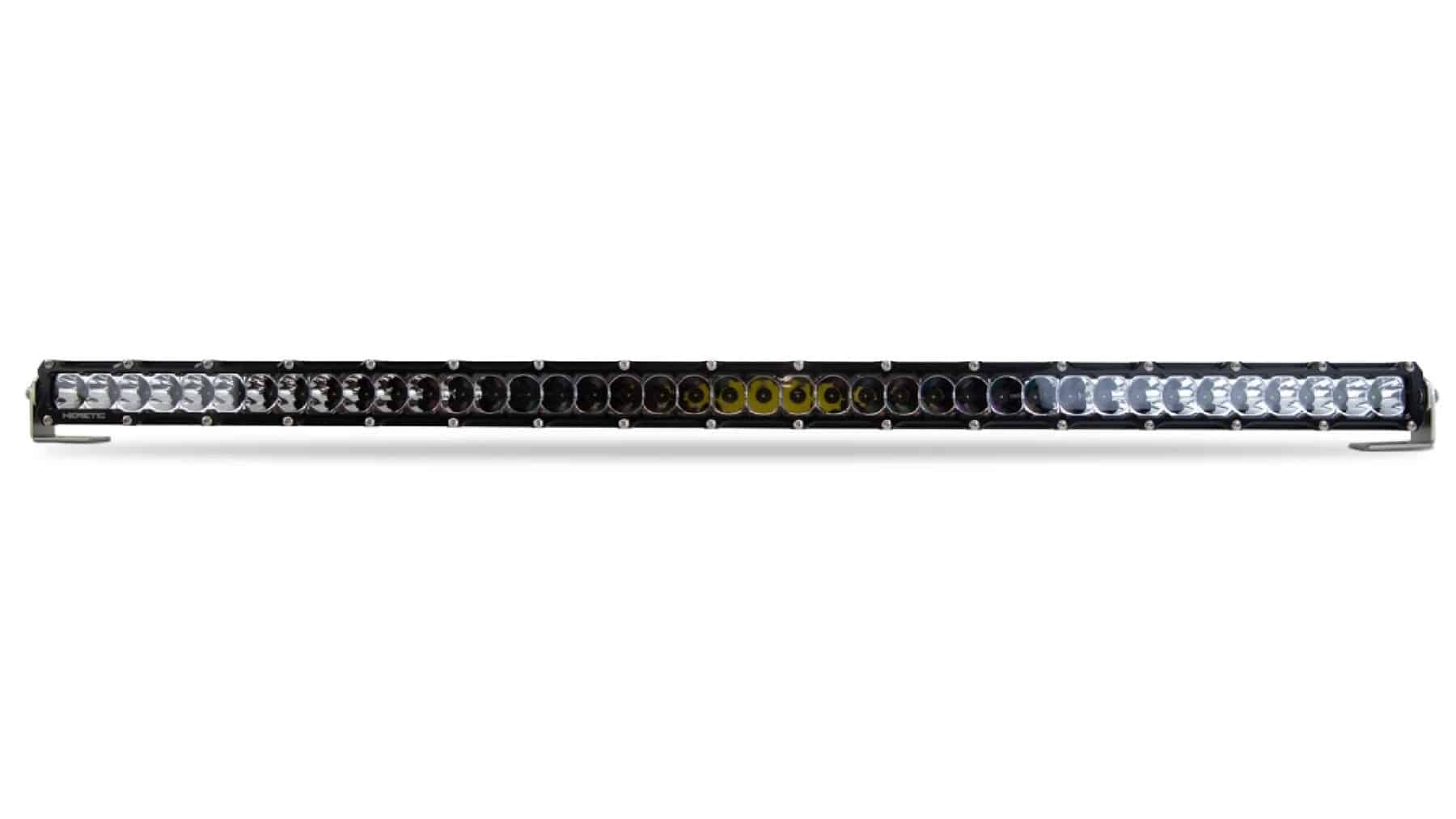

COMBINATION

If you aren’t sure which beam pattern is the best for you, or if you are going to be in situations where both are preferred, then perhaps you should consider an LED light bar that is made up of a combination of both bulbs.
Having both spot and flood beams gives you full illumination of far away objects and objects that are off to your side, making combination light bars a highly popular choice.

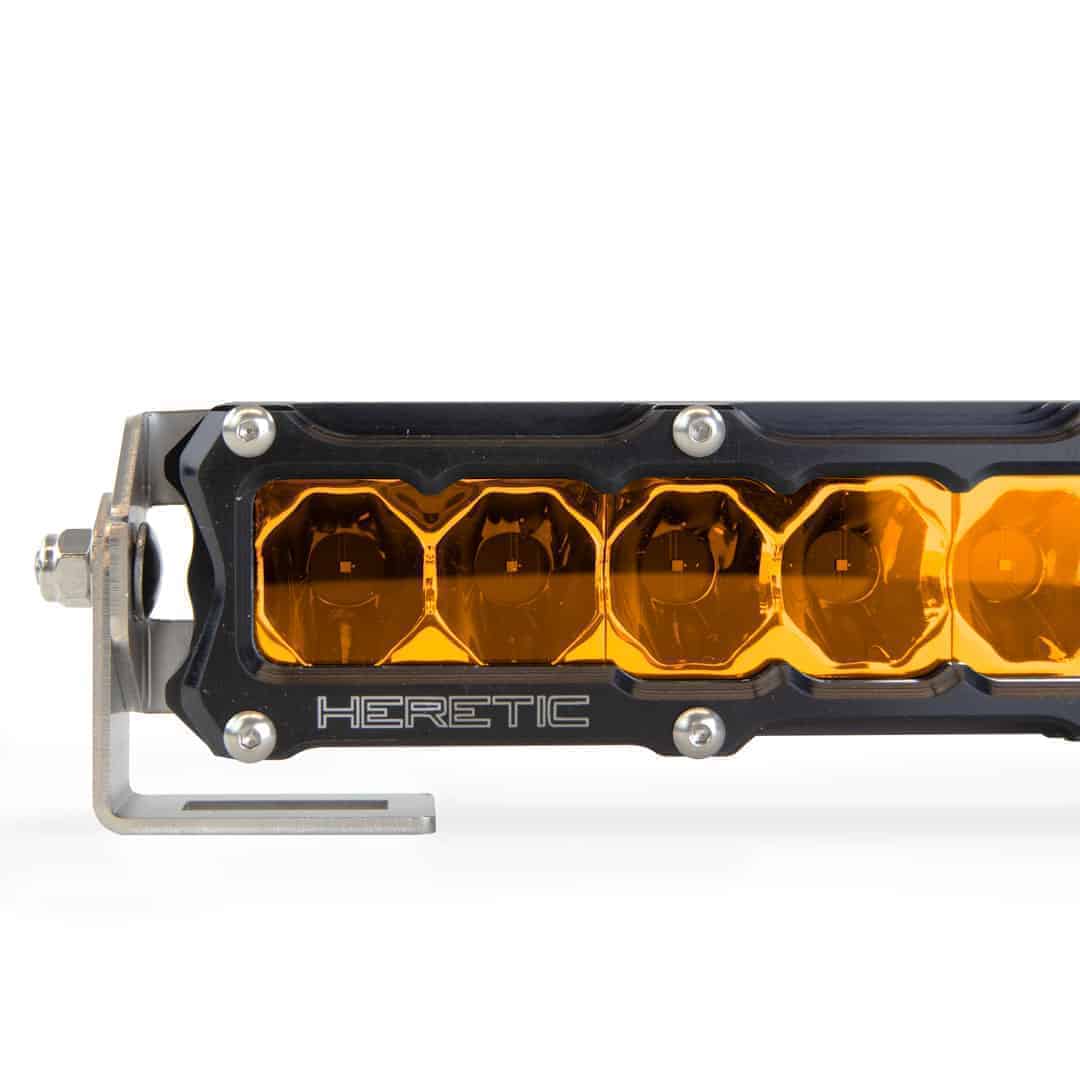

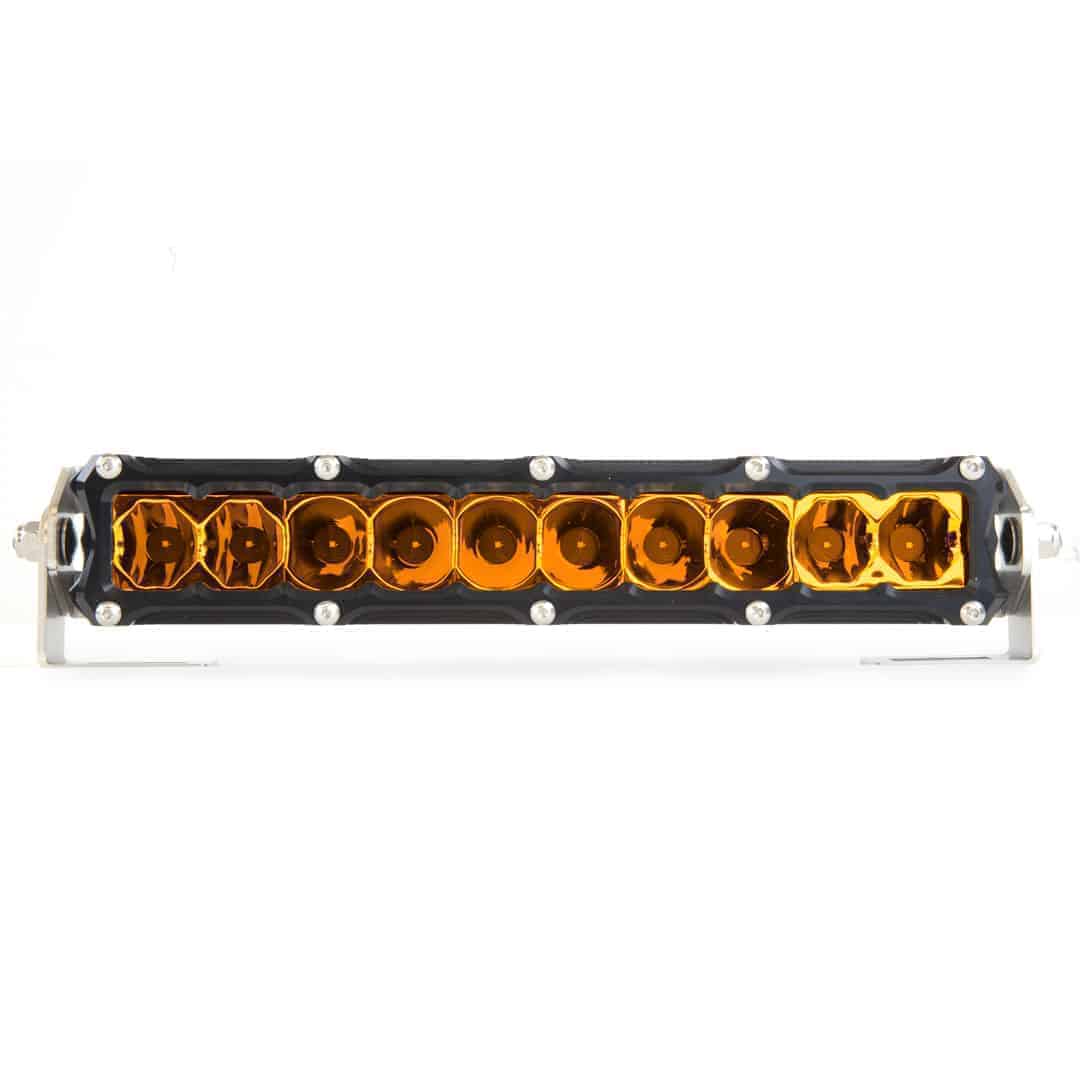

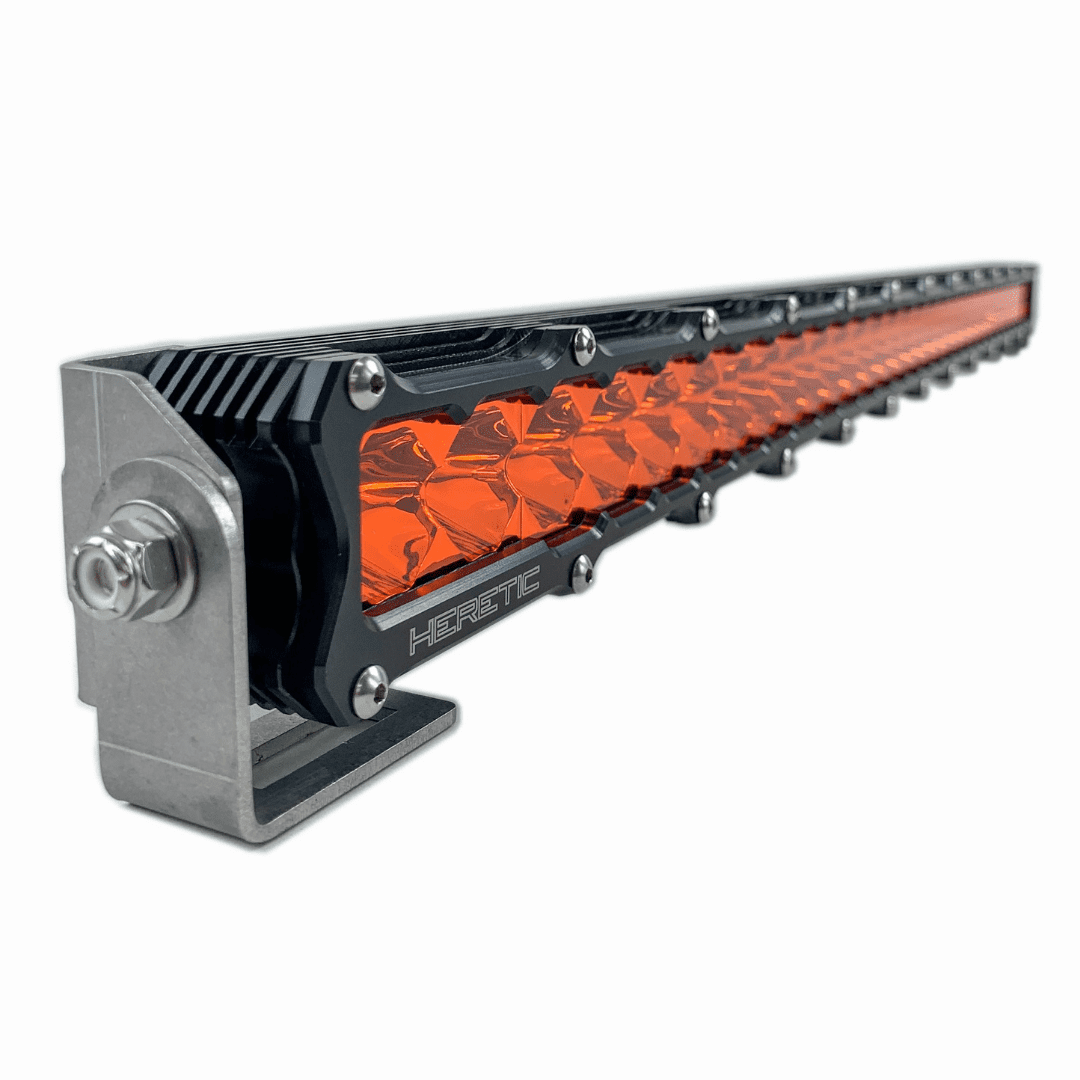

Amber Lens

When people refer to an amber LED light bar, they are referring to the unique color of light that these light bars produce.

As it turns out, this particular LED color is especially advantageous in certain driving situations. Due to the nature of the light, amber light is great for penetrating through vision-obstructing driving conditions such as rain, snow, fog, and heavy dust.

If you are going to be primarily using your LED light bar in off-road driving situations that are going to throwing up a lot of dust, an amber LED light bar for trucks is a great option to consider.

For clear conditions, an amber LED light bar is not as penetrating as a traditional white LED light bar, but if you find yourself often driving in hazardous conditions that limit visibility, then an amber light bar may be your best bet for ensuring you can see potential dangers on the road before it is too late.

Warranty is limited to product failure under normal operating conditions. Warranty does not cover improper installation or damage caused by improper usage..

If product failure occurs within 30 days under normal operating conditions, the product can be sent in to be repaired or replaced.

If product is repaired or replaced, return shipping charges will be covered by Heretic Studio.

If product is returned after 30 days the customer can send in product for replacement or repair, but customer will incur shipping charges.

If you have a product in need of warranty please contact us at support@hereticstudio.com for assistance.

Returns:

Heretic Studio offers a 30 day no hassle refund policy on all unopened items in original condition, subject to a 15% restocking fee.

If item has been installed it is not eligible for a refund. Item must be returned unused and in its original packaging.

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.

Make	Model	Year
All Universal Fitment	ATV Machine - Universal Fitment
All Universal Fitment	UTV Machine - Universal Fitment

Heretic Studio Heretic 6 Series LED Light Bars, Straight
