Rigid Pro Light Bar, Beam And Size Options

SKU: RI-PROE Categories: , , ,

From: $259.99

As Low As 0% Financing Options Available "See Options"

Rigid Rds-series Pro Spotlights

Vehicle Fitment Info In Tabs Below

Dfb B American Cash Logo

Rigid E-Series Pro Light Bars, Spot, Flood, Diffused, Or Combination

The E-Series Was Born In Off-Road. The Light Bar Beam Options Has Spot, Flood, Combination, And More. Varity Of Lumens. There’s One For Every Rider.

The E-Series is one of RIGID’s most versatile, all-around lighting solutions, and recent enhancements in LED technology delivering up to 111 percent more raw lumens than ever before with the E-Series PRO.

Among RIGID’s most popular product lines, the E-Series PRO has recently benefited from several upgrades to improve both looks and performance.

Plus, prominent RIGID branding and blacked-out circuit boards give the E-Series PRO a refined look.

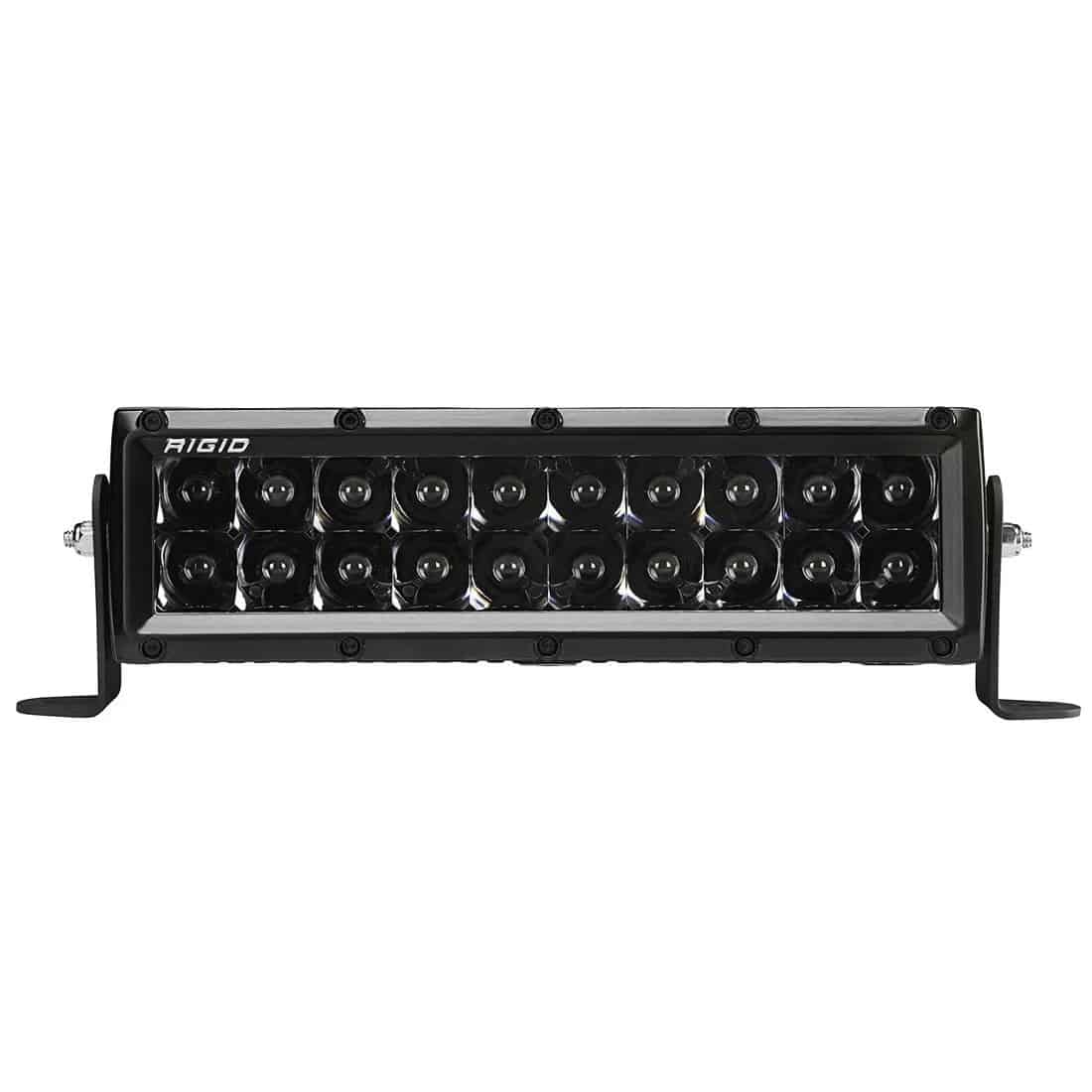

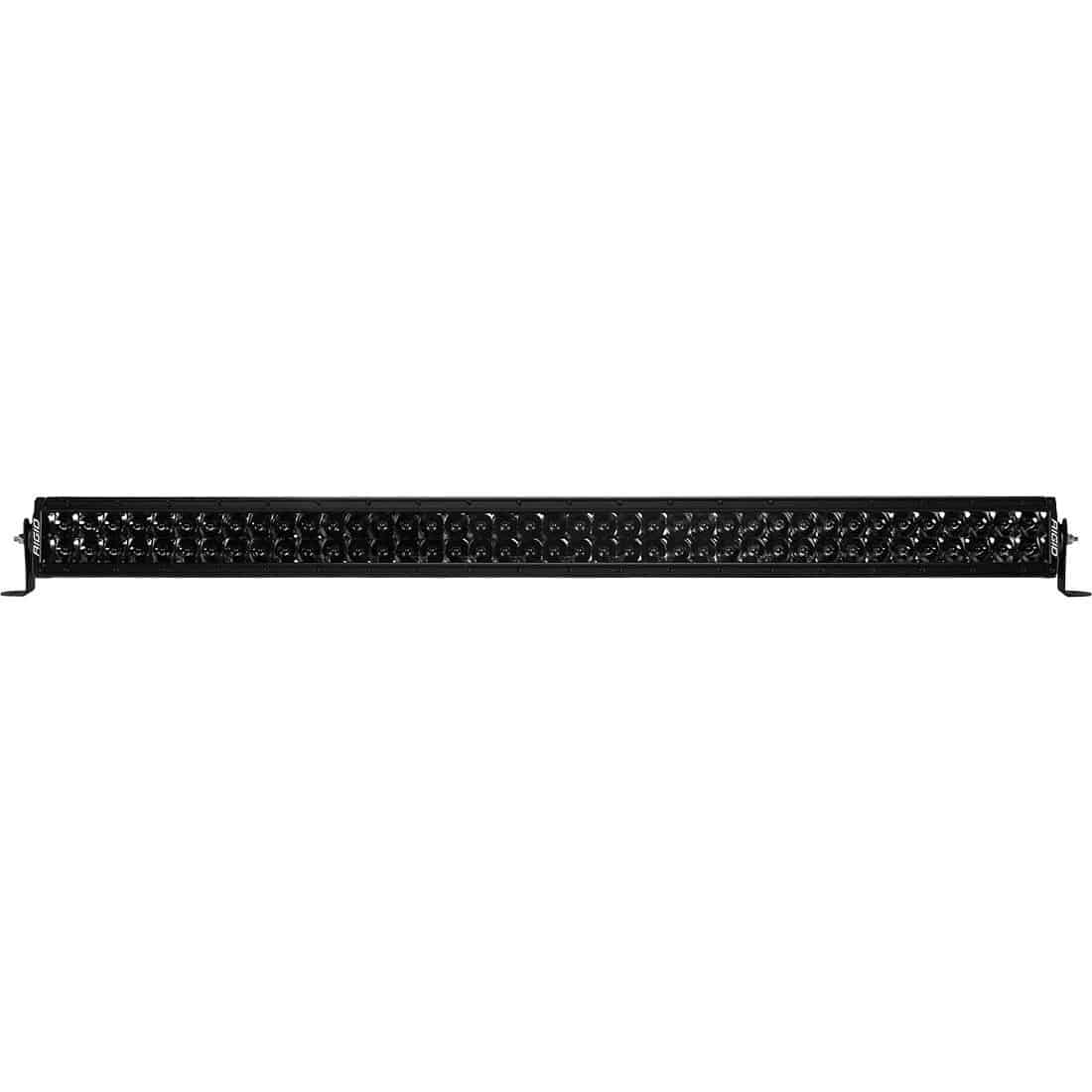

Available with your choice of optics, the E-Series features a host of beam options, including Spot, Flood, Diffused, Spot/Flood combo, and Midnight Edition.

These and other innovations make it one of the brightest and most efficient LED light bars on the market.

The E-Series was born in off-road, but its versatility makes it well suited for use with power sports, marine, general automotive and even first responder applications.

Own The Night with RIGID’s E-Series double row LED light bar.


  • 50,000 Plus Hour Lifespan
  • 9-36 V DC
  • Durable UV Resistant Powder Coat
  • High-Grade Aluminum Alloy
  • Integrated Thermal Management System
  • Impact Resistant Polycorbonate Lens
  • Over/Under Voltage Protection
  • RFI/EMI Protection
  • Reverse Polarity Protection
  • RoHS Compliant
  • IP68 Compliant – Dust/Water Ingress
  • Operating Temp -40 Deg F To +145 Deg F
  • SAE J575 Compliant – Shock/Vibration
  • Pressure Equalizing Vent
  • Limited Lifetime Warranty
  • Off Road Use Only
  • 2 Black Powder Coated, L-shape brackets
  • Deutsch Connector (4”-10”)
  • Open Leads, No Connector (20”-50”)
  • Harness w/Switch

Beam Pattern Options

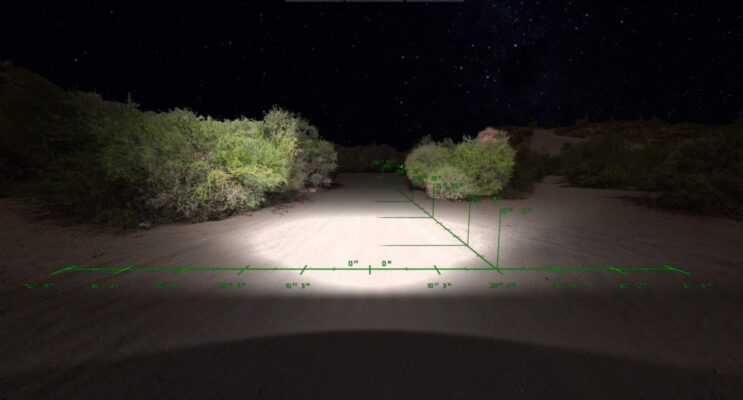

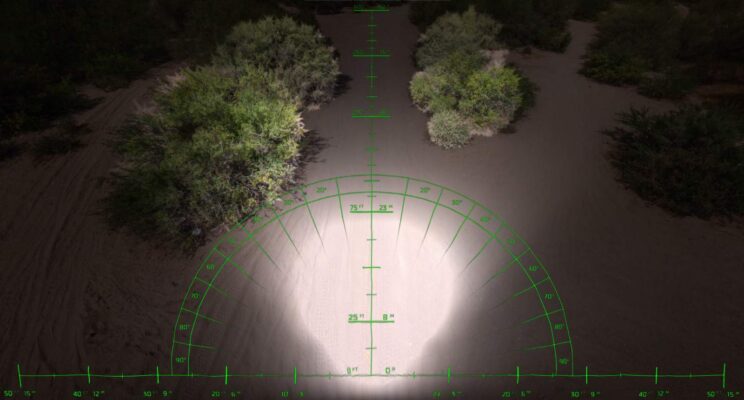

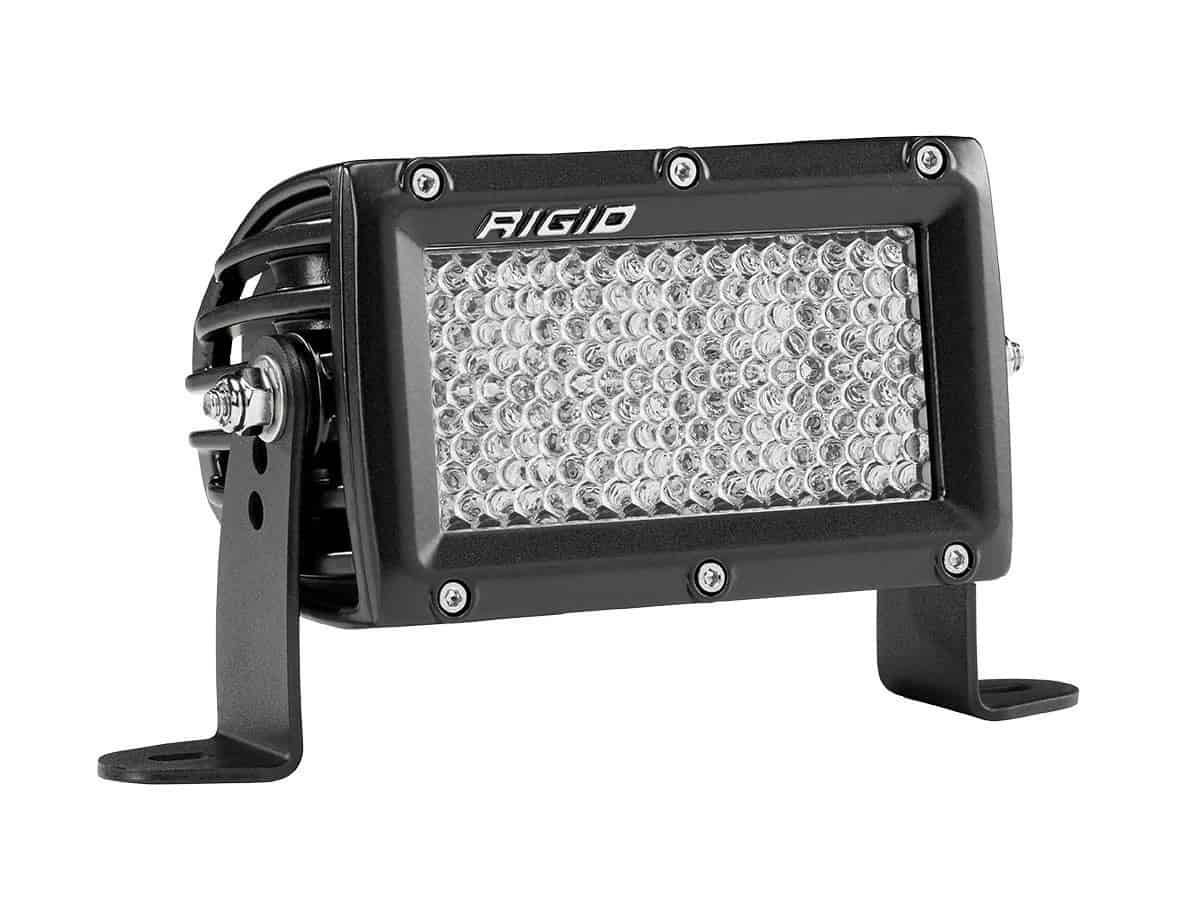

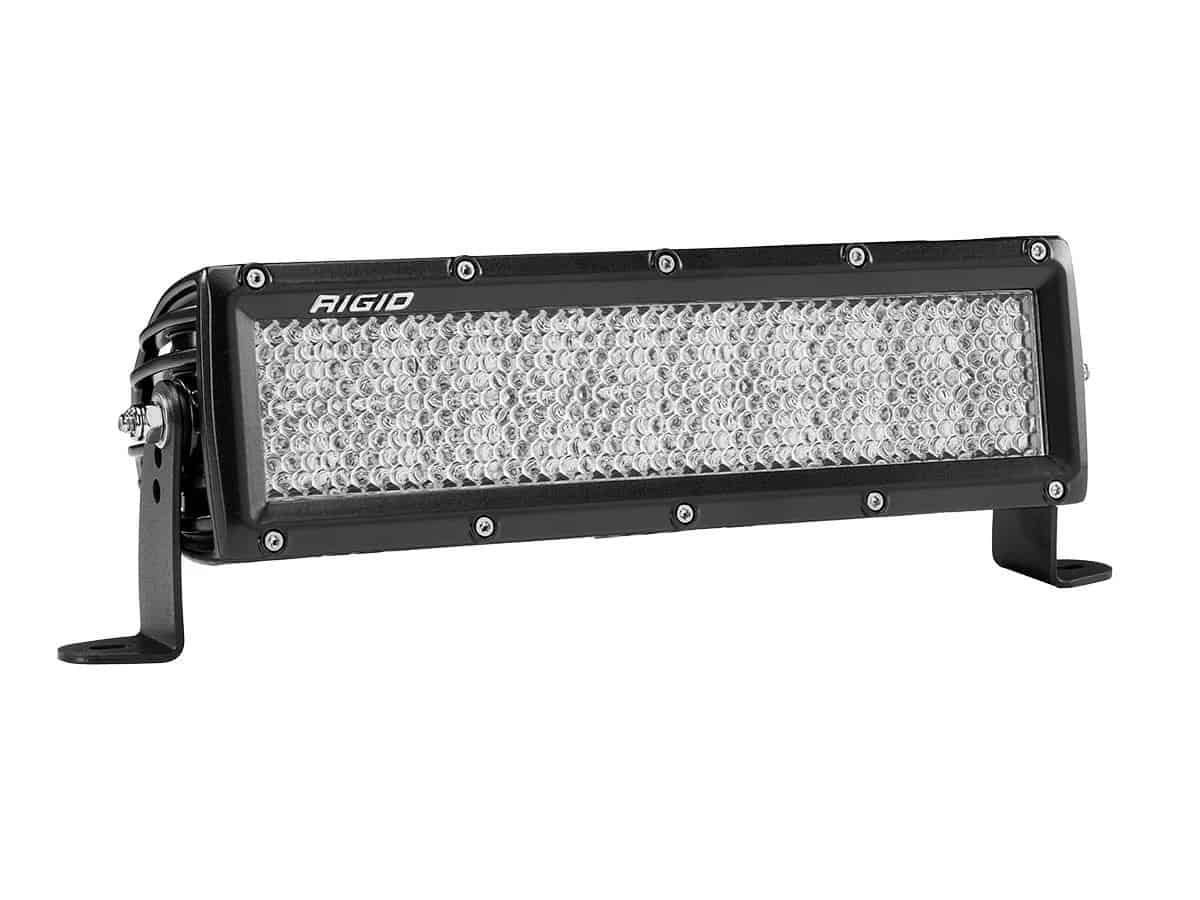

10″ Diffused Beam Option

  • Use: Reverse or Fog Lights

Rigid Pro Light Bar, Beam And Size Options

Rigid Pro Light Bar, Beam And Size Options

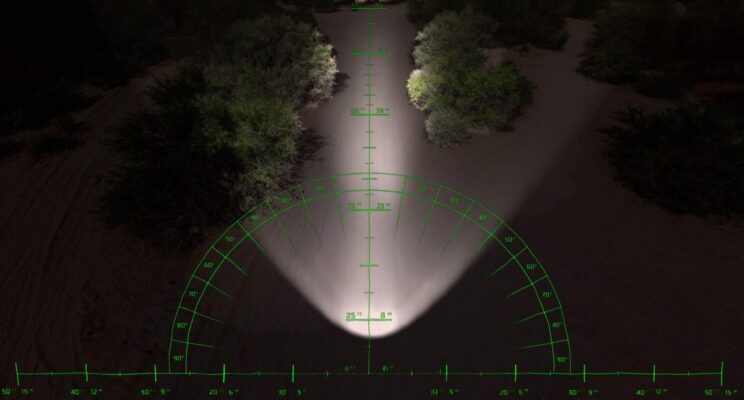

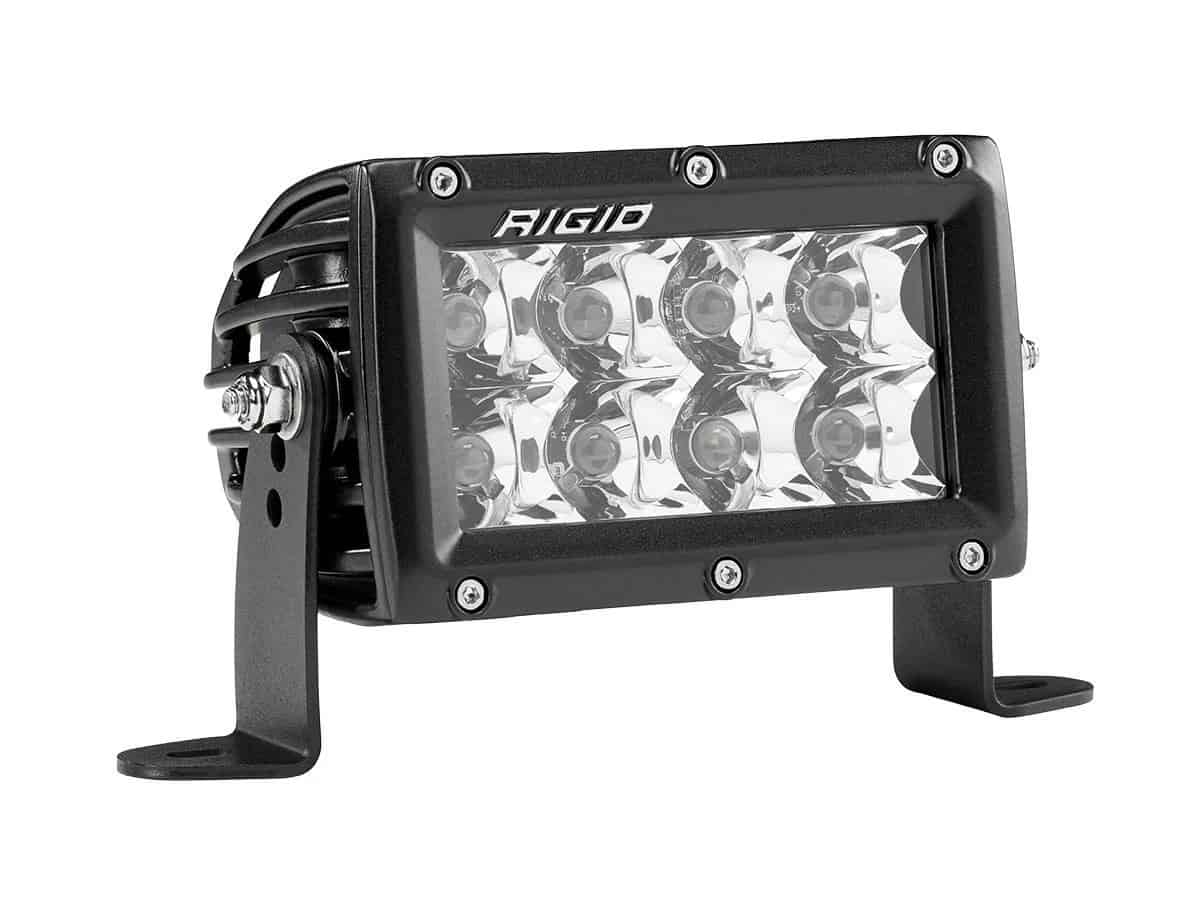

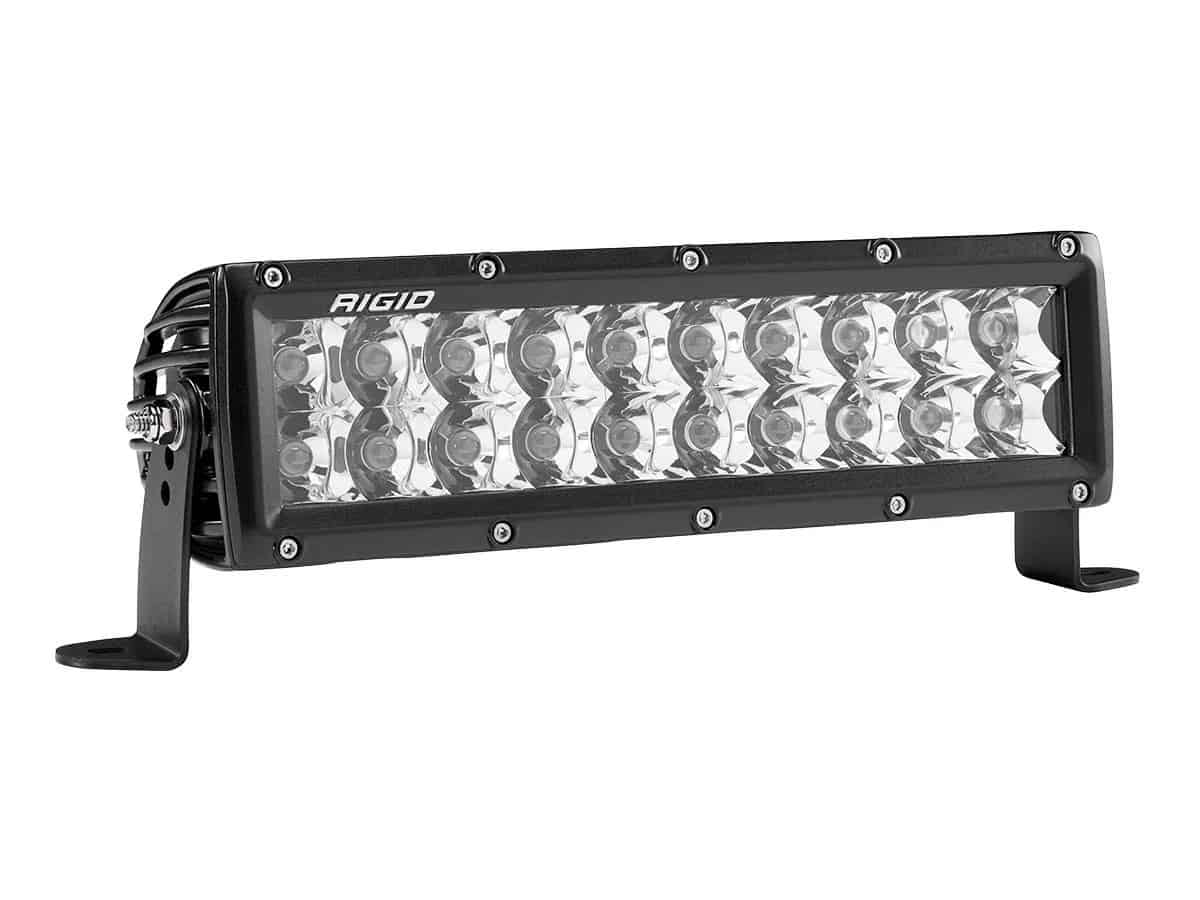

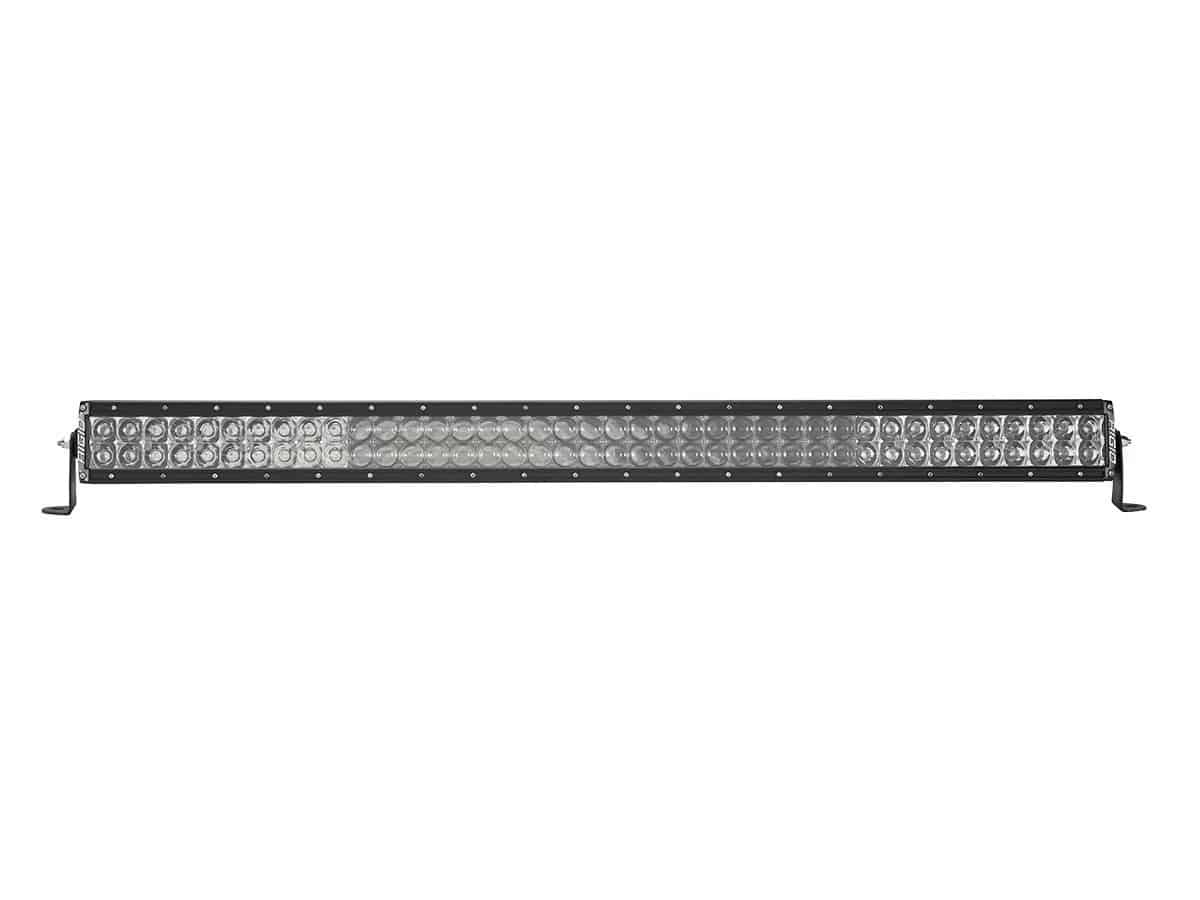

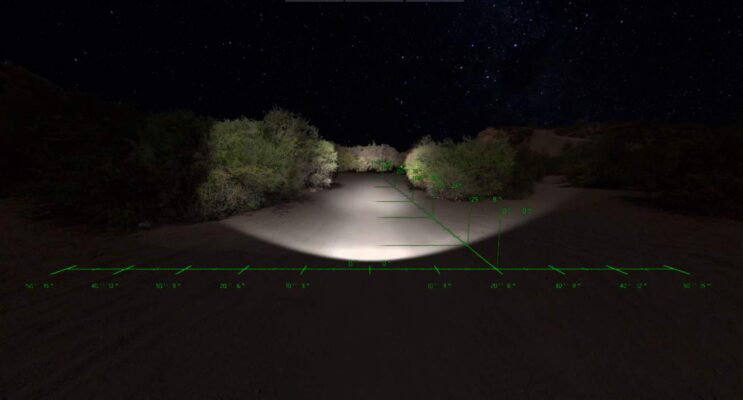

10″ Spot Beam Option

  • Use: Long distance, straight roads

Rigid Pro Light Bar, Beam And Size Options

Rigid Pro Light Bar, Beam And Size Options

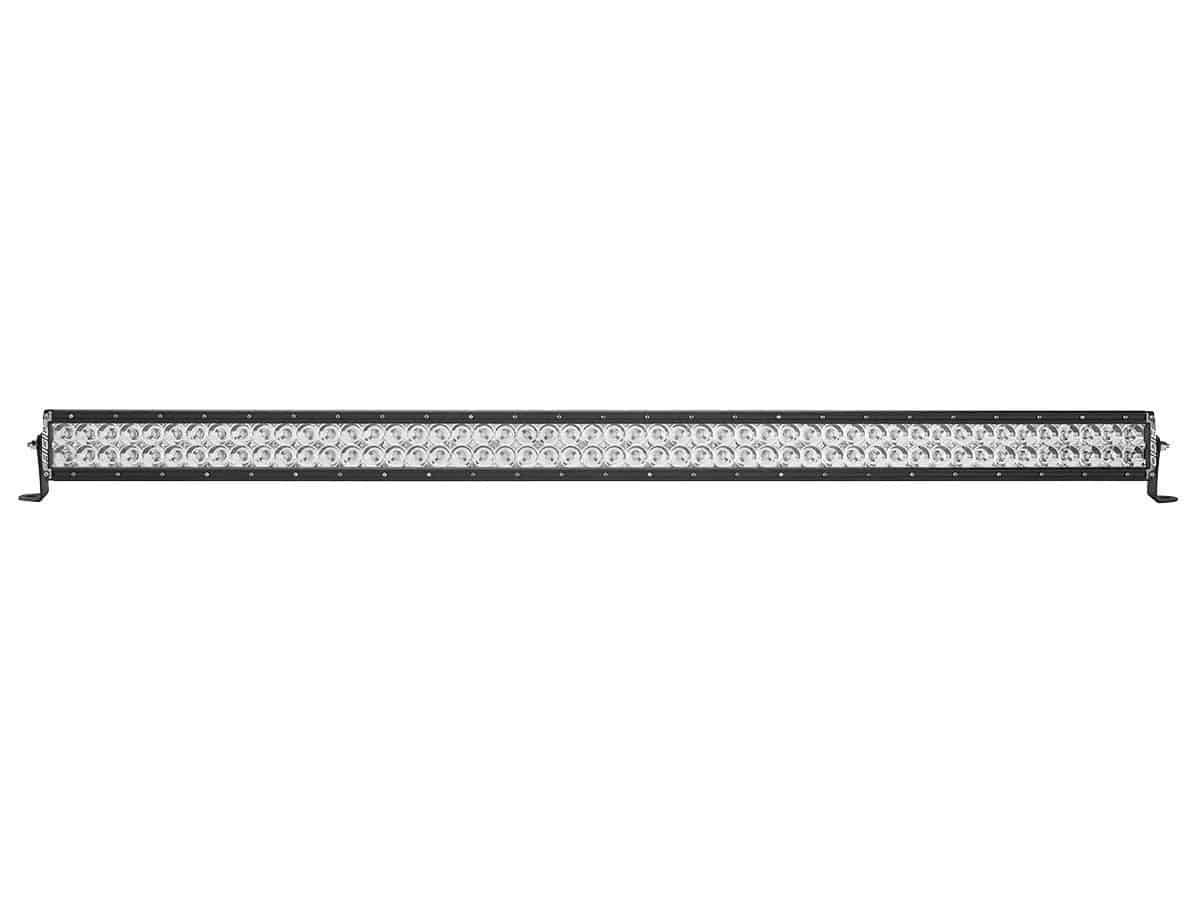

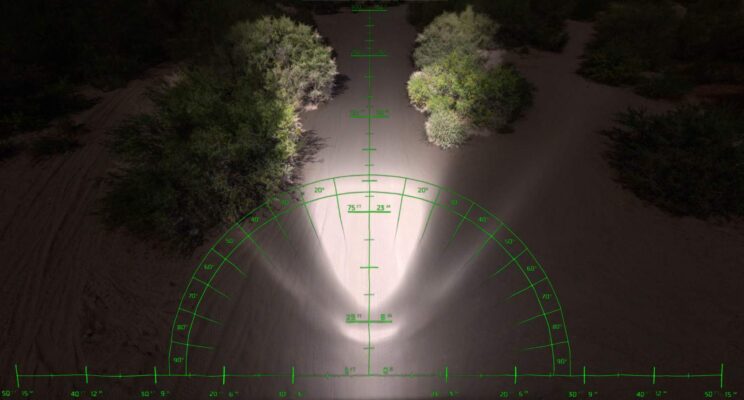

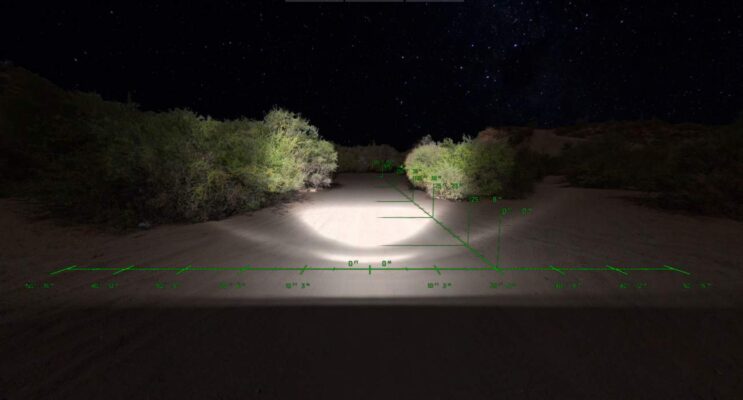

10″ Flood Beam Option

  • Use: Fast Moving / Curvy Trails

Rigid Pro Light Bar, Beam And Size Options

Rigid Pro Light Bar, Beam And Size Options

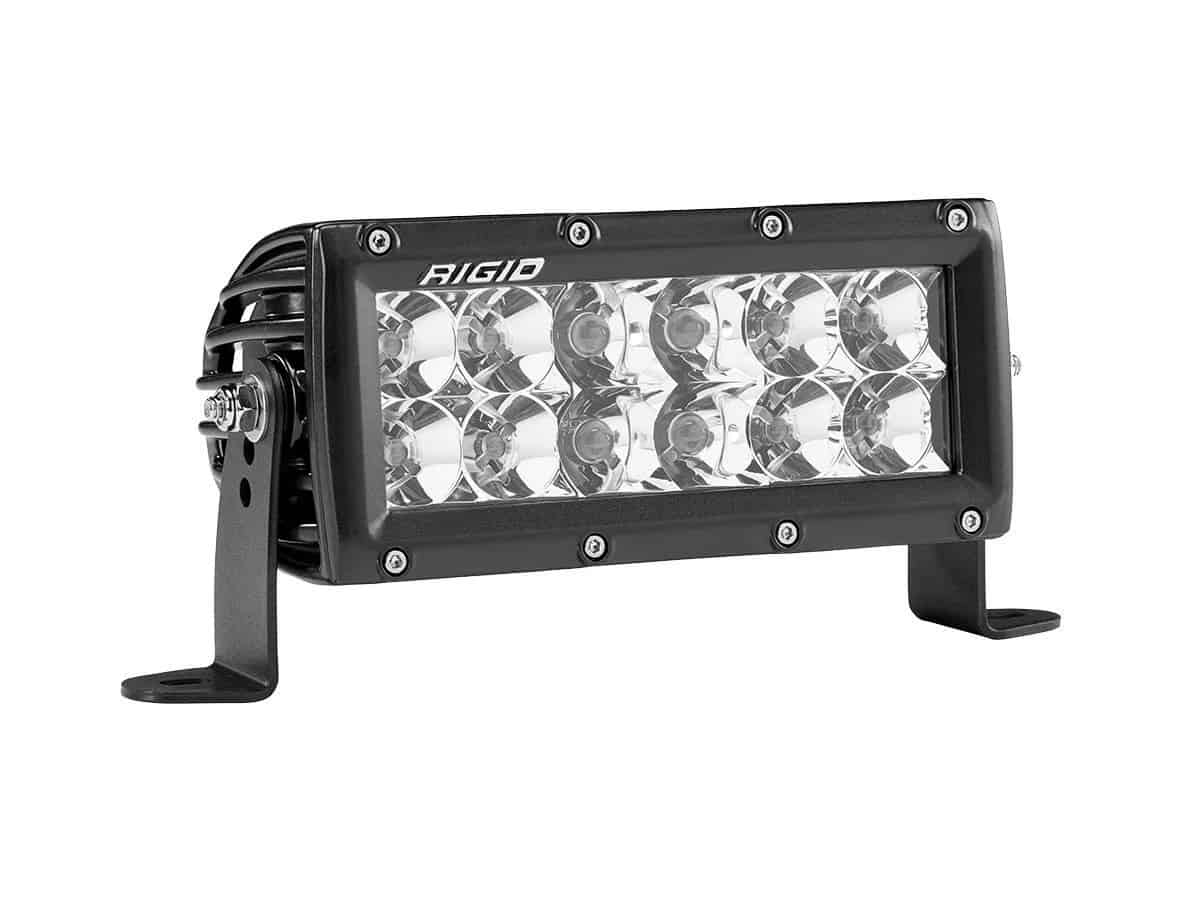

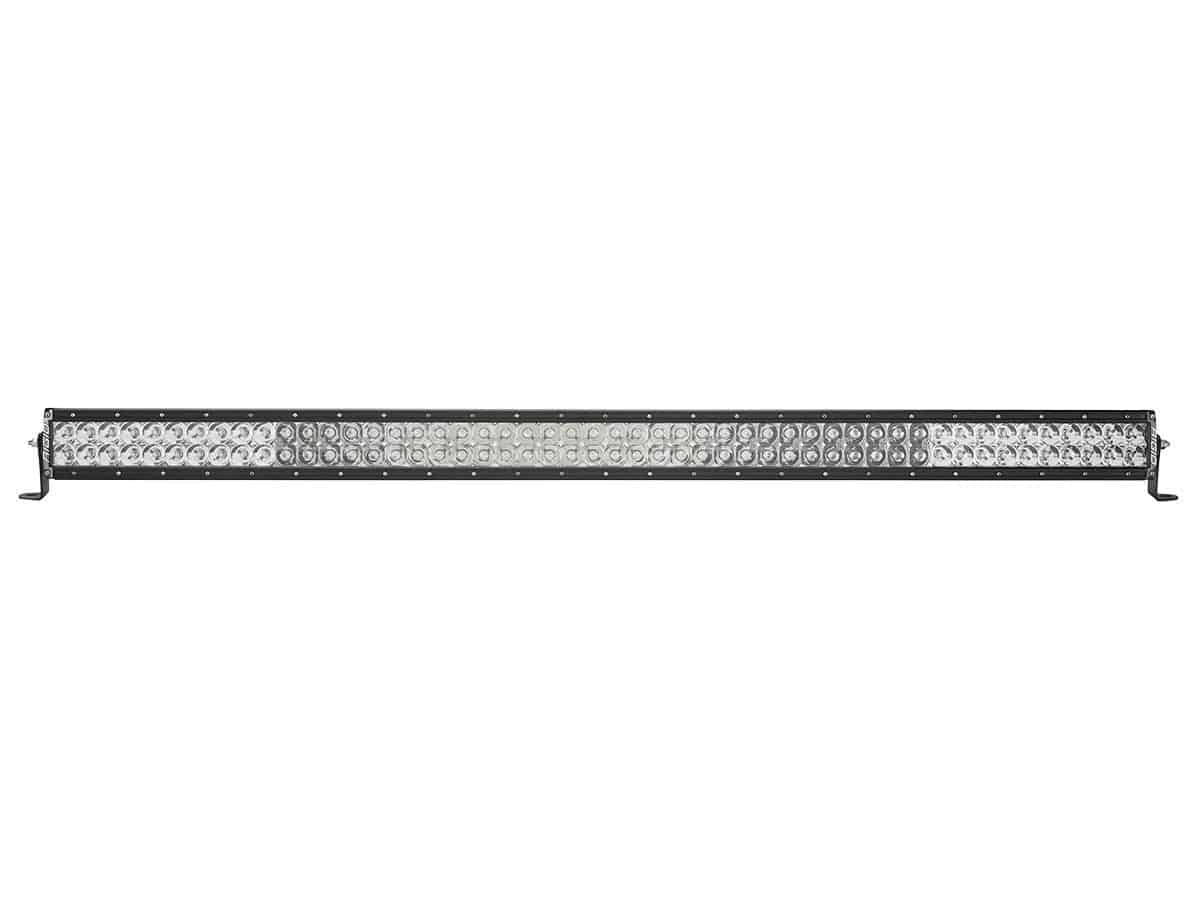

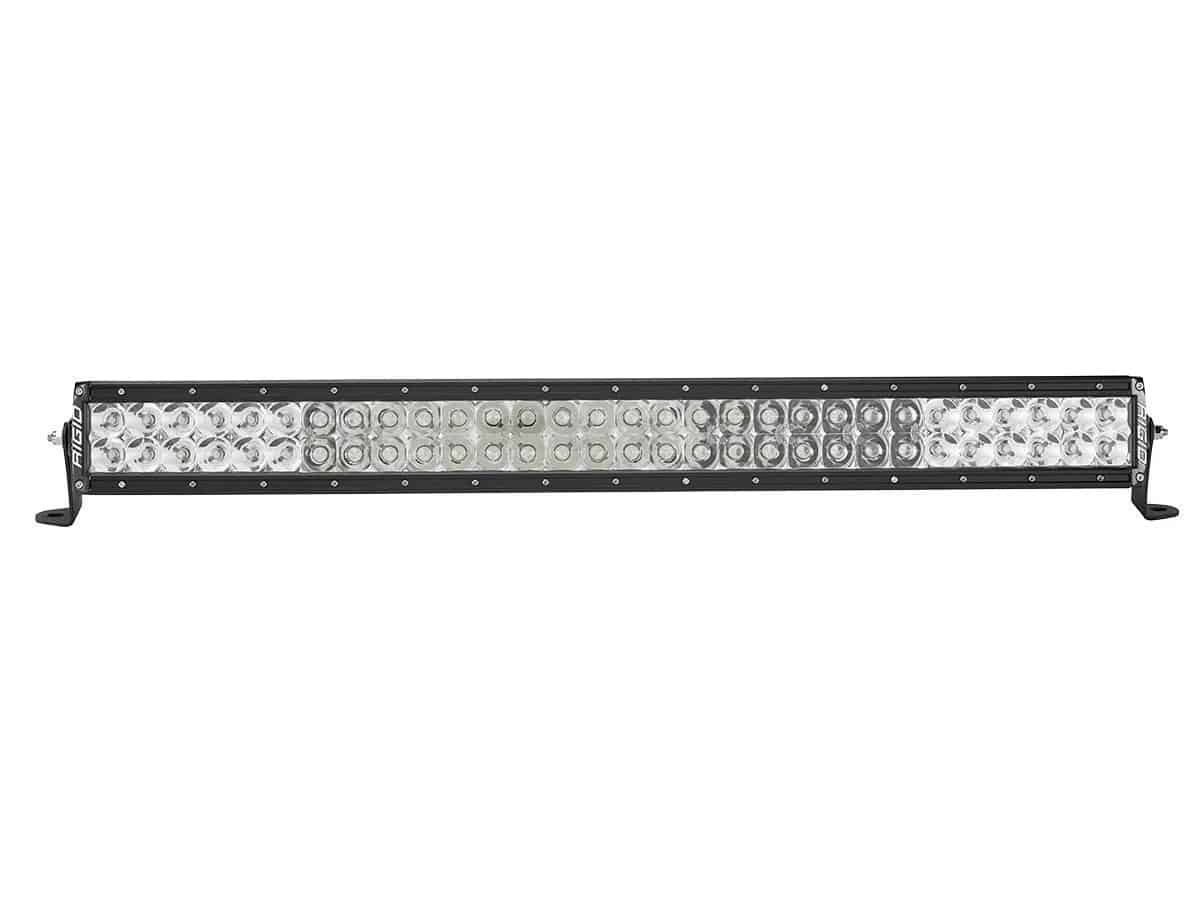

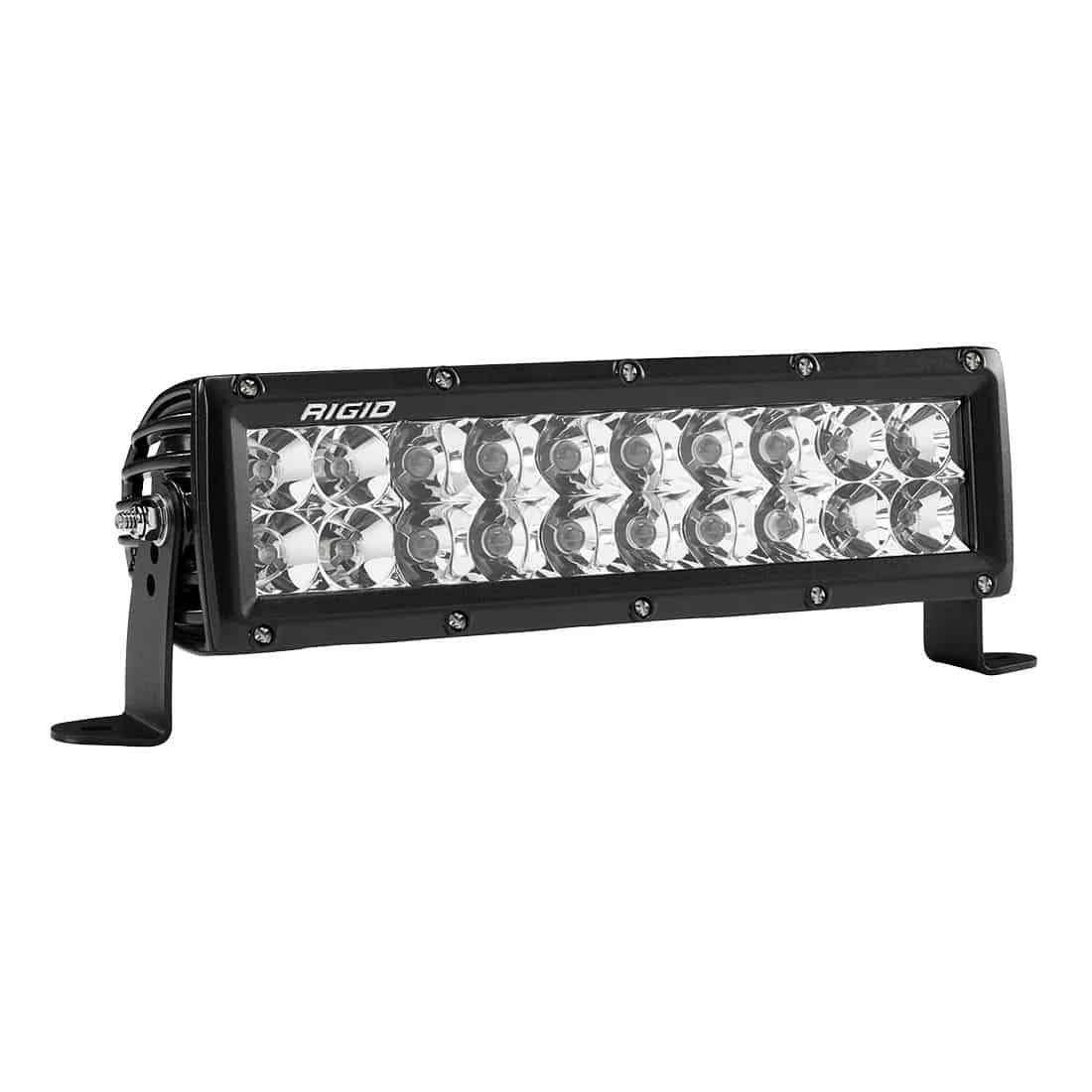

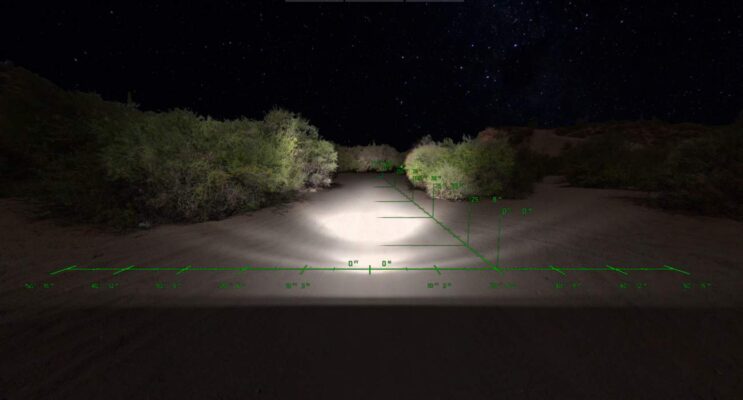

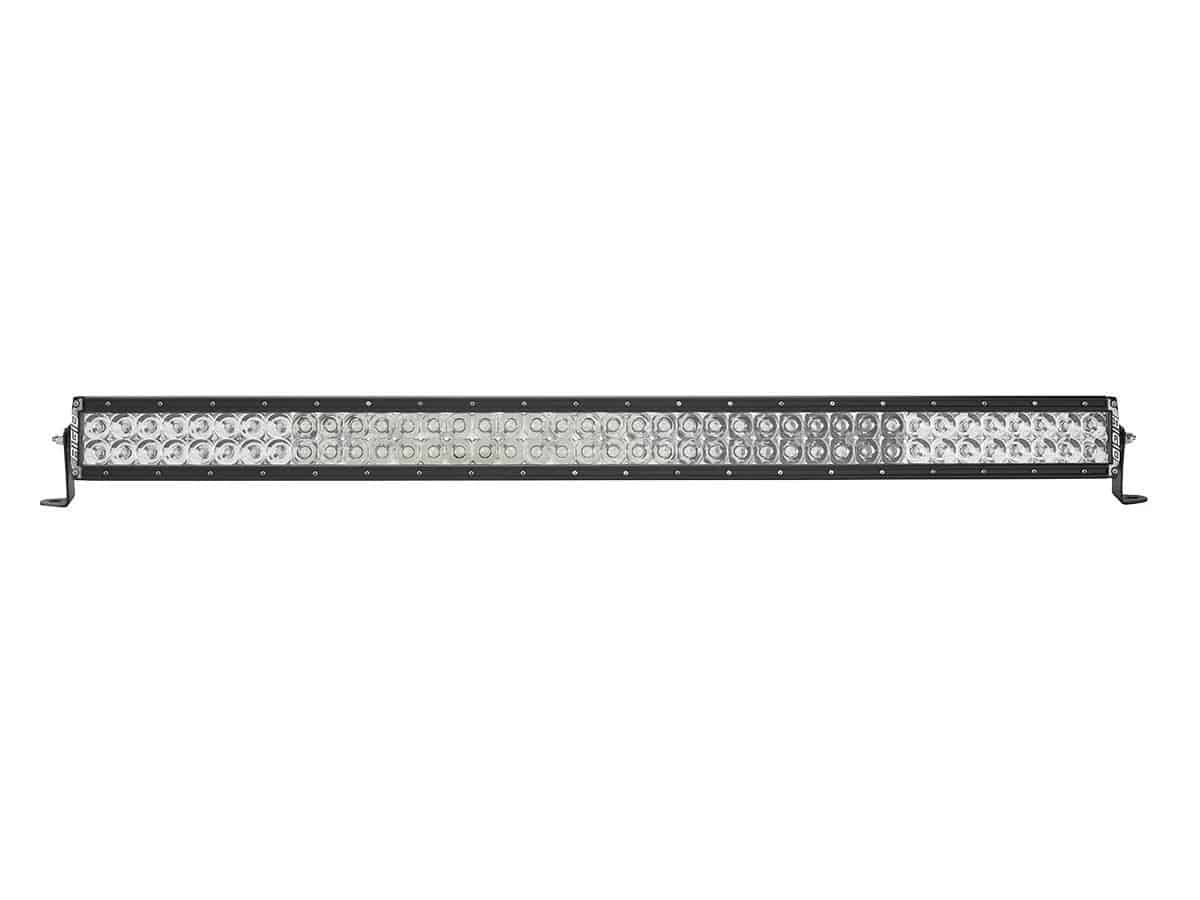

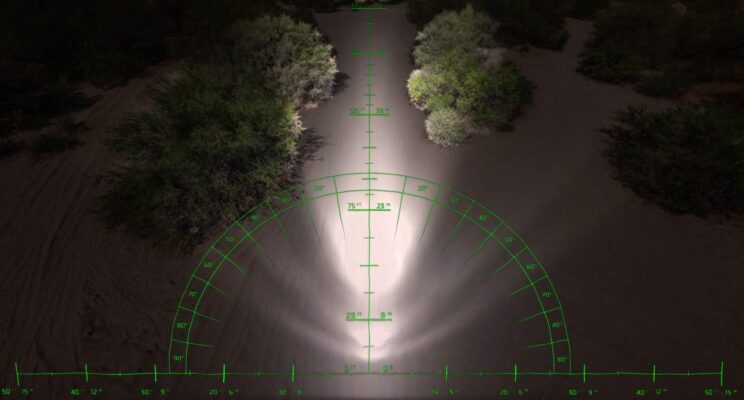

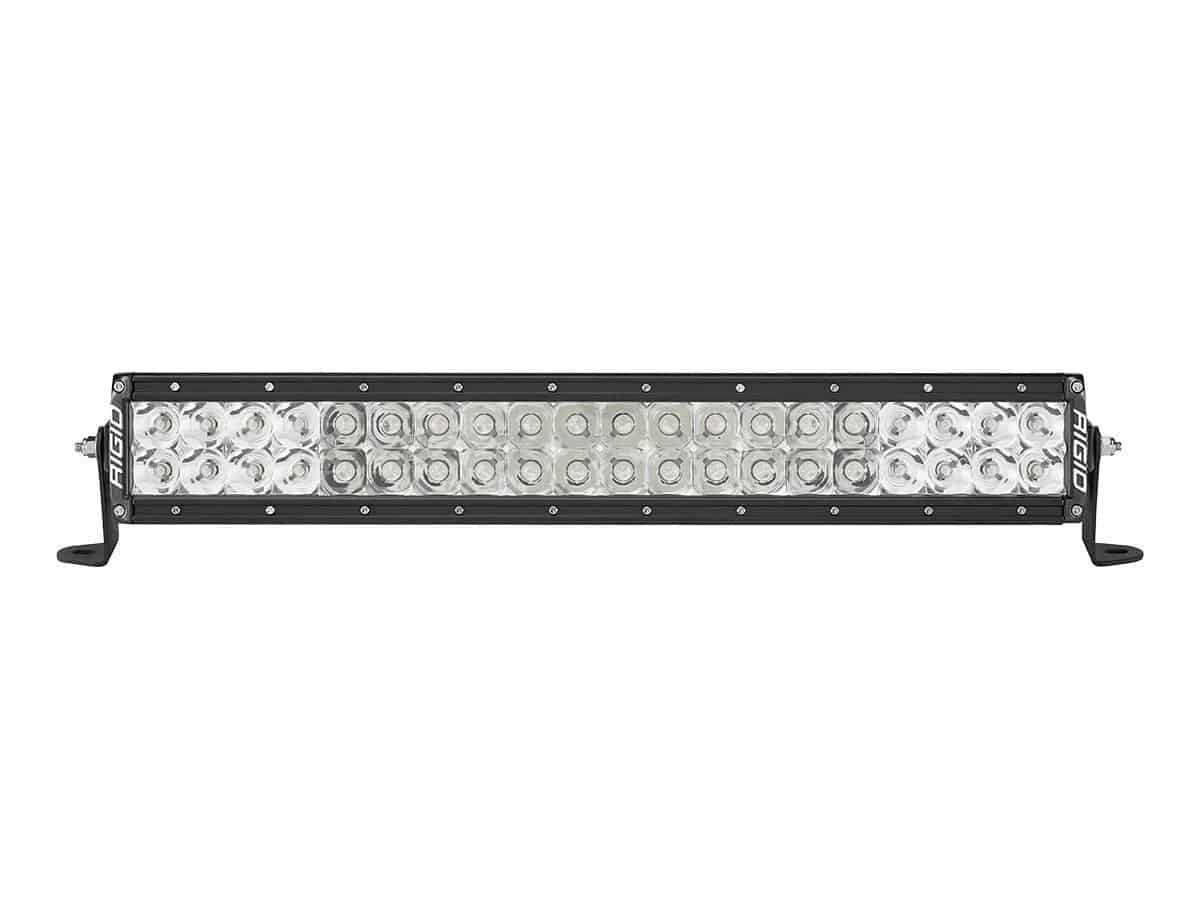

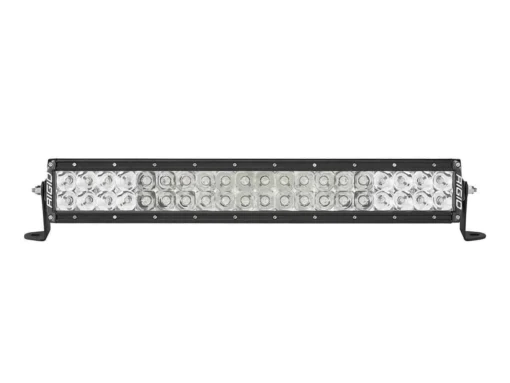

10″ Combo Beam Option

  • Use: Mixture Of Spot And Flood

Rigid Pro Light Bar, Beam And Size Options

Rigid Pro Light Bar, Beam And Size Options

Size And Specs

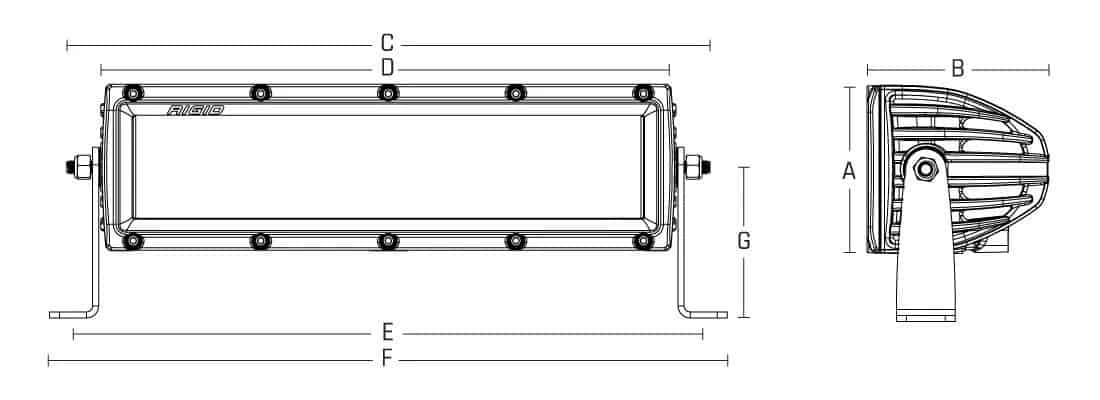

E Series Dimensions Edit

All A: 3.25″ All B: 3.75″ All G: 2.7″

Size C D E F
4″ 6.6″ 5.2″ 6.7″ 7.9″
6″ 8.6″ 7.2″ 8.7″ 9.9″
10″ 12.6″ 11.2″ 12.7″ 13.9″
20″ 23″ 21.5″ 22.75″ 24″
30″ 33″ 31.5″ 32.75″ 35″
40″ 43″ 41.5″ 42.75″ 44″
50″ 53″ 51.5″ 52.75″ 54″

4″ Light Bar

Weight: 4 Lbs.

Watts: 61

Amp Draw: 4.36

Voltage Max: 36

*Raw Lumens: 6336

6″ Light Bar

Weight: 4 Lbs.

Watts: 80-82

Amp Draw: 5.71 – 5.86

Voltage Max: 36

*Raw Lumens: 9504

10″ Light Bar

Weight: 5 – 6.3 Lbs.

Watts: 121 – 172

Amp Draw: 11.79 – 13.07

Voltage Max: 36

*Raw Lumens: 15840

20″ Light Bar

Weight: 9 Lbs.

Watts: 214

Amp Draw: 15

Voltage Max: 36

*Raw Lumens: 25080

30″ Light Bar

Weight: 12 Lbs.

Watts: 311

Amp Draw: 22

Voltage Max: 36

*Raw Lumens: 32700

40″ Light Bar

Weight: 14.71 – 16

Watts: 299 – 306

Amp Draw: 21 – 22

Voltage Max: 36

*Raw Lumens: 31,080 – 35,680

50” Light Bar

Weight: 19 Lbs.

Watts: 377

Amp Draw: 27

Voltage Max: 36

*Raw Lumens: 44600


E-Series Installation Guide
