Warn Axon UTV/ATV Winch

SKU: WR-AXON Categories: , , , ,

From: $479.99

As Low As 0% Financing Options Available "See Options"

Warn Axon Utv/atv Winch

Vehicle Fitment Info In Tabs Below

Dfb B American Cash Logo

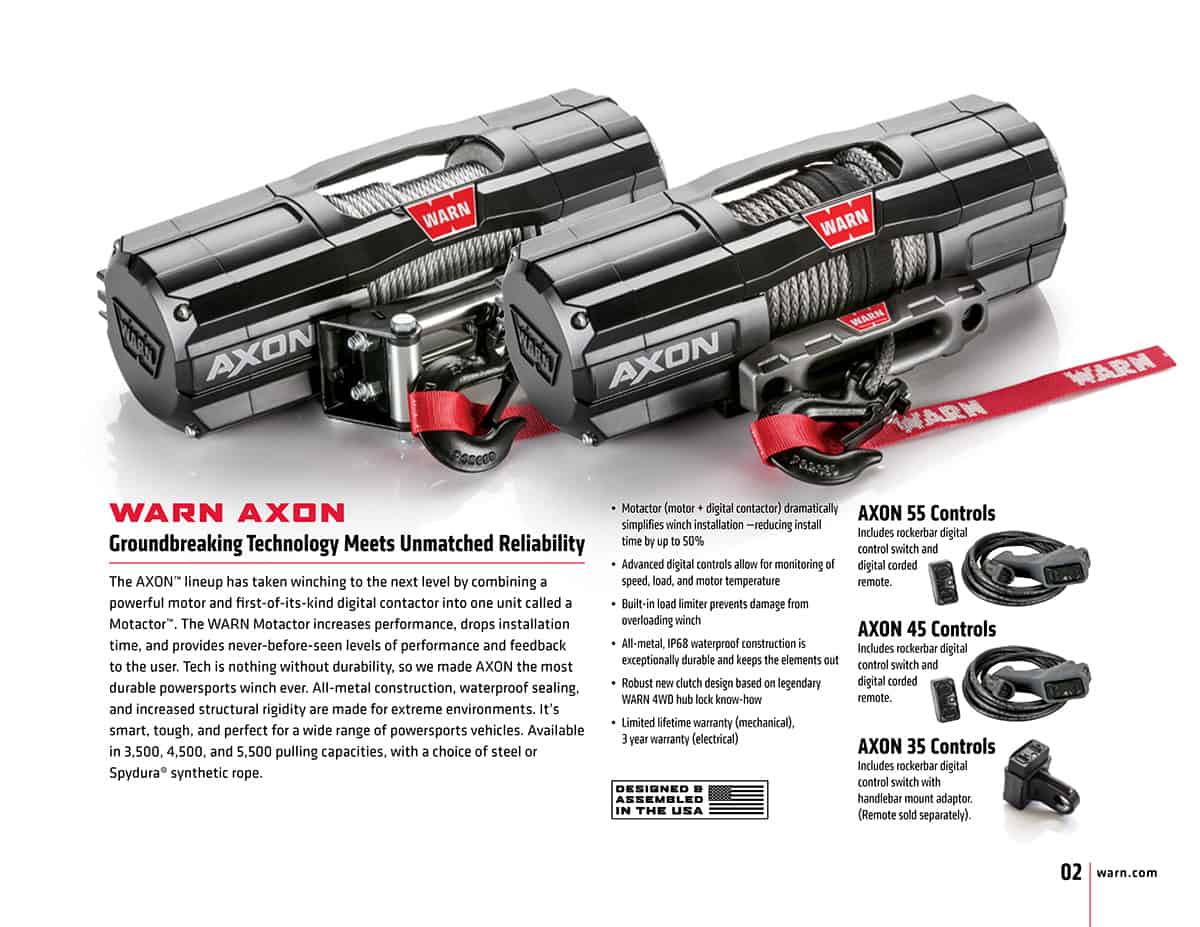

Warn Axon Power Winches for ATV’s and UTV’s

One of The Best Winch Designs Around, The New Warn Axon Winches are The easiest and Smoothest Install Around, With Max Pulling Power

When Chosen Here are a couple Points:

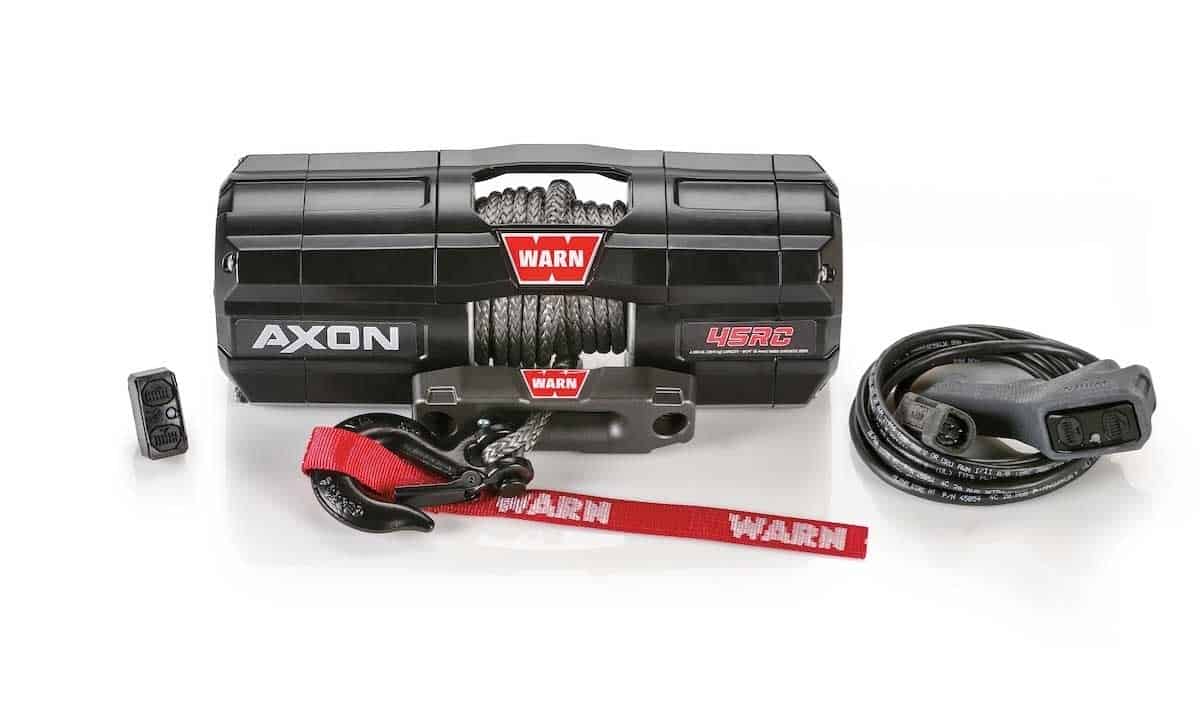

The RC Model is the Standard Size winch, All others are considered wide spool: The winch’s short drum configuration allows for a narrower overall width, but still has a big 4,500 lb. pulling capacity.

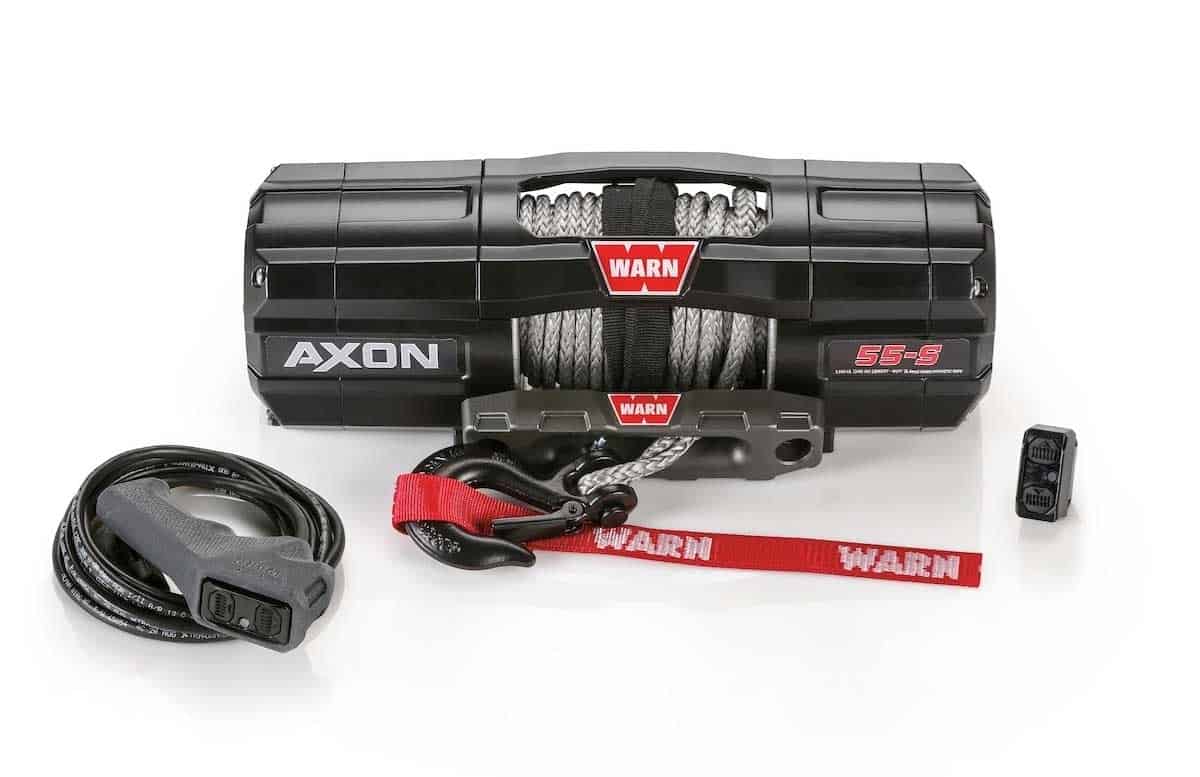

The S at the End of the Model Number is For Synthetic Rope: easy-to-handle ¼” Spydura synthetic rope

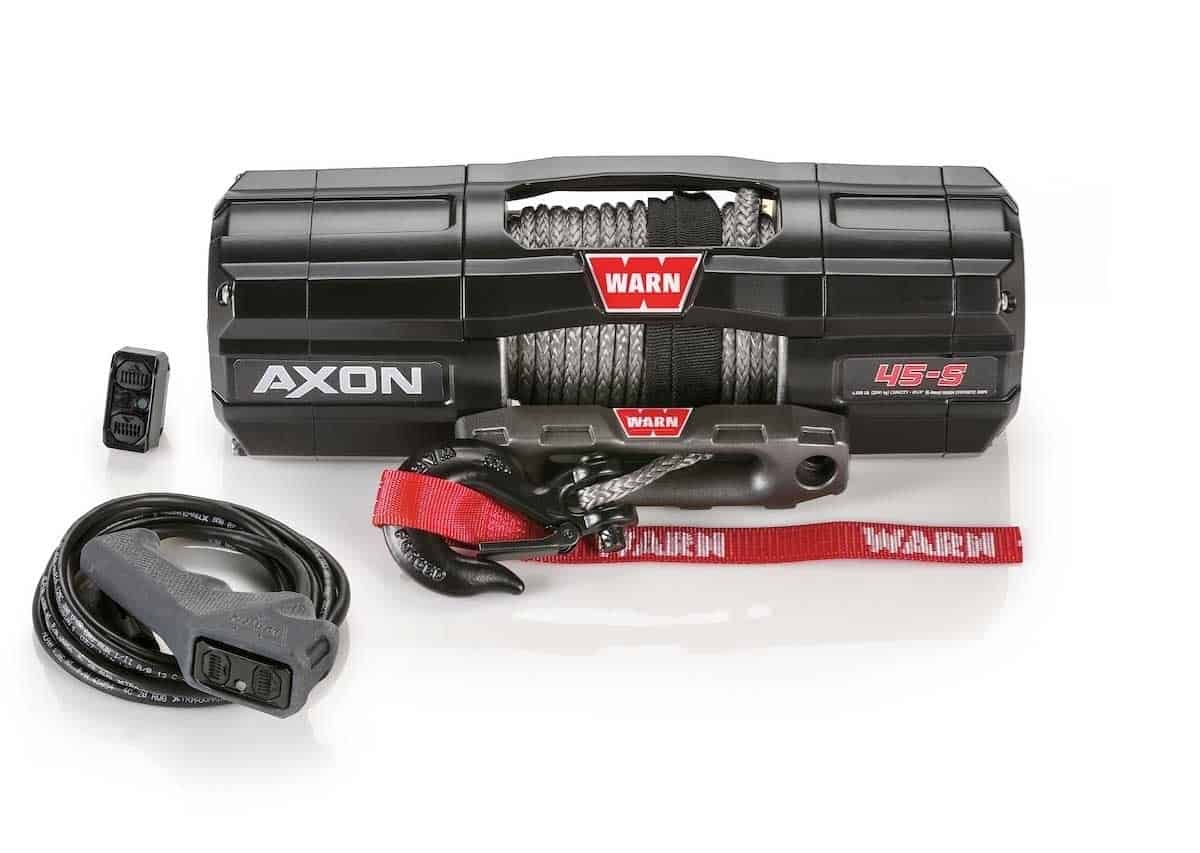

In The Box:

Winch, Wiring, Remote Control, Dash Switch, Fairlead, Metal Recovery Hook

Specifications

  • AXON Options are either synthetic rope or Steel, that come with a Fairlead, and a black hook
  • Powerful pulling capacity is perfect for UTV/Side x Sides
  • Revolutionary Motactor™ combines motor and contactor for easy installation, best performance
  • Digital control offers never-before seen levels of performance and user feedback including load and temperature info
  • Smooth, reliable all-metal three-stage planetary gear train
  • Satin black powder-coated finish and stainless steel fasteners for corrosion resistance
  • New clutch design based on legendary WARN 4WD hub lock know-how
  • Durable all-metal construction and one-piece tie plate (vs. tie bars) for increased structural rigidity
  • IP68 waterproofing keeps water and the elements out
  • Load-holding brake for great control
  • Rockerbar digital control switch and digital wired remote
  • Limited lifetime warranty (mechanical), 3 year warranty (electrical)

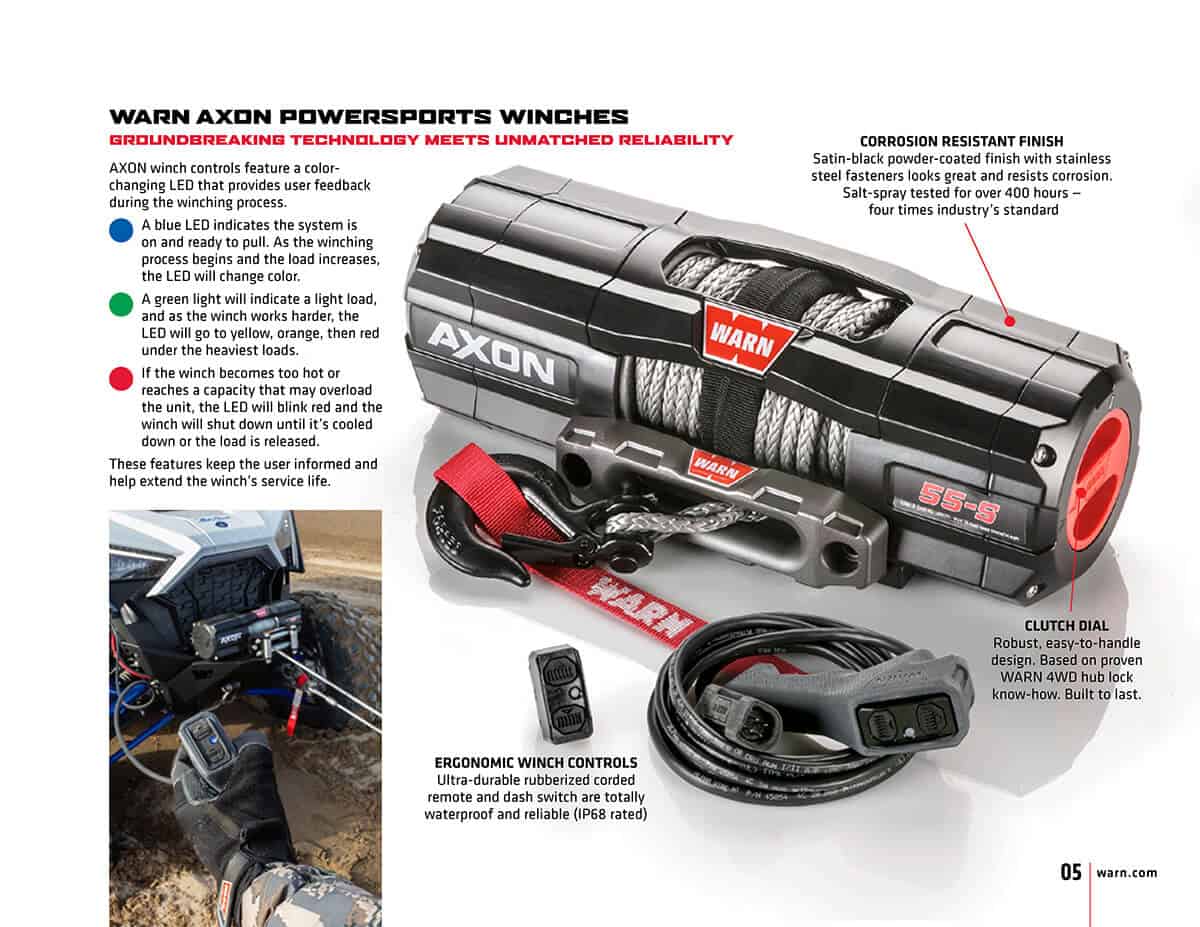

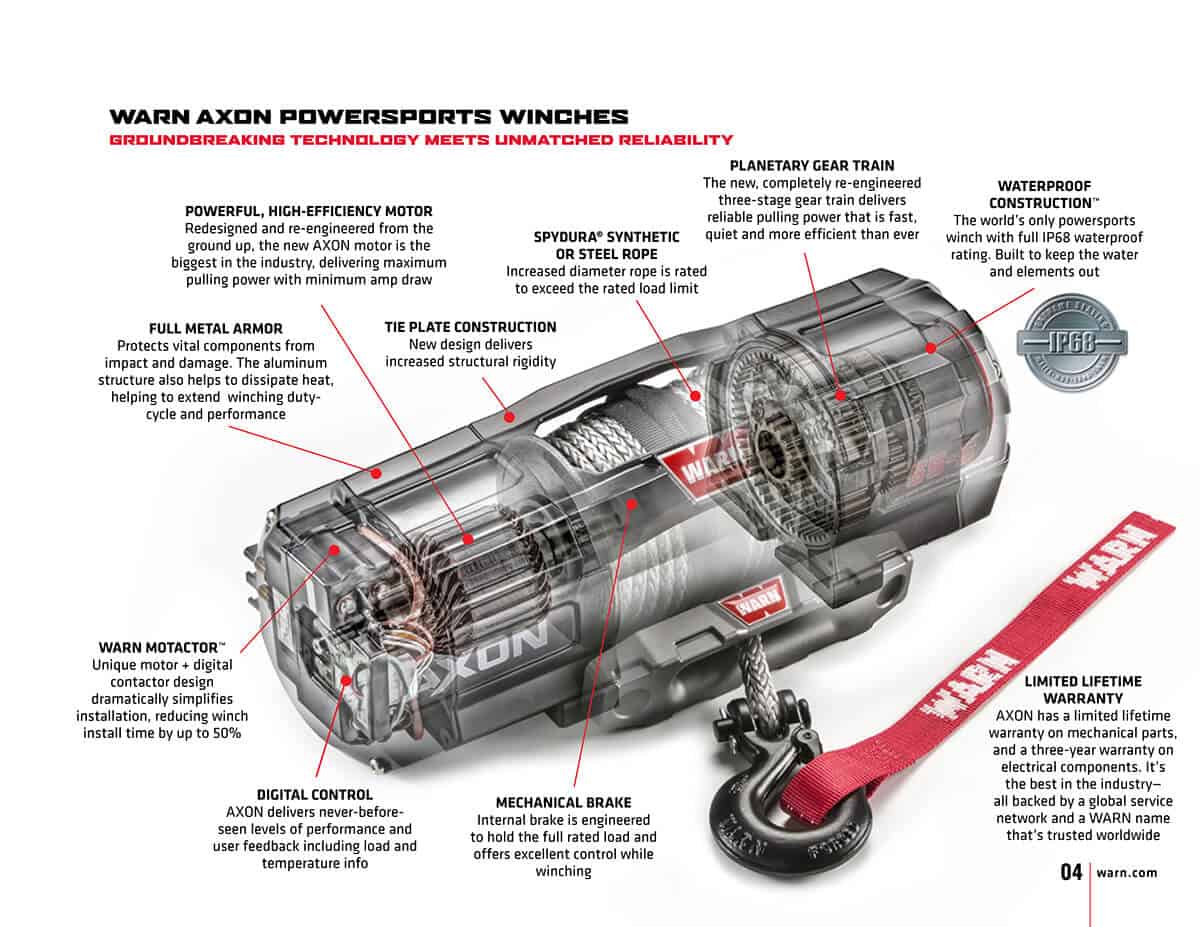

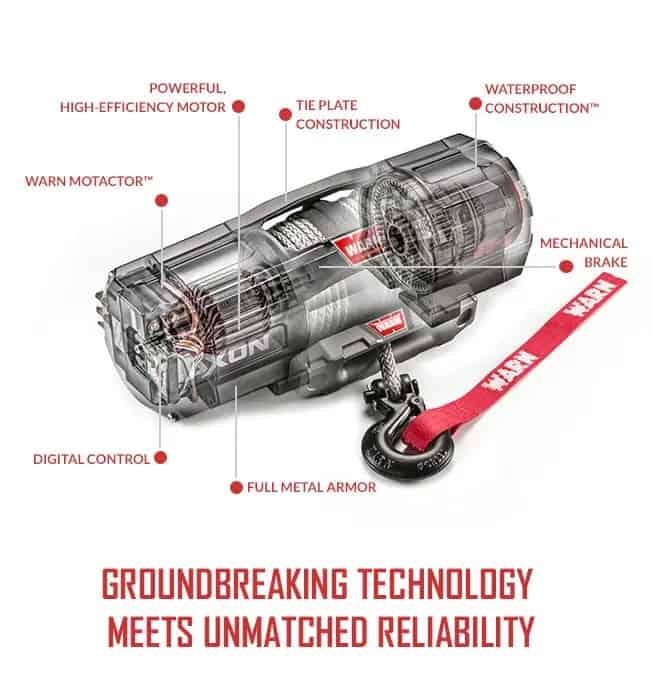

Powersports Winches Axon Callouts

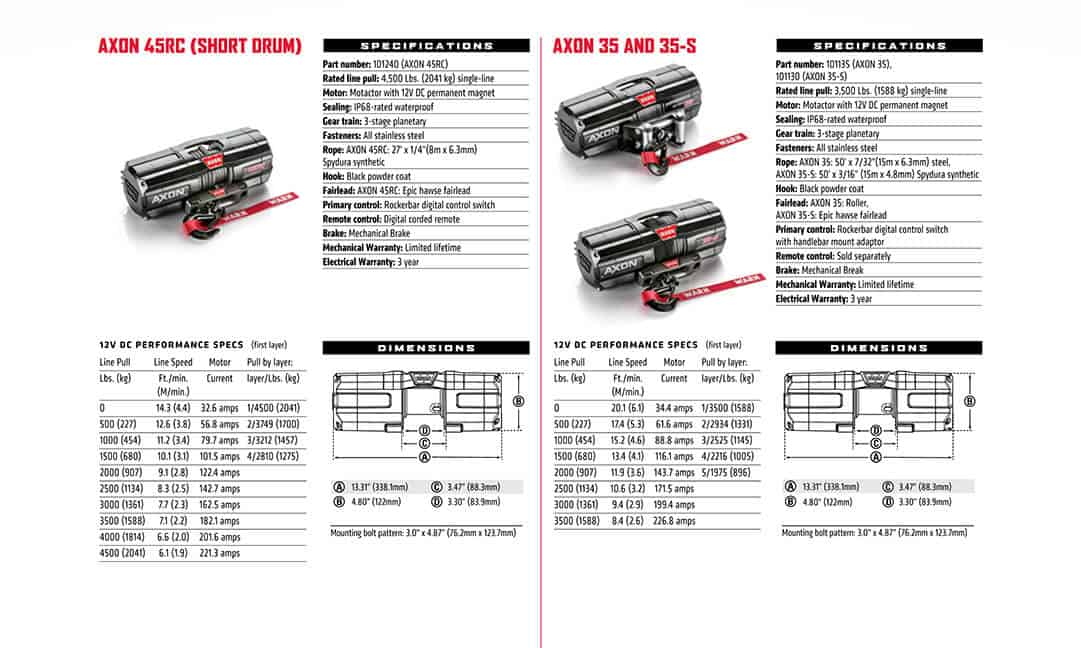

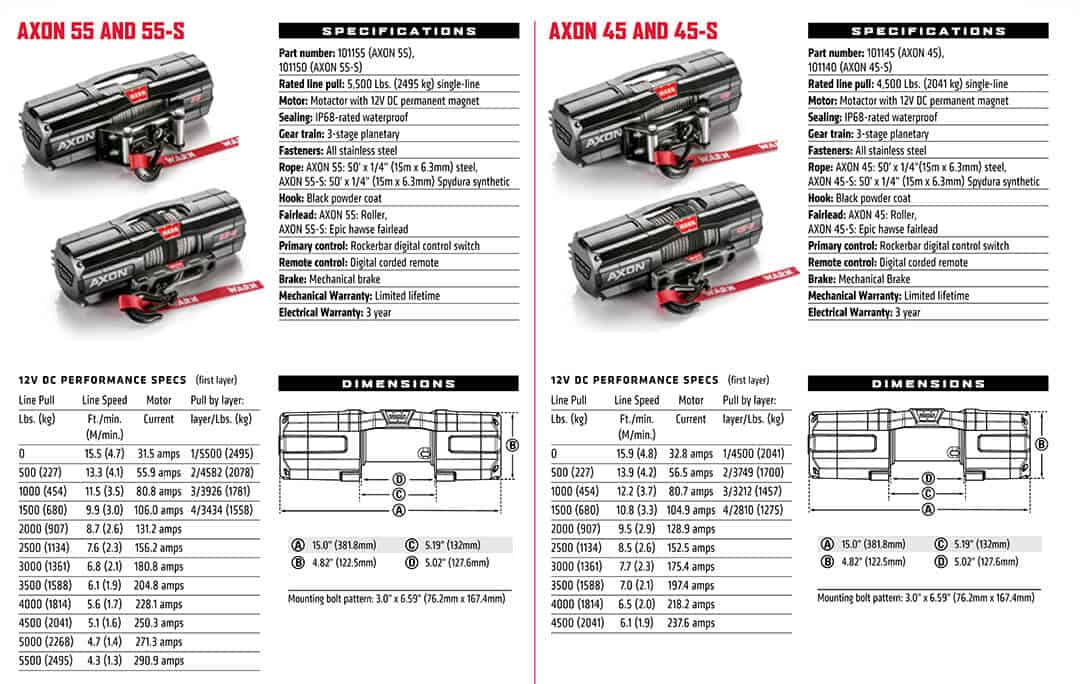

Axon Sized
Axon Sized
Imgpsh Mobile Save

STEEL VS. SYNTHETIC WINCH ROPE

Steel rope is extremely durable, abrasion resistant, and is good for utility applications where the line may contact objects like stumps, rocks, and other things that rub against the rope. Steel rope is heavier and less flexible than synthetic line and is less expensive than synthetic rope.

Synthetic rope is strong, lightweight, easy to handle, and it’ll even float on water making it great for vehicle recovery. Synthetic rope is more prone to damage by abrasion, and requires the use of the included abrasion sleeve when the rope comes into contact with an object. However, Synthetic is more expensive than steel but it’s a great choice for those who are looking to keep weight down and push the limits with their vehicle.

Add HUB Bluetooth Control

Warn Axon Winch

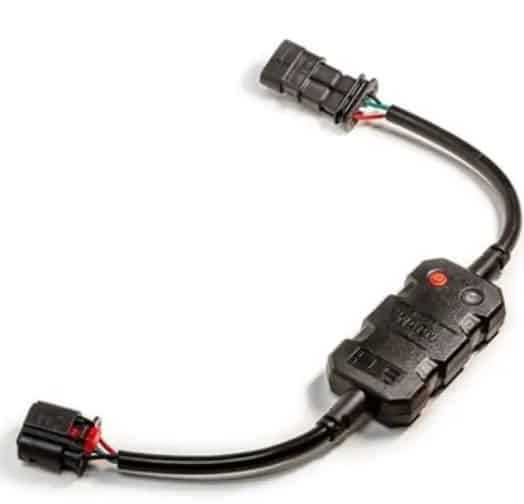

The HUB Wireless Receiver –

  • 100 ft. or more wireless range
  • Rugged construction – fully molded housing offers IP68 waterproof sealing
  • Quick to install – receiver mounts to any tube or flat surface and wiring takes less than 5 minutes on most models
  • Easy to connect – iOS and Android compatible and connects via Bluetooth
  • 1 year limited warranty
  • Installs directly in line with the wiring harness
  • When paired with the App, this receiver allows the user to control the winch and receive winch load, battery voltage, and winch motor temperature feedback.
Ee A D C F Ff Fdbde E Fe

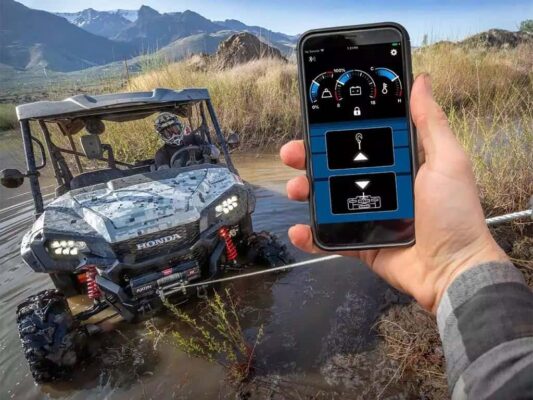

 The HUB Wireless App –

  • Available for Apple iOS and Android
  • Download for free from Apple App and Google Play stores
  • Designed to work offline and without service using Bluetooth
  • Layout optimized for one-handed winch control
  • Real time winch feedback displayed on screen
  • Built-in help and tutorial allows user to easily connect their phone to their HUB Receiver
  • Users can pair and switch between multiple HUB Receivers

Fitment Options

Utv Sizing
Utv Sizing
Utv Sizing
Utv Sizing

Additional Warn Winch Fitment Information Located “Warn Winch Fitment”

Manuals

Service Guide

Download Document

Install Guide

Download Document

Rope Install Guide

Download Document

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.

See Below Images to See Fitment Options, (click to enlarge)

When Sizing Winches You Need to Understand Where You Are Putting It, We Do have Many Options For Your Mounting Needs and If You Do Not See Something Please Contact Us and We Can Find It.

Choosing Where to Put The Winch will Decide if It Will Fit, If You are Using a Winch Bumper You Must Check the Sizing on the Bumper Not The Winch. If You Are Putting It over Your Front Diff Please Reference the Warn Fitment Page

If You are Using a Winch Plate Please Verify That Winch Plate and Understand What Sizing They allow.

Make Model Year
All Universal Fitment UTV Machine - Universal Fitment
All Universal Fitment ATV Machine - Universal Fitment
