Off-Road Winch Shackle Mount, D Ring Mount

SKU: F5-PROLINK Categories: , , ,

$119.99

As Low As 0% Financing Options Available "See Options"

Factory Free Shipping Template

Vehicle Fitment Info In Tabs Below

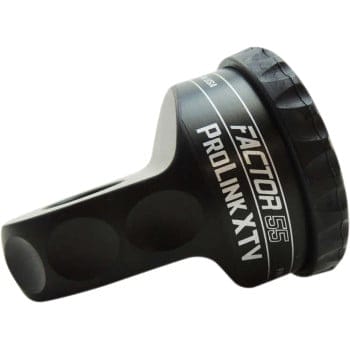

BlackBlack
BlueBlue

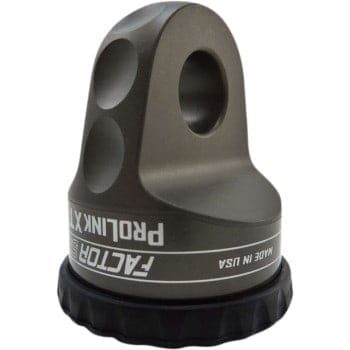

GreyGrey

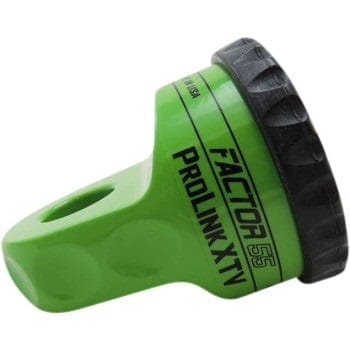

Lime GreenLime Green

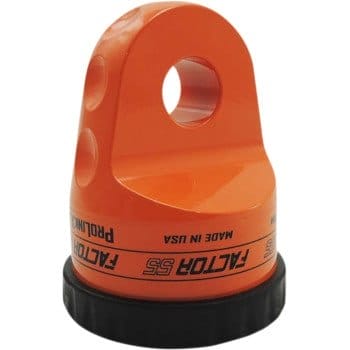

OrangeOrange
RedRed

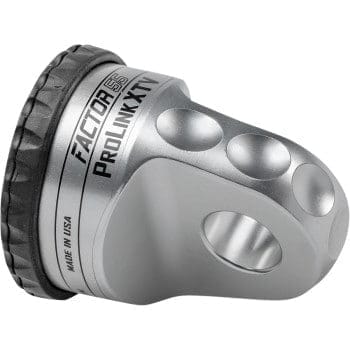

SilverSilver

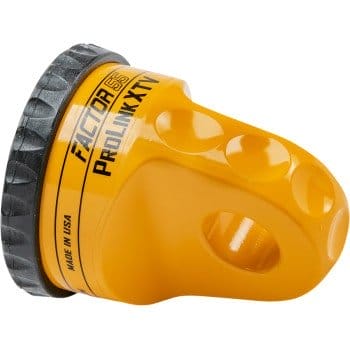

YellowYellow
Clear
Dfb B American Cash Logo

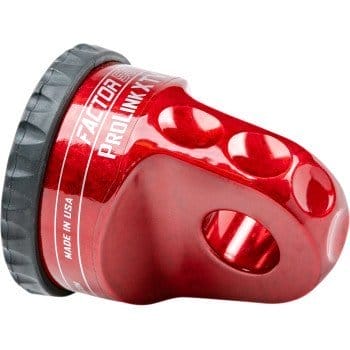

Factor 55 ProLink Winch Shackle Mount, D Ring Mount

This Winch Shackle Mount Has A Double Shear Pink And Internal Snap Ring To Stay Secure. Rubber Guards To Protect Fairlead. Easy Install.

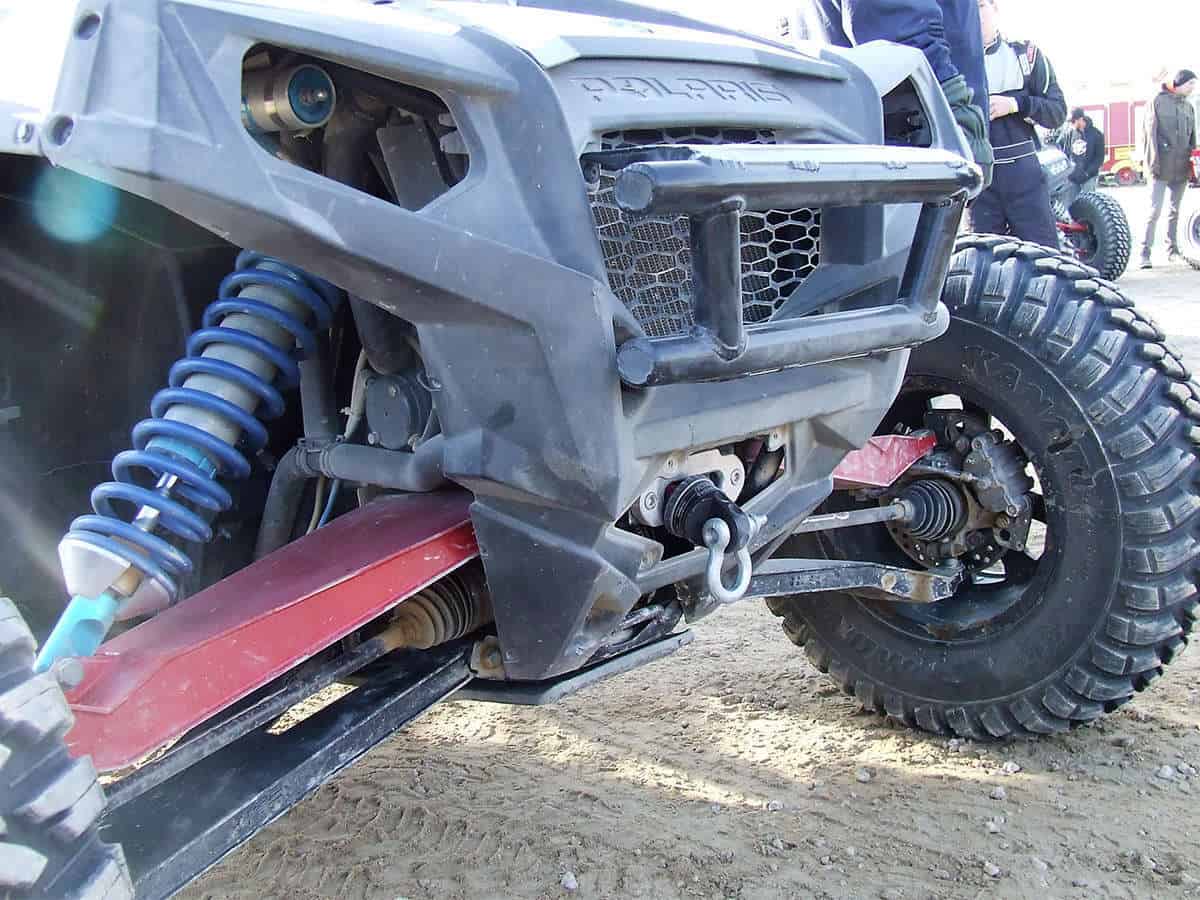

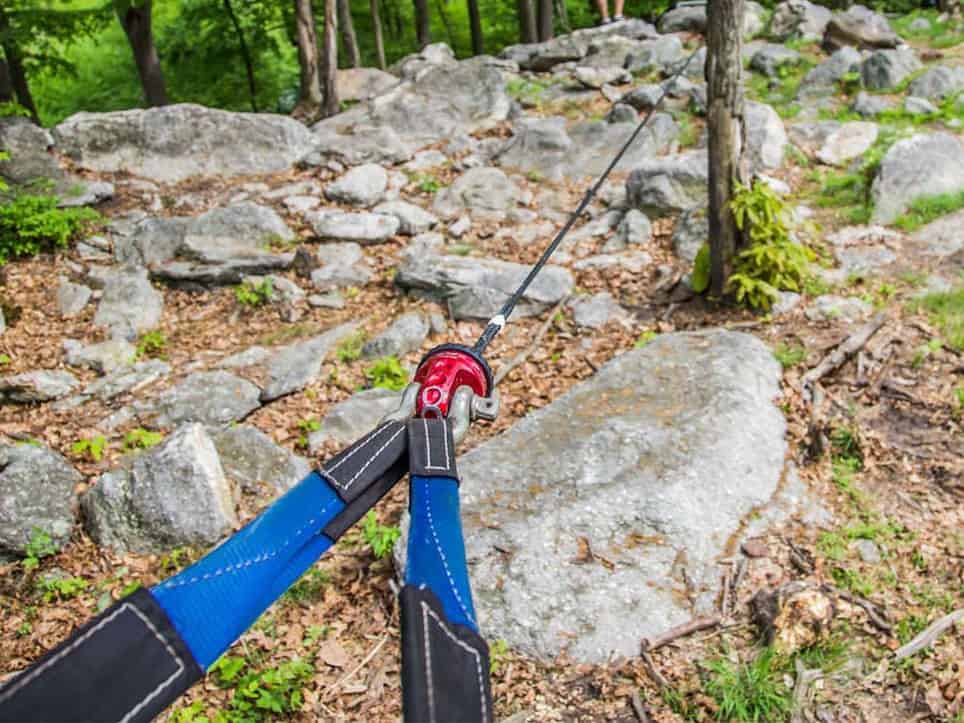

The ProLink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring.

Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery.

Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment.

The ProLink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches.

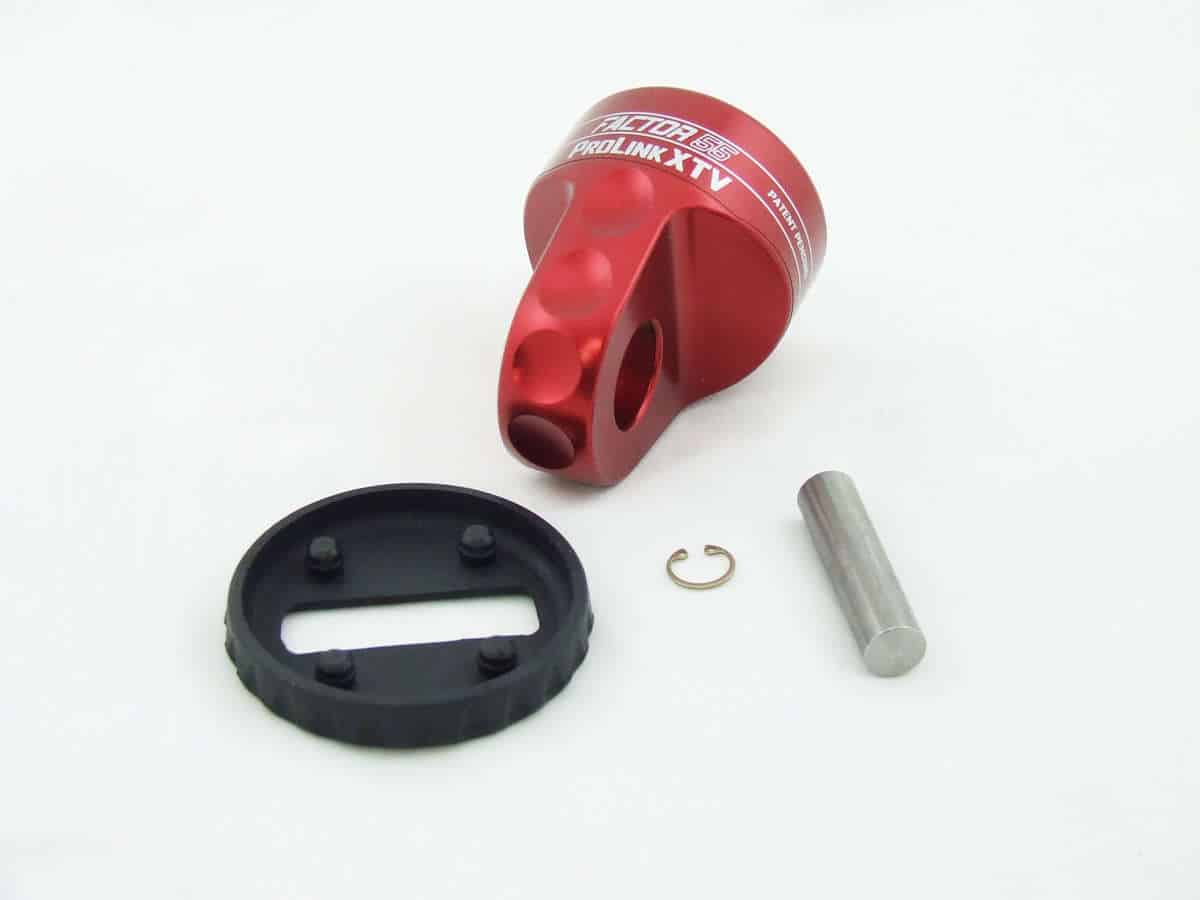

The cable eye is retained in the ProLink XTV by a 7/16 inch diameter titanium double shear pin and internal snap ring.

It is easily installed in minutes.

The EPDM Rubber Guard protects alloy fairleads and is securely attached to the ProLink XTV with 4 barbed tips.

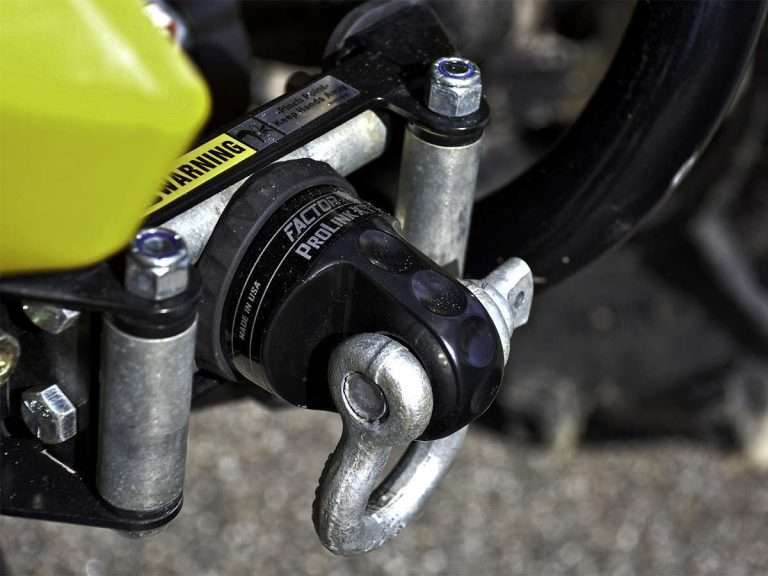

The ProLink XTV stows neatly against either roller or Hawse type fairleads and is designed to be used with common standard ½ – 5/8 inch shackles.

The ProLink XTV is constructed of 6000 series billet aluminum and 6Al-4V titanium.

The ProLink has a max load rating of 6,000 pounds and an ultimate failure of 22,000 pounds.

It is easily installed in minutes.

Features:

  • Precision machined from 6000 series aluminum and 6Al-4V titanium
  • Fits steel cables and synthetic winch ropes to 5/16 inch diameters
  • EPDM Rubber Guard protects alloy fairleads and cushions line stowage
  • Simple snap ring removal for shear pin
  • Fits common ½ and 5/8 shackles/D-Rings
  • Stops hook rattle and fairlead damage
  • Weight – 8.3 ounces
  • Max load rating : 6000 pounds
  • Ultimate failure : 22,000 pounds

MADE IN THE USA

Prolink Shackle Mount Product Overview

About Factor 55

Factor 55 products are designed and manufactured using state of the art technologies.

All of our products are designed and then stress analyzed, resulting in us to optimize a design concept by adding or removing material or changing material properties where necessary.

We then validate our theoretical results by instrumenting and destructively testing prototypes of all of our product designs.

This is conducted at a test and measurement facility that is also certified for National Defense Department rigging and hoist testing.

At Factor 55 we don’t believe in engineering compromises. That’s why we produce all of our products from aerospace quality materials.

From 6000 and 7000 series aluminums, to 6AL-4V titanium double shear pins, we strive to offer you the very best designs made from the ve

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.

Powder Coated / Custom Colors / Fabrication ORDER PROCESSING

Please allow adequate time for custom fabrication parts to be built, powder coated, and shipped.

Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.

Lead Times DO NOT include shipping transit times.

All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.

Make Model Year
All Universal Fitment ATV Machine - Universal Fitment
All Universal Fitment UTV Machine - Universal Fitment
