Off-Road Soft Shackle And Pulley

SKU: F5-SHACKLEPULL Categories: , , ,

$144.99

As Low As 0% Financing Options Available "See Options"

Factory Free Shipping Template

Vehicle Fitment Info In Tabs Below

In Stock Item (See Below Shipping Tab)

This Product Earns $7.25 In Cash Back
Dfb B American Cash Logo

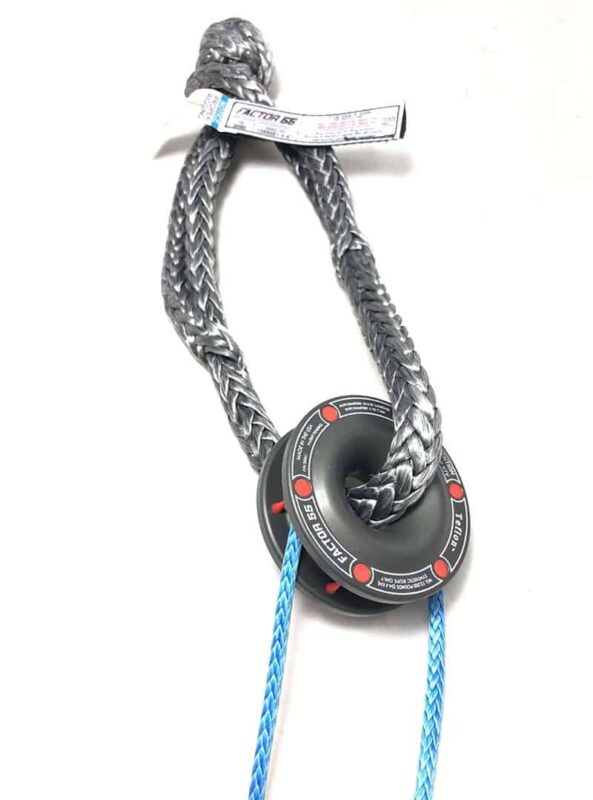

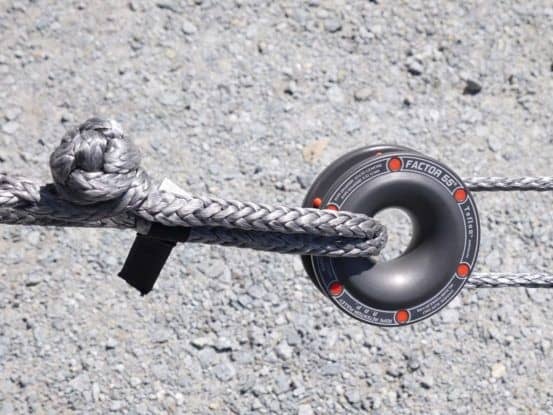

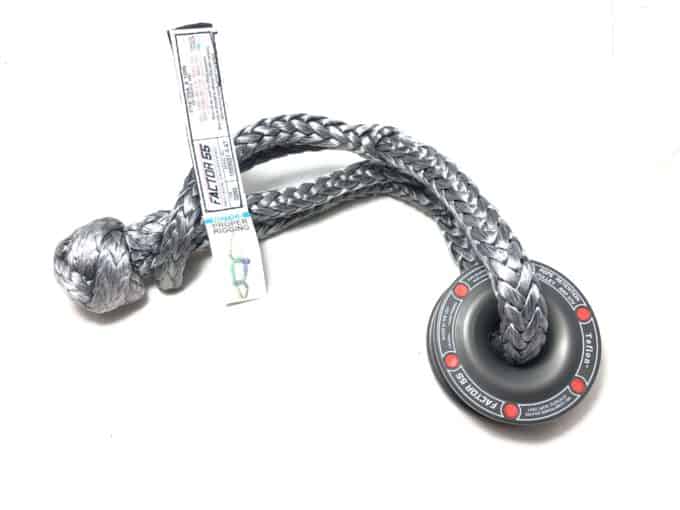

Factor 55 Pulley + Standard Duty Soft Shackle

This Off-Road Soft Shackle And Pulley Is The World’s First Winch Friction Pulley For UTV/ATV With A Patented Rope Retention Feature And Standard Duty 10″ Soft Shackle.

Combining a lightweight alternative to tradition heavy snatch blocks / pulleys, the retention pulley can be used to increase pulling power or redirect the winch line.

Add the 10 inch soft shackle with a working load limit of 7,800 pounds and this combination will help get you out of situations easier.

Engineered, Tested, and Made In The USA

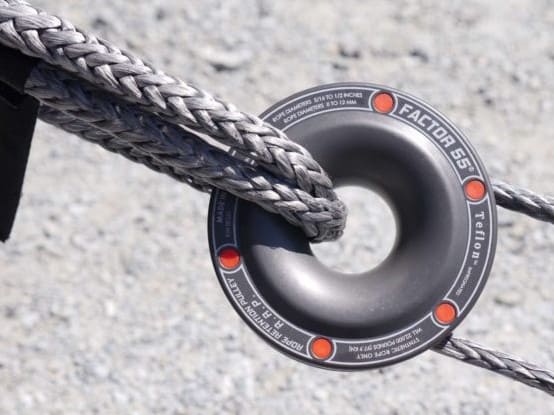

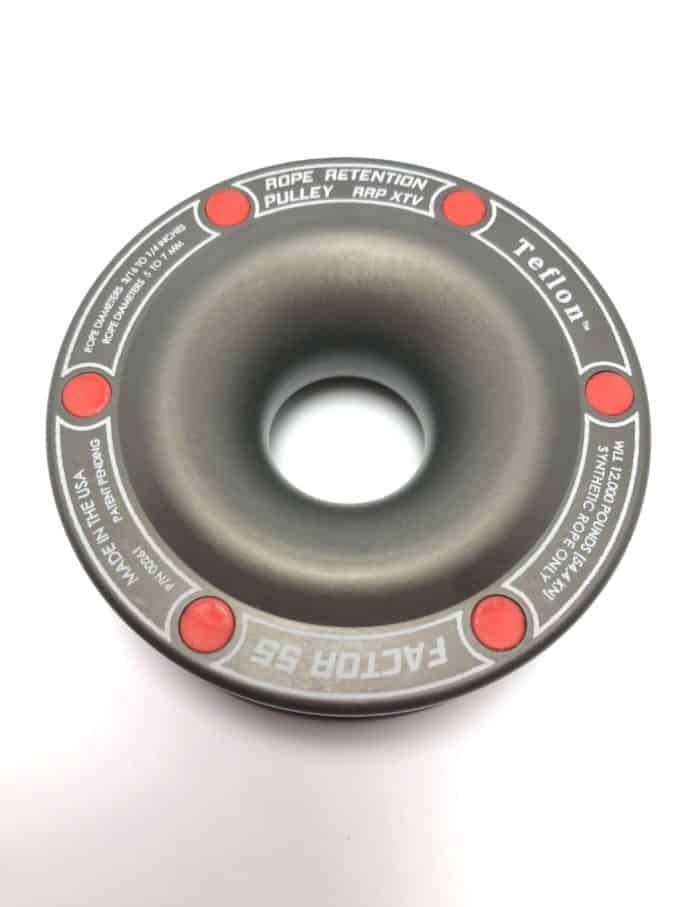

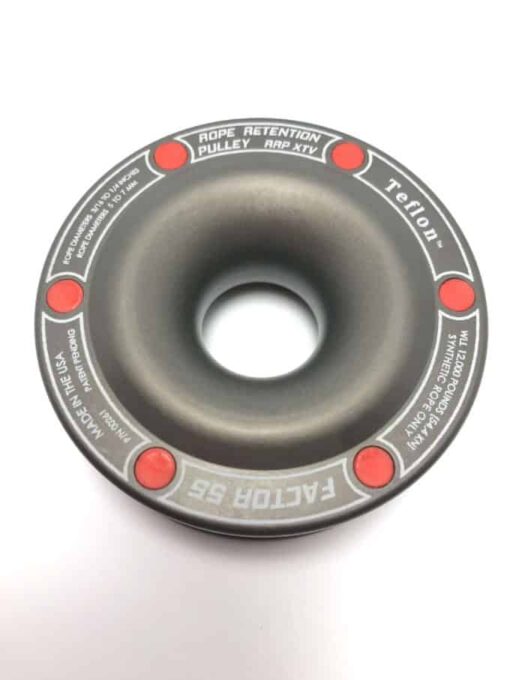

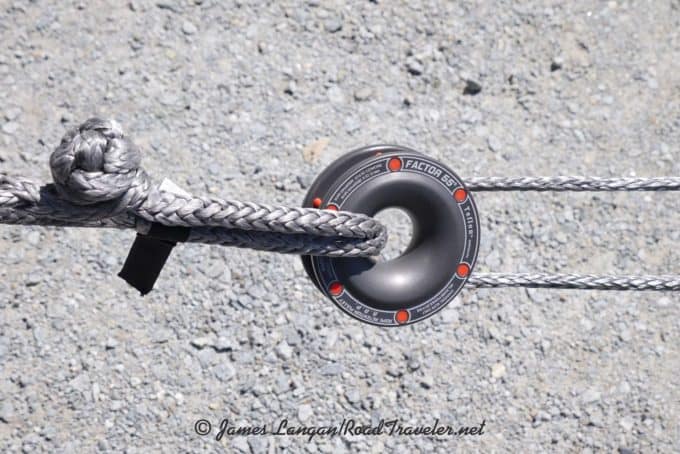

Rope Retention Pulley

The world’s first UTV/ATV winch friction pulley with patented rope retention feature.

A lightweight alternative to traditional heavy snatch blocks/pulleys.

The RRP XTV can be used to increase pulling power or redirect the winch line.

The RRP XTV is for use with SYNTHETIC ROPE ONLY and is to be used in conjunction with a soft shackle.

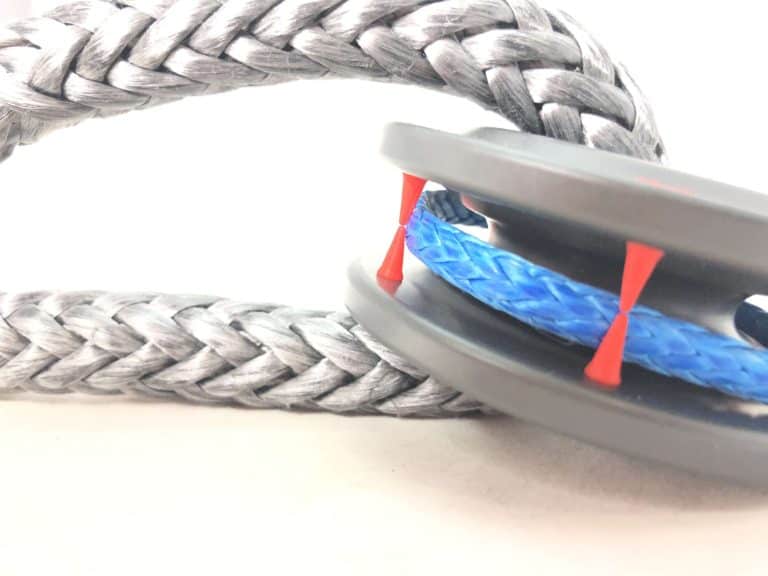

During momentary slack, patented rope retention rubber fingers prevent synthetic winch rope from escaping the pulley groove preventing premature rope failure.

The oversized hole radius provides a smooth rubbing surface and keeps the legs of the soft shackle from rubbing on the edges of the RRP XTV.

The critical friction surface has also been TEFLON treated to increase slickness and heat dissipation.

Untitled

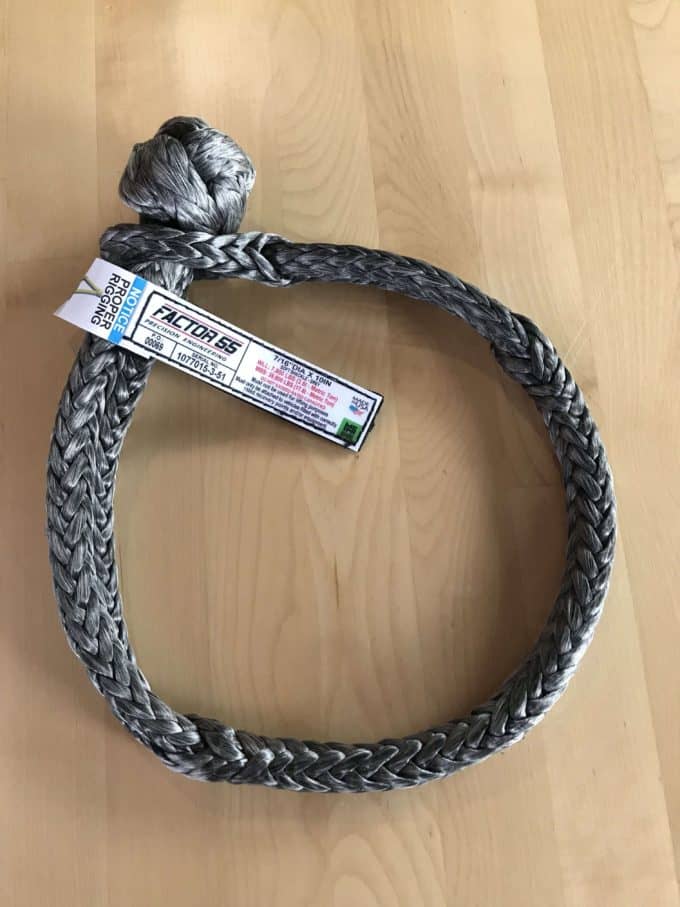

Standard Duty Soft Shackle

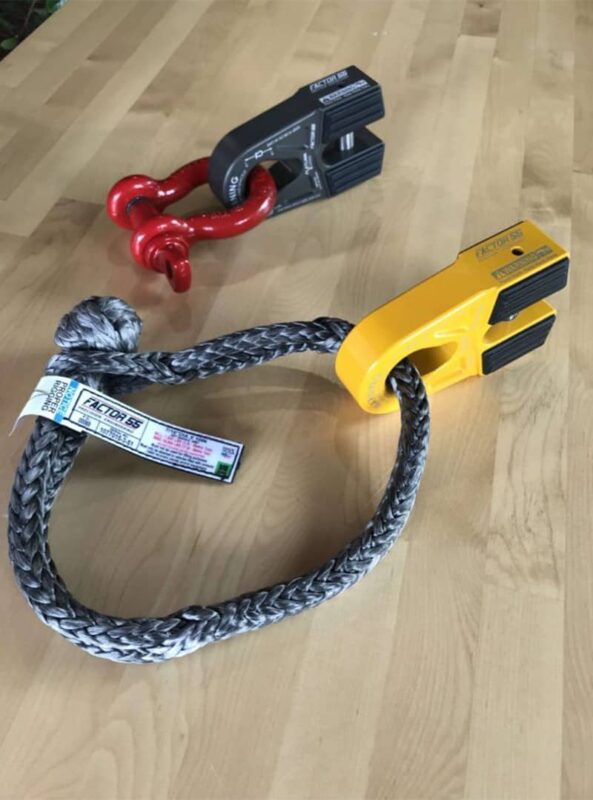

Soft shackles may be used as a lightweight replacement connecting rigging for common steel screw pin shackles.

The Factor 55 10 inch (pull to pull length) Standard Duty Soft Shackles are Made in the USA under the uncompromised Factor 55 quality standards.

Like all Factor 55 rigging products, these shackles have been lab and field-tested to assure consistent repeatable minimum breaking strength values.

Each Standard Duty soft shackle is constructed of 7/16 diameter UHMWPE 12 strand rope similar in construction to synthetic winch lines.

Minimum Breaking Strength – 39,000 pounds

WLL – 7,800 Pounds. Weight – 6.3 ounces.

Each individual soft shackle is serialized for manufacturing date and material lot traceability.

Untitled

About Factor 55

Factor 55 products are designed and manufactured using state of the art technologies.

All of our products are designed and then stress analyzed, resulting in us to optimize a design concept by adding or removing material or changing material properties where necessary.

We then validate our theoretical results by instrumenting and destructively testing prototypes of all of our product designs.

This is conducted at a test and measurement facility that is also certified for National Defense Department rigging and hoist testing.

At Factor 55 we don’t believe in engineering compromises. That’s why we produce all of our products from aerospace quality materials.

From 6000 and 7000 series aluminums, to 6AL-4V titanium double shear pins, we strive to offer you the very best designs made from the ve
