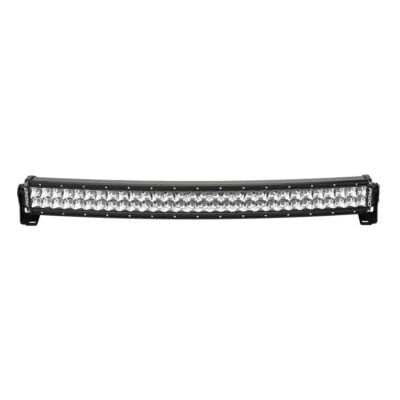

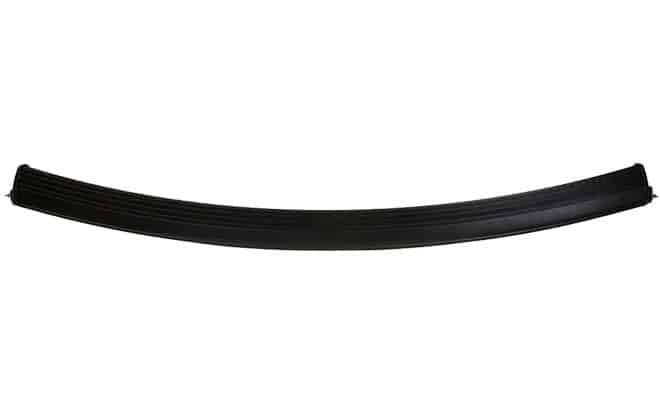

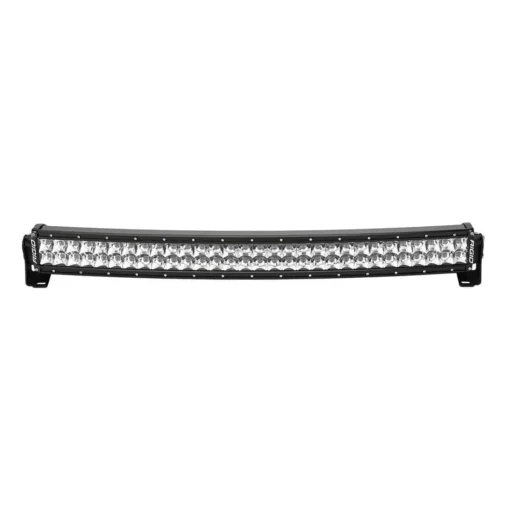

Rigid RDS-SERIES PRO Curved Spotlight Bar

This Rigid RDS-Series Pro Curved Spotlight Bar Provides A Sleek, Integrated Look With Curved Windshields And Bumpers. Providing A Wider Spread Of LED Light And Up To 63,000 Raw Lumens, This Will Light Up The Trails Ahead.

RIGID revolutionized the lighting industry with the introduction of the RDS-Series, and recent advancements in LED technology have made them more powerful than ever before with the RDS-Series PRO, Professional Race Output.

With an improved output of up to 70% more raw lumens, the RDS-Series PRO projects more usable light exactly where it’s needed on the road ahead.

By taking an E-Series light bar and treating it to a gentle arc, the patented RDS-Series PRO provides a sleek, integrated look with the curved windshields and bumpers.

The curve is for more than just looks, it is also functional: the arc of the RDS-Series PRO light bars provides a wider spread of LED light, providing unmatched lighting coverage with a single light bar.

RDS-Series PRO also includes updated branding and blacked-out circuit boards for a more refined look.

Features:

50,000 Plus Hour Lifespan
9-36 V DC
Durable UV Resistant Powder Coat
High-Grade Aluminum Alloy
Integrated Thermal Management System
Impact Resistant Polycorbonate Lens
Over/Under Voltage Protection
RFI/EMI Protection
Reverse Polarity Protection
RoHS Compliant

IP68 Compliant – Dust/Water Ingress
Operating Temp -40 Deg F To +145 Deg F
SAE J575 Compliant – Shock/Vibration
Available In White And Black Housing
Pressure Equalizing Vent
Limited Lifetime Warranty
Off Road Use Only
2 Black Powder Coated, L-shape brackets
Open Leads, No Connector
Harness w/Switch

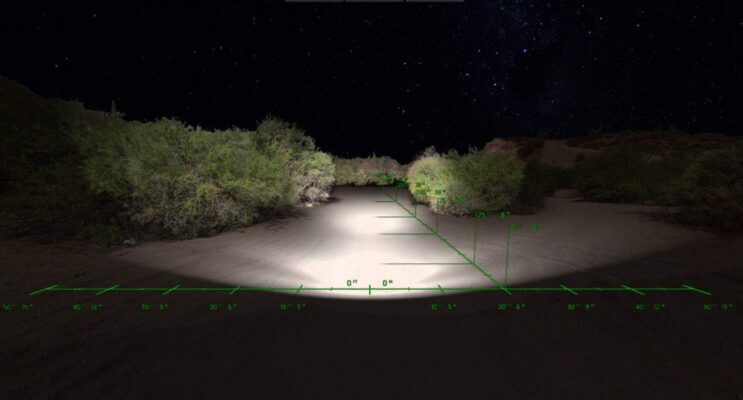

hood view comparison

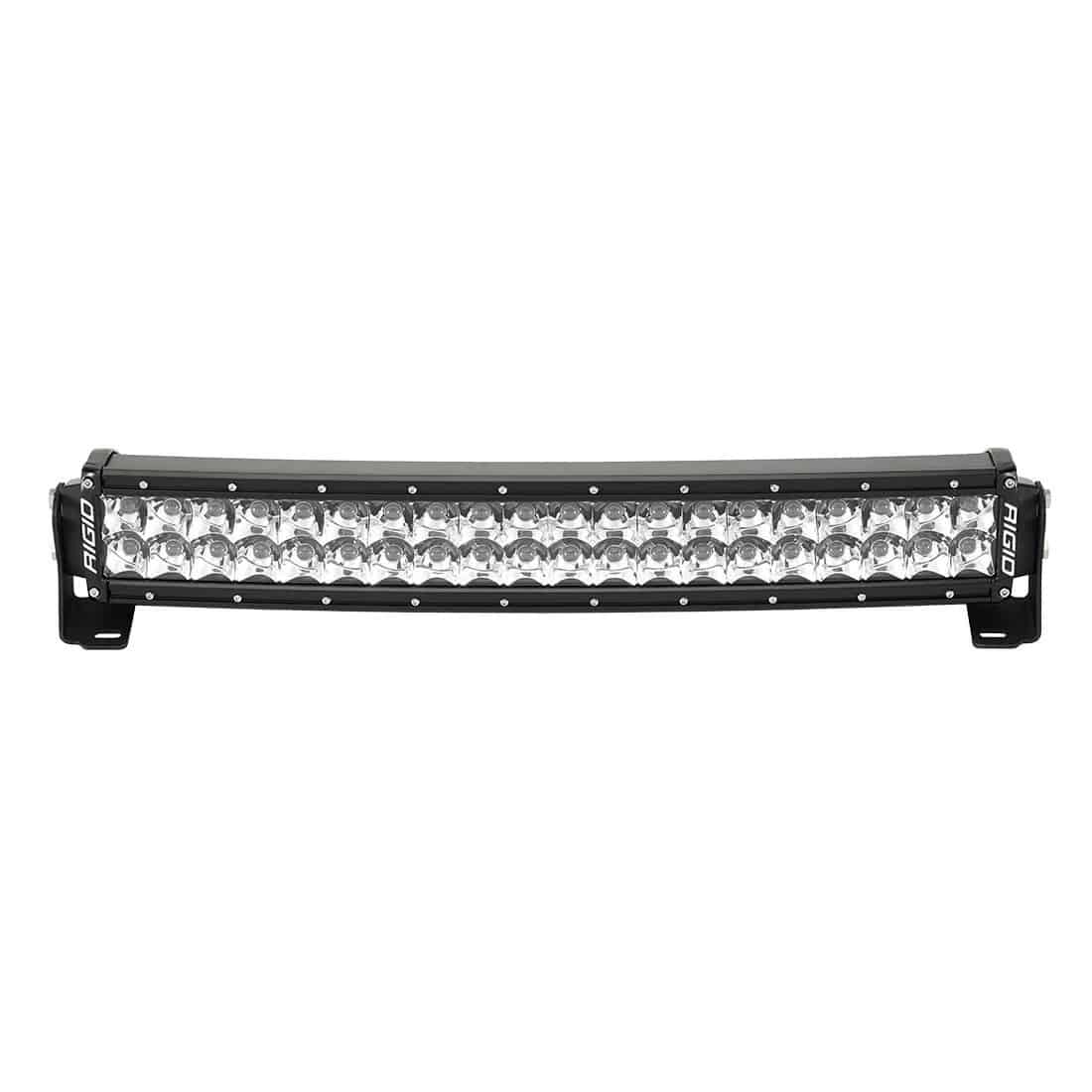

20″ Curved Spotlight Bar

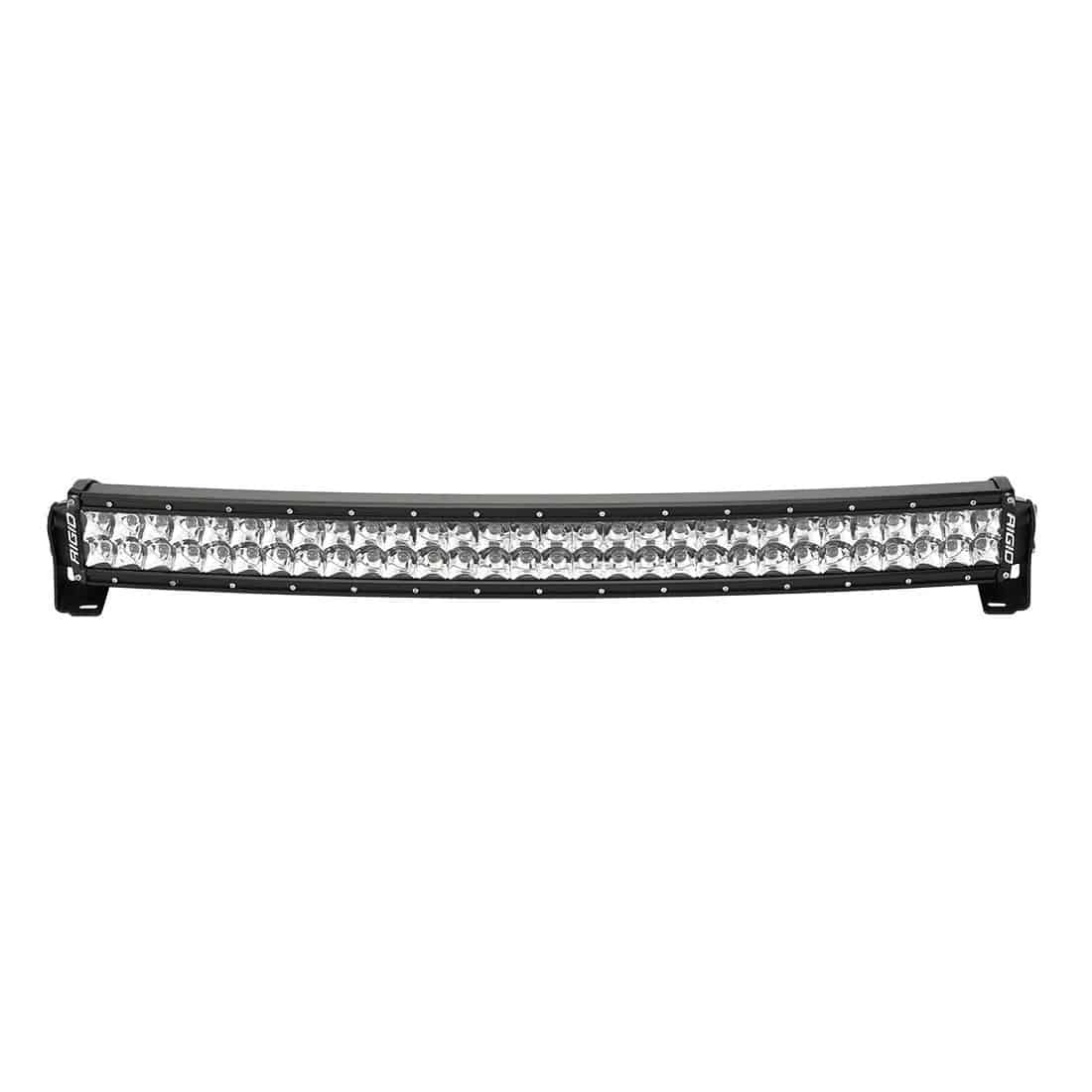

30″ Curved Spotlight Bar

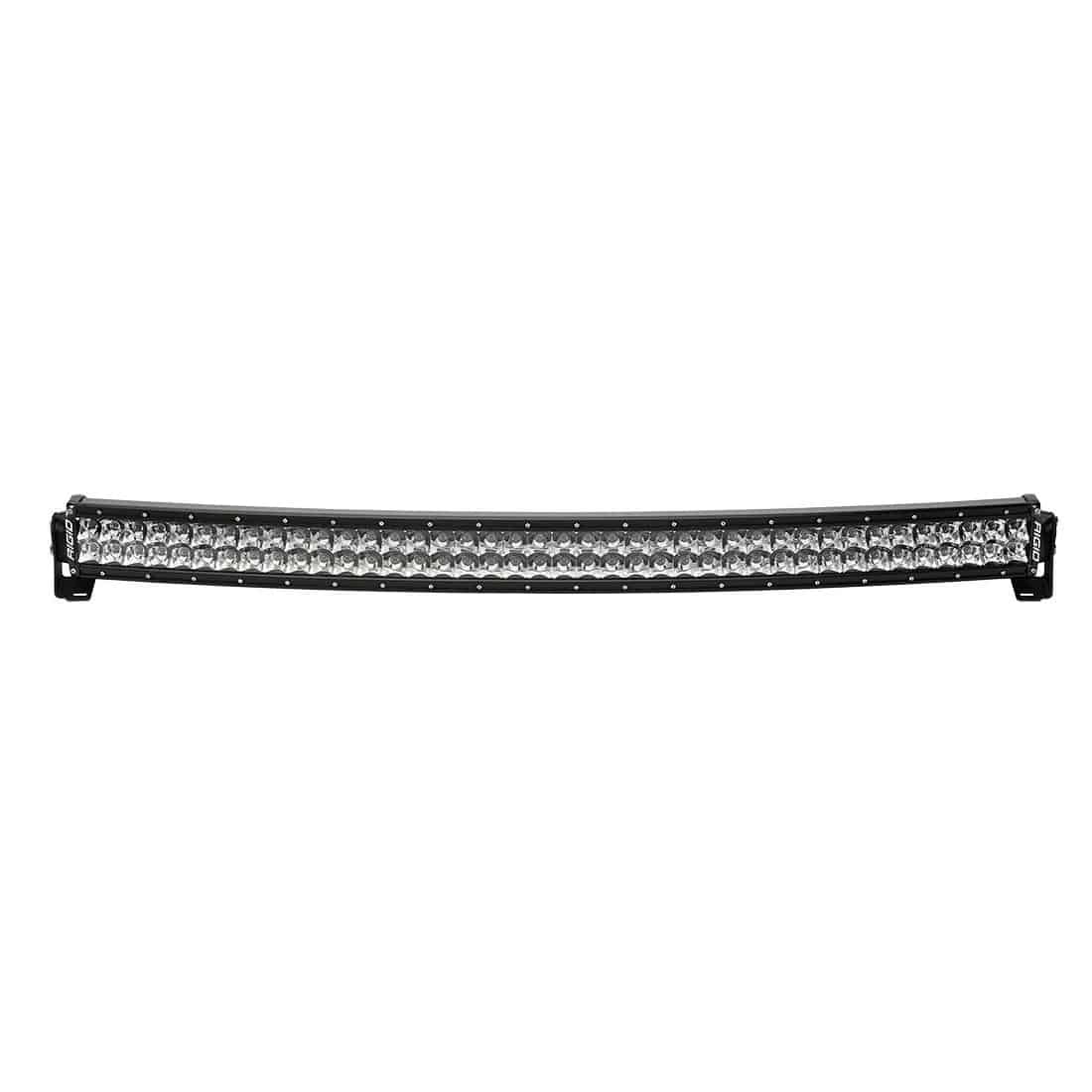

40″ Curved Spotlight Bar

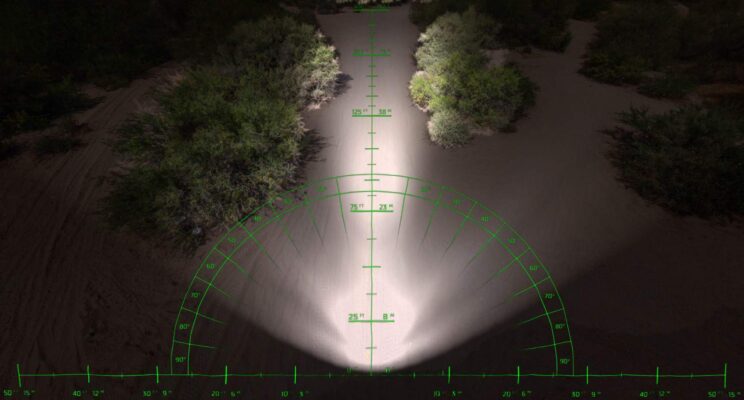

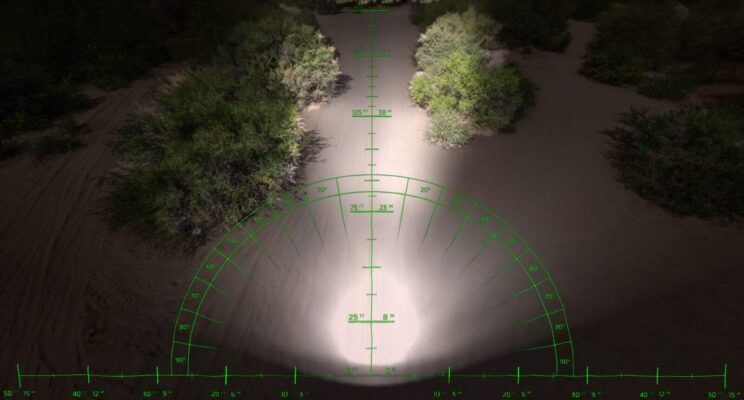

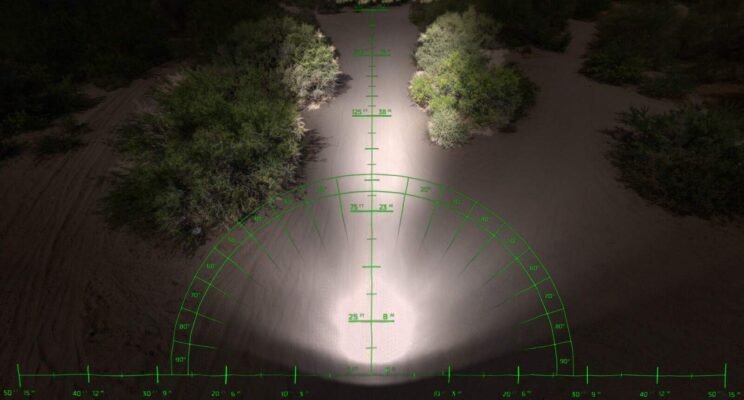

Birdseye view comparison

20″ Curved Spotlight Bar

30″ Curved Spotlight Bar

40″ Curved Spotlight Bar

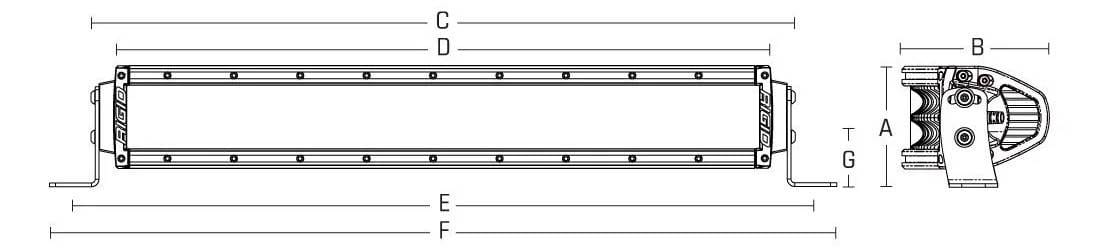

Size And Specs

20″ Curved Spotlight Bar

Weight: 7 lbs.
Watts: 234
Amp Draw: 16.72
Voltage Max 36
*Raw Lumens: 31,680

A	B	C	D	E	F	G
3.88″	4.06″	22.69″	22″	24.06″	25″	1.25″

30″ Curved Spotlight Bar

Weight: 9 lbs.
Watts: 277
Amp Draw: 19.8
Voltage Max: 36
*Raw Lumens: 47,520

A	B	C	D	E	F	G
3.88″	4.69″	32.69″	32″	34.06″	35″	1.25″

40″ Curved Spotlight Bar

Weight: 12 lbs.
Watts: 314
Amp Draw: 22.44
Voltage Max: 36
*Raw Lumens: 63,360

A	B	C	D	E	F	G
3.88″	5.69″	42.63″	41.94″	44.06″	45″	1.25″
