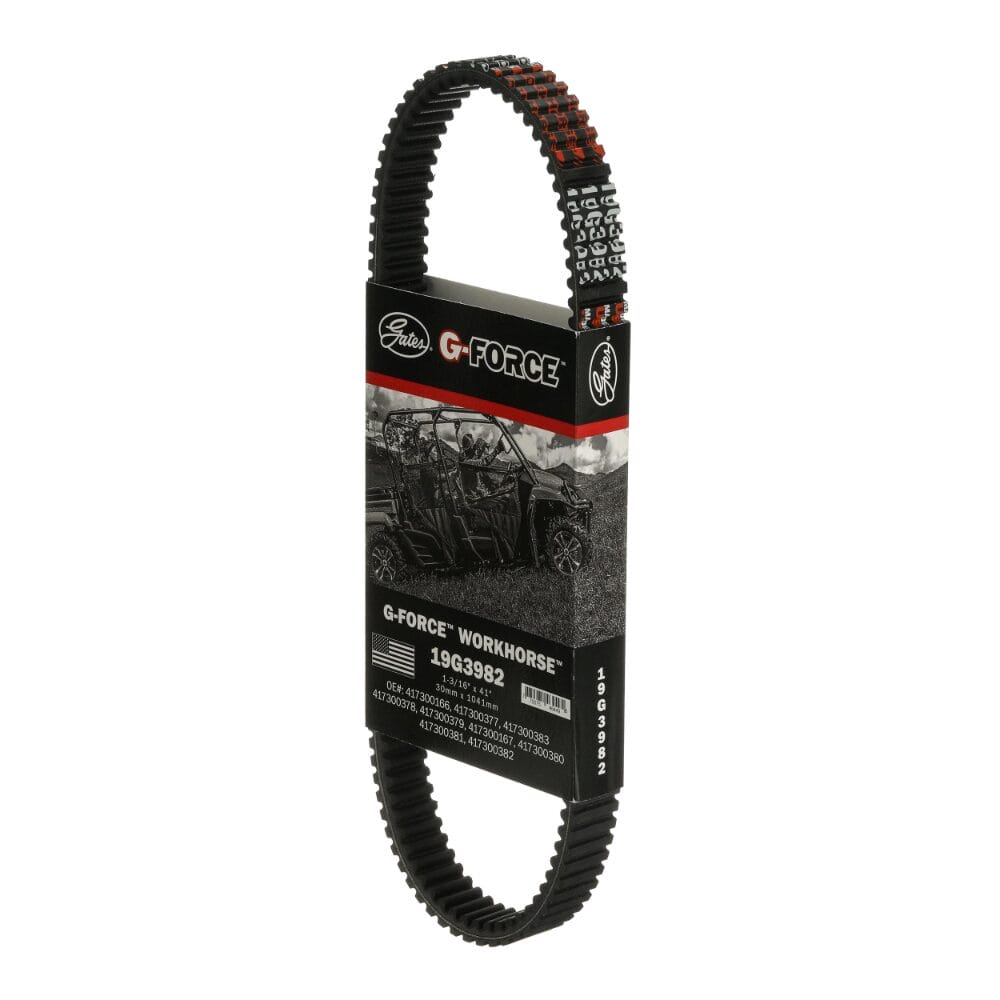

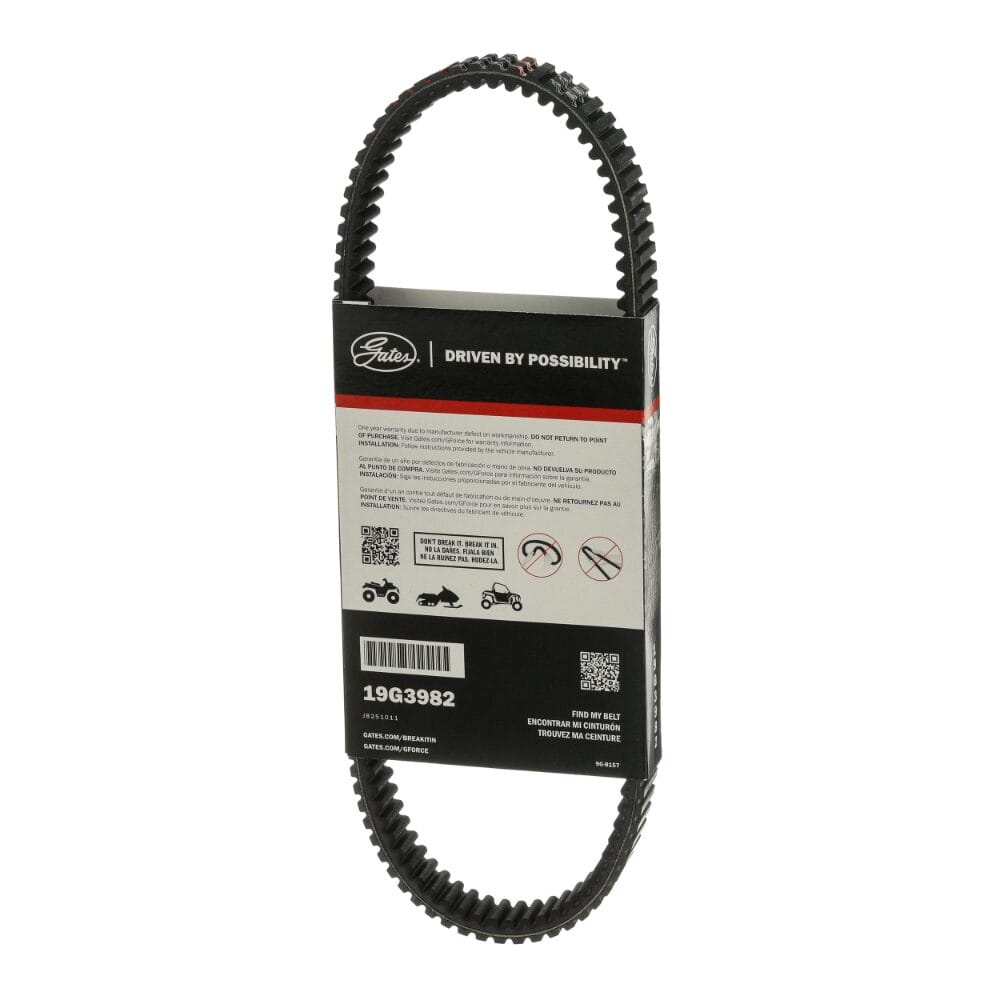

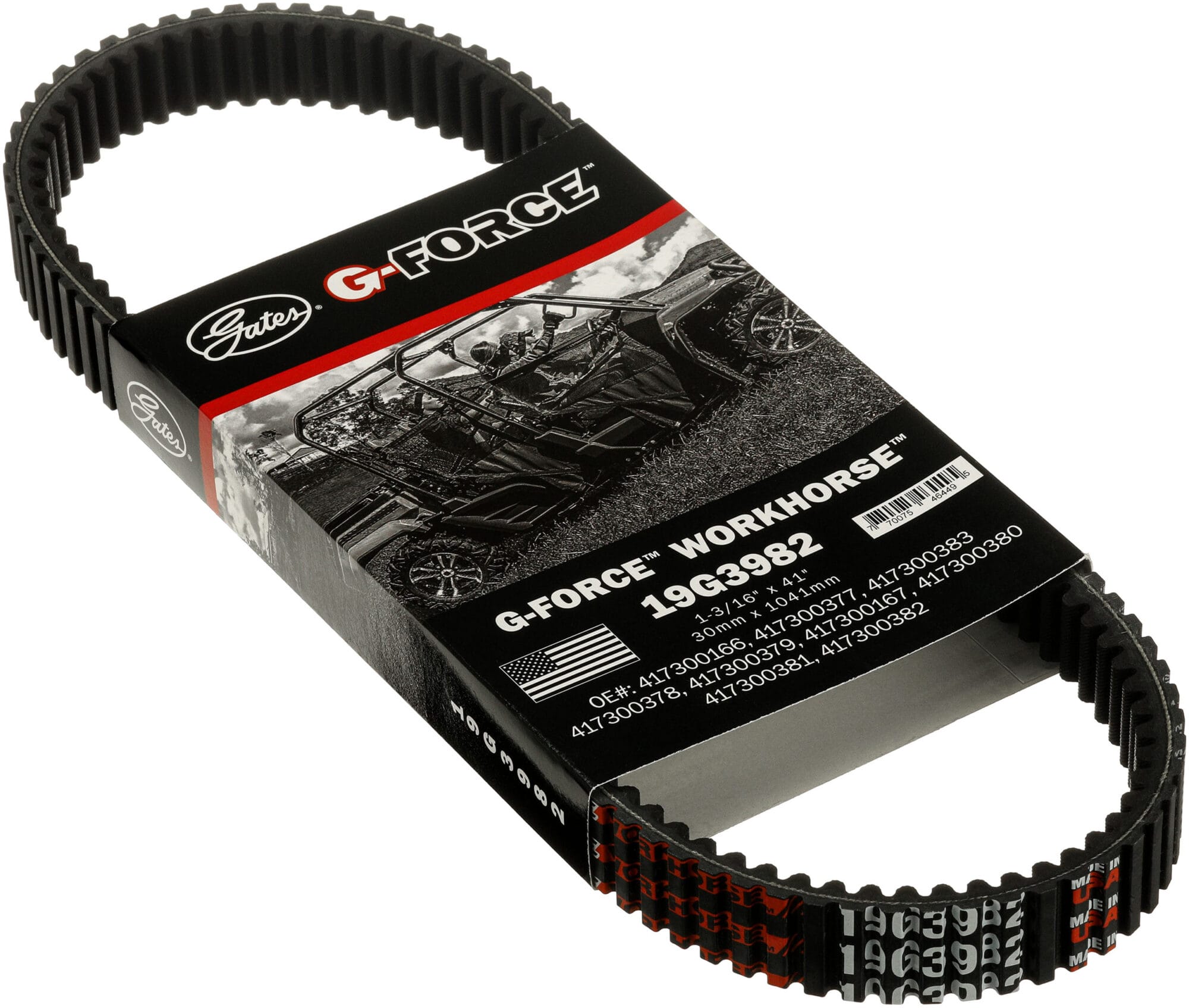

Gates Polaris Sportsman Belt. 450 HO and 570

Gates G-Force Performance Redline CVT Belt For Polaris Sportsman Models.

Patented EE Compound Maximizes Axle Stiffness Enabling Belts to run at Higher Continuous Torques. Gates CVT Redline Polaris Sportsman Belt. 850 and 1000 Models Located “HERE”

WHY G-FORCE™ REDLINE™ CVT BELTS?

• Greater heat resistance and recovery, even under severe duty cycles
• Optimized, patented EE compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads.
• Innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments.
• Improved durability, crack and wear-resistance means a longer-lasting, high-performance power transmission belt for the most demanding applications.
• Reduced Environmental Risk — made without harmful chlorinated compounds.

FEATURES & BENEFITS

• First on the market to utilize Ethylene Elastomer compound to address the needs of larger SxS and high-horsepower ORVs in tough riding conditions
• Next-generation EE compound offers maximum transverse stiffness and heat resistance, resulting in higher load capacity, higher peak torque capacity, less “heat fade” and less speed loss
• Delivers 75% greater dynamic axial stiffness on average, up to 50% lower speed losses and better recovery from temperatures up to 338°F (170°C) without power loss
• Unmatched Temperature Capability – Runs cooler, resists glazing for better recovery and reduced cracking/chunking out after running at temps exceeding 300°F
• Extended Belt Life – Belt life increased 100-300% versus aftermarket competitive belts in severe duty lab test conditions and in field testing
• Higher Power Capacity – Reduced speed (rpm) loss by 50% under high loads and increased load capacity by >10% compared to other aftermarket belts

INNOVATION FUELED BY MATERIALS SCIENCE:

• Greater heat resistance and recovery, even under severe duty cycles
• Optimized, patented EE compound maximizes axial stiffness enabling belts to run at higher continuous torques or loads
• Innovative design results in better acceleration, higher top speeds, less speed ratio and energy loss in extreme off-road environments
• Improved durability, crack and wear-resistance means a longer-lasting, high-performance power transmission belt for the most demanding applications
• Reduced environmental risk — made without harmful chlorinated compounds

DON’T BREAK YOUR BELT. BREAK IT IN.

If you don’t break the belt in properly, you’ll find yourself shredding the belt instead of the terrain. In fact, most powersports belt failures can be attributed to improper break-in and clutch adjustment – or not breaking in the belt at all. Follow these three steps to ensure the best performance and longest life from your G-Force™ belt.

1. Install the Right Belt. Using a belt that’s even slightly different than OE specifications can affect performance – or stop you in your tracks.

2. Align and Clean. Align the clutches according to manufacturer specifications and clean the sheaves with a Scotch-Brite™ pad. Remove old belt residue, glazing, oils, and debris with alcohol or acetone on the clutch sheave area. DO NOT USE BRAKE CLEANER.

3. Install and Break It In. Perform two heat cycles (10-15 minutes each) at +27°C (+80°F) at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. If belt installation is at a temperature of +16°C (+60°F) or below, perform two heat cycles in 20 minutes at 30-40 mph (2-wheel drive) with cover installed. Bring the belt temperature down to normal operating temperatures, then shut down and let cool for 30 minutes. Repeat the process a second time. Conservatively run through the entire shift range, without exceeding ¾ throttle. Bring the belt back to normal operating temperature (15 minutes) then shut down and completely cool the belt for 30 minutes. Repeat the process.

Break In Video in the Guides/Install Tab
