Highlifter Polaris RZR XP 1000 Adjustable Tie Rods



As Low As 0% Up To 24 Months, Available"Financing Options"

Add to Wishlist

High Lifter Products

SKU: HL-RZRXPTIEROD Categories: , , , ,

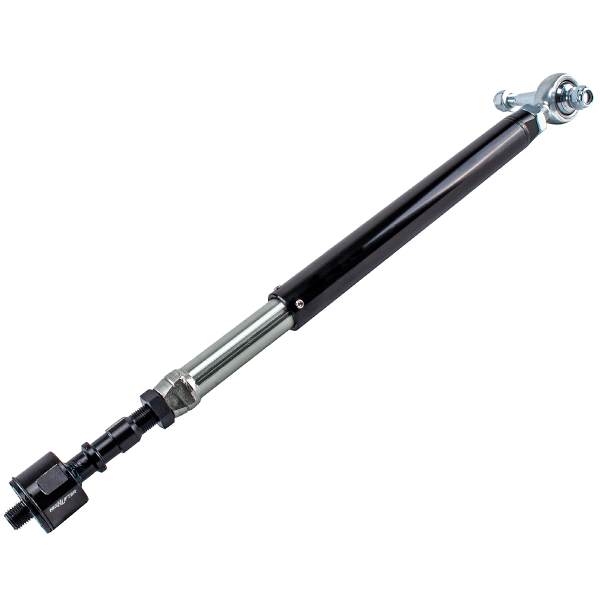

High Lifter APEXX Heavy Duty Adjustable Tie Rods For RZR XP 1000 Models

Adjustability Just Got Better! The High Lifter HD RZR XP 1000 Adjustable Tie Rod Assembly Offers A Highly Adaptable Solution That Can Accommodate A Wide Range Of Tie Rod Lengths.

The High Lifter HD Adjustable Tie Rod assembly offers a highly adaptable solution that can accommodate a wide range of tie rod lengths.

The main body of the tie rod has been engineered so it can be adjusted to fit factory length rods and then telescopes with an additional 7-1/2” of adjustability to fit most aftermarket accessories.

Patented Technology

High Lifter’s HD Tie Rod versatile range of adjustment makes it a flexible stock addition.  The tie rod assemblies are highly adjustable to fit most of the straight tie rod lengths and styles in the market.

The unique adjustable design uses a heavy duty threaded inner rod inside of a 1-1/4”- 7mm wall outer rod.  The inner rod a has a locking channel so that the when the desired length is achieved you can lock the rod in place with out ¼”-28 set screws.


  • The inner tie rod is made up of 24.5mm (15/16”) diameter 7.5mm wall DOM-tubing
  • The inner also uses 5/8”-11 high-strength threaded rod for fast adjustment
  • The outer tie rod is 32mm (1-1/4”) diameter 7mm wall DOM
  • Uses 2ea ¼”-28 set-screws to lock the rods in place once they have been set to the desired length
  • Powder coated and zinc plated for superior scratch and corrosion resistance

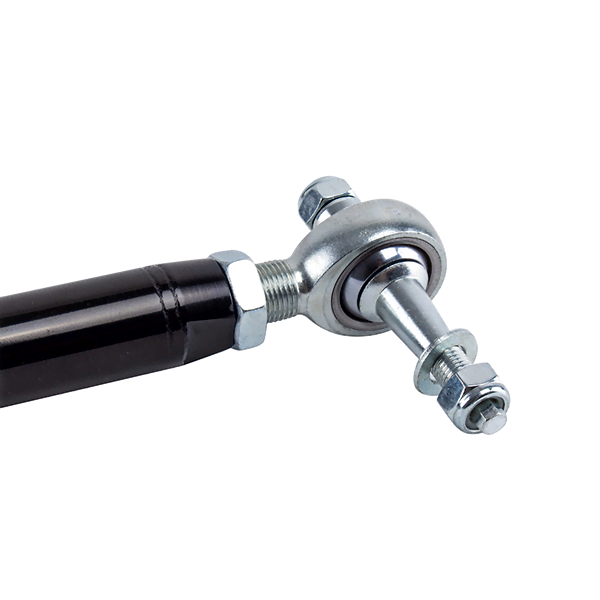

  • Comes with upgraded heim-end to replace the outer factory tie rod ends
  • Also includes two heavy duty inner tie rod end that connect to the rack and pinion
  • Adjustability of 7-1/2” minimum length to maximum length
  • Patented design (US Patent Number 11,364,759)

Forward arms, big lift kits, long travel kits, or factory arms are no problem for this new adjustable tie rod.

It also comes with heavy duty inner tie rods at the rack & pinon and heavy duty heim joints and hardware are located at the hub end of the tie rod.

Polaris Adjustable Tie Rod

Increased Versatility

With a versatile/adjustable tie rod solution, it eliminates the overhead cost or need for dealers and repair shops to keep multiple lengths and styles on hand.  The additional 7-1/2” of adjustability in the rod and the fine adjustment at the heim joints make this the best solution for HD Tie Rod needs.

Increased Strength

1-1/4” Diameter outer bar, heavy-duty inner tie rod, and HD Heim Joints help to make this one of the strongest tie rods on the market.  With increased strength and adjustability, you now have the confidence to take on extreme conditions.


RZR XP Tie Rod Install

Download Document

High Lifter offers a Limited Lifetime Warranty to the original purchaser that our product shall be free from defects in material and workmanship for the life of the product if utilized in accordance with the manufacturer’s instructions for installation and operation of said products. This Limited Lifetime Warranty extends to the following product lines:
• Lift Kits (Signature, Standard and Big Lifts)
• Control Arms
• Trailing Arms
• Radiator Relocation Kits
• Portal Gear Lifts
• Wheel Spacers
• Tow Hooks
• Control Arm Link Kits

For Complete Warranty Information And Claims Information Please Click “High Lifter Warranty”

IN STOCK PARTS – Any items in current inventory we ship within 36-48 hours after order.

  • Portal Gears Can Take Up To 7-10 Business days To Ship After Order because of Assembly.
  • Snokel Kits Can Take Up To 7-10 Business days To Ship After Order because of Assembly.
  • Pressed In Ball Joint Arm Orders Cake Up To 7-10 Business days To Ship After Order because of Assembly.

We currently only ship Monday through Friday, if you place the order over the weekend we will process it on Monday.

Current Fabrication or Production Run Parts

Currently anything listed on the site is traditionally stocked and ready to ship but there are times that we are currently in a production run and or waiting for powder coating, this could result in 10-14 Business day shipping

Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.

Lead Times DO NOT include shipping transit times.

All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.

Make Model Year
Polaris Off RoadRZR XP 10002019 - 2023
Polaris Off RoadRZR XP 1000 High Lifter2017 - 2022
Polaris Off RoadRZR XP 1000 Rocks and Trails2019 - 2022
Polaris Off RoadRZR XP 4 10002019 - 2023
Polaris Off RoadRZR XP 4 1000 High Lifter2017 - 2021
