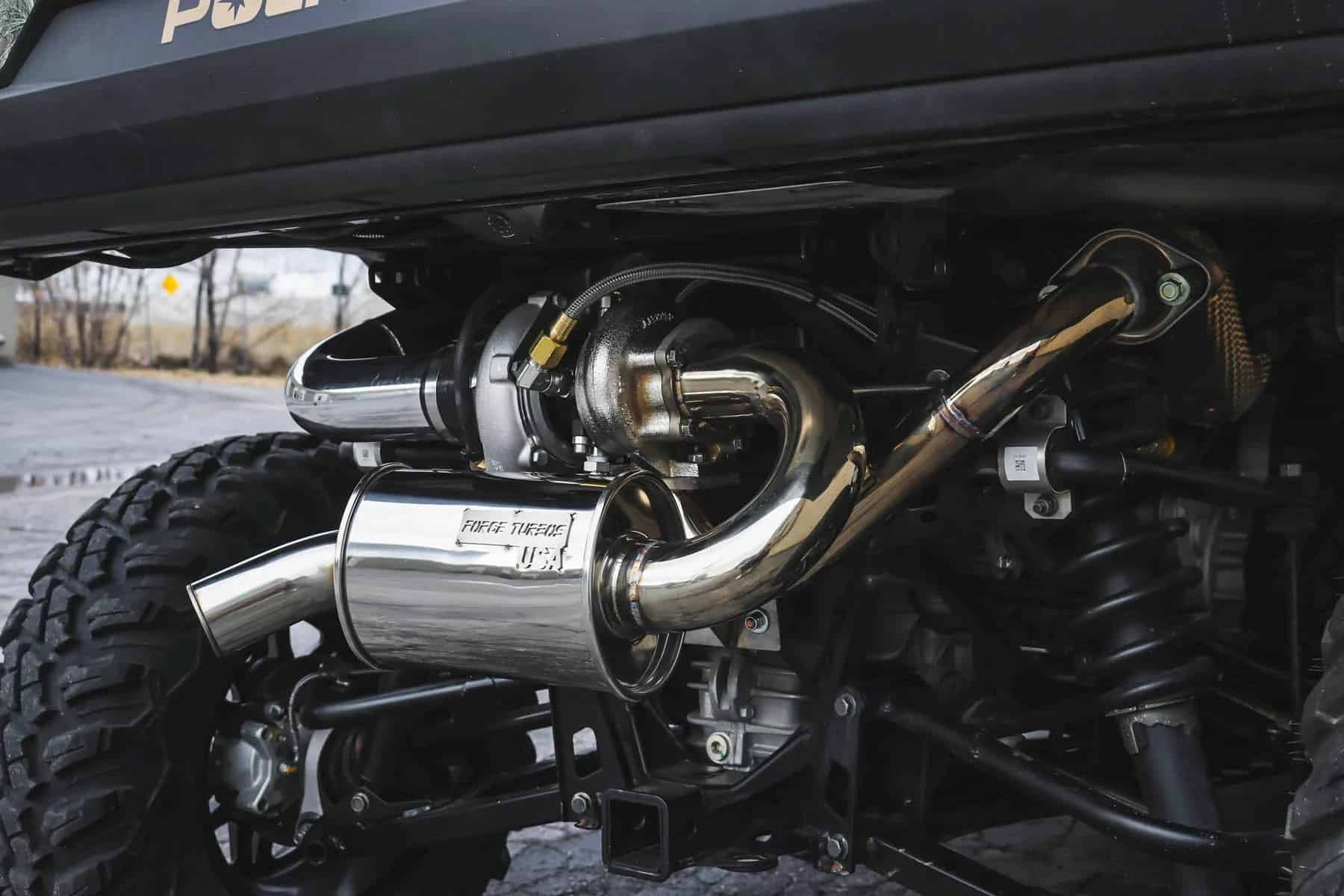

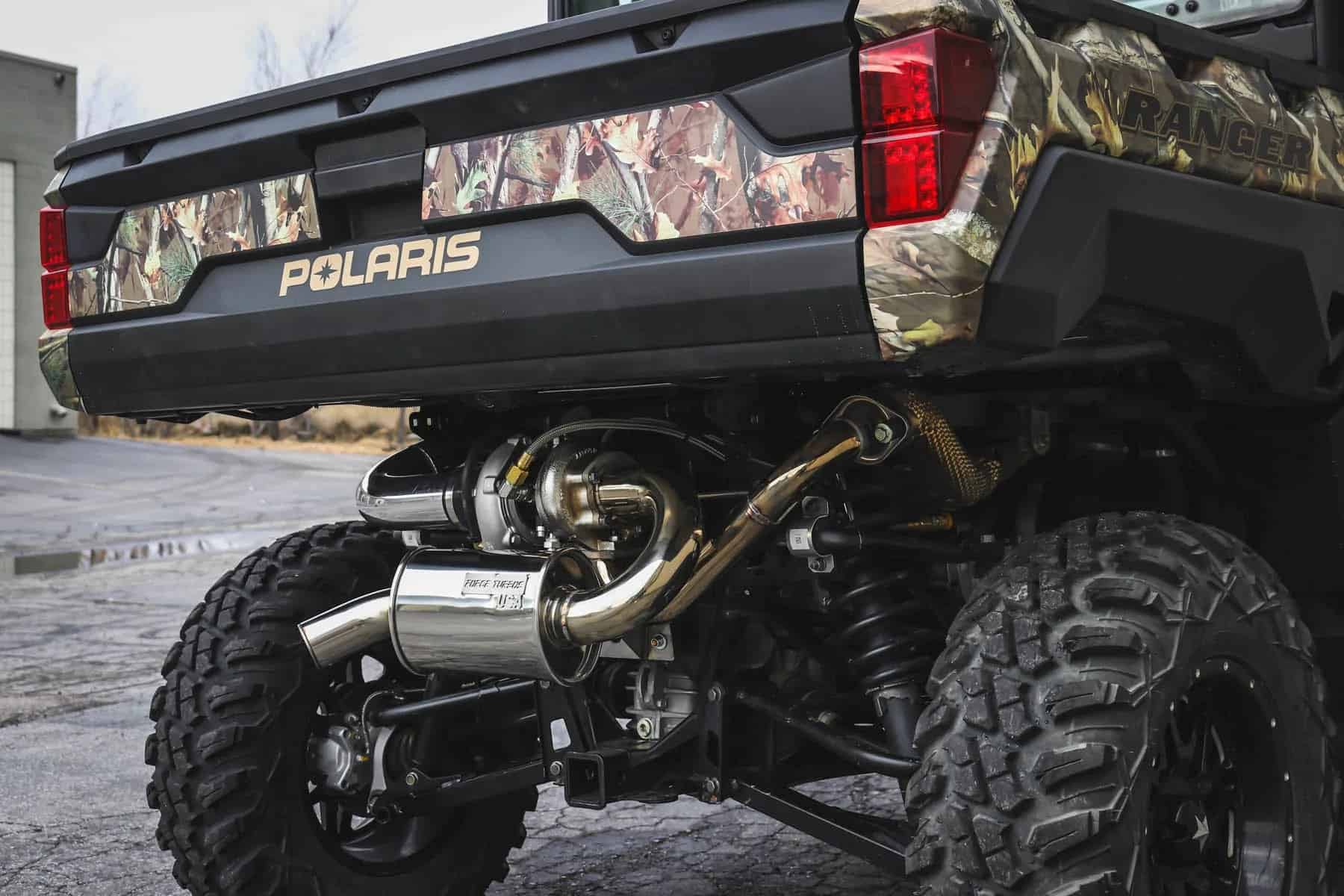

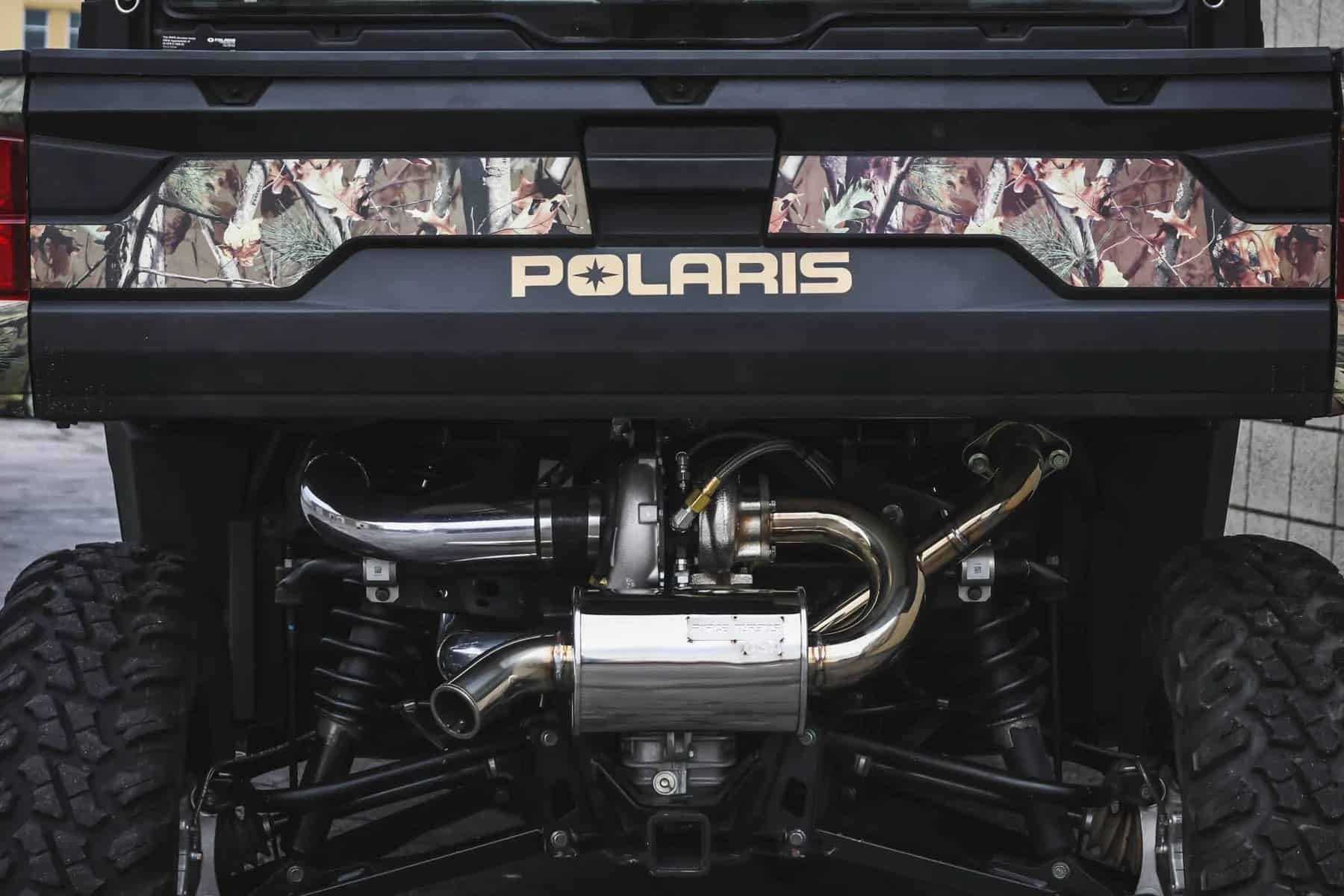

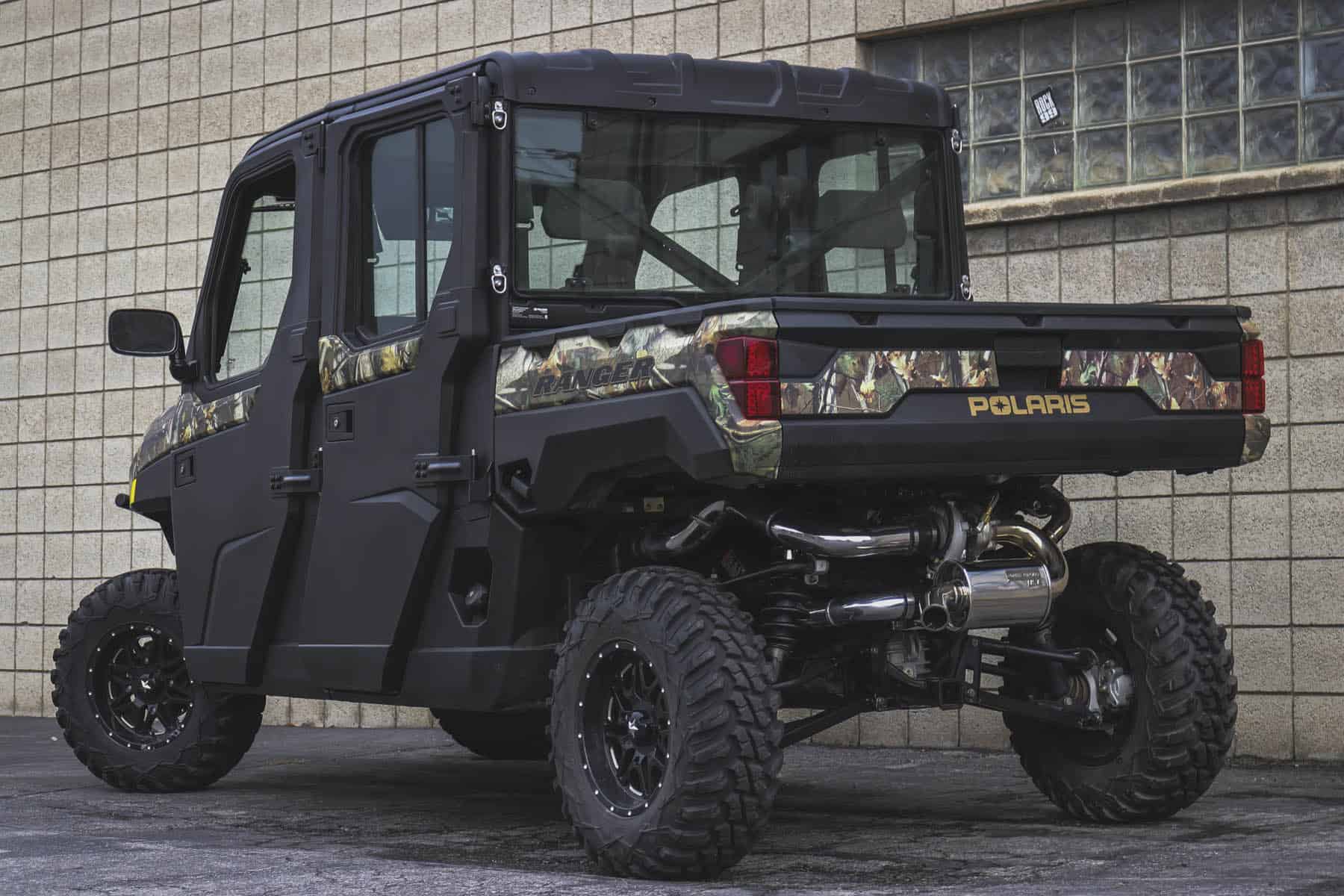

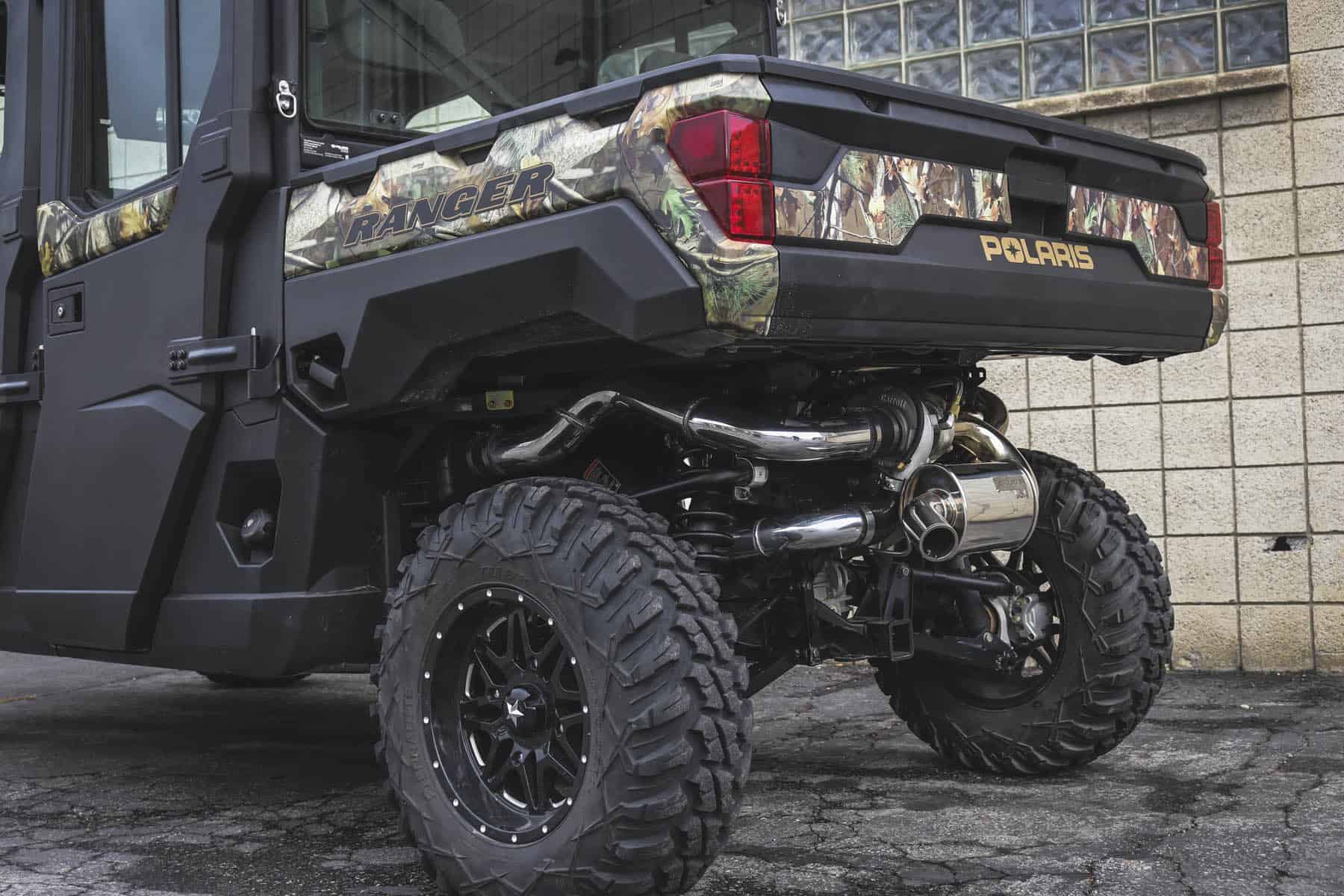

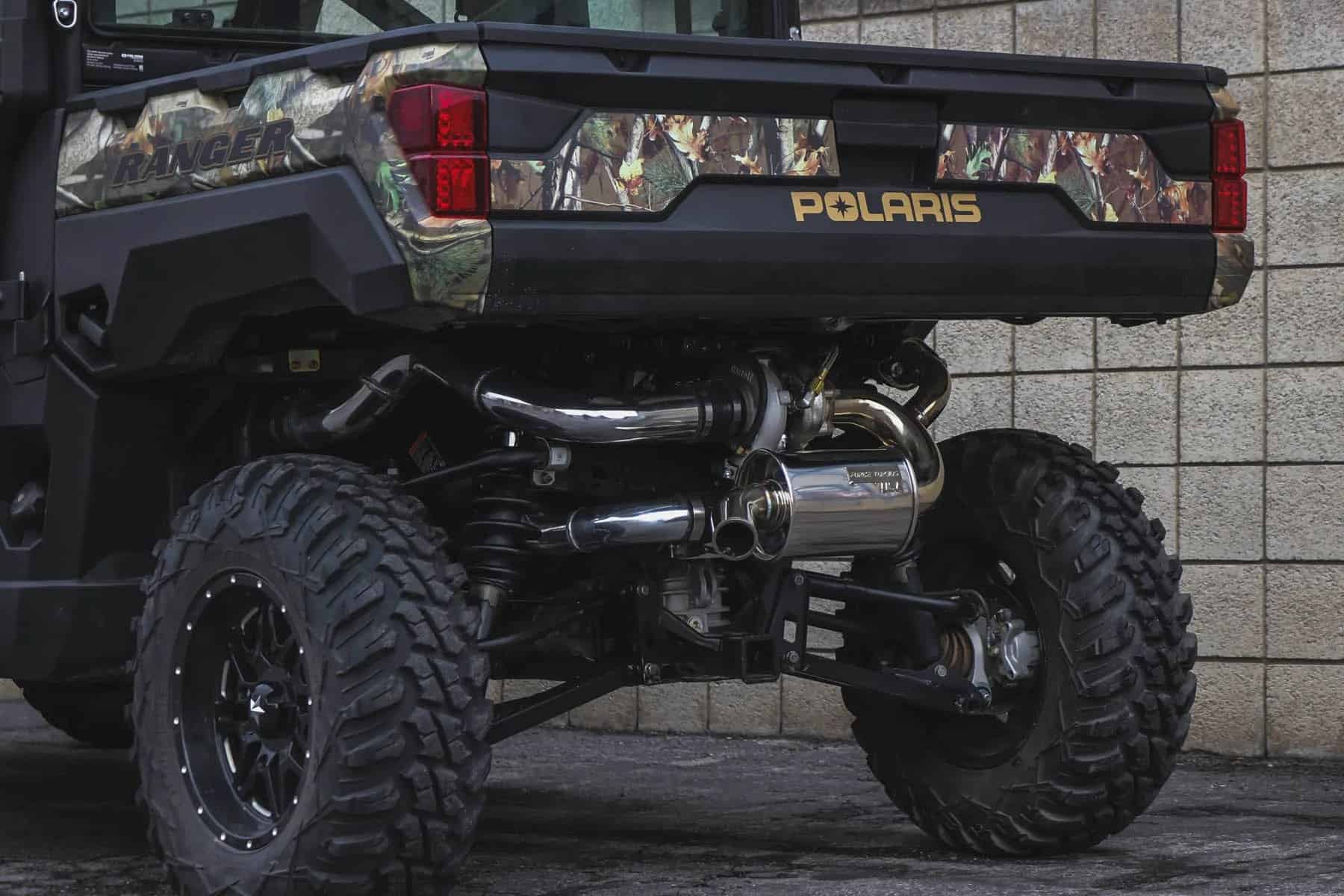

Force Turbos Turbo Kit For Polaris Ranger 1000cc Models
Pump Fuel Polaris Ranger Turbo Kit Bold On System Is Designed Specifically For All Polaris Ranger And Ranger Crew Units. Increased Boosted Horsepower
With a boost level of 5 psi and high-volume design, you are sure to get the additional horsepower you are looking for with minimal stress on the motor.
Your Polaris Ranger will see a dramatic horsepower increase of up to 94%.

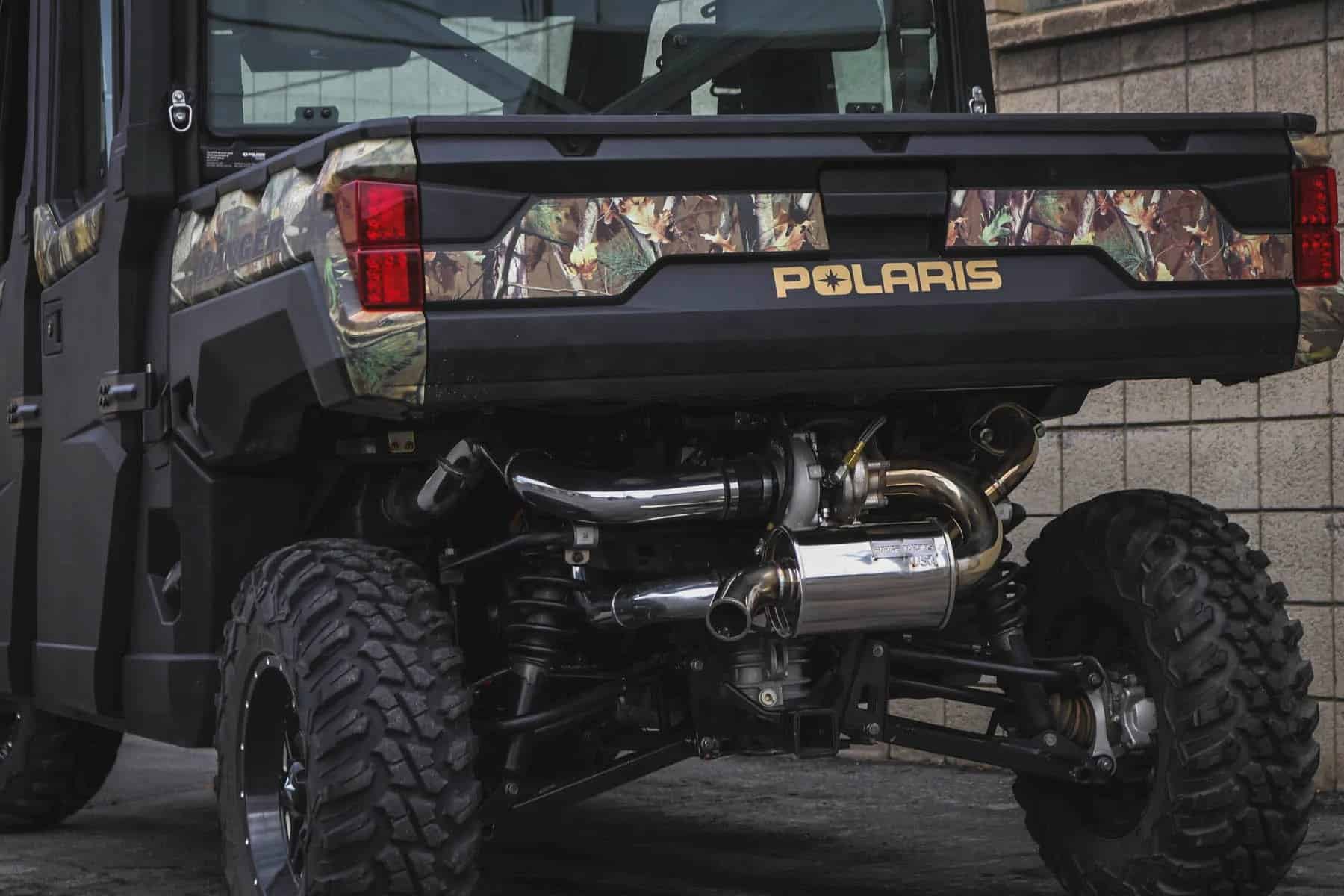

This system will fit all 2 door and 4 door Polaris Ranger XP 1000 models and any 1000 CC Rangers with a rear mounted factory exhaust.
This system includes a fuel controller with base map, wideband, coolant lines, oil supply fittings. A forest service approved spark arrestor is provided in the exhaust.

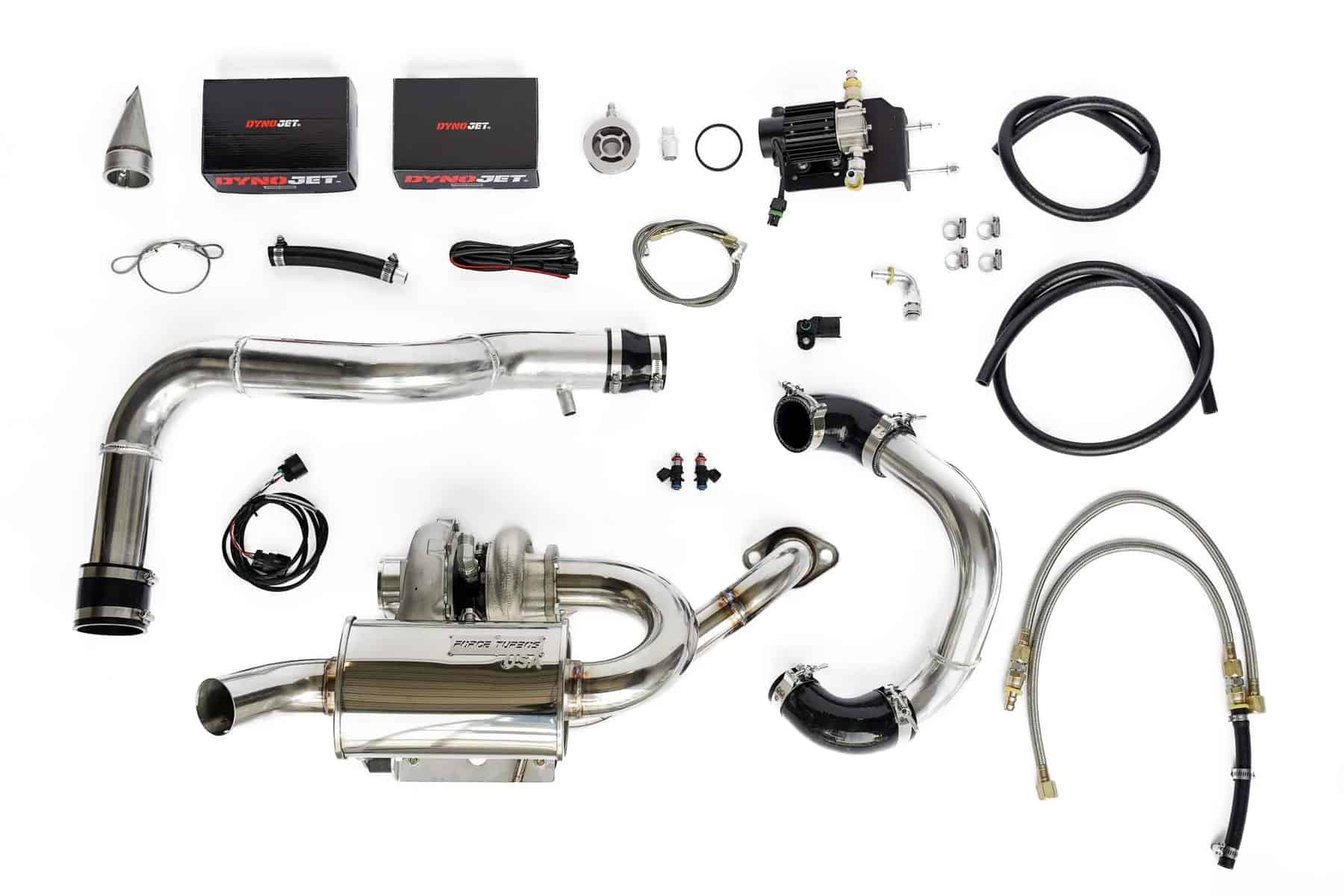

Turbo system includes the following:
- Garrett Turbo
- Dynojet Powervision 3 with tune
- Dynojet Wideband AFR controller
- 2.5″ aluminum charge tube
- 3″ cold air intake
- 4 ply silicone
- Stainless steel high flow turbo supply pipe and exhaust components
- Braided stainless steel supply lines
- All necessary fittings, hoses, clamps, and hardware
Performance Expectations
- 94% increase in horsepower and 55% increase in torque
- Stock HP – 82hp
- Calculated Turbo HP – 159hp
- Dyno Numbers
- Stock RWHP – 54hp
- Turbo RWHP – 105hp
- Stock Torque – 45 lb-ft
- Turbo Torque – 70 lb-ft
Tuning
- Base fuel mapping included. Â Digital fuel controller tuning required for specific machine setup for optimum functionality.
- For diagnostics and tuning, AFR and boost gauges recommended.
Boost Level
- 5psi low-pressure high-volume
Fuel Considerations
- 91 octane non-ethanol fuel is compatible
System Exhaust

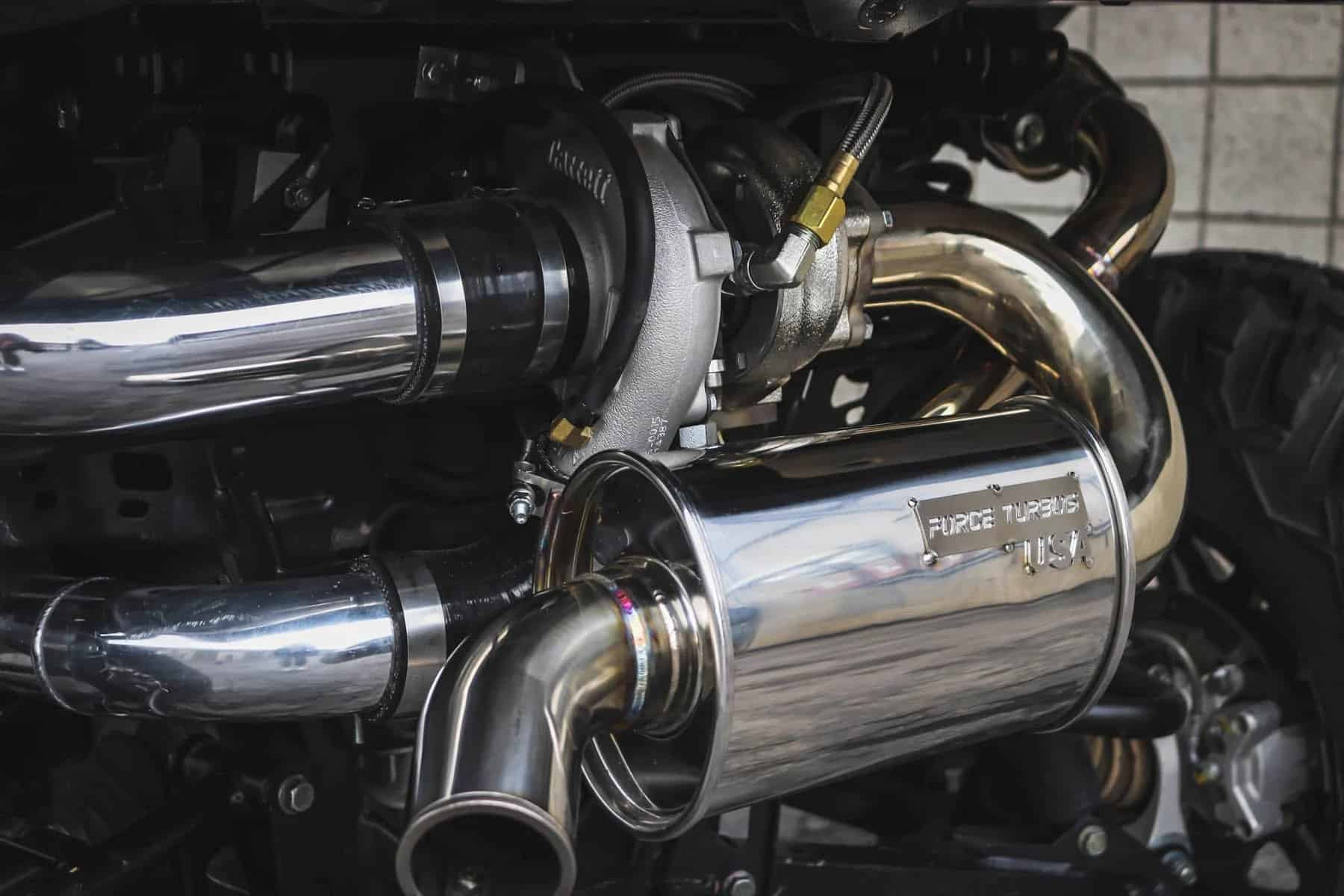

- Stainless steel high flow performance resonator
Without Turbo Kit (OEM Stock)
With Turbo Kit Installed (Boosted)
Force Turbo Ranger Turbo Kit FAQ's
No. A clutch kit is not usually needed with the Polaris Ranger turbo system. Â However, a clutch kit may be needed if you are using larger than stock tires or looking to gain more performance.
Yes. Â The turbo system comes with a base map. Â Occasionally additional tuning is necessary to get the correct base map to match your specific vehicle and ECU, but we are willing to assist.
We increase the stock tune RPM limits, speed limits, and some torque limits.
A professional mechanic can install the system in about 6 hours, while a home garage mechanic usually needs 8-10 hours or more.
Our turbo system was designed to give you increased performance while operating within the normal operating limits of the vehicle. Â Although our turbo system is capable of exceeding the recommended operational parameters of the vehicle, it would require making specific adjustments to the system to reach those levels.
No. Â This turbo system was designed to run high quality 91 pump fuel.
No. Â We recommend always operating your vehicle in sport mode with a turbo system installed.
Yes.  Adding any high-performance aftermarket accessories will void your warranty. Use at your own risk.
Yes. Â Our turbo system can be taken off and the vehicle can be returned to stock.
The turbo system will work the same as any other stock vehicle. Â Air is pulled from the same location as the stock vehicle. Â Exhaust will function the same as a stock exhaust. Â The turbo system will retain any capability the stock vehicle had.
Yes.  Force Turbos offers email or phone support during normal business hours Monday-Friday 9:00 am – 4:00 pm MST. Feel free to call us at 801-807-8046 or email info@forceturbos.com
