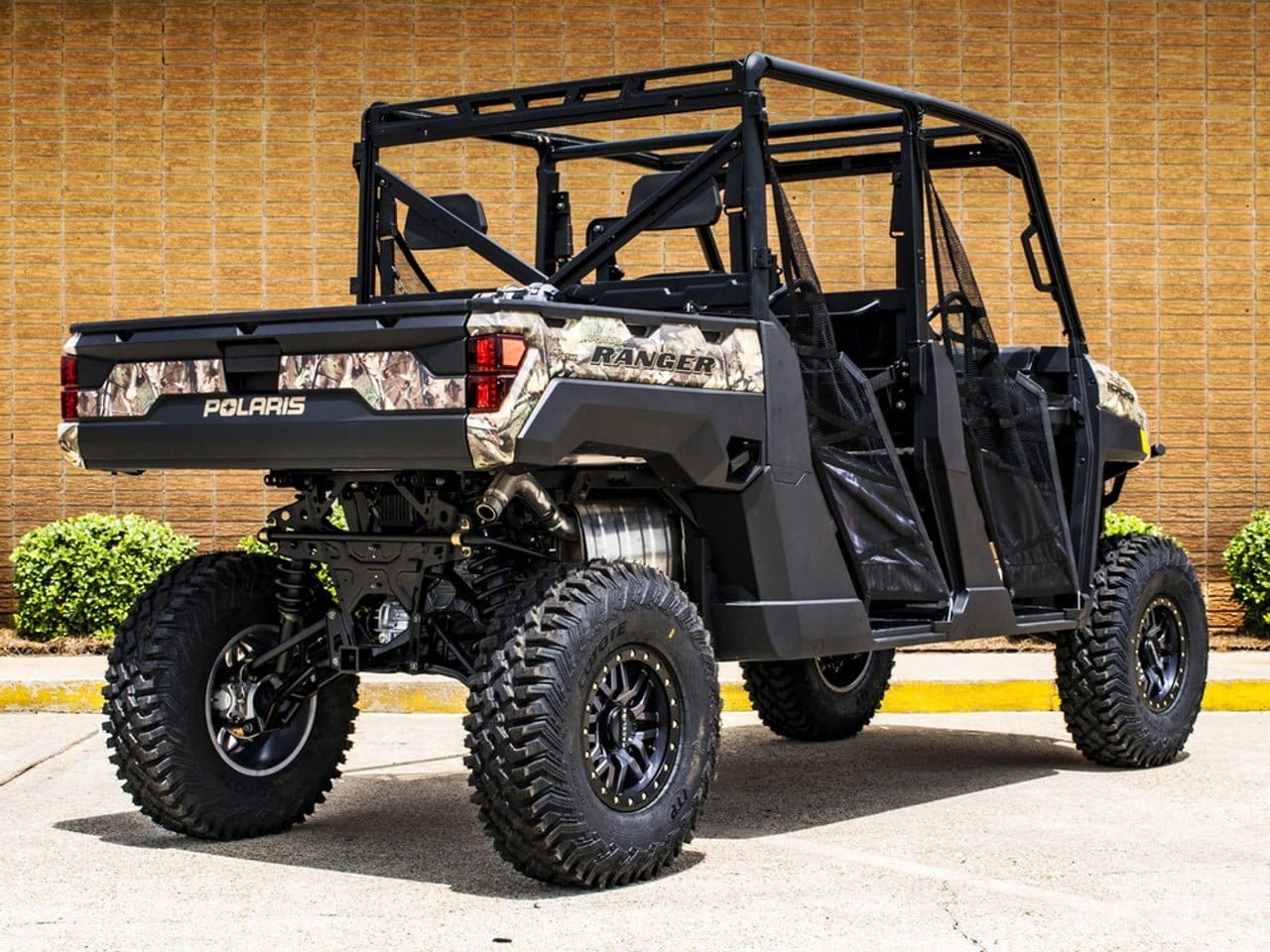

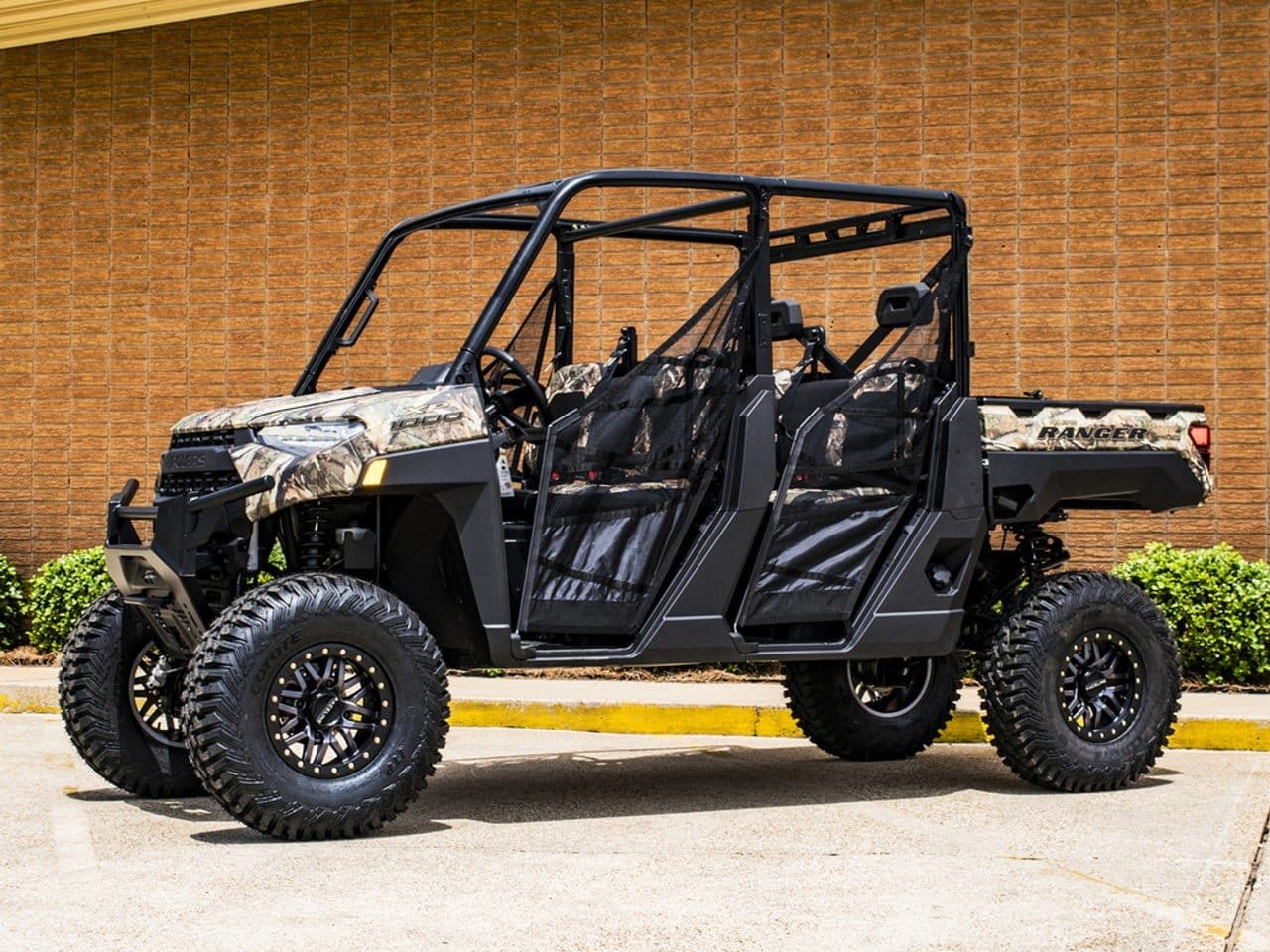

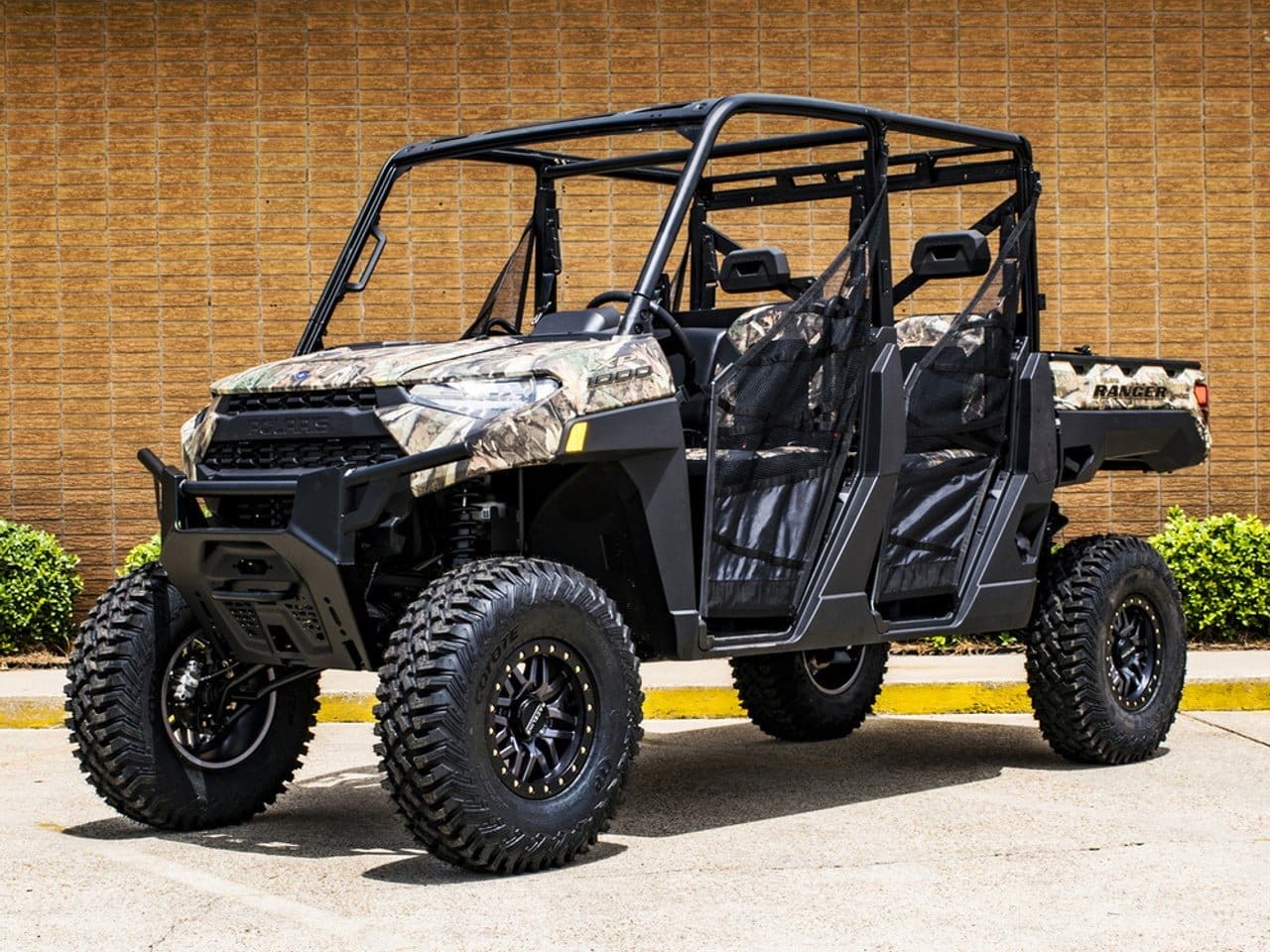

S3 Power Sports 4″ Lift Kit For Polaris Ranger Models

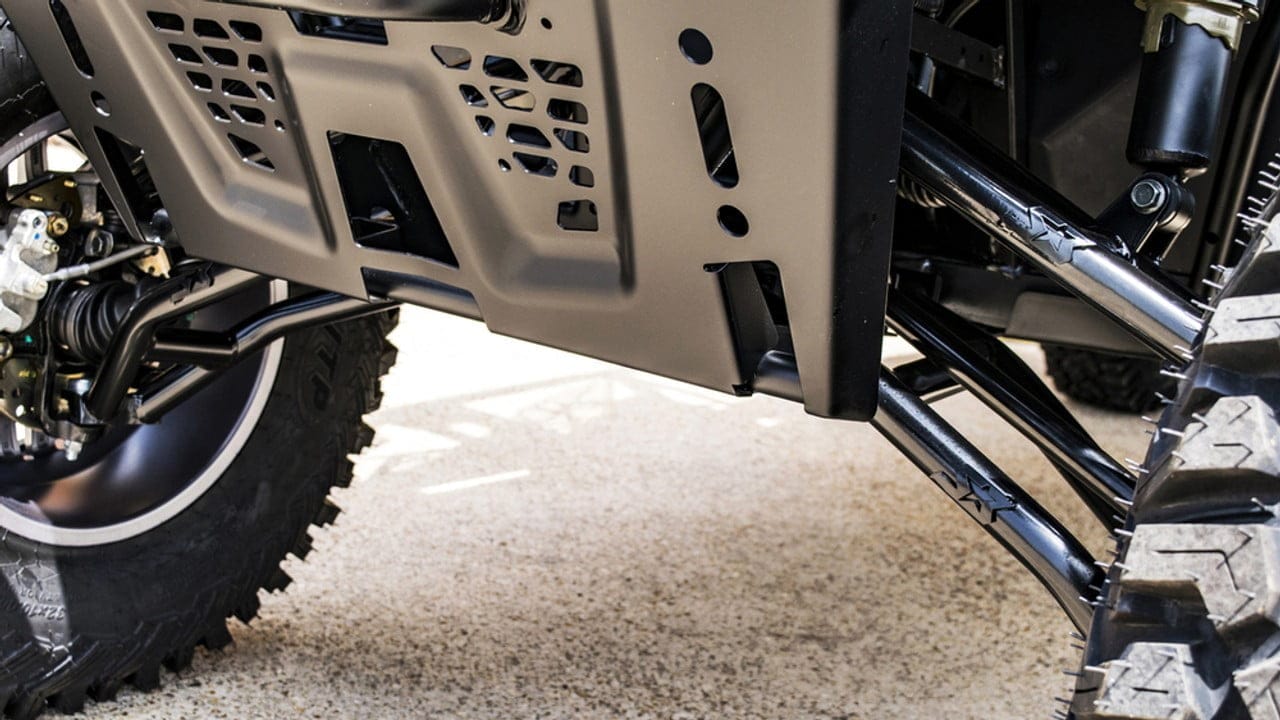

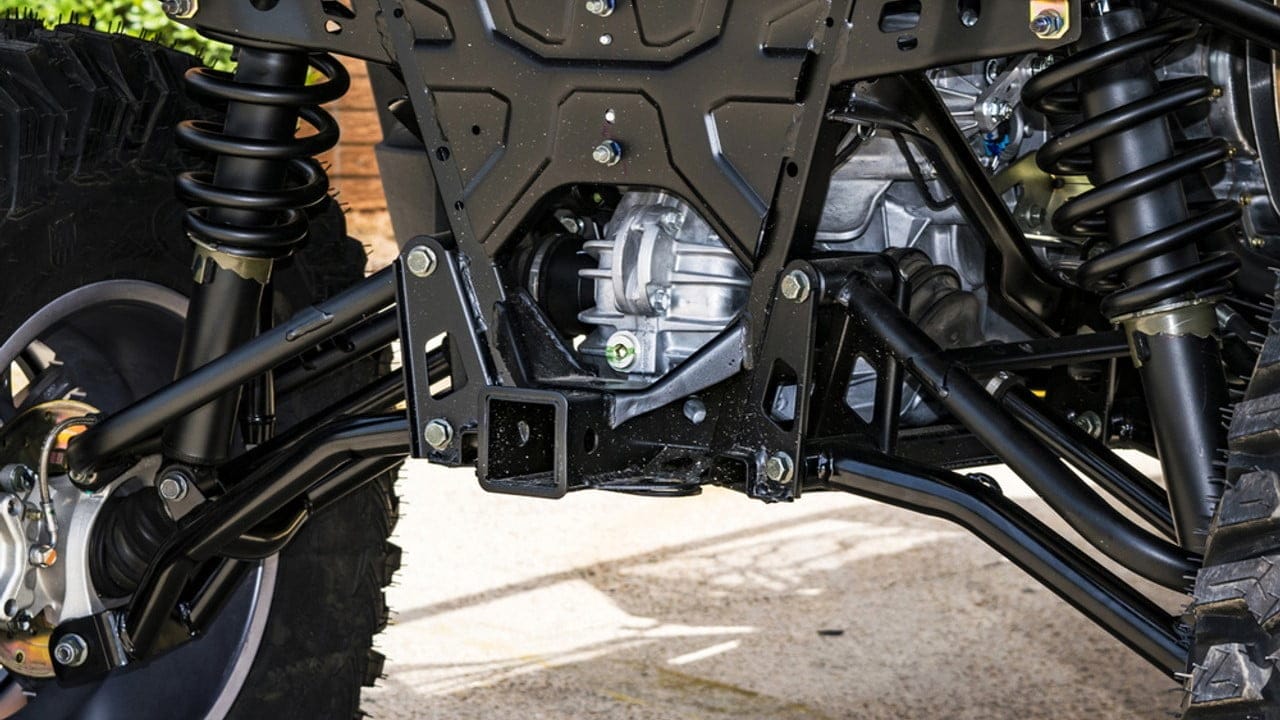

Polaris Ranger Lift Kit 4″ lift features 2″ Forward A-Arms for the Front With High Clearance Arched Lower Arms and Arched Lower A-Arms in The Rear. Full Kit
Polaris Ranger 4″ lift features 2″ forward a-arms for the front with high clearance arched lower arms and arched lower a-arms in the rear.
With this combination and the built in 4″ lift, you can clear up to a 32″ – 33″ tall tire with no rubbing.
The kit is designed to use factory length axles and retain the ride and drive of a factory Polaris Ranger!
For Older Models Click “Ranger Suspension Lift”
Uses OEM Ball Joints and Bushings.
Adjustable Upper Rear Arms Available “HERE” that can combo the setup.
Current Production Time: 3 – 5 Business Days
- Strut Front Suspension excluded
- 2018-2020 High Lifter Edition requires upgraded Tie Rods and Axles
- Complete “Bolt-on” Design
- Chromoly Heim Joints for Sway bar links
- Maintains Factory Axles and Factory Tie Rods
- Maximum Lift While Maintaining Great Ride Quality
- 1.25” x 0.188” Chromoly Tubing
- Precision Machined Ball Joint and Bushing Fixtures
- Laser Cut / CNC Bent
- Made in the U.S.A.
- Lifetime Structural Warranty
- Durable Powder Coat Finish

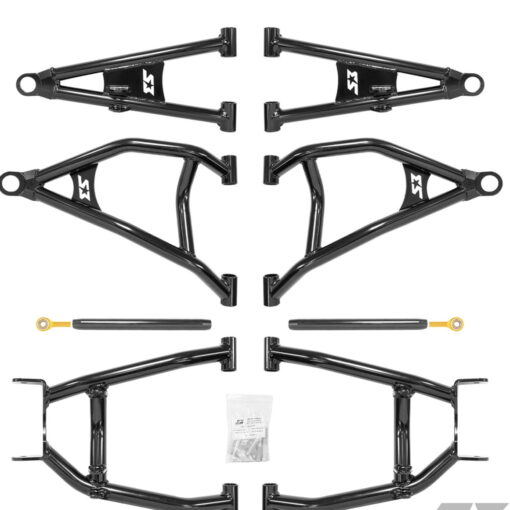

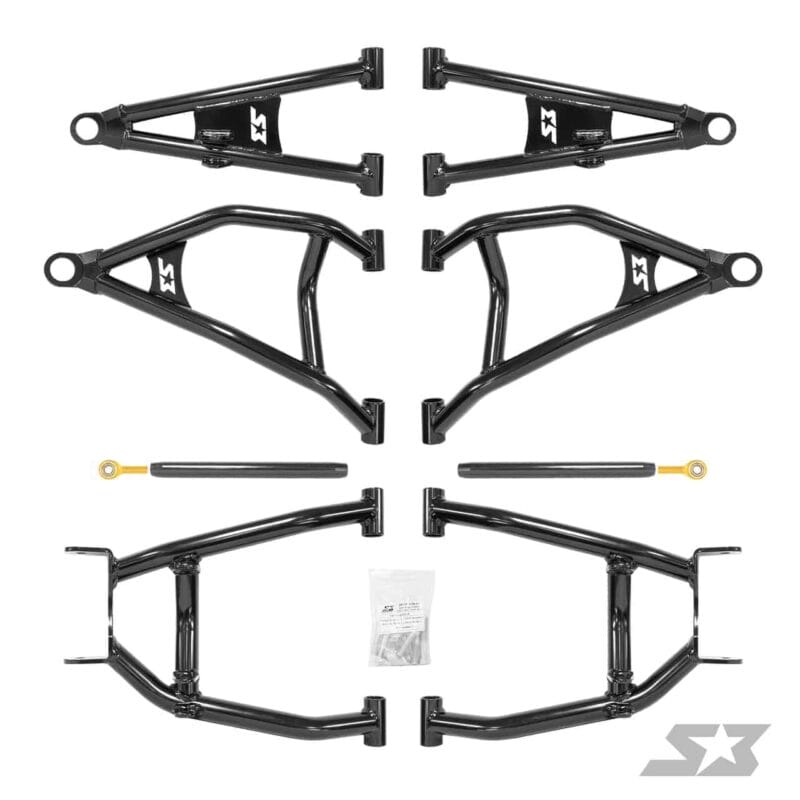

- (1)Set of Upper & Lower Front A-Arms
- (1)Set of Rear Lower A-Arms
- (1)Set of HD Sway Bar Links
- Installation Hardware
FABRICATION PARTS WARRANTY
SUMMARY OF COVERAGE
S3 Power Sports’ warranty is a reflection of our confidence in the parts we manufacture. We thoroughly test all our parts to ensure our customers receive the strongest and best engineered product we can provide. All of our parts carry a LIFETIME STRUCTURAL WARRANTY and we guarantee them against manufacturing defects. Warranty is valid through the original purchaser only.
S3 Power Sports stands behind all the products we fabricate and we guarantee them against manufacturing defects. However, we are not responsible nor do we accept liability for breakage or failure of parts as a result of the following conditions:
Items expected to degrade per their function and replaced as part of regular maintenance. Examples: bearings, ball joints, bushings, etc.
Axles: S3 Power Sports lift kits may include, or optionally be upgraded to include, Titan Axles, RCV Axles, or Gorilla Axles. Please refer to these items individual Manufacturer Warranties for coverage. Additional Information
MODIFICATION / AFTERMARKET PARTS
Vehicle modifications are done at your own risk, and we do not accept any responsibility for damages caused by vehicle modifications. S3 Power Sports is not liable for damages to user or equipment as a result of vehicle modifications. Modifications to vehicles may create dangerous situations and are done at the risk of the user. The user hereby expressly assumes all risks associated with any such modifications.
All Fabrication Parts: We work hard to design S3 Power Sports parts to be the most reliable parts in the worst conditions. However, operating S3 parts outside of their design parameters may result in damage to the vehicle or injure passengers. Please ensure proper installation of all aftermarket parts and research proper safety techniques.
Our lifts are engineered for abuse in deep mud and water! They are not built for runs at high speed, long distance runs, jumping, or hard cornering. Operating S3 Lift Kits outside of their design intentions may result in damage to the vehicle or injure passengers. High speeds may also void the warranty of your CVs. Please research proper driving styles with big lifts before purchasing.
TITAN AXLES WARRANTY
SUMMARY OF COVERAGE
S3 Power Sports’ TITAN AXLES are warrantied to the original purchaser with provided proof of purchase. We offer a 1 year $50 replacement warranty on all breakage excluding boot or band clamp failure beginning the day of the purchase. All warranty axles must be sent in for proper review by S3 Power Sports to confirm the failure has not occurred for reasons including but not limited to the following: improper installation, neglected maintenance, abnormal abuse, or over extension. Warranties are made at the discretion of S3 Power Sports. Warranty does not cover “clicking” or “popping” axles, cosmetic defects, or any other items that do not directly affect the proper operation of the axle. All terms and conditions are subject to change as seen fit by S3 Power Sports.
IN STOCK PARTS – Any items in current inventory we ship within 36-48 hours after order.
We currently only ship Monday through Friday, if you place the order over the weekend we will process it on Monday.
FABRICATION/Powder Coated Items.
Please allow adequate time for custom fabrication parts to be built, powder coated, and shipped. Currently 5-7 Business Days after Order is Placed
Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.
Lead Times DO NOT include shipping transit times.
All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.
