Kawasaki KRX Turbo Kit, Complete Turbo System

SKU: FT-KRXTURBO Categories: , ,

$4,619.99

As Low As 0% Financing Options Available "See Options"

Can-am Commander Turbo Kit, Complete System

Vehicle Fitment Info In Tabs Below

In Stock Item (See Below Shipping Tab)

This Product Earns $231.00 In Cash Back
Dfb B American Cash Logo

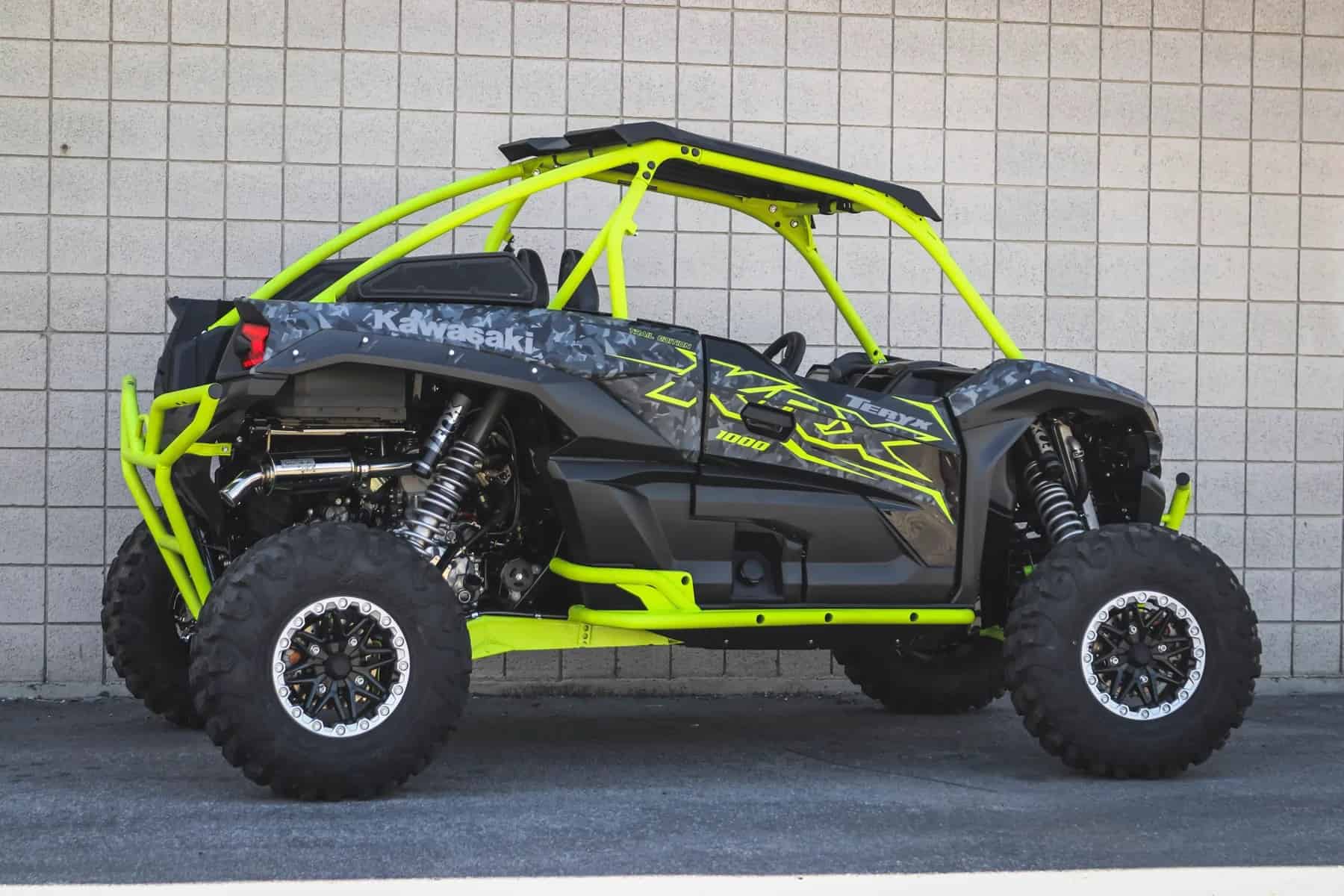

Force Turbos Turbo Kit For Kawasaki TERYX KRX 1000 Models

Pump Fuel Kawasaki KRX Turbo Kit Bold On System Is Designed Specifically For All Kawasakis TERYX KRX Units. Increased Boosted Horsepower

With a boost level of 5 psi and high-volume design, you are sure to get the additional horsepower you are looking for with minimal stress on the motor.

Your Kawasaki KRX will see a dramatic horsepower increase to the wheels, from 79 RWHP to near and above 119 RWHP and from 54 FTLBS torque stock to 81 FTLBS of torque with the turbo system.

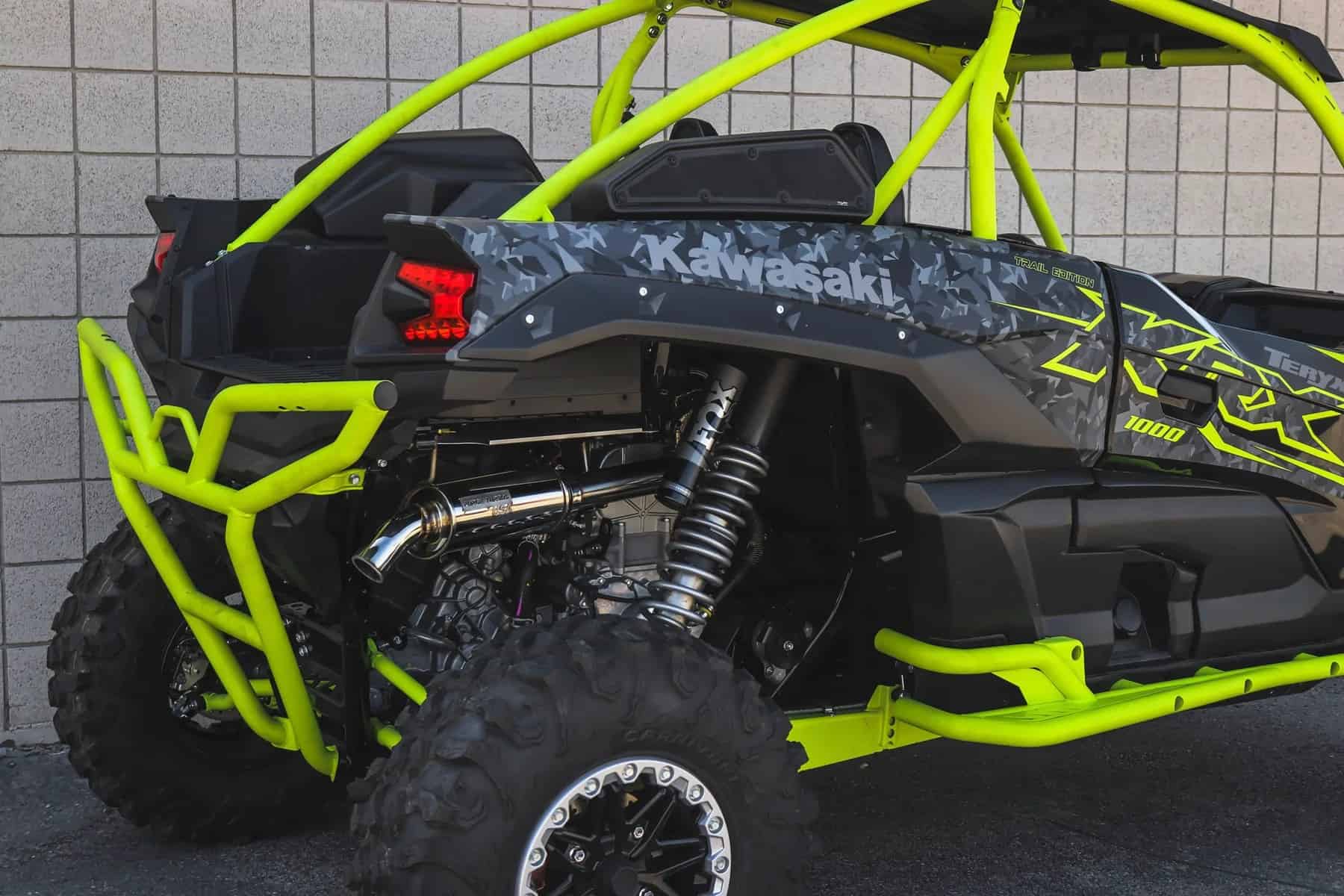

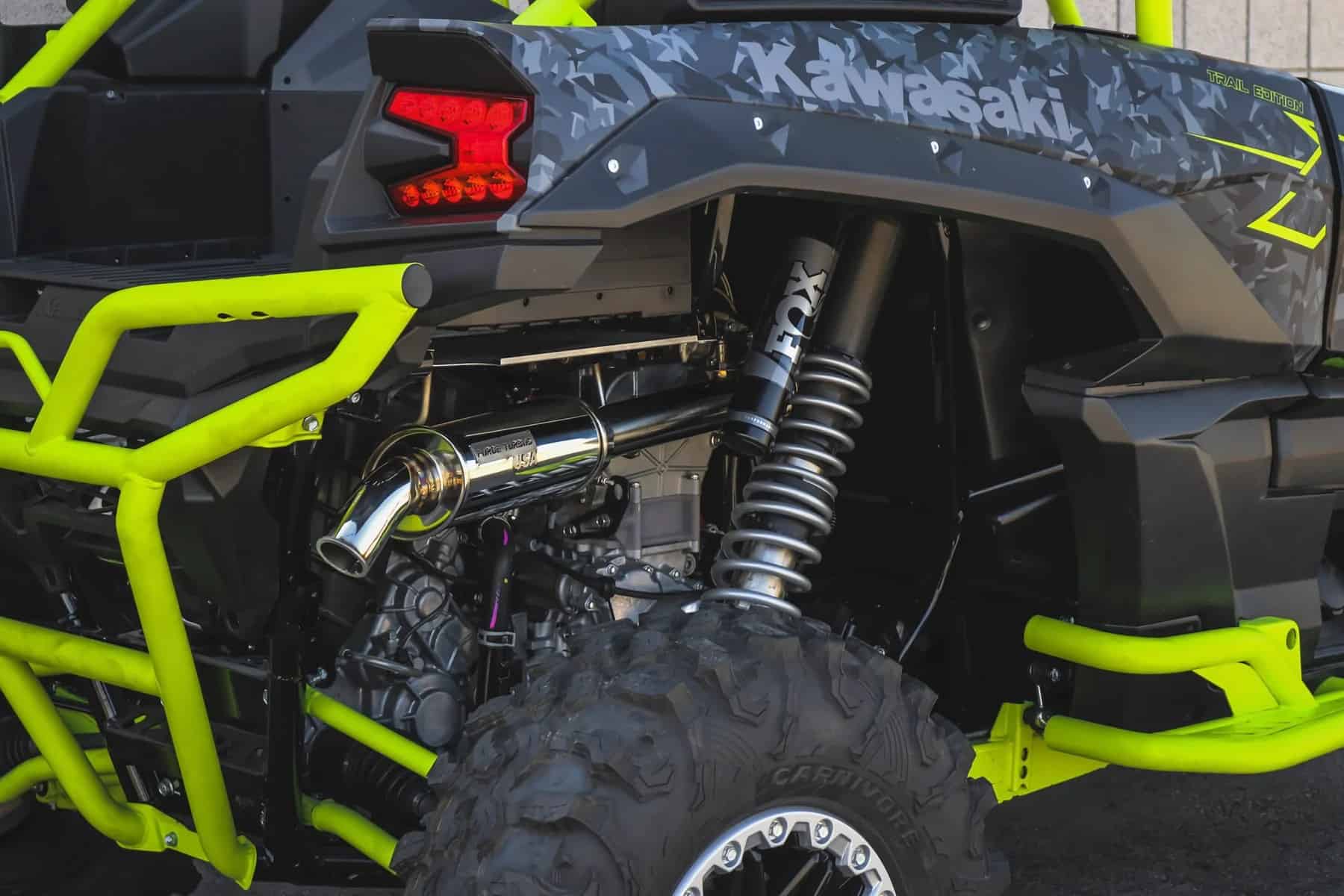

A forest service approved spark arrestor is provided in the exhaust.

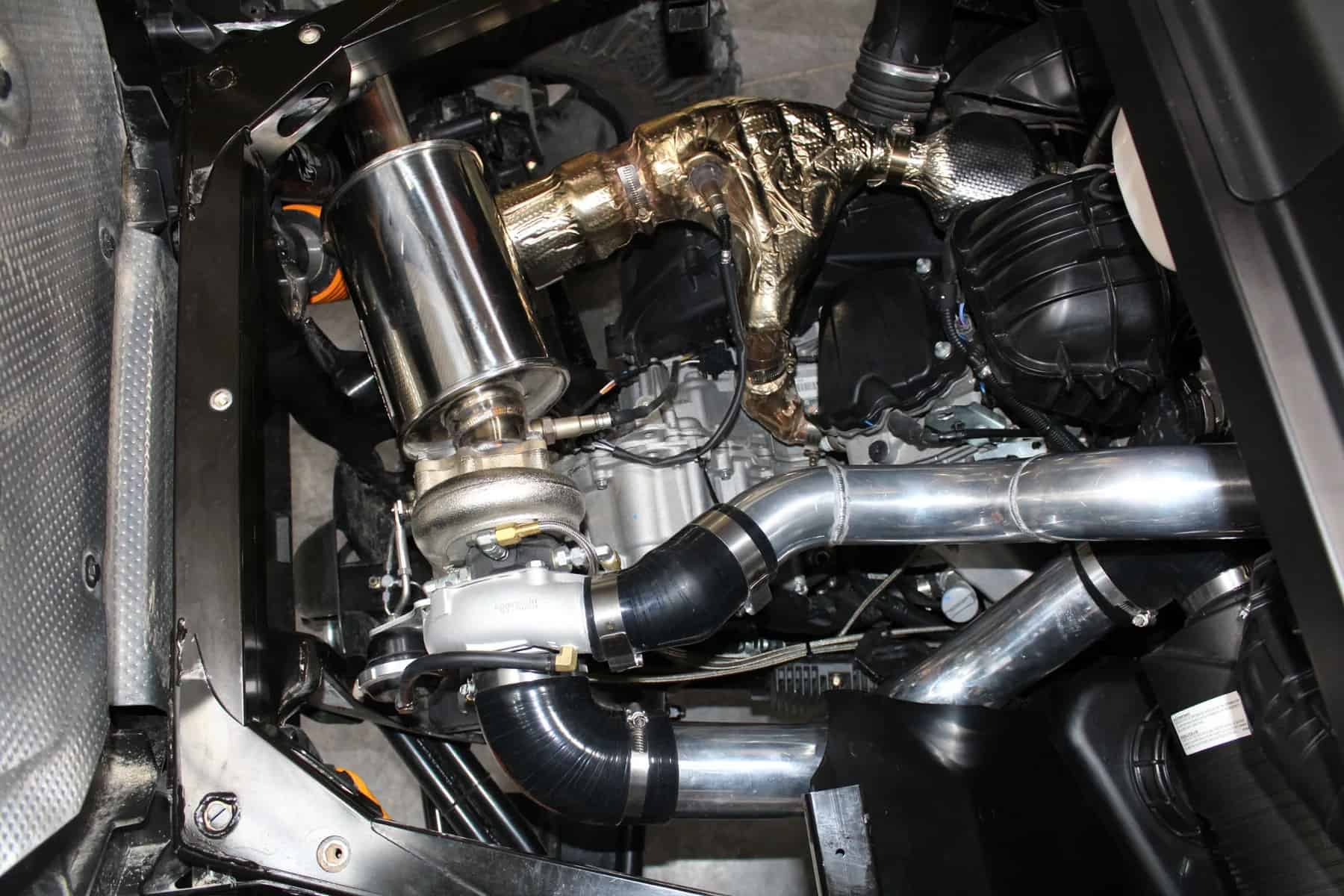

Turbo System Includes the Following:

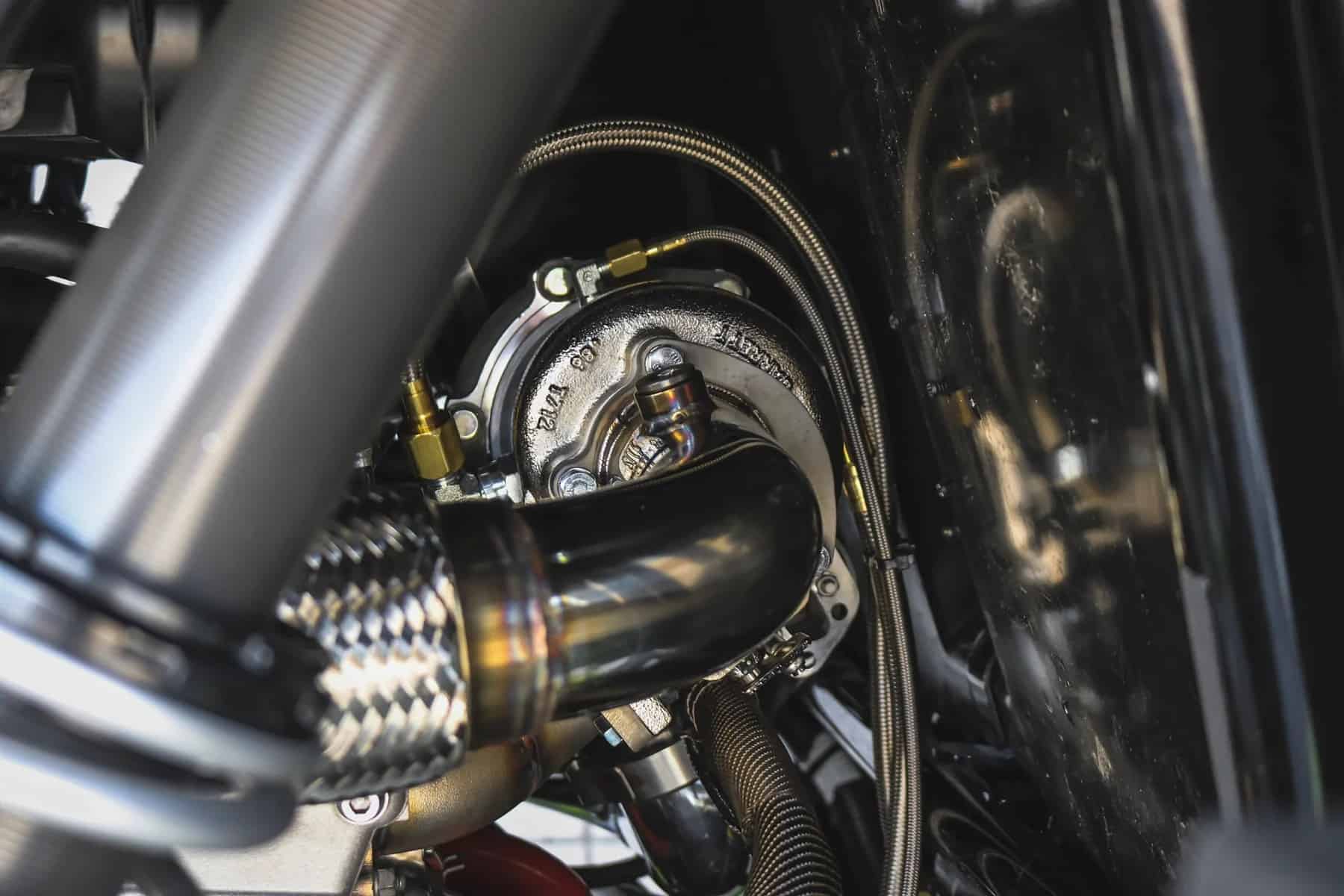

  • Garrett Turbo
  • Dynojet Powervision 3 with tune
  • Dynojet Wideband AFR controller
  • 2.5″ aluminum charge tube
  • 3″ cold air intake
  • 4 ply silicone
  • Stainless steel high flow turbo supply pipe and exhaust components
  • Braided stainless steel supply lines
  • All necessary fittings, hoses, clamps, and hardware

Exhaust Sound Clip

Why Buy Force Turbo UTV Turbo Kit Upgrade

PERFORMANCE EXPECTATIONS

The systems takes your KRX from 79 RWHP at the wheels to near or above 119RWHP.

TUNING

Base fuel mapping included.  Digital fuel controller tuning required for specific machine setup for optimum functionality.

BOOST LEVEL

5 psi low-pressure high-volume.

FUEL CONSIDERATIONS

91 octane non-ehtanol fuel is compatible.

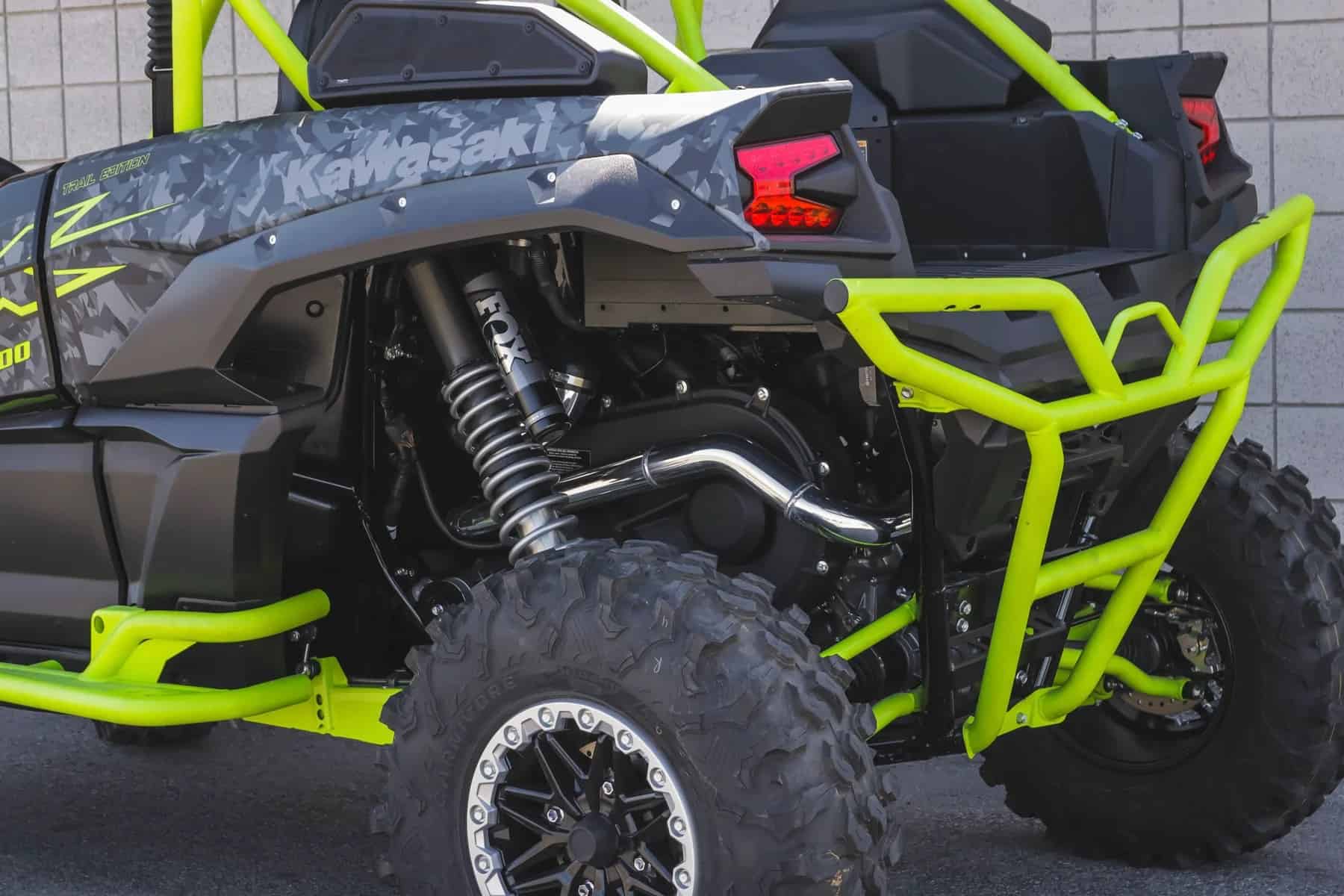

SYSTEM EXHAUST

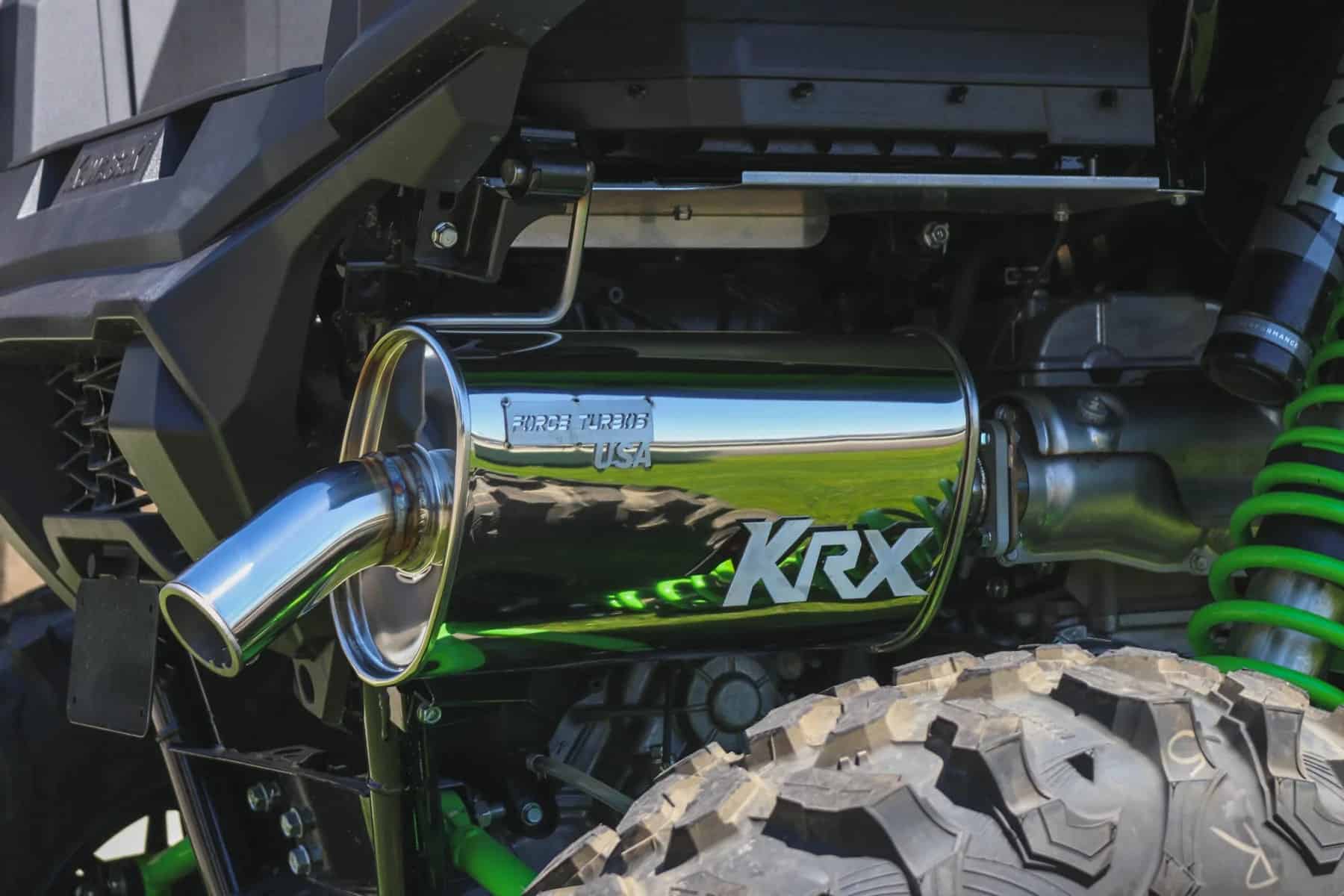

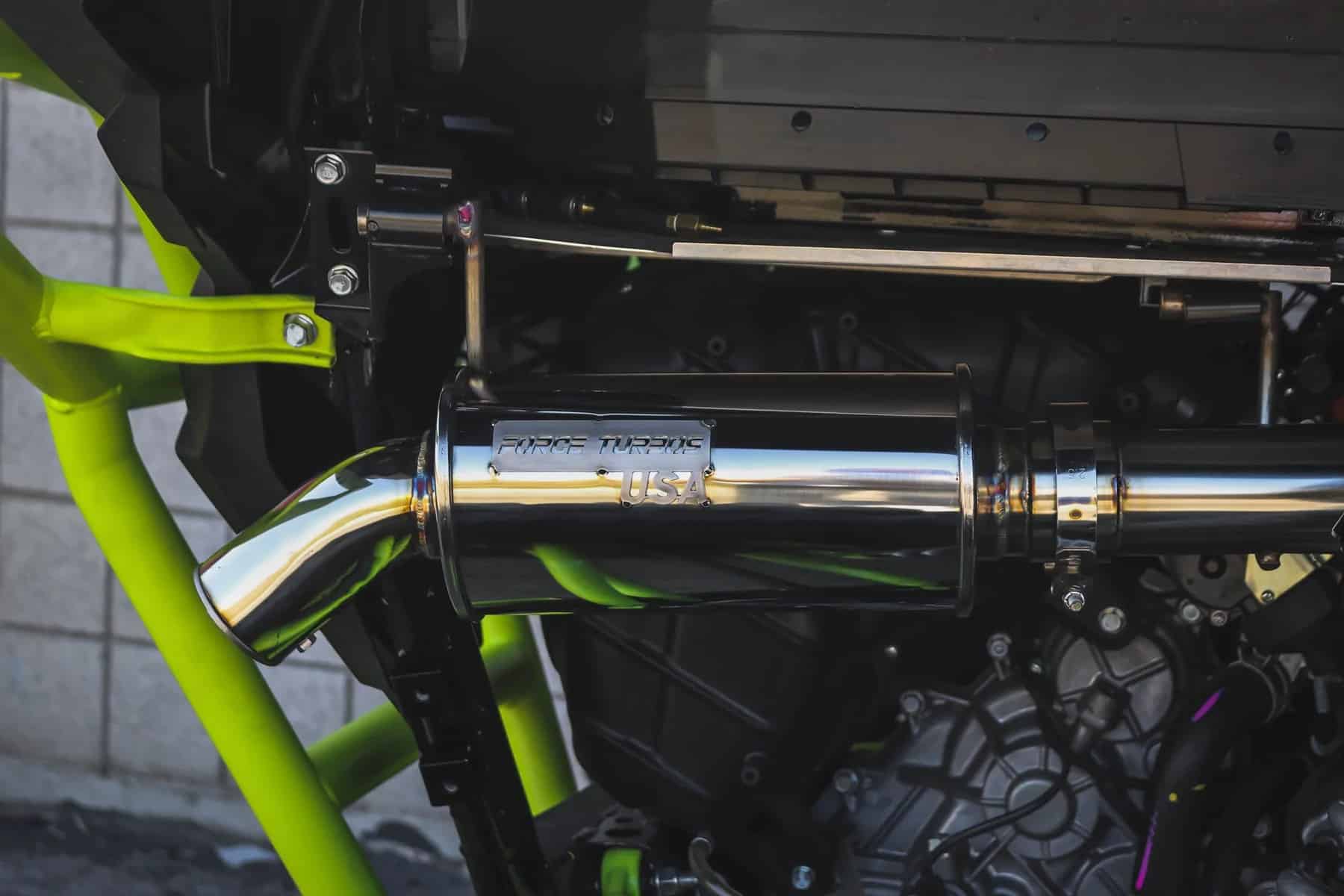

High flow performance resonator

CLUTCHING

Clutching is not provided with the turbo system but is needed.  Whether purchased from Force Turbos or another manufacturer, you will need a clutch kit to control upper level rpms, to avoid running too high of rpm and hitting the rev limiter.

Add On Upgrades And Options

Img X

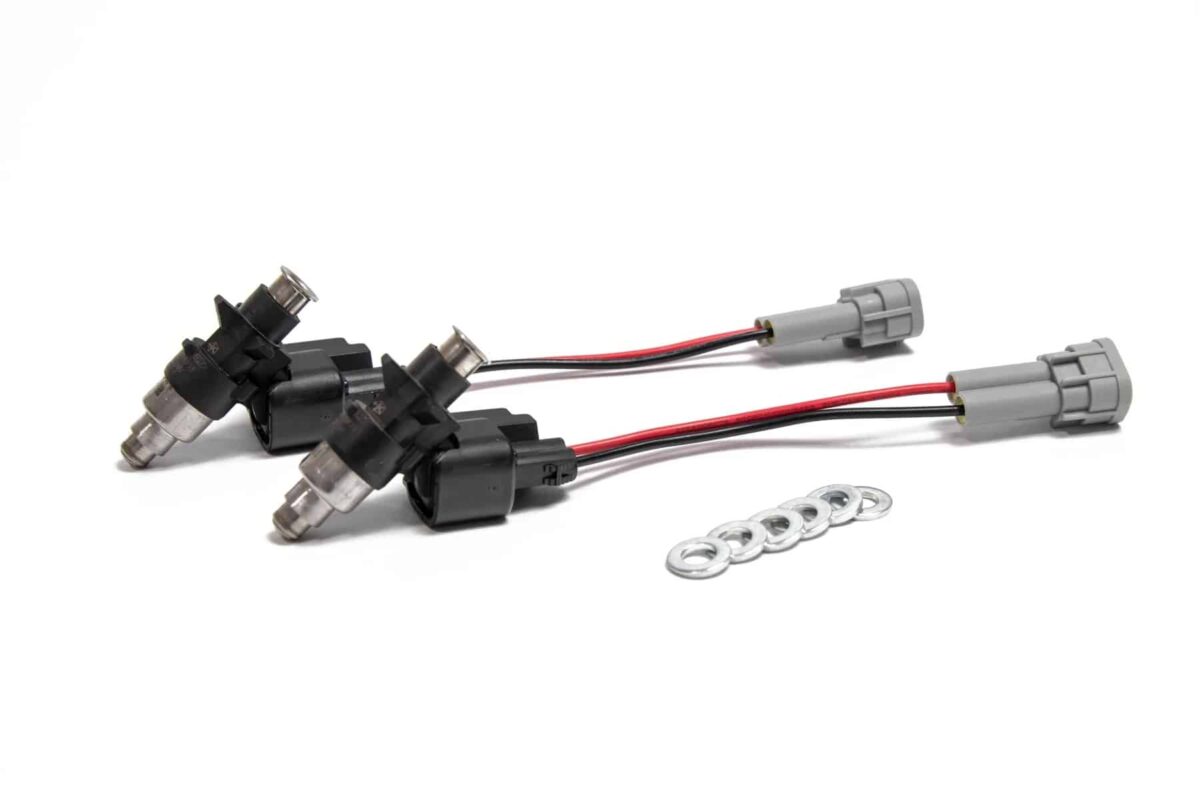

KRX Big Injector Upgrade

The Kawasaki KRX Big Injectors are the latest addition to the Force Turbos Kawasaki KRX Turbo system.No longer do you need to wonder if you have enough fuel to run 10-12 psi of boost. All injectors are match flowed and machined specifically for the KRX platform.

FEATURES

  • Corrosion resistant internals make it compatible with all known fuels
  • Built off the Bosch 800 cc platform
  • Includes fuel injectors
  • Includes fuel rail spacers
  • Includes fuel injector pig tails

NOTES

  • To run these injectors efficiently an aftermarket fuel rail, bigger fuel pump, and fuel supply lines are recommended.
  • Tune change will be needed to run these injectors

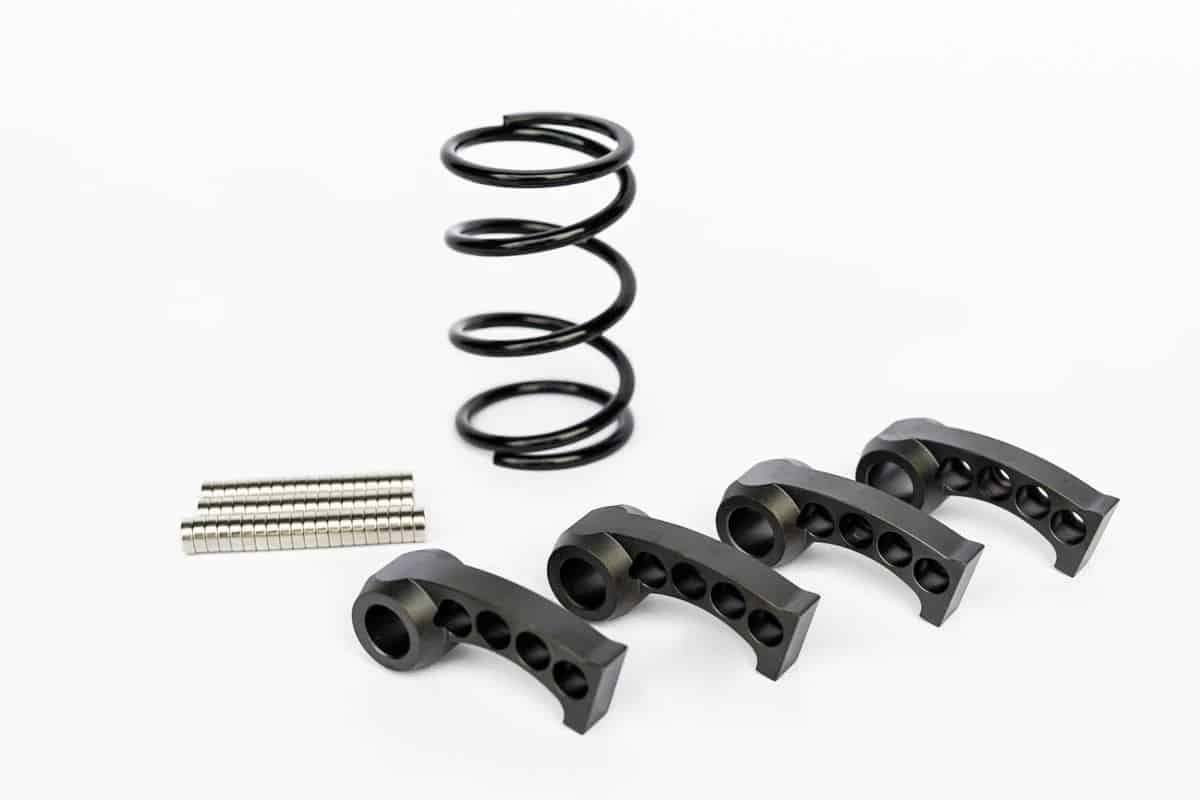

CLUTCH KIT FOR KAWASAKI KRX 1000

Get your Kawasaki KRX ready to dominate any terrain – sand, mud, rock or trail – with a Dynojet Clutch Kit.  This clutch kit is compatible and optimized for our Force Turbos KRX Turbo System.

Stock drive belts can fail when your UTV’s performance is pushed. A Dynojet Clutch Kit prolongs the life of your belt by making for lower clutch temps and allows you to keep the good times (or the victories) coming.

No matter how you plan to drive, or which tires you’ll put on the Kawasaki, a Dynojet Clutch Kit is the essential upgrade you need for durability.

Once installed, you’ll feel the difference the first time you take it out, whether it’s in the dunes, the woods, or just your own backyard. Our clutch kits are engineered to make sure that your UTV can withstand the toughest trails, and leave your competition in the dust on race day. With adjustable arms that can be updated for any adventure and multiple spring options, you can unlock the next level of performance.

Kawasaki Krx Turbo Kit, Complete Turbo System
Kawasaki Krx Turbo Kit, Complete Turbo System

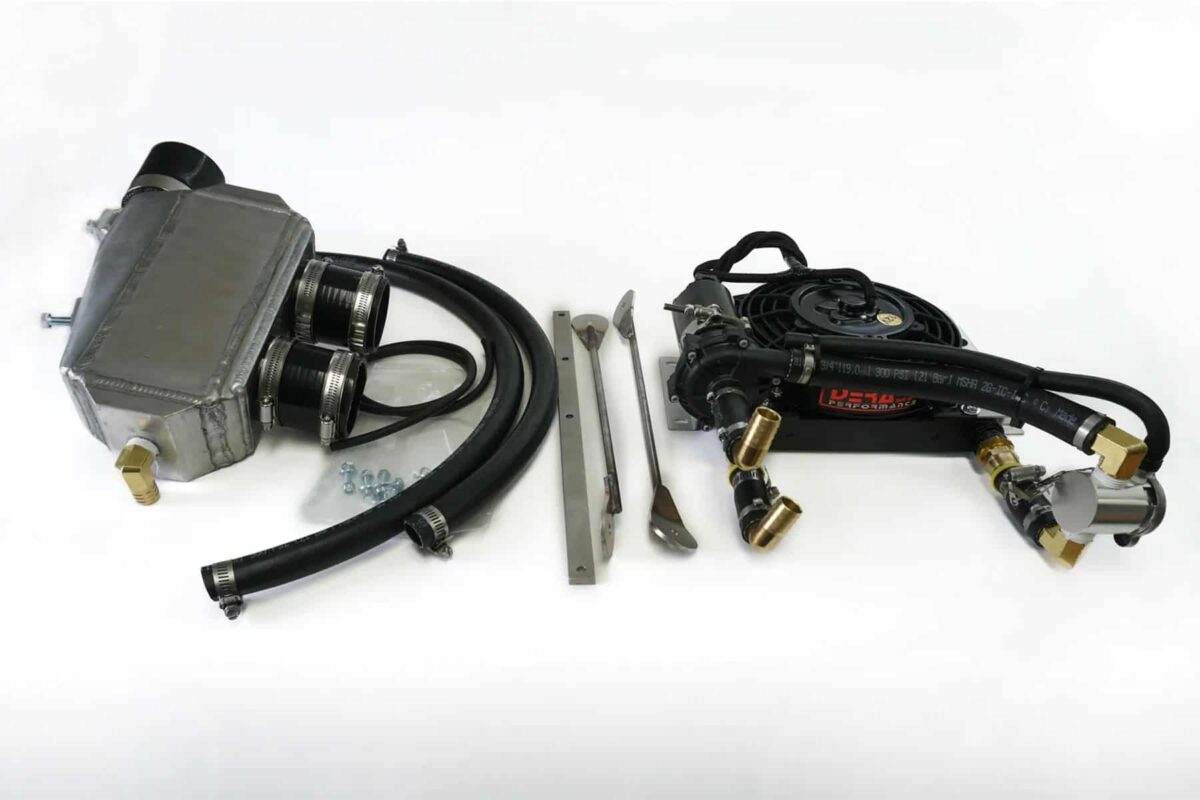

KRX WATER TO AIR ASSEMBLY

This highly efficient water to air design delivers effective cooling in a compact, easy-to-install package.  The divorced water to air system uses a bar and plate style core, remote radiator with fan, and magnetic drive water pump, leaving you with high durability and efficient charge air cooling for more power and reliability. There is also an added a turbo smart vent to atmosphere blow off valve to the air box.

This product was designed to fit and work with Force Turbos Kawasaki KRX Turbo System. It mounts to the KRX throttle bodies fit in the back area of the vehicle. Assembly comes with everything needed to upgrade your current KRX Turbo System.

Force Turbo KRX Turbo Kit FAQ's

Do I need to buy a clutch kit?

Clutching is not provided with the turbo system but is needed.  Whether purchased from Force Turbos or another manufacturer, you will need a clutch kit to control upper level rpms, to avoid running too high of rpm and hitting the rev limiter.

Does the turbo system come with a fuel map?

Yes. Base fuel mapping included.  Digital fuel controller tuning required for specific machine setup for optimum functionality.

What limits are removed from the vehicle?

We increase the stock tune RPM limits, speed limits, and some torque limits.

What is the install time?

A professional mechanic can install the system in about 6 hours, while a home garage mechanic usually needs 8-10 hours or more.

How does this effect the reliability of our vehicle?

Our turbo system was designed to give you increased performance while operating within the normal operating limits of the vehicle.  Although our turbo system is capable of exceeding the recommended operational parameters of the vehicle, it would require making specific adjustments to the system to reach those levels.

Do I need to run race fuel?

No.  This turbo system was designed to run high quality 91 pump fuel.

Can you operate the vehicle in eco mode?

No.  We recommend always operating your vehicle in sport mode with a turbo system installed.

Does this turbo system void my warranty?

Yes.  Adding any high-performance aftermarket accessories will void your warranty. Use at your own risk.

Can the vehicle be converted back to stock condition after the turbo system is installed?

Yes.  Our turbo system can be taken off and the vehicle can be returned to stock.

How does the KRX 1000 turbo system work in deep mud and water?

The turbo system will work the same as any other stock vehicle.  Air is pulled from the same location as the stock vehicle.  Exhaust will function the same as a stock exhaust.  The turbo system will retain any capability the stock vehicle had.

Does Force Turbos offer support?

Yes.  Force Turbos offers email or phone support during normal business hours Monday-Friday 9:00 am – 4:00 pm MST. Feel free to call us at 801-807-8046 or email [email protected]

See More “Force Turbos”

Manuals

Install Guide

Download Document

Limited Replacement Warranty

This product is warranted against any manufactured defect for a period of 14 days from date of purchase. The warranty covers only the Force Turbos parts and components.  In no case does it cover any vehicle parts, chassis, motor, components, or work performed.

Force Turbos limited warranty specifically excludes return shipping charges, vehicle rental fees, towing charges/recovery, travel, work performed or any other claim.

We reserve the right to refuse a refund for parts that we have determined have been used, installed, or abused, or for any other reason.  Due to the nature and use of powersports vehicle parts, high-performance turbo components, and parts, Force Turbos parts and components have a 60-day limited warranty.

High Risk Activity

Products sold by Force Turbos LLC include equipment used in extreme sporting activities. Participation in this activity is associated with a high level of risk. Risks include but are not limited to serious physical injury, disability and/or death. You participate in this activity at your own risk.

Assumption of Risk

By buying, using, or allowing the use of Force Turbos LLC’s products, you understand and agree that extreme sporting activities including operation of vehicles with turbos are high risk activities and, to the extent permitted by law, YOU EXPRESSLY AND VOLUNTARILY ASSUME THE RISK OF DEATH OR OTHER PERSONAL INJURY SUSTAINED WHILE PARTICIPATING IN SUCH ACTIVITIES WHETHER OR NOT CAUSED BY THE NEGLIGENCE OR OTHER FAULT OF Force Turbos LLC including but not limited to equipment malfunction from whatever cause, or any other fault of Force Turbos LLC. Additionally, you agree to indemnify, defend, and hold Force Turbos LLC harmless from any third-party claims arising from such High-Risk Activities.

Vehicle Modification

Modification of vehicles, through the use or misuse of Force Turbos LLC products, can lead to vehicle malfunction causing serious risk. Risks include but are not limited to vehicle damage, serious physical injury, disability and/or death. You are responsible for any modifications you perform on your or anyone else’s vehicle using Force Turbos LLC products. Force Turbos LLC is not responsible and will not be held liable for any modifications done to vehicles through the use or misuse of its product, even if the modifications include but are not limited to, bypassing or eliminating vehicle safety features, installing parts that go against the vehicle manufacturer safety regulation and standards, and/or improper installation and adjustment of Force Turbos LLC products.

Limitation of Liability

As set forth above under the limited warranty provisions, Force Turbos LLC liability is limited to repair or replacement of its products which are returned to it in the specified period of time. In no event shall Force Turbos LLC liability exceed the value of the product(s) sold. In no event shall Force Turbos LLC be liable for any direct, indirect, punitive, incidental, special or consequential damages whatsoever arising out of or connected with the use or misuse of any of its products.

Warning

Use and misuse of products sold by Force Turbos LLC involves serious risks including injury, disability and death. Purchasers assume all risks.

Inspect Before Each Use

This product must be inspected for use to ensure it has not been damaged in shipment. If damaged, do not use and immediately return the product to Force Turbos LLC for a replacement.

Entire Obligation

The PRODUCT LIABILITY DISCLAIMER document states the entire obligation of Force Turbos LLC with respect to the products. If any part of this disclaimer is determined to be void, invalid, unenforceable or illegal, including, but not limited to the warranty disclaimers and liability disclaimers and liability limitations set forth above, then the invalid or unenforceable provision will be deemed superseded by a valid, enforceable provision that most closely matches the intent of the original provision and the remainder of the agreement shall remain in full force and effect.

Instock Items

Please allow 2 – 3 business days for your order to be processed for shipping.  We strive to fulfill orders as soon as possible, and often will get in-stock items ready to ship Monday Through Friday Minus Holidays

Production Items, Customer Powder Coating:

Please allow 12 – 14 business days for your order to be processed for shipping.  We strive to fulfill orders as soon as possible, and often will get in-stock items ready to ship Monday Through Friday Minus Holidays

Make Model Year
Kawasaki Off Road TERYX KRX 1000 2020 - 2022
Kawasaki Off Road TERYX KRX 1000 eS 2021 - 2022
