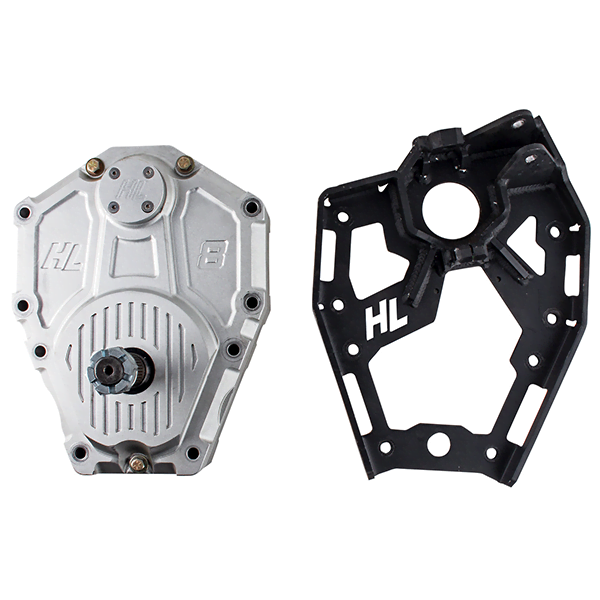

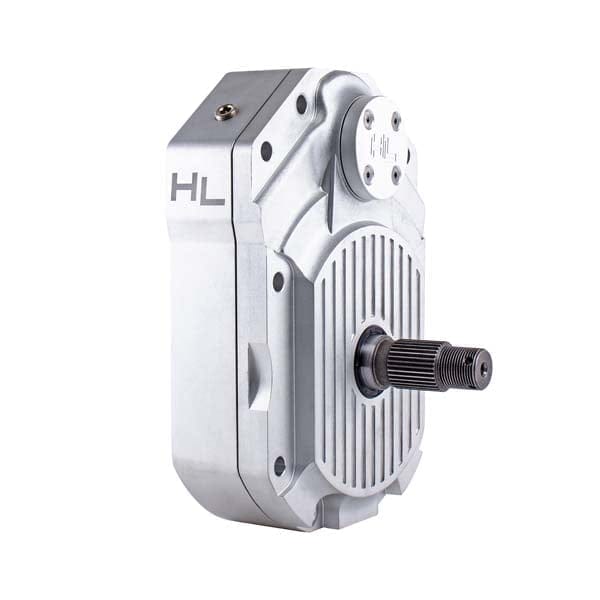

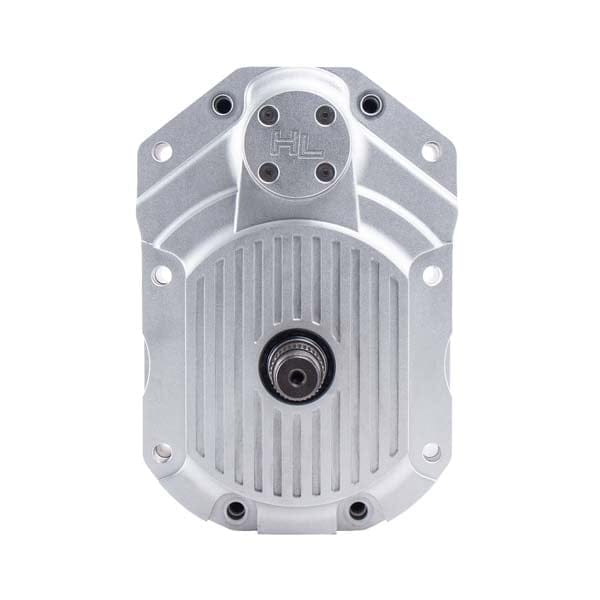

High Lifter Can-Am Maverick X3 Portals, Dual Idler

What does the Dual Idler Gear Lift offer?

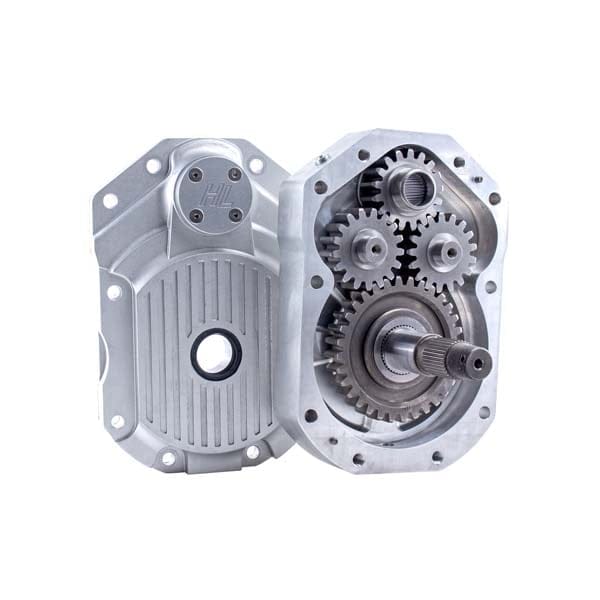

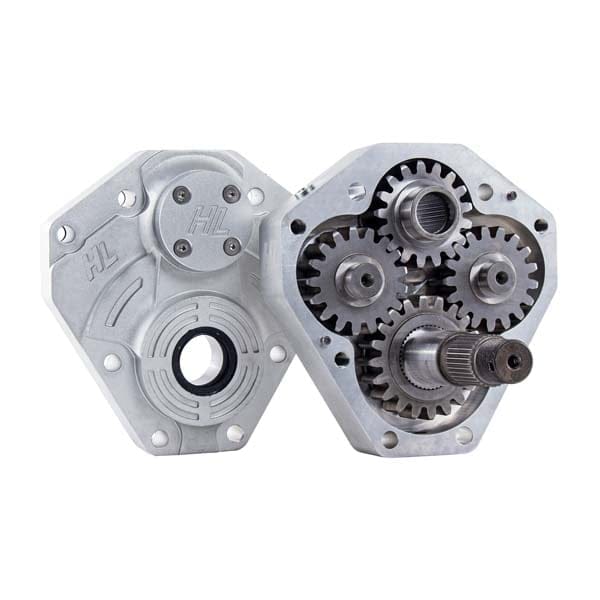

• High Lifter improved the portal design by adding a second idler gear in the gear box
• The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
• You gain more reliable torque transfer
• Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
• Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking

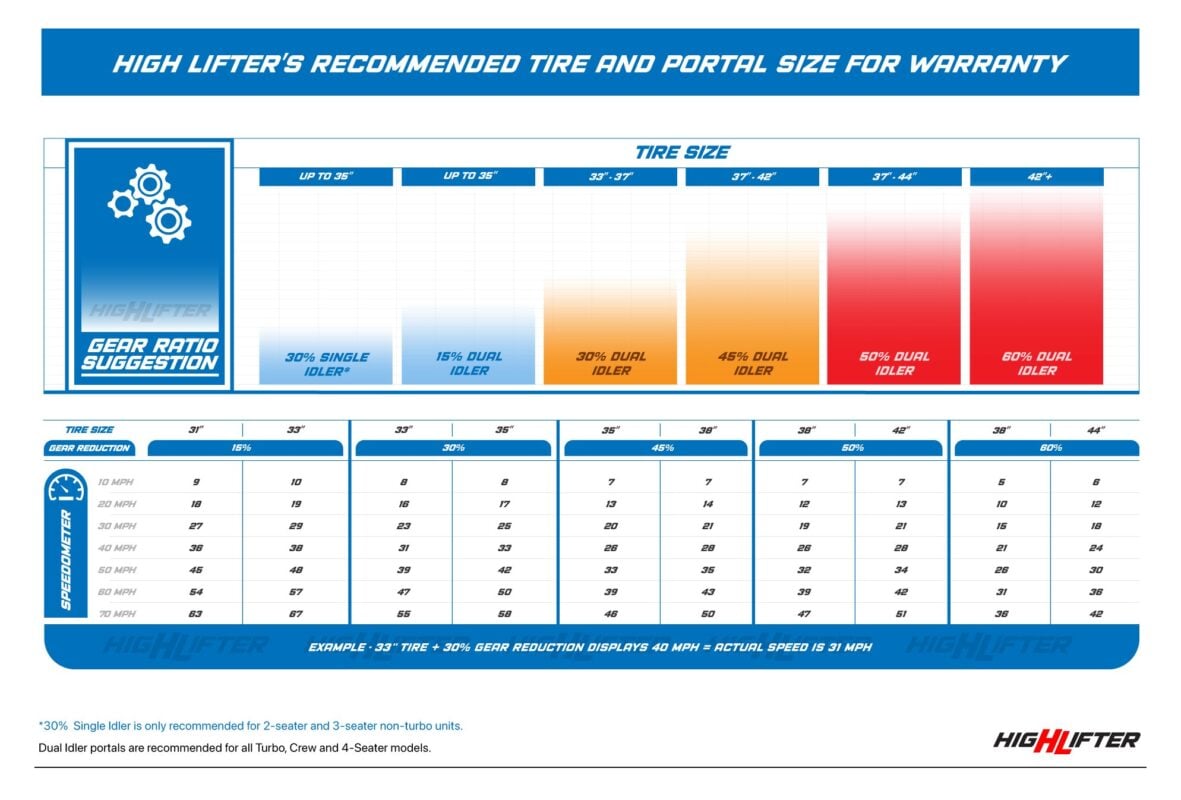

• Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!

Why Highlifter Portals:

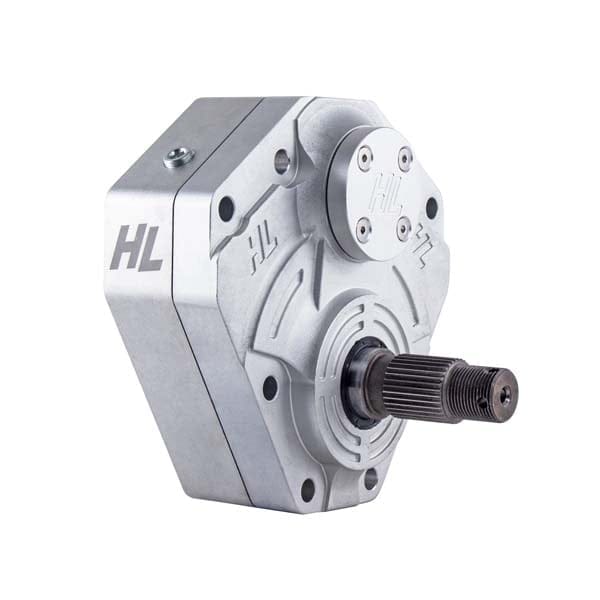

Forged Gear Boxes

• Strongest boxes on the market because forging produces a tougher piece of metal
• Forging is stronger than both cast and billet aluminum
• Competitors use cast aluminum and billet aluminum boxes
• These portal boxes are extremely robust and give you more worry-free miles than any other portal

Wheel Requirements 4″ Portals:
14″ or larger
14″ factory wheels must run 1″ spacer
14″ & 15″ can not exceed 4-1/2″ backspacing
16″ & larger can not exceed 5″ backspacing

Wheel Requirements 6″ Portals:
18″ or larger wheel required • Up to 30″ Stock
18″ wheels cannot exceed 4-1/2″ backspacing • 31″ with 3″ Lift Kit
20″ and larger wheels cannot exceed 5″ backspacing

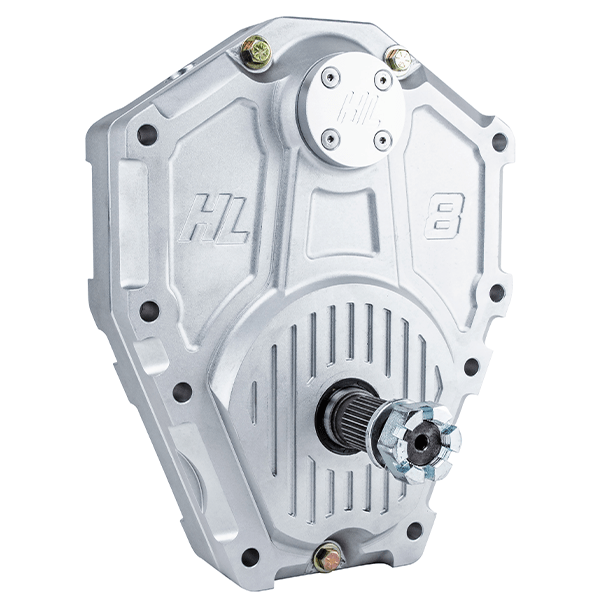

Wheel Requirements 8″ Portals:
22″ or larger wheel required
22″ and larger wheels cannot exceed 5″ backspacing
