Can-Am Maverick X3 Lower Ball Joint, Adjustable/Rebuildable
$134.99
Financing As Low As 0% Available "See Options"
Vehicle Fitment Info In Tabs Below
In Stock Item (See Below Shipping Tab)

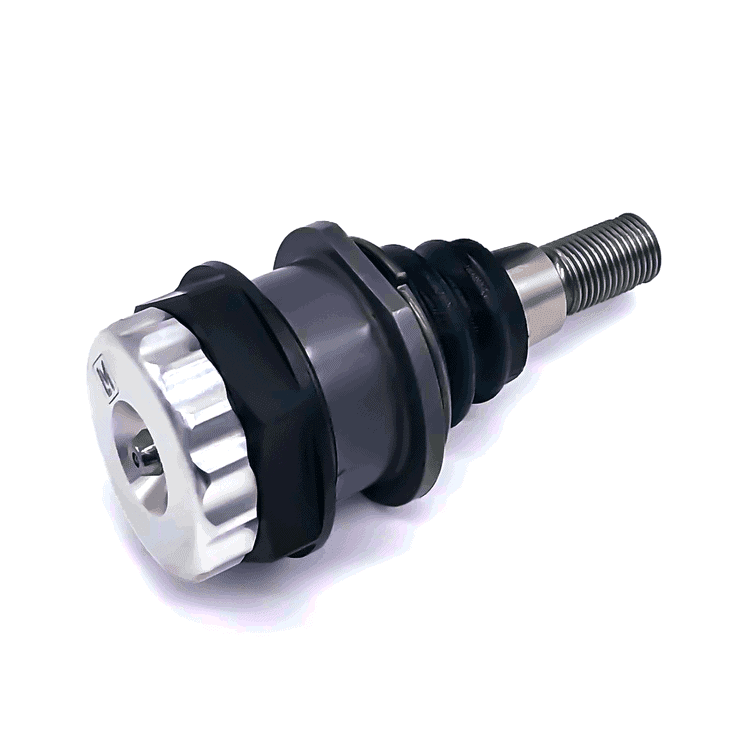

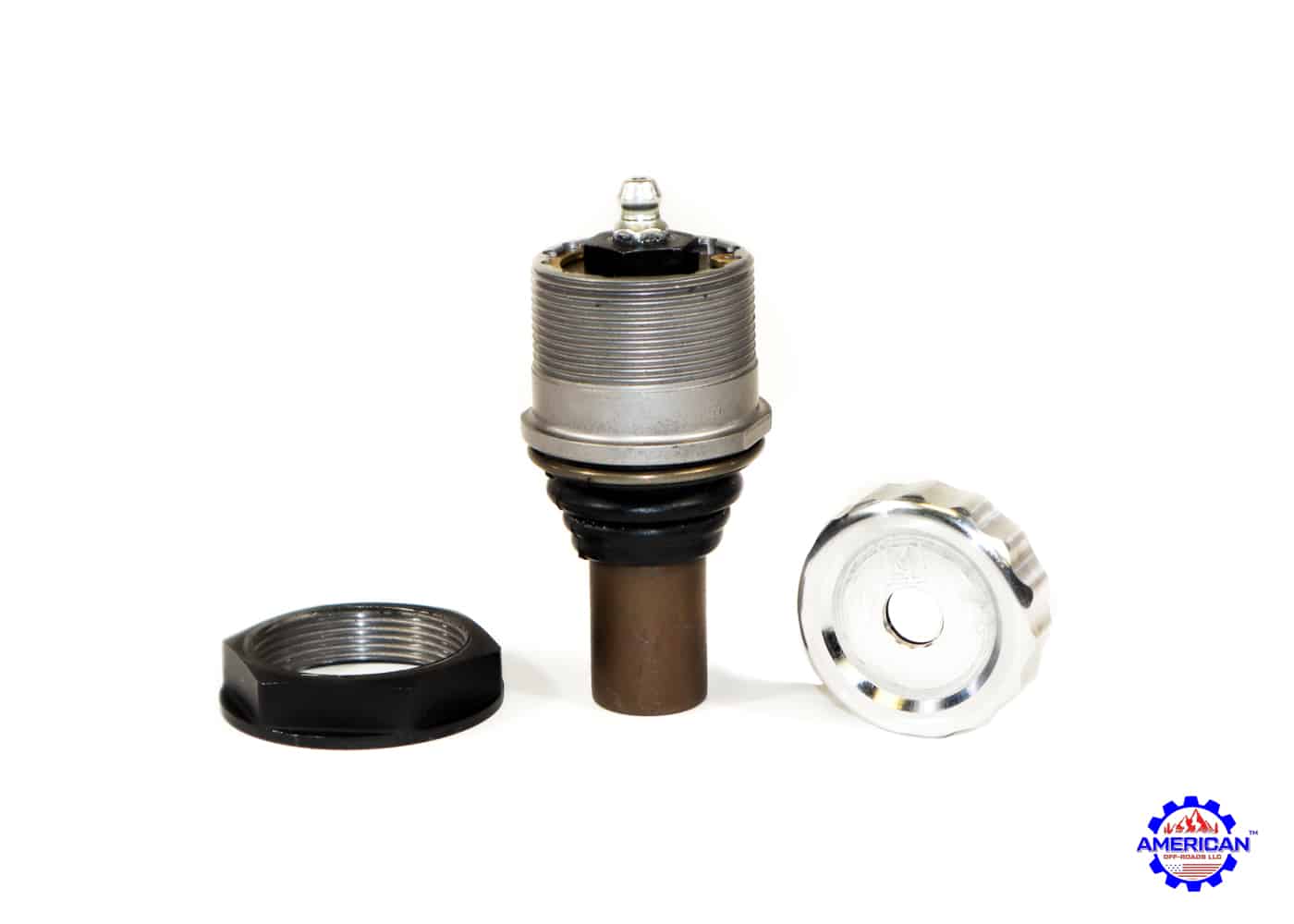

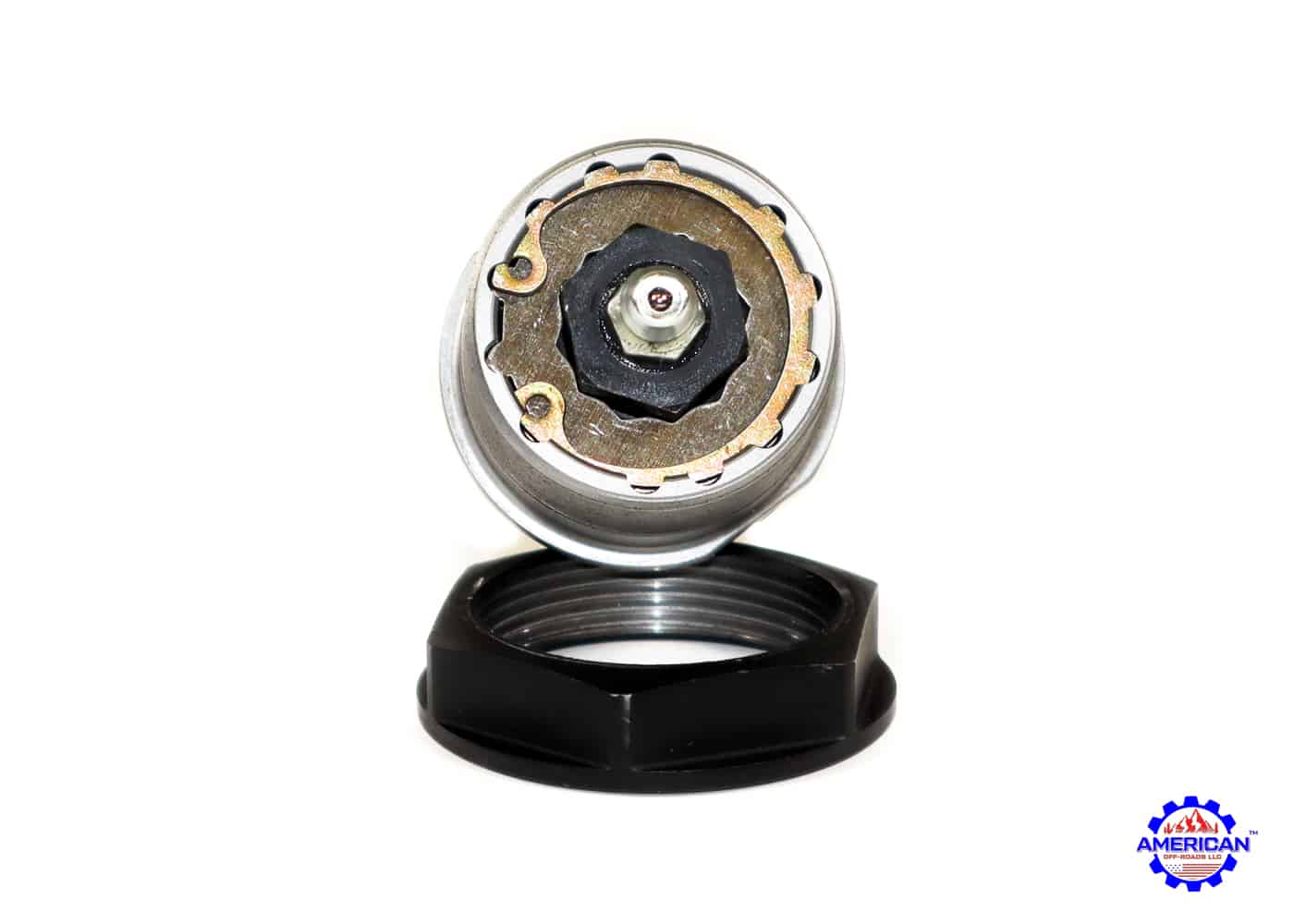

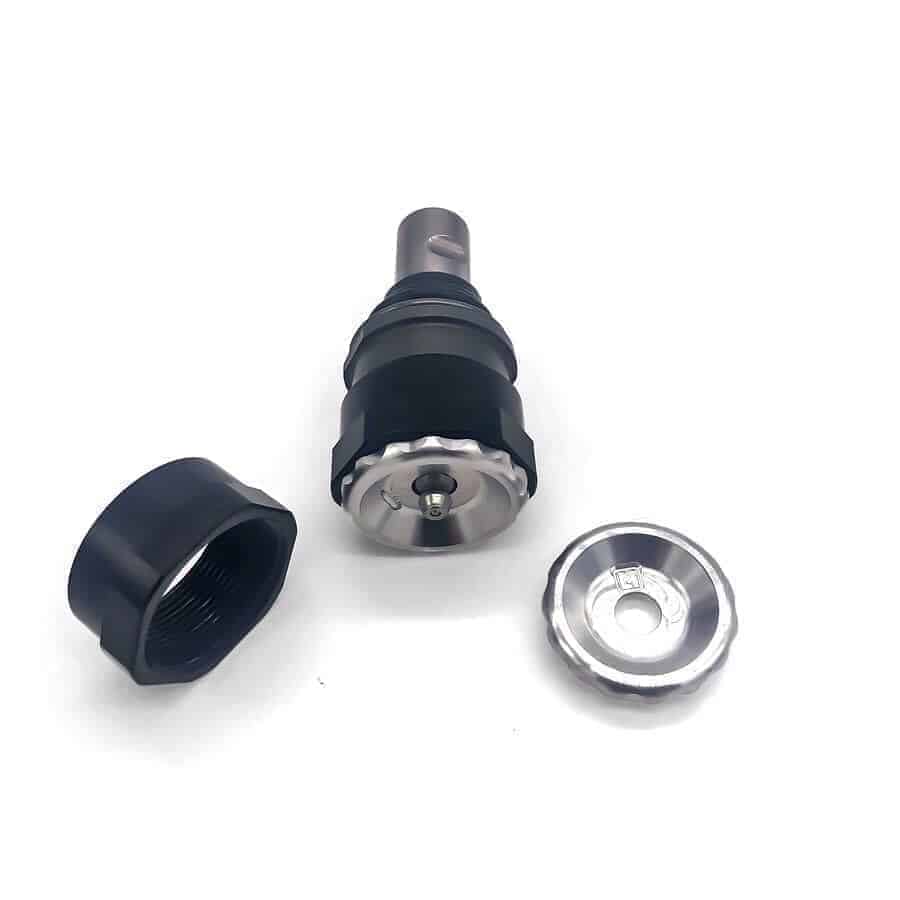

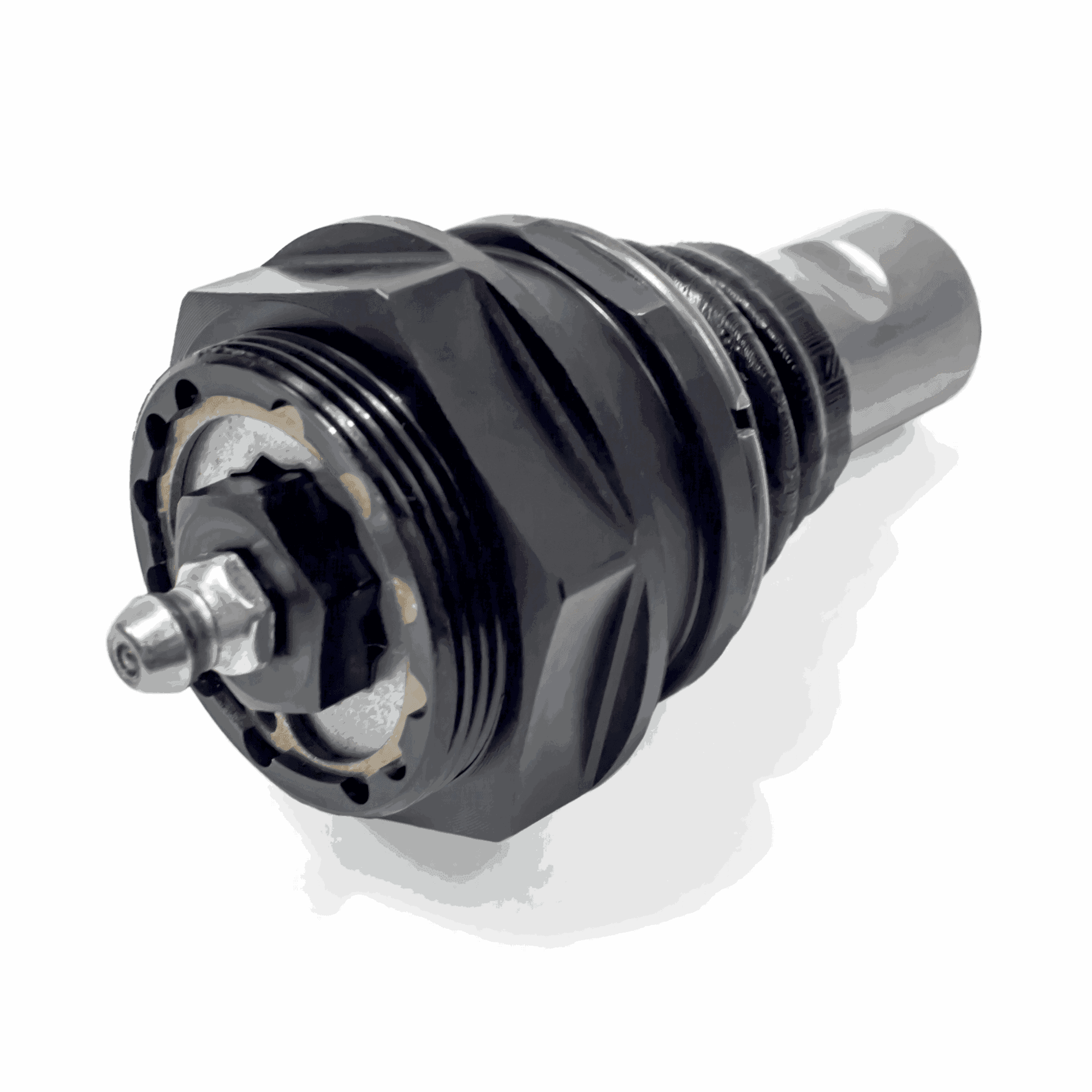

LM UTV Adjustable/Rebuildable Lower Ball Joints For Maverick X3 Models
LM-UTV produces the best aftermarket UTV X3 Lower ball joints on the market. We didn’t just make the ball joint bigger, we completely redesigned and made it better then the rest. Bullet proof “bolt in” design does not rely on a retaining ring to keep the ball-joint in the arm. All our ball joints come completely assembled, properly gaped for grease, these will be the easiest ball-joints to install and the last set you will purchase. Aluminum cap will keep water and debris out of the ball-joint (making this a completely sealed ball joint) and also will not leak grease like others, and causing a mess on the wheels.
The Can-Am Maverick X3 Upper Ball Joints by LM-UTV are crafted with an innovative design and are made to last.
Using a 4340 heat treated Chromolly housing and a heat treated 17-4 stainless steel stud, these ball joints are fully rebuild-able and adjustable.
LM-UTV ball joints come fully assembled and ready to install.
Unlike other rebuild-able ball joints that must be taken apart to install and adjust, ours is as easy as pressing it in and tightening the nut and you’re good to go!
All Items are Sold Individual, Price Shown Is Per Single Joint. Increase Quantity for Both Sides.
Features:
- Innovative Design
- Aluminum Dust Cap
- 4340 Heat Treated Chromoly Steel Housing
- Heat Treated 17-4 Stainless Steel
- Fully Rebuild-able
- Fully Adjustable with .0001-.0046 Preset adjustment Locations
- Unique Dust Boot
- Presses and Bolts into the A-arm. Does Not Use the OEM C Clip
- 350% Stronger Than OEM and Others
- Lifetime Warranty
- Greaseable
- Made in the USA
Choose Cap Options
Standard Cap
For Flush Mounting A-Arms, Traditionally OEM Style
Choose Standard Caps Traditionally for OEM Flat Mount A Arms or Modified Caps, Modified Caps are For A Arms that Have a Cup Design which Seats the Ball Joint Into the Arm. Traditional Most Aftermarket Arms Use a Cup Design that do not have a flat mounting surface.
CHOOSE EXTRA TALL MODIFIED, This allows the nut to be higher then the A Arm Mounting Cup.

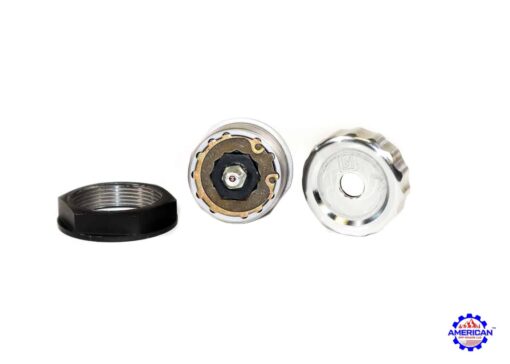

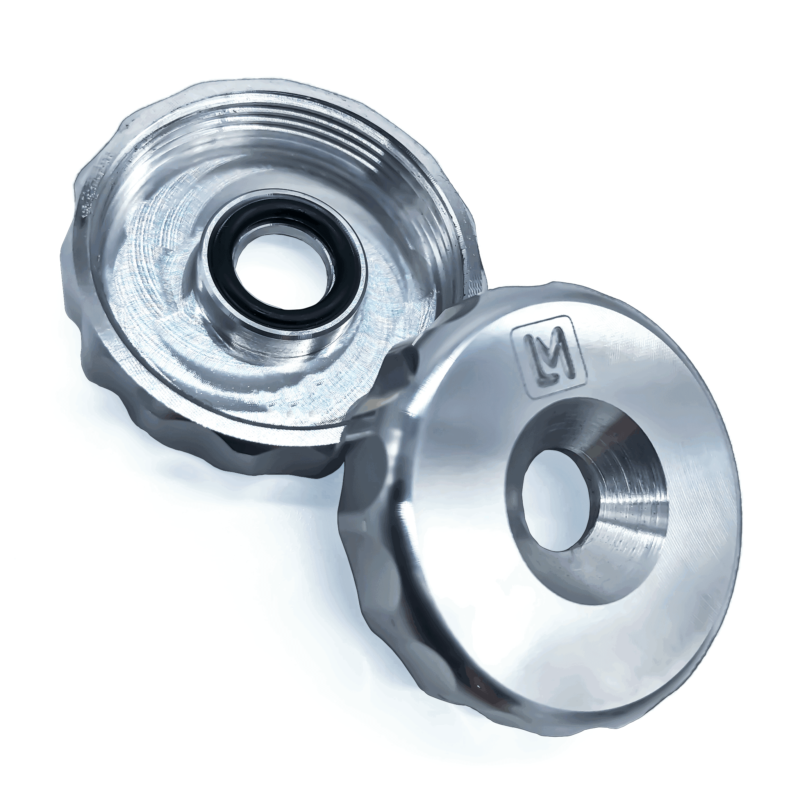

- Brilliantly designed aluminum Cap made to fit the LM-UTV Ball Joints
- O Ring sealed to keep water and other debris out of the ball joint.
- Easily serviceable. No tools required
- Grease will stay cleaner for longer
- Does not allow grease to ooze onto the wheel causing a mess
Modified Cap
For Cup Design A-Arms, Traditionally Aftermarket Arms, Xtra Tall Option To Get Over Custom A-Arm Cups.
Learn More “About LM-UTV”
Manuals
Adjustments and Rebuildable Guide
Download DocumentAll of our parts are designed and made in the USA and come with a Lifetime Warranty.
Lifetime Warranty Policy
Customer satisfaction is extremely important to us, so we have extended our warranty policy to cover all aspects of our products.
This is to ensure that any manufacturer defect is repaired or replaced.
Most Items are Currently Stocked.
Current Processing Times For Shipments are 12-14 business days after order date Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.
Your order confirmation will be updated as soon as shipping is setup.
Production Run and or Custom Anodize/Powdered Coated: items production times range from 14-16 Business Days and will ship once ready, your order confirmation will be updated as soon as shipping is setup.
| Make | Model | Year |
|---|---|---|
| Can-Am Off Road | Maverick X3 DS Turbo R | 2020 - 2021 |
| Can-Am Off Road | Maverick X3 900 HO | 2018 |
| Can-Am Off Road | Maverick X3 DS Turbo | 2021 - 2023 |
| Can-Am Off Road | Maverick X3 DS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 MAX DS Turbo | 2021 - 2023 |
| Can-Am Off Road | Maverick X3 MAX DS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 MAX RS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 Max Turbo | 2018 - 2020 |
| Can-Am Off Road | Maverick X3 Max Turbo R | 2017 - 2019 |
| Can-Am Off Road | Maverick X3 Max X DS Turbo R | 2017 - 2021 |
| Can-Am Off Road | Maverick X3 MAX X DS Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 MAX X MR Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 Max X RS Turbo R | 2017 - 2021 |
| Can-Am Off Road | Maverick X3 MAX X RS Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 RS Turbo R | 2020 - 2021 |
| Can-Am Off Road | Maverick X3 RS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 Turbo | 2018 - 2020 |
| Can-Am Off Road | Maverick X3 Turbo R | 2017 - 2020 |
| Can-Am Off Road | Maverick X3 X DS Turbo R | 2017 - 2020 |
| Can-Am Off Road | Maverick X3 X DS Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 X MR Turbo | 2018 - 2021 |
| Can-Am Off Road | Maverick X3 X MR Turbo R | 2018 - 2019 |
| Can-Am Off Road | Maverick X3 X MR Turbo RR (64) | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 X MR Turbo RR (72) | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 X RC Turbo | 2018 - 2021 |
| Can-Am Off Road | Maverick X3 X RC Turbo R | 2018 - 2019 |
| Can-Am Off Road | Maverick X3 X RC Turbo RR (64) | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 X RC Turbo RR (72) | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 X RS Turbo R | 2017 - 2020 |
| Can-Am Off Road | Maverick X3 X RS Turbo RR | 2020 - 2023 |
