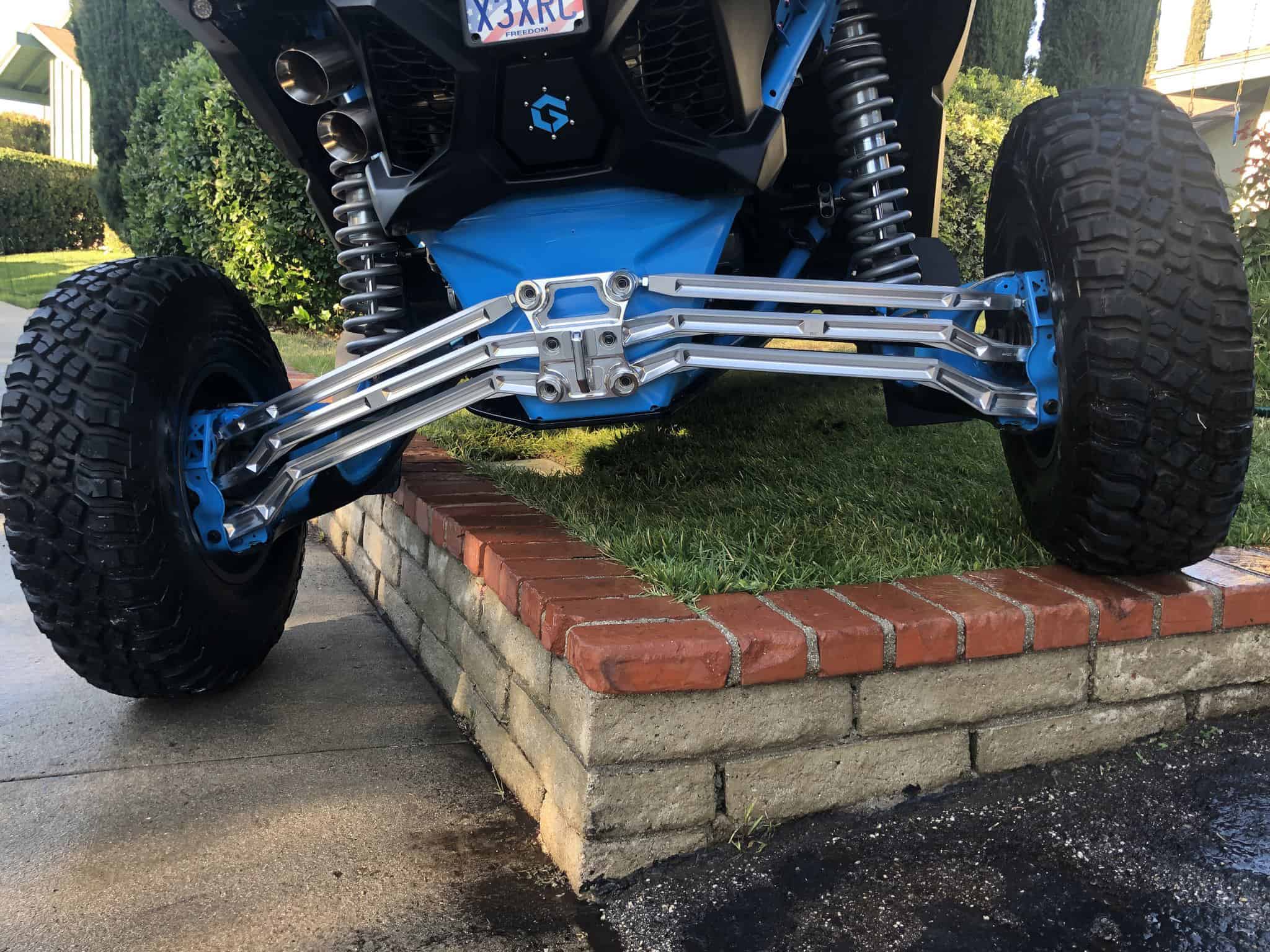

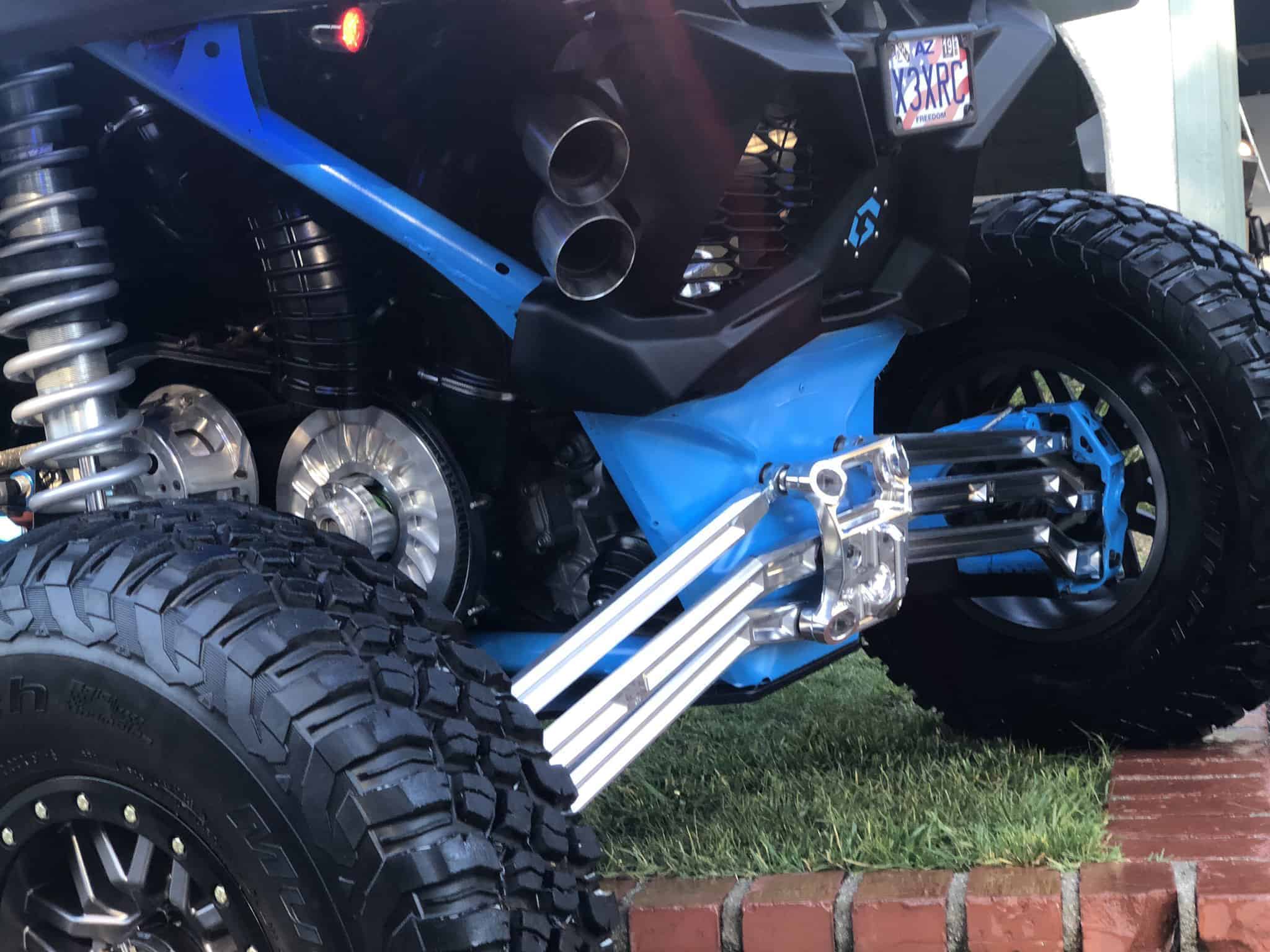

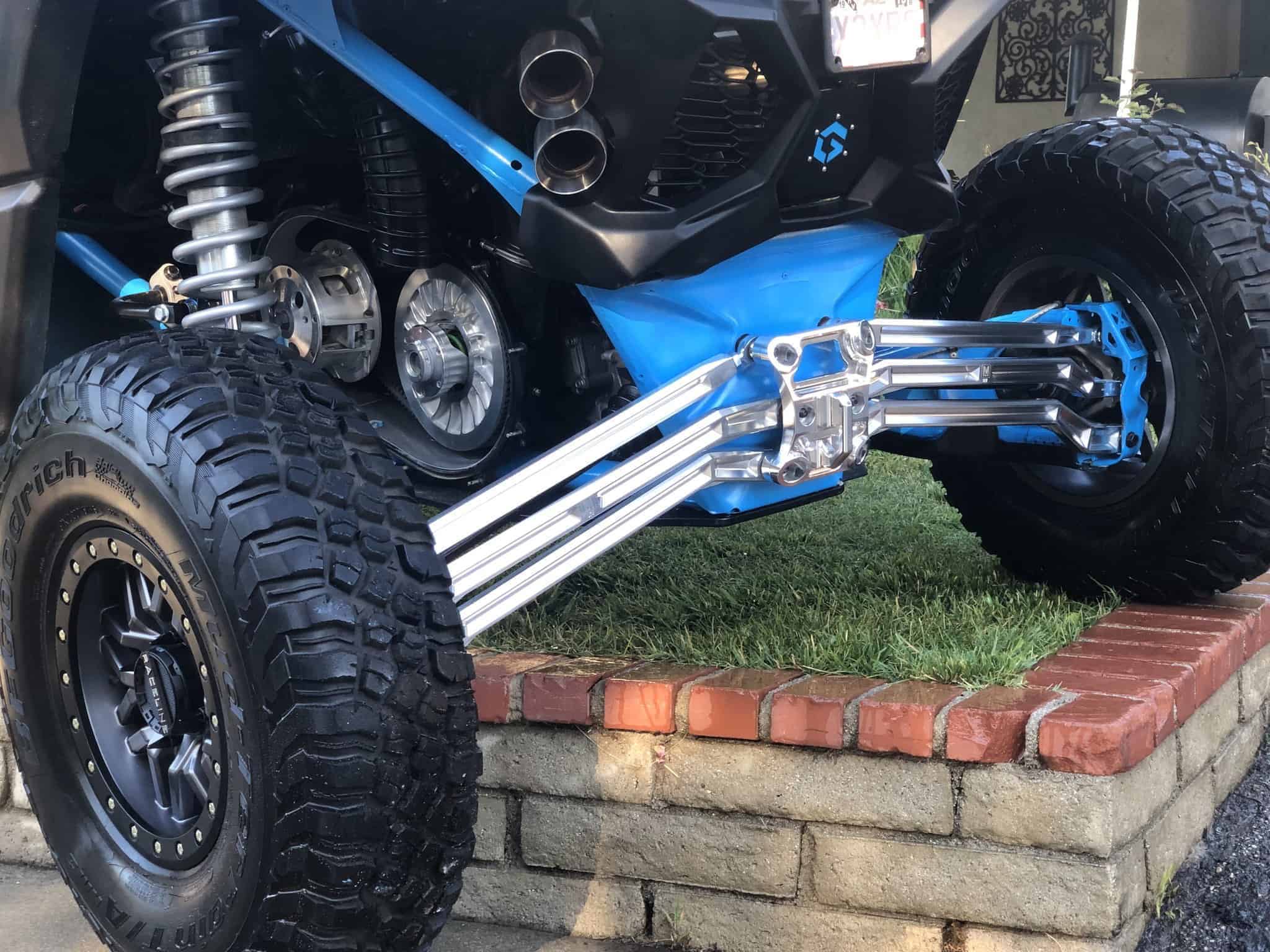

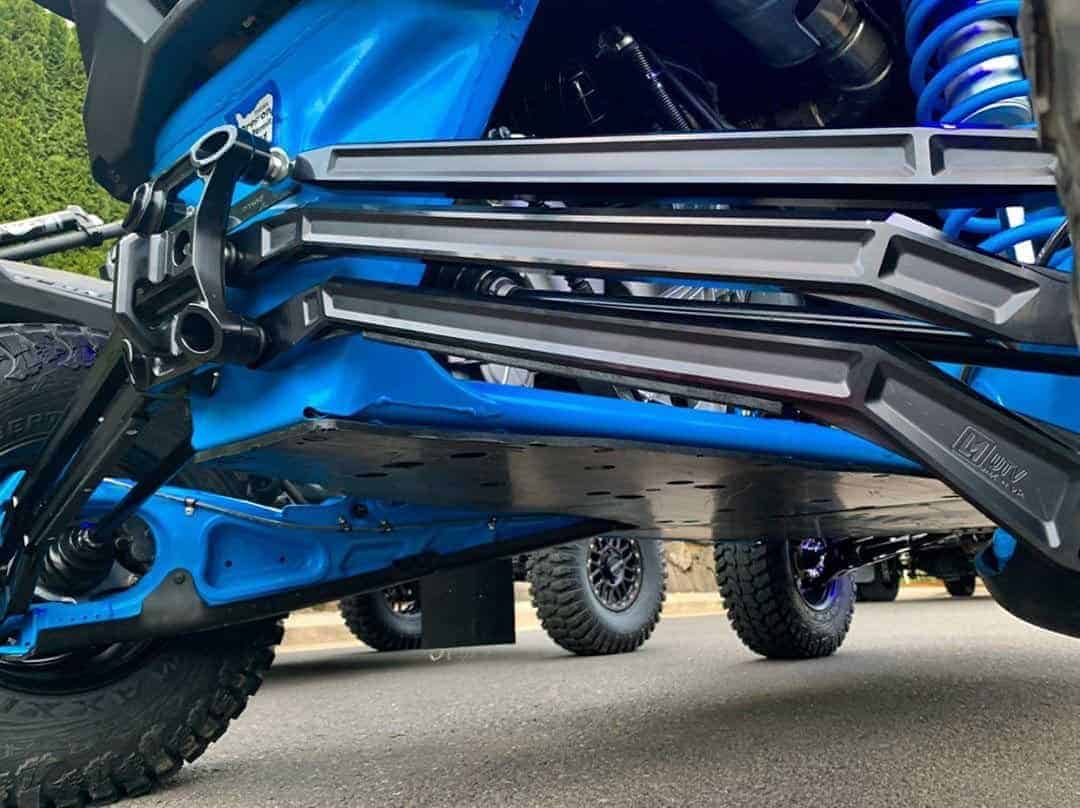

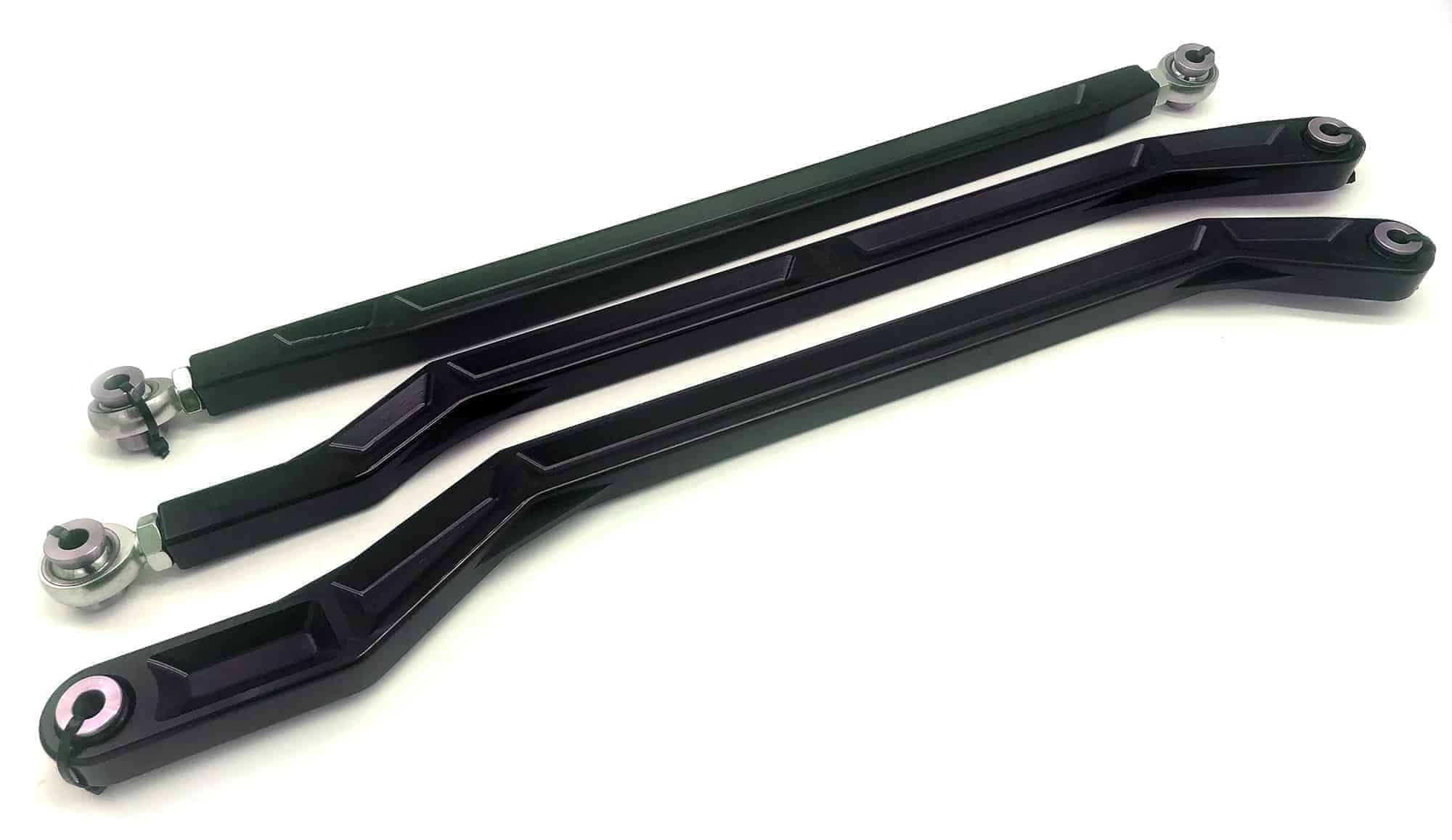

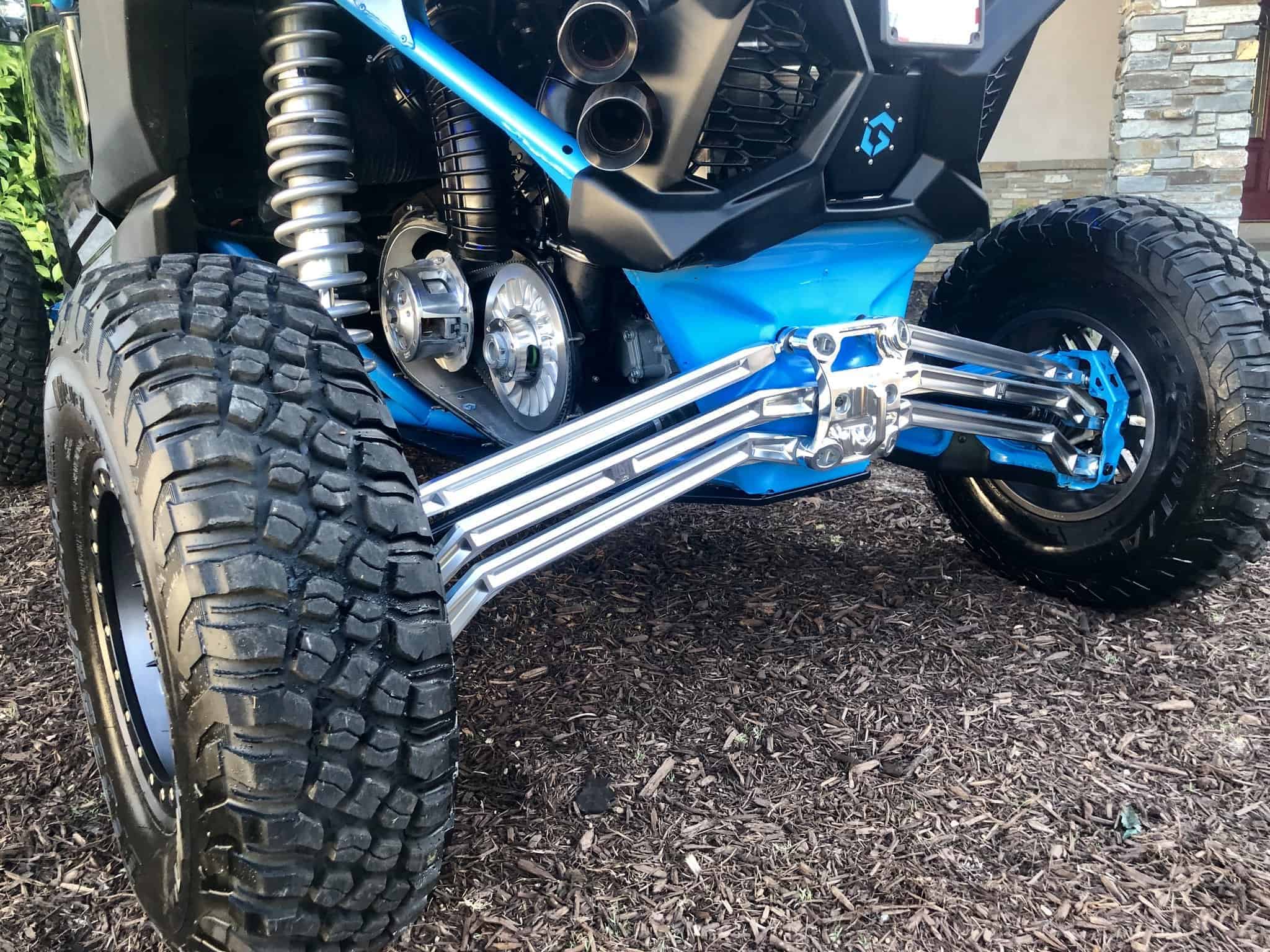

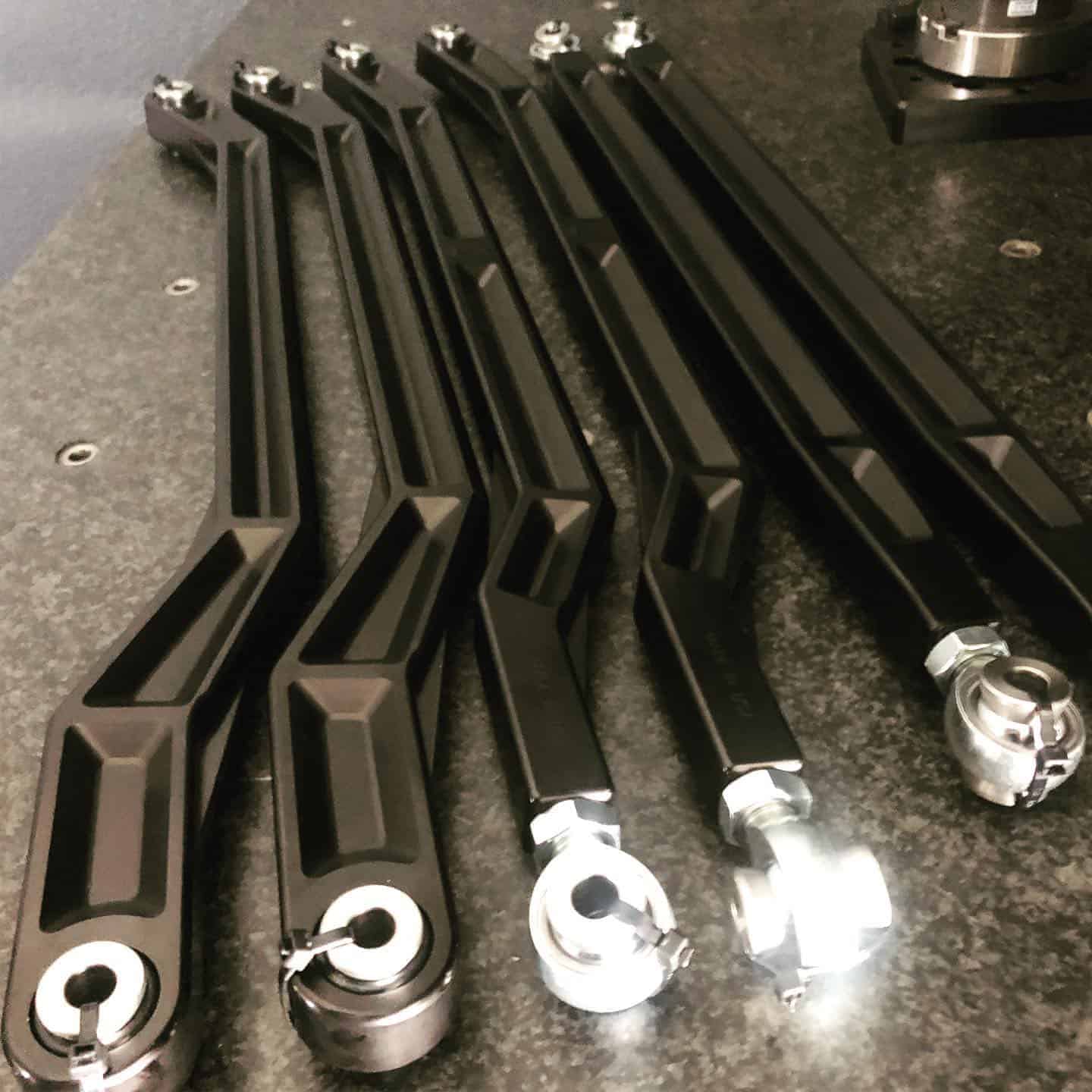

Can-Am Maverick X3 Radius Rods, High Clearance, 72″ Edition
LM UTV Billet High Clearance Radius Rod Set For Can Am Maverick X3 72″ Models
Maverick X3 Radius Rod Set are Solid Aircraft Billet High Clearance with 6 Massive Radius Rods with RH/LH 5/8 bearings, Stainless Spacers.
LM-UTV produces the best aftermarket UTV radius rods on the market.
Besides being extremely durable and their aggressive design, these parts are also made in house and come with a lifetime warranty.
3 piece chromolly PTFE lined bearings.
Features:
- 6 Massive Radius rods with RH/LH 5/8 bearings
- 17-4 Stainless Steel spacers
- 3 Piece Chromolly PTFE lined 5/8 bearings (Not Nylon injected)
- FKS Spherical bearings rated at 40,000 static radial load
- JMX Teflon Heims rated at 18,000 static radial load
- O Ring seals on bearings
- 6061 Aircraft grade aluminum
- Designed and Manufactured in-house, in the USA
- Lifetime warranty
Color Options:
- Raw Billet Finish
- Black Anodized
- OEM Powder Coat Colors: Can-Am Manta Green, Can-Am Octane Blue, Can-Am Orange Crush (X RC Color), 2021 Can-Am Red
Add The Radius Rod Plate
Main Plate with Option for Pull Hook
Can-Am Maverick X3 Rear Radius Rod Plate by LM-UTV – Reinforces the rear chassis and adds strength to one of the weakest parts of the X3 Chassis.
- CNC machined from aircraft quality aluminum
- Large side flanges add strength for sideways loads
- 3 massive 1/2 -13 bolts attach the hook from the back
- Large corner radius prevents tow straps from tearing
Choose Raw Finish or Black Anodize, You Can Mix and Match if you would like during Ordering
Learn More “About LM-UTV”
All of our parts are designed and made in the USA and come with a Lifetime Warranty.
Lifetime Warranty Policy
Customer satisfaction is extremely important to us, so we have extended our warranty policy to cover most aspects of our products. This is to ensure that any manufacturer defect is repaired or replaced. Please follow these steps so we can address your needs as quickly and efficiently as possible.
The warranty does not cover bearings, they are a wearable component, and need to be replaced regardless when worn out.
Finishes are not covered. Warranty does not cover damages to powder coat or anodize, chips, fading or scratches.
Warranty Claim Process:
1. Customers must email the following information to [email protected]
-Images of the damaged item.
-Product information (part number, etc.)
-Date and location of purchase (when and who did you buy this part from?)
-Full name, shipping address and phone number
2. Customers will be responsible for shipping costs both ways in warranty cases.
3. In most cases, we require damaged items to be returned.
4. Tracking information will be provided once the warrantied item ships.
Most Items are Currently Stocked.
Current Processing Times For Shipments are 12-14 business days after order date Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.
Your order confirmation will be updated as soon as shipping is setup.
Production Run and or Custom Anodize/Powdered Coated: items production times range from 14-16 Business Days and will ship once ready, your order confirmation will be updated as soon as shipping is setup.
| Make | Model | Year |
|---|---|---|
| Can-Am Off Road | Maverick X3 MAX RS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 MAX X MR Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 Max X RS Turbo R | 2017 - 2021 |
| Can-Am Off Road | Maverick X3 MAX X RS Turbo RR | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 RS Turbo R | 2020 - 2021 |
| Can-Am Off Road | Maverick X3 RS Turbo RR | 2022 - 2023 |
| Can-Am Off Road | Maverick X3 X MR Turbo R | 2018 - 2019 |
| Can-Am Off Road | Maverick X3 X MR Turbo RR (72) | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 X RC Turbo R | 2018 - 2019 |
| Can-Am Off Road | Maverick X3 X RC Turbo RR (72) | 2020 - 2023 |
| Can-Am Off Road | Maverick X3 X RS Turbo R | 2017 - 2020 |
| Can-Am Off Road | Maverick X3 X RS Turbo RR | 2020 - 2023 |
