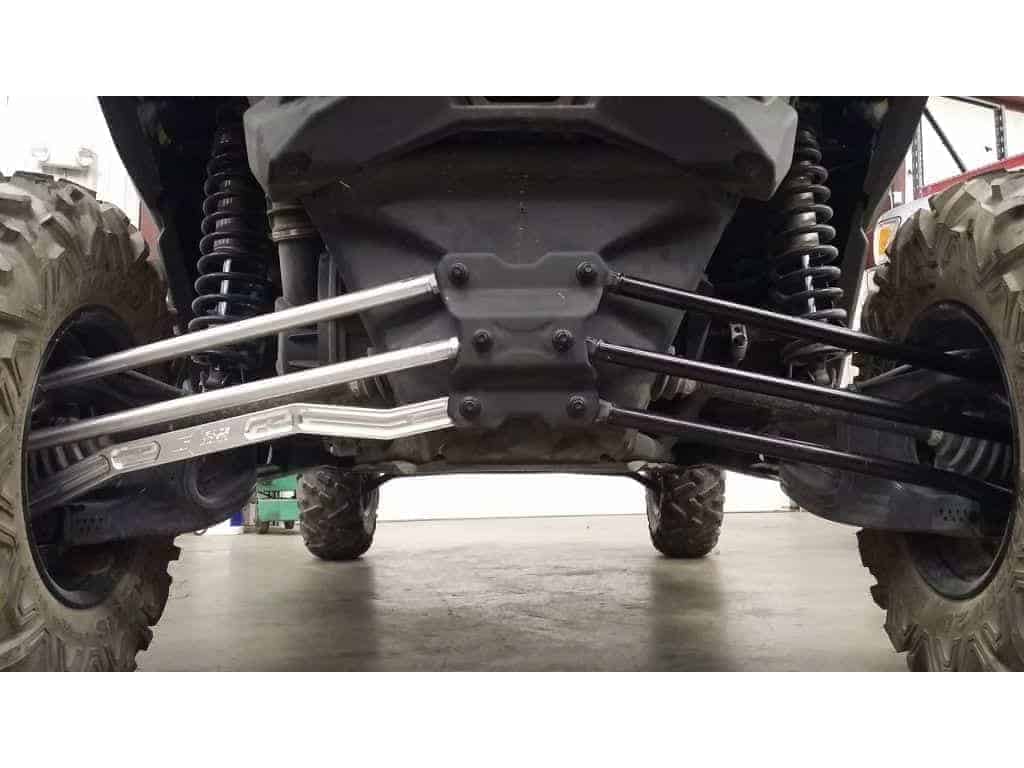

CT Race Worx High Clearance Billet Rear Radius Rod Set for Maverick X3 64″ Models

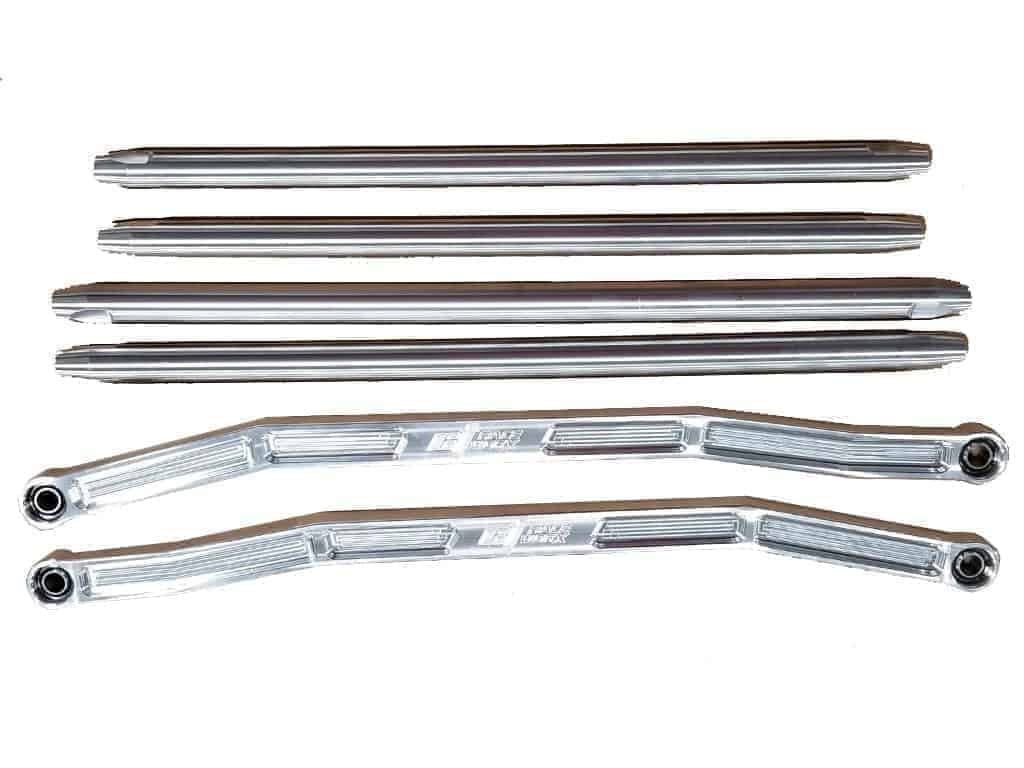

High Clearance Kit, 7075-T6 Aluminum with over an 1″ of Ground Clearance. Full Upper and Lower Maverick X3 Radius Rod Kit
Looking for the ultimate in radius rods look no further.
Don’t be fooled by cheap imitations using inferior joints and inferior materials.
You may pay less at up front but over the course of a year after those cheap joints wear out you’re going to have more time and money invested than doing it right the first time.

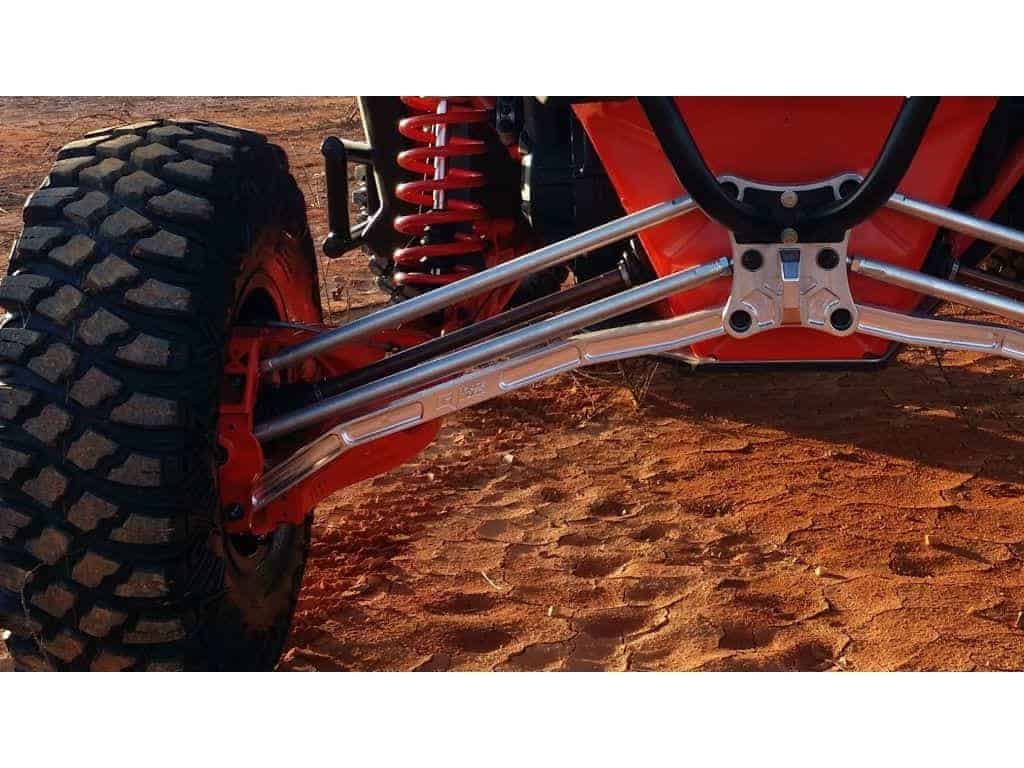

These high clearance lower rods are built from 7075-T6 aluminum and feature over an inch of ground clearance. This is aircraft grade aluminum and pretty much the strongest aluminum option for our sport.
The middle (toe) link and upper radius rod are solid 1-1/8″ 7075-T6 aluminum.
This kit allows for full adjustability of camber and toe while installed sitting at ride height.
If You are Looking for Just The Lower Rods, They are Located “HERE”
Just Upper Kit Located “HERE”
We us FK uniballs for the ends these are the same series joints that the trophy trucks are running, there is nothing better.
The JMX series of joints from FK is something that we’ve had a tremendous amount of success with over the years. These joints use a fabric based teflon liner known as a PTFE liner.
The inner joint housing is compressed to create a preload on the ball that will stay tight roughly 3 times longer than a standard injected teflon rod end, which is standard in the industry.
We do offer boots for these joints at an addition price of $65 per joint, this increases the life of the joint even more by keeping the debris out of the joint.
The spacers in each joint are 303 stainless steel so strength and corrosion won’t be an issue.
What does this mean?
It means ours won’t elongate, stretch, bend, dent and even scratch like 6061 will.
Here are some basic strength differences between 6061 and 7075 aluminum and how much stronger our lower radius rods are being made from 7075.
Tensile Strength – 45,000 psi
Yield Point – 40,000 psi
Brinell Hardness – 95
Elongation at Break – 12%
Shear Strength – 31,000 psi
Strength to Weight Ratio: 115 kN-m/kg
Tensile Strength – 83,000 psi
Yield Point – 74,000 psi
Brinell Hardness – 150
Elongation at Break – 10%
Shear Strength – 48,000 psi
Strength to Weight Ratio: 196 kN-m/kg
Learn More About “CT Race Worx”

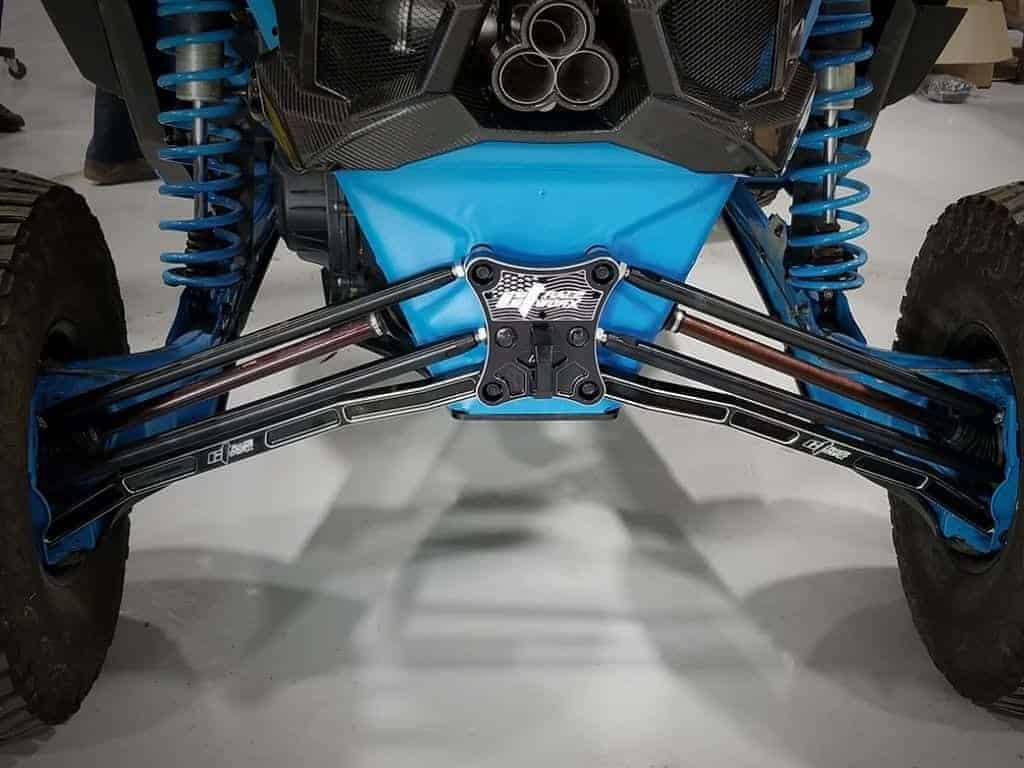

Add-On Race Plates:

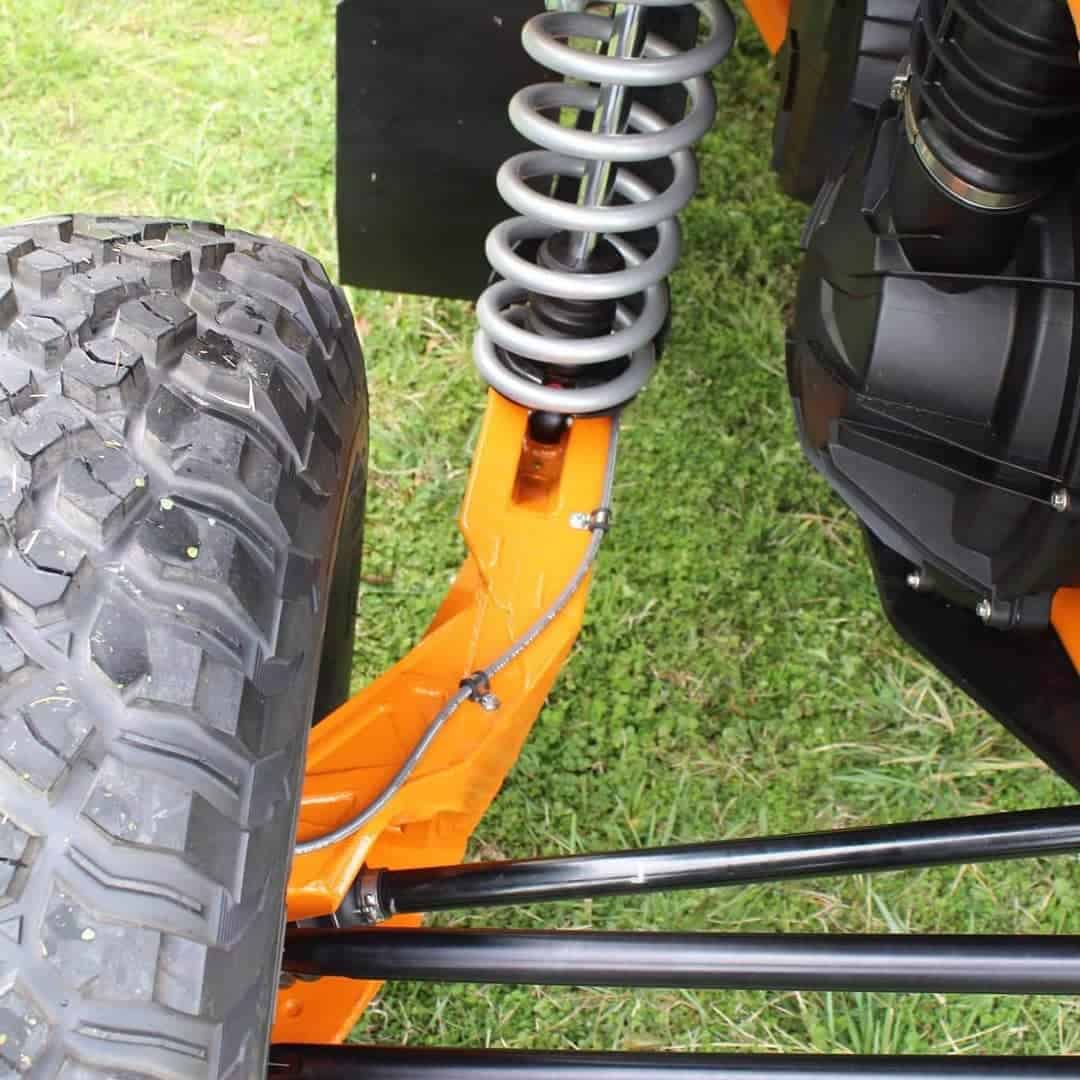

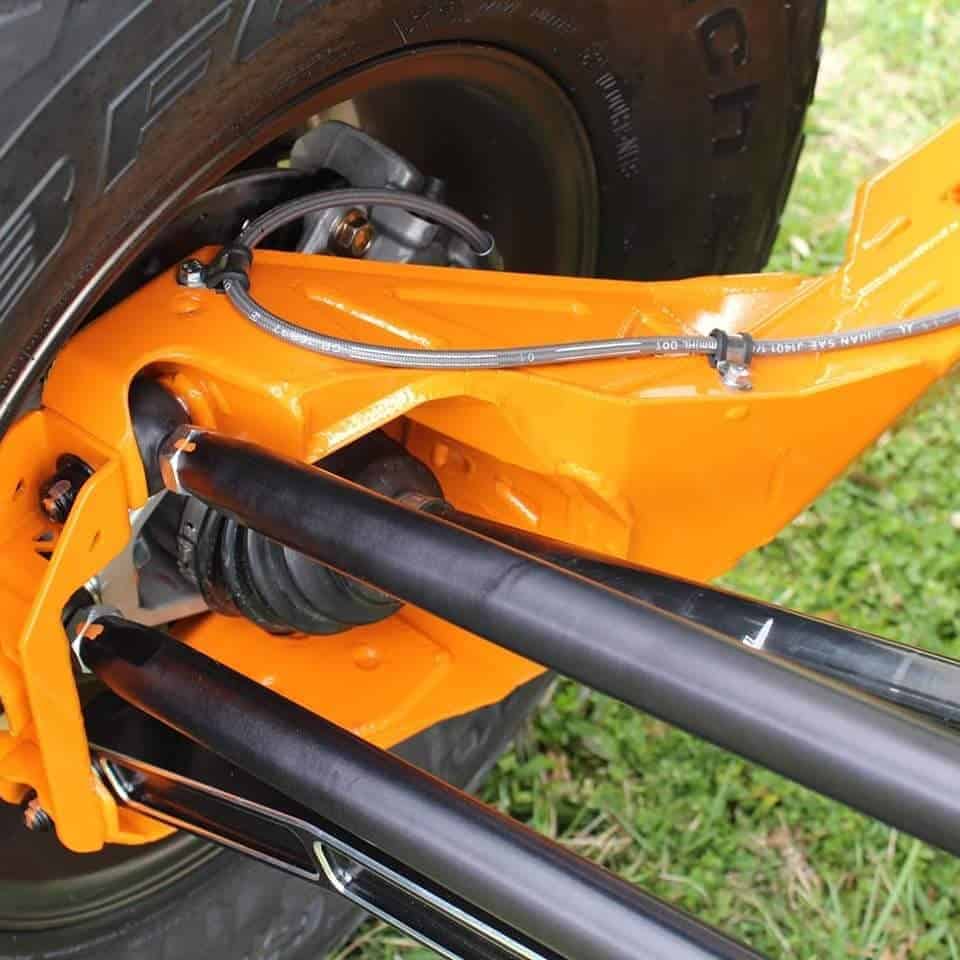

These radius rod plates will give you the ability to remove one radius rod at a time without having to remove the radius rod plate. This has several advantages, no studs to break, stronger bolts replacing the studs, ability to remove one rod at a time, and changing an axle just got faster.
Since the factory stud setup uses a nylock nut for the locking setup we knew we would not be able to incorporate a locking not into this design. The solution was a Nordlock washer on the bolts. This will keep the bolts from backing out and holding torque without having to use locktight. Our weld nuts are made and machined in house from 4130 chomoly with a form tap.
This kit comes with a template to drill the holes for the mounting hardware of the plates. A 1/8″ pilot gets drilled first and then that hole gets opened up from 1/8″ to roughly 1/4″ or slightly larger hole. Everything needed is supplied except for the drill bits.
