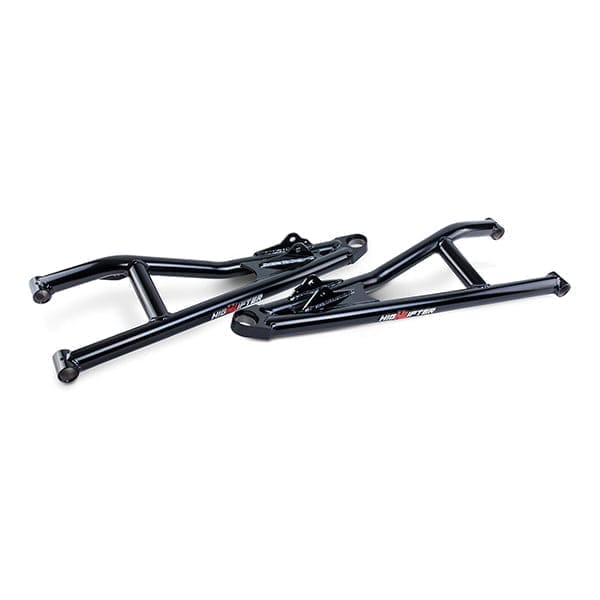

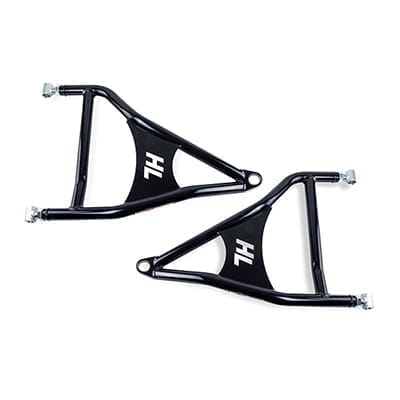

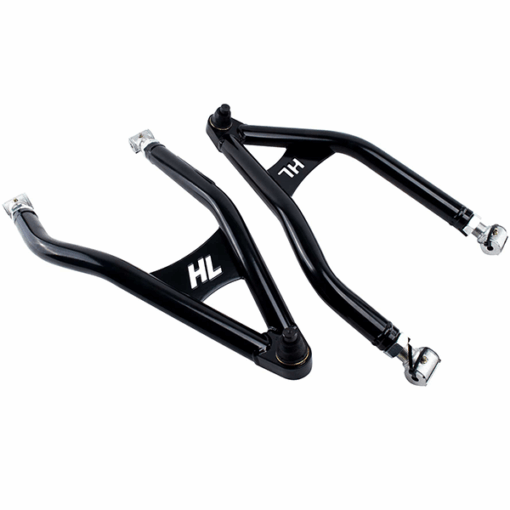

High Lifter APEXX Front Forward Control Arms For Defender Models

Whether you ride in deep mud or over rocky trails, the need for stronger Front Defender Forward control arms with added ground clearance is extremely important.

All new High Lifter APEXX Control Arms are stronger,adjustable and engineered for the most punishing terrain with 1.75″ of additional ground clearance and raked forward 2″

Push your Can Am Defender to the limits and tackle obstacles you couldn’t before! Optional preinstalled ball joints.

  • This is A Set Of 4 Arms
  • Uses OEM Ball Joints And Bushings
  • Choose Exact Model, MAX Models Included In Choice, 2020 And Newer Only

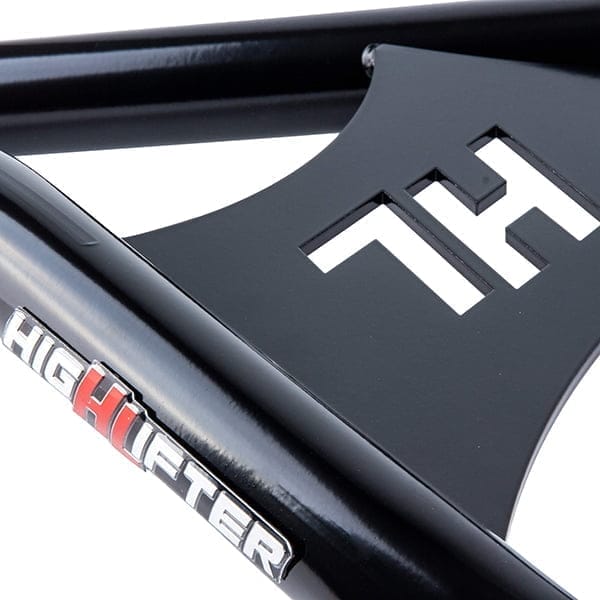

Heavy Duty Strength

High Lifter’s new heavy duty control arms add more support than factory. Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride.

High Lifter arms are constructed out of 1.5” DOM with .120” wall tubing. This is a 50% increase in size and a 70% increase in steel thickness for added durability and strength.

Tire Fitment: Up to 34.5″
Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.


  • Adjustable heat-treated collars for camber adjustability with a 1” thread
  • Raked forward 2″
  • Over 3 degrees of camber adjustment in each direction
  • Heavy duty ball joint brackets to eliminate deformation issues, Keller ball joint compatible
  • Ladder bar compatible with the 1.5” ID clamps
  • Extreme duty 1.5” x .120” DOM steel construction
  • Up to 2” of added ground clearance compared to OEM lower arm
  • Mounting accommodations for OEM brake lines using OEM tabs instead of P-clamps
  • Optimized sway bar linkage angles
  • Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)
  • Powder Coated
High Lifter APEXX Forward Arm Overview

Built in Adjustability

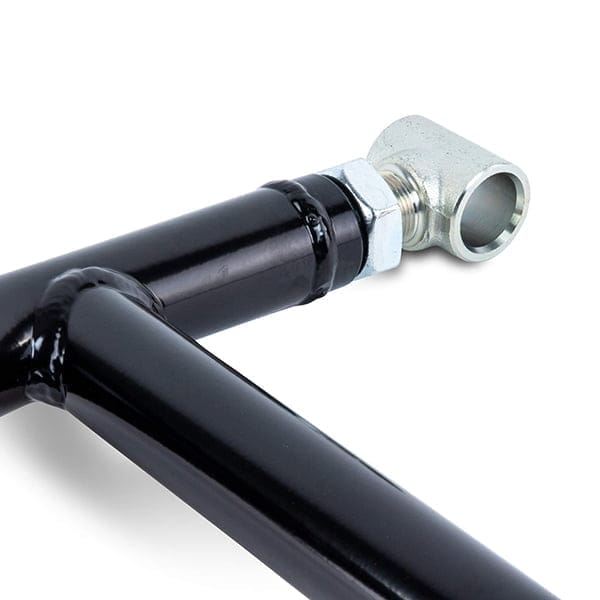

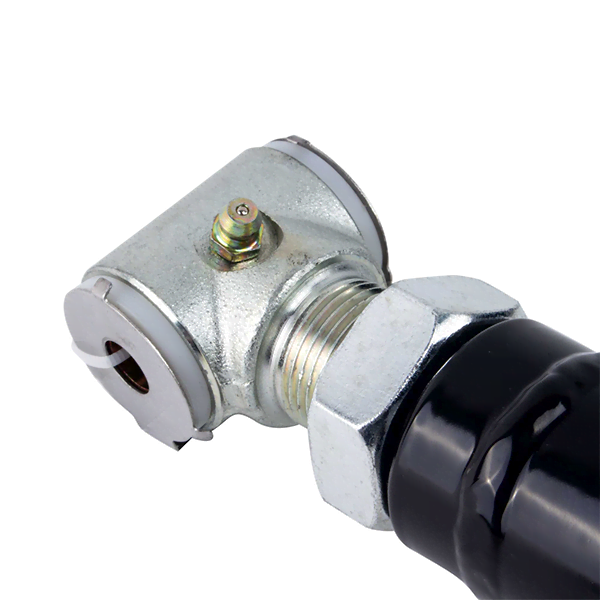

The lower arms also feature an adjustability component in the bushing collars to eliminate premature wearing that can come from the addition of lift kits, portals, or larger tires. When the kit is set to the factory position, you have 3/8” of adjustability camber in and out. Heat treated and plated adjustable bushing collars allow you to be confident in the strength you’re adding to your ride.

This kit comes packaged and preadjusted to the factory position, and factory bushings and caps should be used for installation.

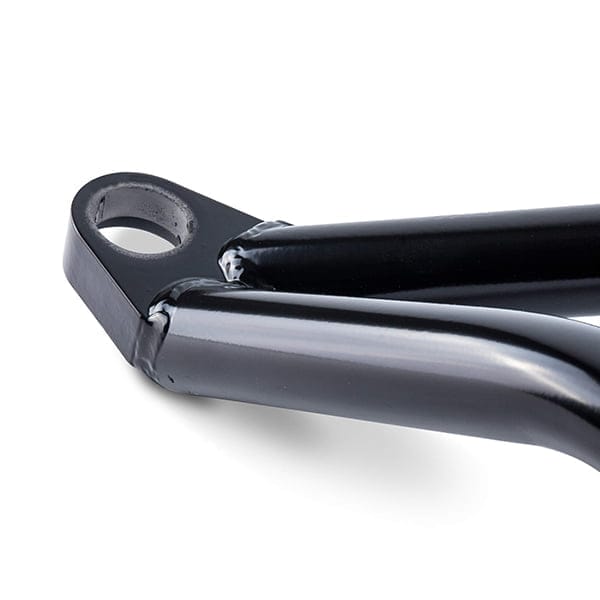

Increased Ground Clearance

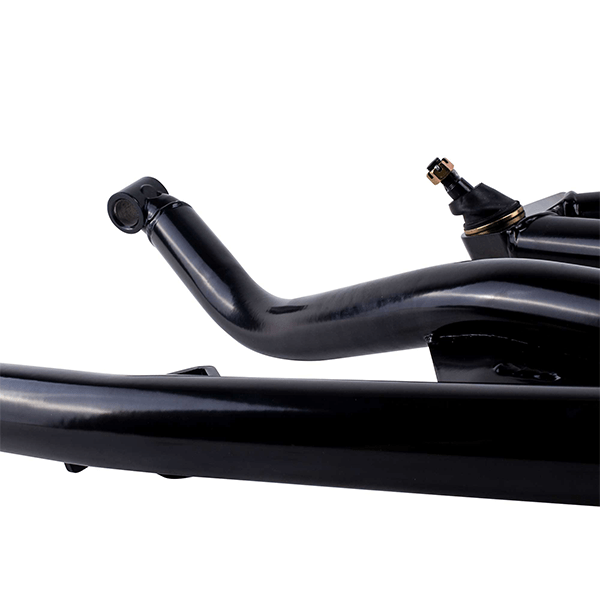

We maximized ground clearance by strategically arching the lower control arm with double and TRIPLE bends. This unique design allowed us to get an additional 1.75” of ground clearance to avoid impacting those nasty trail obstacles. These bends maintain the factory geometry, which helps reduce wear on components like axles and tie rods. Our forward arms allow you to run larger tires without a suspension lift. We’ve improved the upper control arm by repositioning the sway bar tab. This will reduce the extreme angles places on the sway bar links and reduce wear.

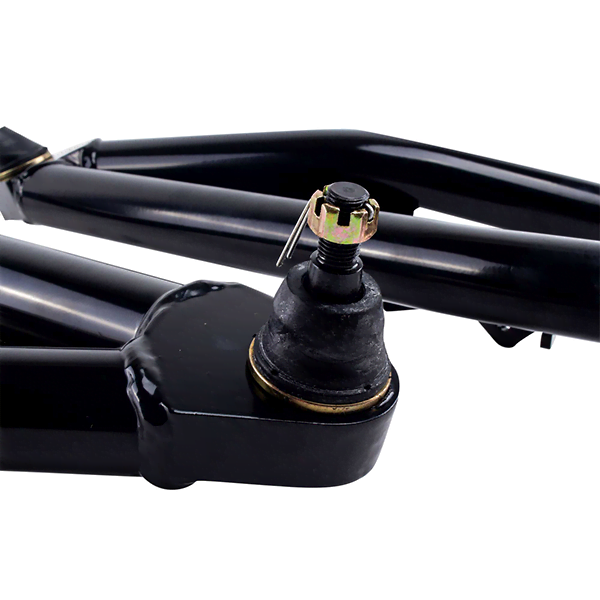

Reinforced Ball Joints Brackets

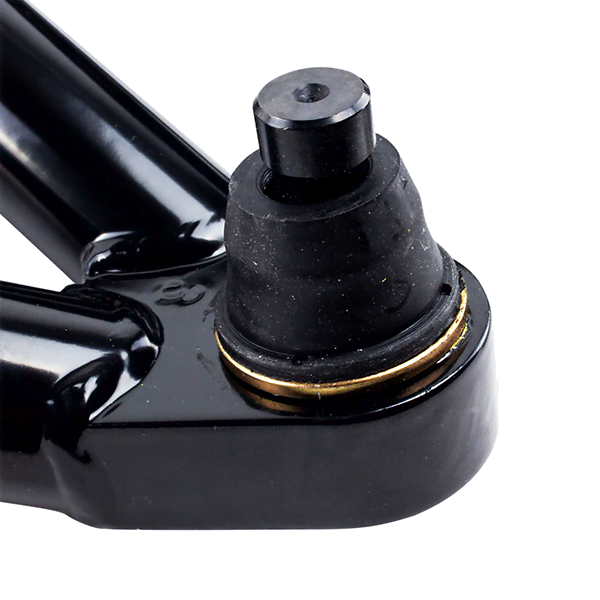

Portals and large tires apply torque that can distort the ball joint bracket, leading to failure of the arms. With over 130% increase in the ball joint mounting area, we are helping to prevent breakdown or “egging” of the mounting bracket.

Add On Optional Preinstalled Ball Joints

High Lifter’s service team uses a hydraulic press to install the ball joint with the correct pressure and alignment, also making sure the clip is fully seated and secured. Purchasing control arms with the ball joints already installed adds to easy installation and prevents damage due to improper installation, which is not covered by High Lifter’s Lifetime Warranty.

Can-am Defender Forward Control Arms

Add On Ball Joint Options

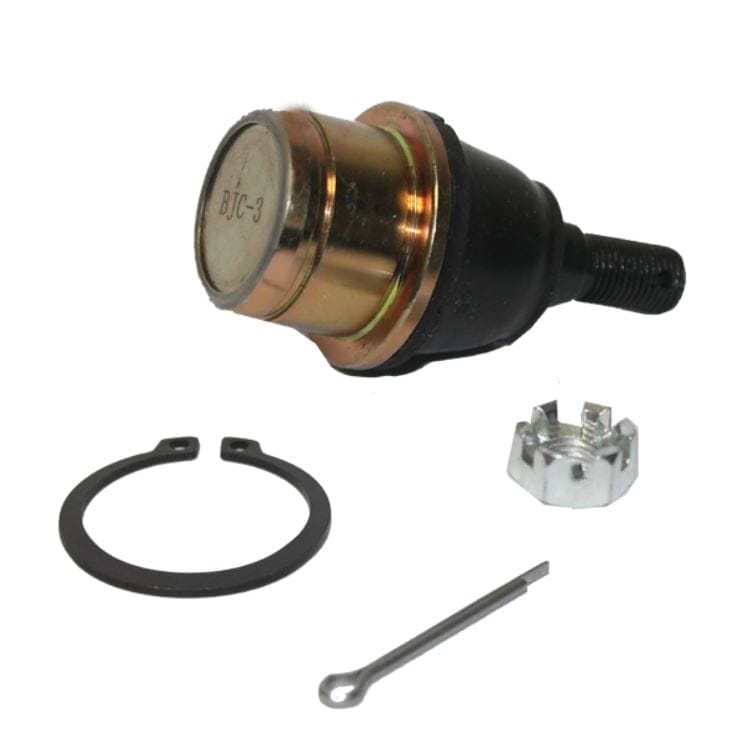

Defender Ball Joint

Standard HD Upgraded Ball Joints


  • Manufactured from 4130 Chromoly Steel
  • Stronger than OEM Ball Joints
  • Durable, Tough, and Long Lasting Zinc Plated Finish
  • Uses Lithium Grease
  • Quality OEM Factory Replacement
Apx Bjc L

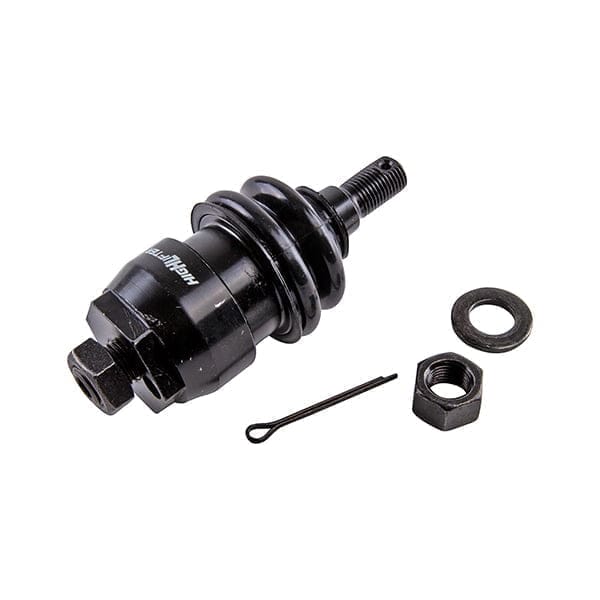

APEXX Rebuildable HD Ball Joint


  • 2x Stronger than OEM Ball Joints
  • 4340 Chromoly Housing, Bushing, Cap & Stud
  • Oversized Sphere and Stud Diameter with Optimized Profile
  • Fully Serviceable & Rebuildable for Increased Longevity and Reliability


Defender Forward A Arm Install Guide

Download Document

High Lifter offers a Limited Lifetime Warranty to the original purchaser that our product shall be free from defects in material and workmanship for the life of the product if utilized in accordance with the manufacturer’s instructions for installation and operation of said products. This Limited Lifetime Warranty extends to the following product lines:
• Lift Kits (Signature, Standard and Big Lifts)
• Control Arms
• Trailing Arms
• Radiator Relocation Kits
• Portal Gear Lifts
• Wheel Spacers
• Tow Hooks
• Control Arm Link Kits

For Complete Warranty Information And Claims Information Please Click “High Lifter Warranty”

IN STOCK PARTS – Any items in current inventory we ship within 36-48 hours after order.

We currently only ship Monday through Friday, if you place the order over the weekend we will process it on Monday.

Current Fabrication or Production Run Parts

Currently anything listed on the site is traditionally stocked and ready to ship but there are times that we are currently in a production run and or waiting for powder coating, this could result in 10-14 Business day shipping

Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.

Lead Times DO NOT include shipping transit times.

All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.

Make Model Year
Can-Am Off Road Defender 6x6 XT HD10 2022 - 2023
Can-Am Off Road Defender DPS HD10 2020 - 2023
Can-Am Off Road Defender Limited HD10 2021 - 2023
Can-Am Off Road Defender MAX DPS HD10 2020 - 2023
Can-Am Off Road Defender MAX Limited 2022 - 2023
Can-Am Off Road Defender MAX Lonestar 2020 - 2023
Can-Am Off Road Defender MAX X MR 2020 - 2023
Can-Am Off Road Defender MAX XT CAB HD10 2020 - 2021
Can-Am Off Road Defender MAX XT HD10 2020 - 2023
Can-Am Off Road Defender PRO 2020 - 2021
Can-Am Off Road Defender Pro DPS 2022 - 2023
Can-Am Off Road Defender Pro Limited 2022 - 2023
Can-Am Off Road Defender Pro Lone Star 2022
Can-Am Off Road Defender Pro XT 2022 - 2023
Can-Am Off Road Defender X MR HD10 2020 - 2023
Can-Am Off Road Defender XT CAB HD10 2020 - 2021
Can-Am Off Road Defender XT CAB HD8 2020 - 2021
Can-Am Off Road Defender XT HD10 2020 - 2023
