Highlifter Polaris Sportsman Rear Raked Control Arms

$492.99

ALWAYS FREE SHIPPING

As Low As 0% Up To 24 Months, Available"Financing Options"

None Pressed In Standard HD Upgrade +$148.99 Rebuildable HD, You Press In (APX-BJP-4) +$312.99
None Yes, Set Of 4 New Bushings (BK-HL-P-12**/**10) +$227.99

Add to Wishlist

High Lifter Products

SKU: HL-SPORTSREARRAKE Categories: , , , ,

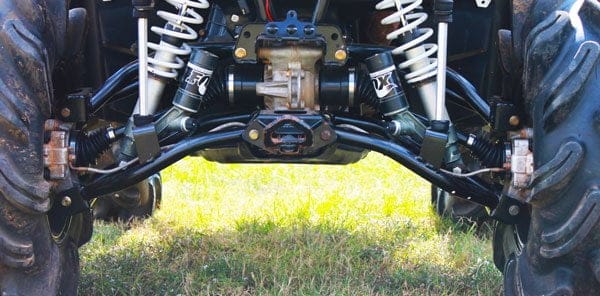

High Lifter Rear Raked Control Arms For Polaris Sportsman Models

These Polaris Sportsman Rear Raked Control Arms  Are 25% Larger Than OEM, and 2 1/2 times wall thickness. Maximize Clearance And Axle Protection. OEM Replacement.

Whether you ride in deep mud or over rocky trails, the need for stronger Ranger Forward A Arm control arms with added ground clearance is extremely important.

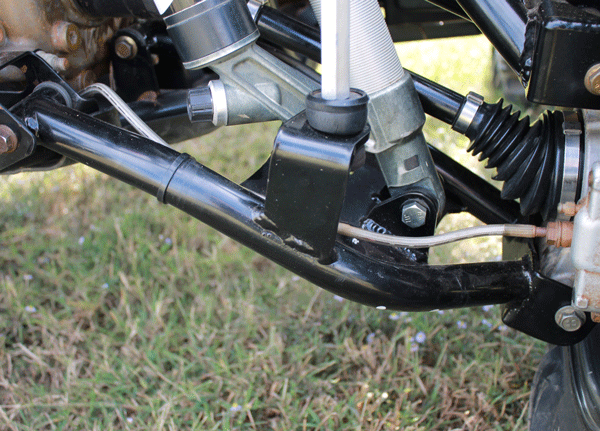

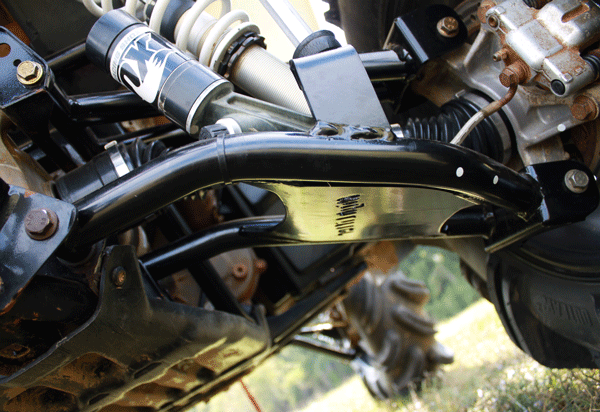

Most stock arms are too weak to withstand what you put your bike through and lack the added ground clearance needed for challenging trails. High Lifter arms maximize ground clearance by strategically arching the lower control arms while following the angle of the axle for maximum clearance, axle protection, and visual appeal.

Don’t be fooled with too much arch that puts your axles into greater risk of damage. Our precision manufacturing process ensures each control arm installs exactly like the factory arm. Depending on the model, most kits will have the High Lifter logo precision cut into the bracing.

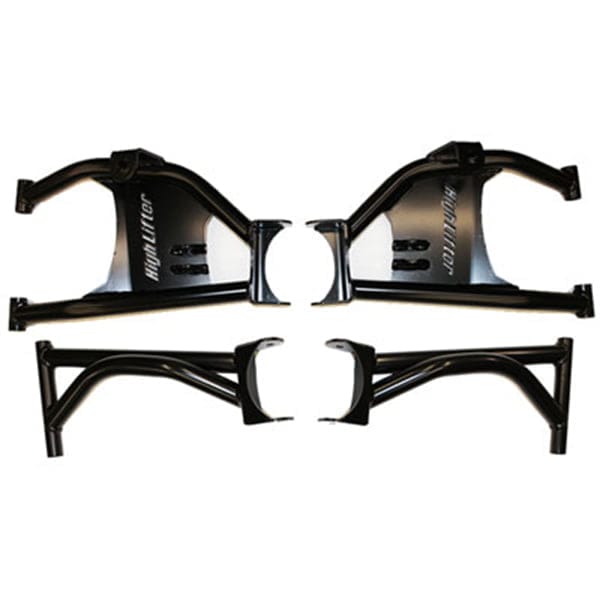

  • This is A Set Of 4 Arms
  • Uses OEM Ball Joints And Bushings

Heavy Duty Strength

High Lifter’s new heavy duty control arms add more support than factory. The upper control arms that come stock on a Polaris Ranger are more robust than the stock lower control arms, leaving the lower arms more vulnerable to damage.

Our upper and lower arms are made with the same material for added strength, so they can withstand the abuse applied during a typical ride.

High Lifter arms are constructed out of 1.25” DOM with .188 wall tubing. This is a 25% increase in size and a 2.5x in steel thickness for added durability and strength.

Features

  • 1.5″ Rearward Rake over stock
  • 25% larger than average stock arms – Crafted from 1 1/4” DOM steel
  • Up to 2.5x the wall thickness of an average stock arms
  • Grease fittings included for most models
  • Added ground clearance featuring bends that maximize clearance and axle protection
  • Powder Coated
  • Easy to install and maintain
  • Limited Lifetime Warranty
  • Limited Lifetime Warranty (Excludes wearable items like bushings, bearings, cones, and heim joints)

Tire Fitment: Up to 30″

Our tire fitment guide is a general fitment and is in no way guaranteed. Tires and lifts vary by manufacture and tire fitment can be affected by other modifications such as, but not limited to, wheel offset, actual tire diameter and actual tire width. Always verify your brand of tires, lift, and other modifications prior to making a buying decision.

Notes:

If your ATV is equipped with rear arched control arms and sway bars from the factory, then you will need to remove the factory sway bar when you install the High Lifter Rear Racked control arm kit.  It cannot be used in conjunction with the High Lifter Rear Racked control arm kit.

If your machine is a 2019 or newer, you will need to purchase the prior style brushing (2013-2018) from a Polaris dealer.

Ranger Forward Control Arms

Manuals

Sportsman Rear Rake Control Arms

Download Document

High Lifter offers a Limited Lifetime Warranty to the original purchaser that our product shall be free from defects in material and workmanship for the life of the product if utilized in accordance with the manufacturer’s instructions for installation and operation of said products. This Limited Lifetime Warranty extends to the following product lines:
• Lift Kits (Signature, Standard and Big Lifts)
• Control Arms
• Trailing Arms
• Radiator Relocation Kits
• Portal Gear Lifts
• Wheel Spacers
• Tow Hooks
• Control Arm Link Kits

For Complete Warranty Information And Claims Information Please Click “High Lifter Warranty”

IN STOCK PARTS – Any items in current inventory we ship within 36-48 hours after order.

  • Portal Gears Can Take Up To 7-10 Business days To Ship After Order because of Assembly.
  • Snokel Kits Can Take Up To 7-10 Business days To Ship After Order because of Assembly.
  • Pressed In Ball Joint Arm Orders Cake Up To 7-10 Business days To Ship After Order because of Assembly.

We currently only ship Monday through Friday, if you place the order over the weekend we will process it on Monday.

Current Fabrication or Production Run Parts

Currently anything listed on the site is traditionally stocked and ready to ship but there are times that we are currently in a production run and or waiting for powder coating, this could result in 10-14 Business day shipping

Lead Times define the maximum estimated amount of time required to prepare the item for shipping and may vary depending on product, volume of current orders, and/or build schedules. This includes fabrication, powder coating, packaging, and other preparation. In the event that Lead Times are delayed you will be contacted via email or phone call.

Lead Times DO NOT include shipping transit times.

All parts will be shipped as soon as possible after the initial Lead Time using your selected shipping method.

Make Model Year
Polaris Off RoadSportsman 8502016 - 2021
Polaris Off RoadSportsman 850 High Lifter2016 - 2021
Polaris Off RoadSportsman 850 Premium2020 - 2021
Polaris Off RoadSportsman 850 SP2016 - 2019
Polaris Off RoadSportsman XP 10002016 - 2021
Polaris Off RoadSportsman XP 1000 High Lifter2016 - 2021
