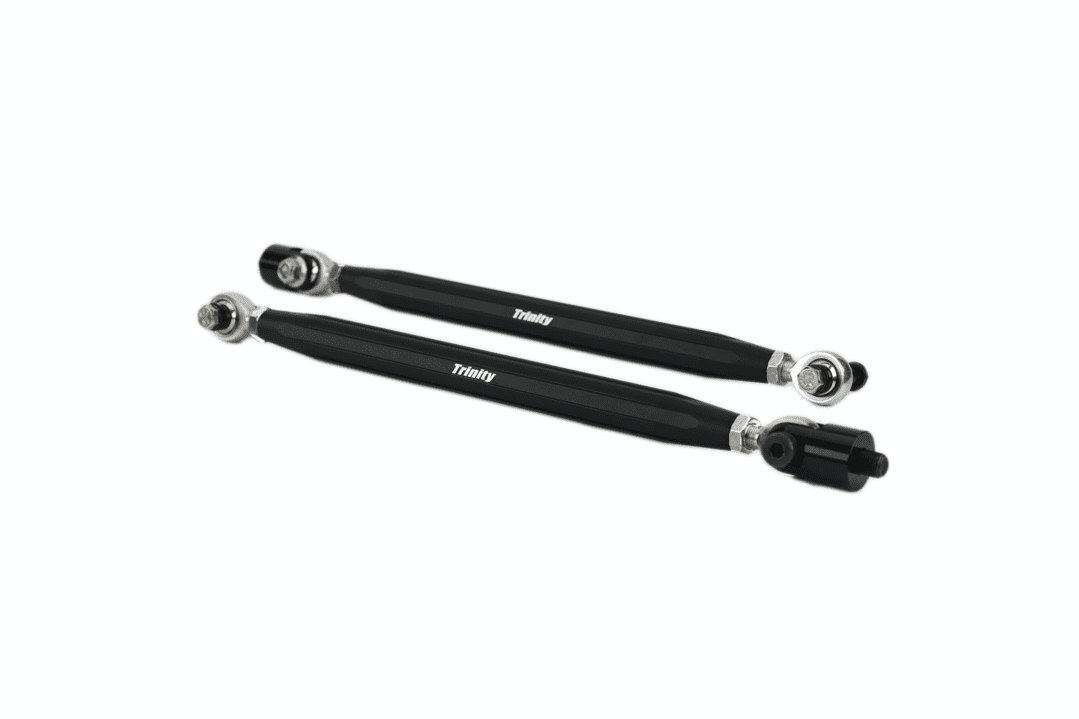

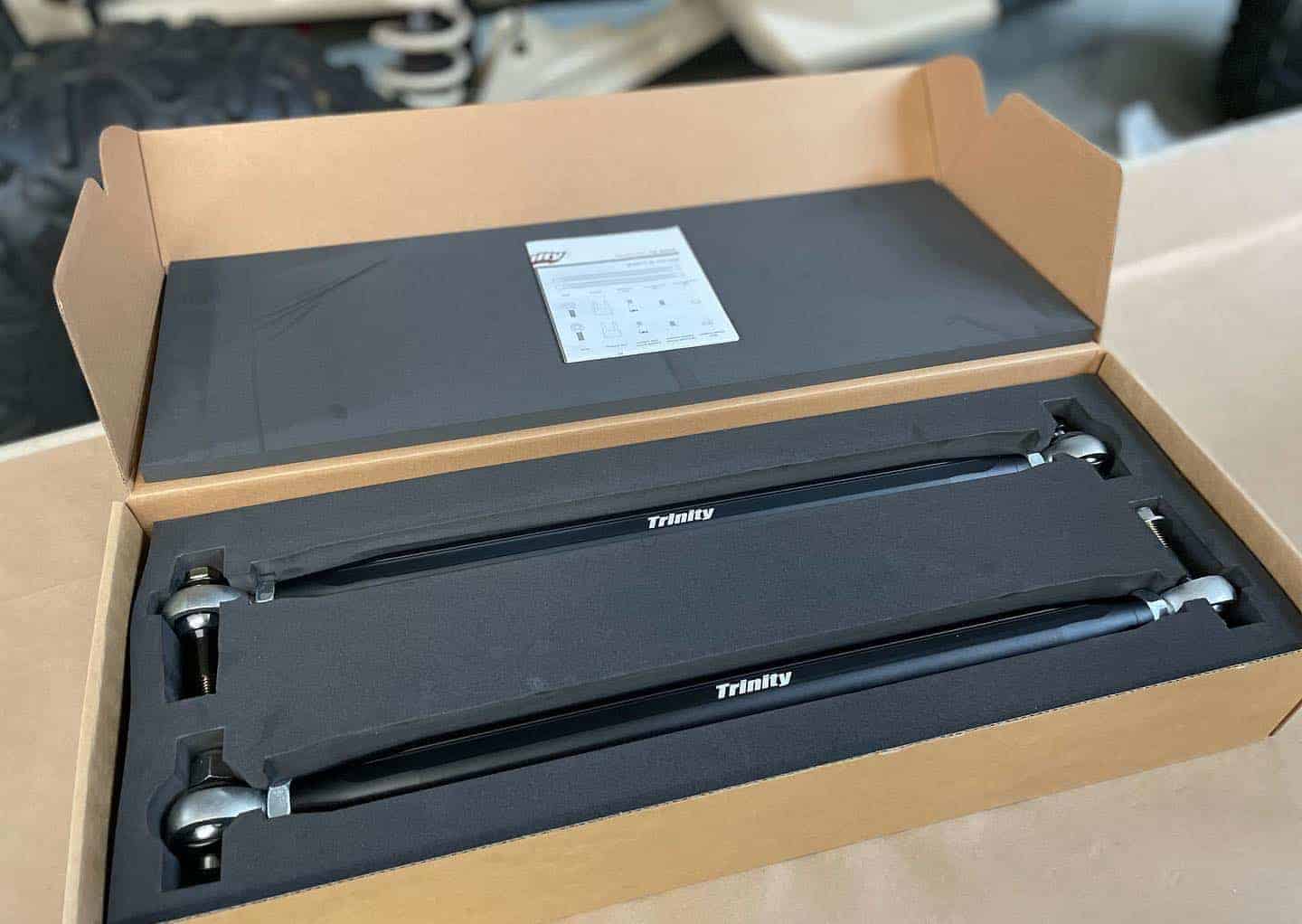

Trinity Racing Polaris RZR XP 1000 Tie Rods, Straight Billet Edition

Trinity Racing Tie Rods For Polaris RZR XP 1000 Models

Trinity Racing Have Brought The Industry Leading RZR XP 1000 Tie Rods Rods To Market, These Upgraded Tie Rods Are Milled Out of Solid Aluminum and Anodized

The stock tie rods have a tendency to bend under extreme driving.

The Trinity Racing tie rods alleviate that issue.

These tie rods have been torture tested in the desert, sand dunes, and even rock crawling!

High quality heims are used, and all proper misalignments are included to make the install simple.

Available in anodized black with laser etched Trinity Racing logo.

Created From Billet Aluminum to minimize weight with Solid Strength from Hardening.

Two Bolt Options Available –Please Compare Stock Bolt Size Going Into Steering Rack

• To determine whether you have M14 or M16, please measure the ends of your factory rods (the side that screws into the rack). If the end is less the 1/2″ you will need M14, if it is over 1/2″ you will need M16. The turbo model usually takes M16 ( measuring is recommended ), the 1000 model is not consistent and will need to be measured.
• 1) M14 x 1.5 rack side by m14 x 1.5 tie rod side. 5 – 5/8″ total length. (4″ length from rack to end of Jam nut)
• 2) M16 x 1.5 rack side by m14 x 1.5 tie rod side. 5 – 5/8″ total length. (4″ length from rack to end of jam nut)

Trinity Racing has been offering products that create horsepower for the off-road industry since 1978. With 41 Years of incredible success our new sole focus is to manufacture top quality exhaust systems and complimentary components for the ATV and UTV industry.

In our California based state of the art manufacturing facility which includes CNC Bending, Tig Welding, CNC Machining, Laser Cutting/Etching we have the ability to design, fabricate, machine, and test the best performing systems available.
