CT Race Worx Rear Radius Rods For Polaris Pro R And Turbo R Models
Increase Your Rear End Support And Stablity With This Pro R Rear Radius Rods, Nothing Is Better Then These Billet Turbo R Rear Radius Rods
Starting life from 1.5″ thick American Made 7075 aluminum, which is twice the strength of 6061 aluminum, we mill these down to create the perfect set of radius rods for the Pro R and Turbo R.
The lower rods pick up 1″ of ground clearance in the peak of the radius rods and over 2″ in some areas. The front of the rod has a massive 3/4″ tall 45 degree ramped to help get you up and over the obstacle instead of getting hung up. Integrated gussets strengthen the rod and keep them from deflecting in extreme bottom outs and odd hits. We’re using the wide series of FK uniballs which is the WSSX12T.

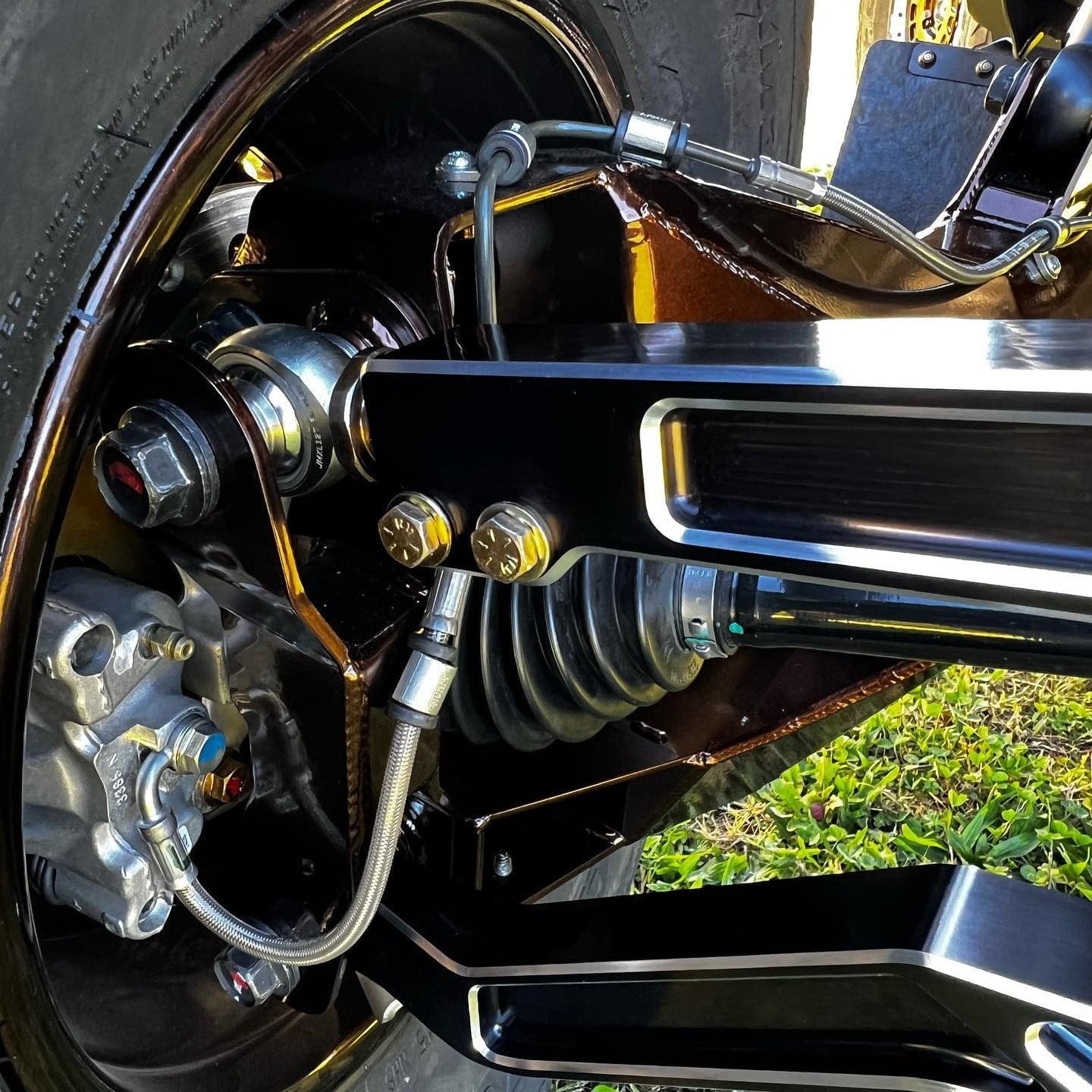

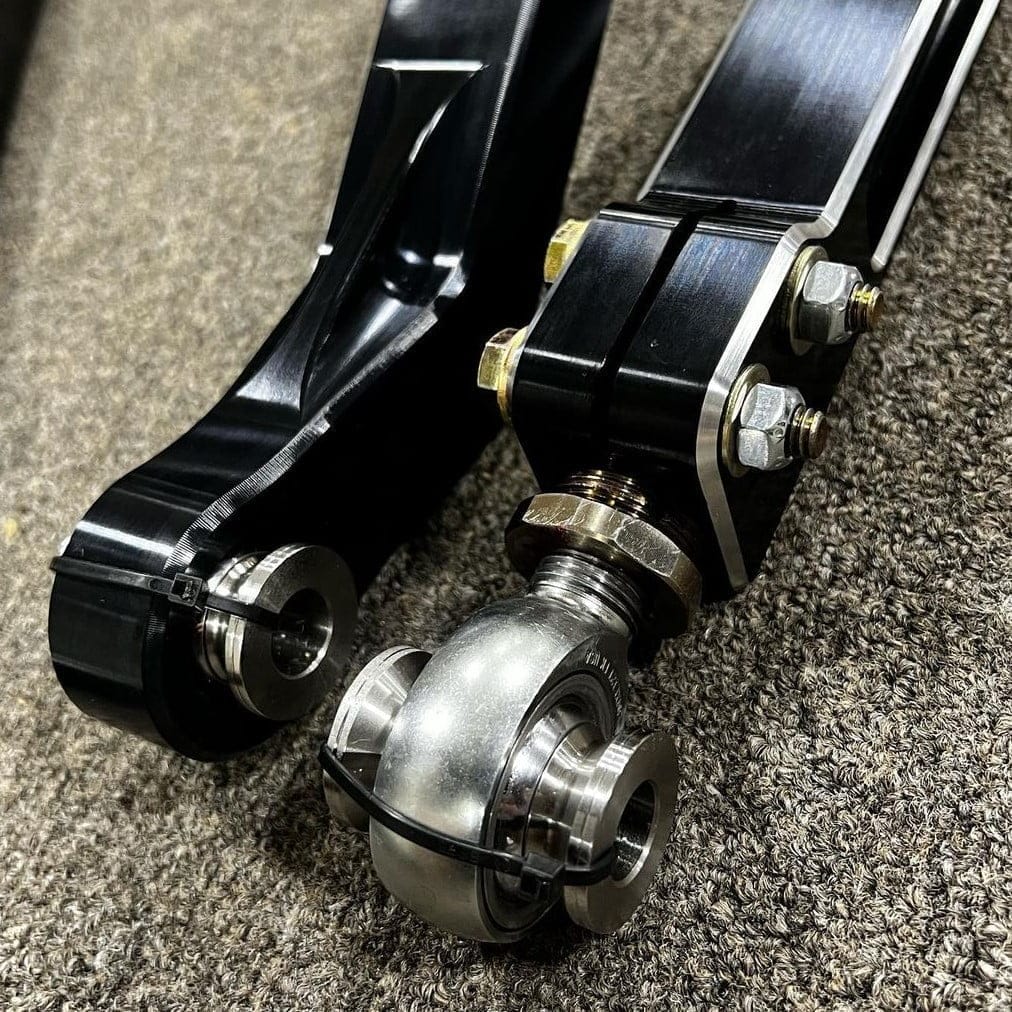

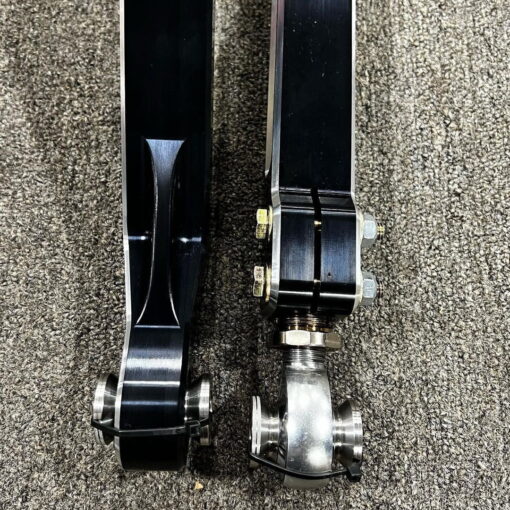

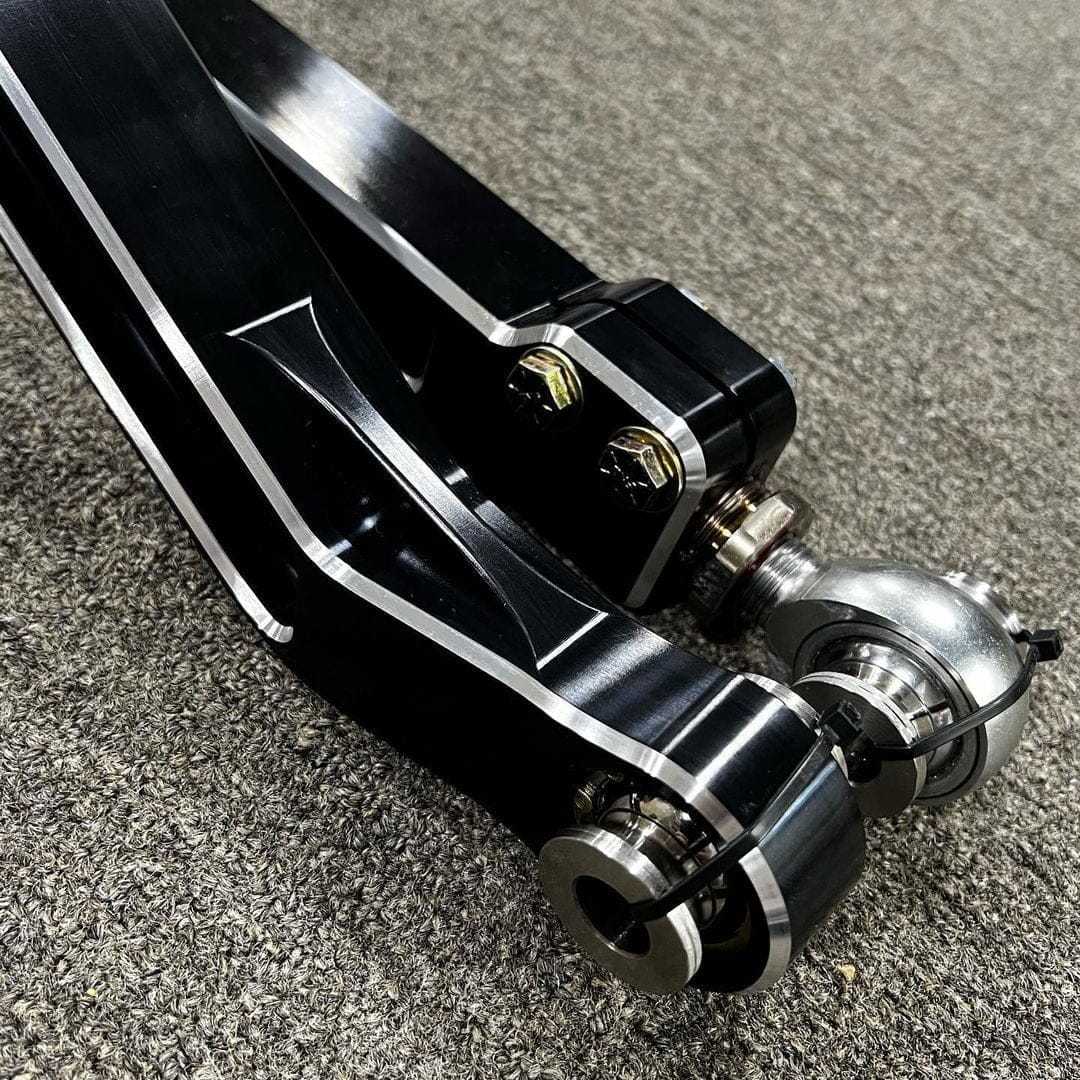

The upper radius rods use our proprietary single point quick adjuster. This means that the camber can be set while the vehicle is sitting on the ground without doing anything special. We use a 3/4″ FK uniball on the chassis side and a 3/4″ FK joint on the spindle side. The adjuster gets tighened and secured with (2) 5/16″ bolts that lock everything into place once adjusted, no jam nuts to break loose.
We favored the 3/4″ uniball overs 7/8″ for one reason, and one reason only – strength and material around the uniball. 7/8″ while they sound appealing due to size thinned the wall thickness down too much for our likely, even while using the stronger 7075 material.
Both upper and lower rods are 100% symmetrical so there is no left hand or right hand rod, racers – this means you only need to carry one spare in case of an emergency.
These radius rods offer everything you could ask for, no expense was spared.
Like always, our parts carry a lifetime warranty.
