KFI Yamaha Kodiak Snow Plow Package

From: $597.99

ALWAYS FREE SHIPPING

As Low As 0% Up To 24 Months, Available"Financing Options"

Vehicle Fitment Listed Below

12 volt Over Hydraulic Cylinder (Does Not Work On Flex Blade)

Not For Flex, Poly Included Already

Poly Blades Are Included Already

None Yes, Set Of Premium Markers (106495) +$24.99

Must Have If Using Tracks

None Yes, Push Tube Extension Tracks (105430) +$92.99

See Options Below (Not For Flex Blade)

Add to Wishlist

Kfi Products Logo

SKU: KFI-KODIPLOW Categories: , , , ,

KFI Products Complete Snow Plow Setup For Kodiak 700 And 450 Models

Industry Leading Made In America Yamaha Kodiak Snow Plow Complete Package, Blade Size And Material Options, Turning Options With Accessories For Bolt On Snow Removal

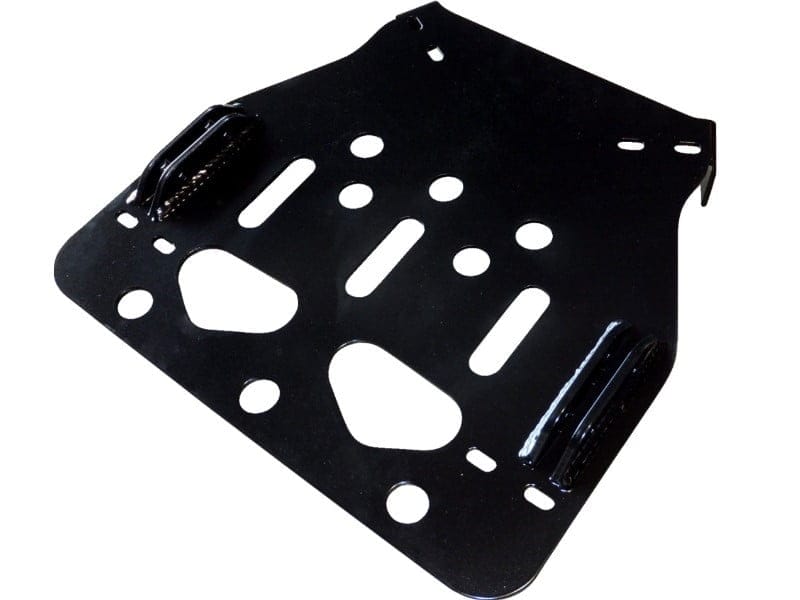

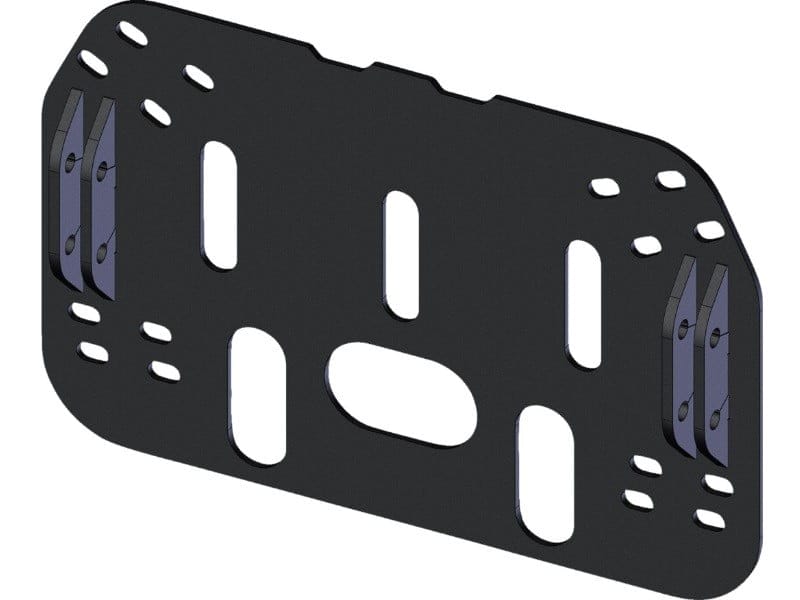

This Plow Package Comes with Your Choice of Plow Blade, Push Tube And Kodiak Mount.

Complete Yamaha Kodiak Snow Moving System For The Home And Business operations, These Kodiak Plow Setups Give You The Options Needed To Handle The Biggest Winters.

If you are running tracks you will need a push tube extension which can be added onto the order while adding items to your cart, To Shop Extra Items Please See: “KFI Products Snow Plow Accessories

Many Install Guides And Overviews In Guides/Install Tab Above

Choose Plow Blade:

Kfi Yamaha Wolverine Rmax Snow Plow
ATV Push Tube
KFI Poly Flex Plow

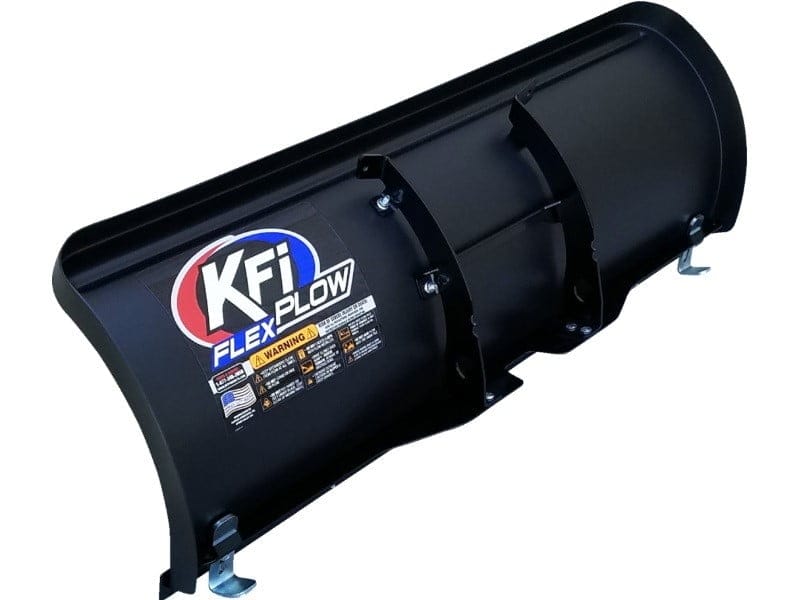

Pro Flex Blade:

  • Rolls snow off to the side, great for continuous plowing of long driveways and paths
  • 100% MADE IN USA
  • Lightweight Blade fully assembled at 25lbs.
  • 50” width Flexible Black Poly Vacuum formed face
  • 3/16” and 10 gauge Grade 50 Steel Rib and Frame construction
  • Shot Blasted and Powder Coated Black
  • 2-Sided 3/16” Grade 50 Steel wear bar
  • 17” Vertical blade face height
  • Works with current KFI No.105000 or 105590 ATV Tube System
  • 1/4” thick Adjustable Skids
  • Complete installation instructions included
  • All mounting hardware included
  • 1-Year KFI Warranty

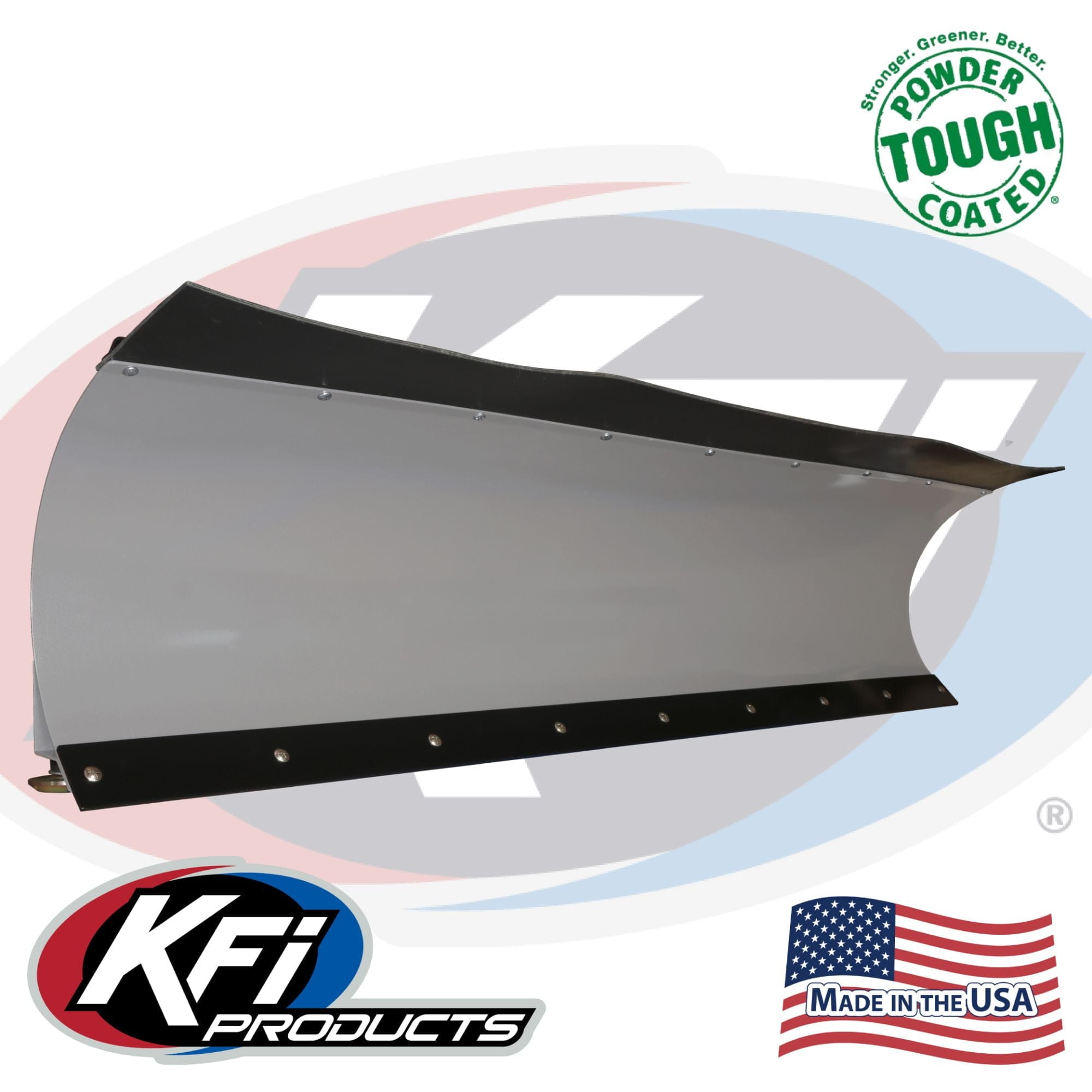

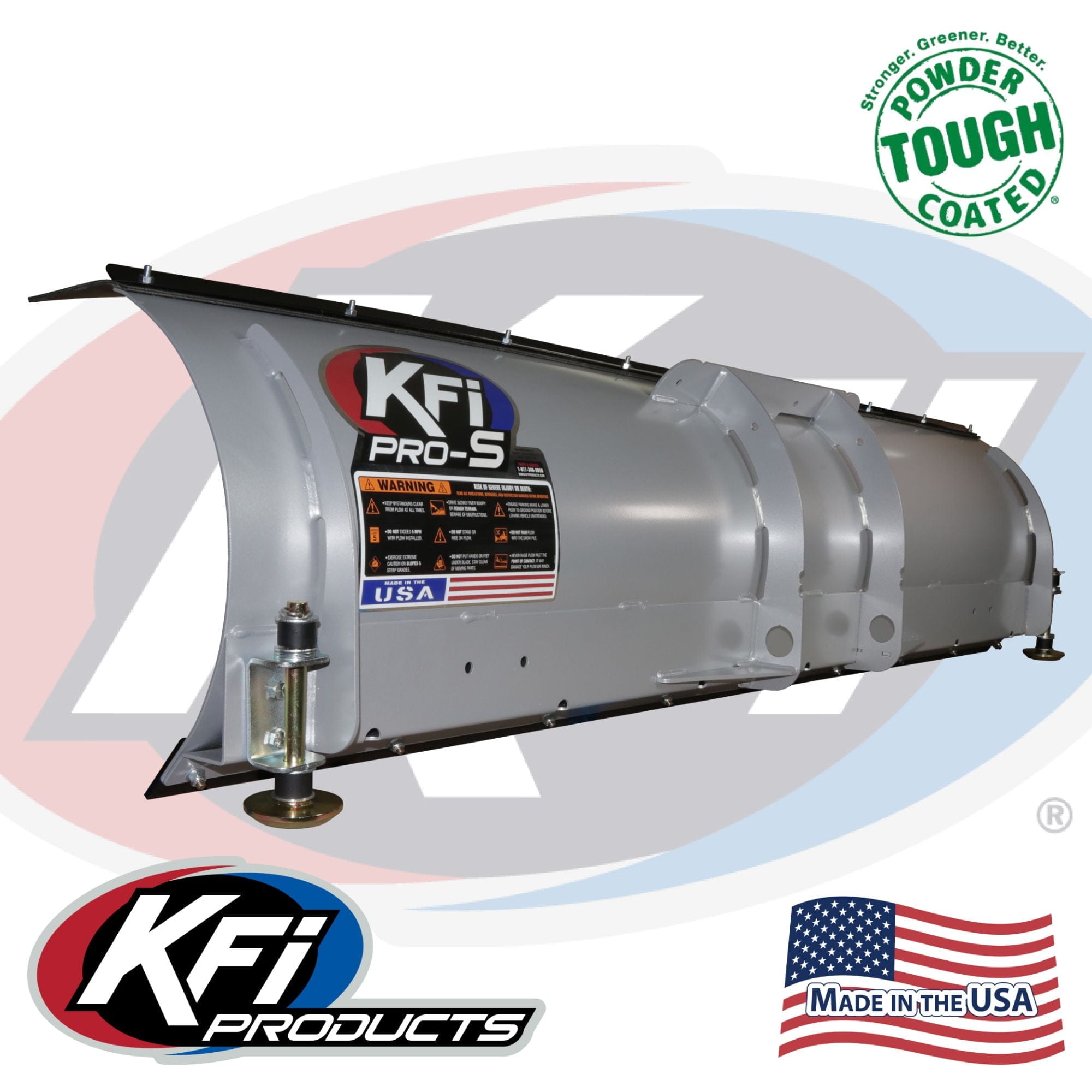

Pro Steel Blade:

  • 100% MADE IN USA
  • Pushes snow straight ahead or to the sides up to 25 degrees
  • Added gussets for the wider width
  • The 66″ & 72″ blades include a 7″ high 2-ply top rubber flap
  • Measures 16” Vertical blade face height with an approximate 21” height with snow flap
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3″-diameter grade-50 steel skid plates
  • Blade Constructed of 11 ga steel
  • 3/16″ Grade 50 Ribbing for a strong bolt-up to the Swivel Tube
  • Powder Coated Metallic Silver for supreme durability
  • 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
  • 2-Year KFI Warranty

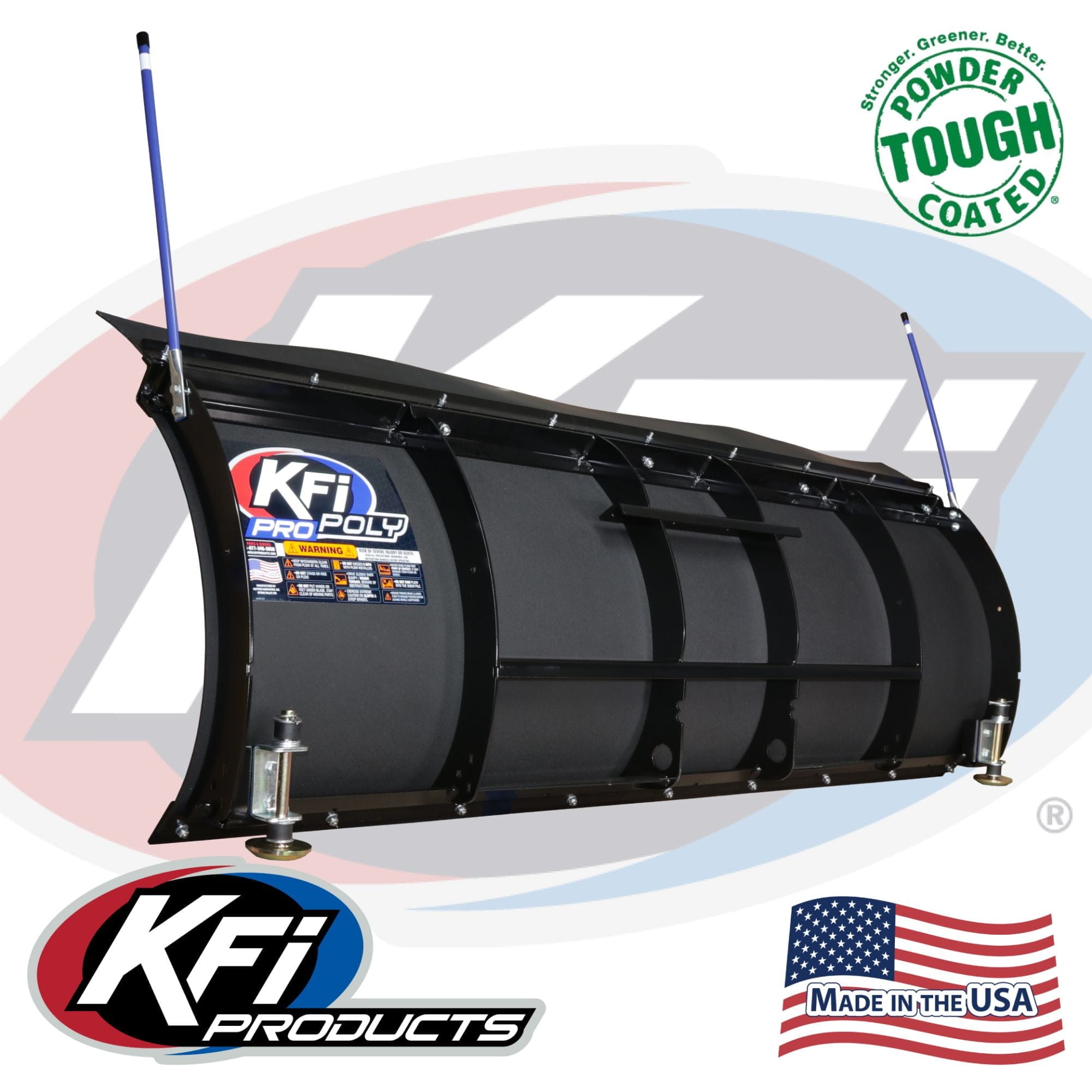

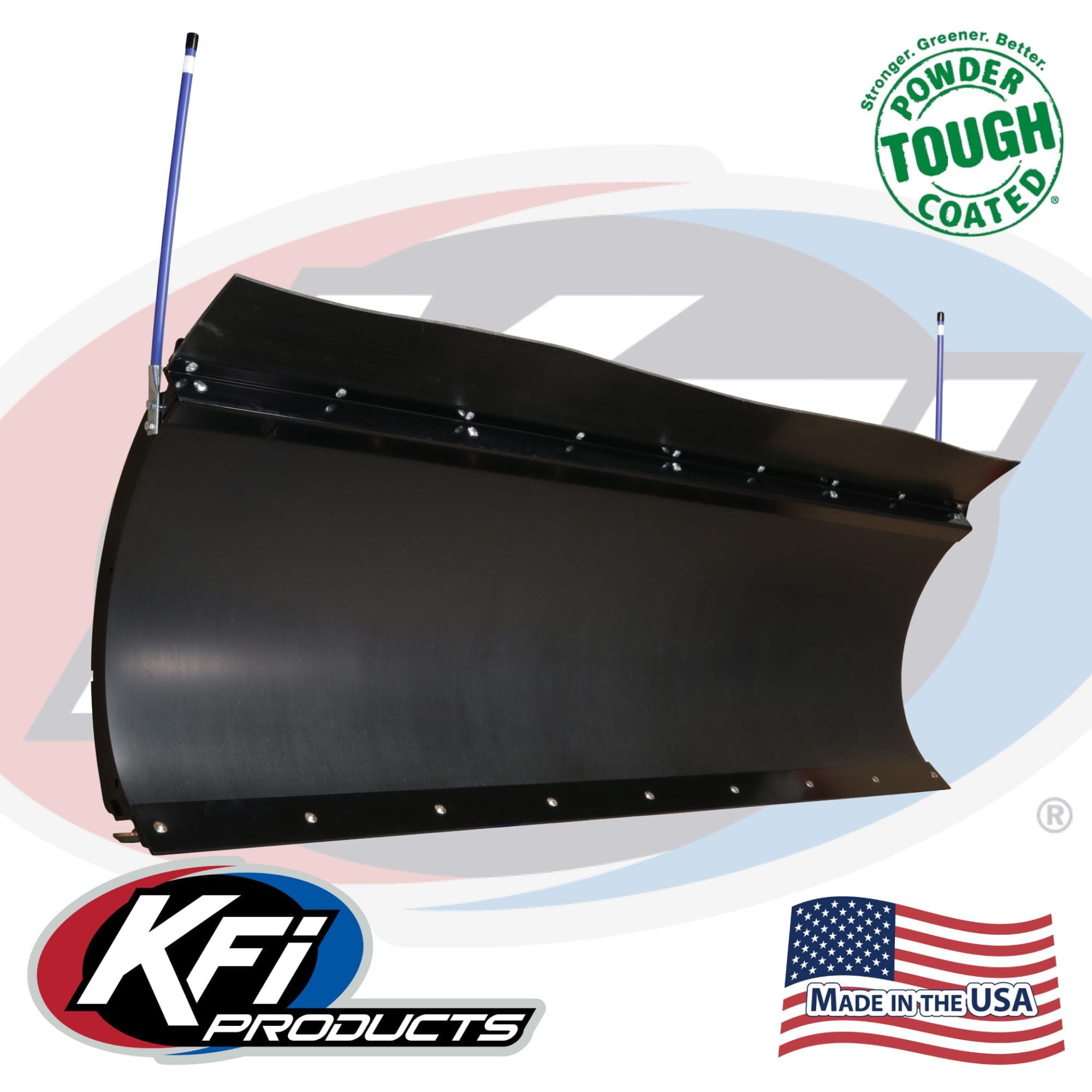

Pro Poly Blade

  • Includes a 7″ high 2-ply top rubber flap
  • 100% MADE IN USA
  • Dual Curvature face for supreme snow moving
  • 21” Vertical blade face height with an approximate 27” height with snow flap
  • Fully-adjustable blade skids with bolt-on brackets
  • Heavy duty 3″-diameter grade-50 steel skid plates
  • Flexible Heavy Duty Black Poly face
  • 3/16” Grade 50 Steel Rib and Frame construction
  • 2-Sided 3/16″ x 3.00″ Grade 50 Steel Wear Bar
  • Wear Bar attached with Heavy Duty Grade 8 Bolts
  • Works with KFI ATV & UTV Tubes
  • Includes Plow Markers
  • 2-Year KFI Warranty

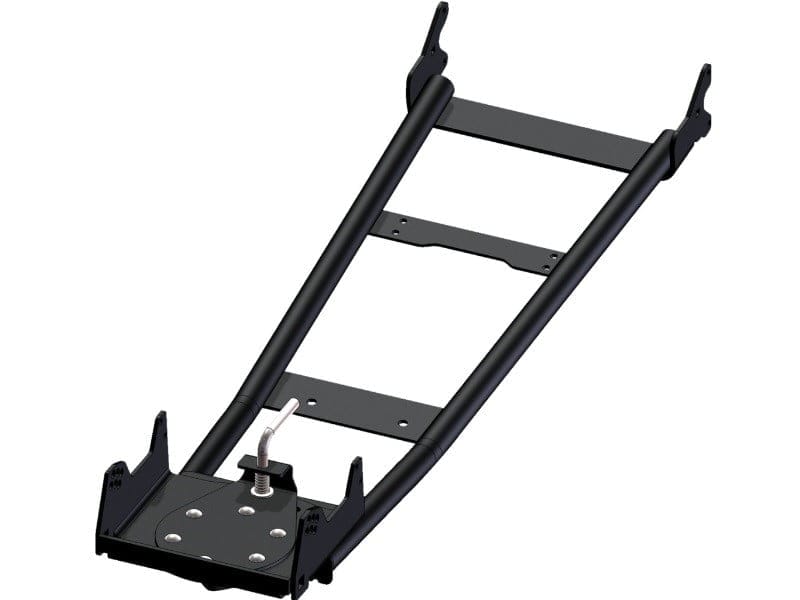

Included Push Tube:

  • Easier Install For All Plow Accessories
  • Added 2.5″ Of Overall Length
  • Front Mount Design with 30″+ of lift height
  • 100% MADE IN USA
  • Heavy Duty 1-1/2″ 12 Gage Square Steel Tubing
  • Heavy Duty 1/4″ Thick 1-1/2″ Diameter Grade 50 Pivot Bushings
  • 6″ Diameter POM Injection Molded Rotator Bushing
  • Easy-Pull Pin Blade angle adjustment
  • Multi-position Plow Lift Bracket
  • 6 five degree blade pitch adjustments
  • 3 blade angle positions that rotate the blade up to 25 Degrees
  • Powder Coated Black for supreme durability
  • 2-Year KFI Warranty

Add On Options:

Kfi Yamaha Wolverine Rmax Snow Plow

Plow Turning Option

Includes Wiring Harness And Mounts Will Not Work On Flex Blade

Kfi Yamaha Wolverine Rmax Snow Plow

Upper Flap Kit

Used On Steel Blades Only, Poly 60 Is Included No Flex Blade

Kfi Yamaha Wolverine Rmax Snow Plow

Top Markers

Only Needed On Steel Blades, Poly Has Them Included

ATV Push Tube Ext

Push Tube Extension

Extends The Plow blade Out, Needed When Running Tracks

Add On Blade End Shields

These Attach to the ends of the plow to help reduce snow and dirt overflow:

Kfi Yamaha Wolverine Rmax Snow Plow

Blade Box Side Shield

Sold As A Pair For Poly Blades

3/16” Grade 50 Steel Powder Coated Black

Adds 2-1/4” Width to size of blade per Shield

Kfi Yamaha Wolverine Rmax Snow Plow

Blade Tapered Side Shield

Sold As A Pair For Poly Blades

3/16” Grade 50 Steel Powder Coated Black

Adds 5.6” Width to size of blade per Shield

Kfi Yamaha Wolverine Rmax Snow Plow

Blade Side Shield – Box End

Sold As A Pair For Steel Blades

3/16” Grade 50 Steel Powder Coated Black

Some Drilling Required

Kfi Yamaha Wolverine Rmax Snow Plow

Blade Tapered Side Shield

Sold As A Pair For Steel Blades

3/16” Grade 50 Steel Powder Coated Black

Adds 2-1/4” Width to size of blade per Shield

Manuals

450 Mount Install Guide

Download Document

700 Mount Install Guide

Download Document

Push Tube Install Guide

Download Document

48" Steel Blade Install Guide

Download Document

54" Steel Blade Install Guide

Download Document

60" Steel Blade Install Guide

Download Document

60" Poly Blade Install Guide

Download Document

50" Poly Flex Blade Install Guide

Download Document

KFI Products Do Stand Behind There Products And American Off-Roads Does Support There Warranties And Follow KFI Warranties.

Kappers Fabricating, Inc. (KFI) warrants to the original purchaser that the product is free from defects in materials and workmanship for a period of six (6) months from the original date of purchase. We will repair or replace, at our discretion, parts found to be defective due to materials or workmanship. This warranty is subject to the following limitations and exclusions:

Commercial Use: The warranty period for any product used for commercial or rental is limited to ninety (90) days from the date of original purchase.

Limitations: This warranty applies only to products which have been properly assembled, adjusted, and operated in accordance with the instructions contained within this manual. This warranty does not apply to any product of Kappers Fabricating, Inc. that has been subject to alteration, misuse, abuse, improper assembly or installation, or shipping damage.

Exclusions: Excluded from this warranty are normal wear, normal adjustments, normal maintenance, finish and synthetic rope.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. THE WARRANTY SET FORTH ABOVE IS THE ONLY WARRANTY. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow the exclusion of implied warranties or the exclusion or limitation of liability for incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights that vary from state to state. KFI reserves the right to change product design without notice. For situations in which KFI has changed a product design, KFI shall have no obligation to upgrade or otherwise modify previously manufactured products. In the event you have a claim under this warranty, contact KFI’s Technical Service and KFI will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, KFI will, at its option, authorize evaluation, repair or replacement of the defective part or component at a KFI Service Center. KFI will provide you with a case number for warranty service. Please keep it for future reference. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered by this warranty.

All transportation charges, damage, or loss incurred during transportation of parts submitted for replacement or repair under this warranty shall be borne by the purchaser. Should you have any questions concerning this warranty, please contact us toll-free at 1-877-346-2050. The model number, serial number (If applicable), date of purchase, and the name of the authorized KFI dealer from whom you purchased the product will be needed before any warranty claim can be processed.

For warranty inquiries outside the U.S.A. and Canada, contact your local dealer/distributor

Once Your Recieve Your Product For Warranty Please Visit and Fill Out: KFI Warranty Registration

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.

Make Model Year
Yamaha Off RoadKodiak 4502018 - 2024
Yamaha Off RoadKodiak 7002016 - 2024
