CF Moto UForce Cab Heater

SKU: IC-UFORCEHEATER Categories: , , , ,

$499.99

Financing As Low As 0% Available "See Options"

Can-am Commander Cab Heater

Vehicle Fitment Info In Tabs Below

See Info Below

See Info Below

Dfb B American Cash Logo

Add to Wishlist

Ice Crusher Cab Heater For CF Moto UForce Models

Get Out Of The Cold With These Full CF UForce Cab Heater With Included Defrosters. Powerfull BTU Heater, Vents, Hoses And Full Install Guide Gets You Warm.

Use your cooling system to heat your cab!

From the original designer of the Firestorm UTV Cab Heaters comes our new and improved Ice Crusher Compact UTV Heaters.

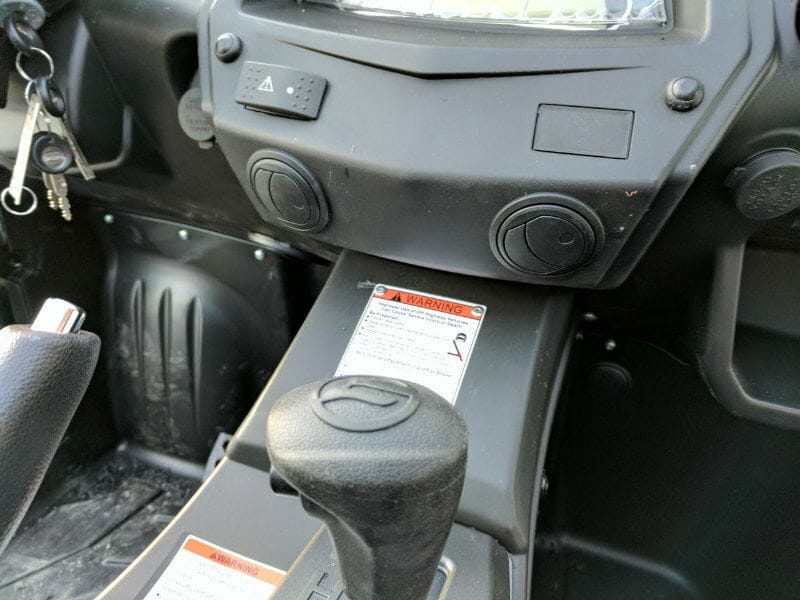

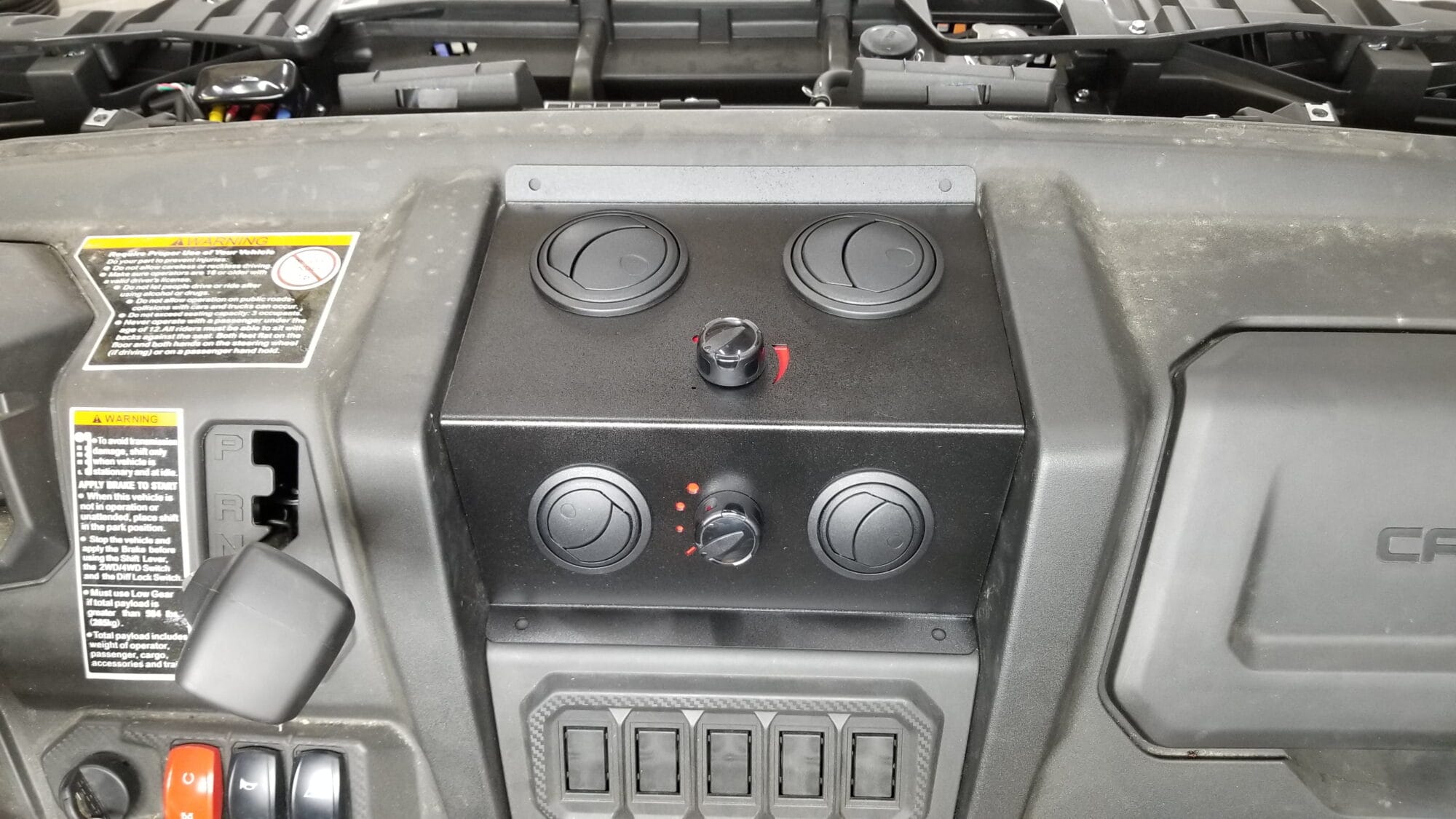

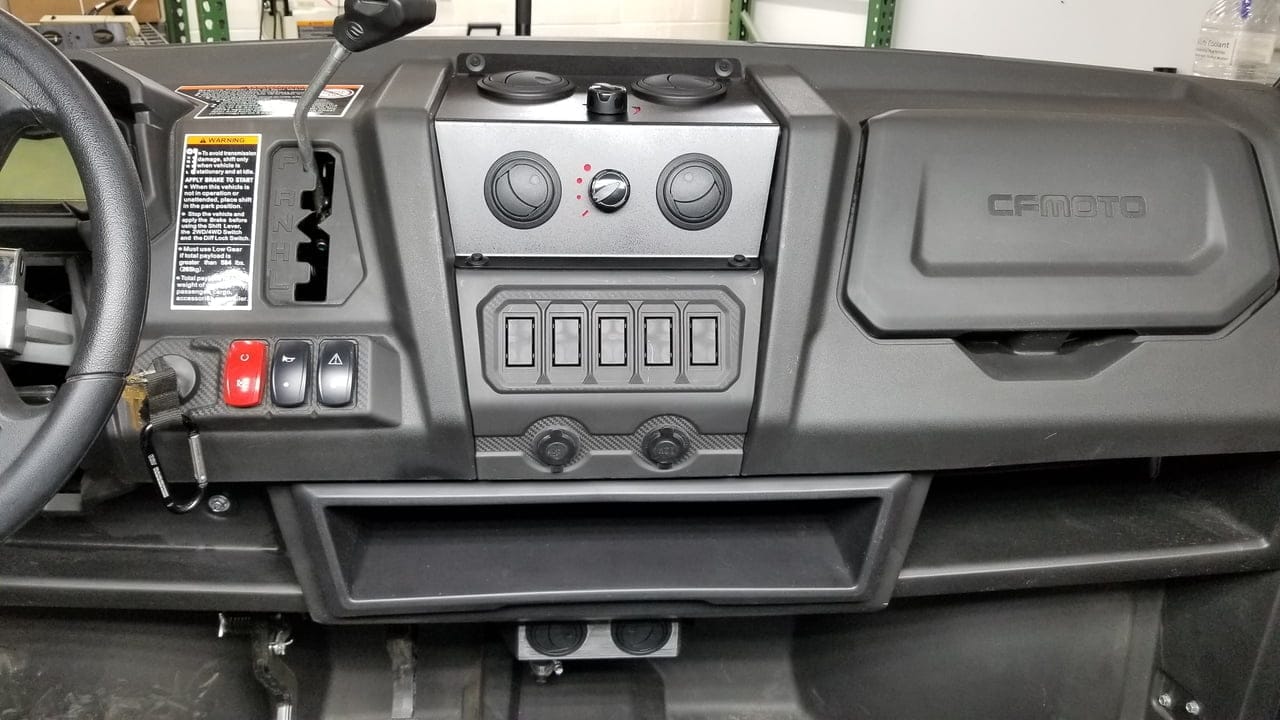

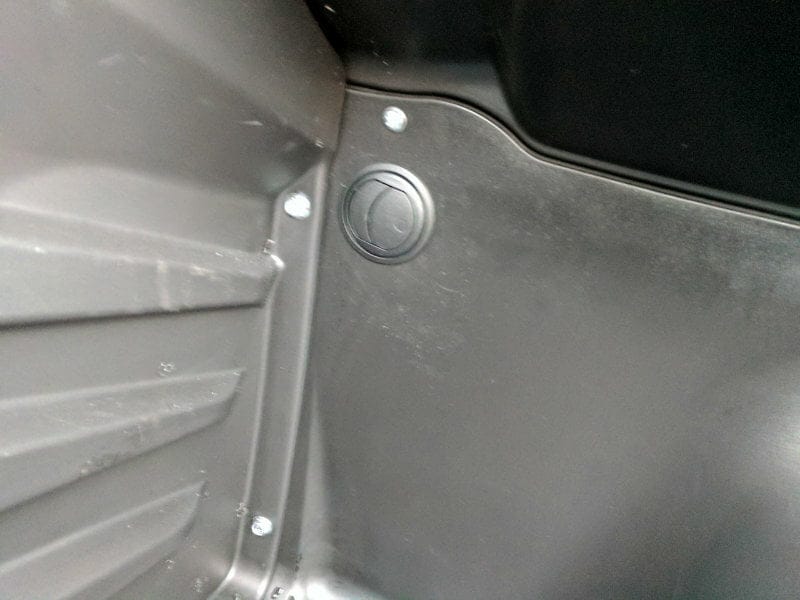

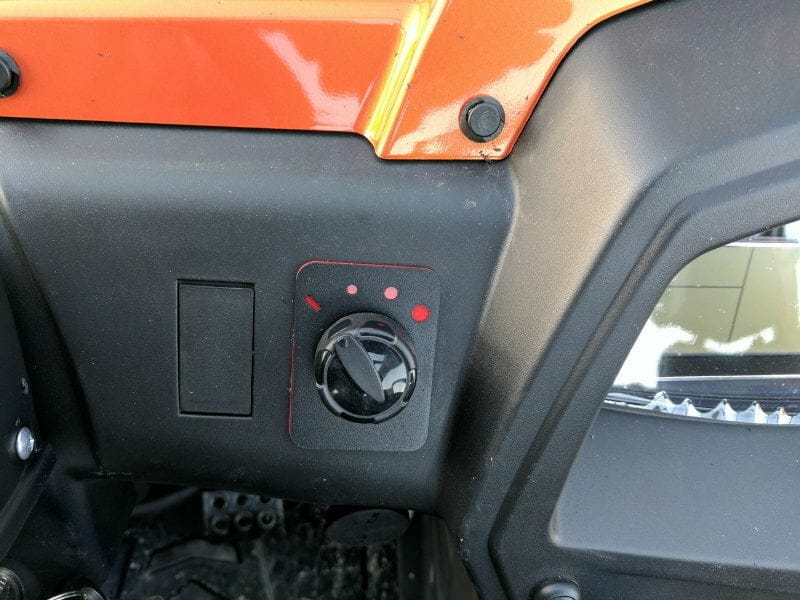

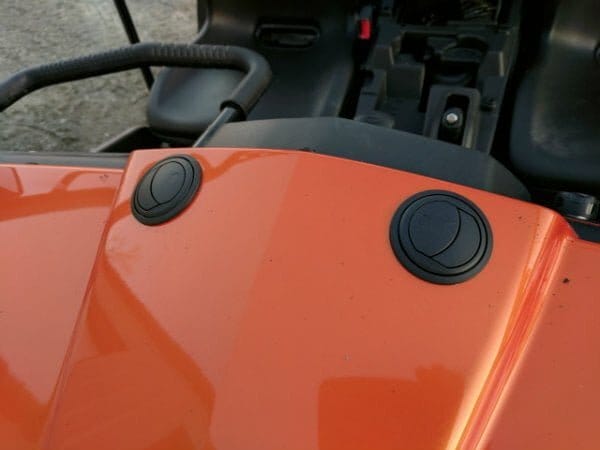

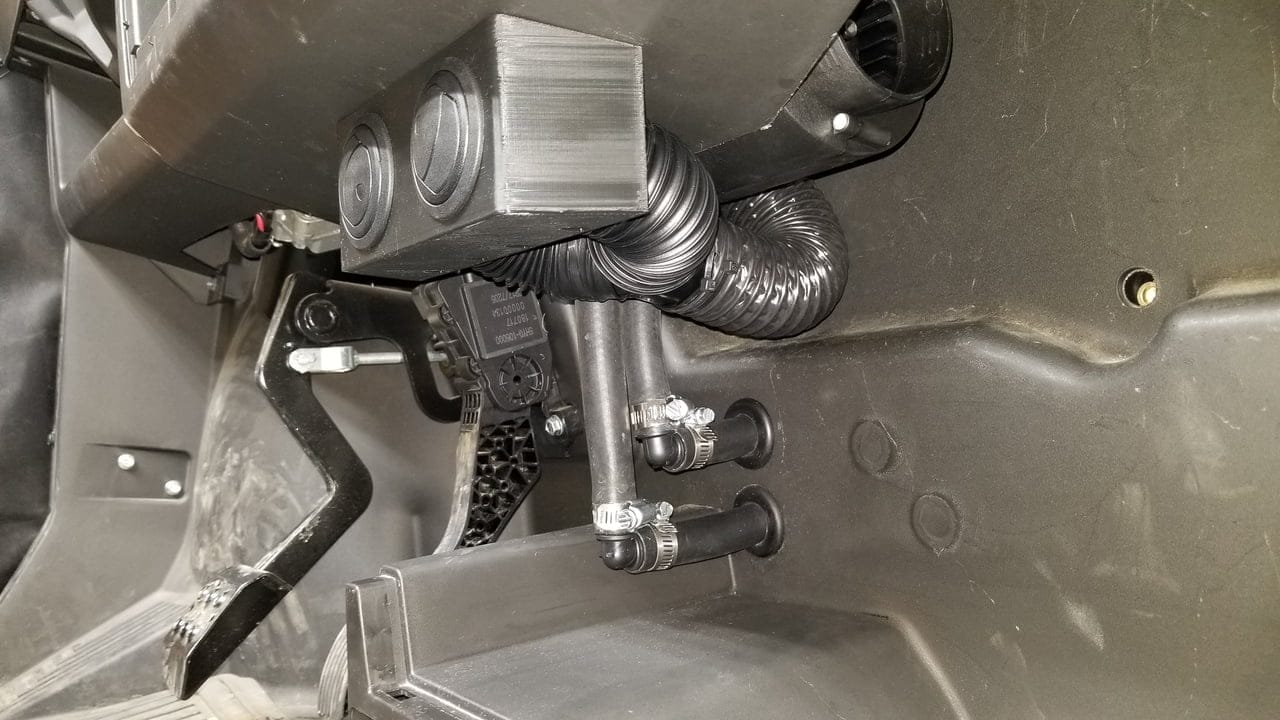

This Ice Crusher Under Dash Heater kit has 6 Vents and fits completely up under the hood area. This kit comes with a compact yet powerful heater with a three speed fan which will deliver heat from the 14,600 BTU* Compact Heater Unit. Adjustable louvers direct the heat were you need it – two 2″ vents mount center of the dash top to defrost the windshield, two 2” vents mount in the center dash panel and two vents, one 2″ and one 3″ mount in the lower dash area. A unique feature of our kit is that the heater intake comes from inside the cab where the air is cleaner and warmer. Warmer air means more available heat for you inside the cab.

Kits are supplied with our custom CNC made alloy Y connectors that connect directly to the engines cooling system for fast heat (Our MaxStat  is not required but is recomended).

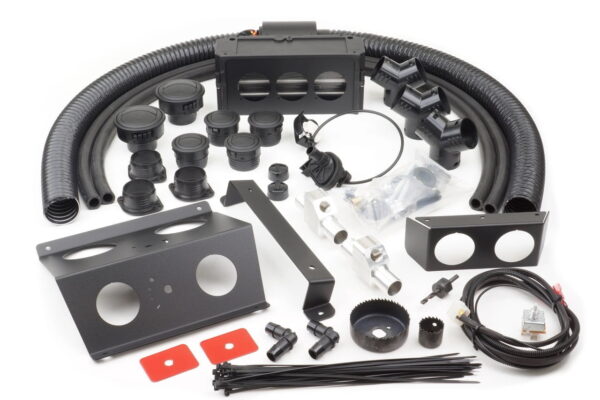

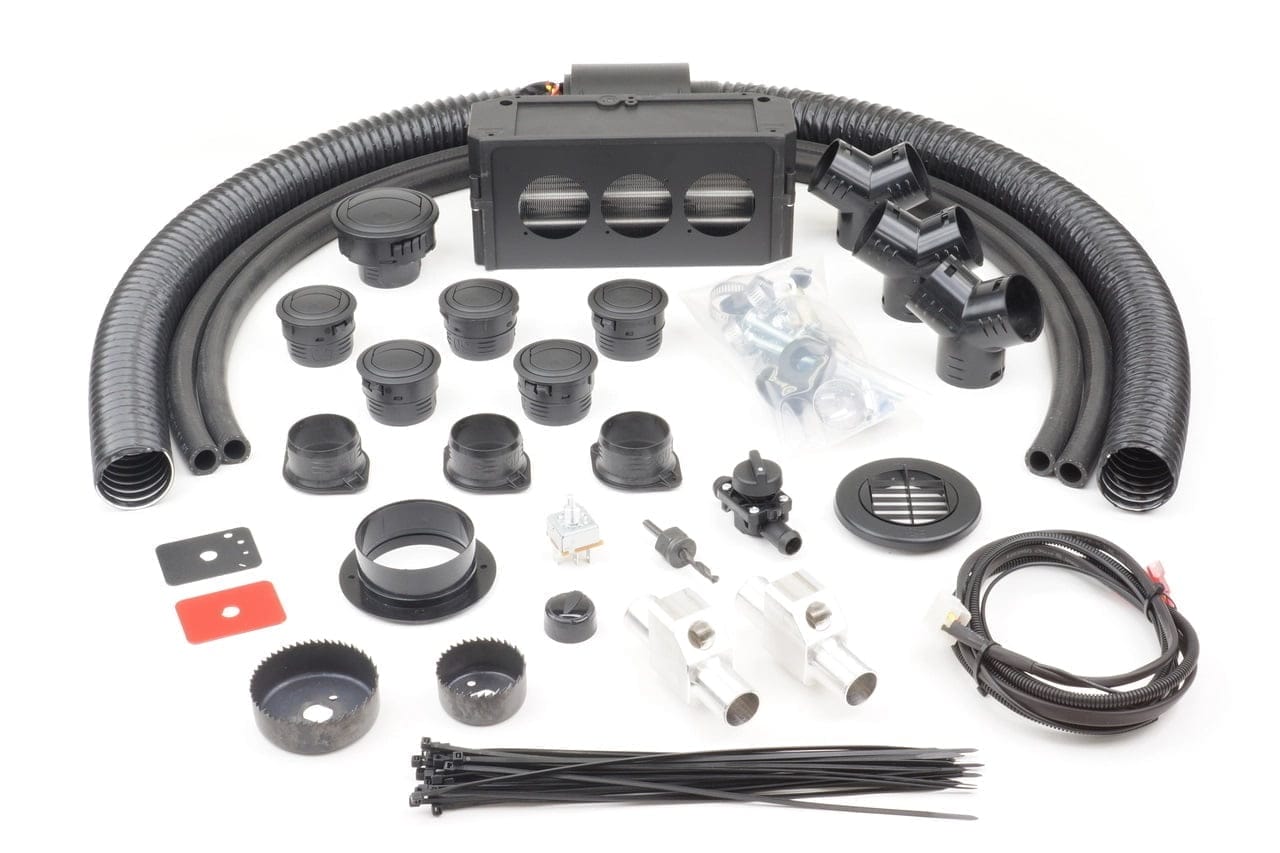

Kits also include custom CNC laser cut mounting brackets, heater hoses and duct hoses, hose clamps, new and improved vents, hole saws (for the heater hoses and vents), grommets, Switch, wiring loom and terminals included, templates, your specific mounting bracket with hardware, and instructions.

Fits: UForce 1000 (2019-2022) And UForce 500/800 (2015-2021)

Dc C D B Cae A F D A

Detailed Install Guide

Fc Eb E Ce B C E Efd

Defrost Included

Ba A D B B A A Df

High CFM Blower

F Ec E Ad A D F C

Cooper Core Heater

Dc Ec F E B Ced A Fb Dd Ca Fde

3 Year Warranty

E C D Be Cbc F Fe

Lifetime Support

ADD ON MAXSTAT THERMO BYPASS

The MaxStat directs all engine coolant to your Ice Crusher Cab Heater, this means that the output of your heater will be at its maximum. If there is heat in your cooling system then you will have heat from your Ice Crusher Cab Heater.

More heat means a warmer cab and in turn a warmer you!

MaxStat only opens to let coolant flow though the radiator when the cooling system requires it to keep the UTV engine at an optimal temperature.

CNC Machined Aluminum.

Ships with a Replaceable 180′ Thermostat.

Ice Crusher Max Stat Overview Video
Max Stat Install Diagram

Add Hose Clamps

Make your heater install faster and easier with Ice Crusher Hose Clamp Off Tools. These clamp tools will keep coolant from pouring out of your vehicle when tying into the coolant system. They also keep the majority of air from entering the coolant system dramatically reducing the effort required to remove air bubbles later. The clamps will seal-off flexible hoses up to 1 3/4″ inch in diameter and will fit all ATV and UTV applications. Kits are sold in pair.

  • Each line clamp is specially designed to stop flow without damaging or compromising the hose, making them a great set of clamps for any professional or home garage!
  • Fits Hose Sizes up 1 3/4” OD Diameter
  • Designed to work with all ATV & UTV radiator hoses.
  • Speed up install and eliminate coolant loss
  • INCLUDES: 2 Clamps
Unnamed File

Manuals

500/800 Install Guide

Download Document

1000 Install Guide

Download Document

UTV Heaters.com Heater Warranty. 3 Year/36 Month Limited Warranty

UTV Heaters.com warrants your UTV Heater System to be free from defects in material and craftsmanship under normal use and service by the original consumer purchaser (end user) for a period of Three (3) year from the date of purchase on all components except electrical components including but not limited to, motor, switch, wiring and resistor. Electrical components are warranted to be free from defects in material and craftsmanship under normal use and service by the original consumer purchaser for a period of One (1) year from the date of purchase. The warranty is null and void if the system has been damaged by accident, improper installation, unreasonable use, lack of proper maintenance, unauthorized repairs or modifications, or causes not arising from defects in materials and craftsmanship.

UTV Heaters.com obligation under this warranty are limited to repair of the product at Couper’s Products production facility, or the replacement of the product at UTV Heaters.com option and at UTV Heaters.com expense. Any expense involved in the removal, re-installation, or transportation of the product is not covered by this warranty. Prior to return of any product to UTV Heaters.com customer must contact UTV Heaters.com customer service, (888) 964-0135, or fill out the online Return Authorization Number request form and obtain a Return Authorization Number (RMA). This number must be marked on exterior of carton for easy identification. Warranty product received at UTV Heaters.com without a Return Authorization Number may be returned at expense of sender.

Postage must be prepaid, and the original dated proof-of-purchase must be included. UTV Heaters.com will not be liable for any damages sustained in transport due to improper packaging or handling. The acceptance by UTV Heaters.com of any product returned shall not be deemed as an admission that the product is defective or in any violation of any warranty.

This warranty is UTV Heaters.com only express warranty of this product. We reserve the right to make changes to products and policy that are in the best interest of UTV Heaters.com. No implied warranty shall extend beyond One (1) or Three (3) year period from the date of the original consumer (end user) purchase. UTV Heaters.com will not be liable for any damages, for loss of use of this product, nor for any consequential damages, costs or expenses.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights not mentioned here that vary from state to state.

The above warranty applies for Canadian customers, but there is a $20.00 shipping fee.

Online Return Authorization Number request form Click Here

After receiving a Return Authorization Number send defective product to:

Attention: Warranty

J&S Industries

23001 Industrial Blvd

Rogers, MN 55374

In stock Items:

All In Stock Items Look To Ship within 24-36 Hours After Order Monday Through Friday. Sat and Sun Orders Process On Monday.

Fabricated/Powder Coated Items:

These Products Tend to Have To Go To Powder Coat and at the Longest Ship within 5-7 Business Days After Order Monday Through Friday. Sat and Sun Orders Process on Monday

Make Model Year
CF Moto Off Road UFORCE 500 2016 - 2020
CF Moto Off Road UFORCE 1000 2019 - 2022
CF Moto Off Road UFORCE 800 2015 - 2021
