High Lifter Dual Idler Portals For Maverick Sport Models
This High Lifter Can-Am Maverick Sport Portals, Maverick Sport Suspension Gear Lift is made tough and ready for any challenge. Now engineered with a gearing setup that allows two idler gears in the portal box to spread the load between twice as many teeth on the gears.
This doubles the area and reduces the stress by half, allowing more abuse. This kit is for riders who are looking for torque and power.
High Lifter is the first company to offer a dual idler gear reduction. This spreads the load across two sets of idles, and makes for a more reliable, responsive UTV portal lift.
To build some of the longest-lasting kits around, choosing a forged gearbox eliminates the occurrence of porosity and cavities that reduce the strength of a part.
What does the Dual Idler Gear Lift offer?

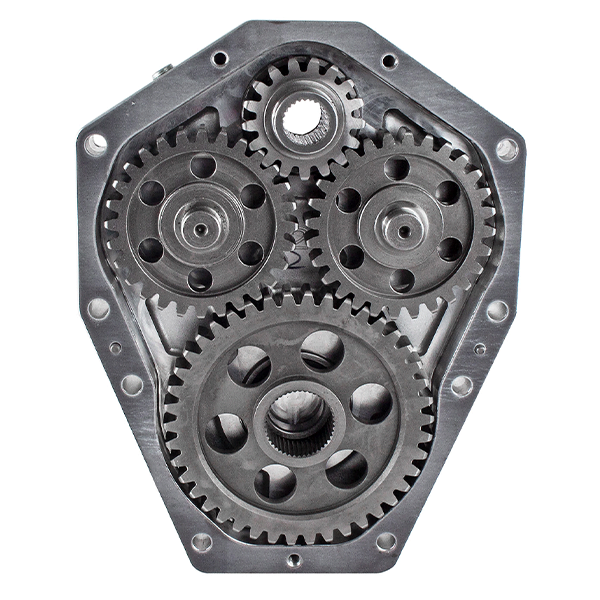

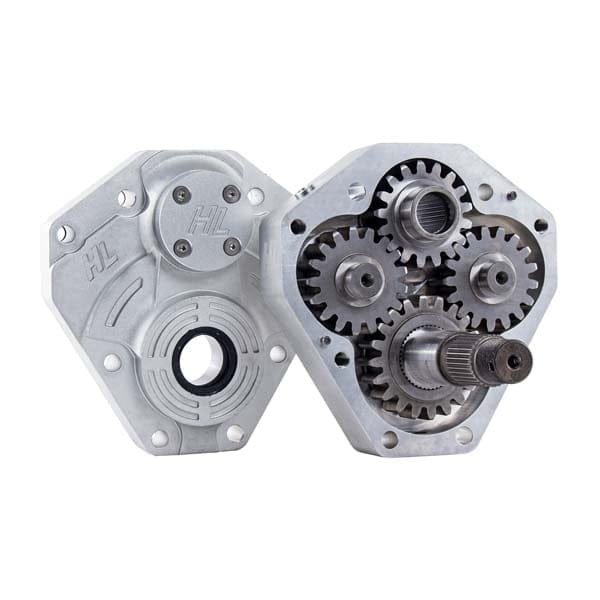

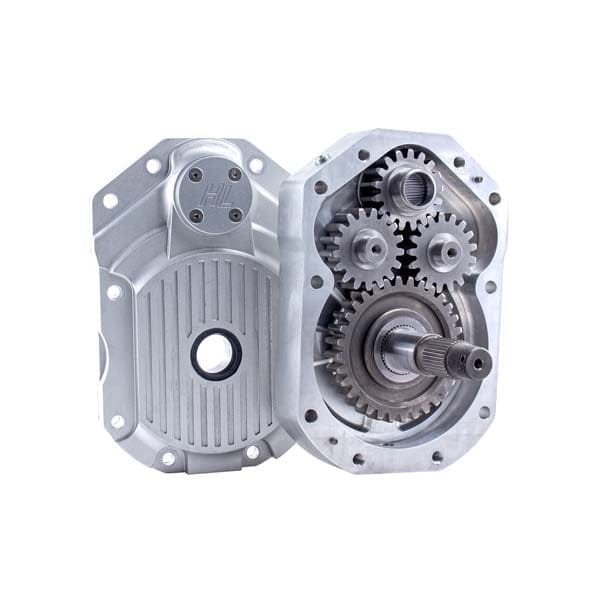

- High Lifter improved the portal design by adding a second idler gear in the gear box
- The dual idler gears spread the load over twice as many teeth on the gear sets, which doubles the area and reduces stress by half.
- You gain more reliable torque transfer
- Stop burning up belts and breaking so many axles; differentials; drive shafts; snorkel gears…
- Gear reduction extends brake life by needing brakes less often due to greatly improved engine braking
- Even though a lower gear ratio will get your speedometer closer to a stock reading, that is still too high a gear to offset the loss of torque caused by the larger tires. If you don’t have a need to run fast, a lower ratio performs better and give you the power you want!
Why Highlifter Portals:

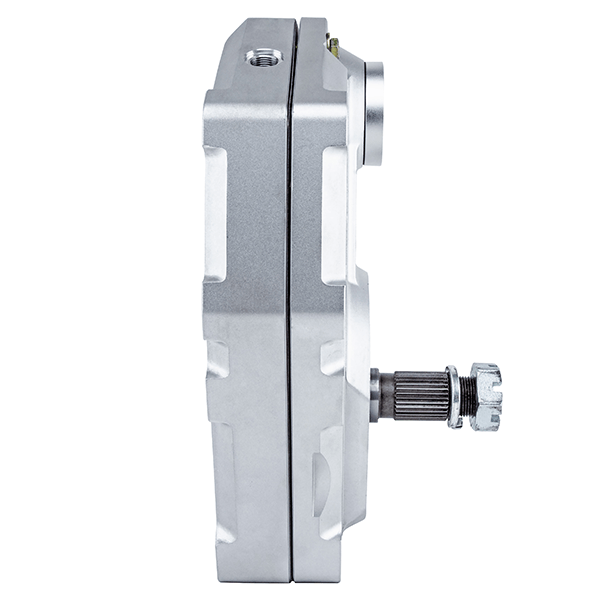

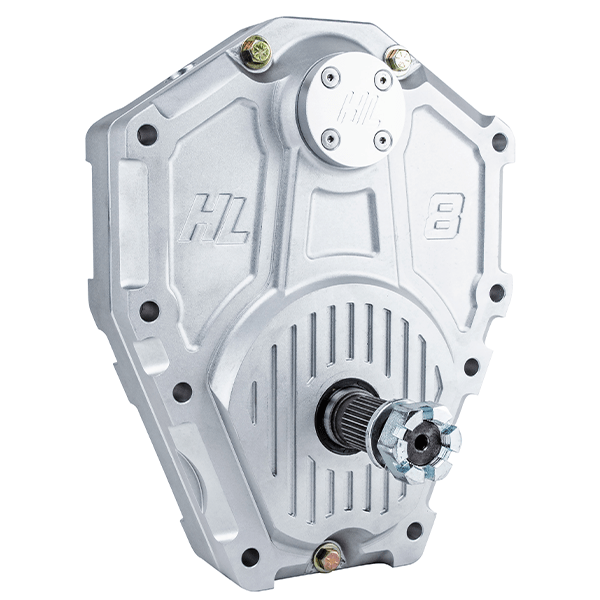

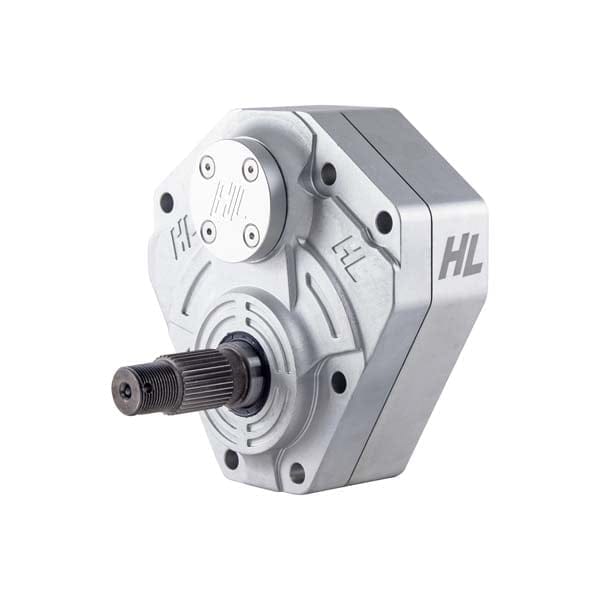

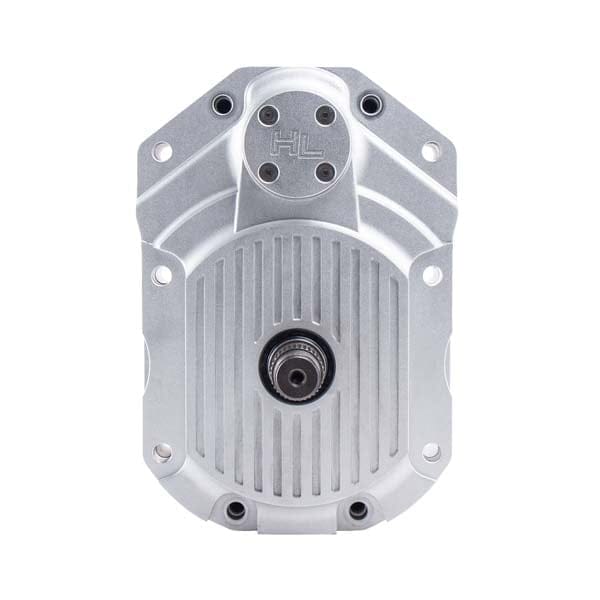

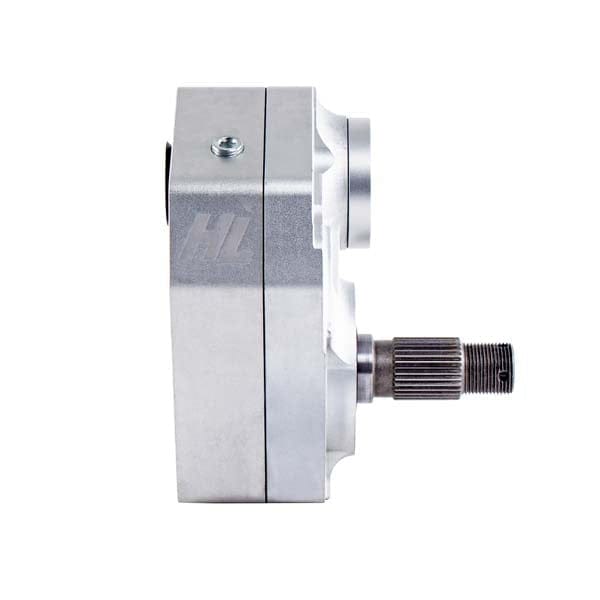

Forged Gear Boxes
- Strongest boxes on the market because forging produces a tougher piece of metal
- Forging is stronger than both cast and billet aluminum
- Competitors use cast aluminum and billet aluminum boxes
- These portal boxes are extremely robust and give you more worry-free miles than any other portal

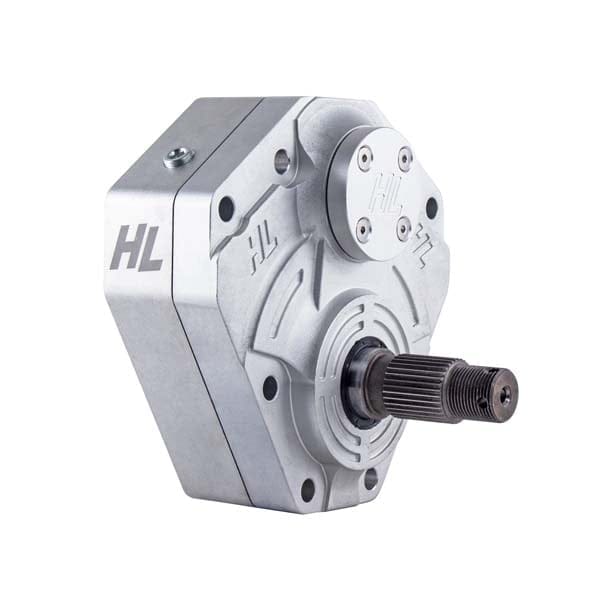

Gear Box Venting
- Customers asked for box venting and we give you the option
- Our box design offers a plug for venting with an optional easy to install kit that will be available soon
- Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
Gasket Material and Design
- High density Kevlar fiber gaskets plus no additional sealant is needed
- Gasket material is creep resistant plus oil and coolant resistant

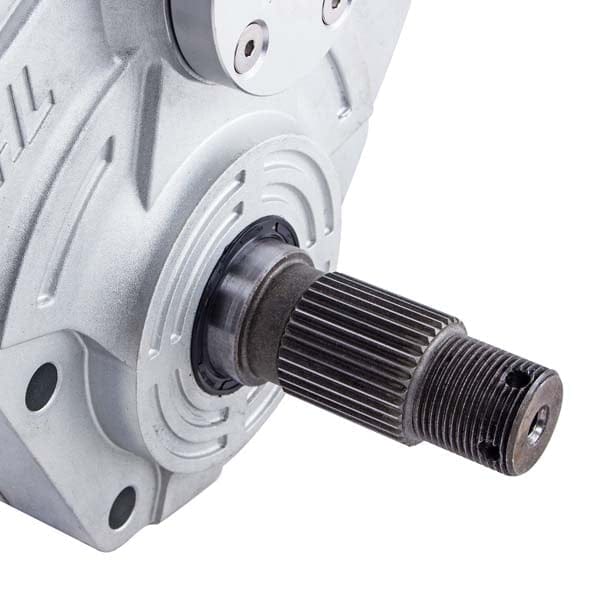

- Two oil seals on the spindle shaft for 100% more sealing area
- Dual seals prevent water intrusion and oil leaks
- True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection

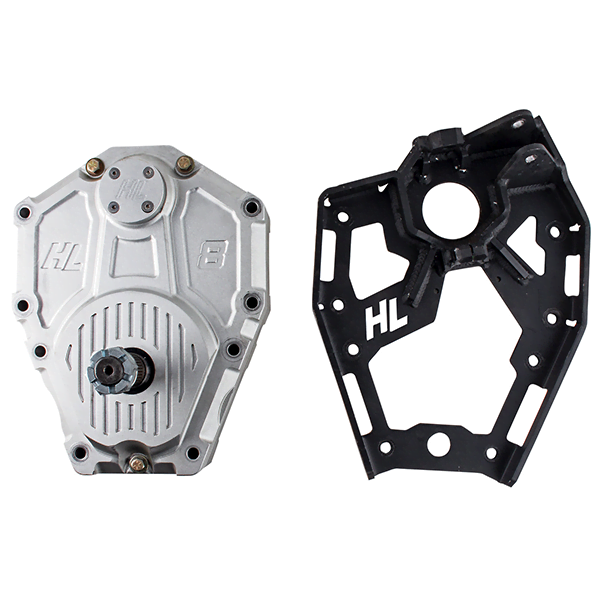

- These are the strongest backing plates on the market
- 5/16” steel plate with Bent flanges for strength and durability Okay
- Welded gusset brackets and designed to factory off-set
- Works with all control arms that are built to factory hub specifications
- Precision ground Stainless Steel rotors (this is a big deal for brake performance)
- Access holes for ease of assembly and disassembly
- Slotted rotor allows for heat dissipation and cooling
- Alloy steel heat treating process increases overall internal and external strength
- CNC precision ground machining ensures excellent fitment and increased strength
- Controlled gear lapping for ease of installation and a quieter performance
Wheel Requirements 4″ Portals:
14″ or larger
14″ factory wheels must run 1″ spacer
14″ & 15″ can not exceed 4-1/2″ backspacing
16″ & larger can not exceed 5″ backspacing
Wheel Requirements 6″ Portals:
18″ or larger wheel required • Up to 30″ Stock
18″ wheels cannot exceed 4-1/2″ backspacing • 31″ with 3″ Lift Kit
20″ and larger wheels cannot exceed 5″ backspacing
Wheel Requirements 8″ Portals:
22″ or larger wheel required
22″ and larger wheels cannot exceed 5″ backspacing
