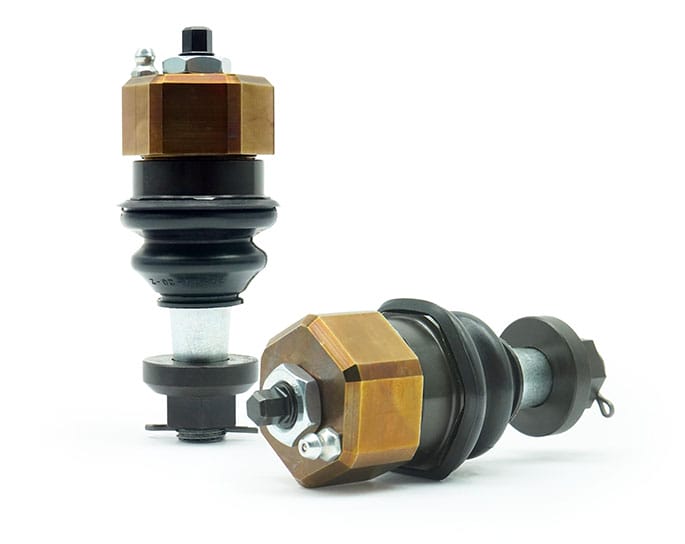

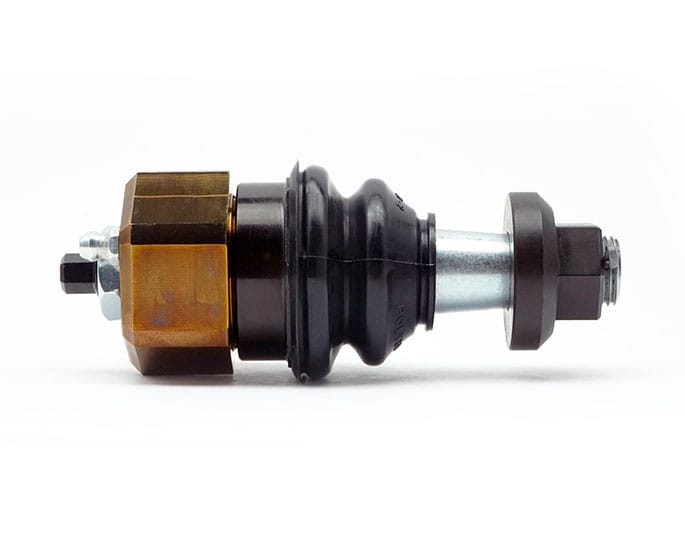

Sandcraft Motorsports Polaris RZR Pro S Lower Ball Joints

Every component has been re-engineered and machined in house. We use the best hardened steel components that will keep up with even the most extreme driving conditions.

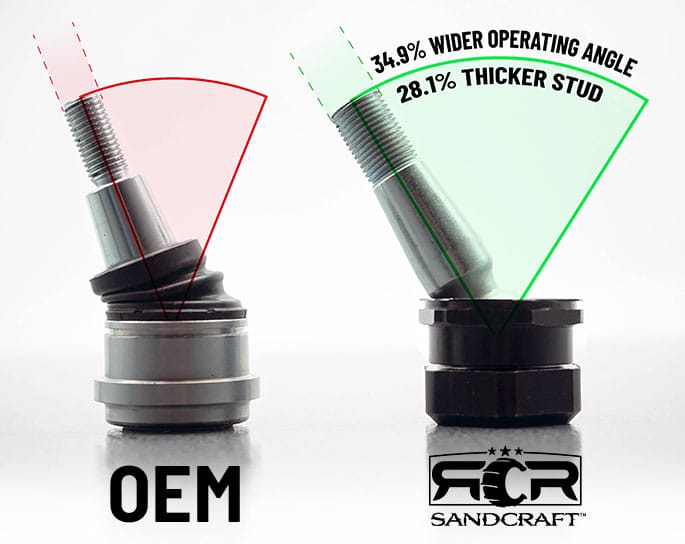

The SANDCRAFT kit has 34.9% more operating angle and features a stud that is 28% thicker at the threads than OE.

Limited Lifetime Warranty – SANDCRAFT warranties this product against defects in materials and workmanship for life with the exception of wear and tear on the rubber boot cover.

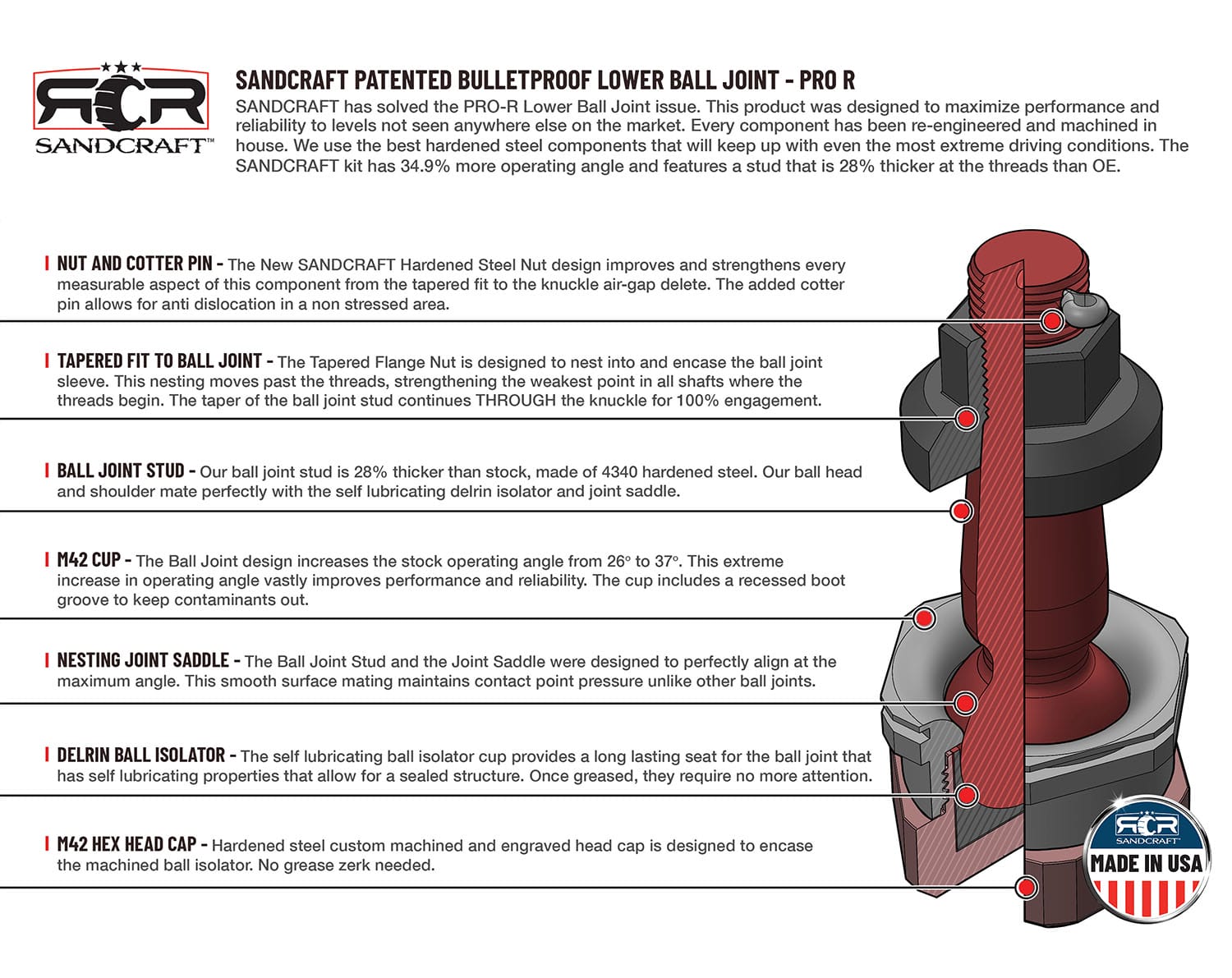

NUT AND COTTER PIN – The New SANDCRAFT Hardened Steel Nut design improves and strengthens every measurable aspect of this component from the tapered fit to the knuckle air-gap delete. The added cotter pin allows for anti dislocation in a non stressed area.

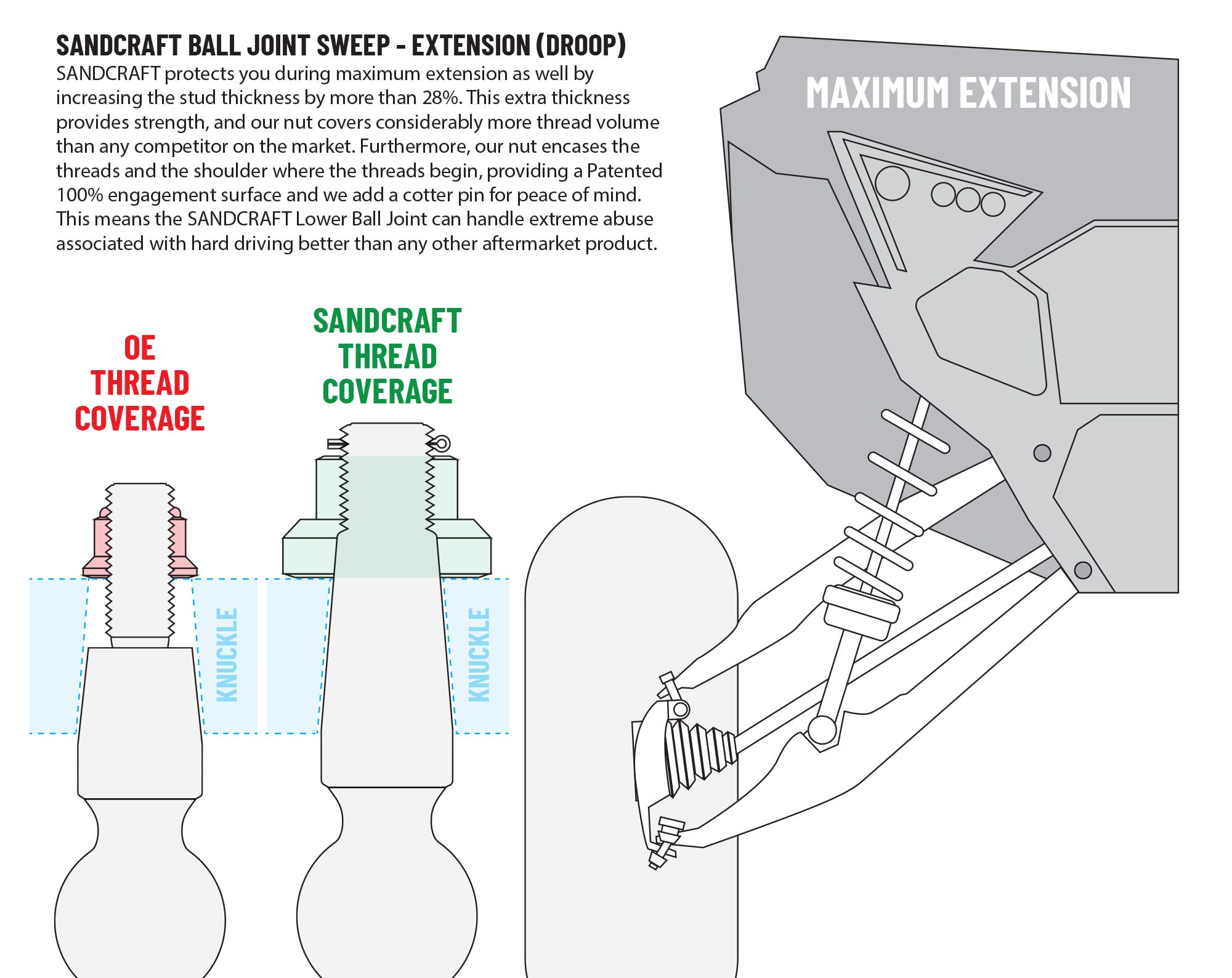

TAPERED FIT TO BALL JOINT – The Tapered Flange Nut is designed to nest into and encase the ball joint sleeve. This nesting moves past the threads, strengthening the weakest point in all shafts where the threads begin. The taper of the ball joint stud continues THROUGH the knuckle for 100% engagement.

BALL JOINT STUD – Our ball joint stud is 28% thicker than stock, made of hardened steel. Our ball head and shoulder mate perfectly with the Delrin isolator and joint saddle.

M42 CUP – The Ball Joint design increases the stock operating angle from 26 degrees to 37 degrees. This extreme increase in operating angle vastly improves performance and reliability. The cup includes a recessed boot groove to keep contaminants out.

NESTING JOINT SADDLE – The self lubricating ball isolator cup provides a long lasting seat for the ball joint that has self lubricating properties that allow for a sealed structure. Once greased, they require no more attention.

DELRIN BALL ISOLATOR – The self lubricating ball isolator cup provides a long lasting seat for the ball joint that never needs maintenance. Once greased, they require no more attention.

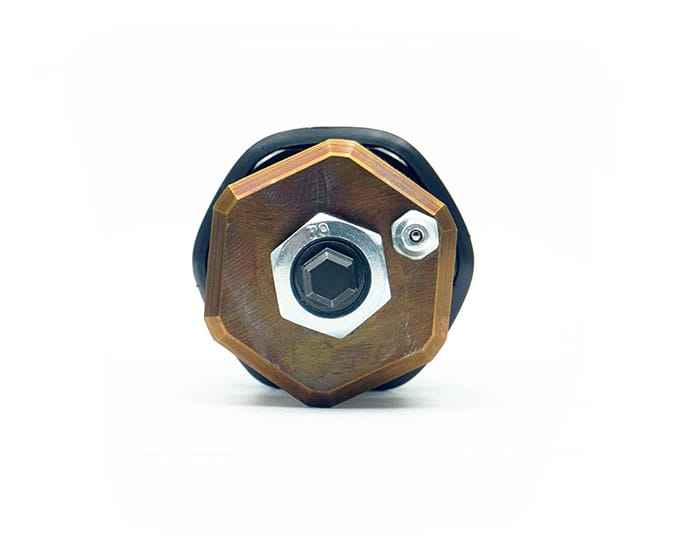

M42 HEX CAP – Hardened steel custom machined and engraved head cap is designed to encase the machined ball isolator. No grease zerk needed.

INSTALLATION INSTRUCTIONS – This product comes pre greased for life, do not service this part. Use the supplied thread locker and torque the nut to 100 ft-lbs. Install the cotter pin and re assemble.
