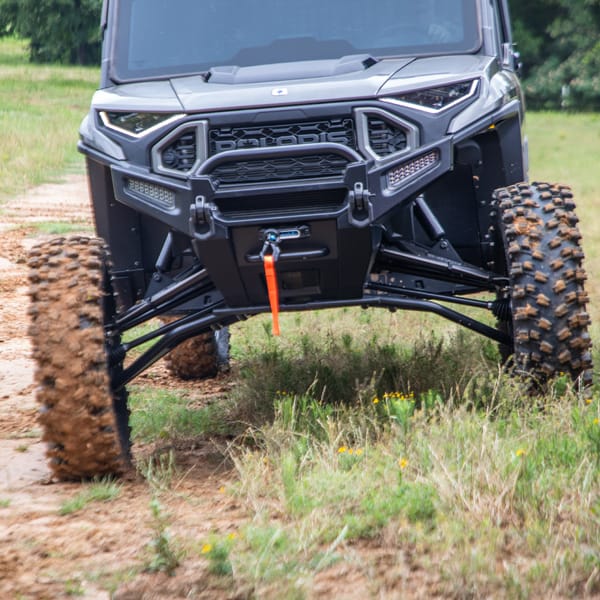

High Lifter Polaris Ranger XD 1500 Long Travel Kit

Long Travel Features:

• Increased Travel: Increase the maximum suspension travel from full droop to max compression to 17 inches, or 20 inches if you disconnect the sway bars.
• Wider Stance: This kit adds 4 inches to each side of your Ranger 1500, giving it an overall width of 73 inches.

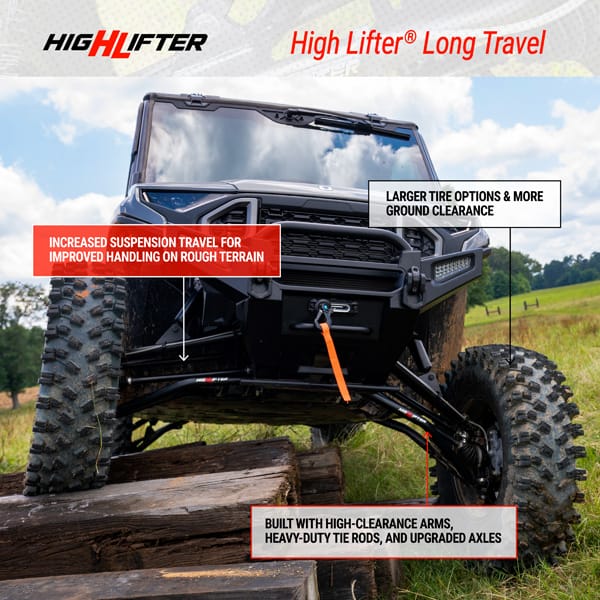

• More Clearance: The arched style of the lower control arms along with the 2 inch forward and rear rake give you increased ground and tire clearance.
• Durable Components: Built with 1.50 inch DOM tubing with heavy duty tie rods, as well as upgraded axles.
• Tuned Geometry: High Lifter’s long travel kits are designed to maintain or improve the factory geometry, leading to less bump steer and better camber/toe alignment.

Benefits of Ranger 1500 XD Long Travel:

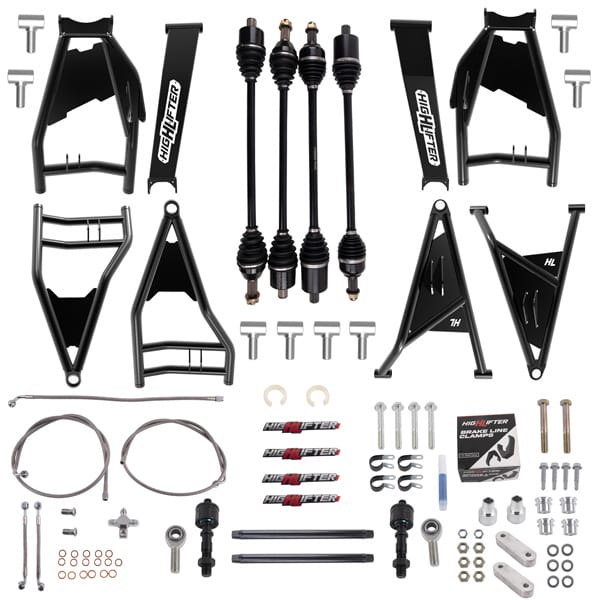

• Includes all components and hardware needed for installation.
• Adjustable camber in the front and rear.

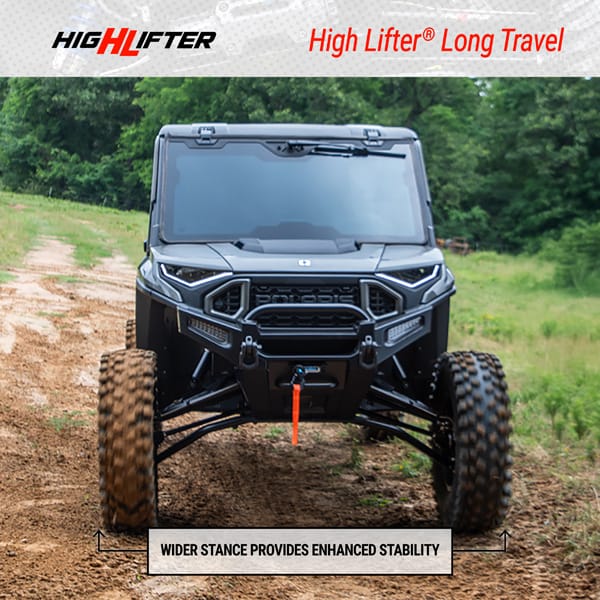

• Wider stance provides improved stability and decreased body roll.
• Gain the clearance to install up to 35 inch tires.
• Improved suspension travel offers a smoother ride especially at high speeds.
• Backed by High Lifter’s Limited Lifetime Warranty.

Why Buy the High Lifter Long Travel Kit?

• Improved Ride Quality: Provides more suspension travel and added ground clearance for a better ride. Enjoy superior stability and traction over long distances while climbing rocks or tackling difficult trails.
• Innovative Design: Heavy accessories no longer weigh you down! Multiple shock absorber locations allow you to set your shocks to different suspension travel ride heights.
• Built for Rugged Terrain: Hit any trail with the strength and confidence of superior suspension components.
• Limited Lifetime Warranty: Feel confident in your new Long Travel Kit with High Lifter’s impressive limited lifetime warranty.

Long Travel Suspension for Tough Terrain

Hit the trails with confidence with the High Lifter Long Travel Suspension Kit. Designed for fast riding in dunes, traction over rocks and on complicated trails, this long travel kit delivers more suspension travel and front tire clearance. Longer wheel travel and added ground clearance improve traction, balance and stability for softer landings and better ride quality, no matter how long or hard your ride.

Innovative Design

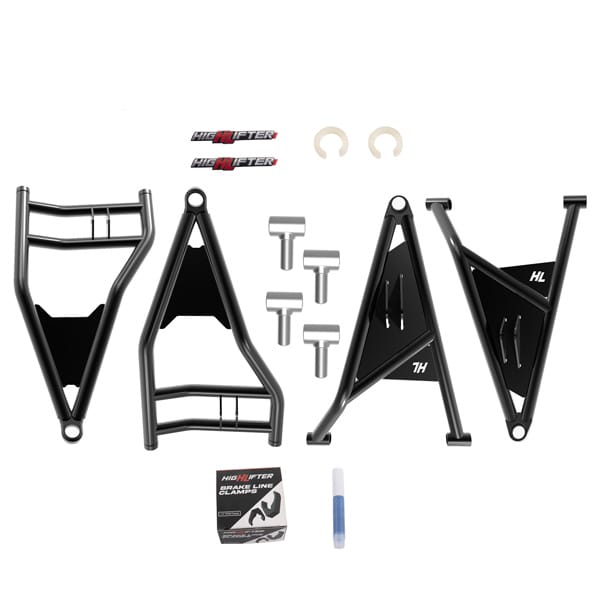

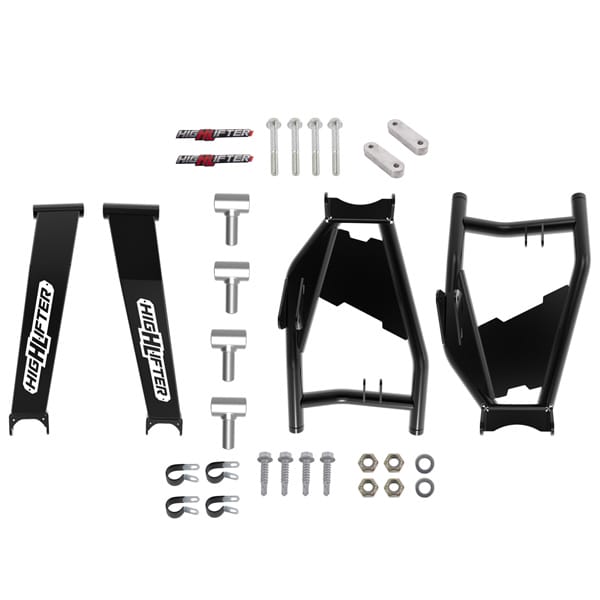

Geared to extreme riders, this tough suspension kit features heavy-duty, adjustable control arms built from 1-1/2”, .120” wall DOM tubing. Heat-treated collars with massive one-inch threads offer over three degrees of camber adjustment in each direction. Engineered to have multiple shock absorber locations to allow the shocks to have different ride heights. This allows for an additional lift to the front or rear depending on how you ride and what accessories are installed.

Durable Suspension Components

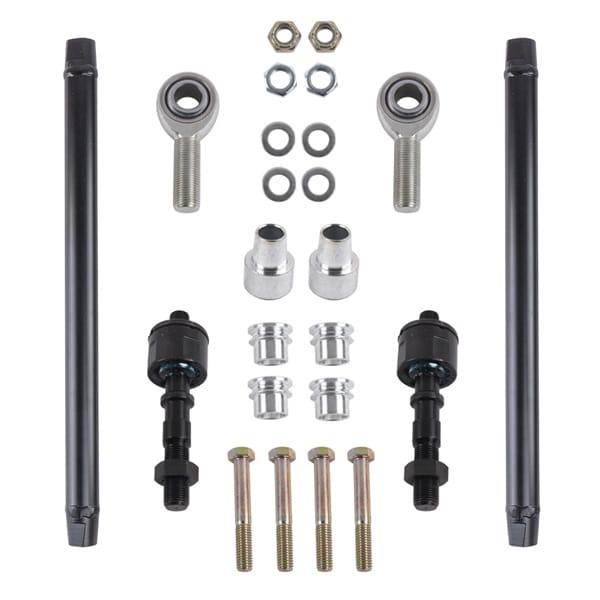

Axle components are made from 4340 Chromoly steel for exceptional durability and dual heat treated for improved toughness. Oversized CV joints and shafts further strengthen the double-plunging axles. UV-protected brake lines are made in the USA from PTFE Teflon-lined stainless steel braided hose. They have a clear, protective PVC cover and feature triple chrome plated end fittings for superior corrosion resistance. All heavy-duty tie rods come equipped with 3-piece precision heim joints made from heat-treated 4130 chromoly steel. Powder-coated and oversized for strength, they stand up to extreme conditions. Built tough, this long travel kit delivers superior strength, wear resistance and longevity.

Versatility for Off-Road Adventures

Each kit comes with 4 Outlaw DHT XL axles

Outlaw DHT XL Axle:

• Dual heat treatments on the housings to improve toughness against shock loads without compromising bearing surfaces and long-term life
• Oversized CV joint housings to increase strength
• Sliding bars on both ends for increased angle capability
• Housings and bars made from 4340 Chromoly steel
• Puncture-resistant boots which are durable in high and low temperature climates
• Molybdenum disulfide, anti-oxidation, rustproof, and high-performance

The Outlaw DHT Axle exceeds OEM standards and has stand-out features not found in other after-market competitor axles such as puncture resistant boots crafted from premium-grade TPE (Thermoplastic Polyester Elastomer)

You Can Upgrade To Tuner Axles:

What are the differences between the High Lifter Axle and the Turner Axle options? The High Lifter DHT axle options are constructed using dual heat-treated chromoly components, whereas the Turner Axles are made from 4340 or 300M chromoly components. The Turner options are usually more expensive but they are ideal for extreme mud, racing, and high-horsepower applications.
