MB Quart Waterproof Touchscreen Offroad Head Unit
The All New MB Quart Waterproof Offroad Head Unit Is Touch Screen, With Accessory Control Options And Car Play Hook Ups. Take Your UTV Audio To Another Level

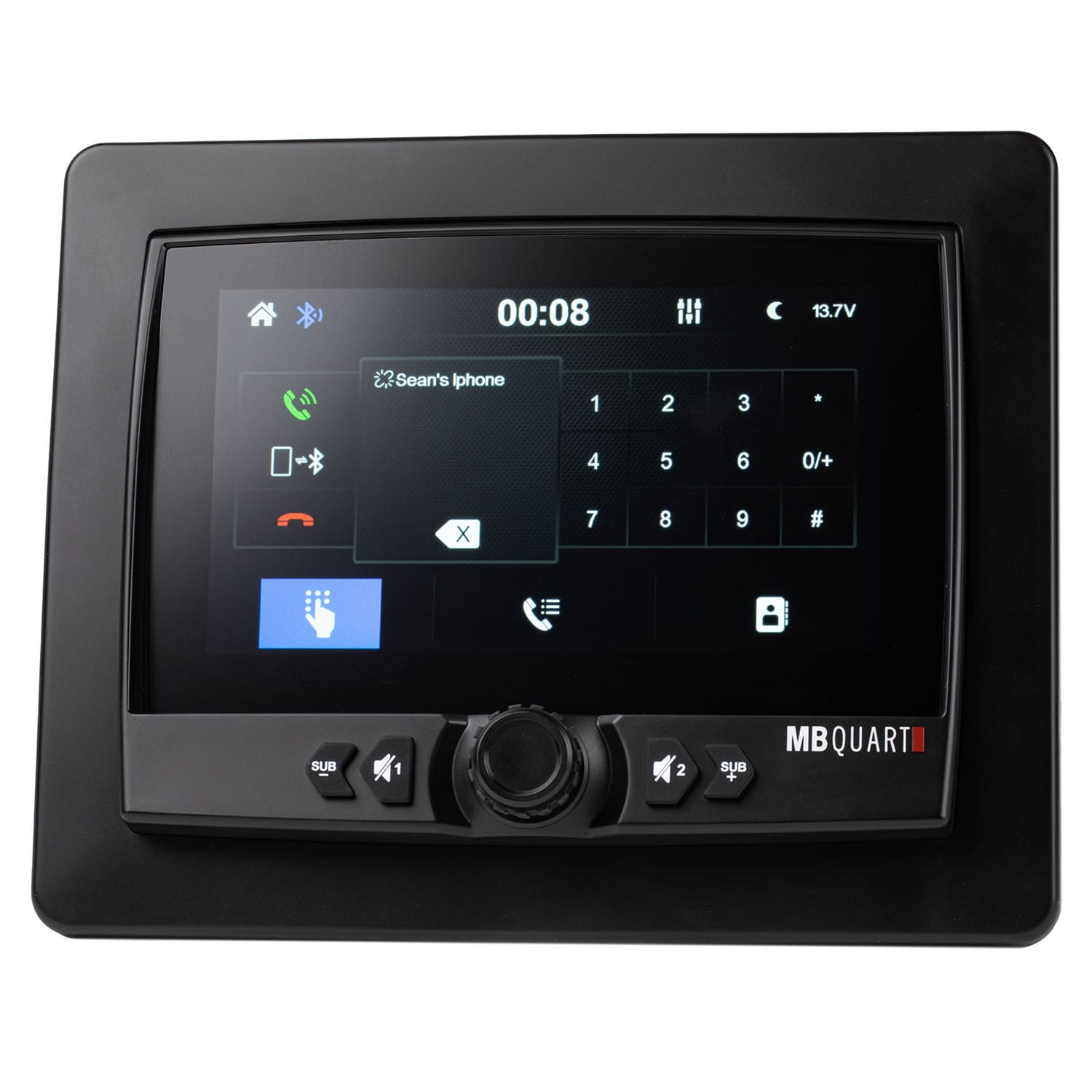

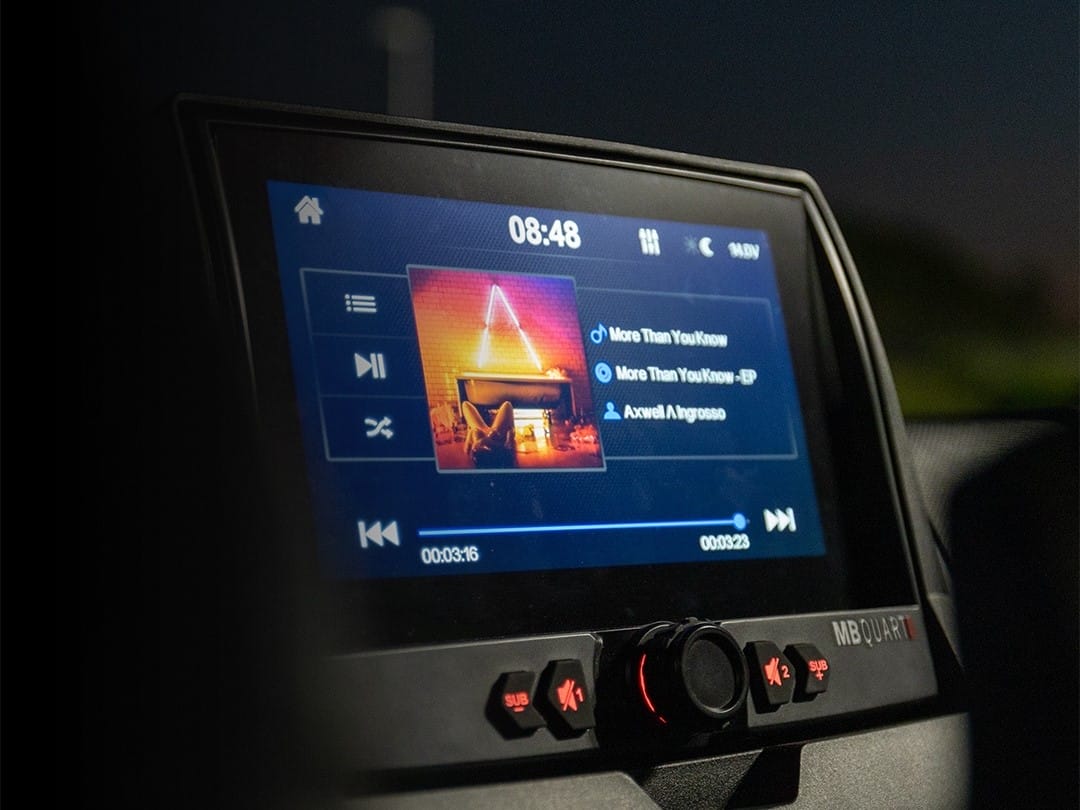

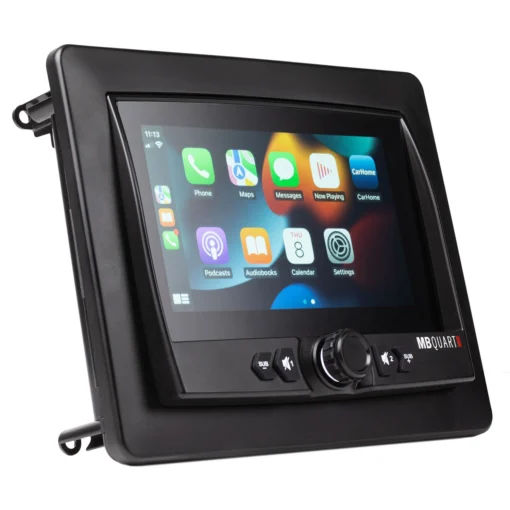

MB Quart GMR7V1 7-Inch waterproof touchscreen source unit features Apple® CarPlay®, which brings more control and integration with your iPhone.

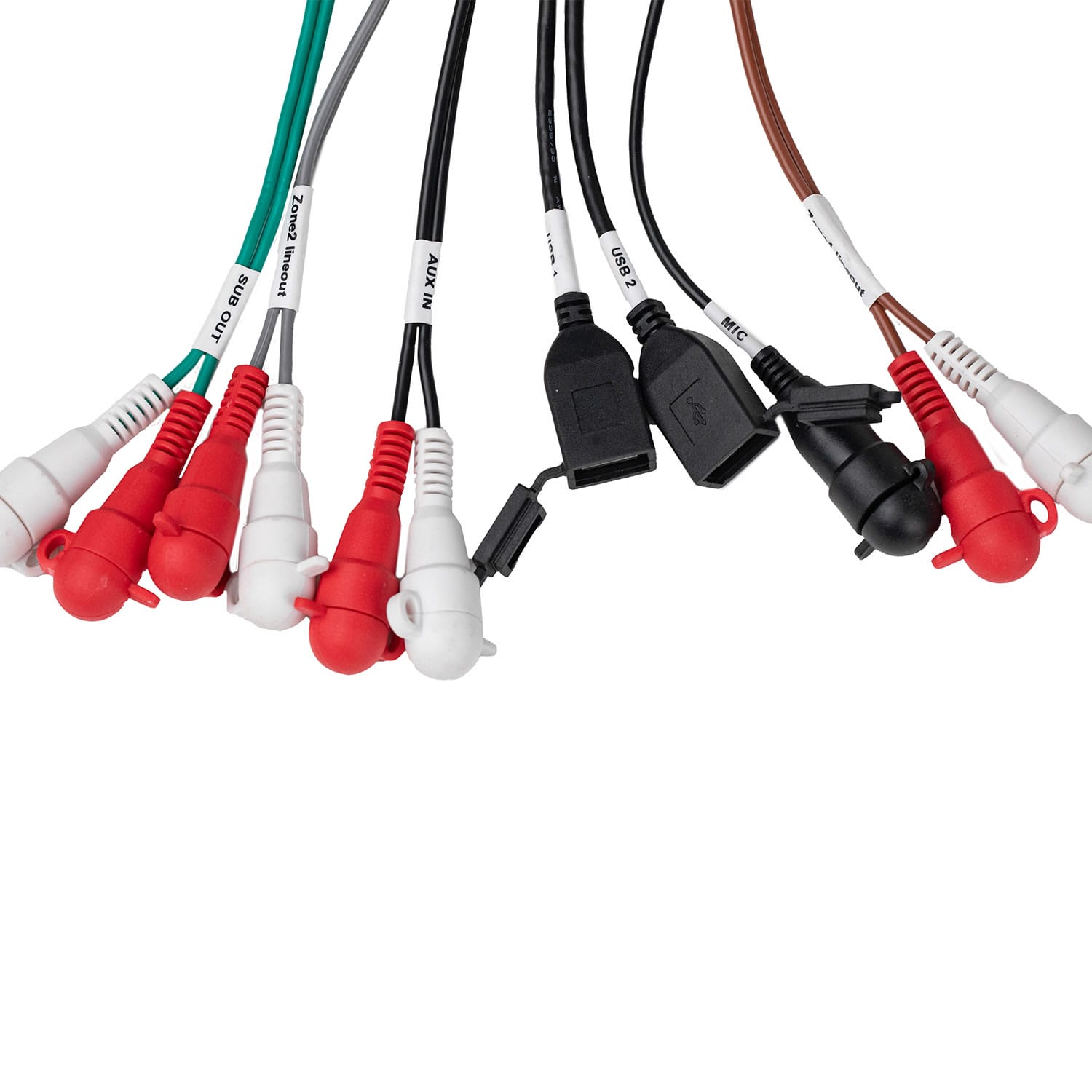

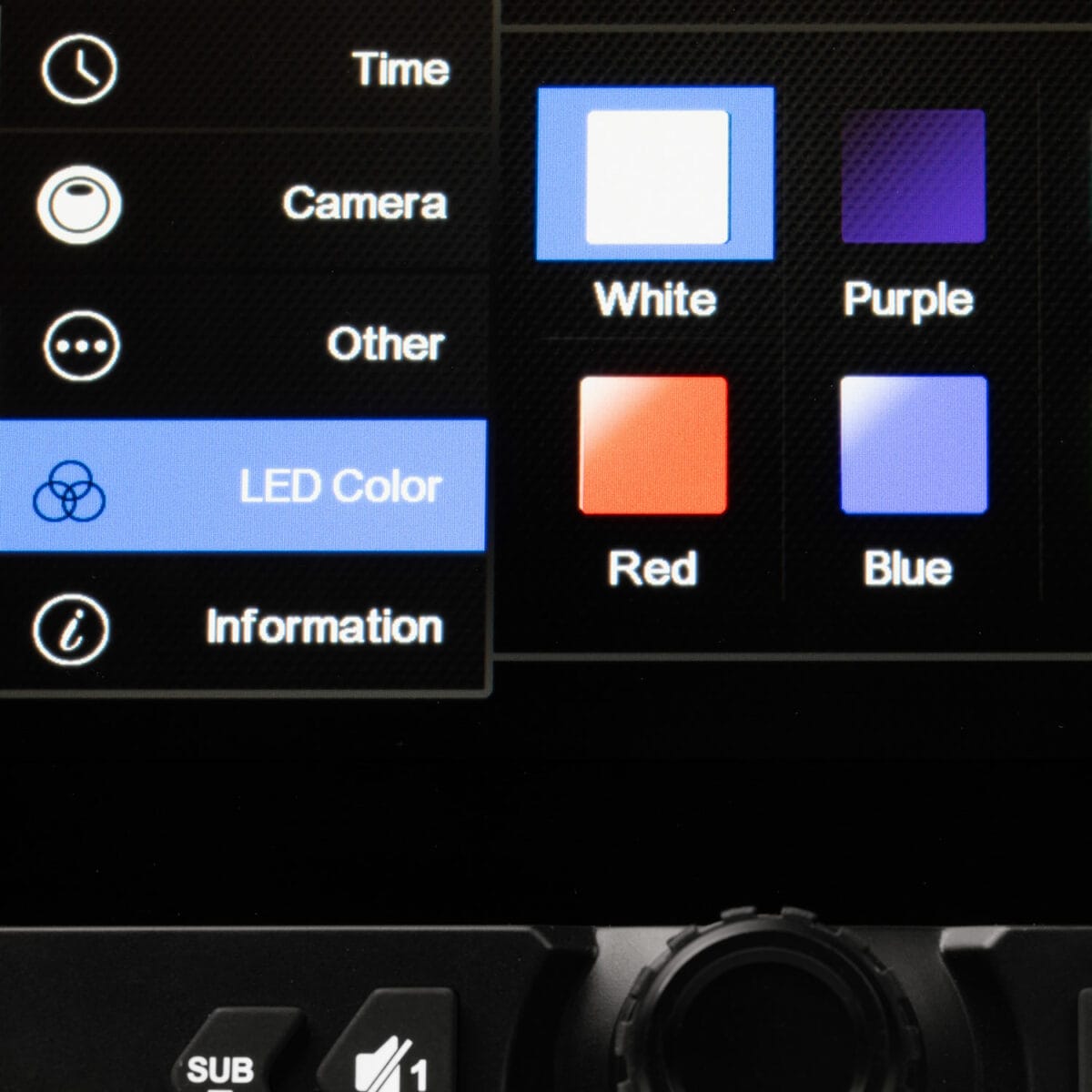

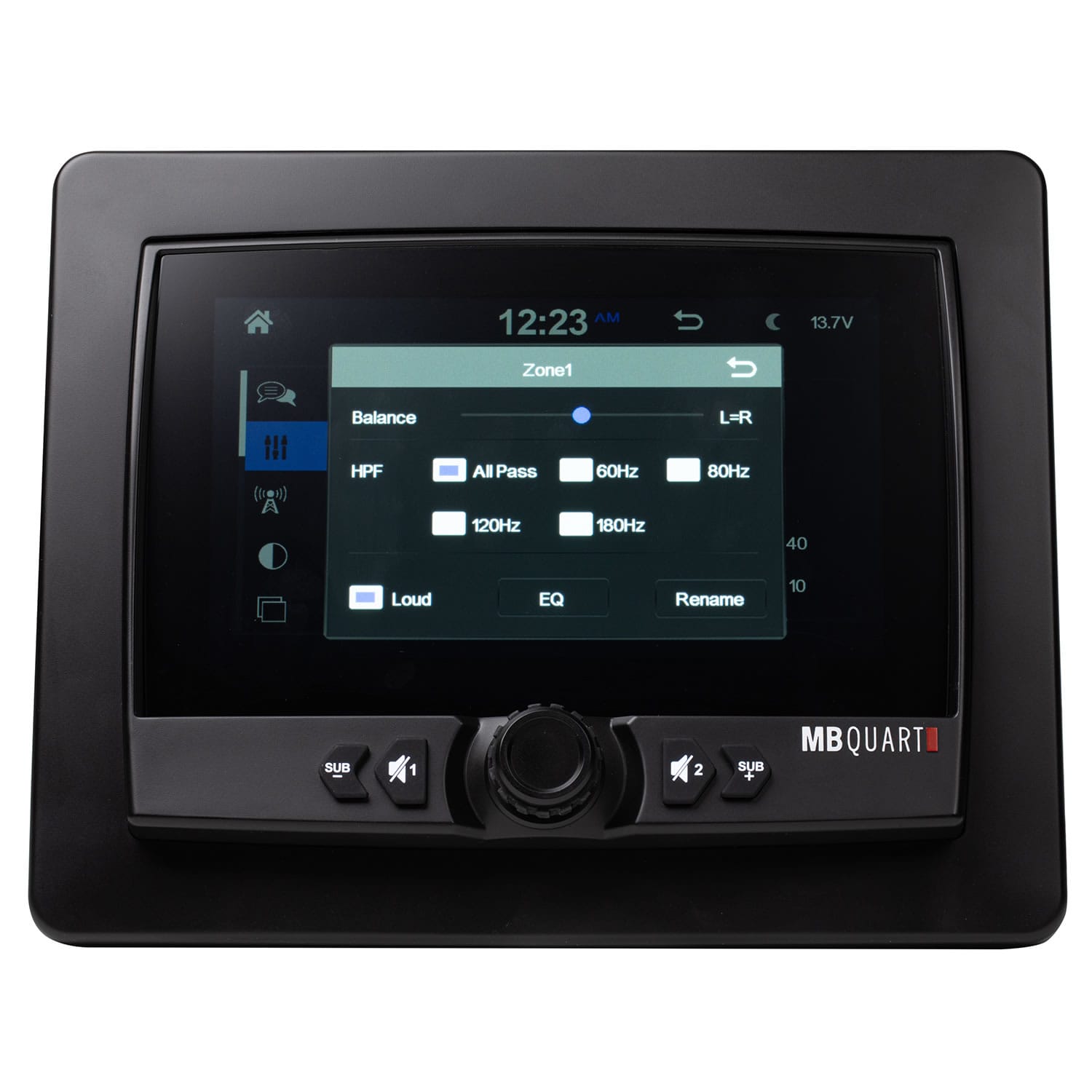

This unit also includes a built-in auxiliary switching system, RGB lighting controller, AM/FM/WB/Bluetooth, dual zone audio control, dual video inputs, one video output, two USB inputs, one aux input, and pre-amp outputs.
Features:

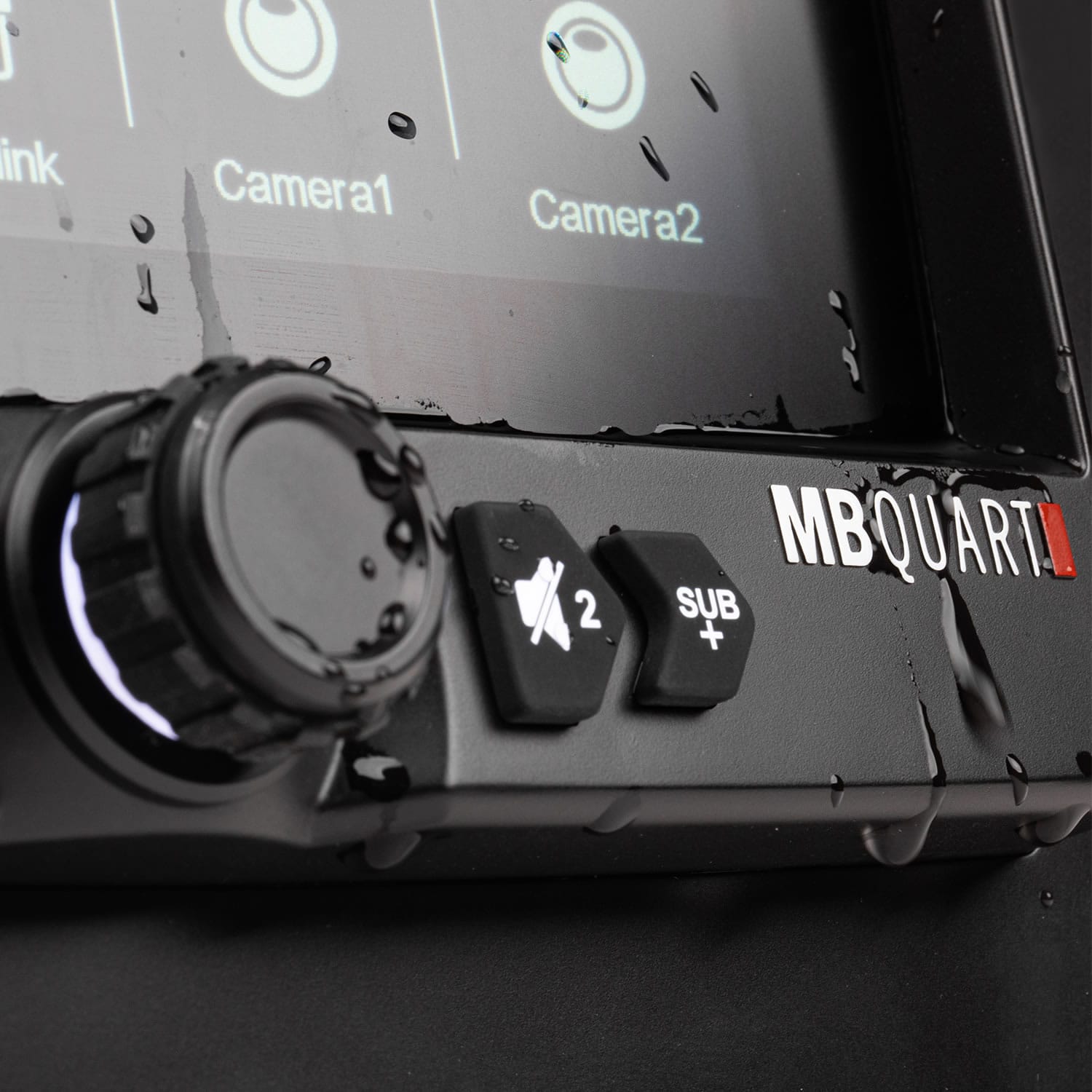

- Meets or exceeds IPX67 requirments for water and dust proofing. LIFE SHIELD: Designed and tested against the elements. Waterproof, dustproof, snowproof or shockproof. Built to handle the outdoors
- Features Apple® CarPlay®, which brings more control and integration with your iPhone
- Source Type: AM/FM/WB/Bluetooth allows all access to radio stations and content from bluetooth enabled devices
- Input Types: Bluetooth, RCA, USB
- Apple® Control: Wired Apple® CarPlay®
- Android Auto: Wired Screen Share
- Control Buttons: Unit has a master knob, zone mute buttons, sub level buttons, and a full touchscreen 7-inch display
- Bluetooth Connect: Bluetooth Connect allows your phone or other bluetooth enabled device to be quickly paired to the source unit without a complicated pairing process
- Weather Band: Includes built-in weather band radio. NOAA NWR Weather Band Frequency

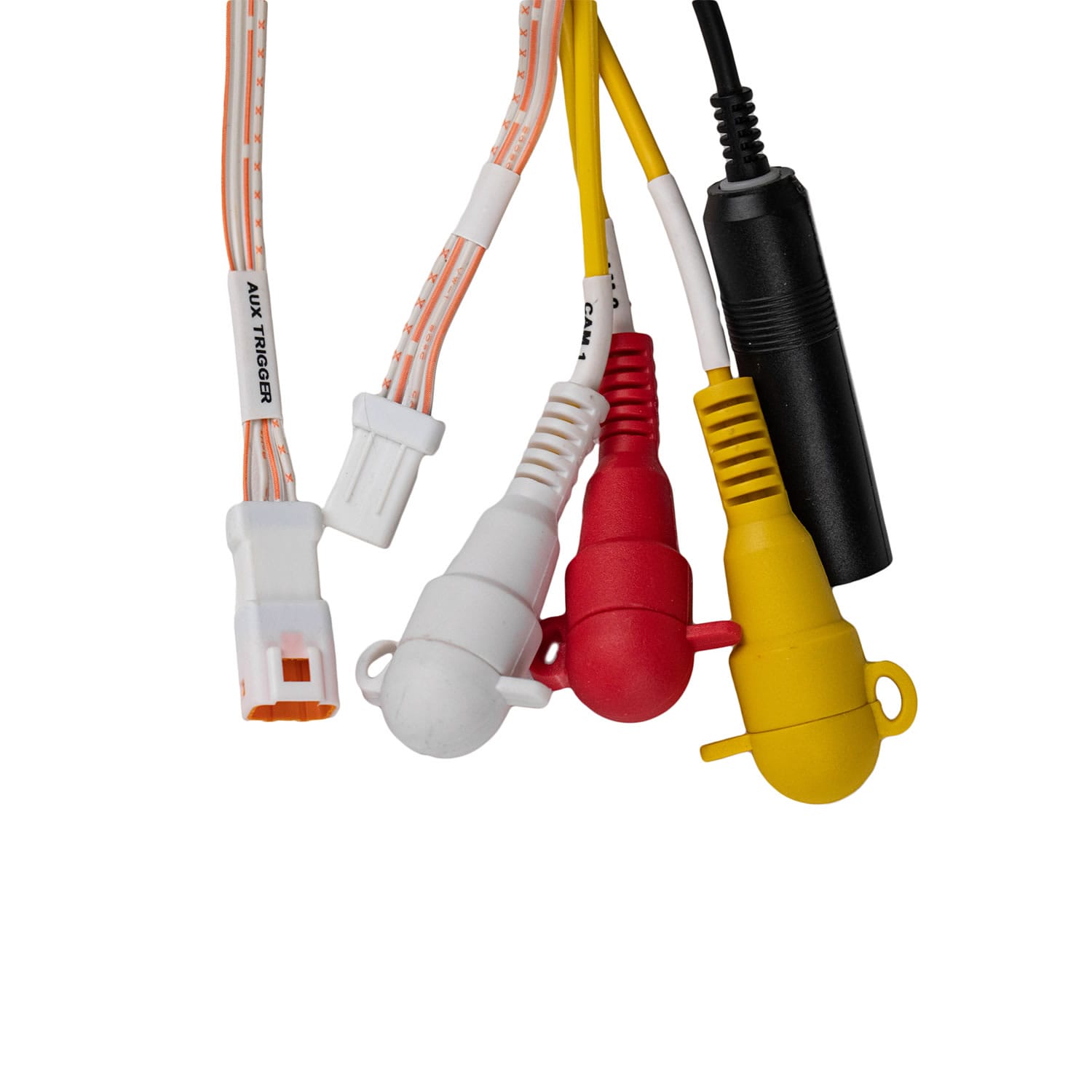

- Video Input: Two video camera inputs via a RCA style connector (no audio). One video output via a RCA style connector (no audio)
- Main Connector Type: MOLEX connector for simple installation and removal of unit when needed
- Media Screen: 7″ high-contrast touchscreen display
Add Switch Relay Controler
You Can Add The Relay Switch Controller To This Head Unit So You Can Control Other Accessories From The Touch Screen:

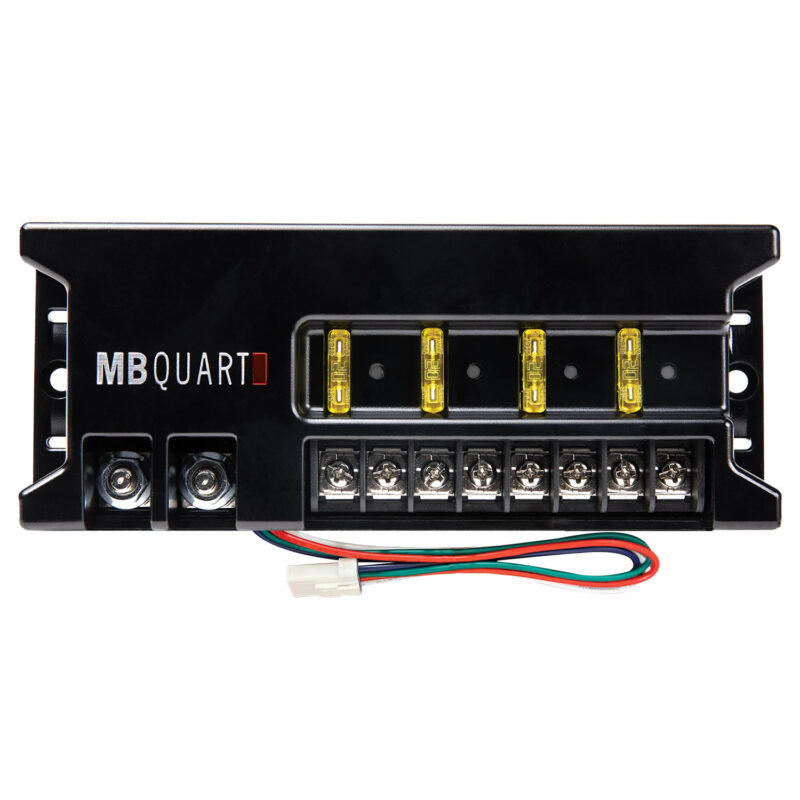

This relay bank features four 20-amp (max) circuits that are plug-and-play and controlled by the GMR7V1 Source Unit . This allows users to easily add, wire, and control any switchable 12V accessory in their vehicle:
Four 12V circuits – 80A(max) total / 20A(max) per circuit
Size: 6.875″ x 2.75″ x 1.25″
Has a simple three-wire connection. Connect the relay bank to the GMR7V1 (sold separately) via the male JST connector to the female JST connector on the GMR7V1 labeled ‘AUX TRIGGER’. Provide 12V power/ground to the GMR-RB4 via a 8 AWG wire with an 80A fuse on the 12V+ wire.
Adding 12V accessories to each 20A (max) circuit is done via a simple 12V power and ground connection.
Quickly and easily know which fuse is blown via the glowing LED indicator that will light as long as a load is still connected to the circuit.
