KFI Products Snow Plow Accessories And Parts

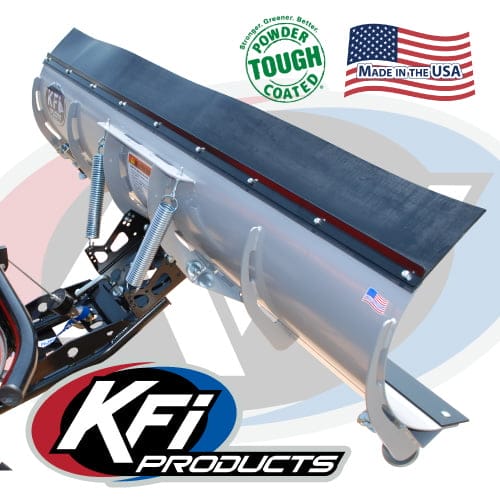

Need KFI Snow Plow Parts And Accessories, From Blade Ends, Rubber Flaps, Leveling Kits And So Much More. We Are The KFI Headquarters.

We Have Listed All The Options For Add Ons And Accessories Needed For Your Plows.

These Are All Listed Individually, If you need multple quantities of Items adjust the quantity while checking out.

If you need multple parts, add each one to cart seperatly then add another one.

Many Install Guides And Overviews In Guides/Install Tab Above

Shop All Snow Plows More Here: KFI Products

Push Tube Extensions – Used To Allow The Plow To Fully Turn When Tracks and Tires Extend to far in front of the machine.

These Bolt Onto The KFI Push Tube To Extened It.

Track Extension – The Biggest Extension That Is Needed If Your Running Tracks On Your Machine. You can add this on if your adding a full plow setup or from here if needed to add on.

Mid Extension – Needed for larger tires or other heavy modifications.

Small Extension – Needed for larger tires or smaller modifications.

Kfi Products Snow Plow Parts And Accessories

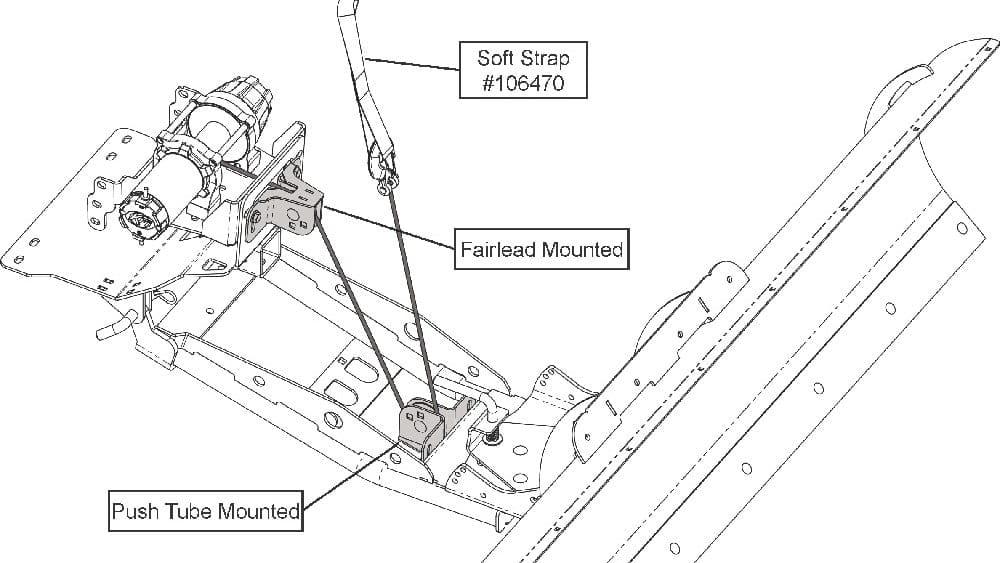

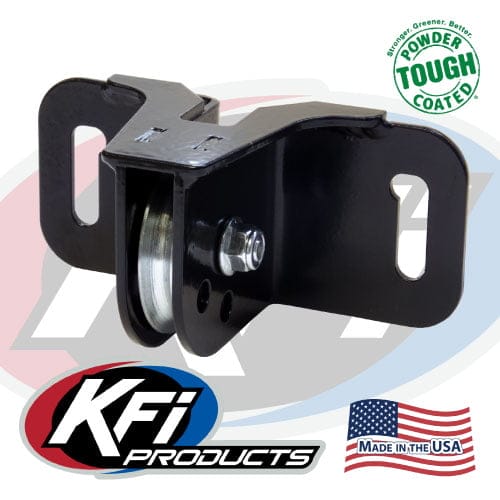

Pully Setup – These are used if your winch rope (steel or synthetic) is binding on your fairlead. The single pully can be mounted on the machine instead of the fairlead or mounted to push tube to adjust the angle that way.

Need To Choose Your Rope Type: Steel Or Synthetic

Need To Choose Your Winch Size: Wide Spool Or Standard.

Standard – Mounting Holes with a 4.875″ bolt up pattern
Wide Spool – Mounting Holes with a 6.6″ bolt up pattern

If Your Using Two (Machine Mounting And Tube Mounting) You Need To Order Quanity Of 2. Only The Standard Size Fits On The Push Tube So You Might Need To Order A Wide And Standard If You Have A Wide Spool Winch

Roller has a curved cable groove to help eliminate cable flattening, which leads to snapped cables during the plowing season.

Eliminates potential cable kink due to small roller contact and abrupt angle rolls.

Multiple roller positions for different applications and cable angles.

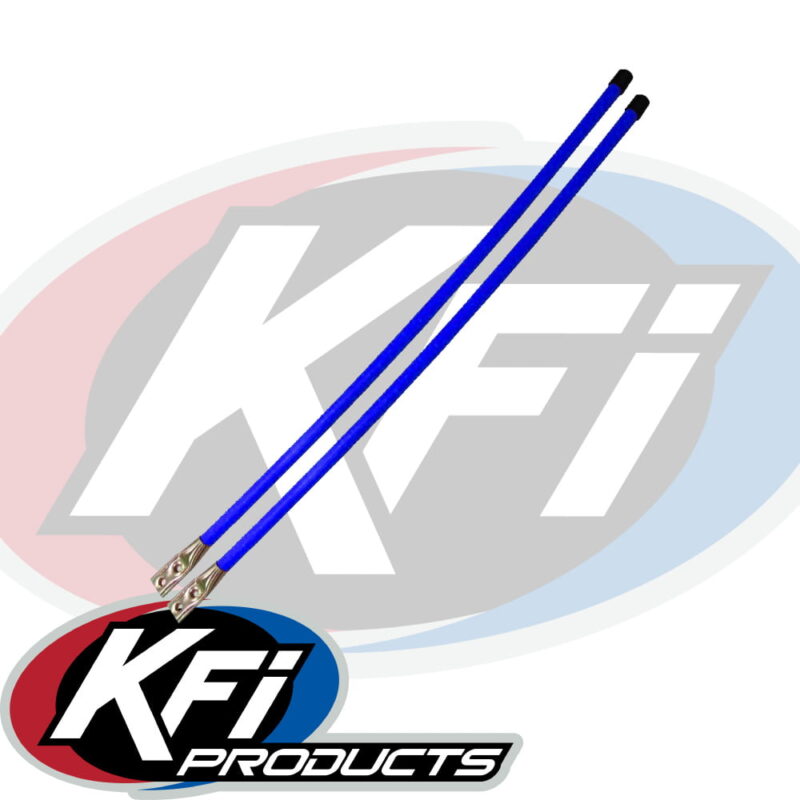

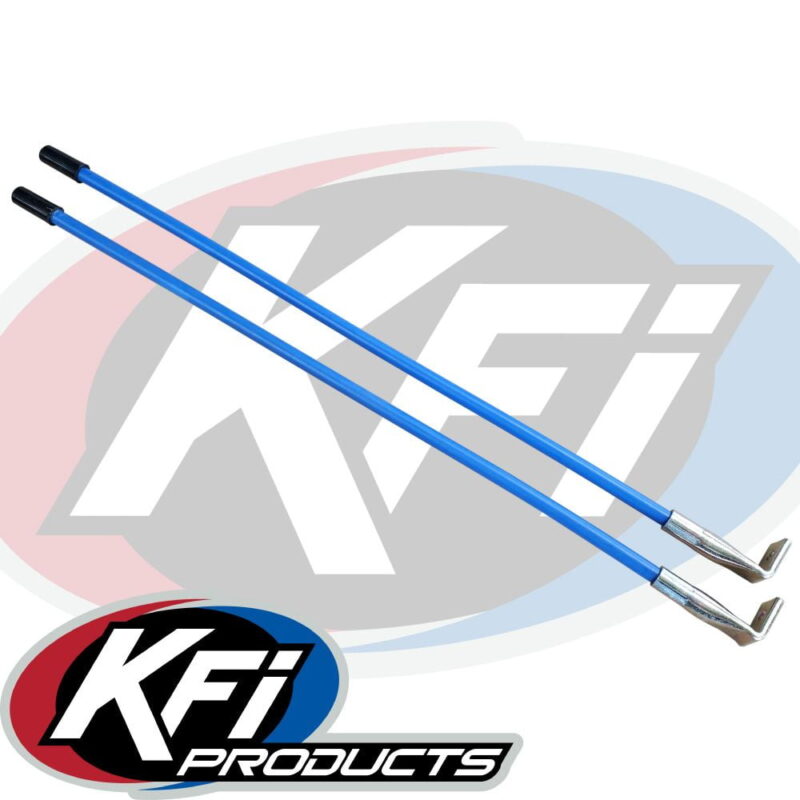

Increase your blade end visibility for added safety

Steel cable wrapped for durability

Bolts to the side/ends of your blade

Plow Markers with a steel 89 Degree angled base

Includes two markers

1/4″ Hardware Included

25.5 inches in length

.5 inches in diameter

Compatible with other brands – verify proper attachment method first

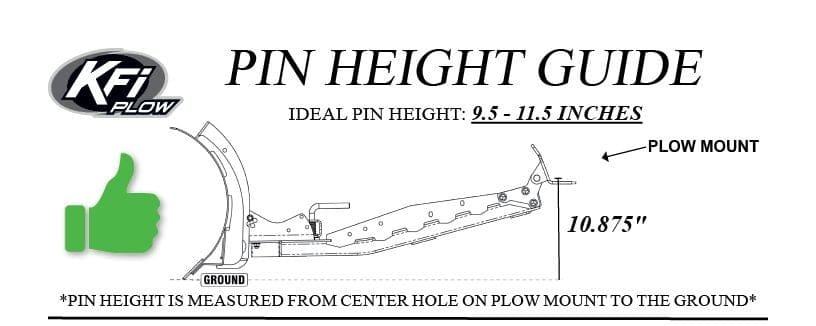

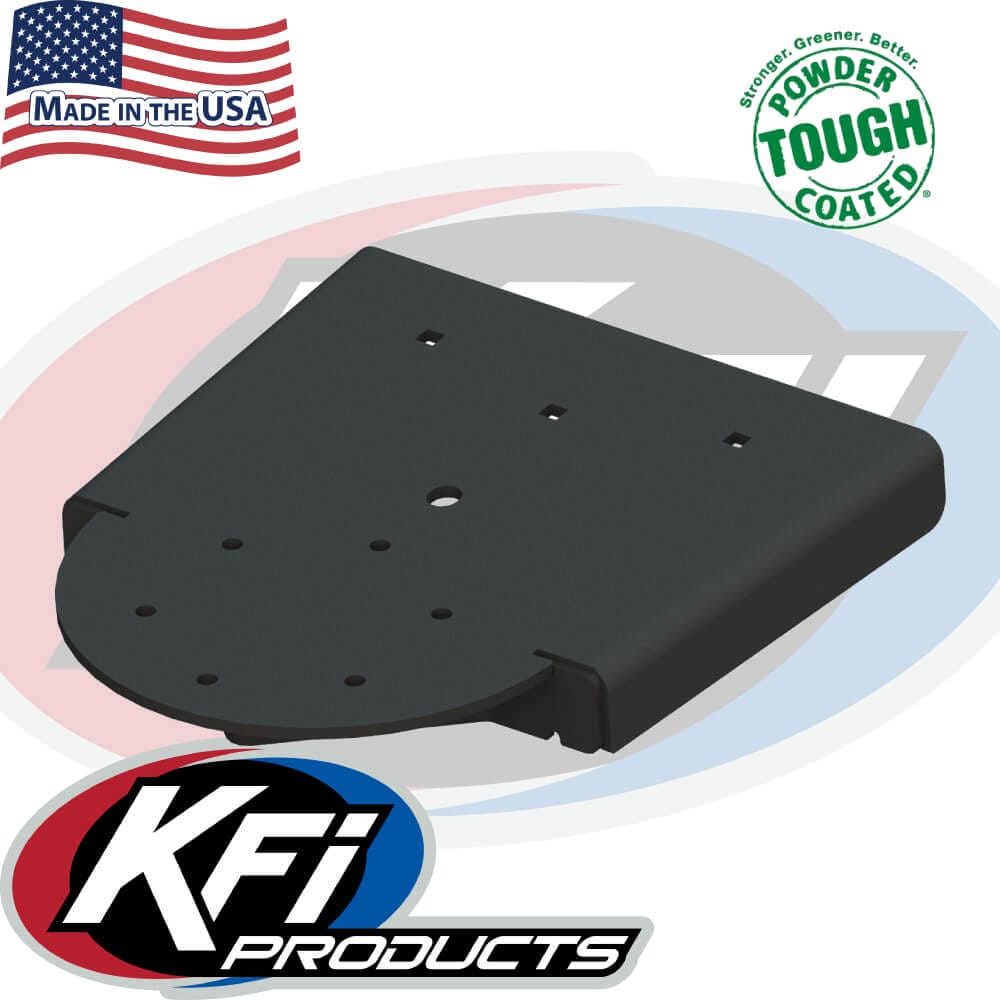

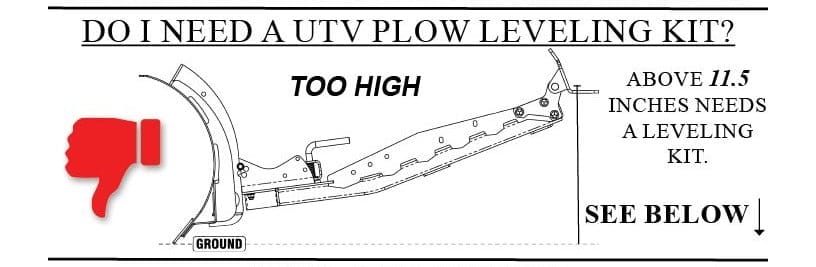

Plow Leveling Kits:

The KFI push tube leveling kits are made for machines that have small lifts, oversize tires, Tracks or Highlifter editions that cause the machine to have to high of ground clearance and need to lower the plow push tube to level it out.

This allows you to mount your push tube at the correct height so the blade is level.

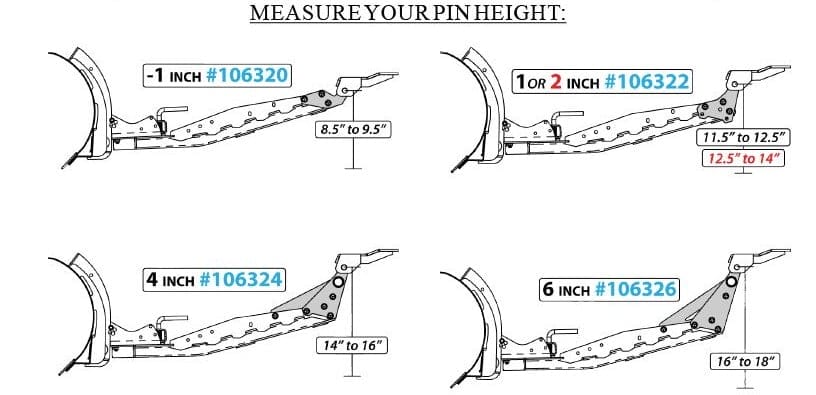

When Selecting Your Level Kit You always want to go do a size instead of rounding up. Example – You Need 3″ To Be Correct Height, You choose the 1-2 inch instead of the 4 (rounding down)

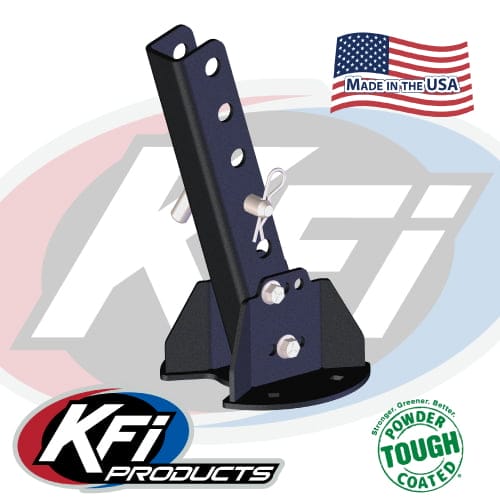

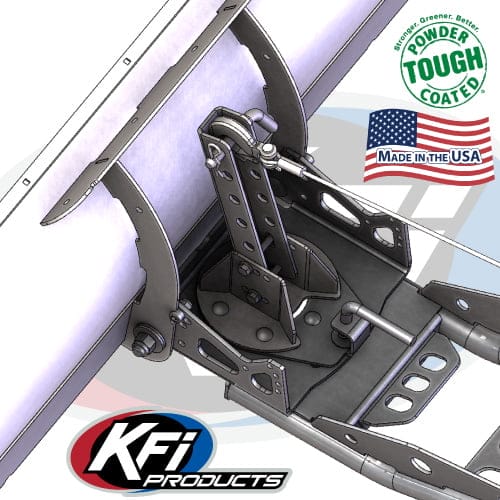

UTV Lift Mast – Primarily Used When The Winch Is Mounted Up High On A UTV. Most all other winch rope binding situations should be solved with a pully setup.

Repositions lift attach point to help reduce winch and cable strain from lower mounted winches and bad cable angles

Fully adjustable for multiple angles and attach points

Constructed of Heavy Duty 3/16” Grade 50 Steel

Shot Blasted before powder coating

Powder Coated TOUGH – Black

All Hardware included

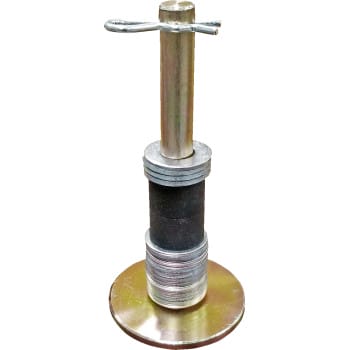

Blade Skid Foot Replacement:

Sold Single, Upgrade Quantity If Needing More Then 1

Replace your worn Plow Skids

For use with all KFI Plow Blades
1/2″ Grade 50 Steel Pad
Zinc Plated
.63″ Diameter
6.5″ Long

Compatible with Moose plows. Please confirm dimensions of your plow skid before ordering.

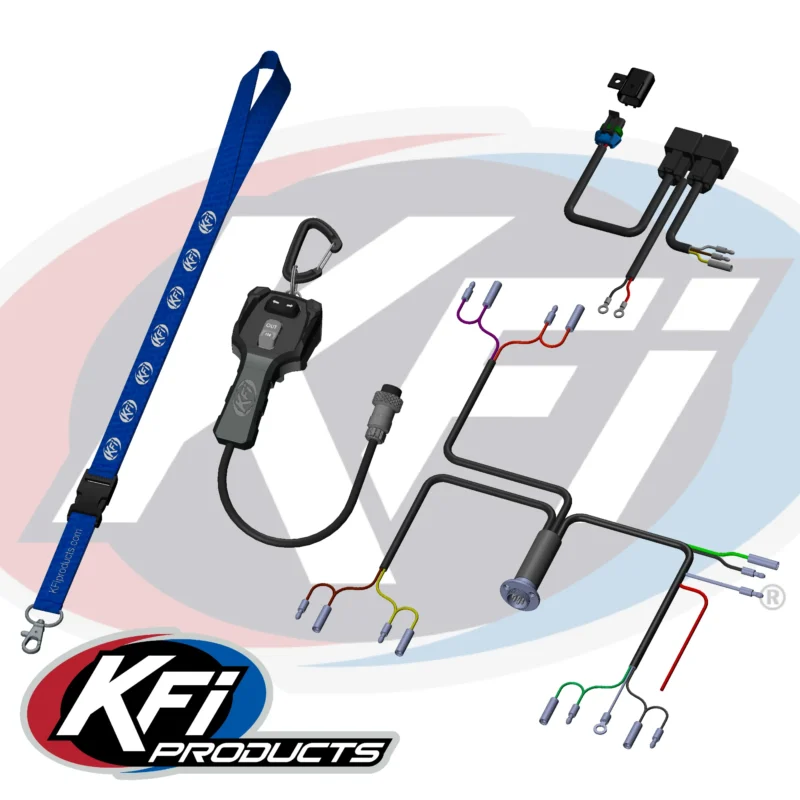

Plow Hand Controller:

Designed for use with KFI UTV Straight Blades with Single Hydraulic Actuator
ACT-HR, ACT-HR-HAR and ACT-HAR Included in Kit
Controls the Winch for Raising and Lowering the Plow System
Controls a Single Hydraulic Actuator for Angling a Straight Blade
Can Be Used In Conjunction With ACT-BLDRS-K
KFI Logo Backlit “Blue” When Plugged In
Threaded Connection to Eliminate Accidental Disconnection
Lanyard and Carabiner Included

Plow Blade End Cap Options

Kfi Yamaha Wolverine Rmax Snow Plow Package

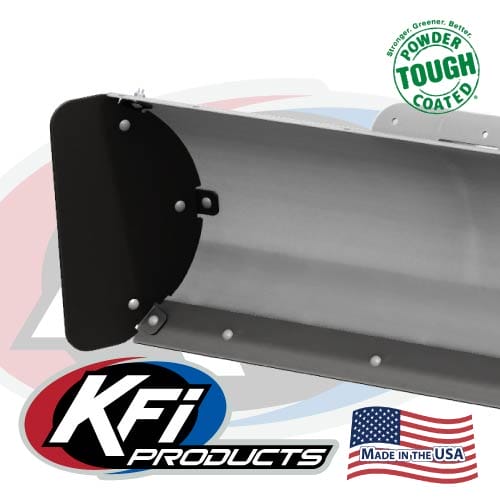

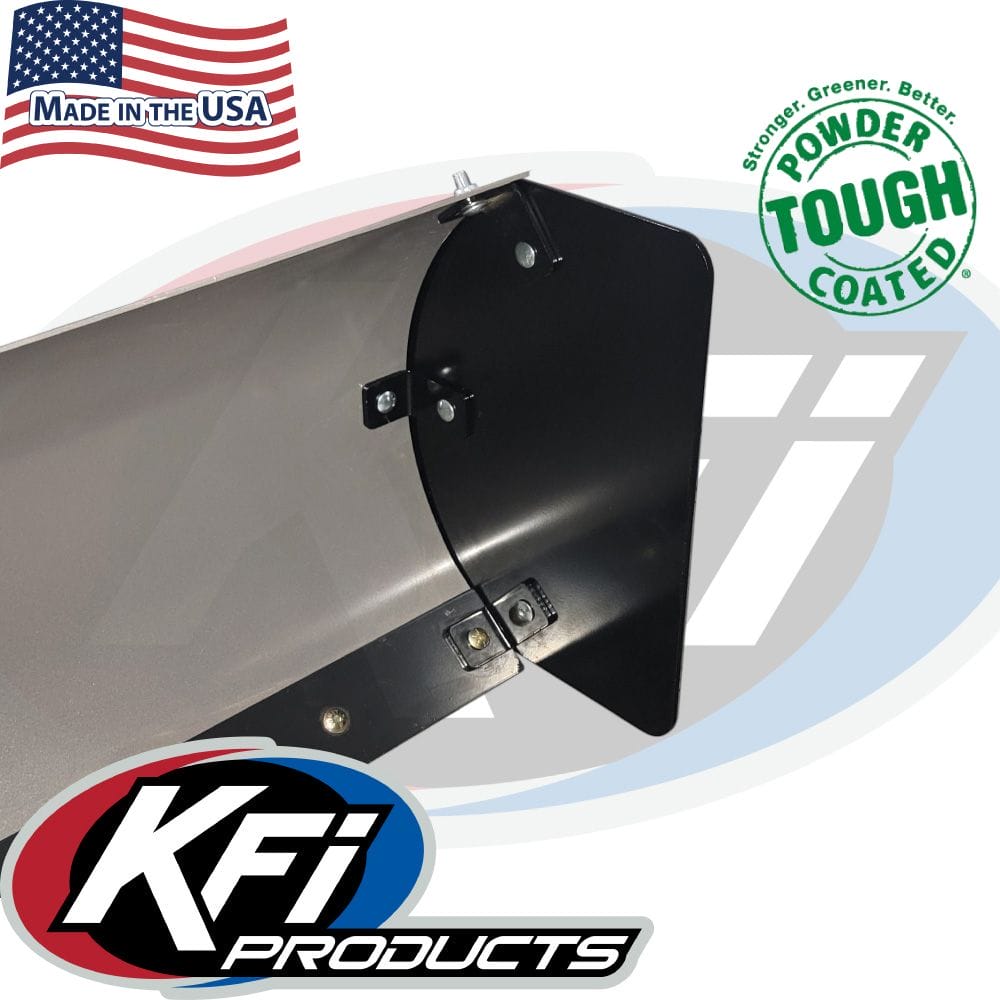

Blade Side Shield – Box End

Sold As A Single For Steel Blades (Fits Either Side)

3/16” Grade 50 Steel Powder Coated Black

Some Drilling Required

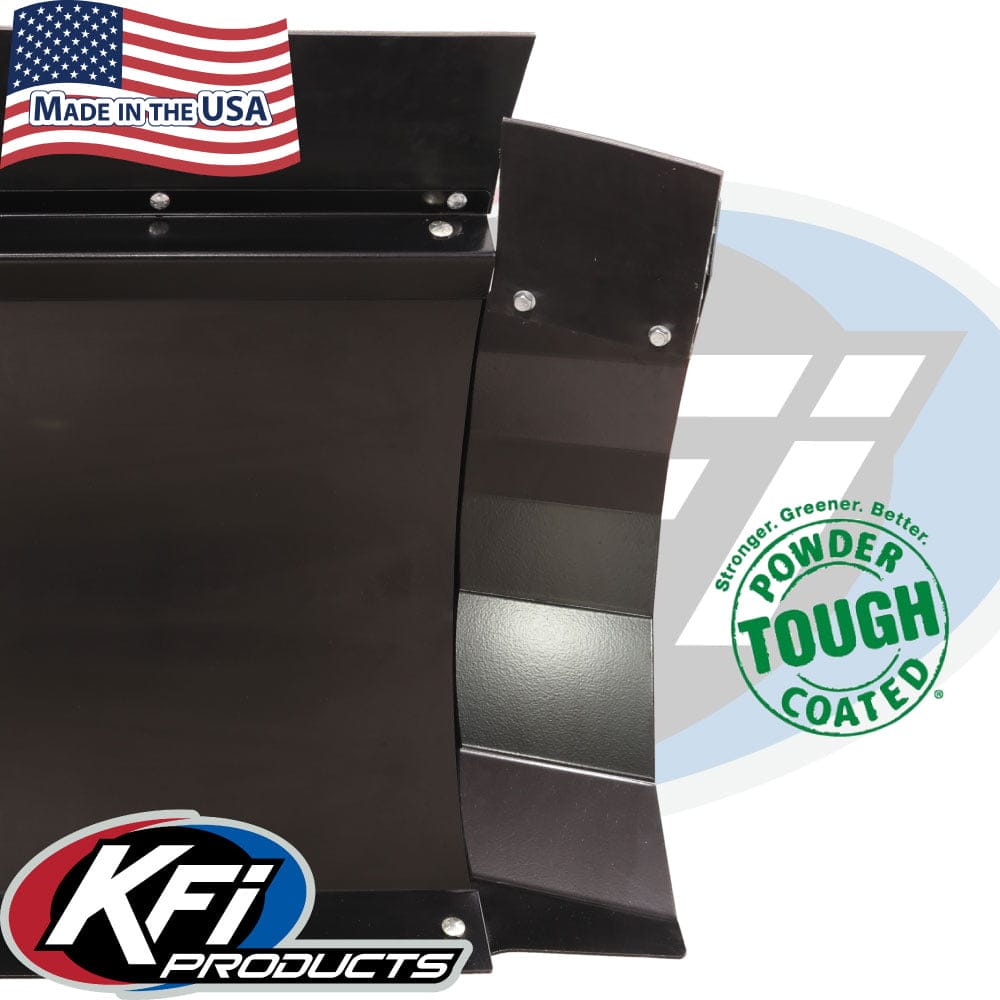

Blade Tapered Side Shield

Sold As A Single For Steel Blades (Fits Either Side)

3/16” Grade 50 Steel Powder Coated Black

Adds 2-1/4” Width to size of blade per Shield

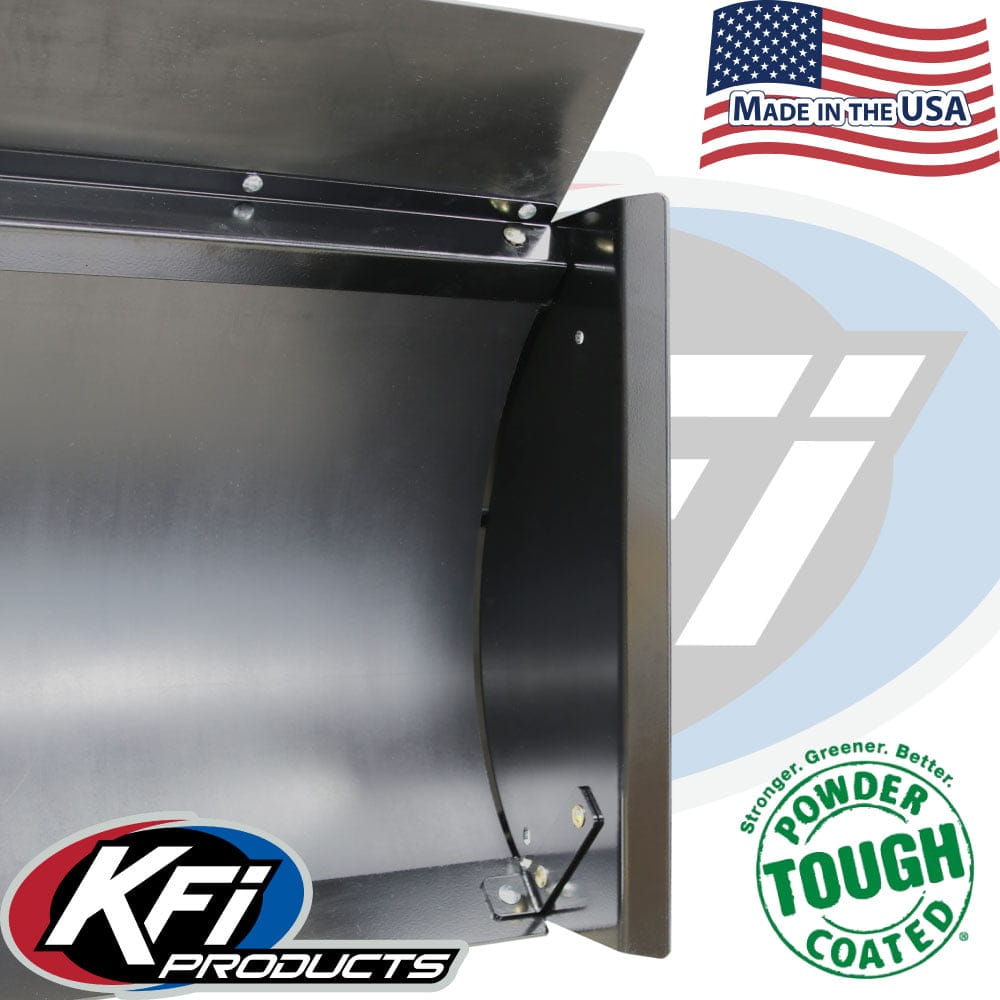

Blade Box Side Shield

Sold As A Single For Poly Blades (Fits Either Side)

3/16” Grade 50 Steel Powder Coated Black

Adds 2-1/4” Width to size of blade per Shield

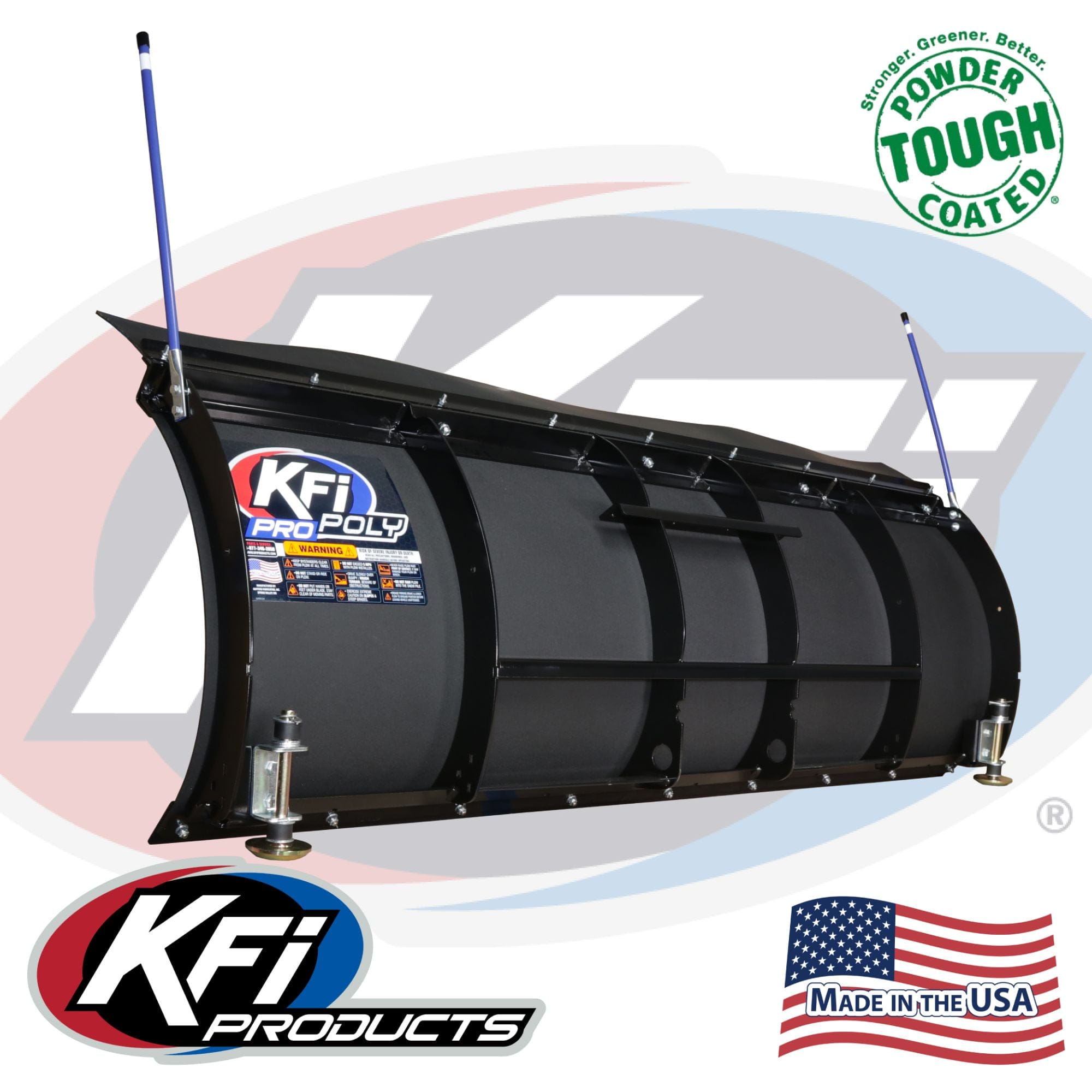

Blade Tapered Side Shield

Sold As A Single For Poly Blades (Driver And Passanger Side

3/16” Grade 50 Steel Powder Coated Black

Adds 5.6” Width to size of blade per Shield

Manuals

KFI Products Do Stand Behind There Products And American Off-Roads Does Support There Warranties And Follow KFI Warranties.

Kappers Fabricating, Inc. (KFI) warrants to the original purchaser that the product is free from defects in materials and workmanship for a period of six (6) months from the original date of purchase. We will repair or replace, at our discretion, parts found to be defective due to materials or workmanship. This warranty is subject to the following limitations and exclusions:

Commercial Use: The warranty period for any product used for commercial or rental is limited to ninety (90) days from the date of original purchase.

Limitations: This warranty applies only to products which have been properly assembled, adjusted, and operated in accordance with the instructions contained within this manual. This warranty does not apply to any product of Kappers Fabricating, Inc. that has been subject to alteration, misuse, abuse, improper assembly or installation, or shipping damage.

Exclusions: Excluded from this warranty are normal wear, normal adjustments, normal maintenance, finish and synthetic rope.

THIS WARRANTY DOES NOT APPLY TO ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WARRANTIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR ALL EXPRESSED WARRANTIES. THE WARRANTY SET FORTH ABOVE IS THE ONLY WARRANTY. THERE ARE NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

Some states do not allow the exclusion of implied warranties or the exclusion or limitation of liability for incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights. You may also have other rights that vary from state to state. KFI reserves the right to change product design without notice. For situations in which KFI has changed a product design, KFI shall have no obligation to upgrade or otherwise modify previously manufactured products. In the event you have a claim under this warranty, contact KFI’s Technical Service and KFI will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, KFI will, at its option, authorize evaluation, repair or replacement of the defective part or component at a KFI Service Center. KFI will provide you with a case number for warranty service. Please keep it for future reference. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered by this warranty.

All transportation charges, damage, or loss incurred during transportation of parts submitted for replacement or repair under this warranty shall be borne by the purchaser. Should you have any questions concerning this warranty, please contact us toll-free at 1-877-346-2050. The model number, serial number (If applicable), date of purchase, and the name of the authorized KFI dealer from whom you purchased the product will be needed before any warranty claim can be processed.

For warranty inquiries outside the U.S.A. and Canada, contact your local dealer/distributor

Once Your Recieve Your Product For Warranty Please Visit and Fill Out: KFI Warranty Registration

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.
