Fuel UTV Arc Rims
From: $274.99
EVERYTHING IS FREE SHIPPING
As Low As 0% Up To 24 Months, Visit Financing Options!
Vehicle Product Fitment Listed Below

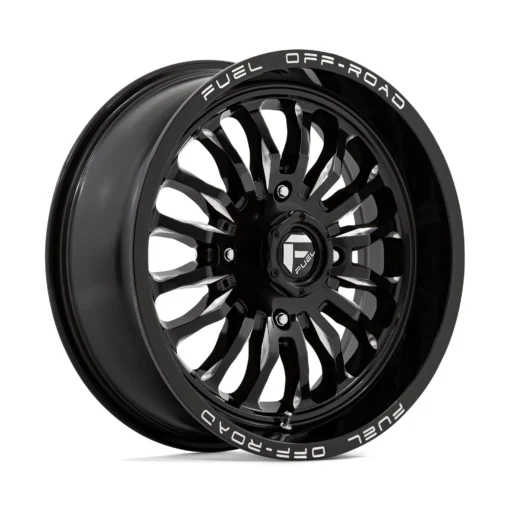

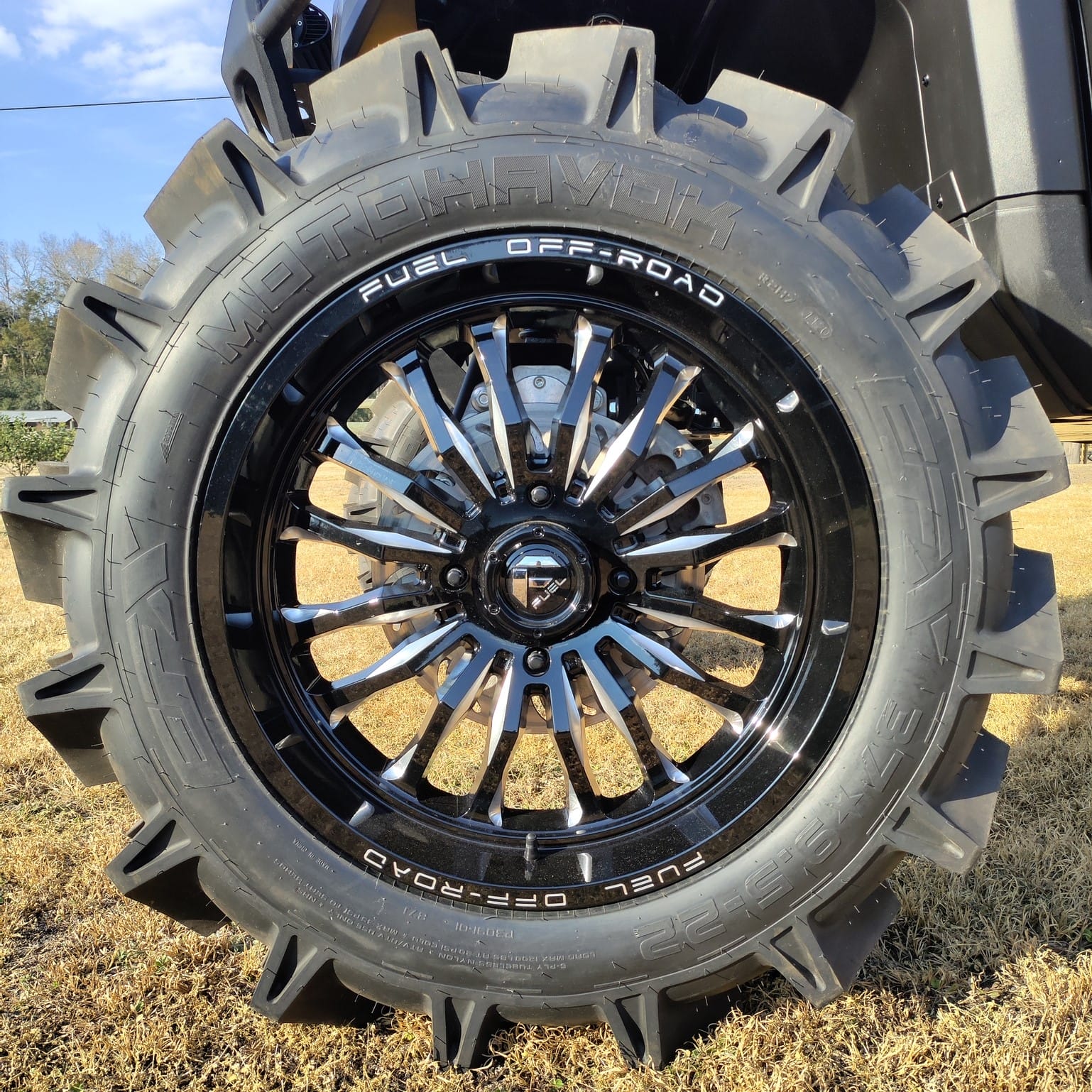

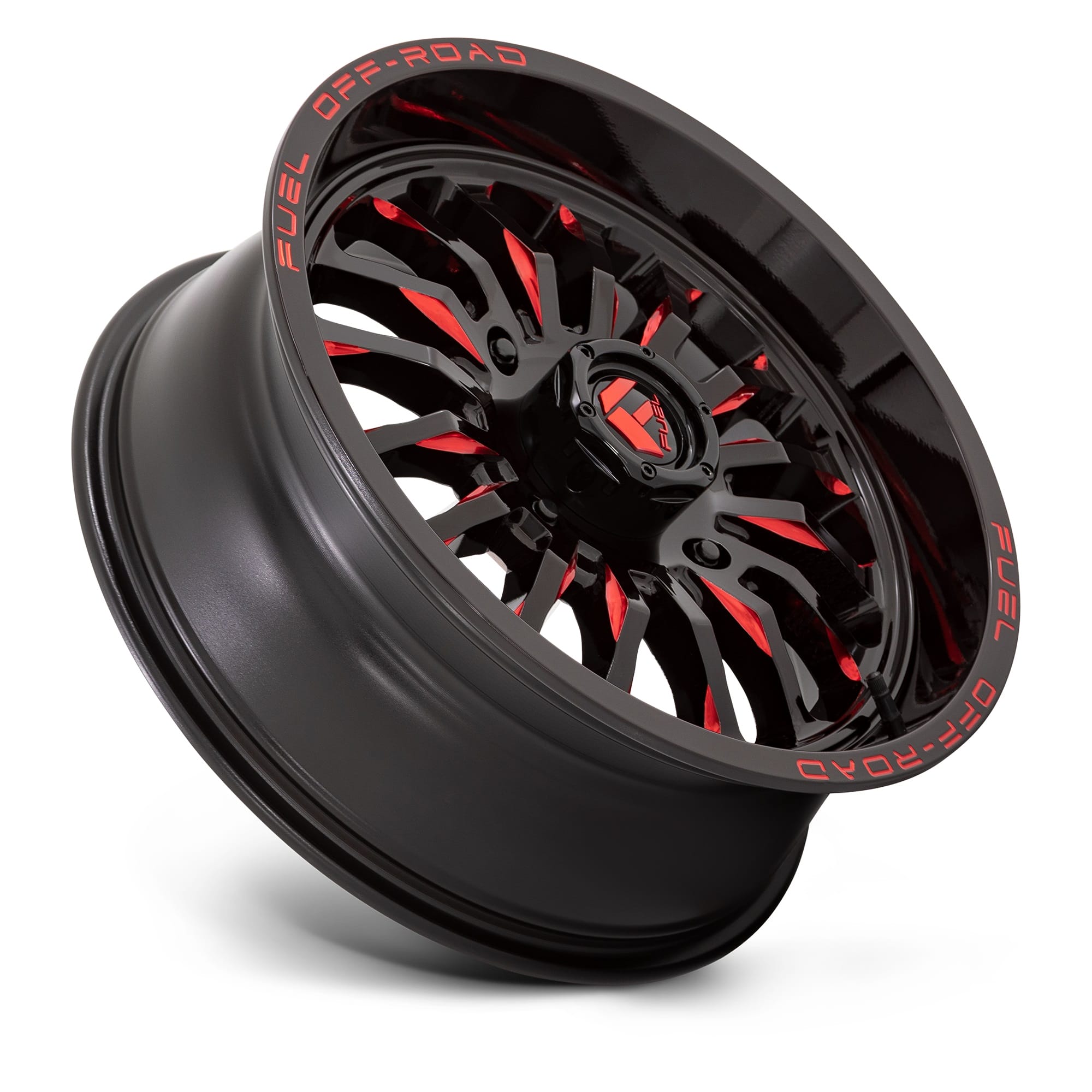

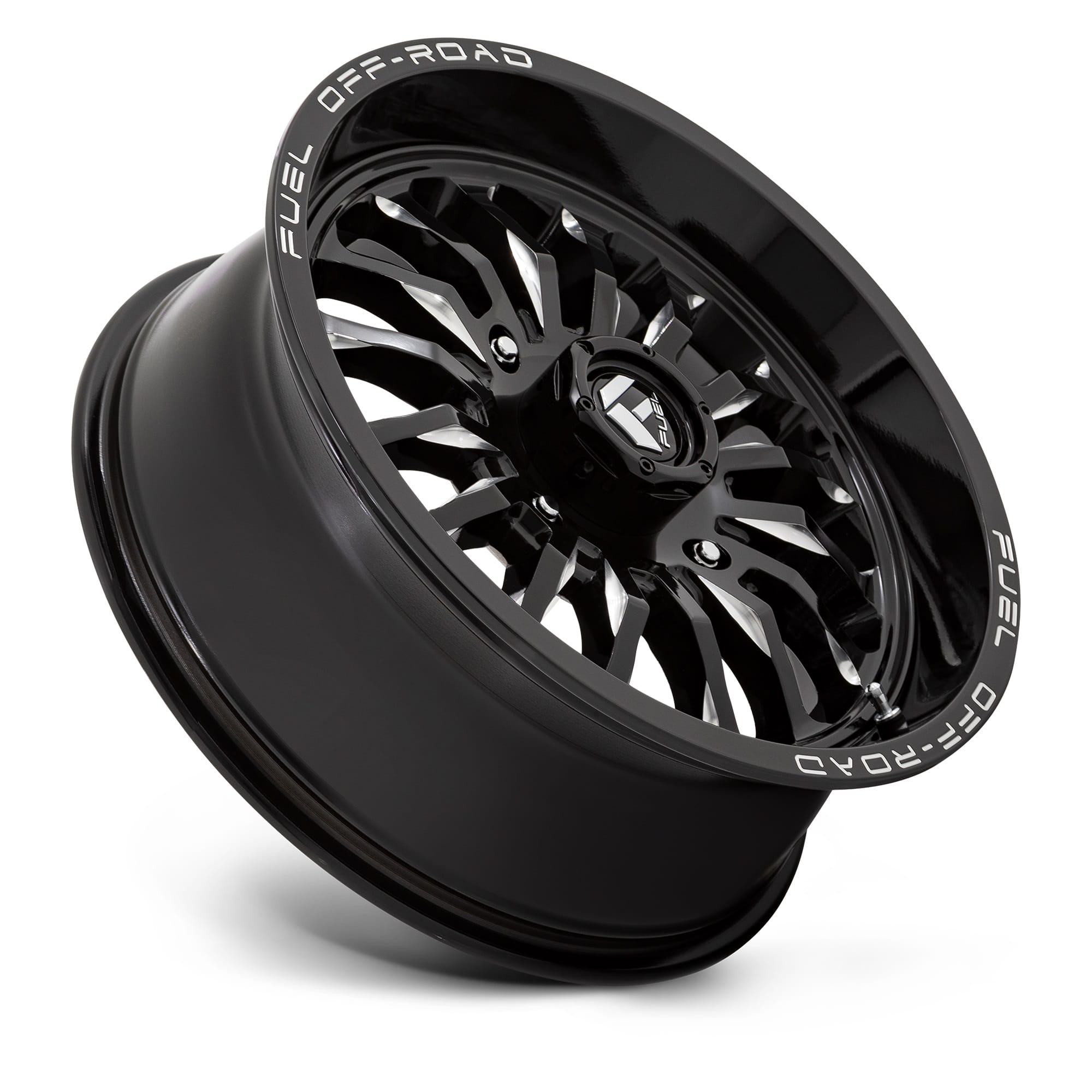

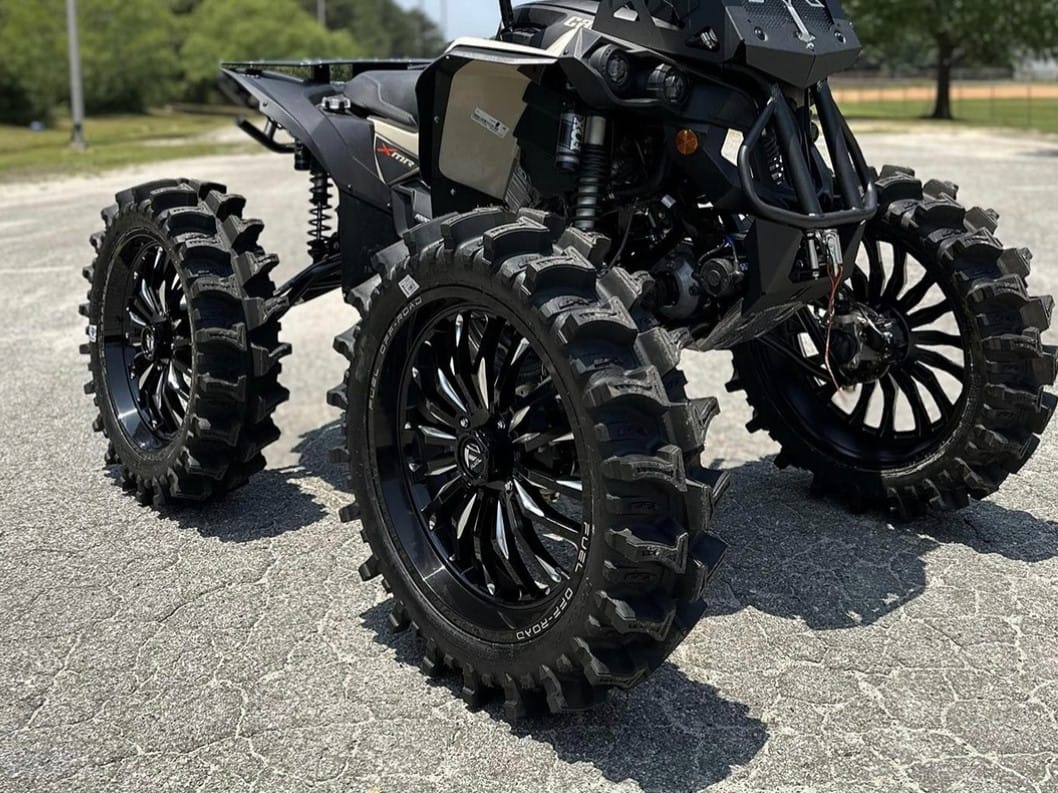

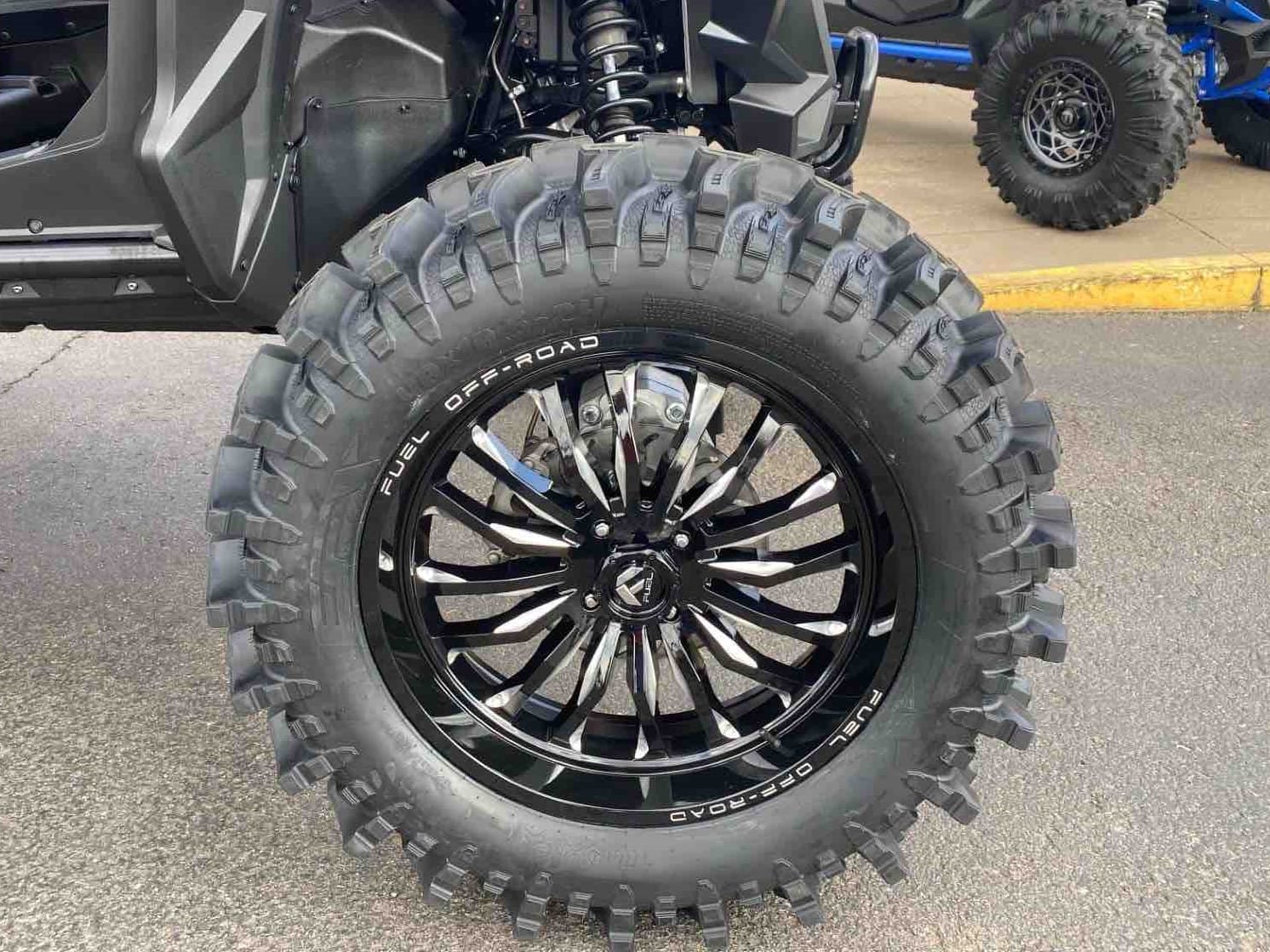

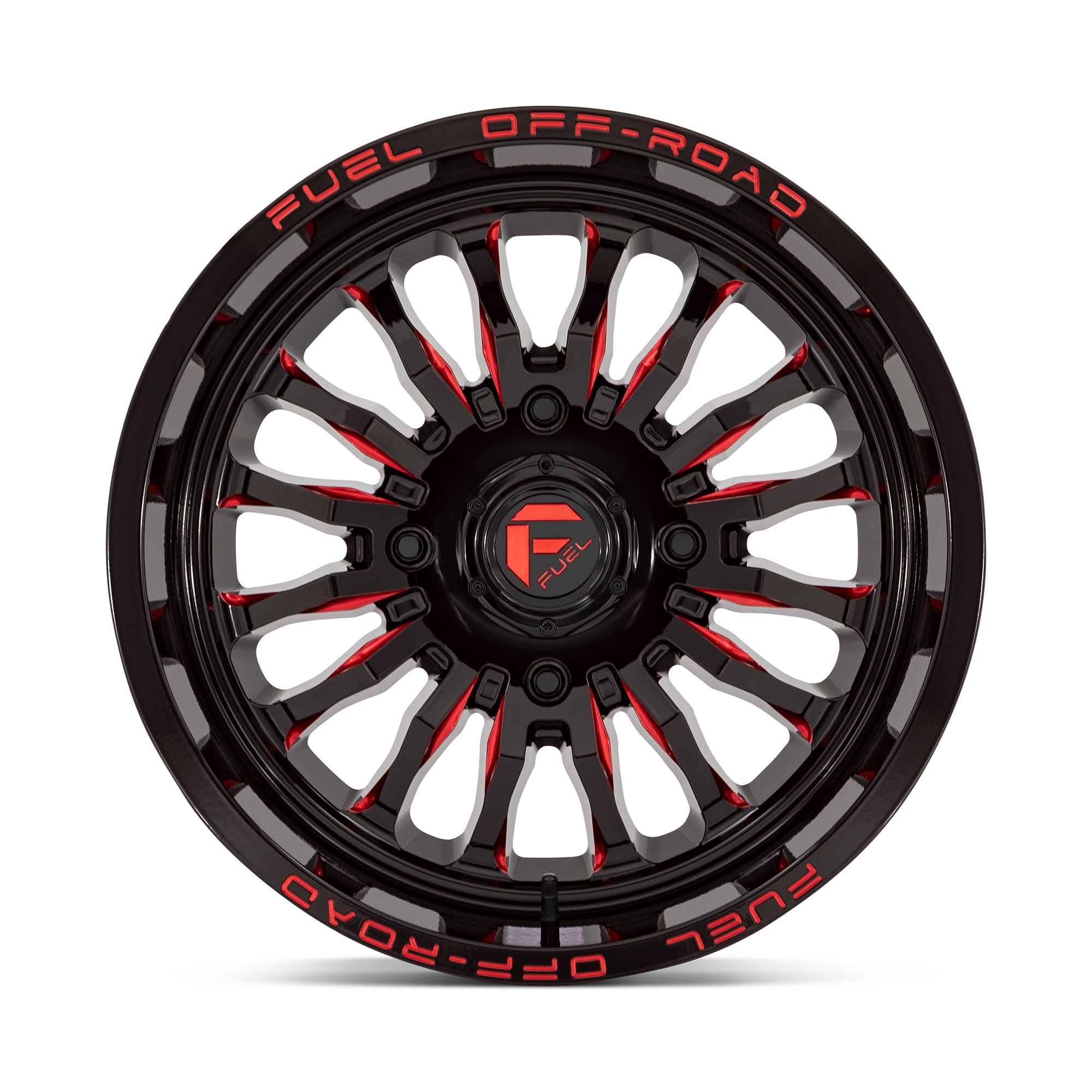

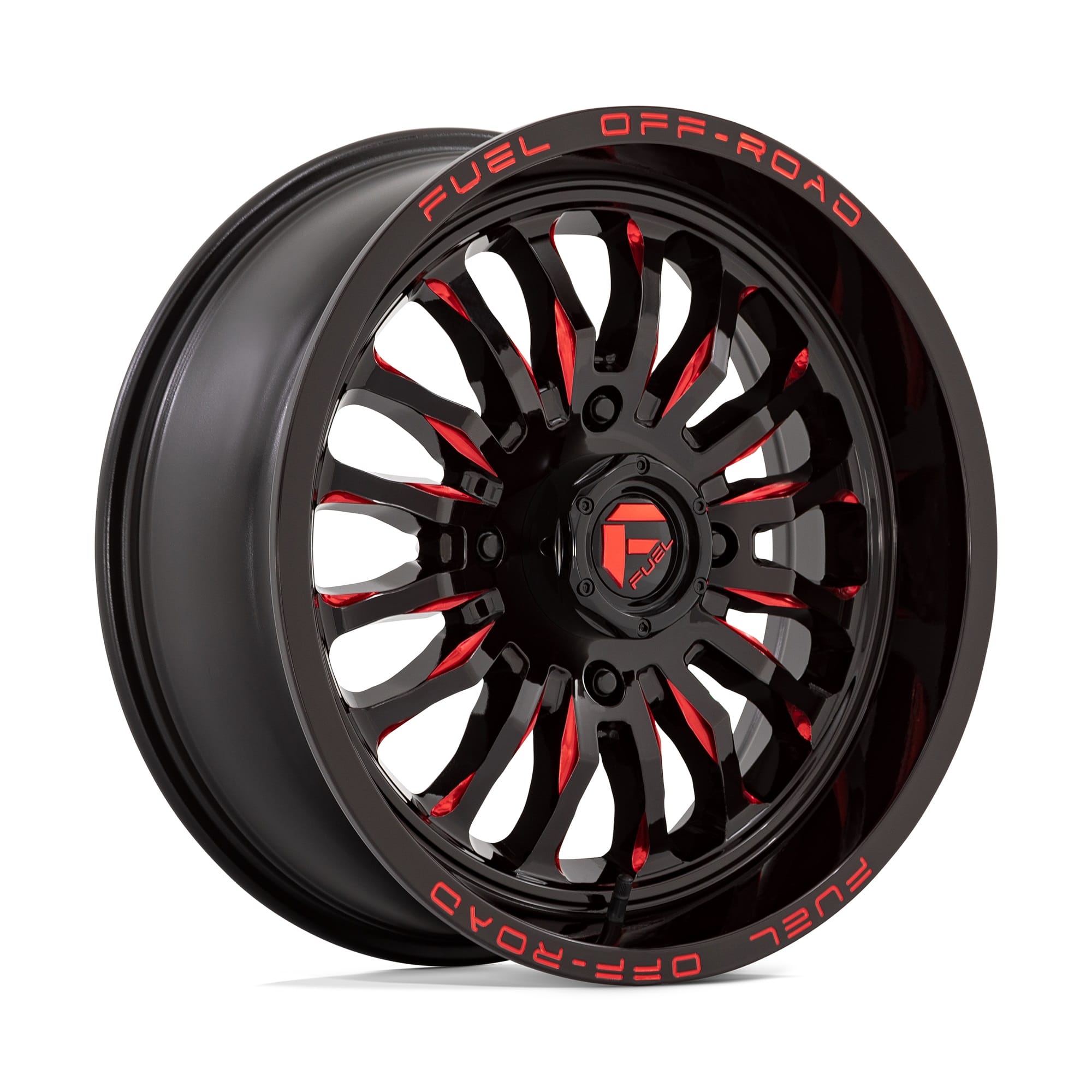

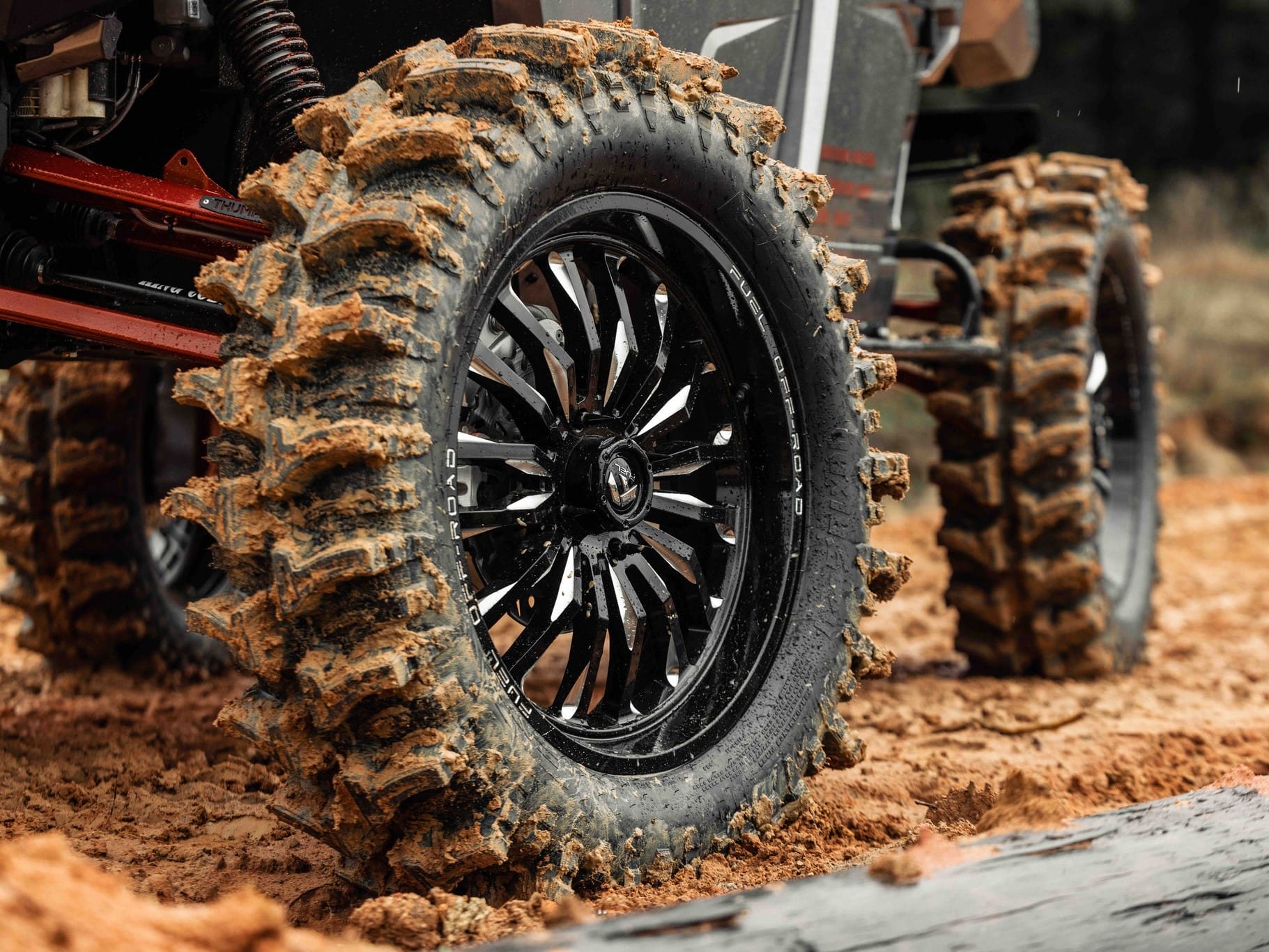

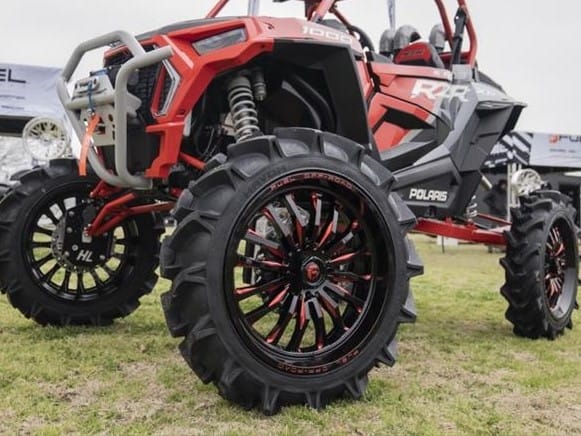

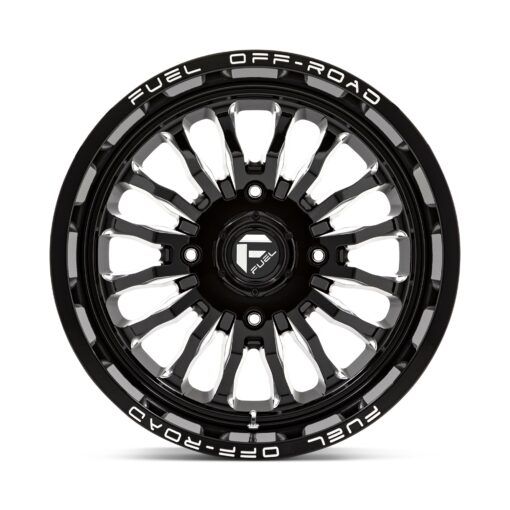

Fuel Off-Road Upgraded ARC Rims
Looking For The Industry Leading Blade Style Rims For Those Offroad Machines, These Fuel UTV ARC Rims Keep Those Tires Rolling On The Trails, Two Colors
Options For Sizing, 2 different bolt pattern options – Need Sizing/offset Information See Sizing tab above to see rim buying information.
The all-new Fuel ARC Rim is here to redefine the attitude of your UTV with its sharp lines, and strength.
The ARC is offered in a 18-24 inch size options
These Rims Do Not Include Valve Stems, You Can Choose To Add On The Install Kit That Includes New Lug Nuts, New Valve Stems And New Socket For Install
Rims are 7″ wide an (+13mm 4+3 Offset)
Load Rating (All Rims) 1,000 lbs
Wheel Weights:
- 18″ – 25.30 lbs
- 20″ – 28.80 lbs
- 22″ – 33.00 lbs
- 24″ – 37.20 lbs
Shop More: Fuel UTV Products
Manuals
Wheel Care Guide
Download DocumentFuel UTV/Wheel Pros Warranty On Rims
- FINISH WARRANTY – ONE YEAR
- STRUCTURAL WARRANTY – LIFETIME
Full Warranty Details:
To the fullest extent recognized by the laws of the state where the wheel was purchased, Wheel Pros issues this limited warranty to define the rights of the purchaser, and limit Wheel Pros liability, with regard to warranty claims.
Wheel Pros warrants that our wheels will be free from structural failure under normal and intended use for as long as the original retail purchaser owns the product. Customers are specifically directed to the Wheel Pros Consumer Information and WTC Aftermarket Wheel Installation Guidelines, supplied with the wheel. Failure to comply with these instructions shall void this warranty.
Except as specifically set forth below, Wheel Pros warrants that products manufactured will be free from defects in material and workmanship under normal intended use for a period of one year from retail purchase.
- Wheel Pros warrants that chrome and painted aluminum finishes will be free from peeling or lifting on the face of the wheel for a period of one year.
- Wheel Pros warrants that PVD finishes will be free from peeling or lifting on the face of the wheel for a period of two years.
- Polished aluminum wheels, that have not been clear coated, oxidize. They require regular maintenance. Polished aluminum
finishes are not covered under warranty. - Excluding surface rust or corrosion, Wheel Pros warrants the paint and plating on steel wheels for a period of 90 days.
- In no event shall Wheel Pros be liable for any special, incidental or consequential damages.
- This warrant is not applicable if:
- Damage occurred due to failure to follow completely the instructions provided in the Wheel Pros Consumer Information and WTC Aftermarket Wheel Installation Guidelines;
- Corrosion or damage occurred due to improper maintenance;
- Damage or structural failure occurs as a result of an accident or road conditions;
- Damage or structural failure occurs as a result of improper use of the vehicle including, but not limited to, on and off-road racing.
This limited warranty is the sole express warranty given and is in lieu of all other warranties, express or implied, whether oral or written. All implied warranties, including, without limitation, warranties of merchantability or fitness for a particular purpose, are hereby disclaimed.
Wheel Pros products are not designed to be used with any accessories or adapters other than those supplied and/or approved in writing by Wheel Pros. Use of any accessory or adapter not manufactured by Wheel Pros voids this warranty.
To initiate a warranty claim, the purchaser shall return the wheel for visual inspection to the retail or wholesale dealer from whom the product was originally purchased; along with a copy of the original sales receipt. “Should the dealer determine that the wheel has failed to perform as expected under this warranty the wheel will be repaired or replaced at the sole and absolute discretion of the dealer. Such repair or replacement shall not include the cost of removal, shipping, installation or reinstallation of the wheel.
This warranty expires upon transfer of title of any products by the original retail purchaser.
IMPORTANT: If returned products are found ineligible for warranty coverage, the product will be returned to the sender, without repair or replacement, at the sender’s expense.
In Stock Items:
These Will Ship Within 24-36 Hours After Purchased Monday Through Friday, Orders Are Proccessed Sat And Sun But will not ship on these days included holidays.
The moment your item hits the shipping carrier the system will update and email you tracking once its moving.
Production/Powder Coating Items:
These Items traditionally ship within 3-4 weeks after ordered.
What Is The Difference In Wheel Offsets And Bolt Patterns, We Have It Broken Down For You:
Unsure which wheel offset to go with, or concerned with width gain? You’re not alone. Some of the most frequent questions we get when it comes to wheels, is about offsets – did you know that for most machines, wheel offset is a preference, not a requirement? This will help you better understand wheel offsets, and choose the best wheel for your ride.
Since 7” wide wheels dominate the market, our explanation focuses on that size wheel.
Some wheel manufacturers list offsets using the metric system and others list in our American equivalent.
METRIC SYSTEM – TRUE OFFSET
Offsets listed in millimeters refer to the distance between the mounting plate and the centerline of the wheel. This is what we consider “True Offset”. This measurement will be stamped in the back of your wheels as ET (another term used to describe wheel offset).
Common True Offsets: +40mm, +38mm, +30mm, +10mm, +5mm, +0mm, -47mm.
AMERICAN EQUIVALENT – INDUSTRY OFFSET
When wheel offset measurements are listed in our American equivalent, the first number indicates the “backspacing” (the distance from the back bead to the wheel mounting plate) and the second number indicates the distance from the mounting plate to the outer bead of the wheel (also known as the “Industry Offset”).
Common Industry Offsets: 6+1, 5+2, 4+3, and 2+5.
For example, a 5+2 offset means there is 5” from the back/inner bead to the mounting plate, 2” from the mounting plate to the outer bead. Pictured to the right is an illustration of this.
The chart below converts Metric measurements into the closest corresponding American measurement and will help you better understand what each offset will add to your stance over your factory wheels.
NOTE: Width gain is not given in exact measurement. Actual width gain can vary by machine and wheel manufacturer, but generally falls into these ranges:
| INDUSTRY OFFSET (METRIC) | TRUE OFFSET (ENGLISH) | WIDTH GAIN |
| +51mm / +50mm / +45mm | 6+1 | 0 – 1.5″ wider per side over stock |
| +40mm / +38mm / +36mm / +20mm | 5+2 | 1 – 1.5″ wider per side over stock |
| +15mm / +13mm / +10mm / +5mm | 4+3 | 1.5 -2″ wider per side over stock |
| +0mm | 3.5+3.5 | 1.5 – 2.5″ wider per side over stock |
This chart is based on 7″ wide wheels
4X110MM BOLT PATTERN
- 10MM STUD – YAMAHA RHINO
- 12MM STUD – CF MOTO, HONDA BIG RED 700 AND PIONEER 700/700-4, KYMCO MASSIMO, YAMAHA VIKING, AND WOLVERINE, YAMAHA YXZ1000R (16-18)
4X115MM BOLT PATTERN
- 10MM STUD – ARCTIC CAT WILDCAT / X / TRAIL / 4, ARCTIC CAT PROWLER 650/700/1000
4X137MM BOLT PATTERN
- 10MM STUD – CAN AM COMMANDER / MAX, CAN AM MAVERICK / MAX, CAN AM DEFENDER / MAX, CAN AM OUTLANDER/RENEGADE, KAWASAKI MULE 500/520/550/600, KAWASAKI MULE 2010/2020/2030
- 12MM STUD – KAWASAKI TERYX 750/800, KAWASAKI TERYX 4, KAWASAKI MULE 2500/2510/2520, KAWASAKI MULE 3000/3010/3020, KAWASAKI MULE 4000/4010, HONDA PIONEER 1000/1000-4, CAN AM MAVERICK X3 (ALL)
4X156MM BOLT PATTERN
- 10MM STUD – POLARIS ACE, RS1, RANGER, AND GENERAL, POLARIS RANGER 400/500/700/800, AND 6X6, POLARIS RZR 570 AND 800/S/4, POLARIS XP 900 2011-2014, POLARIS SPORTSMAN, KAWASAKI KRX, KAWASAKI MULE PRO-SERIES, YAMAHA YXZ1000R 2019, YAMAHA WOLVERINE RMAX, TEXTRON WILDCAT XX, BOBCAT WHEELS
- 12MM STUD – POLARIS POLARIS RZR 1000 (ALL), POALRIS RZR 900 / S / XC 2015+, POLARIS RZR XP TURBO, POLARIS RANGER 900 (ALL), POLARIS RANGER 1000 (ALL), POLARIS GENERAL 1000 (ALL), KAWASAKI MULE PRO (ALL)
5X114 M (5×4.5) BOLT PATTERN
- 12MM STUD – POLARIS PRO R, POLARIS TURBO R, XPEDITION
6X139.7MM (6×5.5) BOLT PATTERN
- 12MM STUD -CAN-AM MAVERICK R
Information About Bolt Patterns:
Most bolt patterns are stated in millimeters and there are 25.4 millimeters in one-inch. So If you measure with a tape measure in inches, you can convert to metric millimeters by multiplying (inches x 25.4), or you can easily find an online converter with a quick Google search.
HOW TO MEASURE BOLT SPACING
- For a 4-bolt wheel: remove your stock wheel and measure diagonally opposing stud bosses (center-to-center). Example spacings: 4/110mm; 4/115mm; 4/137mm; 4/156mm
- For a 5-bolt wheel: remove your stock wheel and measure diagonally opposing stud, bosses (from the back of one boss-to-the-center of the opposing boss). Example spacings: 5/114.3
- For a 3-bolt (ATV) wheel: remove your stock wheel. This one requires you to create a virtual circle (diameter) through the center of all three bosses. The bolt spacing is the distance across the middle of the diameter.
| Make | Model | Year |
|---|---|---|
| All Universal Fitment | ATV Machine - Universal Fitment | |
| All Universal Fitment | UTV Machine - Universal Fitment |
