Rigid SR-Series Pro, Slim Light Bars

The SR-Series Pro Is A Slim Light Bar, Low Profile Measuring Less Than 2″ Tall. Single Row LED. Variety Of Beam Patterns.

The SR-Series PRO LED Light Bars provide a sleek, low profile lighting solution that measures less than 2” tall.

Thanks to improved LED technology, the SR-Series PRO now offers more light output than ever before with up to 111% more raw lumens.

As the name implies, the SR-Series PRO utilizes a single row of LEDs with your choice of Hybrid or patented Specter optics in a variety of beam patterns.

Ideal for applications where space is limited, the SR-Series PRO is a powerful light source designed to project light at extreme distances while consuming very little power.

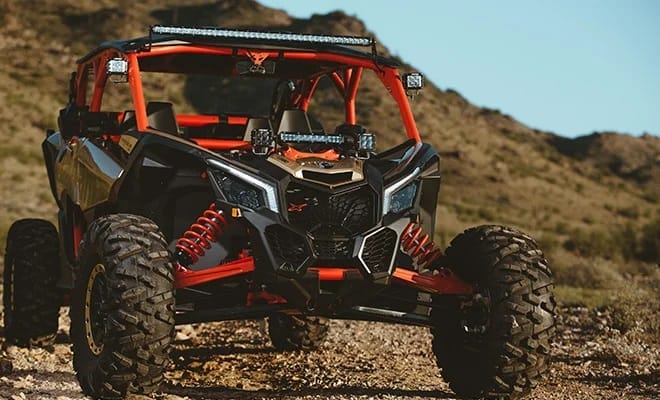

Available in a wide range of lengths and configurations, these LED light bars can be used on virtually any application, whether it’s an off-road vehicle, industrial, agricultural, or marine.

RIGID’s SR-Series PRO lights utilize extruded aluminum housings and have a durable powder coated finish.

Along with improved LEDs for more output, the SR-Series PRO benefits from new branding and blacked-out circuit boards for a more refined look.

They feature the same superior build quality as the rest of RIGID’s lighting products, providing reliable and efficient lighting on demand.

Features:

  • 50,000 Plus Hour Lifespan
  • 9-36 V DC
  • Durable UV Resistant Powder Coat
  • High-Grade Aluminum Alloy
  • Integrated Thermal Management System
  • Impact Resistant Polycorbonate Lens
  • Over/Under Voltage Protection
  • RFI/EMI Protection
  • Reverse Polarity Protection
  • RoHS Compliant
  • IP68 Compliant – Dust/Water Ingress
  • Operating Temp -40 Deg F To +145 Deg F
  • SAE J575 Compliant – Shock/Vibration
  • Pressure Equalizing Vent
  • Limited Lifetime Warranty
  • Off Road Use Only

Size And Specs

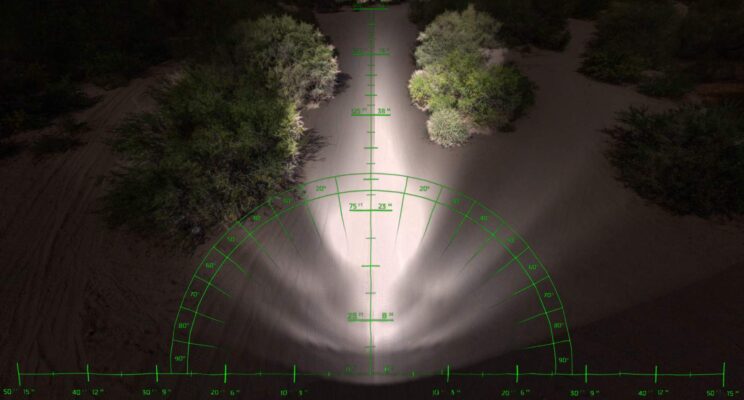

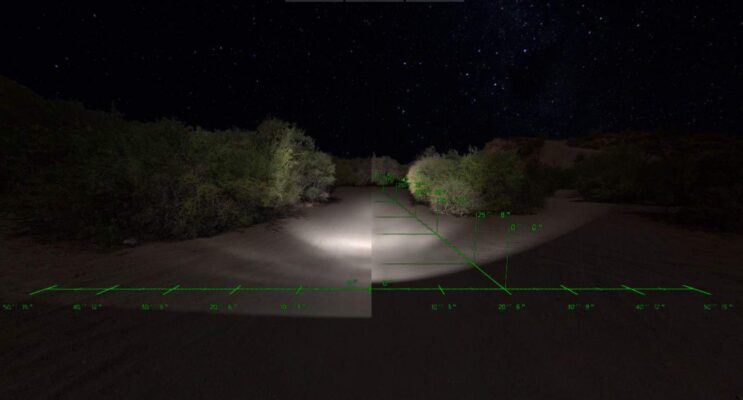

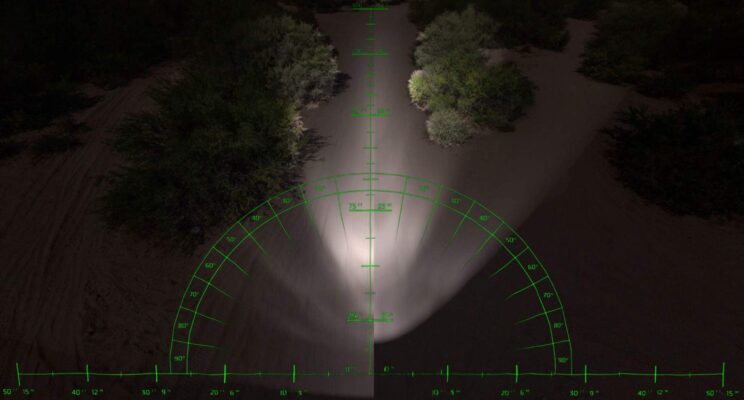

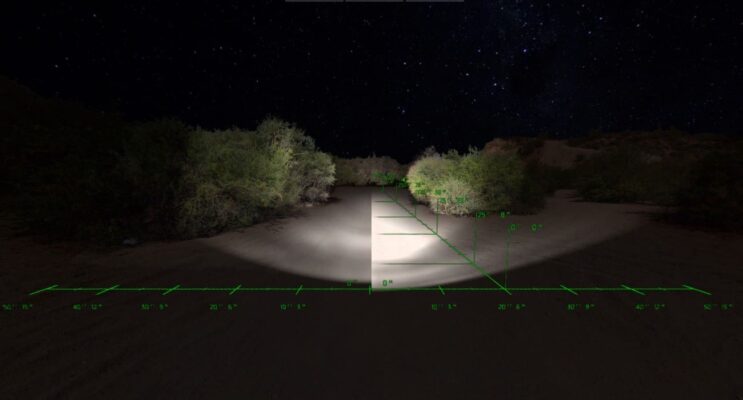

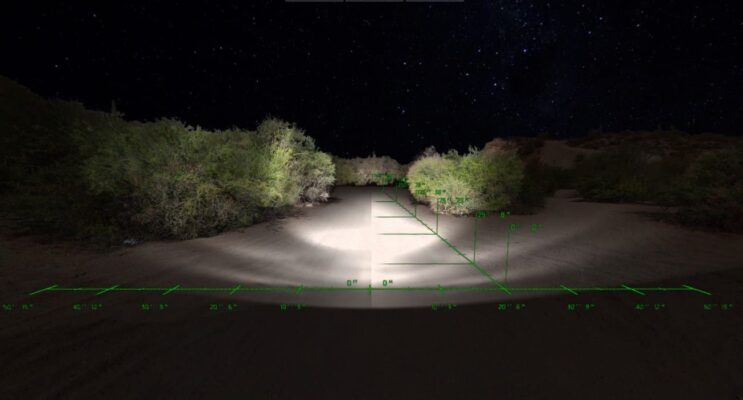

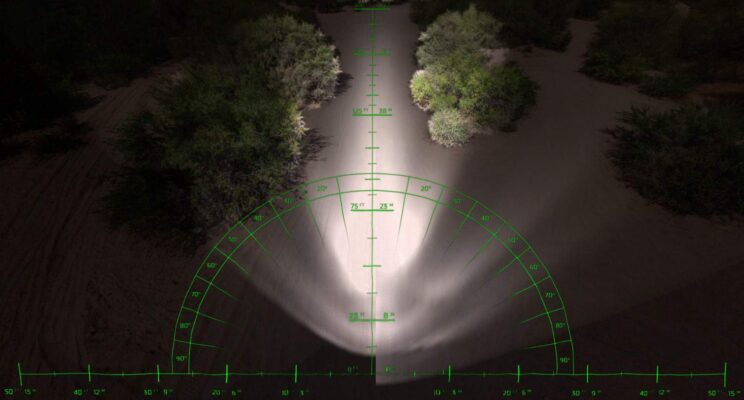

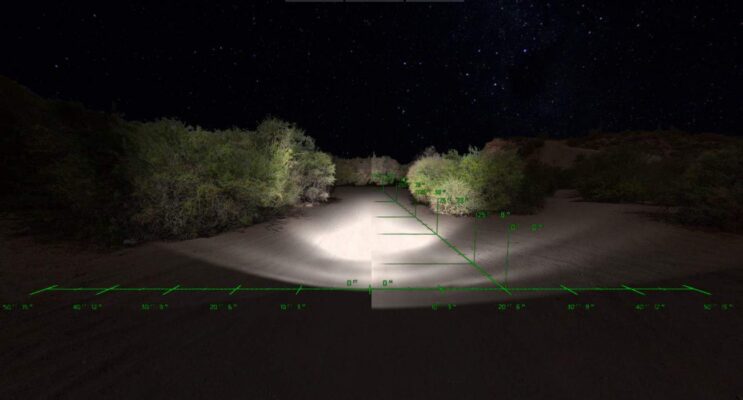

6″ vs. 10″ Combination Beam

Rigid Sr-series Slim Light Bar

Rigid Sr-series Slim Light Bar

10″ vs. 20″ Combination Beam

Rigid Sr-series Slim Light Bar

Rigid Sr-series Slim Light Bar

20″ vs. 30″ Combination Beam

Rigid Sr-series Slim Light Bar

Rigid Sr-series Slim Light Bar

30″ vs. 40″ Combination Beam

Rigid Sr-series Slim Light Bar

Rigid Sr-series Slim Light Bar

6″ Driving

  • Watts: 69
  • Amp Draw: 4.93
  • Voltage Max: 36
  • *Raw Lumens: 7,128
  • Horizontal Beam Angle: 22

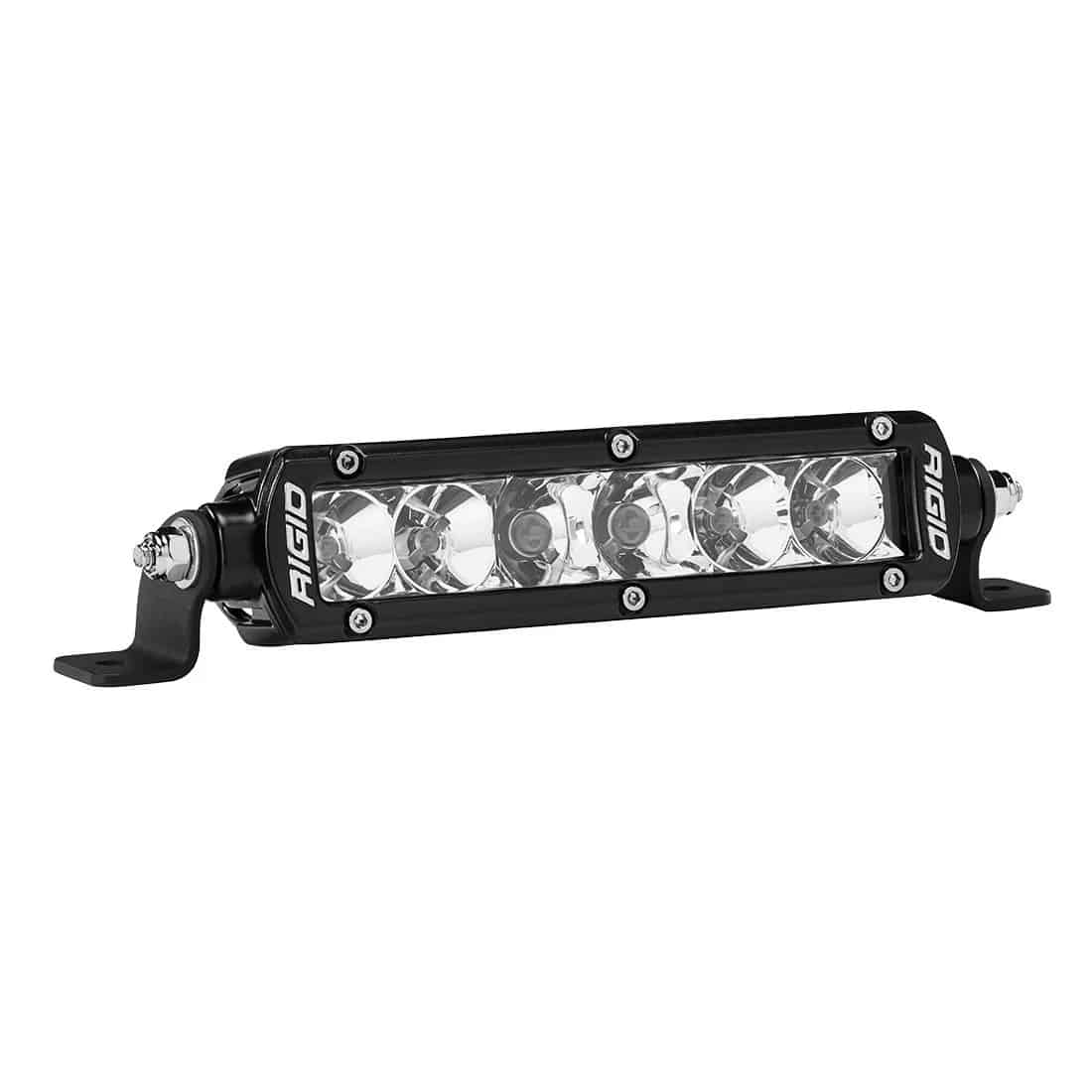

6″ Combination

  • Watts: 48
  • Amp Draw: 3.43
  • Voltage Max: 36
  • *Raw Lumens: 4,752
  • Horizontal Beam Angle: 24.1

10″ Driving

  • Watts: 84
  • Amp Draw: 6
  • Voltage Max: 36
  • *Raw Lumens: 7,524
  • Horizontal Beam Angle: 24.3

10″ Spot

  • Watts: 59
  • Amp Draw: 4.21
  • Voltage Max: 36
  • *Raw Lumens: 7,920
  • Horizontal Beam Angle: 17.2

10″ Spot / Driving

  • Watts: 50
  • Amp Draw: 3.57
  • Voltage Max: 36
  • *Raw Lumens: 9,504
  • Horizontal Beam Angle: 25.1

10″ Flood

  • Watts: 59
  • Amp Draw: 4.21
  • Voltage Max: 36
  • *Raw Lumens: 7,920
  • Horizontal Beam Angle: 17.2

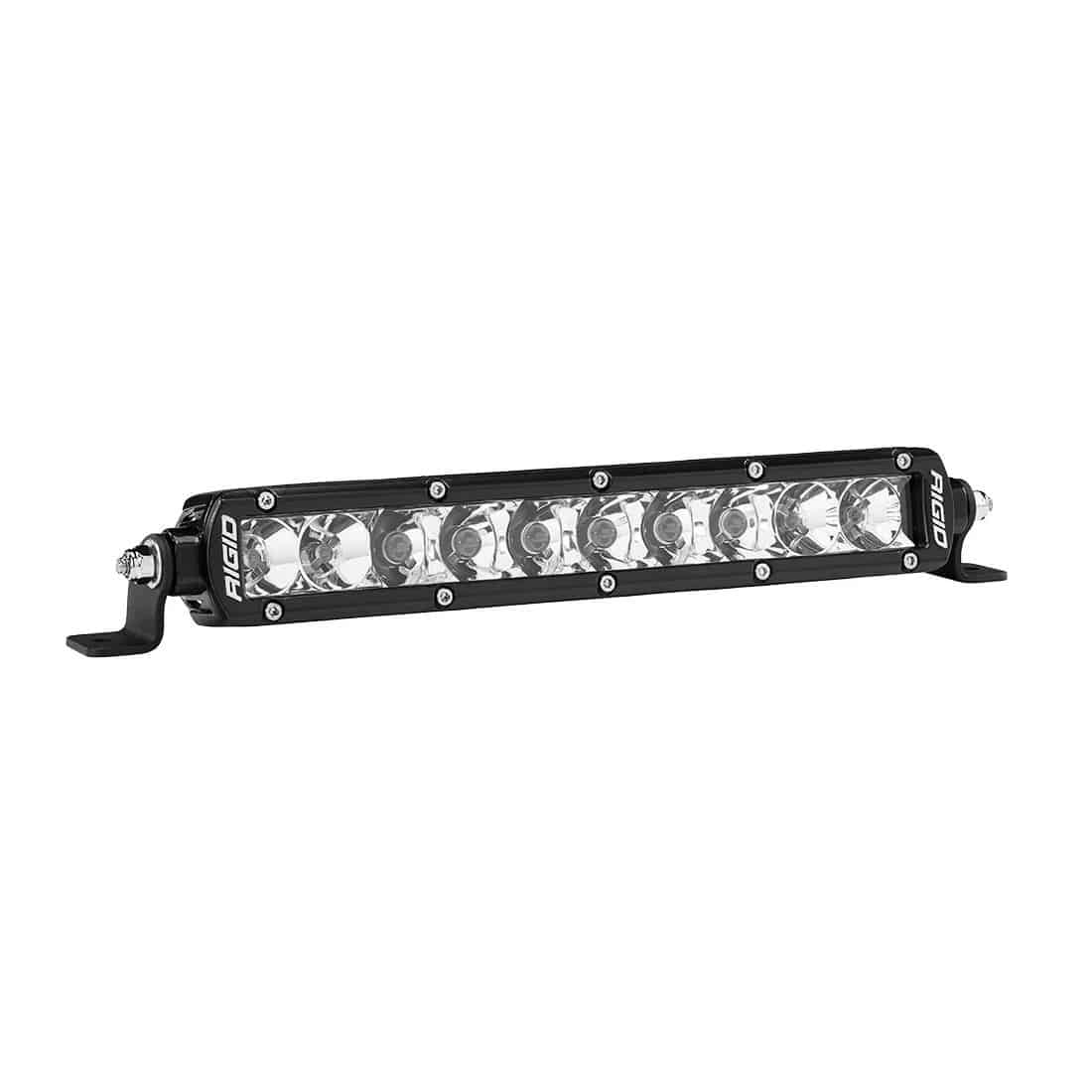

10″ Combination

  • Watts: 60
  • Amp Draw: 4.29
  • Voltage Max: 36
  • *Raw Lumens: 7,920
  • Horizontal Beam Angle: 19.3

20″ Combination

  • Watts: 119
  • Amp Draw: 8.5
  • Voltage Max: 36
  • *Raw Lumens: 15,840
  • Horizontal Beam Angle: 19

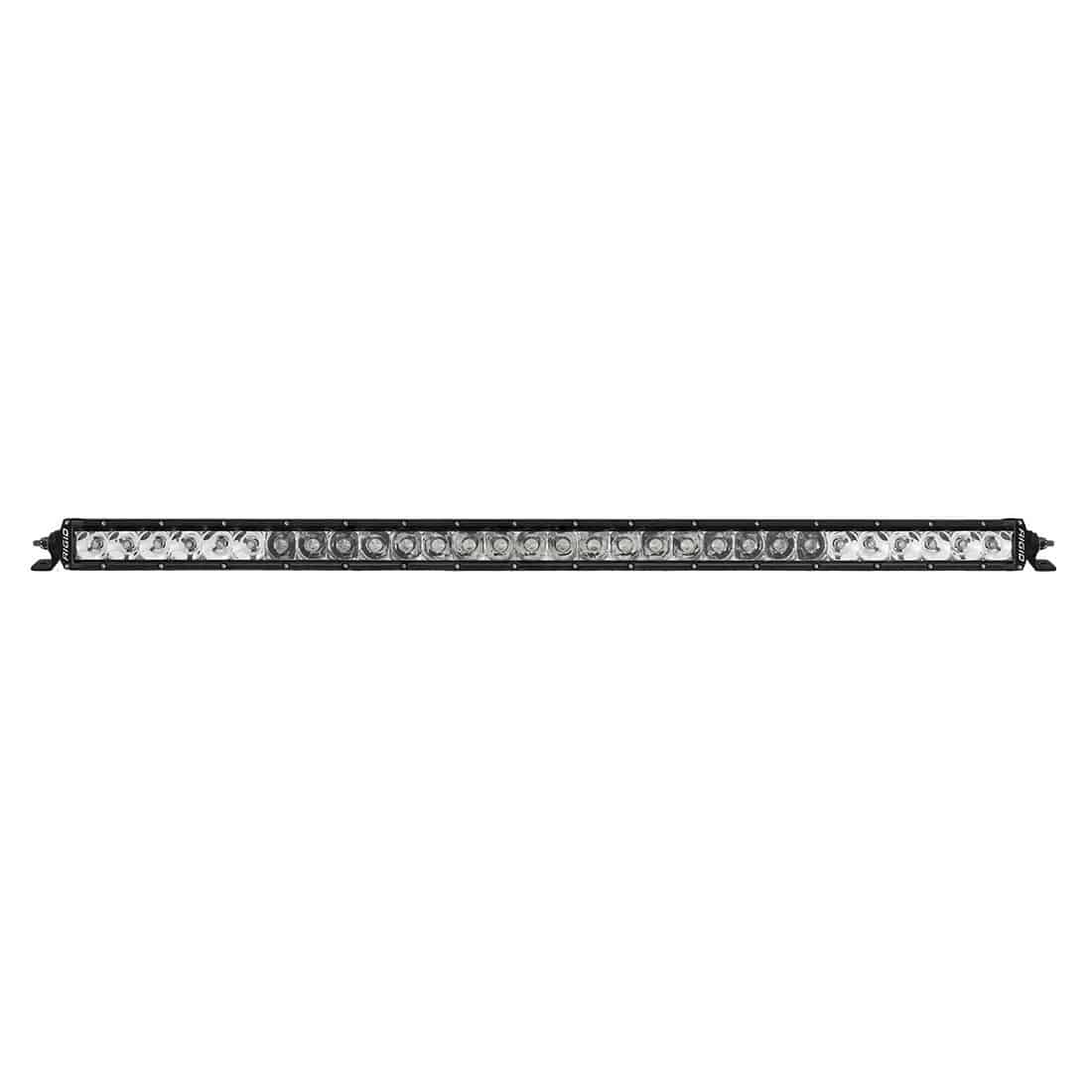

30″ Combination

  • Watts: 160
  • Amp Draw: 11.43
  • Voltage Max: 36
  • *Raw Lumens: 18,810
  • Horizontal Beam Angle: 18

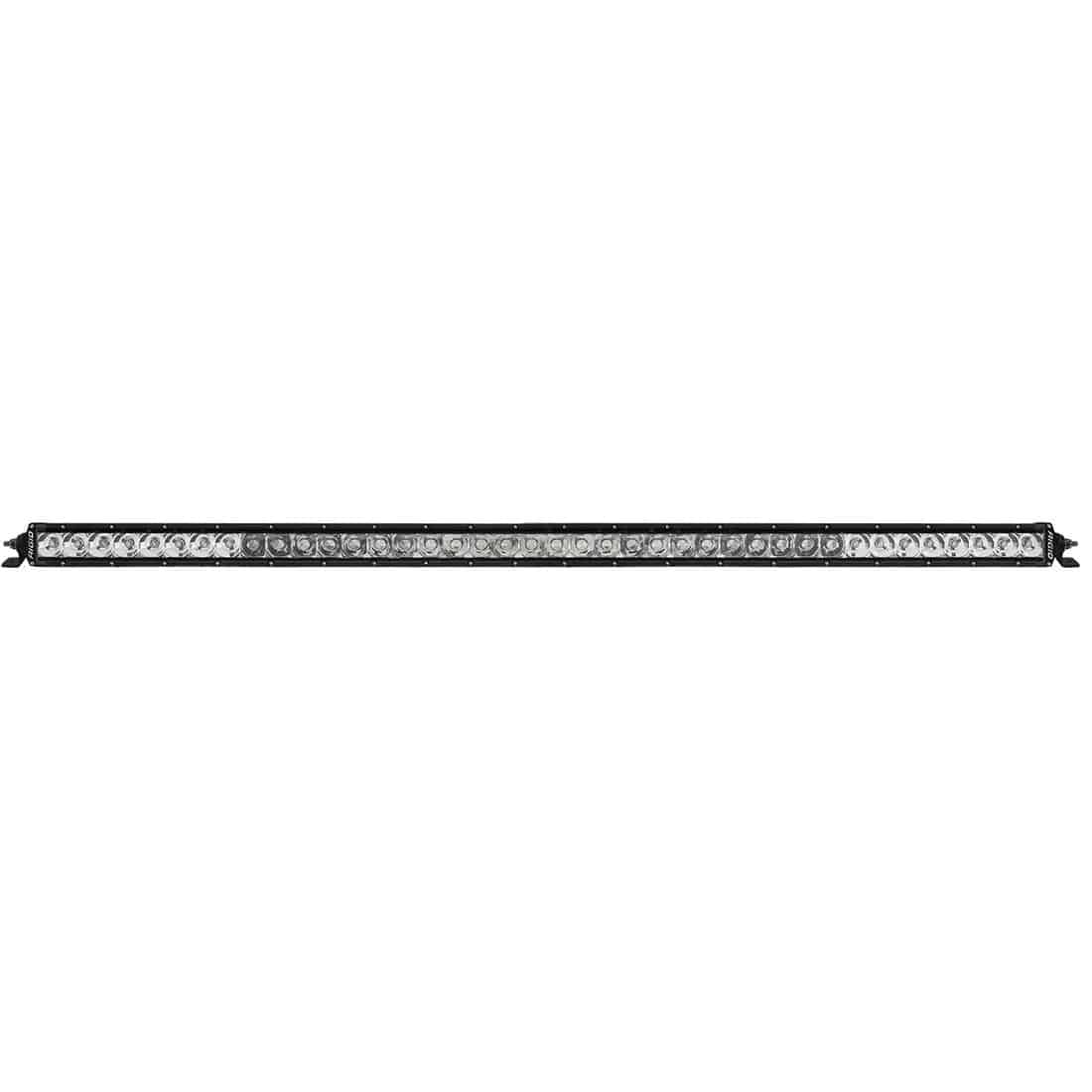

40″ Combination

  • Watts: 259
  • Amp Draw: 18.5
  • Voltage Max: 36
  • *Raw Lumens: 25,080
  • Horizontal Beam Angle: 18

Manuals

SR-Series Installation Guide
