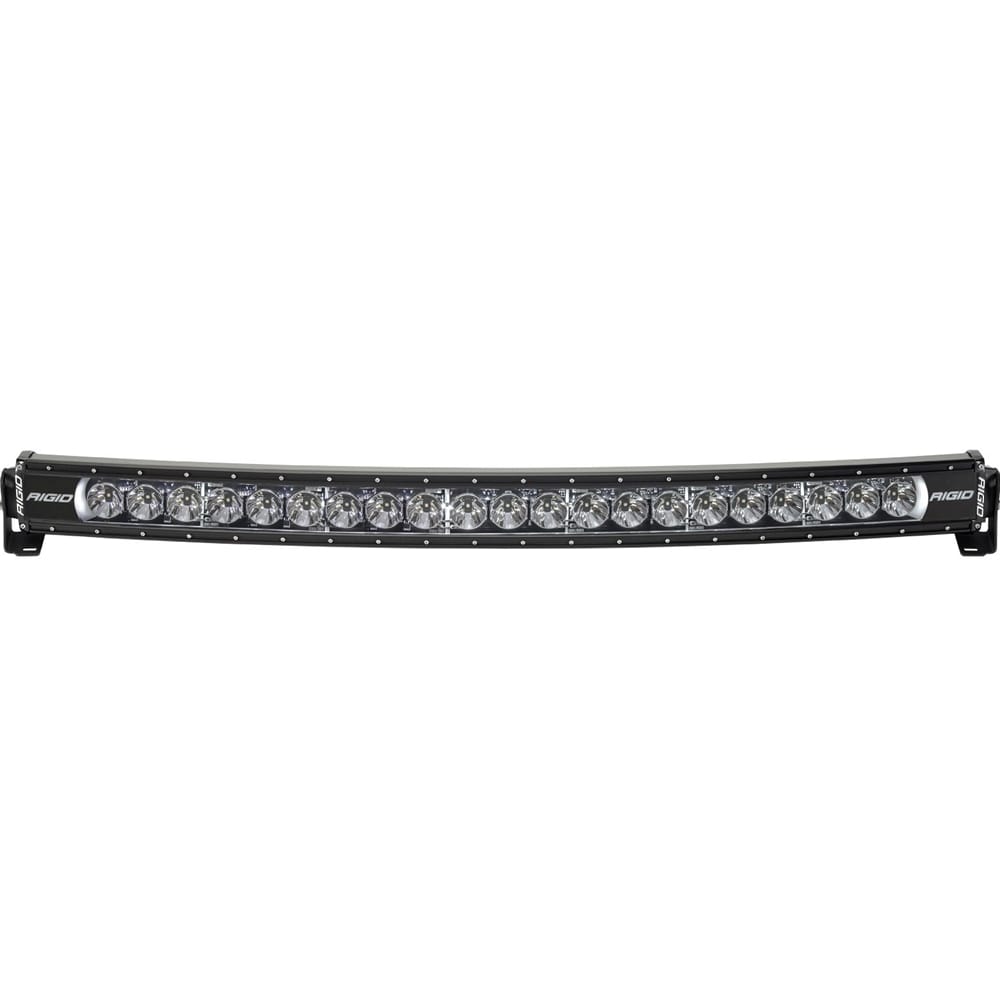

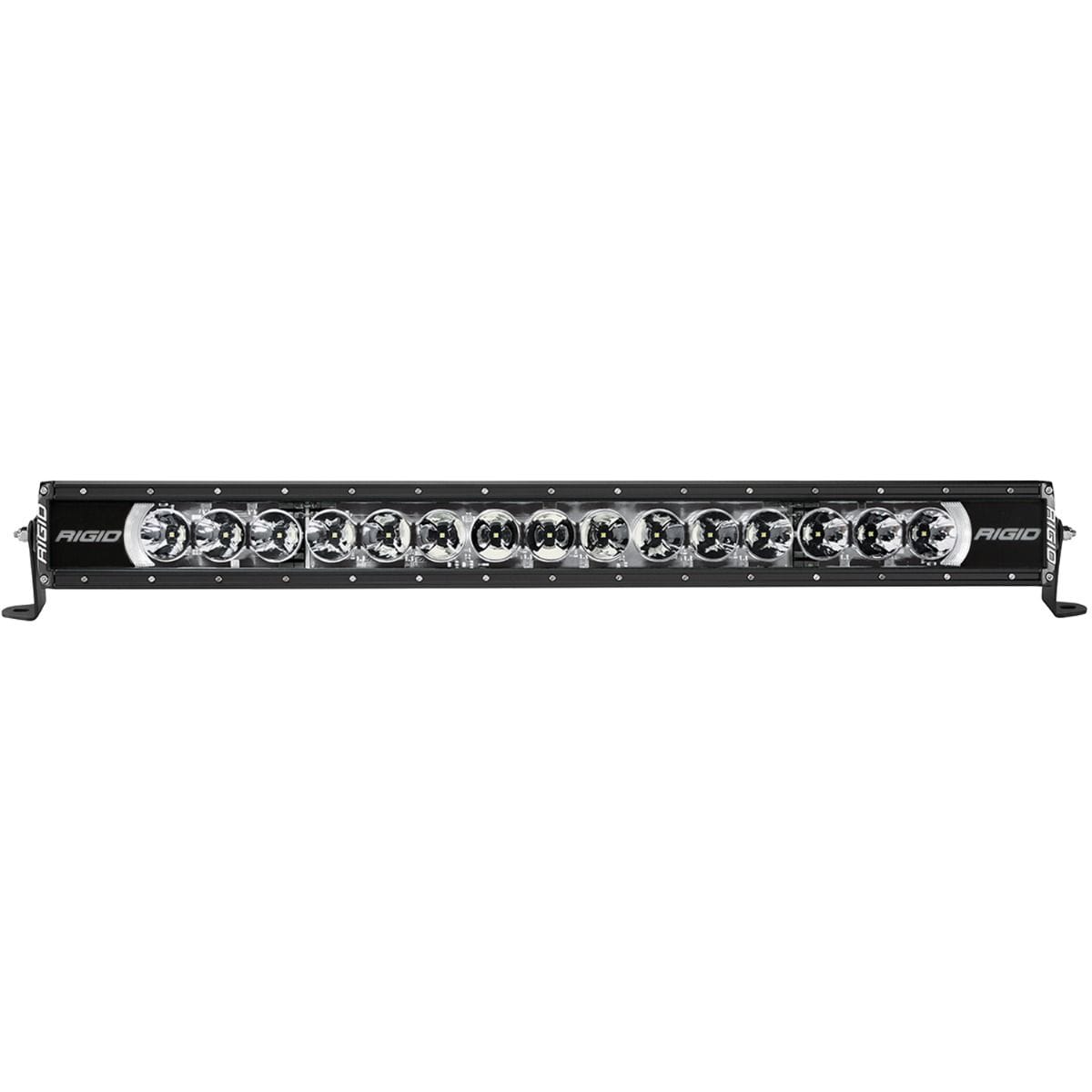

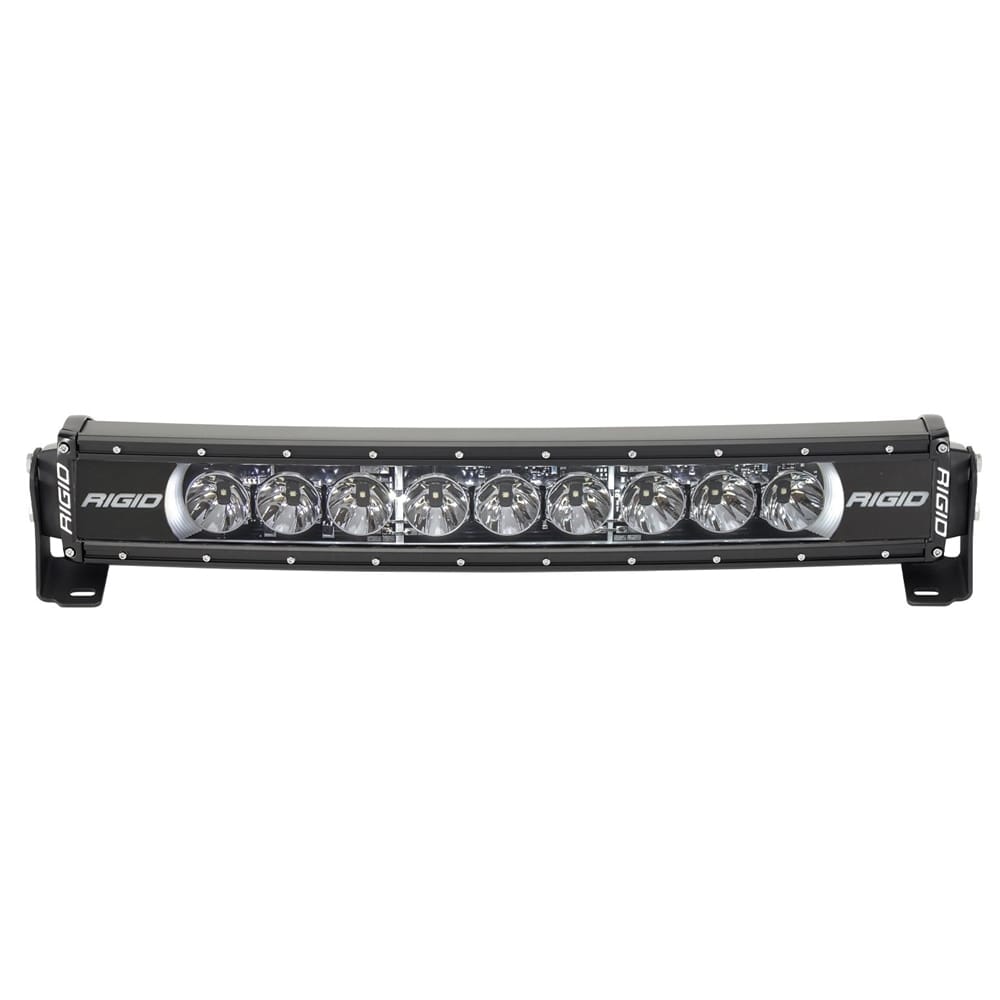

Rigid Radiance Plus Backlit Light Bars

The Rigid Radiance Plus Is A Backlit Light bar. Combining Attributes Of Spot And Flood Beam Pattern. Built-In Back Lighting In White, Red, Blue. Size Options

The RIGID Radiance Plus LED light bar is the perfect solution for those who want RIGID’s legendary quality at a level everyone can attain.

Featuring RIGID’s improved LED technology, the Radiance Plus light bars deliver up to 35 percent more raw lumens than before.

The RIGID Radiance Plus bars are built with the same high-grade aluminum alloy housing as RIGID’s legendary E-Series, but that is where the visual similarities end.

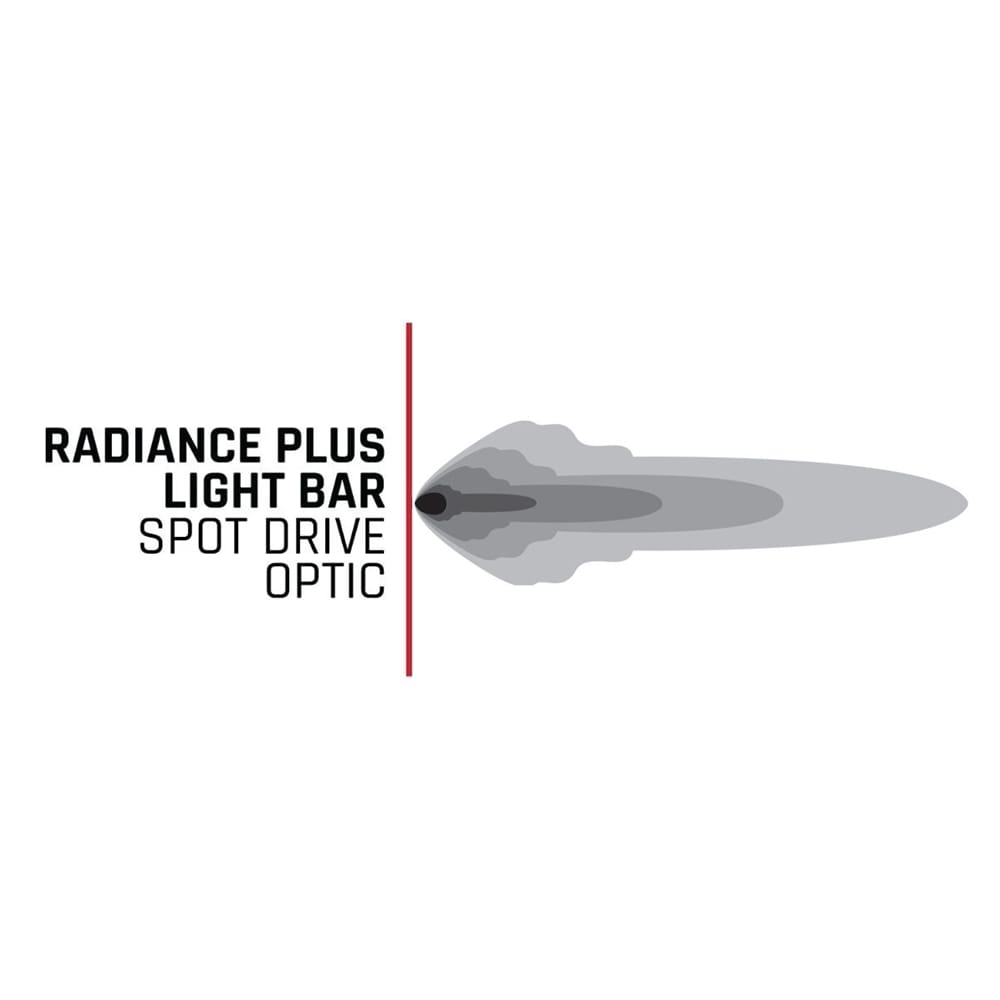

Inside, the Radiance Plus bars are feature-packed, with a black exposed circuit board, optimized forward projecting Broad Spot optics that combine the attributes of a spot and flood beam pattern.

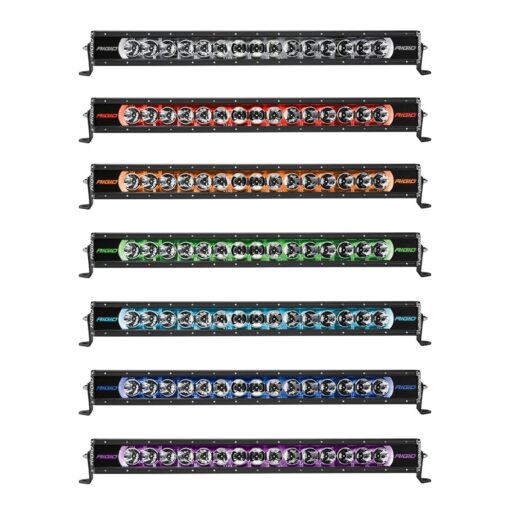

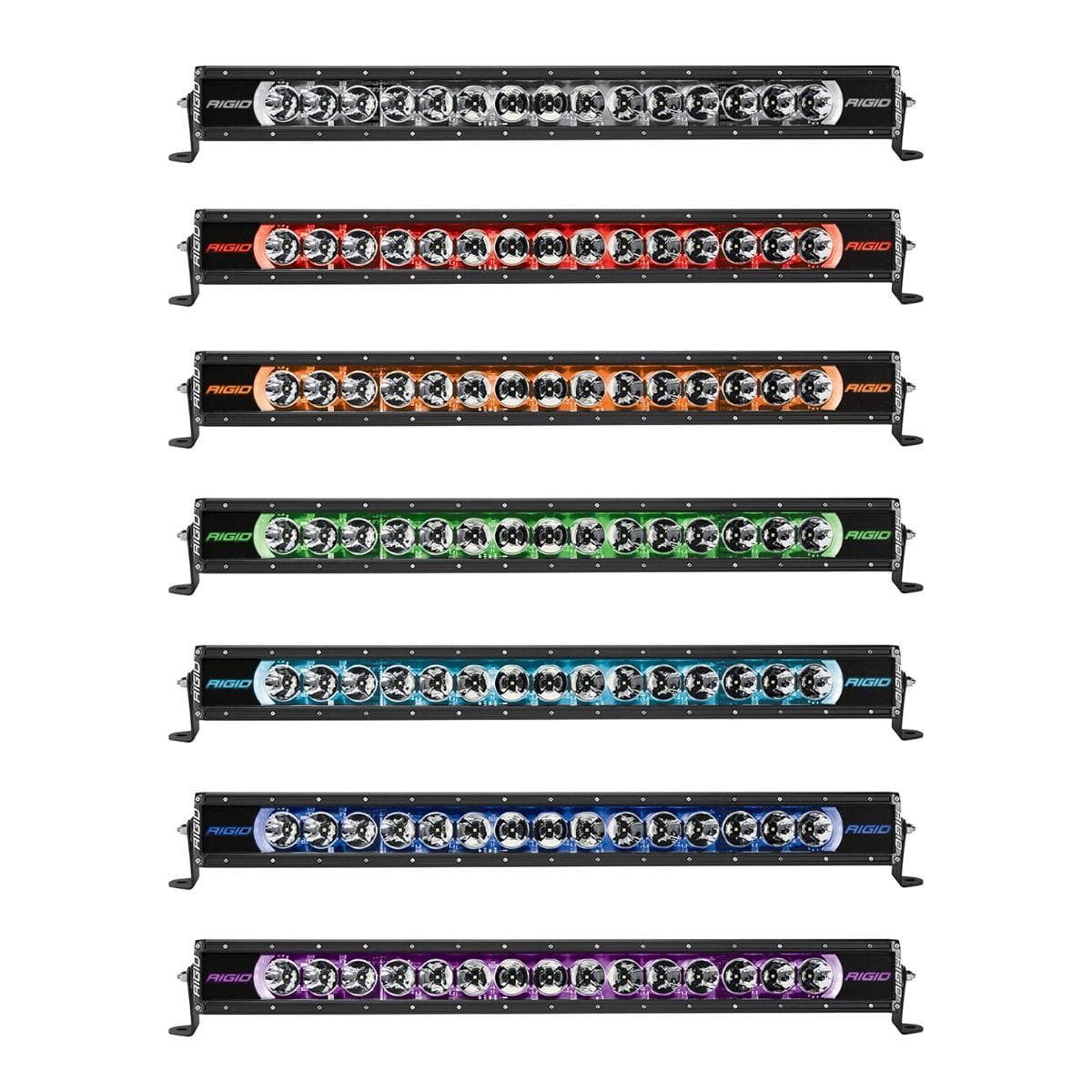

The Radiance Plus bars have built-in back-lighting available in white, amber, red, or blue.

Large backlit RIGID branding plates further add to the unique look of the Radiance Plus light bar.

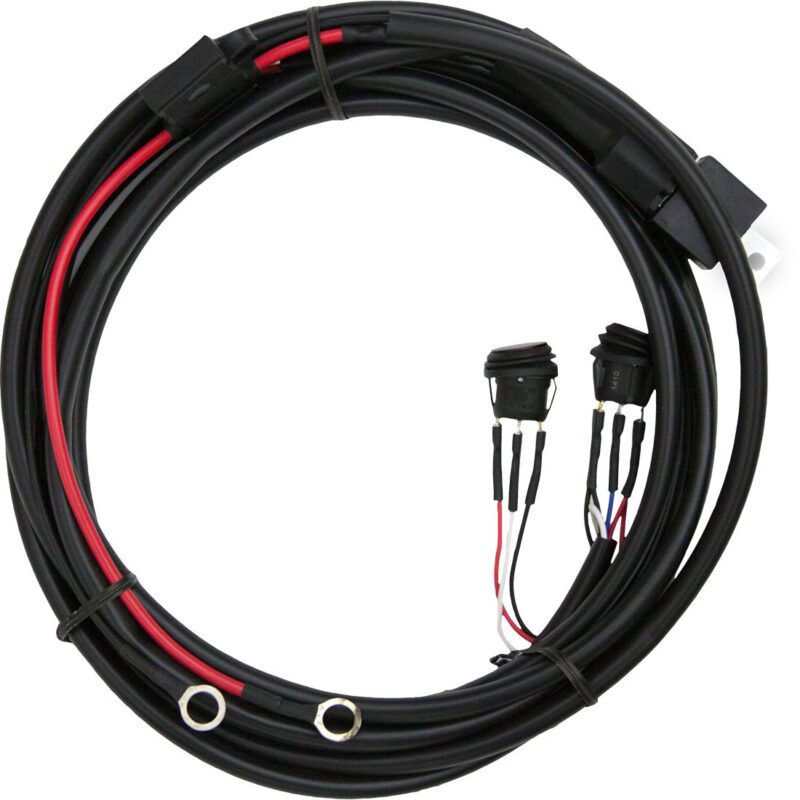

The Radiance Plus light bars include a wiring harness and multi-trigger switch for a simple installation.

The Radiance Plus LED light bars are for the customer who wants a truly custom look that RIGID is known for. Own The Night with RIGID.

Features:

  • E-Series Construction And Durability
  • Fits All E-Series Light Covers And Mounts
  • Black Exposed Printed Circuit Board
  • Back Lighting Available In White, Red, Or Blue.
  • 10 Year Warranty
  • 9-15 V DC
  • Harness And Switch Included
  • Back Lighting Independently Controlled
  • Black Powder Coat Finish
  • Pressure Equalizing Vent
  • IP68 Compliant – Dust/Water Ingress
  • High Grade Aluminum Alloy Housing And Heat Sink
  • Patented Optics
  • High Impact Polycarboanate Lens
  • Mounting Brackets Included
  • RFI/EMI Protection
  • RoHS Compliant
  • Over/Under Voltage Protection

Hood View Comparison

10″ Backlit Light Bar

Radiance Dash

30″ Backlit Light Bar

Radiance Dash

50″ Backlit Light Bar

Radiance Dash

Birdseye view comparison

10″ Backlit Light Bar

Radiance Bird

30″ Backlit Light Bar

Radiance Bird

50″ Backlit Light Bar

Radiance Bird

Size And Specs

Radiance Dimensions Edit

10″ Backlit Light Bar

  • Watts: 70
  • Amp Draw: 5
  • Voltage Max: 15
  • *Raw Lumens: 4,752
  • Lux @ 10M: 835
  • Beam Distance @ 1 Lux: 289
  • Beam Distance @ .25 Lux: 578
  • Horizontal Beam Angle: 18
A B C D E F G
3.25″ 3.75″ 12.6″ 11.2″ 12.7″ 13.9″ 2.7″

20″ Backlit Light Bar

  • Watts: 92
  • Amp Draw: 6.57
  • Voltage Max: 15
  • *Raw Lumens: 7,128
  • Lux @ 10M: 1295
  • Beam Distance @ 1 Lux: 359
  • Beam Distance @ .25 Lux: 719
  • Horizontal Beam Angle: 16
A B C D E F G
3.25″ 3.75″ 23″ 21.5″ 22.75″ 24″ 2.7″

30″ Backlit Light Bar

  • Watts: 155
  • Amp Draw: 11.07
  • Voltage Max: 15
  • *Raw Lumens: 11,880
  • Lux @ 10M: 1991
  • Beam Distance @ 1 Lux: 446
  • Beam Distance @ .25 Lux: 892
  • Horizontal Beam Angle: 18
A B C D E F G
3.25″ 3.75″ 33″ 31.5″ 32.75″ 34″ 2.7″

40″ Backlit Light Bar

  • Watts: 204
  • Amp Draw: 14.57
  • Voltage Max: 15
  • *Raw Lumens: 16,632
  • Lux @ 10M: 2,595
  • Beam Distance @ 1 Lux: 509
  • Beam Distance @ .25 Lux: 1,019
  • Horizontal Beam Angle: 18.5
A B C D E F G
3.25″ 3.75″ 43″ 41.5″ 42.75″ 44″ 2.7″

50″ Backlit Light Bar

  • Watts: 243
  • Amp Draw: 17.36
  • Voltage Max: 15
  • *Raw Lumens: 21,384
  • Lux @ 10M: 3,015
  • Beam Distance @ 1 Lux: 349
  • Beam Distance @ .25 Lux: 1,098
  • Horizontal Beam Angle: 19.7
A B C D E F G
3.25″ 3.75″ 53″ 51.5″ 52.75″ 54″ 2.7″

Manuals

Radiance Installation

Download Document
