Sandcraft Motorsports Polaris RZR XP 1000 Billet Motor Mount Kit, Front Diff Shim Kit



As Low As 0% Up To 24 Months, Available"Financing Options"

In Stock Item (See Below Shipping Tab)

This Product Earns $13.95 In Cash Back

Add to Wishlist

Sandcraft Motorsports Alignment Kit And Motor Mounts For Polaris RZR XP 1000 Models

These RZR XP 1000 Motor Mounts Decrease the Angle of Your Rear Driveshaft While Decreasing the Vibrations and Shakes from you Motor, Diff Shim Kit Included

These Are Just Mounts and Shims, For Complete Kit With New Tube “SEE HERE”

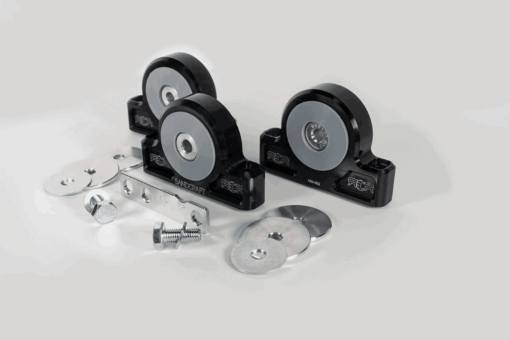

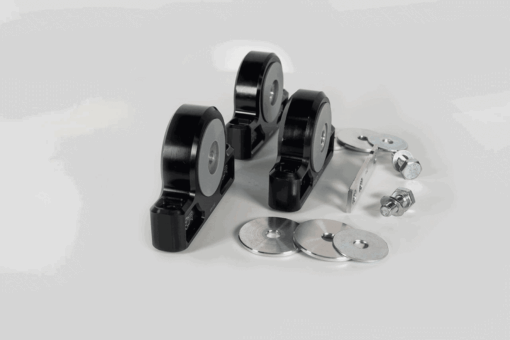

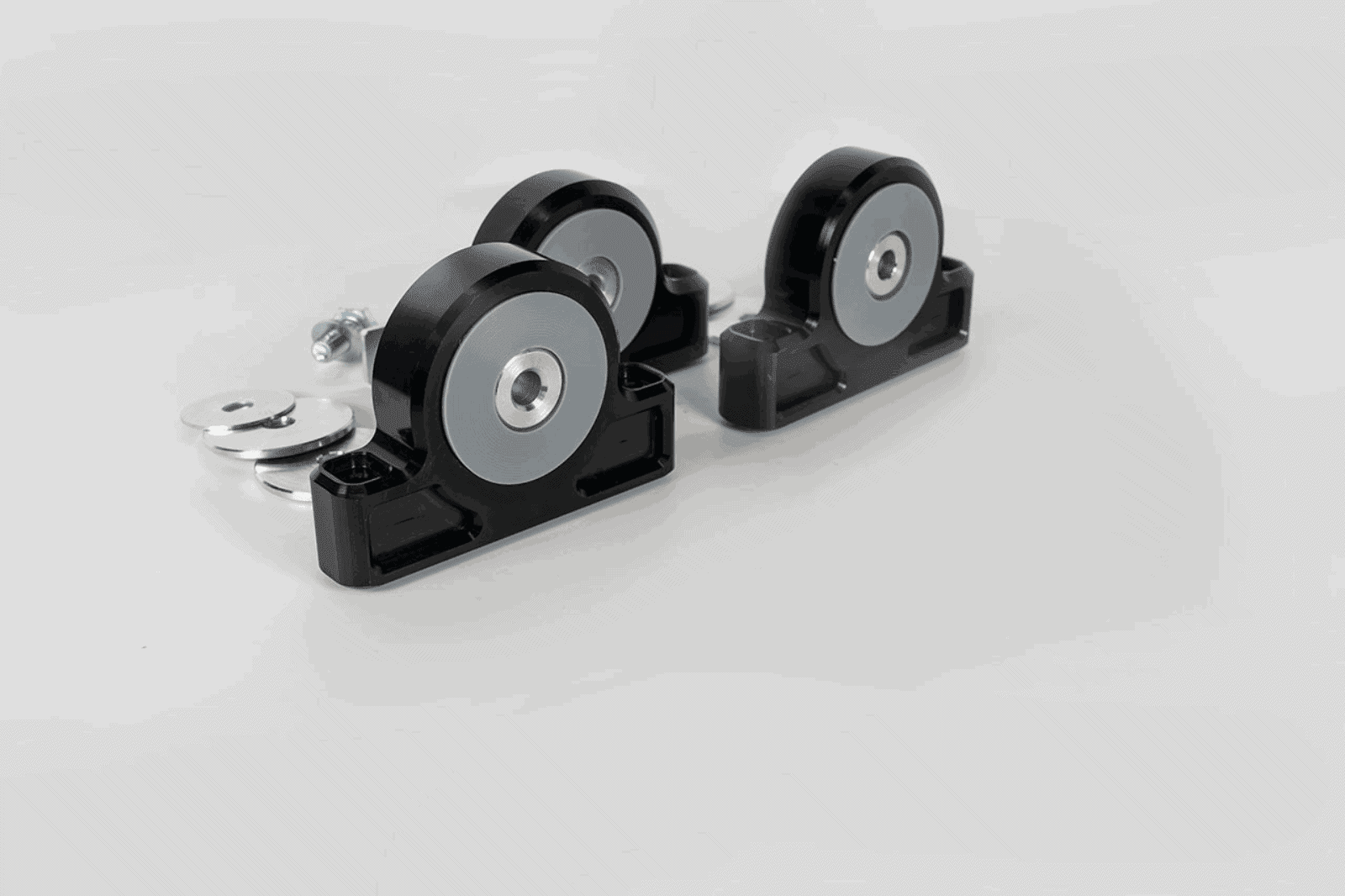

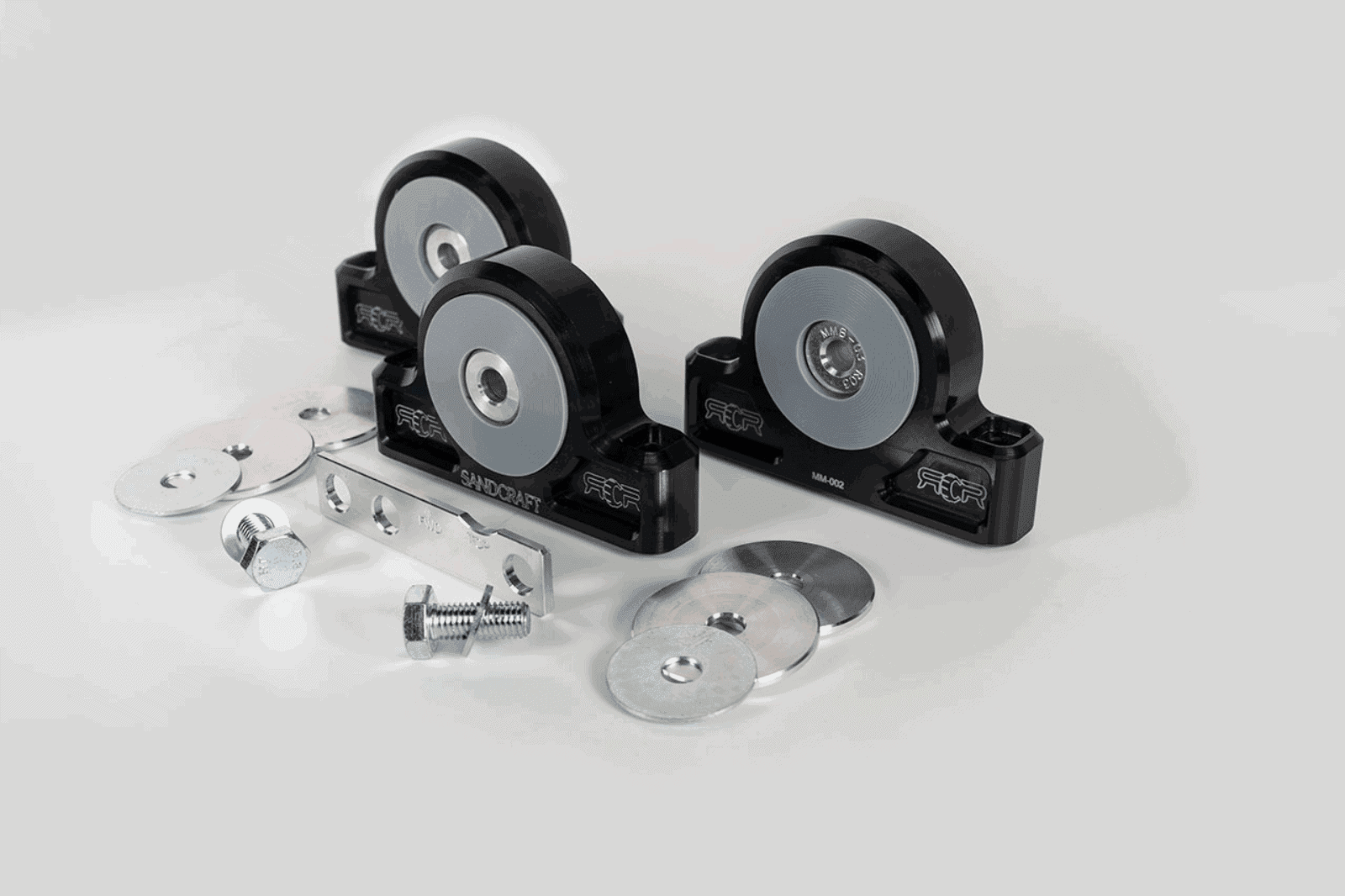

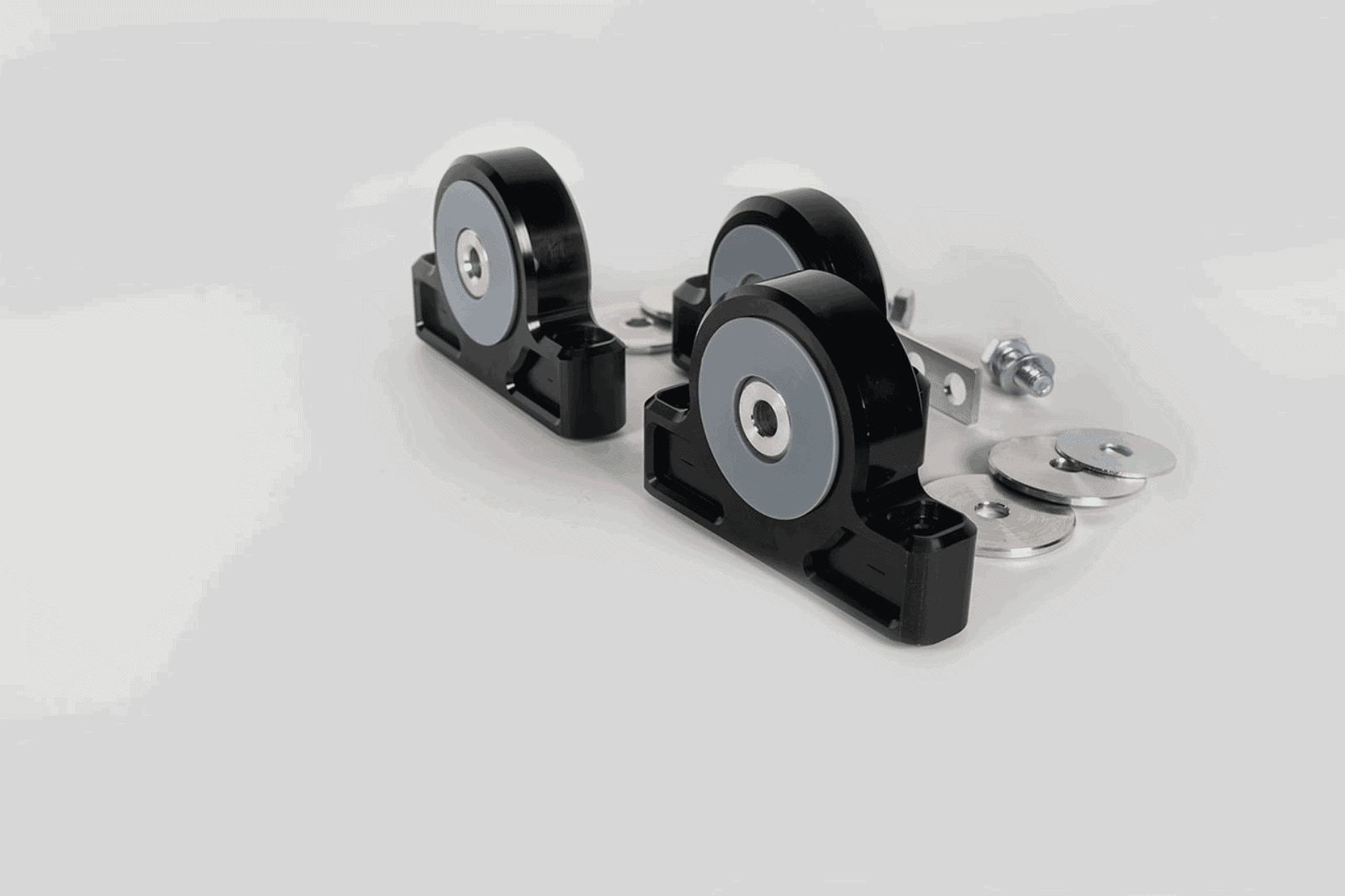

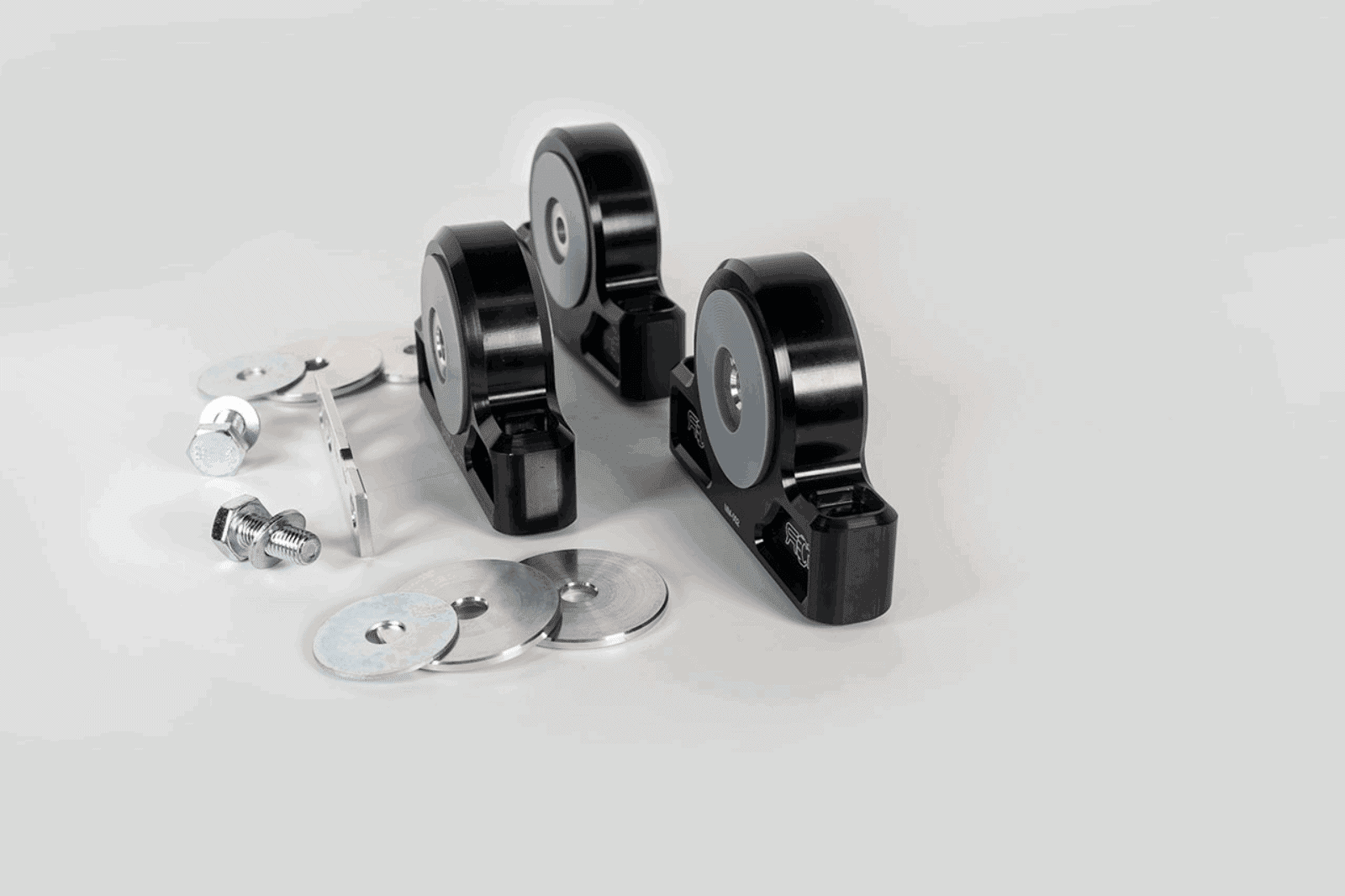

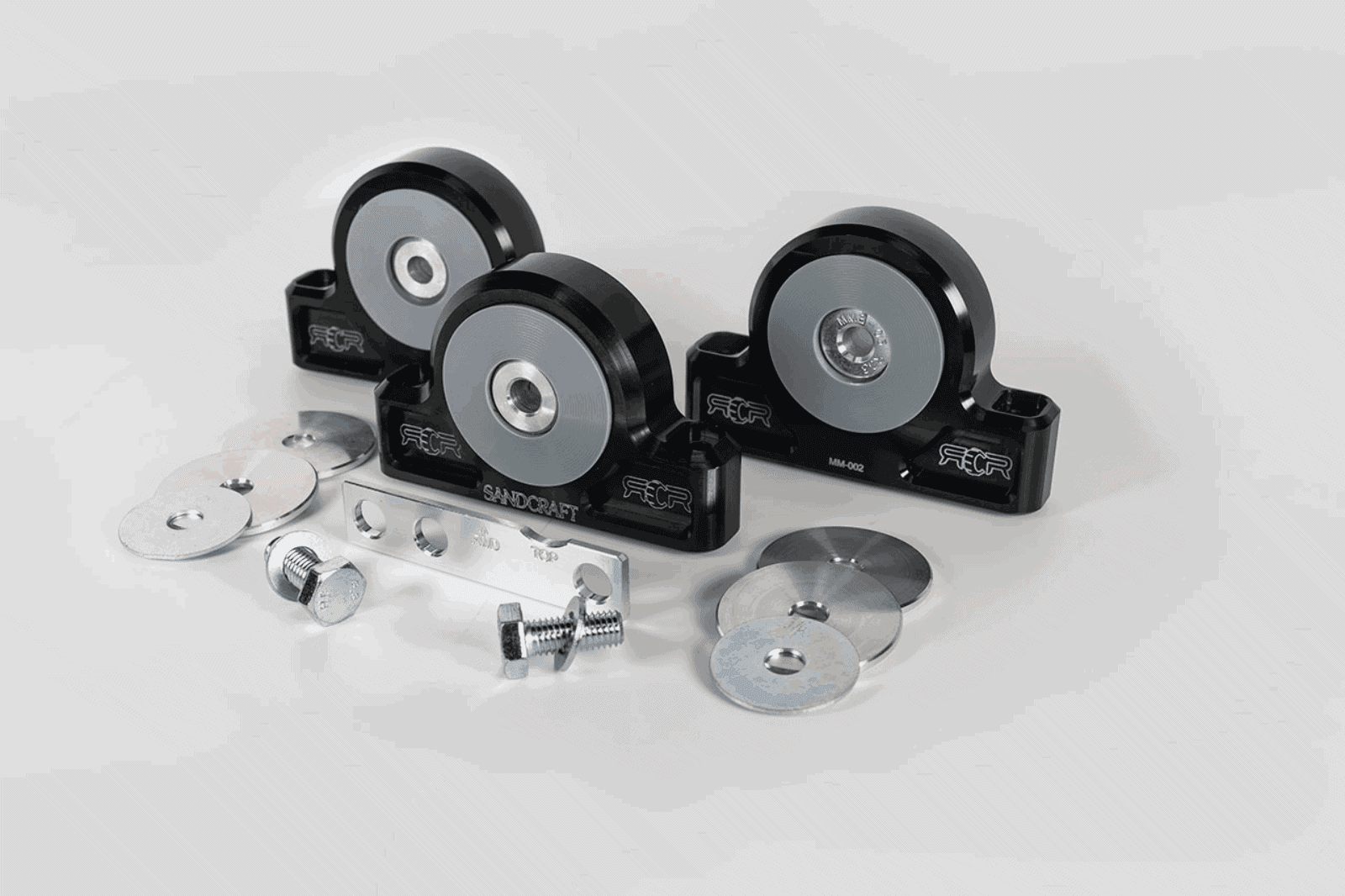

Motor Mounts + Shims

Sandcraft Motorsports billet motor mounts are the only solution for decreasing your rear output shaft angle.

This integrated an upgraded motor mount design while decreasing the output shaft & operating angle that increases the slip yoke ability within the spline shaft movement.

This allows less stress transferred into the driveline, the transmission’s internal components, & decreases the amount of load on the clutches & belt for a longer life span.

Our Billet motor mount kit also includes the first ever billet front diff. shim kit, which decreases the input shaft and operating angles.

By adding these shims this allows less stress on the front diff. ring & pinion gears, internal bearings & seals, & the front drive-line u-joint.


  • The first ever billet front diff shim kit
  • Decreases the input shaft and operating angles
  • Less stress on the front diff ring and pinion gears, internal bearings and seals
Sandcraft Motorsports RZR Turbo Motor Mount

Learn More About Sandcraft Motorsports:


Install Guide

Download Document

Motor Mounts and Tube Install

Sandcraft Motorsports proudly crafts all of our products by hand in the U.S.A. We build our parts to withstand the toughest of conditions, as long as they have been installed correctly and have not been modified, altered, improperly installed or otherwise not used as originally intended. We carry a limited guarantee our parts for life to the original purchaser from failures that are due to craftsmanship, material failure or any other factors that are determined to be our responsibility.

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday. Your order confirmation will be updated as soon as shipping is setup.

Any Production Run Items range from 12-14 Business Days and will ship once ready, your order confirmation will be updated as soon as shipping is setup.

Sand Paddle Tires – We Try to Stock all Standard sizes but inventory does change daily and if we are currently in a production run for Tires it could take 6-8 weeks.

Drivelines – These are traditionally A Stocked Item but At Times They Do Take 12 – 15 Business days to ship because They Balance Them correctly before they leave.

Make Model Year
Polaris Off RoadRZR XP 10002014 - 2023
Polaris Off RoadRZR XP 1000 EPS LE2014 - 2017
Polaris Off RoadRZR XP 1000 High Lifter2017 - 2022
Polaris Off RoadRZR XP 1000 Ride Command2018
Polaris Off RoadRZR XP 1000 Rocks and Trails2018 - 2022
Polaris Off RoadRZR XP 4 10002014 - 2023
Polaris Off RoadRZR XP 4 1000 High Lifter2016 - 2021
