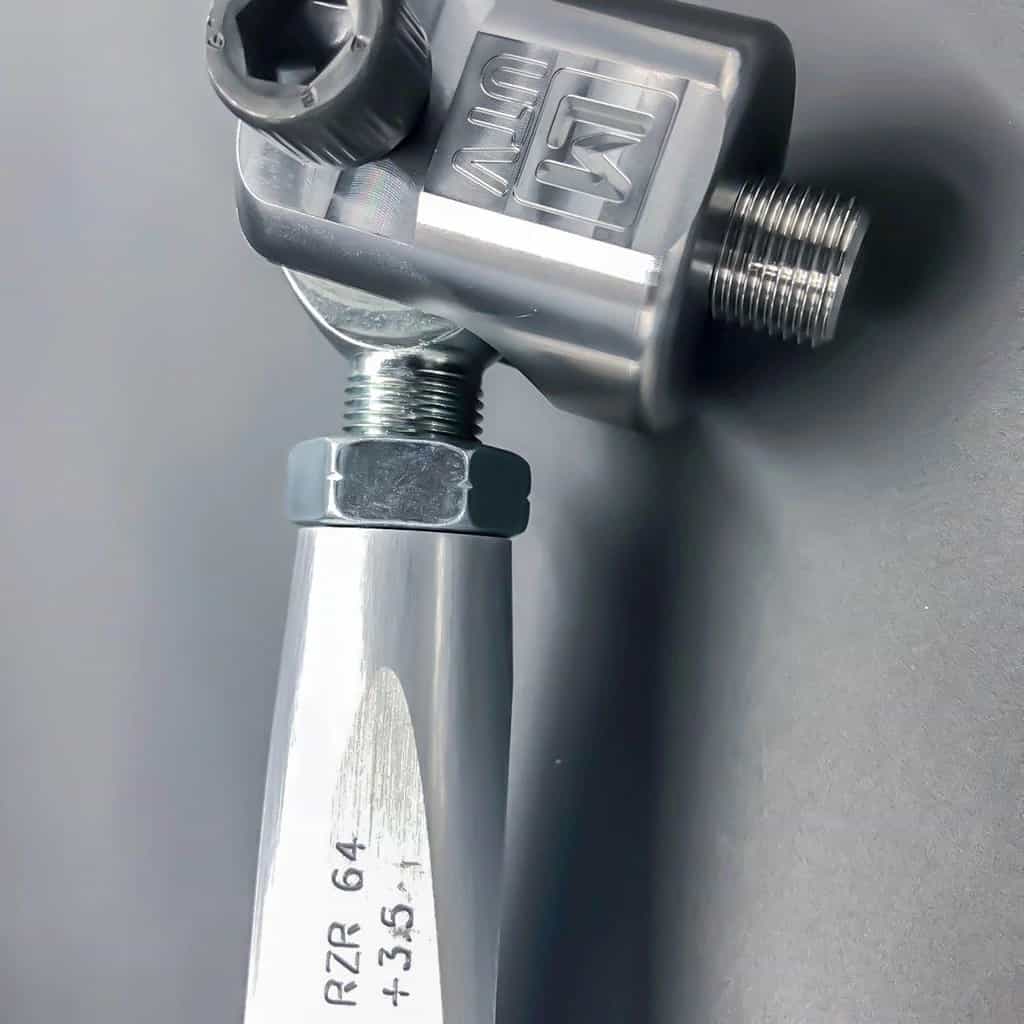

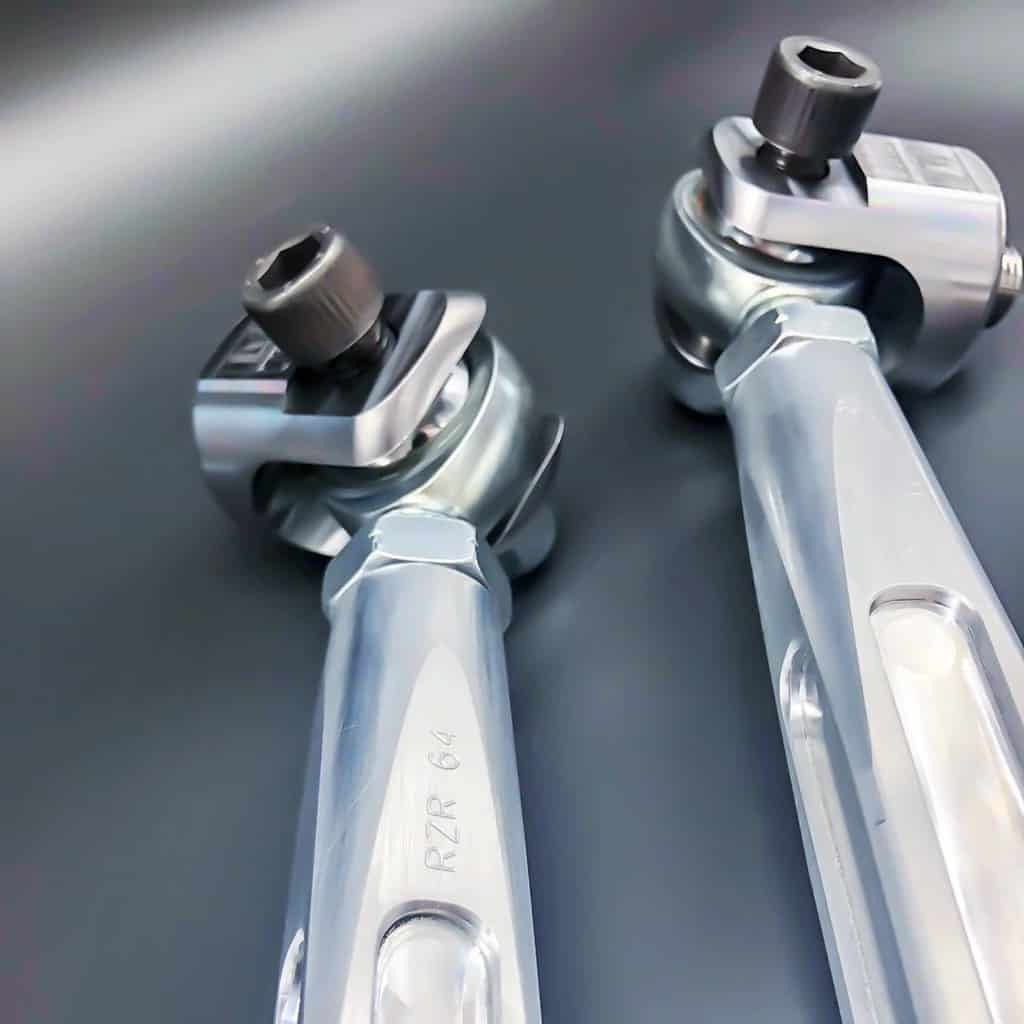

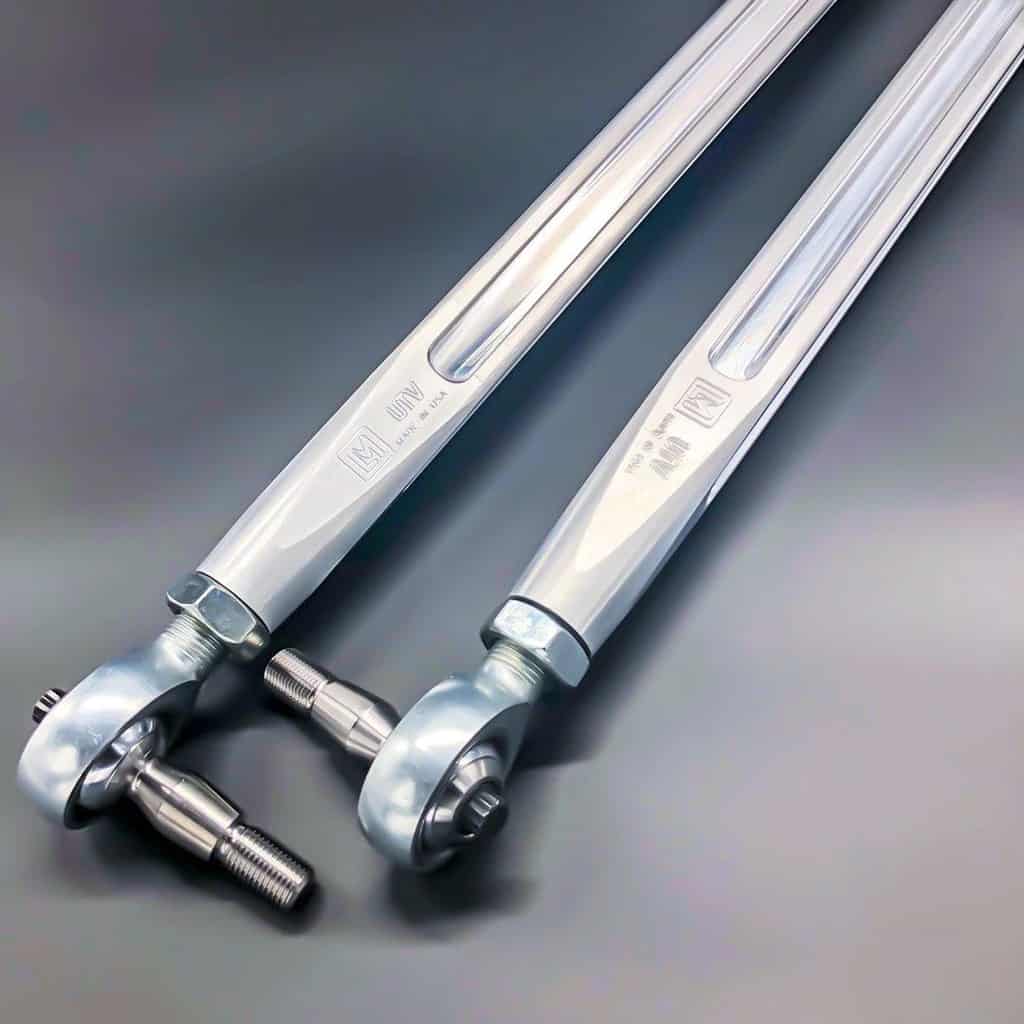

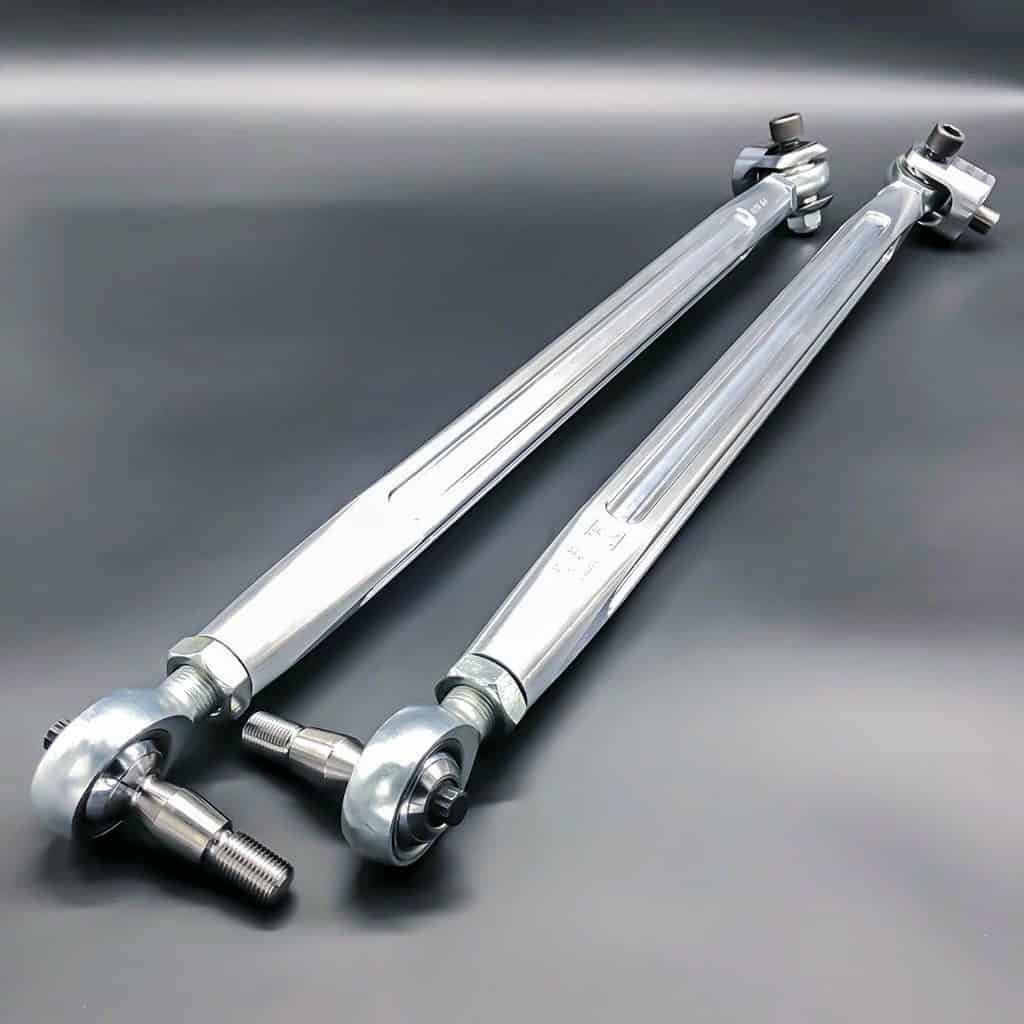

Polaris RZR XP Tie Rods, Heim Style

LM UTV Heim Style Tie Rods For RZR XP Models

LM UTV RZR XP Tie Rods Heim Style For Polaris RZR XP Series. Complete Steering Upgrade, Direct Bolt-on Replacement for RZR Tie Rods, 4340 Chromolly Inner Clevis

LM-UTV produces the best aftermarket UTV steering tie rods on the market.

Besides being extremely durable and their aggressive design, these parts are also made in America and come with a lifetime warranty.

We offer high-quality steering tie rods for the Polaris with many more makes and models available .

Tie rods are offered with finish options; choose from either a machine aluminum finish or type 3 hard black anodize finish.

Complete steering upgrade for the Polaris RZR.

Direct Bolt-on Replacement

Two Bolt Options Available –Please Compare Stock Bolt Size Going Into Steering Rack

• To determine whether you have M14 or M16, please measure the ends of your factory rods (the side that screws into the rack). If the end is less the 1/2″ you will need M14, if it is over 1/2″ you will need M16. The turbo model usually takes M16 ( measuring is recommended ), the 1000 model is not consistent and will need to be measured.
• 1) M14 x 1.5 rack side by m14 x 1.5 tie rod side. 5 – 5/8″ total length. (4″ length from rack to end of Jam nut)
• 2) M16 x 1.5 rack side by m14 x 1.5 tie rod side. 5 – 5/8″ total length. (4″ length from rack to end of jam nut)

Available in Machined Finished or Type 3 Hard Black Anodized

Features:

• Heat treated 4340 Chromolly inner clevis
• Heat treated 17-4 Stainless Steel hardware and spacers
• 3 Piece Chromolly PTFE lined 5/8 Heim joints
• 7075 Aircraft grade aluminum tie rod
• Designed and Manufactured in-house, in the USA
• Lifetime warranty
• Custom lengths available by request
