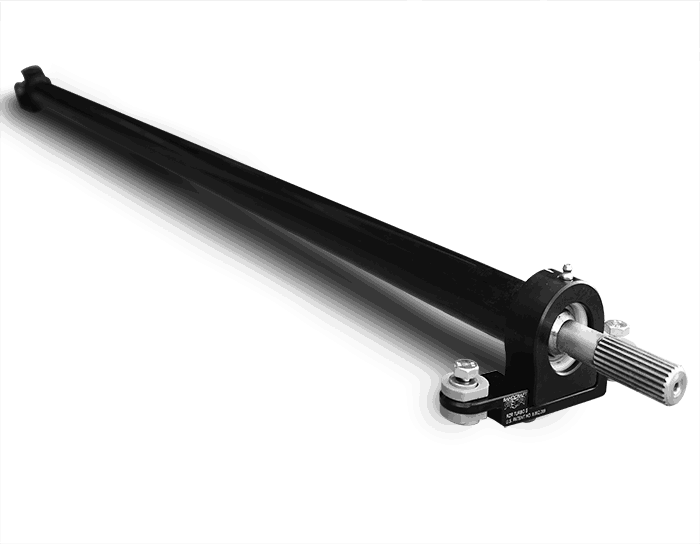

Sandcraft Motorsports Polaris RZR Turbo S Driveline & Carrier Bearing Kit
Upgrade Your RZR Turbo S Driveshaft and Carrier Bearing with A Balanced Correctly, 2X Stronger Then OEM Driveshaft and Industry Leading Carrier Bearing Kit
Finally you can solve one of the largest issues with your UTV Drivetrain with our upgraded Driveshafts and Carrier Bearing Combo!
Stop all vibration with a true phased and balanced Driveshafts along with correcting the operating angle.
This is the perfect solution for the smoothest ride possible!
• 2 Driveshafts (FRONT PROP SHAFT AND REAR DRIVESHAFT PHASED AND BALANCED)
• CARRIER BEARING (GEN3 WILL BE INSTALLED ON THE DRIVESHAFT)
Add On Race Collar:
With the stock driveline your vehicle is using a slip yoke at the rear transmission output shaft.
The motor is rubber mounted which is loading the driveline while under aggressive driving conditions.
The driveline is designed with a pressed fit bearing onto the stock carrier bearing shaft.
In extreme conditions it will pull out and disable 4-wheel drive capabilities.
Our racer driveline collar can be used with the stock carrier bearing but is HIGHLY recommended with our upgraded GEN 2 and Gen 3 carrier bearing.

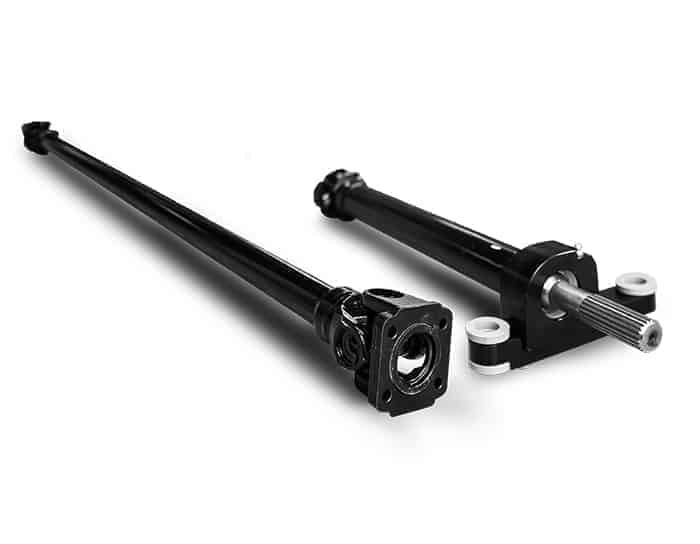

Sandcraft Motorsports Front Prop & Rear Drive Shafts
Upgraded your UTV Driveline Today to prevent your Driveshafts from breaking and twisting under pressure.
Why Sandcraft Drive Shafts:
Sandcrafts UTV Drive Shafts are Rated 3 times stronger than stock with larger U-joints that are automotive rated for speed, Along with matching yokes.
The Overall diameter of the shafts are increased with double the thickness of the walling compared to stock/OEM Drive Shafts from the manufacturer.
Rotation & Phasing to Match:
These are manufactured to perfection with True Phasing and Balancing during the process, this allows your rotations to match and clear up vibrations.
The OEM drive shafts are rated at 40 MPH, when you are exceeding that speed flex and pressure start to bend your Drive Shafts.
Sandcrafts Drive Shafts are engineered to match your machines capabilities & handle the power all the way to the wheels.
How Perfection Is Made:

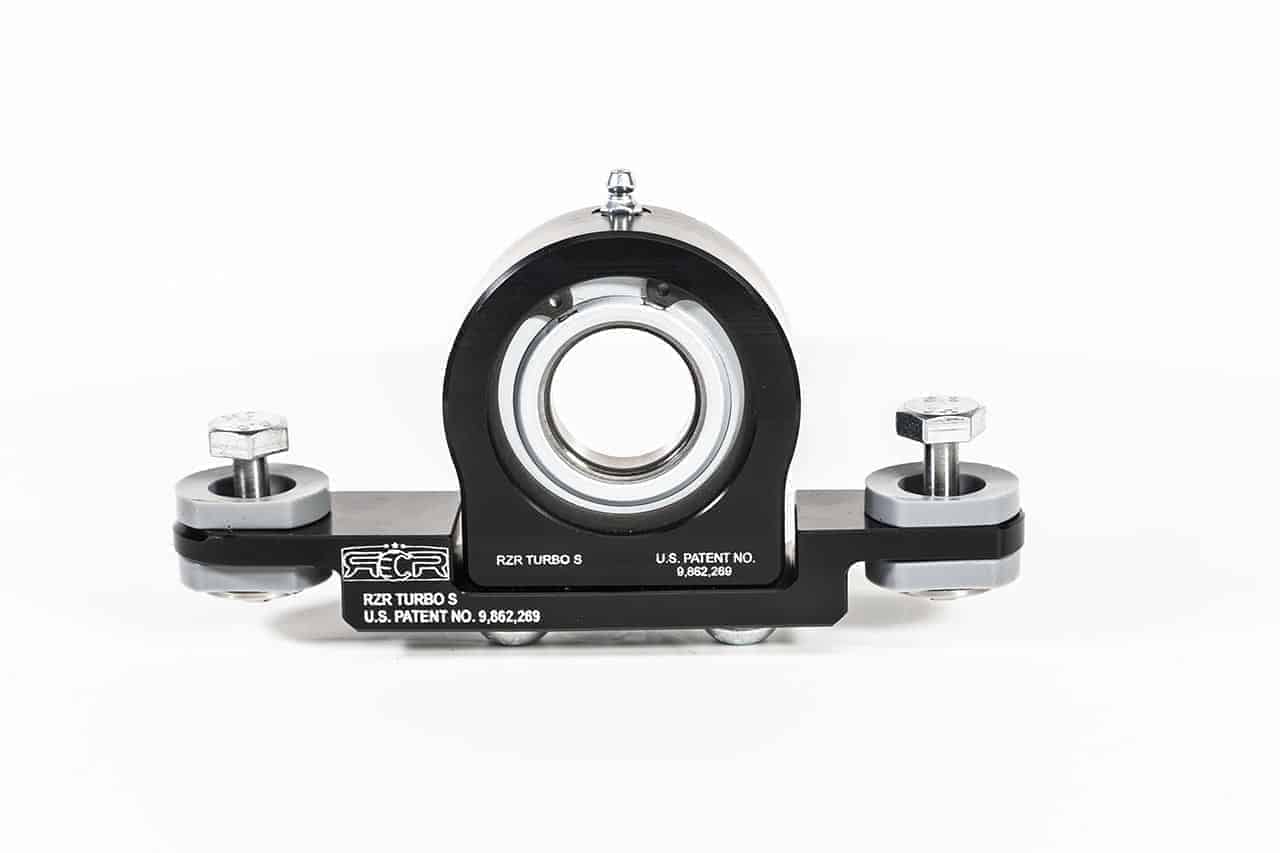

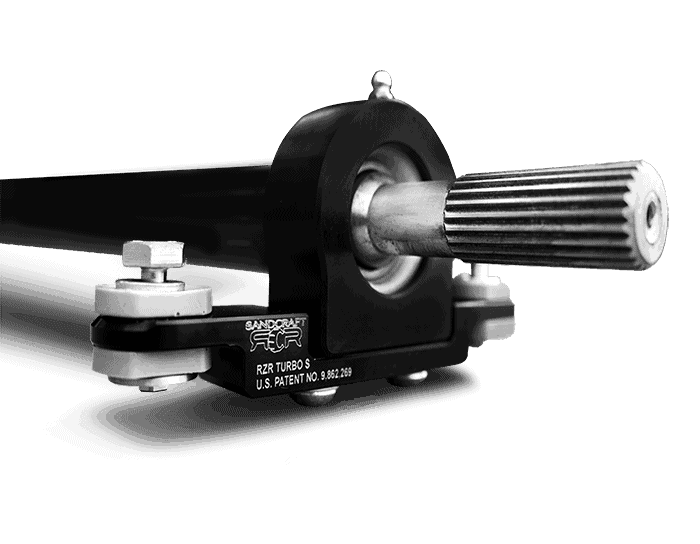

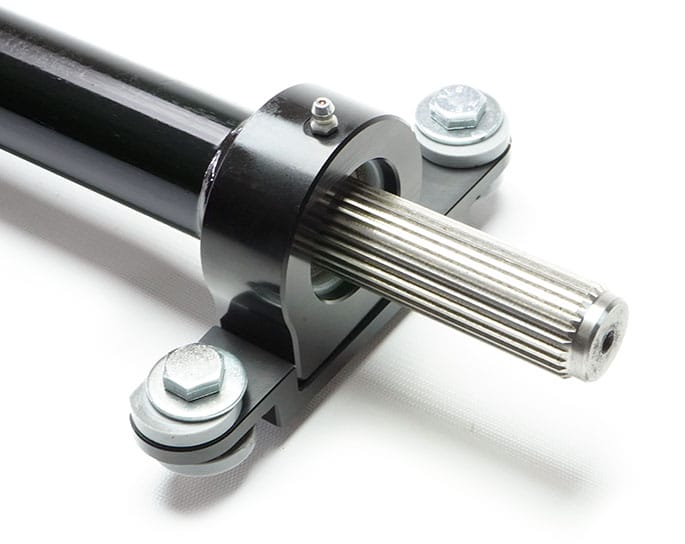

Sandcraft Motorsports Carrier Bearing
Sandcraft Motorsports is the Pioneer to this solution that reduces vibration & chattering. Their innovative, Patent pending, Carrier Bearing assembly! Designed with off-roading in mind, it improves the driveline angle and raises the height for more ground clearance. Providing your UTV the long term longevity you want & deserve.
We are the ONLY COMPANY in the world with this design so don’t waste your time with the copycats.
Fully Sealed Bearing & Fully Greasable
We have created and patented this design to be a GREASABLE bearing while having 3 layers of protection to keep dirt, sand, mud, and water out.
Patented Design, Sandcrafts Auto Set Angle self-aligning bearing reduces side load on your carrier bearing from the prop-shaft – a must have if you want to keep vibrations to a minimum and the life of your bearing long.
Our all new auto set angle & 2 piece design will lower installation time dramatically, It allows you to press the bearing onto the shaft and install with minimal effort.
Side loading the bearing leads to pre-mature wear and failure. The auto set angle features solves for that problem.
