S&B Filters V2 Particle Separator For Polaris Pro XP Models

Keep Your Air Filter Clean For Every Ride, This Industry Leader Polaris RZR Pro XP Particle Separator Keeps Your Horsepower Up With Clean Air Intake

Don’t let the elements slow you down. A clogged filter chokes your engine of power. The S&B RZR Pro XP Particle Separator lets you play in harsh conditions, as it was designed to protect from water, snow, sand and fine dust.

The RZR PRO XP Particle Separator ejects 94% (Standard Bar Mount) And 96.6% (Inner Fender Mount) of the dusty air before it reaches your stock filter.

Highlights:

Separates over 94% – 96.6% of dust before it reaches the air filter
Integrates into RZR Pro XP’s body for factory fit and finish Or Mountable To Either Roll Bar
Connects to your pulse bus bar power
Inner Fender Mount 2025 body panels around the Particle Separator need to be trimmed. Trim guides are included with the kit.
Protects your engine. Overloaded filters can collapse resulting in a dusted motor.

Shop And Learn More About “S&B Filters Products”

HUGE AIRFLOW, WHILE STILL KEEPING YOUR FILTER CLEAN.

How much dust will it separate?

The Particle Separator 2 for the RZR Pro XP Inner Fender Mounted will separate at least 96.6% of the dust just like it does on other vehicles. With less dust on your filter, your engine will produce more power.

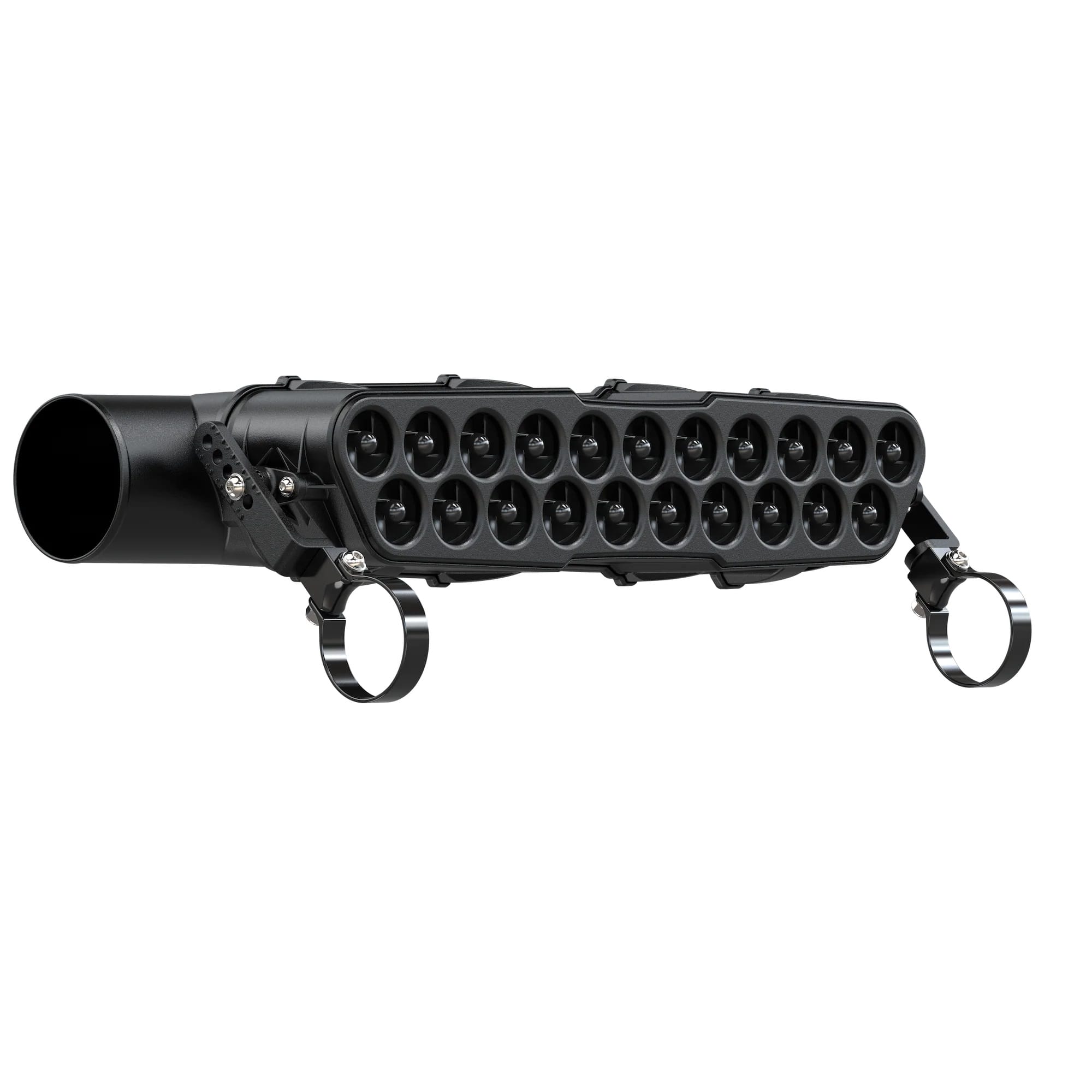

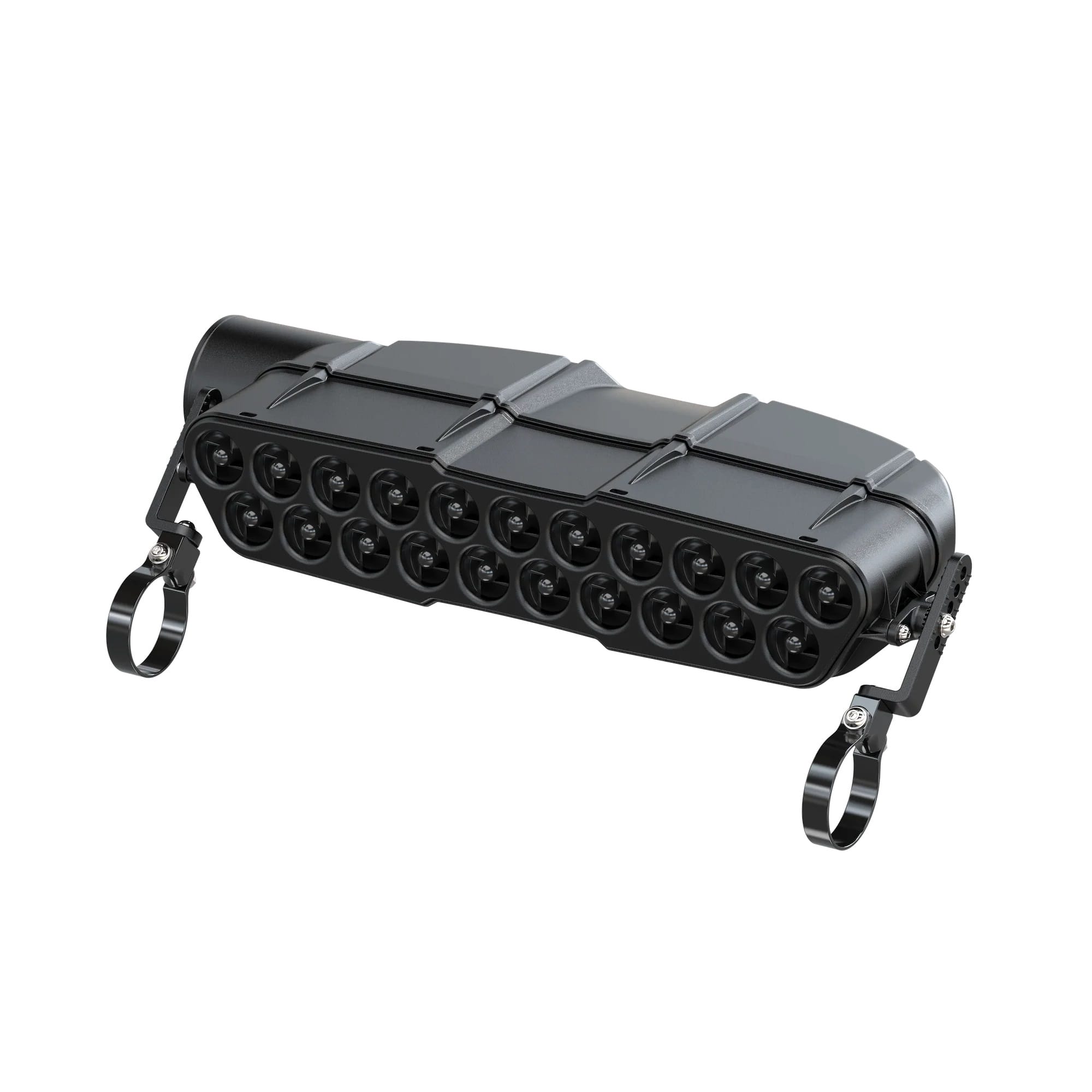

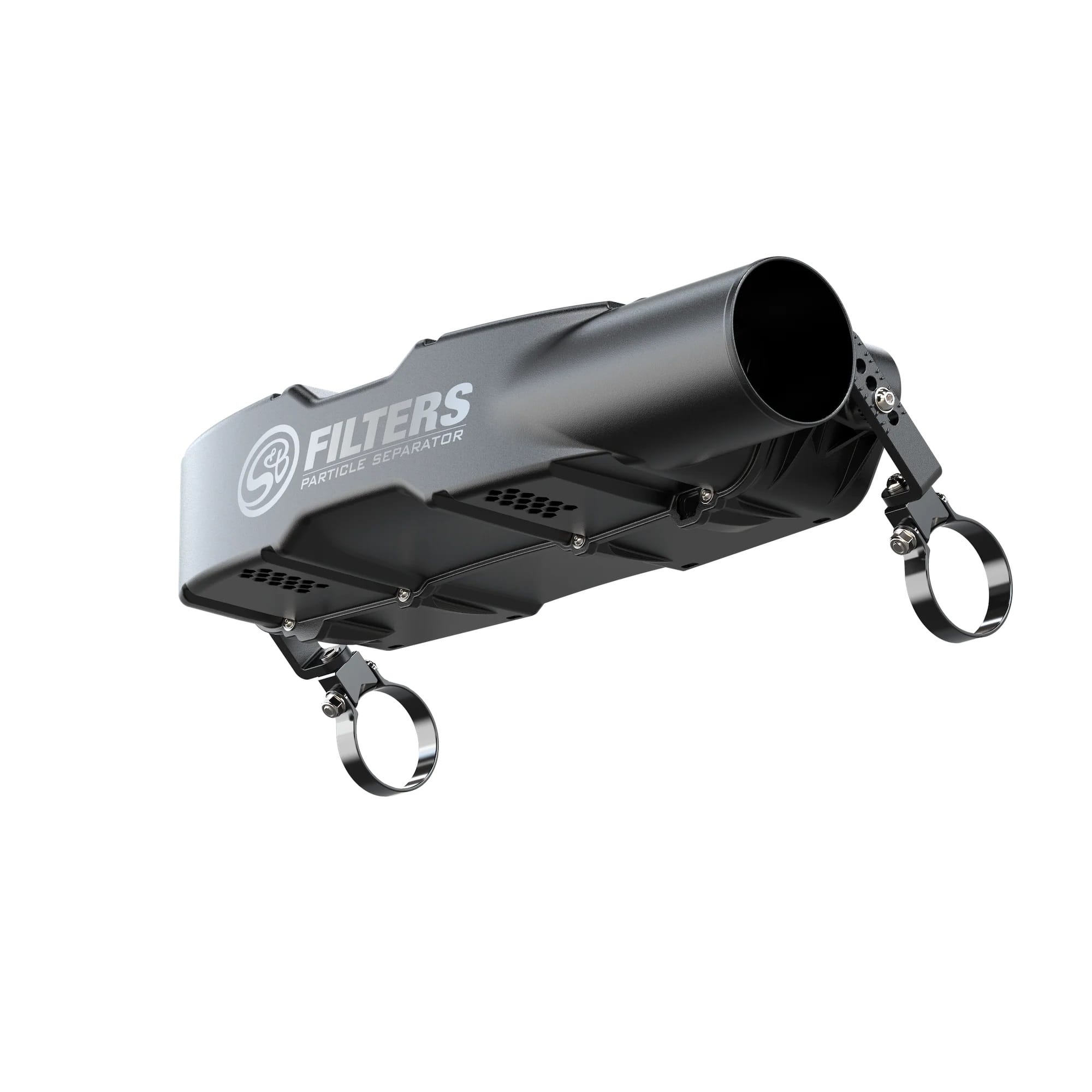

The Round Bar Mounted vortexes that offer even more airflow while still ejecting over 94% of the dust to keep your filter cleaner, longer.

WHISPER QUIET FAN TECHNOLOGY. LISTEN TO MUSIC & TALK IN PEACE.

The Particle Separator 2 features an automatic variable speed scavenge fan. When you’re at idle or the vehicle’s RPM is low, the fan speed is lower allowing you to talk and listen to music without hearing the fan. Once you hit the gas, the scavenge fan instantaneously accelerates to provide maximum protection for your filter.

It’s the best of both worlds.

MAINTAIN POWER THROUGHOUT YOUR RIDE.

Don’t let the elements slow you down. A clogged filter chokes your engine of power. The S&B Particle Separator lets you play in harsh conditions, as it was designed to protect from water, snow, sand and fine dust.

The Particle Separator ejects 94% of the dusty air before it reaches your stock filter.

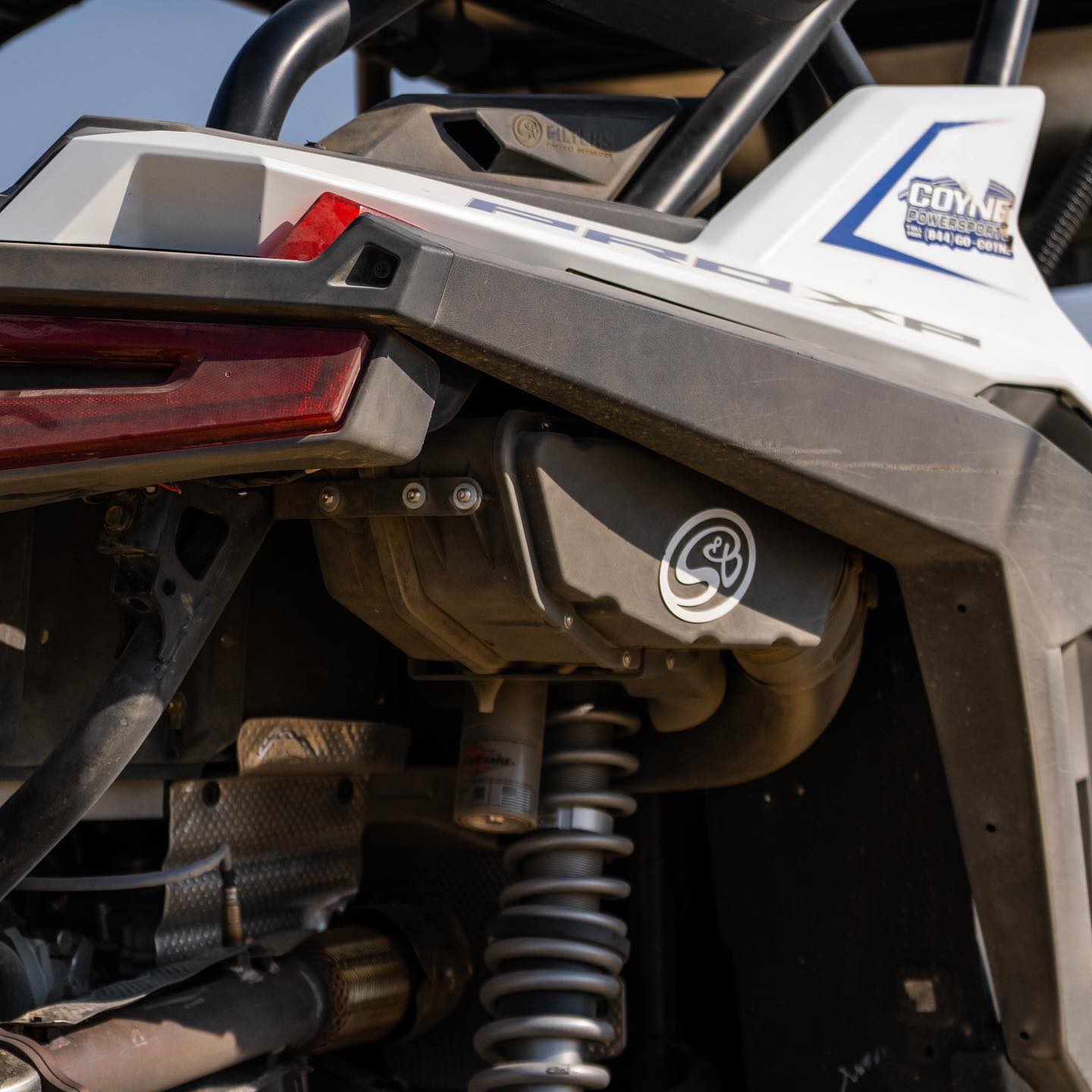

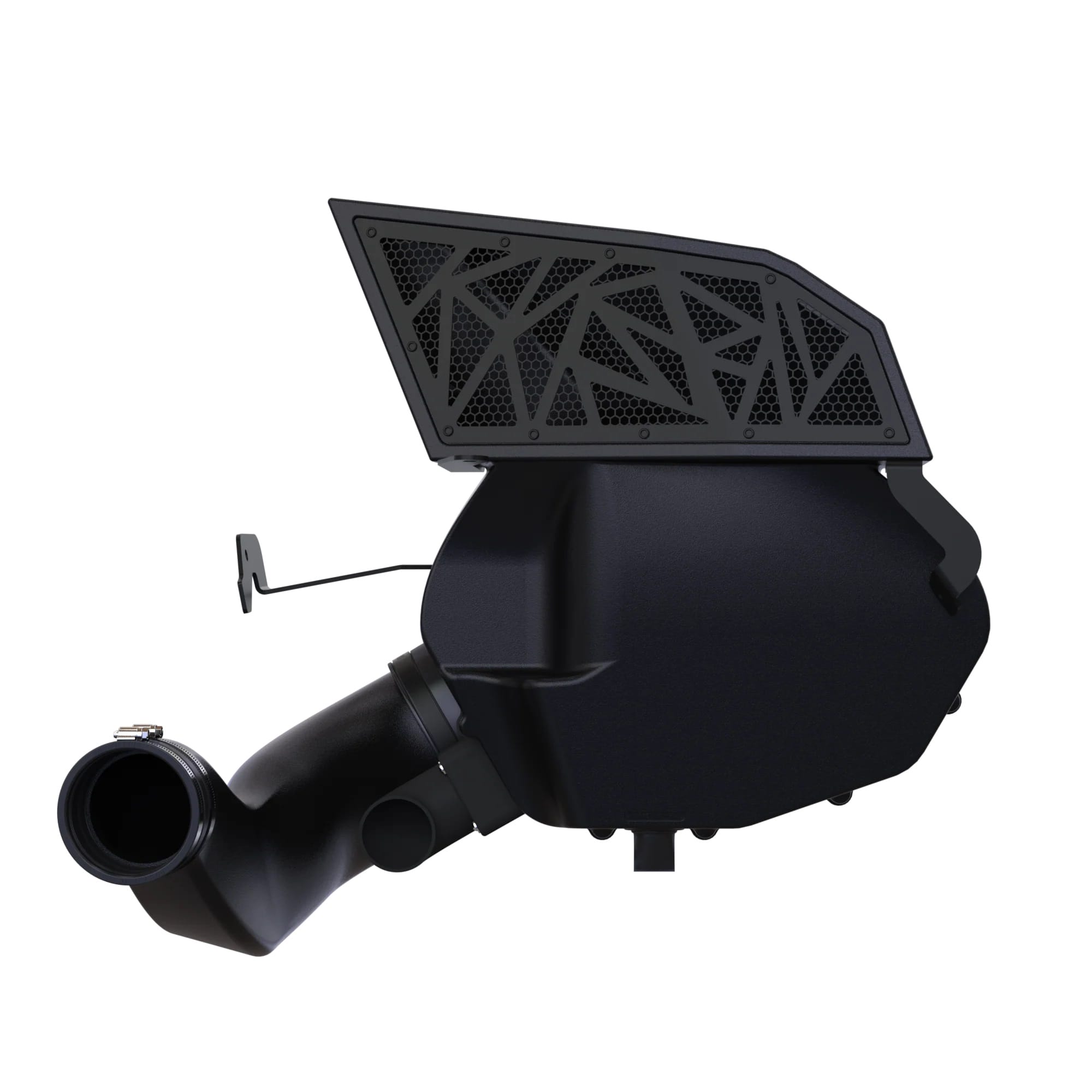

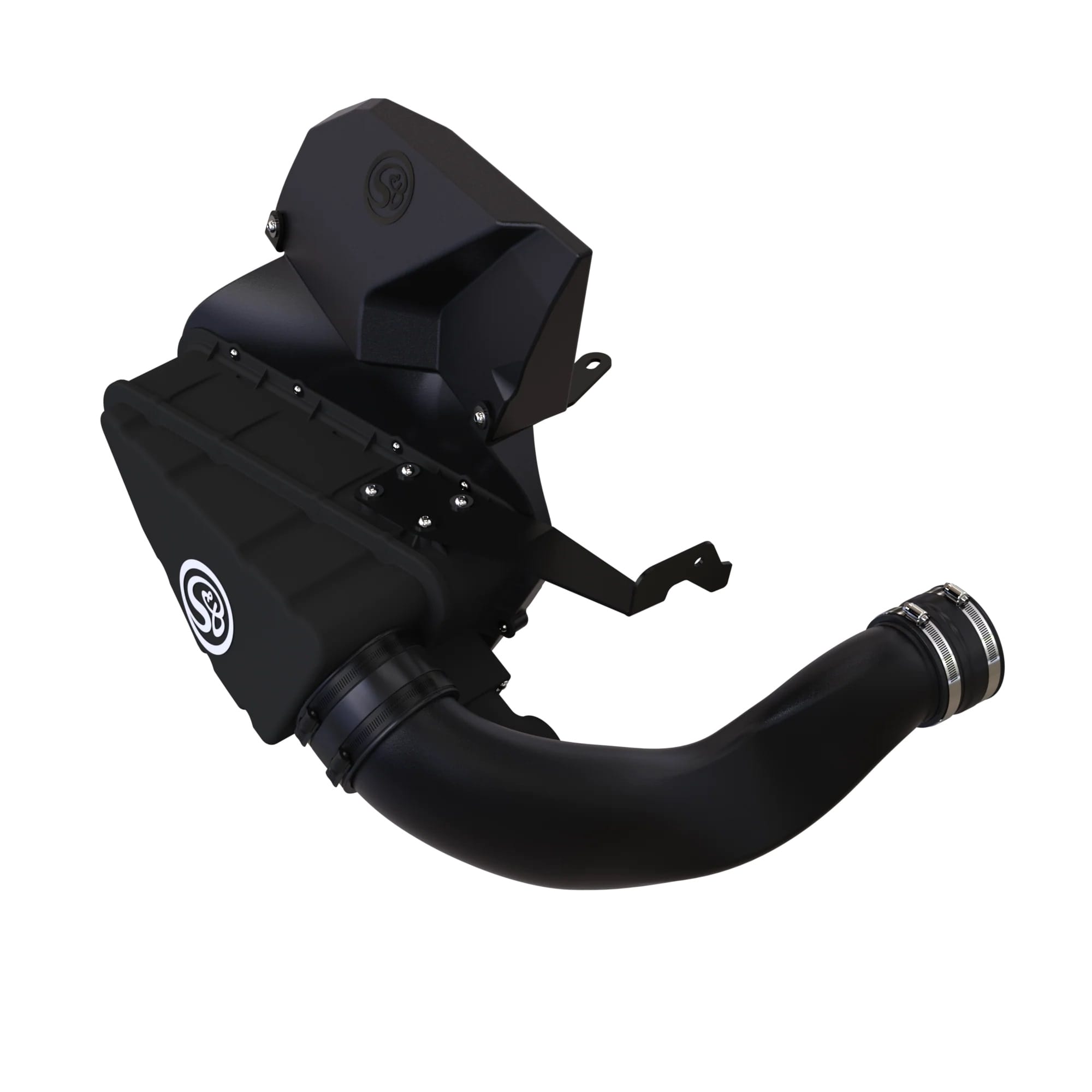

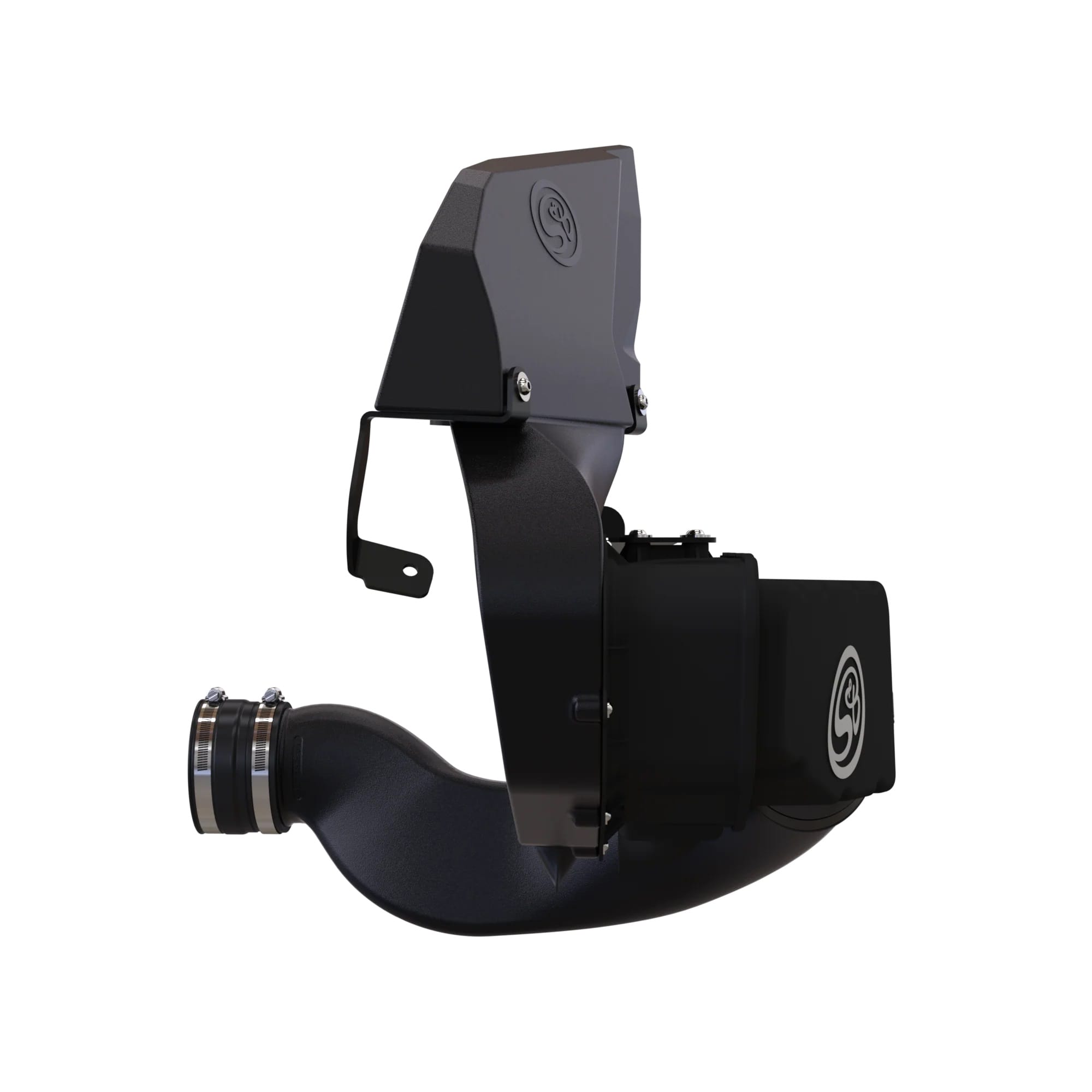

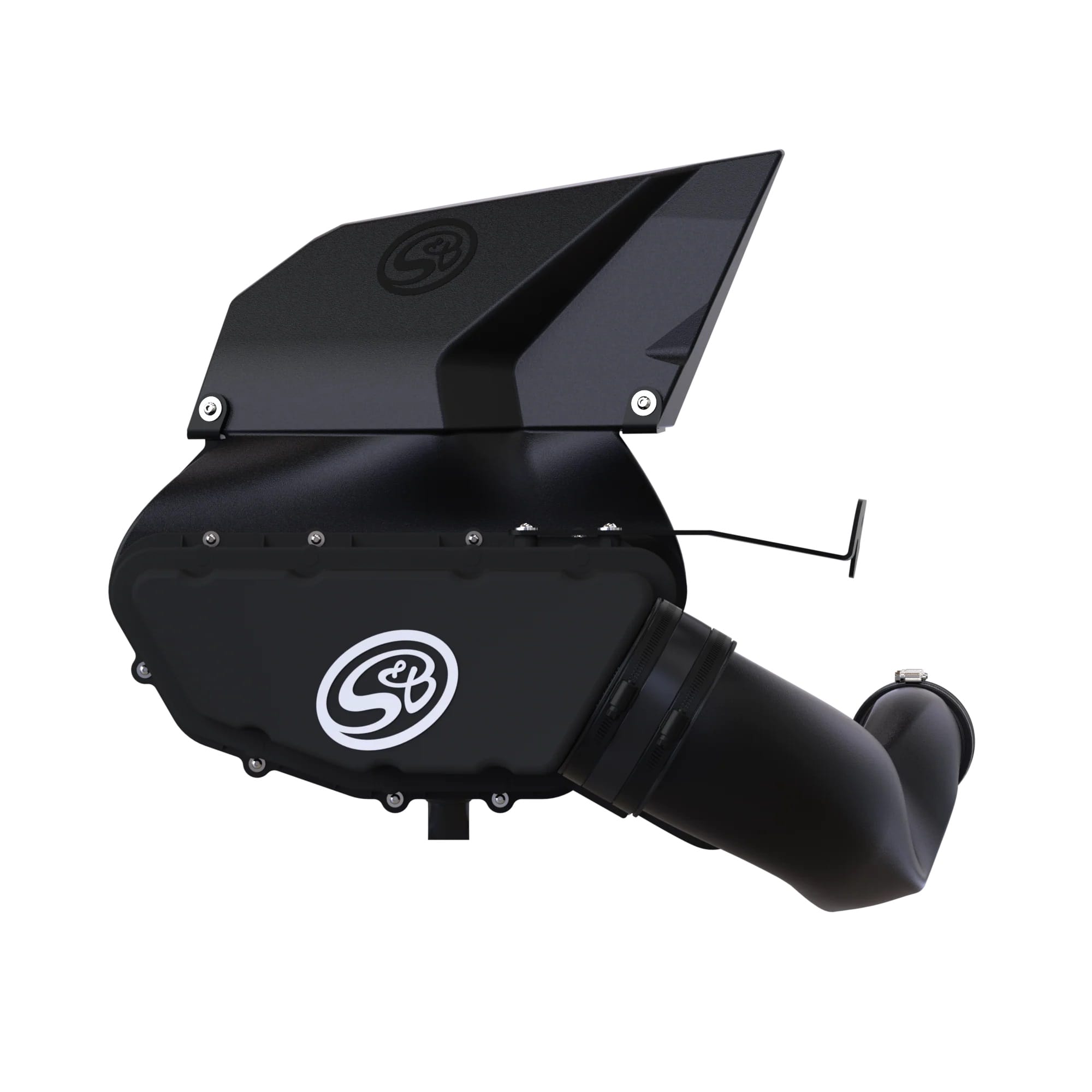

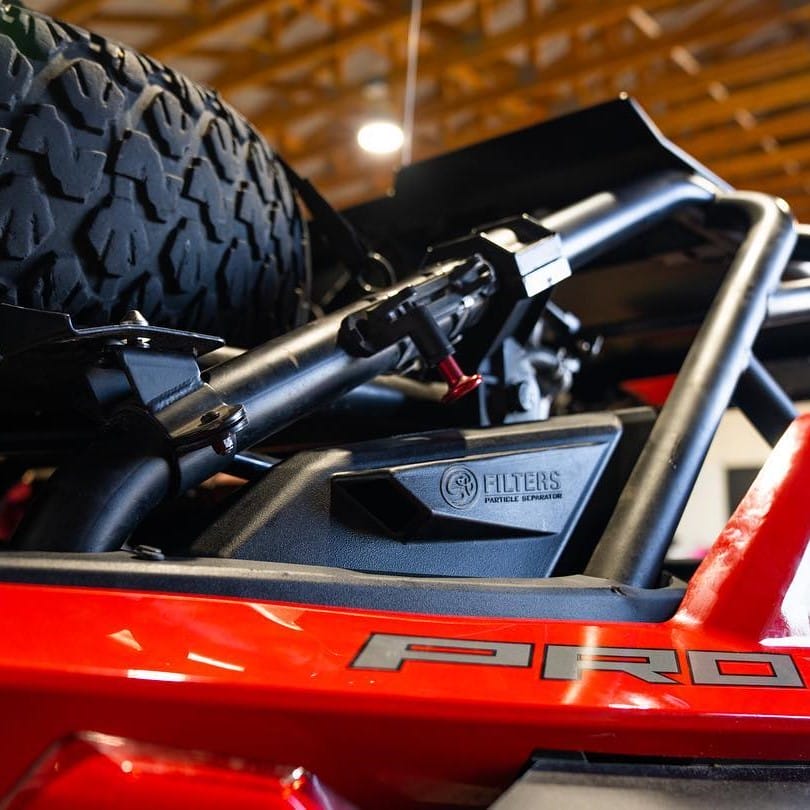

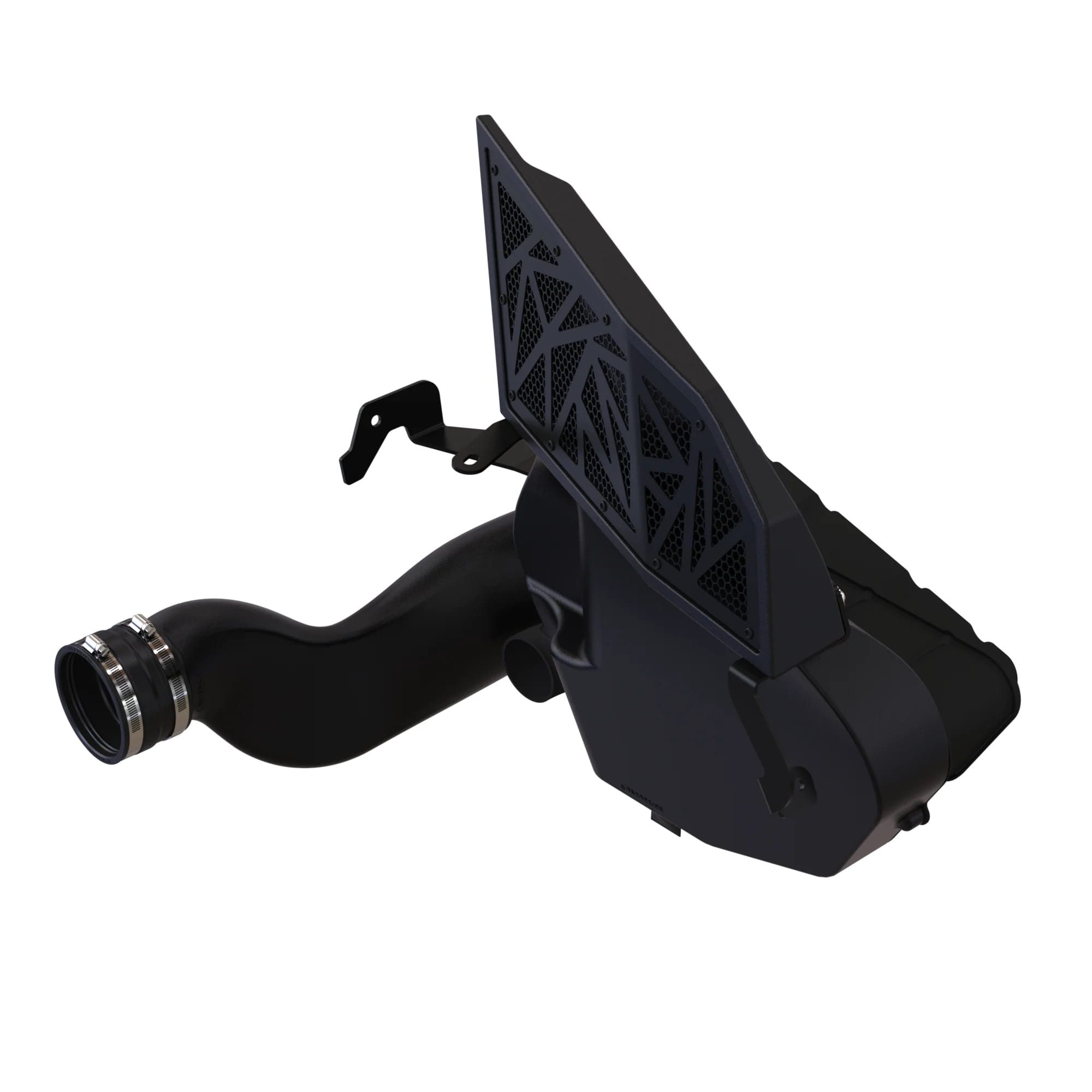

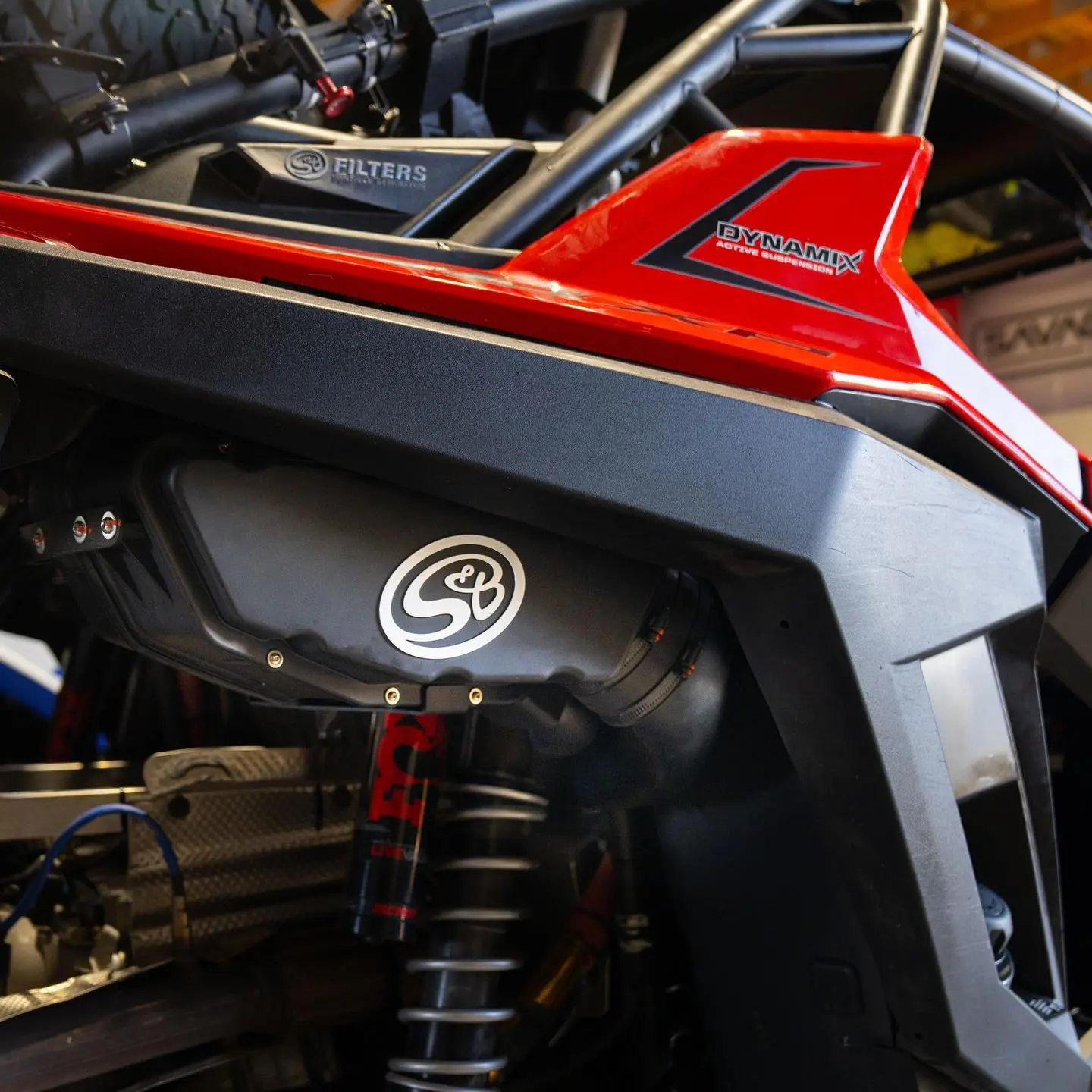

INNER FENDER MOUNTING POSITION.

The Particle Separator integrates into the body of the Pro XP for a factory fit and finish while allowing clearance for up to 40″ tires. Now you can say yes to all those other cool accessories while still protecting your engine.

As with all S&B products, this unit will look like it shipped from the Polaris factory.

RAM AIR. GET MORE AIRFLOW.

When installed on the upper roll bar, the Particle Separator allows your UTV to engulf more air. With this additional airflow, your engine will maintain its highest level of performance in horsepower and fuel economy.

WORKS IN THE SNOW!

MAXIMUM HORSEPOWER.

Running the S&B Particle Separator is less restrictive than running without one. There is no loss of horsepower because your filter is not getting bogged down with dirt and debris, resulting in less restriction and maximum airflow.

Just what a race-tuned UTV needs.

Common Particle Separator Facts:

How Many Amps Does It Draw

The Particle Separator Draws:

Key on: 0.3A

At idle: 0.6A

Max speed: 2.4A

Suggested Mounting Locations

We suggest mounting your particle separator to one of the horizontal roll cage bars found to the rear of the vehicle. You can mount the separator on the lower roll cage bar behind the back row of seats, or to the upper roll cage bar either above or below the roof. We recommend facing the particle separator forward to benefit from RAM air induction while the vehicle is moving.

On The New Pro XP, Pro S, Turbo R And Pro R Models You Will Be Mounting Inside Your Inner Fender.

Will It Work With A Rear Window Installed

Yes the particle separator will still work, although you will not benefit from RAM air induction when the vehicle is in motion. If you mount the particle separator behind a window, leave at least 6 inches of space between the window and the face of the separator to ensure proper functionality and separation

Will It Work With OEM Rear Racks

The particle separator has been designed to fit specifically with the LinQ pivoting rack accessory for the Can-am X3. We do not guarantee fitment with any other aftermarket racks. Please refer to the general dimensions sheet and measure your desired mounting position to determine if the Particle Separator will fit with your rack.

I Am Seeing Dust Inside The Tube

Yes. finding dust in the fresh air outlet is completely normal and does not indicate that your PS is malfunctioning. The Particle Separator filters out over 94% of dust; the dust found inside of the fresh air outlet is the 6% that was not filtered out.

Will It Affect My Radio's Onboard

Ensure that you are mounting either a ground plane or no-ground plane antenna. Mount the antenna to the manufacturer’s recommendations regarding location.
Make sure the antenna is at least 3 feet away from the PS.
Connect your radio directly to the battery of the vehicle.

Where Does The Dust And Dirt Go

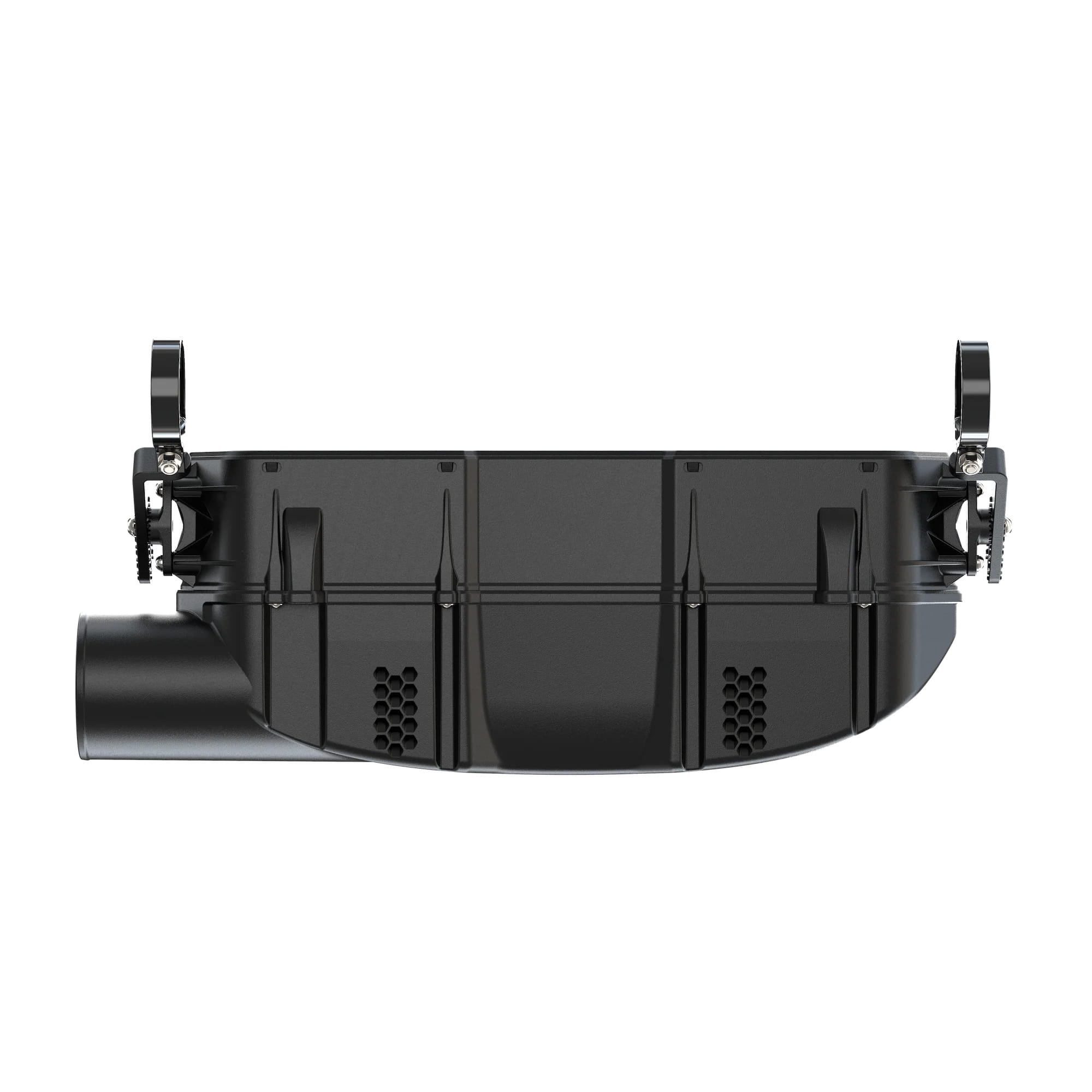

Once the dust has been separated from the clean air, it is directed in the main body of the separator and quickly evacuated back to the atmosphere through the separator’s 2 variable speed fans. With the design of the Particle Separator, the fans are integrated into the body of the separator and are only visible through the vents on the underside of the unit. The system has been designed to exhaust the dust straight backward, avoiding contact with any cargo or equipment found under the separator in the bed of the UTV.

Manuals

Part/Packing Sheet Details Round Bar

Download Document

Part/Packing Sheet Details Inner Fender

Download Document

Inner Fender Mounted Install Video

Round Bar Mounted Install Video

Particle Separators

S&B warranties the electrical components of the Particle Separator’s scavenge fan and wiring harness for 3 years from the date of purchase. The warranty DOES NOT cover broken fan blades. In close proximity of another UTV, there is the potential to get Roosted. Getting Roosted is when small rocks from the vehicle in front of you may fling into the Particle Separator’s inlets and break the fan blades. If you do get roosted frequently, click here to learn more about our Roost Protector. The 3.5″ flexible ducting comes with a one (1) year warranty.

If you purchased S&B products from an unauthorized dealer or if the original factory serial number has been removed, defaced or altered, your S&B limited warranty will not be valid.

Replacement of Product

In order to return any product to S&B, an RMA number must be issued. Customer must supply proof of purchase and product must be sent back at customer’s cost.

Extent of Warranty

If a defective product is properly returned to S&B, it will be replaced. S&B reserves the right to decide as to if the terms of the warranty outlined above have been followed properly. Should S&B decide that the terms of the warranty do not apply, S&B will under no obligation honor this warranty. Under no condition shall S&B be responsible for any contingent, special, consequential, indirect or other damages.

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Update and Email You Tracking.

Any Production Items will be shipping with 12-15 Business days after order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Update and Email You Tracking.

Make	Model	Year
Polaris Off Road	RZR Pro XP	2020 RZR Pro XP - 2025 RZR Pro XP
Polaris Off Road	RZR Pro XP 4	2020 RZR Pro XP 4 - 2025 RZR Pro XP 4
