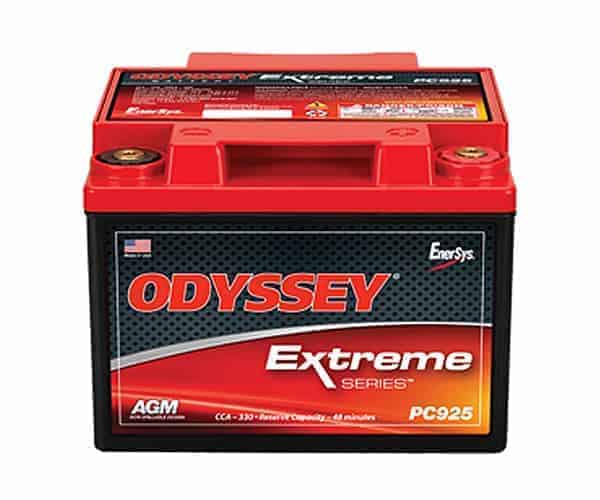

ODYSSEY PC925 Extreme Series Battery, ODS-AGM28L

ODYSSEY PC925 Extreme Series Battery AGM Performance

Whether for everyday or emergency use, today’s vehicles are loaded with more electronics than would have been imaginable just a few years ago.

ODYSSEY batteries have been designed to keep up with the changes. Because their plates are made of pure virgin lead (unlike the lead alloy in most batteries), we can pack in more plates.

And more plates mean more plate surface area, and much more power – twice the overall power and three times the life of conventional batteries – up to 400 cycles at 80% depth of discharge!

ODYSSEY batteries deliver the massive starting power, rapid recovery, and amazing deep cycling capability that today’s vehicles demand.

ODS-AGM28L – The Offical Part Number.

Specifications

• Voltage – 12
• Pulse (5 second) Hot Cranking Amps (PHCA) – 900
• Cold Cranking Amps (CCA) – 330
• HCA – 610
• MCA – 480
• 20Hr Nominal Capacity (Ah) – 28
• 10Hr Nominal Capacity (Ah) – 27
• Reserve Capacity Minutes – 48
• Terminal – M6 Receptacle
• Torque Spec in-lbs (Nm max) – 60 (6.8)
• Internal Resistance – 5
• Short Circuit – 2400

With Battery Monitor

First and Only Smart Battery Isolator Designed from the Ground Up Exclusively to Meet the Demanding Needs Of UTV Riders, Complete UTV Dual Battery Wiring Kit

The UTV-SBI-18, features a dual sensing or ambidextrous operation the prevents it from being installed backwards and at the same time allow it to function and maintain, or charge, both batteries from a single charger/float/tender attached to either battery.

The 18 is ideal for mounting with the included 3M Dual Lock™ fastener material or it can actually be left suspended in the cable or with the included screws on any flat surface. The high quality silicon insulators provide full protection for the connection cable ends and studs.

This has been designed for efficiency focusing on every aspect of installation and operation on today’s stator based electrical systems. It is designed with TrueAm’s PEP® programming which insures you maximum efficiency and battery attribute protection.

Without Battery Monitor
