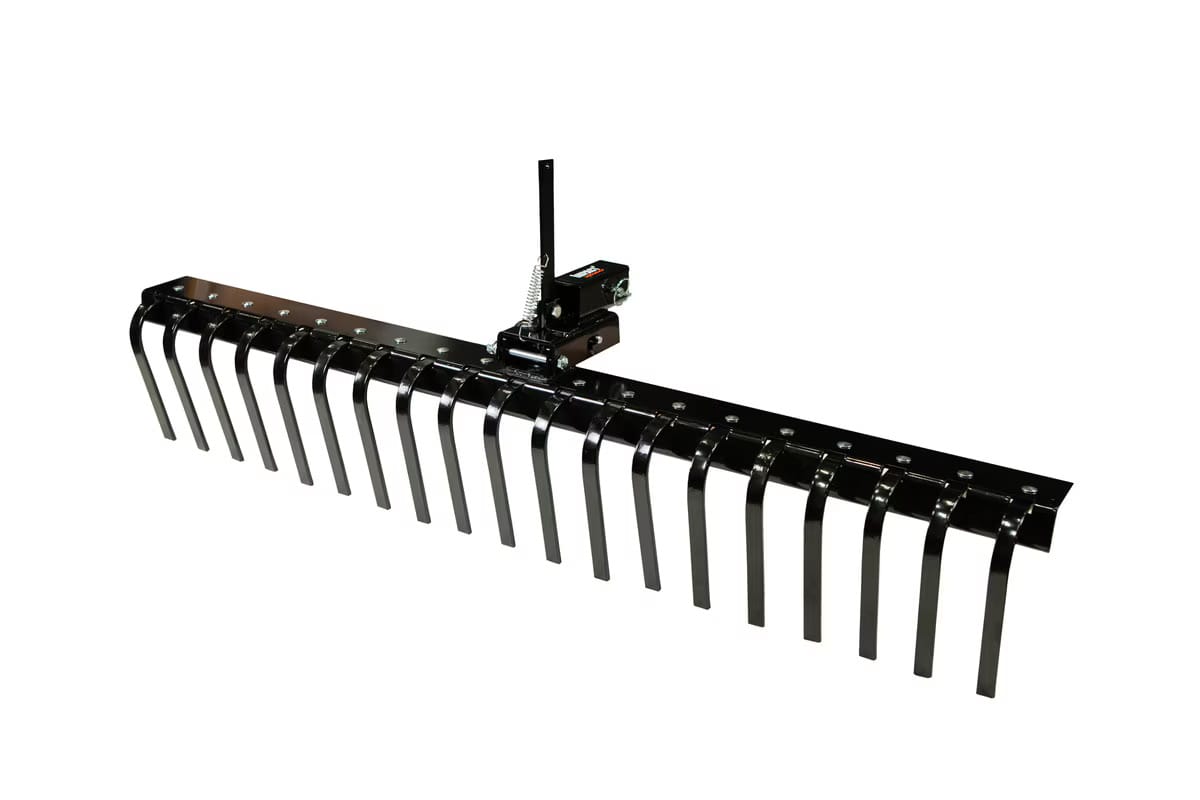

Moto Alliance Impact Implements 62″ Landscape Rake
Looking To Handle Heavy Jobs Around The House, Backyard Or Backwoods. This Impact Implements 62″ Landscape Rake For ATV’s And UTV’s Has You Covered
The Impact Implements™ 62″ Landscape Rake with Tipper Latch is our best-selling landscape accessory and for good reason.
Use it to clear brush, rake woodland trails, prepare soil for food plots, knock down unwanted gopher mounds, rake horse arenas, and thatch lawns. A nice tool for use around the farm, in the garden and on the lawn.
All new ″Quick Pull″ Release Latch allows rake to swing back for easy clean out of debris from the rake tines. Truly a do it all attachment!
This is Rake Only With A Hitch Reciever Mounted To the Top, You Need A Lift System, Just attach the Impact Implements™ Manual or Patented Hydraulic Lift System. If You Already Have The Lift System And Just Buying More Attachments you can choose to do that from the dropdowns.
Features:
- Dimensions: 62″ (W) x 10.75″ (H) x 7.75″ (D)
- Tines: 1″ (W) x 10″ (H)
- Cutting path: 60″ (W)
- Weight: 65 lbs
- Nineteen (19), replaceable spring steel rake tines

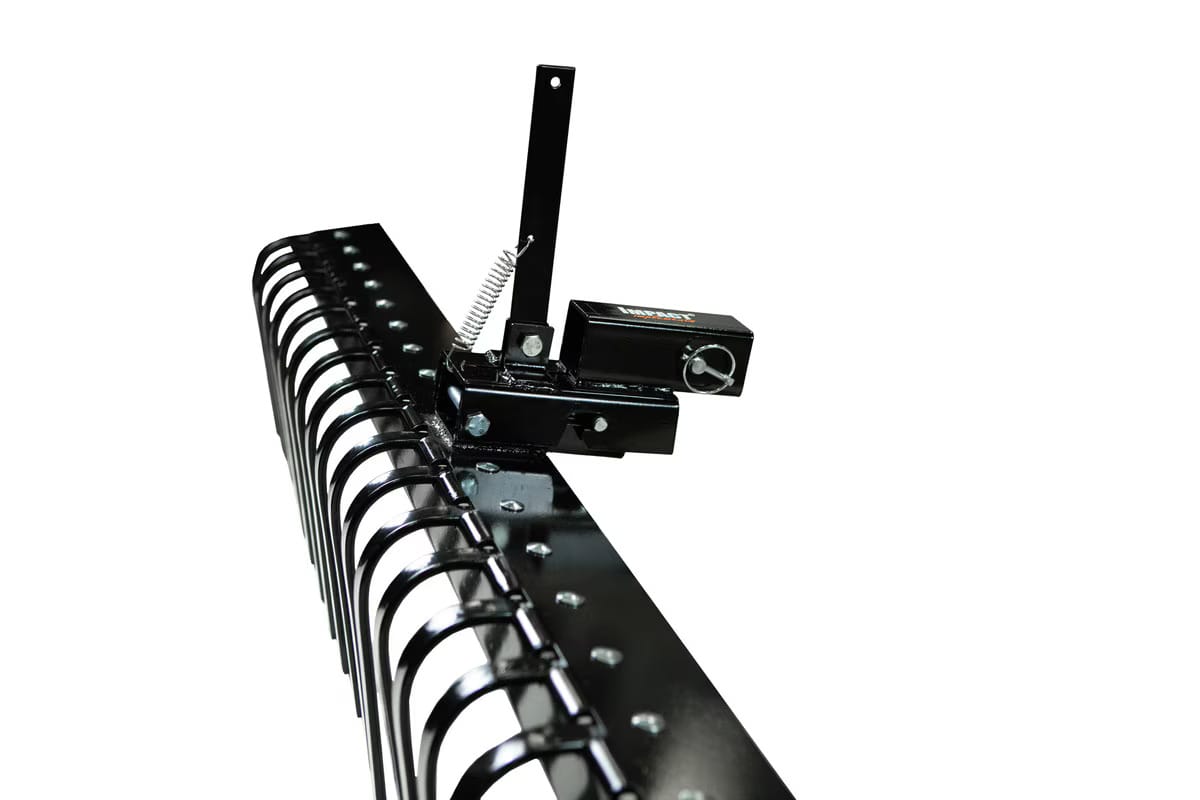

- “Quick Pull” Release Latch allows rake to swing back for easy clean out of debris from tines
- Easy one (1) pin mounting with the included pin
- Requires a 2″ hitch receiver (not included) installed on ATV/UTV/SxS
Hitch Lift Setup Options
HD One-Point Hydraulic Lift System
– Heavy Duty steel construction
– Approximately 1,100lbs of pushing force and 800lbs of pulling force
– Hydraulic lift for 10″ of adjustments
– Amp draw of pump 5A-30A, depending on load
– Single hitch pin (included) attachment for quick and easy accessory changes
– Requires a 2″ hitch receiver (not included) installed on machine
1-Point Manual Lift with 2″ Receiver
-Heavy-duty 14-gauge tube steel construction for added durability
-Four reinforced linkage arms and larger vertical riser for increased strength
-Additional gusset and mounting holes for greater height adjustments
-Manual crank/lift for an additional 10 inches of fine adjustments
-Three assembly positions allow for various starting positions for implement accessories
-Single hitch pin (included) attachment for quick and easy accessory changes
-Compatible with ATVs, UTVs, SxS, garden tractors, and lawn tractors
-Requires a 2″ hitch receiver (not included) installed on ATV/UTV
-Weighs only 48 lbs for easy maneuverability
