Heretic 6 Series LED Flush Mount Lights

From: $124.99

Financing As Low As 0% Available "See Options"

Heretic Studio Products

Vehicle Fitment Info In Tabs Below

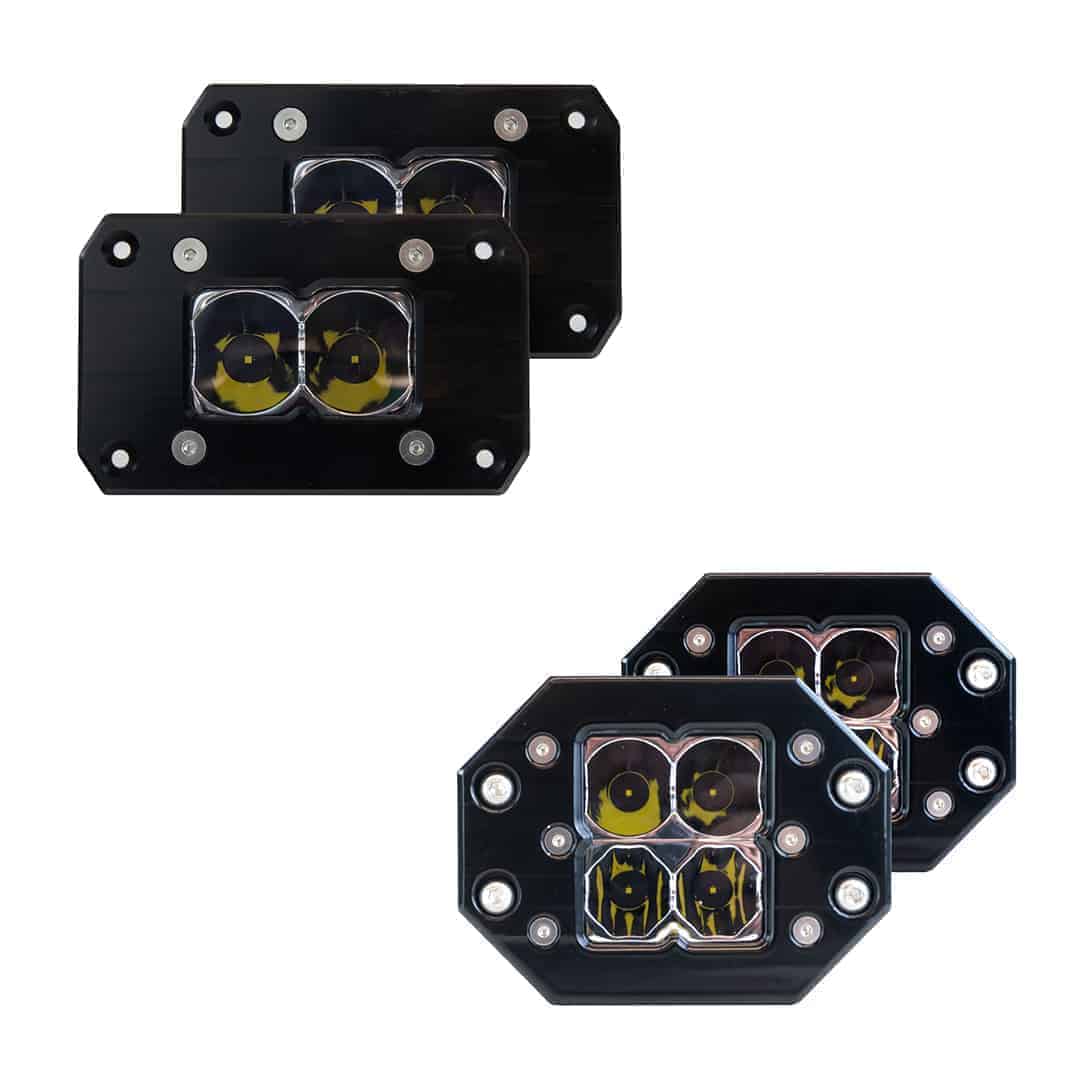

None Yes, 2 Rectangle +$26.99 Yes, 4 Square +$26.99 Yes, 4 Rectangle +$26.99 Yes, 2 Rectangle Pair +$65.99 Yes, 4 Square Pair +$65.99 Yes, 4 Rectangle Pair +$65.99
None Yes, Single +$61.99 Yes, Pair +$61.99
Dfb B American Cash Logo

Add to Wishlist

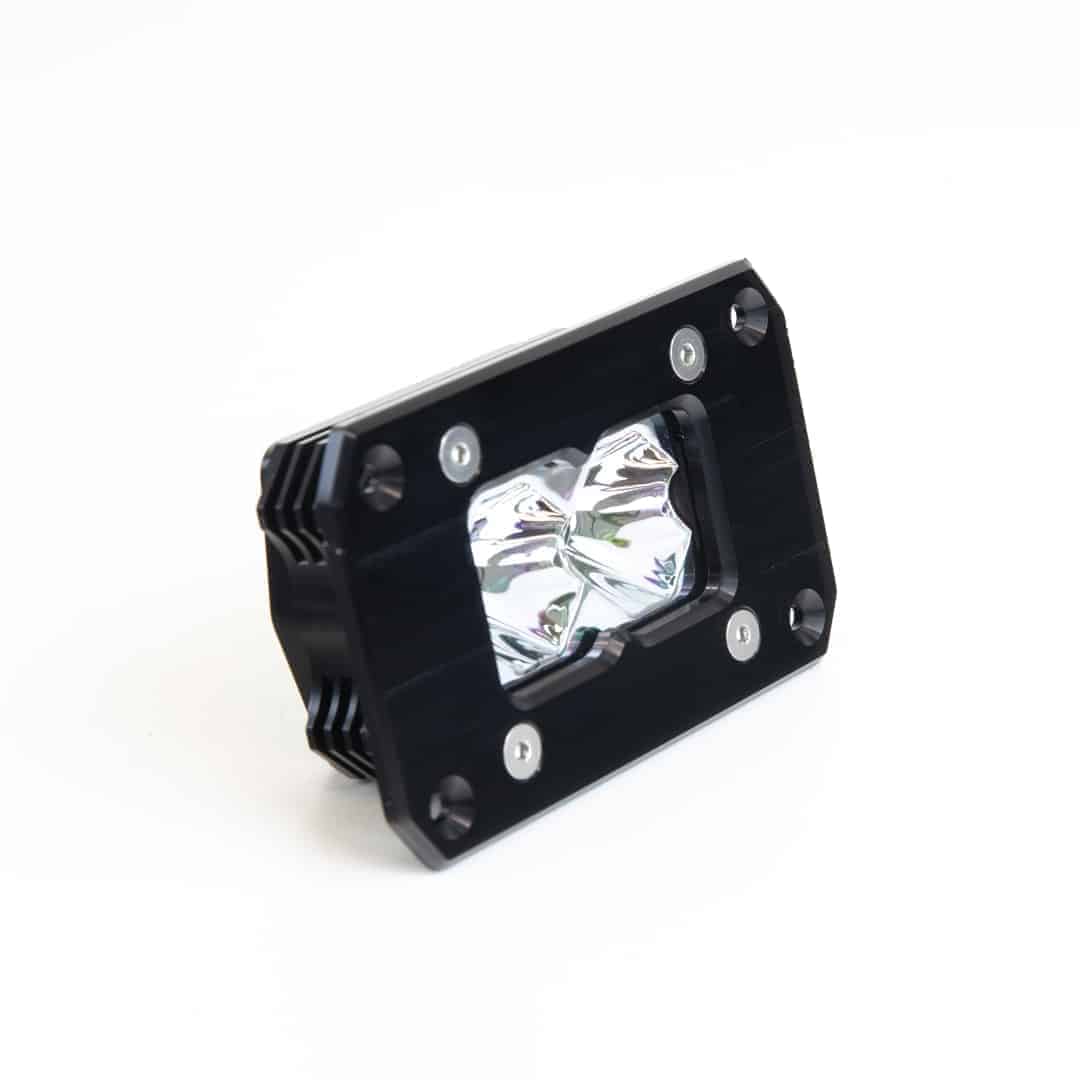

Heretic Studio LED Series 6 Light, Flush Mount

Turn Night Into Day with These Off-Road Flush Mount LED Pod Lights, 6-WATT CREE LED’s Across Entire Bar, CNC of Solid 6061 Billet Aluminum, USA Made Brightness

Same great light with a “flush” bezel for added mounting applications.

The 6 series LED Flush light bar is a single light and is known as the staple light bar.

Typically this light bar can be used in just about every application.

Often used in the front and rear bumpers of trucks, jeeps, SUVs, and UTVs. Used on the sides and rear of roof racks to provide scene lighting and chase lights.

The housing is a CNC machined aircraft-grade aluminum that makes it the most durable and high-quality housing on the market.

We use the highest-grade LEDs and circuit boards that allow this light to be as bright as it can be while still controlling heat. Internal reflectors have been designed and optimized to shape and put out the best light possible. Make this light yours.

Chose between a clear lens or get an amber lens for dusty and foggy conditions.

Designed, manufactured, and assembled in the USA.

All Light Bars Carry a 30-Day Satisfaction Guarantee and a Lifetime Warranty

Sold Individually, Increase Quantity To Order Multiple Bars.

Ordering Options:

  1. Bar Length – Choose Size of Bar
  2. Comes Black Anodized
  3. Light Beam Pattern – (See below for Descriptions)
  4. Add On Amber Lens – Comes with Clear Lens, Add On Amber (See below for Descriptions)
  5. Add Wire Harness – Option For Direct Plug and Play install.

LED Sizes and Specs

Ba Flush Artboard X

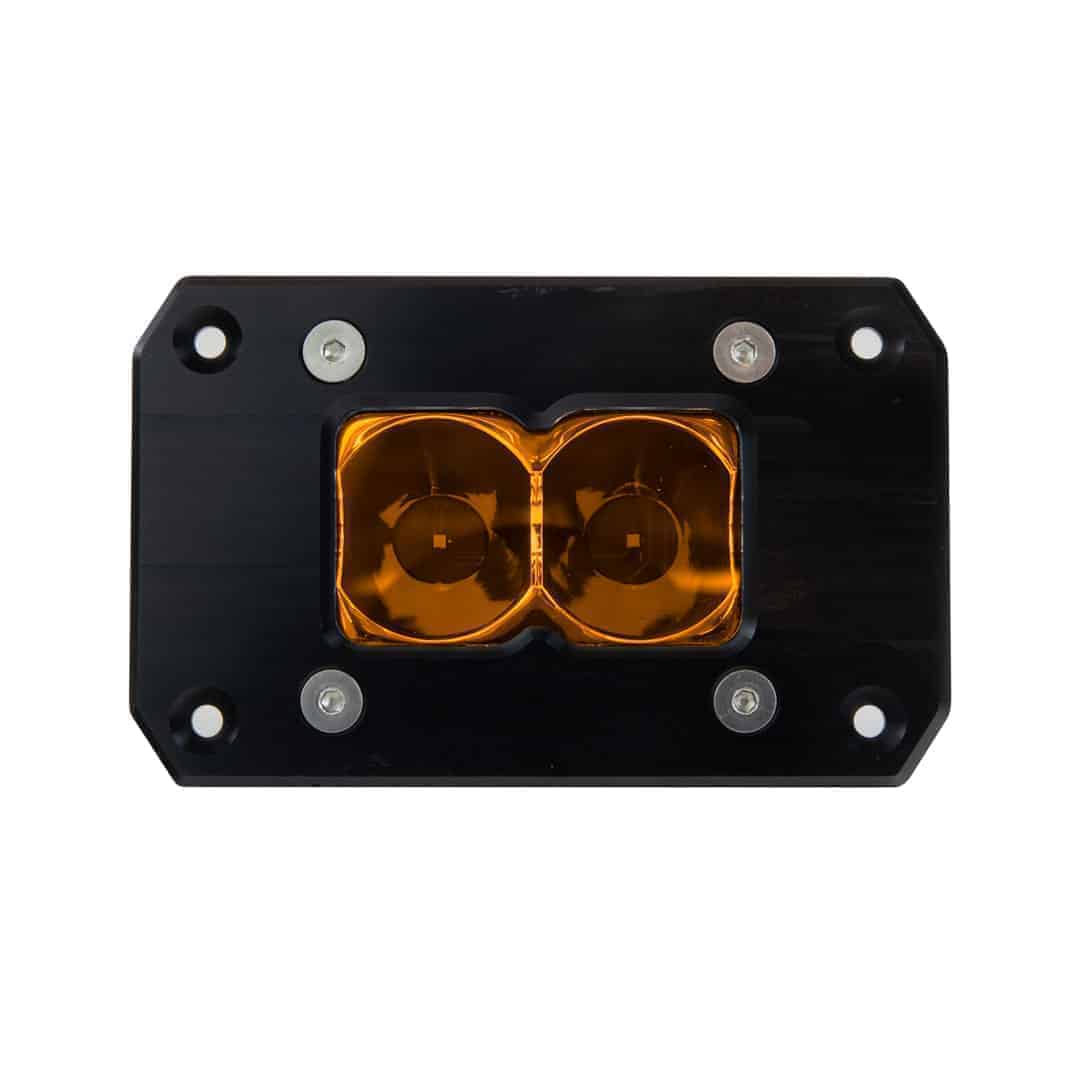

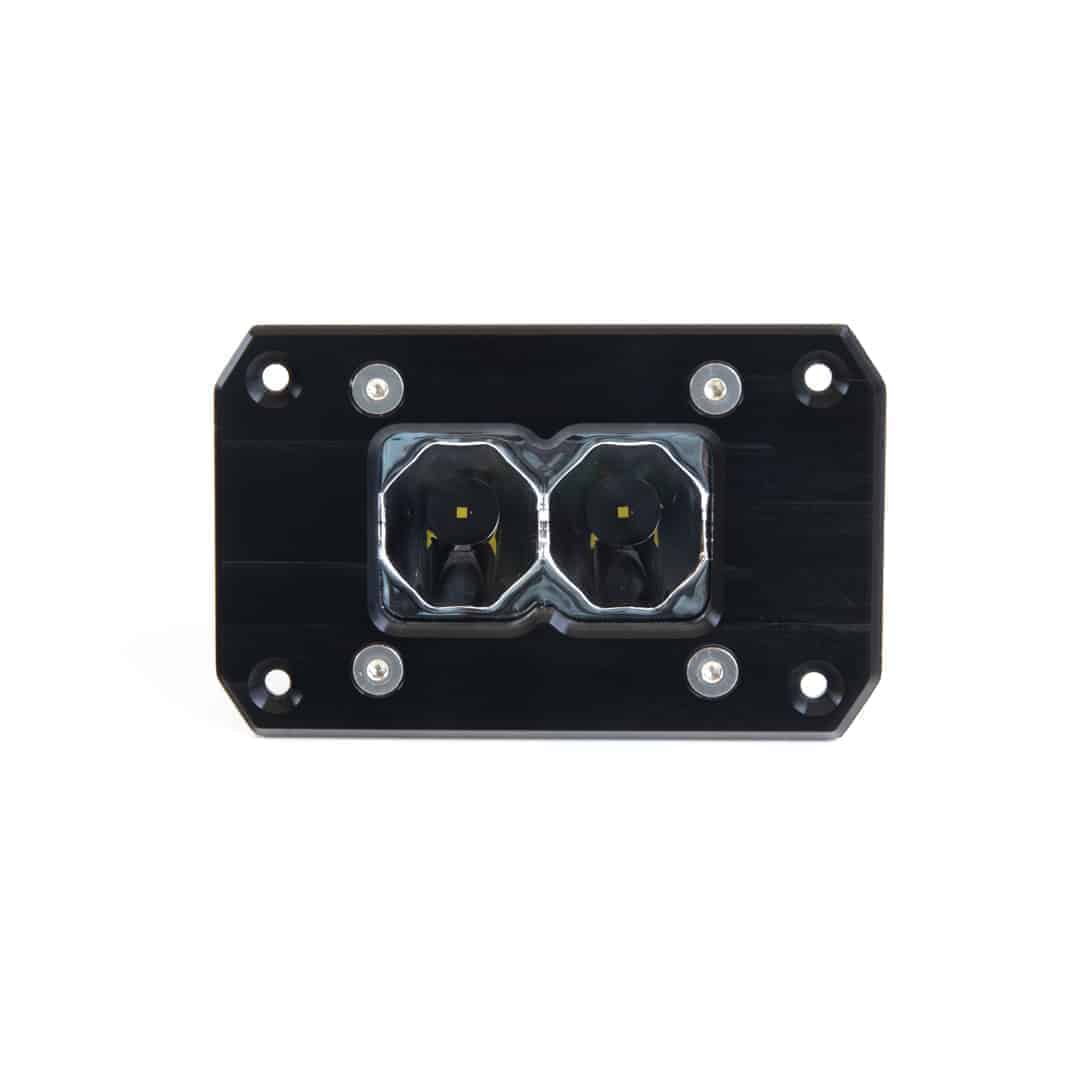

2 LED Rectangular

  • (2) 6-watt CREE LED
  • Full 12 watts of power, driven at 100%
  • Raw Lumens: 1452
  • 6061 billet housing
  • 3″ x 2.1″ x 2.4″
  • IP68 rated Stainless steel mounts
  • Amp draw 0.8 Peak at 13.8V
Quattro Flush Artboard X

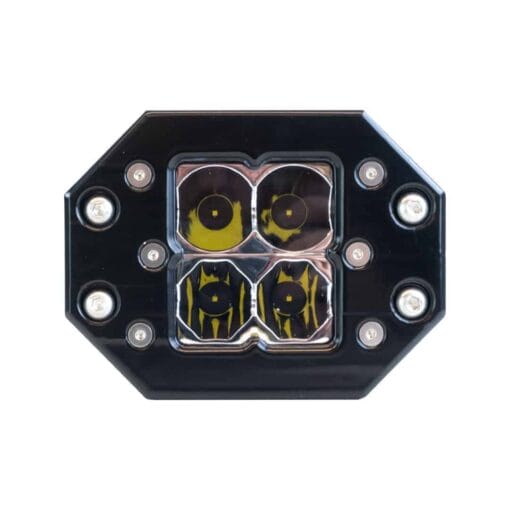

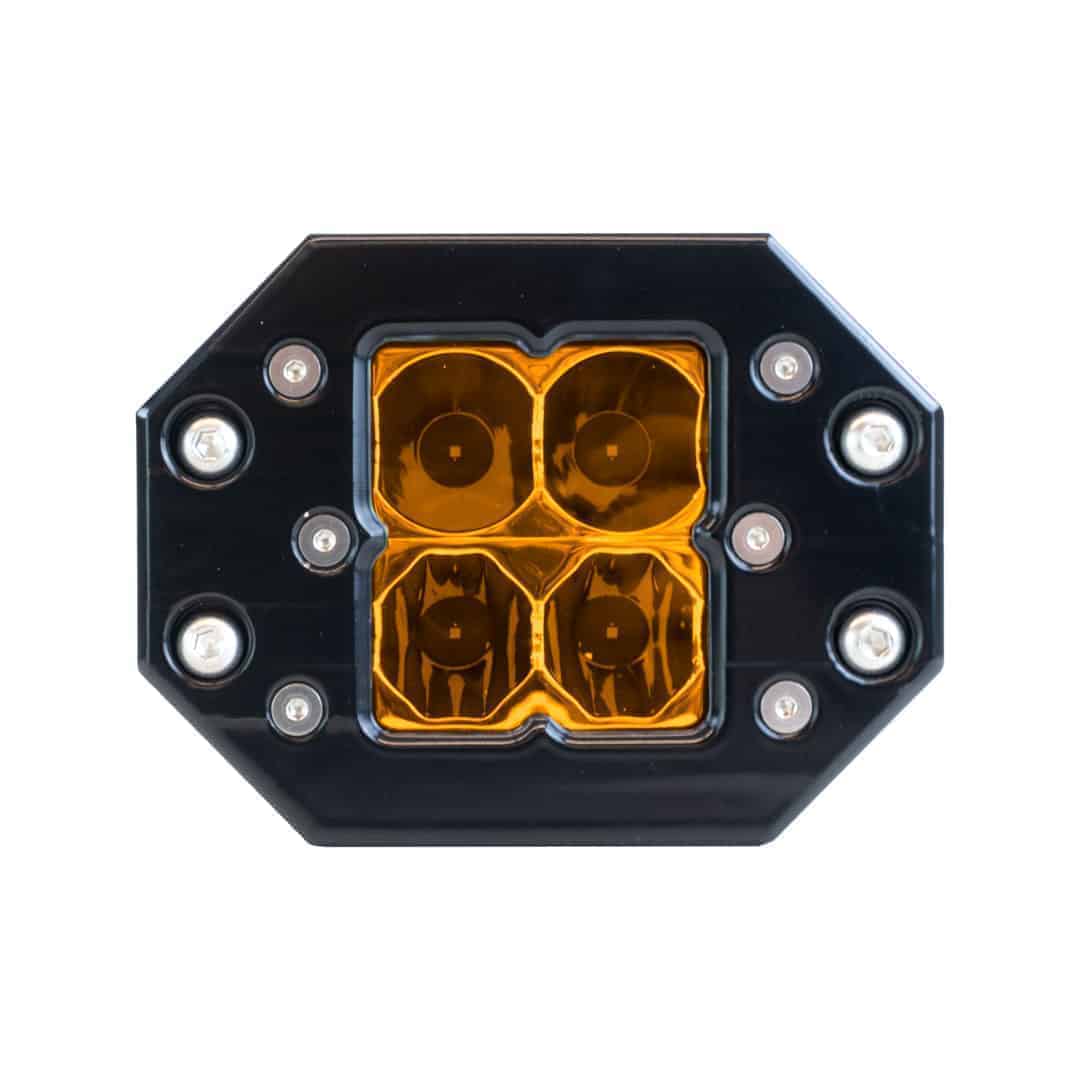

4 LED Square

  • (4) 6-watt CREE LED
  • Full 24 watt driven at 100%
  • 2904 lumen
  • 6061 billet housing
  • 3 x 2.75 x 1
  • IP68 rated Stainless steel mounts
  • Optional amber lens available
Ba Flush Artboard X

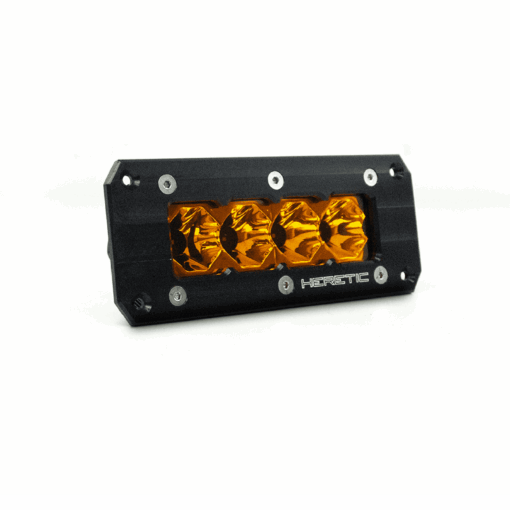

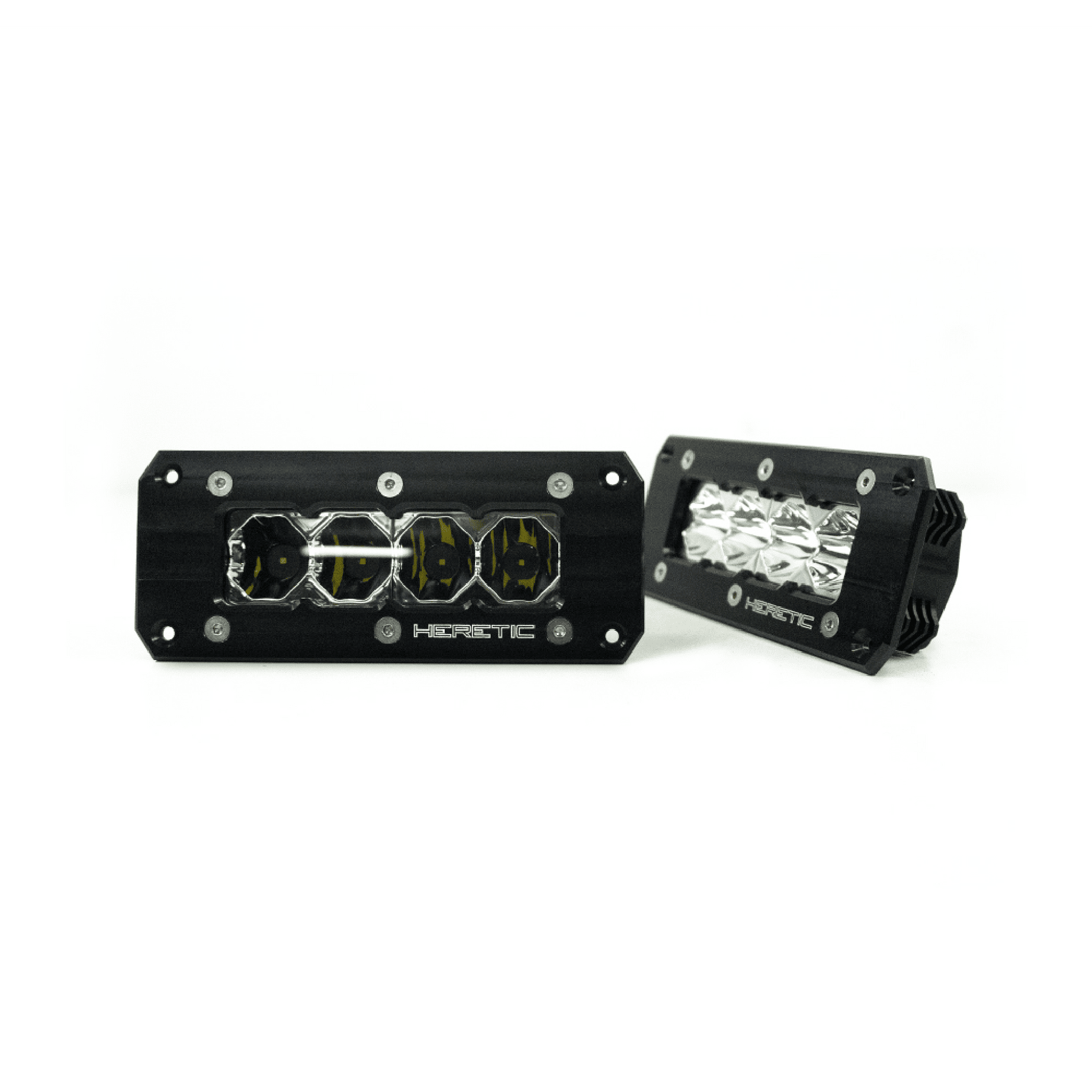

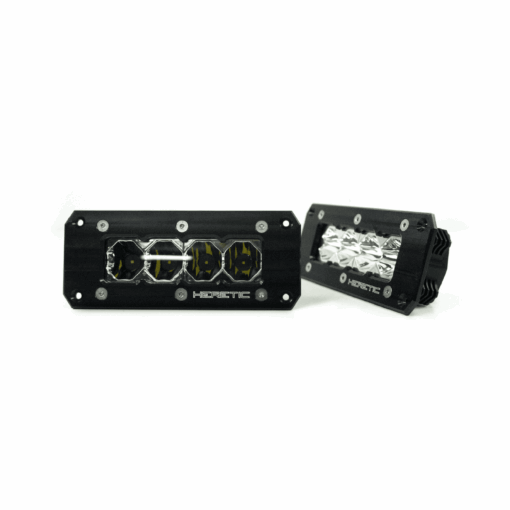

4 LED Rectangular

  • (4) 6-watt CREE LED
  • Full 24 watts of power, driven at 100%
  • Raw Lumens: 2904
  • 6061 billet housing
  • 5″ x 2.1″ x 2.4″
  • IP68 rated Stainless steel mounts
  • Amp draw 1.9 Peak at 13.8V
  • Optional amber lens available
Beb A Dc Bd

Constructed from a Single Block of Aluminum

Single block construction for a seamless design that keeps the elements out and lasts longer than typical aftermarket plastic lights.

Unnamed File

Optimized Light Shape & Lumens

We use the highest quality circuit boards, reflectors, and LED bulbs to not only produce industry best lumen counts, but the best light shape on the market.

Unnamed File

Made in the USA

All of our products are proudly designed and manufactured in the USA.

Unnamed File

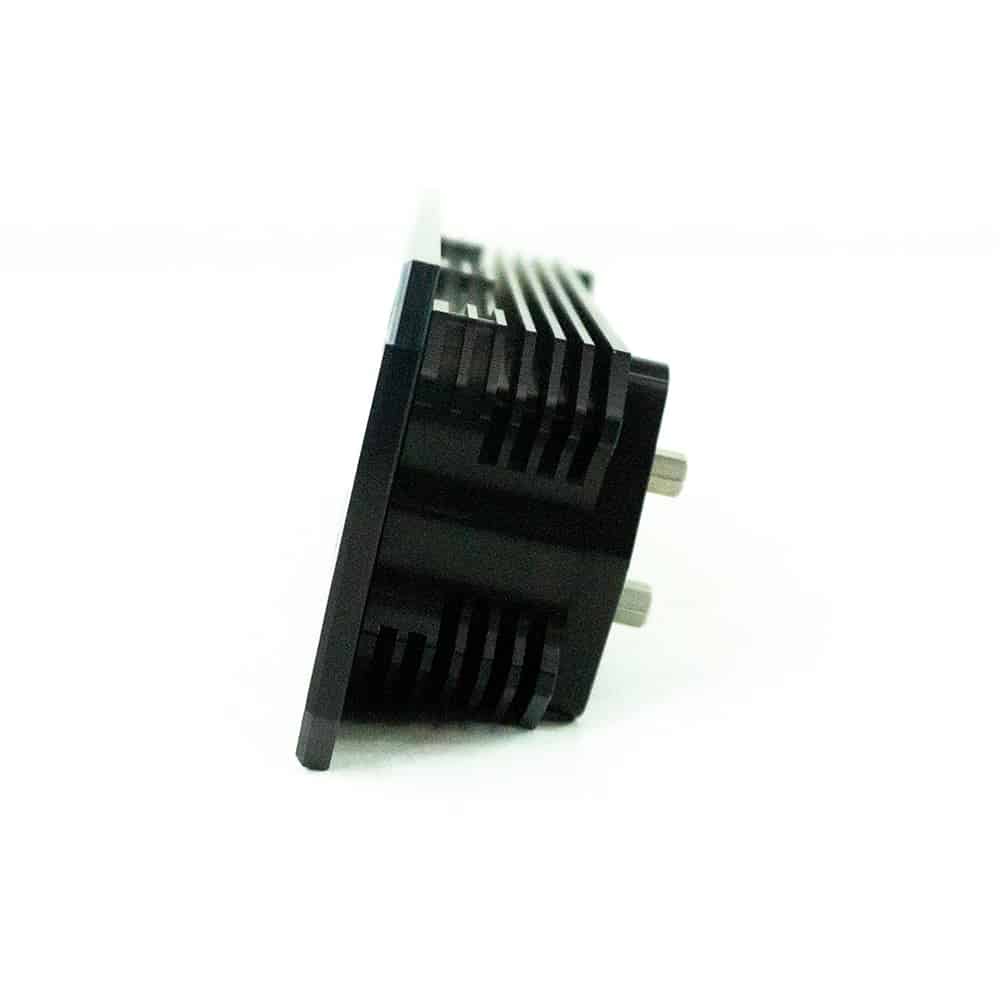

Heat Management

Our self regulating circuit boards paired with our aircraft grade aluminum housings with cooling fins create a more efficient heat transfer, allowing lights to function at full capacity.

Add A Heading Copy

Versatile Mounting Options

Mounts to most aftermarket bumper, ditch, chase & roof racks.

LED Patterns


  • The difference between the two beam patterns comes down to a question of depth versus width.
  • Spotlight beams are much more focused and narrow, producing a light beam that illuminates objects that are longer distances away but not providing as much in the way of side to side illumination.
  • Generally, spotlight beam patterns are preferred for on-road driving.


  • Opposite to spotlights beams, floodlight beams have a much wider angle of illumination, but lack the ability to light up far away objects. Floodlights are usually the better choice for lighting up a worksite or for off-roading where brightly illuminating hazards on the side of the road is crucial.


  • If you aren’t sure which beam pattern is the best for you, or if you are going to be in situations where both are preferred, then perhaps you should consider an LED light bar that is made up of a combination of both bulbs.
  • Having both spot and flood beams gives you full illumination of far away objects and objects that are off to your side, making combination light bars a highly popular choice.
Pod Light Beam Pattern

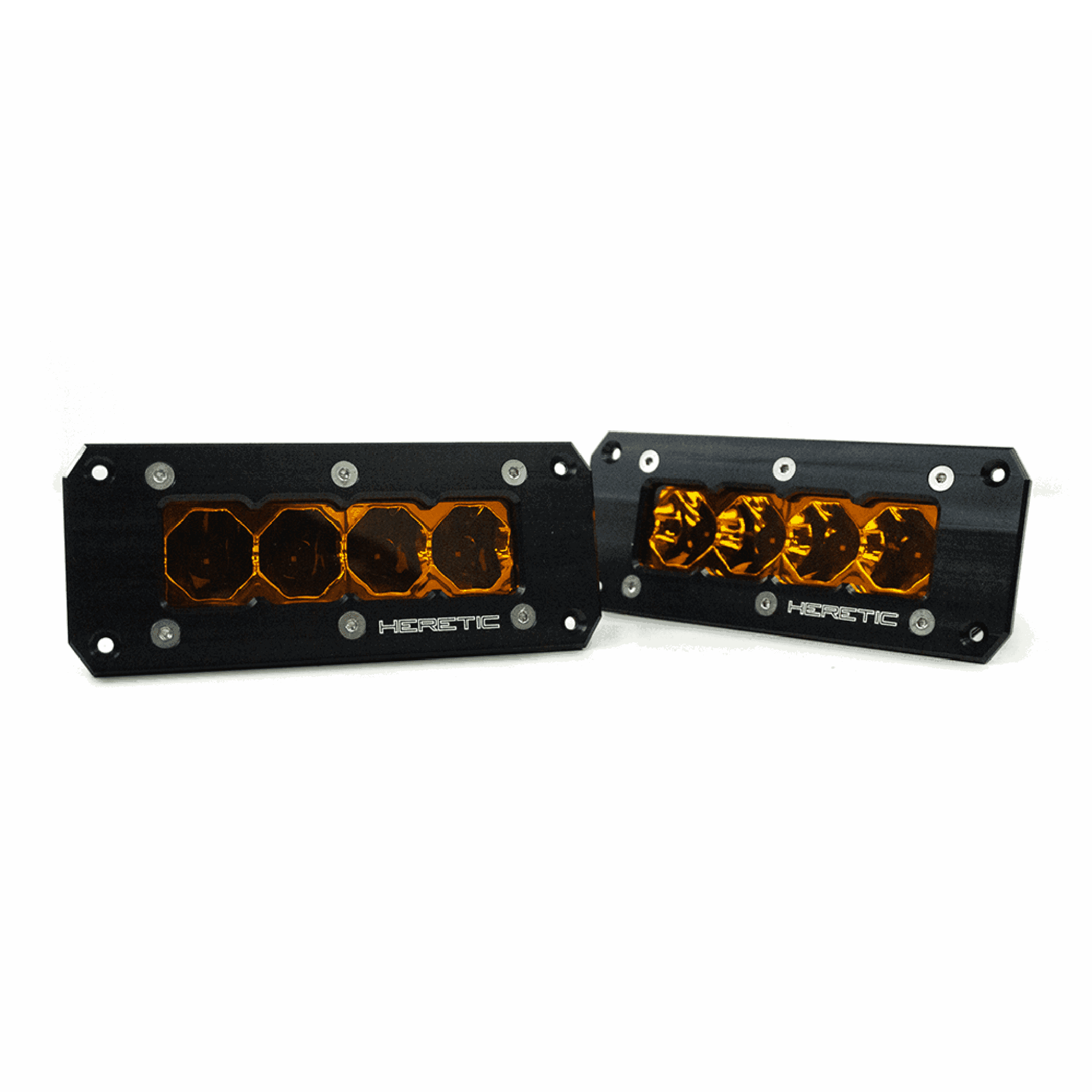

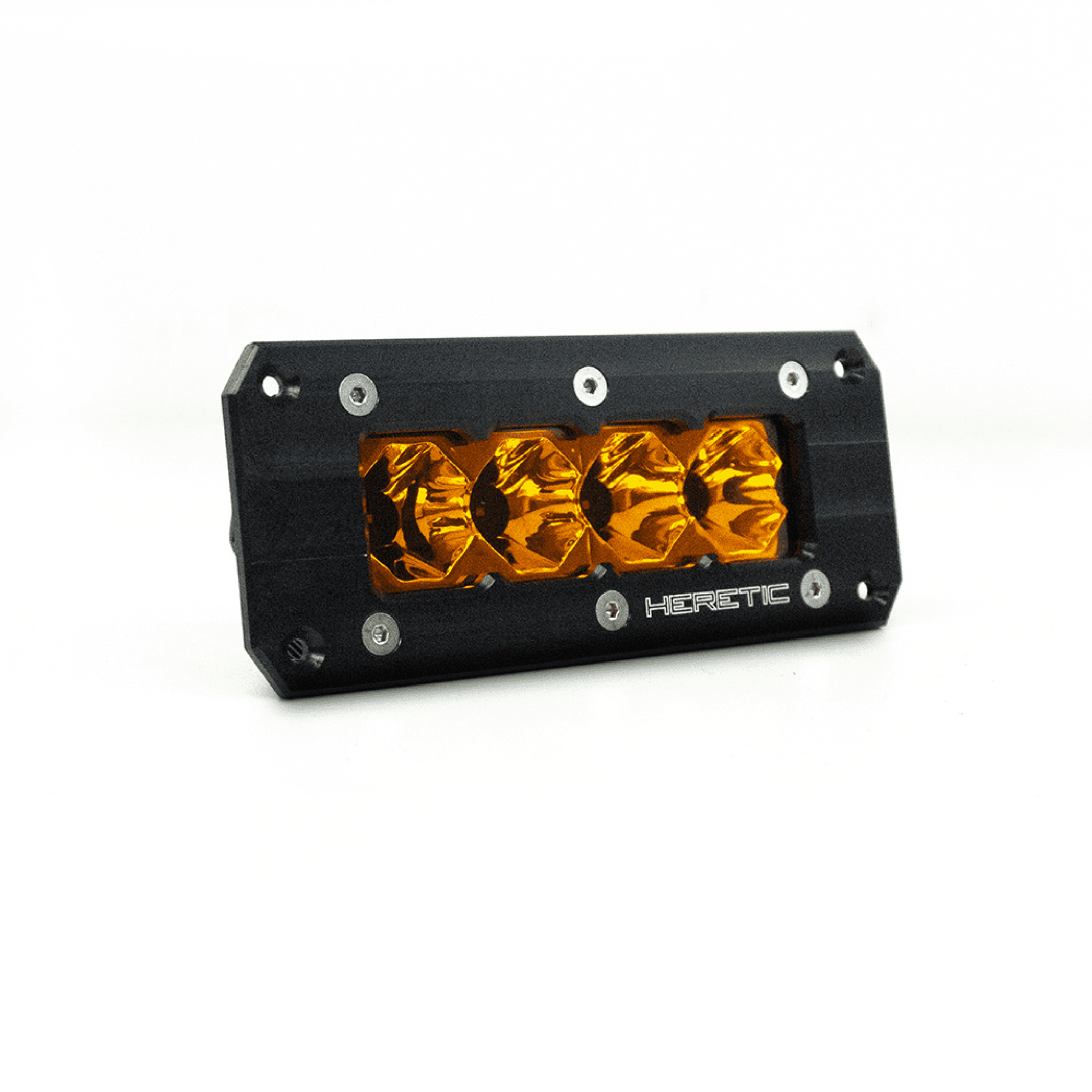

Amber Lens

Heretic 6 Series Led Flush Mount Lights

When people refer to an amber LED light bar, they are referring to the unique color of light that these light bars produce.

As it turns out, this particular LED color is especially advantageous in certain driving situations. Due to the nature of the light, amber light is great for penetrating through vision-obstructing driving conditions such as rain, snow, fog, and heavy dust.

If you are going to be primarily using your LED light bar in off-road driving situations that are going to throwing up a lot of dust, an amber LED light bar for trucks is a great option to consider.

For clear conditions, an amber LED light bar is not as penetrating as a traditional white LED light bar, but if you find yourself often driving in hazardous conditions that limit visibility, then an amber light bar may be your best bet for ensuring you can see potential dangers on the road before it is too late.

Warranty is limited to product failure under normal operating conditions. Warranty does not cover improper installation or damage caused by improper usage..

If product failure occurs within 30 days under normal operating conditions, the product can be sent in to be repaired or replaced.

If product is repaired or replaced, return shipping charges will be covered by Heretic Studio.

If product is returned after 30 days the customer can send in product for replacement or repair, but customer will incur shipping charges.

If you have a product in need of warranty please contact us at [email protected] for assistance.


Heretic Studio offers a 30 day no hassle refund policy on all unopened items in original condition, subject to a 15% restocking fee.

If item has been installed it is not eligible for a refund. Item must be returned unused and in its original packaging.

In Stock Items:

Any In Stock items will be shipped within 24-36 hours of order processing Monday through Friday, orders placed on Saturday or Sunday will be processed Monday.

When Your items are Picked Up By The Shipper Our System will Updated and Email You Tracking.
