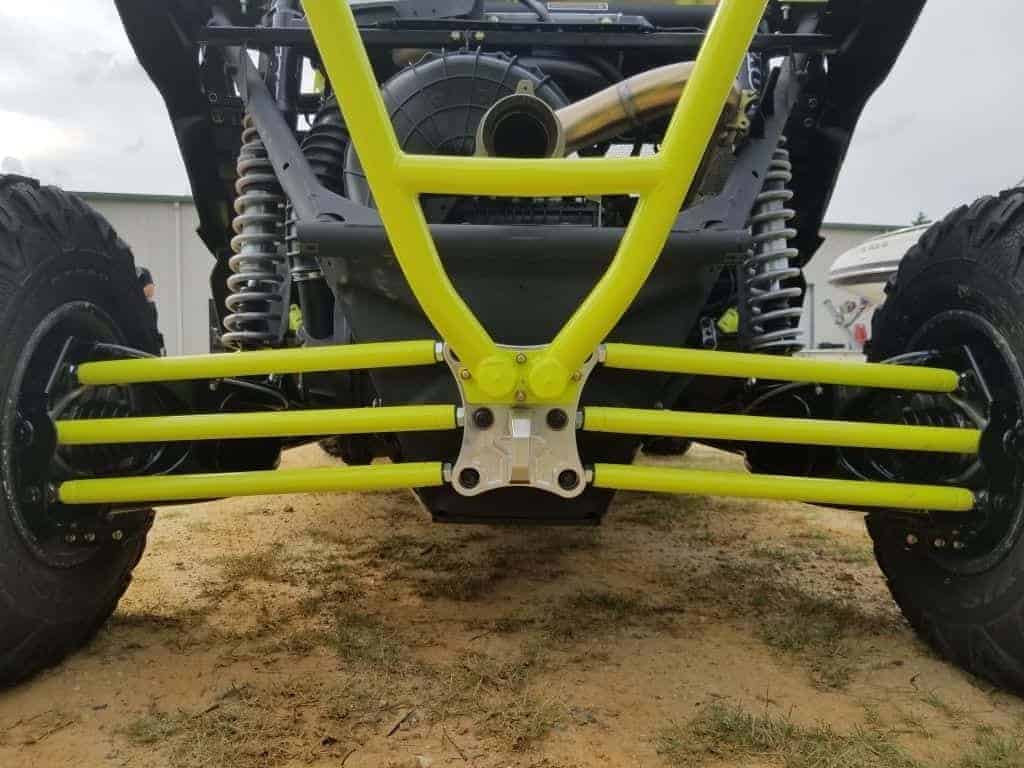

CT Race Worx Straight Race Radius Rods for Maverick X3 64″ Models

4130 Chromoly and Tig Welded to Perfection These Maverick X3 Race Radius Rods, Everything You Could ask for: Performance Race Radius Rods.

We build several different lines of radius rods for the X3 to cover all different types of riding and needs. These are perfect for guys in the dunes, desert riders, short course racers, guys trying to win big air competitions and anything else you want to throw at them.

Don’t be fooled by cheap imitations using inferior joints.  You may pay less at up front but over the course of a year after those cheap joints wear out you’re going to have more time and money invested than doing it right the first time.

These are our chromoly radius rods.

Spec’s:

Built from 1.25″ .120 4130 chromoly and then tig welded to perfection these rods offer everything you could ask for out of a set of straight radius rods.

We use RH and LH joints on the upper and middle radius rods so that they can be adjusted on the car without having to remove anything.

The lower radius rods have the RH thread on both sides so they are not adjustable on the car.

When jumping or bottoming out the car the lower radius rods see a pull force, on a RH and LH thread setup that can stretch the threads over time, loosen the jam nuts and the joints start to back out of the rod.  With RH on both sides that is no longer a worry.

303 Stainless is the material of choice for the misalignment spacers.  We machine these in house to provide a tight tolerance and great fit that won’t create problems down the road.

JMX Joints:

What sets apart from the norm in the industry are the joints that we use, we use the absolute highest quality joint on the market.

The JMX series of joints from FK is something that we’ve had a tremendous amount of success with over the years.

These joints use a fabric based Teflon liner known as a PTFE liner.

The inner joint housing is compressed to create a preload on the ball that will stay tight roughly 3 times longer than a standard injected teflon rod end, which is standard in the industry.

We do offer boots for these joints at an addition price of $6.50 per joint, this increases the life of the joint even more by keeping the debris out of the joint.

These rods have a structural lifetime warranty, failures due to direct impacts will not be warrantied.

Learn More AboutCT Race Worx

CT Race Worx proudly crafts all of our products by hand in the U.S.A. We build our parts to withstand the toughest of conditions and we believe that factory parts will fail the customer before our parts will, as long as they have been installed correctly and have not been modified, altered, improperly installed or otherwise not used as originally intended. We guarantee our parts for life to the original purchaser from failures that are due to craftsmanship, material failure or any other factors that are determined to be our responsibility.

These Products have became the Industry Leading And Have Been Selling So Fast Times have Been Extended, Items Can Ship Faster But These Are Standard Times:

  • Currently A-Arms are shipping about 3-4 weeks after order date. Placing Your order holds Your Place in line and We will ship right off of the production line to you.
  • Gusset Kits and Shock Mounts are shipping about 3-4 weeks after order date. Placing Your order holds Your Place in line and We will ship right off of the production line to you.

Normal In-stock or Raw Products
We try to process and ship all products 5-10 Business Days after orders are placed, we only ship Monday – Friday.

Fabricated and or Powered Coating.
Please Allow about 4 weeks to process Fabricated and or Powder Coated Items.

We strive to ship products out sooner than that , and often times next day, but we can not guarantee that with standard, free shipping.

Make Model Year
Can-Am Off Road Maverick X3 900 HO 2018
Can-Am Off Road Maverick X3 DS Turbo 2021 - 2022
Can-Am Off Road Maverick X3 DS Turbo R 2020 - 2021
Can-Am Off Road Maverick X3 DS Turbo RR 2022
Can-Am Off Road Maverick X3 MAX DS Turbo 2021 - 2022
Can-Am Off Road Maverick X3 MAX DS Turbo RR 2022
Can-Am Off Road Maverick X3 Max Turbo 2018 - 2020
Can-Am Off Road Maverick X3 Max Turbo R 2017 - 2019
Can-Am Off Road Maverick X3 Max X DS Turbo R 2017 - 2021
Can-Am Off Road Maverick X3 MAX X DS Turbo RR 2020 - 2022
Can-Am Off Road Maverick X3 Turbo 2018 - 2020
Can-Am Off Road Maverick X3 Turbo R 2017 - 2020
Can-Am Off Road Maverick X3 X DS Turbo R 2017 - 2020
Can-Am Off Road Maverick X3 X DS Turbo RR 2020 - 2022
Can-Am Off Road Maverick X3 X MR Turbo 2018 - 2021
Can-Am Off Road Maverick X3 X MR Turbo RR (64) 2022
Can-Am Off Road Maverick X3 X RC Turbo 2018 - 2021
Can-Am Off Road Maverick X3 X RC Turbo RR (64) 2022
